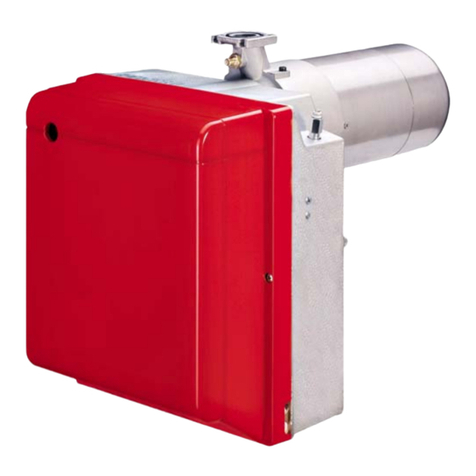

Riello RS 34/M MZ Quick start guide

2916360 (12) - 05/2017
Installation, use and maintenance instructions
Instrucciones de instalación, montaje y funcionamiento
Instruções de instalação, uso e manutenção
Forced draught gas burners
Quemadores de gas de aire soplado
Queimadores a gás com ar insuflado
Progressive two-stage or modulating operation
Funcionamiento a dos llamas progresivas o modulante
Funcionamento a duas chamas progressivas ou modulante
CODE - CÓDIGO MODEL - MODELO TYPE - TIPO
3788710 RS 34/M MZ 874 T
3788711 RS 34/M MZ 874 T
3788810 RS 44/M MZ 875 T
3788811 RS 44/M MZ 875 T
3788840 RS 44/M MZ 875 T
3788841 RS 44/M MZ 875 T
GB
E
PT

CONTENTS
DECLARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Structural versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Gas categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Burner description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Packaging - Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Max dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Standard equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Firing rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Test boiler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Commercial boilers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Gas pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Working position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Boiler plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Blast tube length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Fixing the burner to the boiler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Combustion head setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Gas feeding line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Adjustment prior to ignition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Servomotor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Burner start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Burner ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Burner calibration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Determination of output upon ignition (minimum). . . . . . . . . . . . . . 11
1 - Output upon ignition (minimum) . . . . . . . . . . . . . . . . . . . . . . . . 11
2 - Maximum output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 - Intermediate outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 - Air pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 - Minimum gas pressure switch. . . . . . . . . . . . . . . . . . . . . . . . . .13
Flame presence check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Burner operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Final checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Switchboard maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Fault - Probable cause - Suggested remedy . . . . . . . . . . . . . . . . .18
Normal operation / flame detection time. . . . . . . . . . . . . . . . . . . . .19
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Switchboard layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
N.B.
Figures mentioned in the text are identified as follows:
1)(A) =part 1 of figure A, same page as text;
1)(A)p.3 =part 1 of figure A, shown on page 3.
INFORMATION ABOUT THE INSTRUCTION MANUAL
INTRODUCTION
The instruction manual supplied with the burner:
- is an integral and essential part of the product and must not be sep-
arated from it; it must therefore be kept carefully for any necessary
consultation and must accompany the burner even if it is trans-
ferred to another owner or user, or to another system. If the manual
is lost or damaged, another copy must be requested from the Tech-
nical Assistance Service of the area;
- is designed for use by qualified personnel;
- offers important indications and instructions relating to the installa-
tion safety, start-up, use and maintenance of the burner.
DELIVERY OF THE SYSTEM AND THE INSTRUCTION MAN-
UAL
When the system is delivered, it is important that:
- The instruction manual is supplied to the user by the system manu-
facturer, with the recommendation to keep it in the room where the
heat generator is to be installed.
- The instruction manual shows:
- the serial number of the burner;
- the address and telephone number of the nearest Assistance
Centre;
- The system supplier carefully informs the user about:
- the use of the system,
- any further tests that may be necessary before the system is
started up,
- maintenance and the need to have the system checked at least
once a year by the manufacturer or another specialised techni-
cian.
To ensure a periodic check, the manufacturer recommends the
drawing up of a Maintenance Contract.
GB
..................................................................................
..................................................................................
..................................................................................
..................................................................................

1
Declaration of conformity in accordance with ISO / IEC 17050-1
Manufacturer: RIELLO S.p.A.
Address: Via Pilade Riello, 7
37045 Legnago (VR)
Product: Forced draught gas burners
Model: RS 34-44/M MZ
These products are in compliance with the following Technical Standards:
EN 676
EN 12100
and according to the European Directives:
GAD 2009/142/EC Gas Devices Directive
MD 2006/42/EC Machine Directive
LVD 2014/35/UE Low Voltage Directive
EMC 2014/30/UE Electromagnetic Compatibility
Such products are marked as follows:
The quality is guaranteed by a quality and management system certified in accordance with ISO 9001:2015.
Manufacturer’s Declaration
RIELLO S.p.A. declares that the following products comply with the NOx emission limits specified by German standard “1. BImSchV release
26.01.2010”.
Product Type Model Power
Forced draught gas burners 875 T RS 44/M MZ 80 - 550 kW
Declaration of Conformity A.R. 8/1/2004 & 17/7/2009 – Belgium
Manufacturer: RIELLO S.p.A.
37045 Legnago (VR) Italy
Tel. ++39.0442630111
www.riello.com
Distributed by: RIELLO NV
Ninovesteenweg 198
9320 Erembodegem
Tel. [phone]
Fax. [phone]
e-mail. [email protected]
URL. www.riello.be
It is hereby certified that the apparatuses specified below conform with the model of the type described n the CE conformity declaration and
they are produced and placed in circulation in conformity with the provisions defined in L.D. dated January 8, 2004 and July 17, 2009.
Type of product: Forced draught gas burners
Model: RS 34-44/M MZ
Regulation applied: EN 676 and A.R. dated January 8, 2004 - July 17, 2009
Control body: TÜV Industrie Service GmbH
TÜV SÜD Gruppe
Ridlerstrase, 65
80339 München DEUTSCHLAND
Measured value: RS 34/M MZ
CO max: 7 mg/kWh
NOx max: 103 mg/kWh
RS 44/M MZ
CO max: 2 mg/kWh
NOx max: 89 mg/kWh
Legnago, 01.12.2015 Executive General Manager
RIELLO S.p.A. - Burner Department Research & Development Director RIELLO S.p.A. - Burner Department
Mr. U. Ferretti Mr. F. Comencini
CE-0085BR0378

2
TECHNICAL DATA
(1) Reference conditions: Room temperature 20°C - Gas temperature 15°C - Barometric pressure 1013 mbar - Altitude 0m above sea level.
(2) Socket pressure 7)(A)p.4 with zero pressure in the combustion chamber.
(3) Sound pressure measured in manufacturer's combustion laboratory, with burner operating on test boiler and at maximum rated output. The
sound power is measured with the “Free Field” method, as per EN 15036, and according to an “Accuracy: Category 3” measuring accuracy,
as set out in EN ISO 3746.
GAS CATEGORIES
MODEL RS 34/M MZ RS 44/M MZ RS 44/M MZ
TYPE 874 T 875 T 875 T
OUTPUT (1) MAX. kW 125 - 390
108 - 336 203 - 550 175 - 473 203 - 550 175 - 473
Mcal/h
MIN. kW
Mcal/h 45 39 80 69 80 69
FUEL NATURAL GAS: G20 - G21 - G22 - G23 - G25
G20 G25 G20 G25 G20 G25
- net calorific value kWh/Sm3
Mcal/Sm39.45
8.2 8.13 7.0 9.45 8.2 8.13 7.0 9.45 8.2 8.13
7.0
- absolute density kg/Sm30.71 0.78 0.71 0.78 0.71 0.78
- max. delivery Sm3/h 41 48 58 67.6 58 67.6
- pressure at max. delivery (2) mbar 13.1 18.4 16.7 23.2 16.7 23.2
OPERATION • On-Off (1 stop min each 24 hours).
• Progressive two-stage or modulating by kit (see ACCESSOIRES).
STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
AMBIENT TEMPERATURE °C 0 - 40
COMBUSTION AIR TEMPERATURE °C max 60
ELECTRICAL SUPPLY V
Hz 230 ~ +/-10% 50/60 - single-phase 230 - 400 with neutral ~ +/- 10% 50/60 - three-phase
ELECTRIC MOTOR rpm
W
V
2800
300
220 - 240
2800
420
220 - 240
2780
450
220/240-380/415
ACCELERATION CURRENT A 15 17 14 - 10
WORKING CURRENT A 3.2 3.5 2 - 1.4
MOTOR CAPACITOR F/V 12.5/260 12.5/420 -
IGNITION TRANSFORMER V1 - V2
I1 - I2 230 V - 1 x 15kV 1 A - 25mA
ELECTRICAL POWER
CONSUMPTION W max 600 700 750
PROTECTION LEVEL IP40
NOISE (3) SOUND PRESSURE
SOUND POWER dBA 68
79 70 81 70 81
STRUCTURAL VERSIONS
Model ELECTRICAL POWER
SUPPLY BLAST TUBE LENGTH mm
RS 34/M MZ single-phase
single-phase 216 351
RS 44/M MZ
single-phase
single-phase
three-phase
three-phase
216
351
216
351
DESTINATION COUNTRY GAS CATEGORY
SE - FI - AT - GR - DK - ES - GB
IT - IE - PT - IS - CH - NO I2H
DE I2ELL
NL I2L - I2E - I2(43,46 ÷ 45,3 MJ/m3(0°C))
FR I2Er
BE I2E(R)B
LU - PL I2E

3
ACCESSORIES (optional):
• RADIO DISTURBANCEPROTECTION KIT
If the burner is installed in places particularly subject to radio disturbance (emission of signals exceeding 10 V/m) owing to the presence of an
INVERTER, or in applications where the length of the thermostat connections exceeds 20 metres, a protection kit is available as an interface
between the control box and the burner.
• KIT LONG HEAD
• KIT FOR LPG OPERATION: the kit allows the RS 34-44/M MZ burners to burn LPG.
• KIT FOR MODULATING OPERATION
• GAS TRAINS TO COUPLE WITH THE BURNER, ACCORDING TO REGULATION EN 676 (complete with valves, pressure adjuster and
filter): see page 9.
NOTE: The installer is responsible for the addition of any safety device not foreseen in this manual.
BURNER RS 34-44/M MZ
Code 3010386
BURNER RS 34/M MZ RS 44/M MZ
Code 3010428 3010429
BURNER RS 34/M MZ RS 44/M MZ
Output kW 80/125 - 390 kW 120/200 - 530 kW
Blast tube length mm 216 - 351 216 - 351
Code 3010423 3010424
OUTPUT POWER REGULATOR KIT RWF SIGNAL CONVERTER KIT 4-20 mA, 0-10V
Two components should be ordered:
• the Output power regulator to install on the burner;
• the Probe to install on the heat generator
Two components should be ordered:
• the Analogical signal converter;
• the Potentiometer
Parameter to control Probe Output power regulator Potentiometer Analogical Signal
Converter
Adjustment field Type Code Type Code Type Code Type Code
Temperature - 100...+500°C PT 100 3010110 RWF50.2
RWF55.5 20083339 20098541 ASZ... 3010420 E5202 3010410
Pressure 0...2.5 bar
0...16 bar Output probe 4...20 mA 3010213 3010214
• POTENTIOMETER KIT FOR THE INDICATION
OF LOAD POSITION Code 3010420 • KIT GROUND FAULT INTERRUPTER Code 3010448
• MAXIMUM GAS PRESSURE SWITCH Code 3010418 • KIT CONTINUOUS PURGING Code 3010449
• KIT CLEAN CONTACTS Code 3010419 • KIT HOURCOUNTER Code 3010450
• KIT POST-PURGING Code 3010451 • KIT INTERFACE ADAPTER RMG TO PC Code 3002719
