Rinnai HJ Cooper User manual

Mains pressure indoor
stainless steel cylinders
Owner and installer guide
Models: HJ Cooper mains pressure premium duplex stainless steel cylinders
(‘MS’ electric prewired series)
Hello installer
Please leave this guide with the home owner
as it contains important safety and warranty
information.

Cylinders shall be installed in accordance with:
- Manufacturer’s installation instructions
- Current AS/NZS 3000, AS/NZS 3500, and G12/AS1
- Local regulations and municipal building codes
Installation, servicing and repair shall be carried out only
by authorised personnel.
Not suitable as a spa or swimming pool heater.
Owner, please retain this guide for future reference.
Installer, please leave this guide with the owner.
Warning
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury
or loss of life.
The appliance is not to be used by persons (including
children with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
Important:
For more information about buying, using, and servicing
of Rinnai appliances call: 0800 RINNAI (0800 746 624)
Rinnai New Zealand Limited
105 Pavilion Drive, Mangere, Auckland
PO Box 53177, Auckland Airport, Auckland 2150
Phone: [phone]
Fax: [phone]
Email: [email protected].nz
Web: www.rinnai.co.nz
www.youtube.com/rinnainz
www.facebook.com/rinnainz

cnt:
About your cylinder ........................................ 4
Maintenance and servicing ............................. 5
Troubleshooting ................................................. 6
Installation
Specification summary.................................... 8
Dimensions...................................................... 9
Plumbing setup ............................................... 10
Storage and delivery temperatures................. 11
Water quality ................................................... 12
Electrical supply and connections................... 13
Valves and fittings ........................................... 14
Commissioning ............................................... 14
Limited warranty ............................................. 15
Warranty examples in the real-world .............. 18
Proof of purchase ............................................ 19
Installer details ................................................ 19

4 | Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15
About your cylinder
Water is heated by an electric element, or elements located in the cylinder. The
temperature of the water is controlled by an automatic thermostat that is set by
your installer, usually to 65 °C to disinfect the water for legionella1.
1Legionella is a bacterium that can cause Legionnaires’ disease―a severe form of pneumonia
Safety messages
• Element cover
Do not remove the element
cover as this will expose
230 V wiring and must
only be removed by an
authorised person.
• Damagedcomponents
If any component is
damaged, it must be
replaced by an authorised
person using Rinnai
replacement parts.
• Child supervision
Children should be
supervised to ensure they
do not play with any part of
the hot water system.
• Hot pipe work
Care should be taken not to
touch the pipe work from
the cylinder as this could be
very hot.
Safety devices
Your cylinder is fitted with a:
• Temperature & Pressure
and Relief (TPR) valve that
ensures the water remains
at a safe pressure and
temperature.
• Automatic thermostat
to maintain water
temperature.
• Temperature override
cutout for heating element.
In the case of a standard
cylinder (not installed in
a solar application), the
operation of the thermal
cutout can indicate a
dangerous situation. Do not
reset the thermal cutout
until the water heater has
been serviced by a qualified
person.
Do not operate the system
unless all the safety devices are
fitted and are in working order.
It is also important that you do
not tamper or remove any of
these devices.
Cylinder thermostat setting
Your cylinder thermostat has
been set with a temperature
setting to disinfect the water for
legionella.
Thermostat settings
must only be adjusted
by an electrician or
other suitably qualified
tradesperson.
Hydrogen gas
If hot water is not used for two
weeks or more, a quantity of
hydrogen gas, which is highly
flammable, may accumulate in
the cylinder.
To dissipate safely, it is
recommended a hot tap
(non-electrical) be turned on
for two minutes at a sink, basin
or bath. During this procedure
there must be no smoking, open
flame, or any other appliance
operating nearby.
Turning the cylinder on/off
If you plan to be away for only a
few nights we suggest you leave
the system switched on. If it is
necessary to switch it off, when
switching back on, remember
that the cylinder will take time
to heat back up again.
Draining and filling the system
This normally occurs during
installation or servicing and
must be carried out by an
authorised person.
LIMITED
WARRANTY*
Important
All cylinders have the potential to leak water. To minimise damage to
other areas of your home, ensure that your cylinder has been installed
with a drip tray—the person doing the installation is responsible for
doing this.
* Refer to the warranty terms and conditions in this guide for more information.
IMPORTANT

Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15 | 5
Maintenance and servicing
Hot water systems, like cars, require regular maintenance and servicing. To ensure
longevity of your cylinder we recommend the following.
Period What needs to be done
Every six months TPR (temperature & pressure relief) valve—operate the easing gear
Year five Inspection and service of the entire hot water system, including the element*
Every 24 months
after year five
Inspection and service of the entire hot water system, including the element*
* In hard water areas the element(s) must be periodically descaled. To do this the unit must be drained and the element(s)
removed.
TPR valve
This valve is located near the
top of the cylinder and is
essential for safe operation.
The TPR valve works by
automatically venting hot water
if the temperature or pressure
of the water in the cylinder gets
too high.
Every six months operate the
easing gear to remove lime
deposits and to check that
it is not blocked. As this will
discharge hot water, ensure no
one is near the drain line.
Failure to operate the
relief valve easing gear
at least once every six
months may result in the
water heater exploding.
Continuous leakage of
water from the valve may
indicate a problem.
It is important that you raise
and lower the easing gear
gently. During the operation,
if the valve does not discharge
water when the easing gear is
lifted, or does not seal again
when closed, arrange for an
authorised person to come and
inspect the system immediately.
During servicing of your
cylinder the TPR valve
needs to be checked
and/or replaced. This
needs to be done by an
authorised person at
intervals not exceeding
five years, or more
frequently in areas where
the water is classified as
hard.
A TPR valve must not be
replaced with one that has a
higher pressure rating than that
specified for the cylinder.
Maintenance and servicing
Rinnai has a maintenance,
service, and spare parts network
with personnel who are fully
trained and equipped to give
the best advice on your Rinnai
product. Regular maintenance
and servicing is not covered by
the Rinnai warranty.
For help locating a service
person in your area call 0800
RINNAI (0800 746 624).
Lift until water flows
from the drain line,
lower gently
Drain line
Water
heater

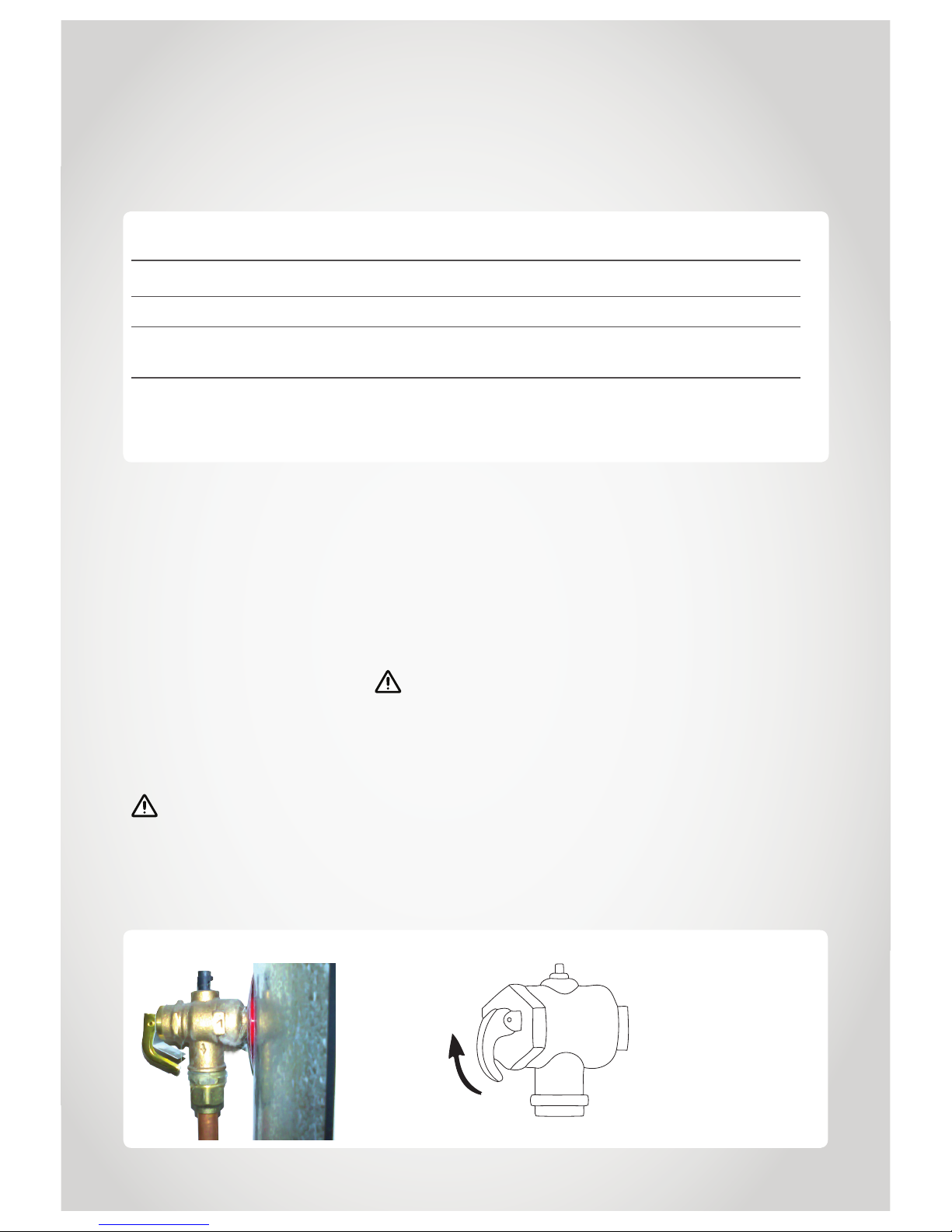

How to operate the easing gear
IMPORTANT
IMPORTANT
TPR position - top of cylinder

6 | Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15
Troubleshooting
Do not attempt to carry out any work other than that mentioned in this
troubleshooting section. If you have any other faults or problems, please contact
your installer, or contact Rinnai.
Problem Possible solution
Lack of hot
water or no hot
water
Isthereelectricitysupplytothecylinder?
Check that the isolating switch marked ‘hot water’ or ‘water heater’, at
the meter box, is switched on. Also check any isolating switches near
the water heater are switched on.
Check the fuse or circuit breaker marked ‘hot water’ or ‘water heater’
at the meter box. Repeated failure of the fuse or tripping of the circuit
breaker indicates a fault, which must be investigated by an authorised
tradesperson.
Most hot water cylinders are controlled at peak times by your electricity
supplier via a ripple relay. Contact your electricity supplier to determine
if there have been any issues with the power supply.
Lack of hot
water or no hot
water
Areyouusingmorehotwaterthanyouthink?
Often you don’t realise how much water is actually being used. This
applies especially when showering. Typical flow rates for showers is
approximately 8-10 litres per minute. Conduct a simple experiment
by placing a measured bucket under your shower for ten seconds and
multiply by six to determine the amount of water produced over a
minute. If your result is significantly more than the rates mentioned you
may want to consider installing a low flow shower rose―available at all
good plumbing stores.
Lack of hot
water or no hot
water
Coldwaterreliefvalvedischargingcontinuously?
It is normal for the cold water relief valve to discharge a small quantity of
water through the drain line. If water is discharging continuously there
may be a fault with one of the valves, contact the installer to discuss.
Water too hot If possible check the temperature of the water coming out of a hot
water tap with a thermometer. If it is higher than 55 °C then this
indicates a problem with your system—contact an electrician for
advice.
High electricity
bills
If you think your electricity bill is too high, investigate the following:
• Has your electricity tariff changed?
• Is your cold water relief valve discharging continuously?
• Are you using more hot water than normal?
• Has there been any leaking hot water pipes, or taps?

Installation
Installation, servicing and repair
shall be carried out only by
authorised personnel.

8 | Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15
Specication summary
Suitability
• Indoor installations
• Main and low pressure systems
• Left or right hand plumbing connections
• Connection to open loop solar, or hot water
heat pump systems.
Not suitable as a pool or spa heater.
The system should be located and arranged so
as to achieve the closest proximity to water draw
off points.
Operating pressures
Maximum working pressure = 850 kPa

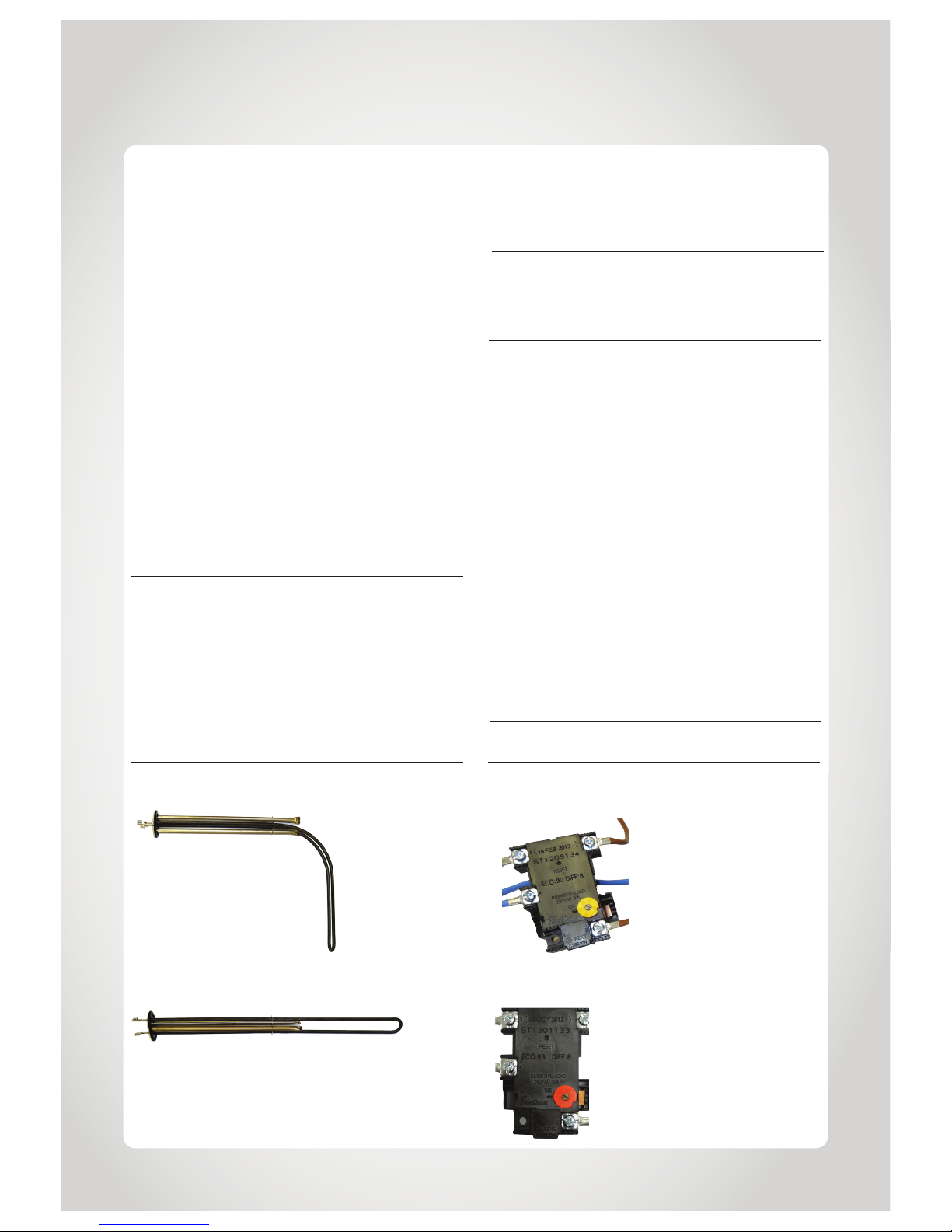

Element
Incoloy 825 alloy sheath element positioned at
the bottom of the tank, and midway if a twin
element is purchased.
Thermostat
• Standard cylinder
Robert Shaw 30 A contact thermostat,
manually resettable at 85 °C (yellow dial).
• Cylinder in a solar or hot water heat pump
installation
Robert Shaw 30 A contact auto-reset
thermostat (red dial).
Weights (empty/full)
• 135 L: 26.5/161.5 kg
• 180 L: 31.5/211.5 kg
• 250 L: 41/291 kg
• 300 L: 46.5/346.5 kg
Pressure limiting (reducing) valve
This water heater MUST be installed with a
500 kPa or less pressure limiting valve and
appropriate cold water expansion valve.
TPR valve
A temperature and pressure relief valve is
supplied with the water heater and MUST be
fitted. The TPR valve thread should be sealed
with teflon tape, do not use paste and hemp. Use
the spanner flats on the valve body to tighten,
DO NOT use a wrench on the valve body.
The TPR valve must be fitted with a drain pipe
to direct any water discharged to a visible point
outside the property. The drain pipe must have
a continuous fall and be at least the same size
as the TPR valve outlet (½˝BSP). Where the
drain pipe exceeds three metres in length an
air break must be provided within 300 mm of
the TPR valve outlet. Where an air break is used
it is recommended that the pipe size after the
air break be increased to one size larger than
the TPR valve. It must also be protected from
freezing conditions.
Protection against water: IPX1
Incoloy 825 curved element Robert Shaw 30 A thermostat - manually
resettable (yellow dial)
Robert Shaw 30 A auto-reset thermostat
(red dial)
Incoloy 825 straight element

Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15 | 9
Height
D
C
Optional upper element
(250 and 300 L only)
Diameter
½ “ female TPR (all sizes)
E
B
A
½ “ female eco inlet
(180, 250, 300 L only)
¾ female“ side
cold inlet (all sizes)
Hot water outlet ¾ “ female
Side cold inlet
Element
Side cold inlet
TPR
40°
40°
45°

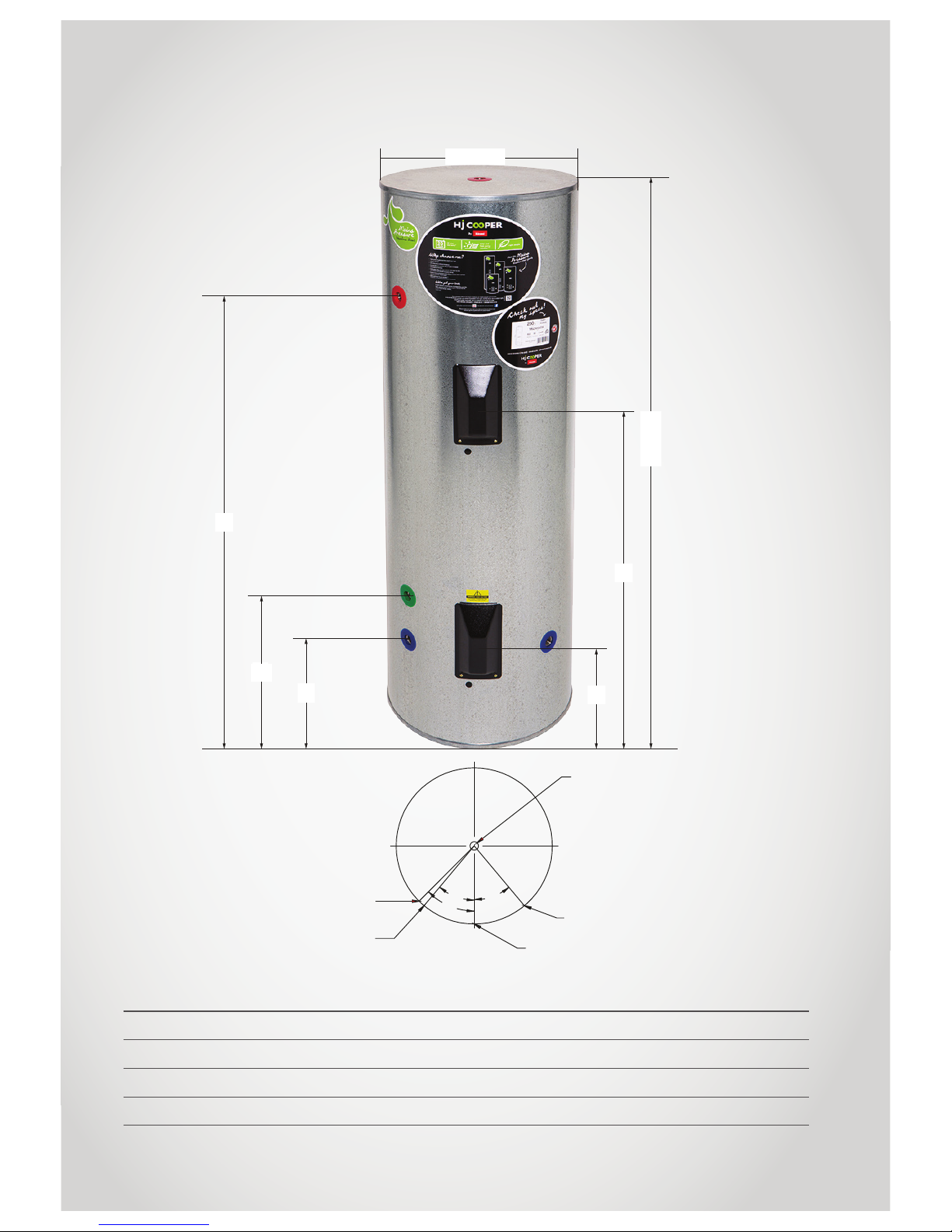

Tank size A (mm) B (mm) C (mm) D (mm) E (mm) Height (mm) Diam. (mm)
135 L 310 N/A 325 N/A 690 1023 Ø 550
180 L 310 460 325 N/A 970 1295 Ø 550
250 L 310 460 325 1080 1410 1730 Ø 550
300 L 310 460 325 1380 1725 2047 Ø 550
Dimensions

10 | Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15
Cylinders should be installed in accordance with G12/AS1. For servicing and
maintenance, please allow sufficient room for access to covers and valves.
Plumbing setup
Plumbing setup for a mains pressure stainless steel cylinder
Base requirements
Tanks should be installed on a flat level base of sufficient strength to support the weight of the
water heater when full.
The water heater must also be suitably restrained against seismic activity, ‘G12/AS1 Figure 14’
details an acceptable method of restraint.
Drip tray/catch pan - MUST be fitted
The Rinnai warranty does not cover any consequential loss from leaks to the cylinder, so it’s
important a suitably drained drip tray/catch pan is fitted.
Drip tray
The appliance is not intended to be connected by a hose-set

Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15 | 11
Storage and delivery temperatures
Storage temperature
Local regulations state that hot water shall be stored at a minimum temperature of 60 °C.
Thermostat settings must only be adjusted by an electrician or other suitably qualified
tradesperson. The access cover to the element and thermostat must only be removed
by an electrician or other suitably qualified tradesperson.
Sanitary fixtures delivery temperature
Water temperatures over 55 °C can cause severe scalds. Local regulations must be considered
regarding temperature limitations of hot water supplied to areas used primarily for personal
hygiene. The temperature is limited to 45 °C for early childhood centres, schools, nursing
homes or similar facilities and 55 °C for all other buildings. To comply with these requirements, a
temperature limiting device, such as a tempering or thermostatic mixing valve will be required
on all installations.
WARNING
Pipe work
It is the installer’s responsibility to adequately size the distribution pipe work in a property to
ensure sufficient performance from all outlet fittings. Water pipe sizing should be performed
in accordance with AS/NZS 3500.4 and/or G12 AS1. Pipe sizing and valve selection must be
performed to allow for the water supply pressure.
A drain off tap or line must be fitted to the inlet of the water heater.
All hot water pipe work should be insulated with polythene foam or equivalent insulation to
optimise performance and energy efficiency.
To prevent damage to the water heater when attaching pipe clips or saddles to the jacket, it is
recommended that self drilling screws with a maximum length of 12 mm are used. If drilling is
required take extreme care not to penetrate the inner cylinder.

12 | Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15
Water quality
HJ Cooper by Rinnai water heaters are manufactured to suit most
NZ council water supplies. However some water supplies can have
a detrimental effect on the water heater, its operation, and life
expectancy.
Pitting corrosion
The HJ Cooper by Rinnai stainless steel tanks are made from 2101 grade duplex stainless steel.
This material has very good resistance to pitting corrosion with a Pitting Resistance Equivalent
Number (PREN) of 26. This is a commonly used engineering indicator of corrosion resistance in
stainless steel materials. The higher the PREN number the greater the resistance. In comparison
304 grade stainless, which is commonly used in domestic cookware and kitchen sinks, has a
PREN number of 19. This means that HJ Cooper by Rinnai stainless steel tanks are highly resistant
to pitting corrosion, but not completely immune from it.
Pitting corrosion may occur in the form of deposit attack if the water supply has a high
percentage of dissolved solids present. It is advised in areas with a high concentration of
dissolved solids in the water supply that consultation with water quality and filtration experts be
undertaken.
Hard water
Hard water (containing calcium carbonate) can cause scaling on hot surfaces. We recommend
a water temperature of no more than 65 °C to minimise scale build-up. Scale reducing or water
softening devices should be considered in hard water areas. The unit is not guaranteed against
damage due to scaling.
Water quality outside the limits (as set down below) will void this warranty. Water quality tests must be
carried out at the customer’s own cost but Rinnai will reimburse any reasonable test costs where water
quality is within the limits tabled.
WaterQualityandImpurityLimits
TDS (Total Dissolved Solids) Total Hardness CaCO3Dissolved (free) CO3pH Langelier Index
Up to 600 mg/L or ppm Up to 200 mg/L or ppm Up to 25 mg/L or ppm 6.5-8.5 Between -1.0-0.8
Most metropolitan water supplies fall within these limits. If you are unsure about water quality, please
contact Rinnai and we will provide you with the details of an authorised agency able to test your water
for compliance to Rinnai standards. If sludge or foreign matter is present in the water supply, a suitable
filter should be incorporated in the water supply.
Some examples of water quality issues where water may need to be treated:
• Hard water (areas including Wanganui)
• Aggressive water (areas including Christchurch)
• Both hard and aggressive water (some bore water)

Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15 | 13
Electrical supply and connections
The electrical connection must be carried out by a qualified person in accordance
with NZ Electrical Regulations. The water heater must have the heating element
connected to an independent, fused, AC 230 V 50 Hz power supply with an isolating
switch installed at the switch board.
• The water heater must be filled with water prior to connection to the power supply
• Disconnect all power prior to installation and commissioning
• Household wiring to the heater must be capable of withstanding the appliance load
• Fixed wiring must be protected from contact with the internal hot surface of the water
heater
Electrical access is via a hole in the element cover for mounting with an approved electrical
conduit gland. For entry to the element cover remove the two fixing screws.

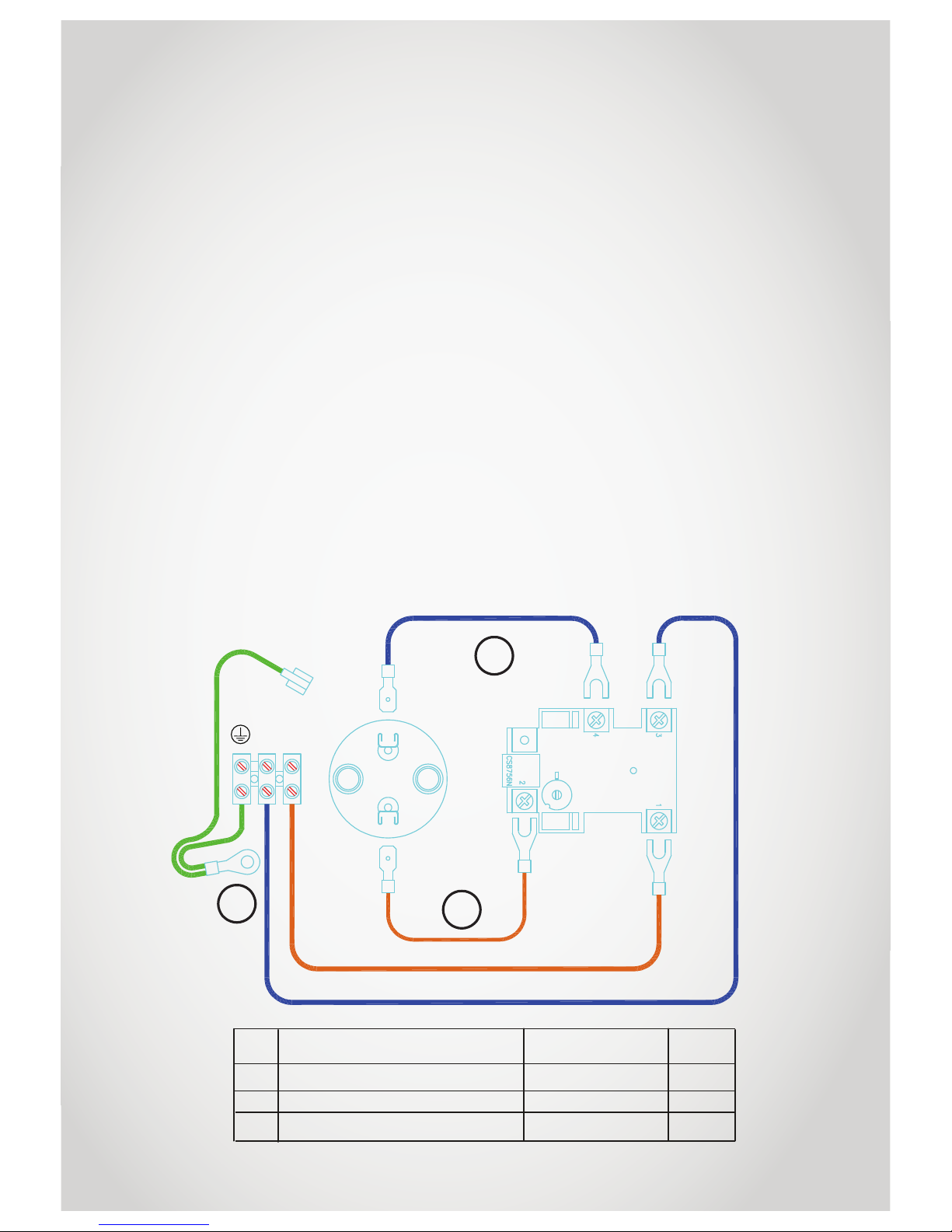

Connect all PHASE and NEUTRAL wires in accordance with the wiring diagram. Inspect and
ensure all wiring links are secure prior to fixing the access cover and turning the power on.
To ensure the over-temperature and energy cutout is set press the ‘reset’ button on the
thermostat.
The appliance is intended to be connected to cables of fixed wiring which has a cross-sectional
area of 1.5 mm2 - 2.5 mm2.
Terminal
block
Element
Reset
Thermostat
3
2
1
Wire
No.
Description Colour Code
1
2
3
Wiring main loom R/Shaw assy.
Wire link brown R/Shaw assy.
Wire link blue R/Shaw assy.
Green/brown/blue
Brown
Blue
20197
20198
20199
A
N

14 | Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15
Valves and ttings
Valves with pressure ratings other than those listed in this manual must not be used.
Fittings supplied with the cylinder
TPR valve, brass plugs, to plug unused connections, a key spanner, and the owner and installer
guide are packaged in a plastic bag inside the element cover.
Commissioning
Commissioning and draining activities must be carried out by an authorised person.

Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15 | 15
20 Year Limited Warranty
This warranty applies to HJ Cooper by Rinnai Mains Pressure Stainless Steel cylinders only.
All terms of the warranty, subject to the conditions below, are effective from the date of installation.
Proof of installation date will be required. Where the date of installation is not known or cannot be
proven the warranty will commence one month after the date of manufacture—refer to the data
label on the cylinder.
Single residential application warranty
A residential application is defined as an installation where the water heater, with the thermostat
set below 70 °C, delivers hot water to a single family residential dwelling, not used for commercial
purposes1.
Component Warrantyperiod Warranty
All components Up to 1 year Replace or repair free of charge the cylinder and/or part if it
fails due to faulty manufacture.
Inner cylinder Years 2-5 inclusive Replace or repair free of charge* the inner cylinder if it fails due
to faulty manufacture.
Inner cylinder Years 6-10 inclusive Replace or repair free of charge* the inner cylinder if it fails
due to faulty manufacture. The cost of removal of the cylinder,
re-installation, and labour costs are the responsibility of the
owner.
Inner cylinder Years 11-20 inclusive Pro rata warranty. Inner cylinder is replaced at a cost that
depends on the age of the cylinder at the time of failure, refer
p. 18. The cost of removal of the cylinder, re-installation, and
labour costs are the responsibility of the owner.
Commercial application warranty
Component Warrantyperiod Warranty
All components Up to 1 year Replace or repair free of charge the cylinder and/or part if it fails
due to faulty manufacture.
Inner cylinder Years 2-5 inclusive Replace or repair free of charge* the inner cylinder if it fails due
to faulty manufacture. The cost of removal of the cylinder, re-
installation, and labour costs are the responsibility of the owner.
For constant use applications such as, but not limited to these, underfloor heating and circulating
ring mains. The cylinder must be sized and installed according to written guidelines from Rinnai.
1Examples where a residential dwelling is used for commercial purposes; hair salon, catering kitchen, communal care
facility etc. These installations would be considered commercial applications. An exception would be an
accommodation business such as a motel, where the water heater serves the equivalent of a single family dwelling, this
would be a residential application.
*Except for certain travel and transport costs, refer to the ‘Warranty terms and conditions’ (9).
Rinnaiwarrantysummarytable

16 | Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15
Generalwarrantyterms
Rinnai reserves the right to make modifications and change specifications and its parts without notice.
For the purposes of the Consumer Guarantees Act 1993, Rinnai only guarantees the availability of repair
facilities and spare parts for the express warranty periods recorded in the Rinnai warranty summary
table.
If the cylinder is being acquired for personal, domestic or household use, this warranty does not limit
any consumer rights or guarantees that may apply under the Consumer Guarantees Act 1993. If the
product is being acquired for the purposes of a business, the provisions of the Consumer Guarantees Act
1993 do not apply and no other warranties (either express or implied by law) apart from those stated in
this warranty apply.
Warrantytermsandconditions
1. All terms of this warranty are effective from the date of installation. The attending service person
reserves the right to verify this date.
2. All Rinnai cylinders must be installed, commissioned, serviced, repaired and removed in accordance
with the manufacturer’s installation instructions, local regulations, and municipal building codes by
persons authorised to do so.
3. All Rinnai cylinders must be operated and maintained in accordance with manufacturer’s
instructions.
4. The warranty applies only to the components supplied by Rinnai. It does not apply to components
supplied by others, such as, but not limited to these, isolating valves, electrical switches, pipe work,
electrical cables, and fuses.
5. Where the cylinder has not been sited in accordance with the installation instructions or installed
such that normal service access is difficult, a service charge will apply. If at the discretion of the
attending service person the installation is deemed illegal or access is dangerous, service will be
refused. Any work required to gain reasonable access to the cylinder will be chargeable by the
attending service person (for example, removal of cupboards, doors, walls, or the use of special
equipment to move components, but not limited to these).
6. The cylinder warranty is for the period indicated in the summary table. Where the inner cylinder
and/or part is replaced under warranty, the replacement cylinder and/or part will carry a new
warranty.
7. Rinnai reserve the right to transfer functional components from defective water heaters if they are
suitable.
8. Rinnai reserve the right to have the installed product returned to the factory for inspection.
9. Where the cylinder is installed outside the metropolitan area or further than 40 km from a Rinnai
authorised service centre, travel costs shall be the owner’s responsibility.
10. Rinnai reserves the right to replace the cylinder for another type if upon inspection it is deemed
another cylinder of a different construction is more suitable.

Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15 | 17
Warrantyexclusions
The following exclusions may cause the warranty to become void and will result in a service charge and
costs of parts (if required).
1. Accidental damage and acts of God.
2. Failure due to abuse or misuse, improper maintenance or improper storage.
3. Failure due to incorrect or unauthorised installations.
4. Failure or damage caused by alterations, service or repair work carried out by persons other than
those authorised by Rinnai.
5. Where the cylinder has failed directly or indirectly as a result of poor water quality outside the limits
specified.
6. Where it is found that there is no fault with the cylinder and the issue is related to the installation or is
due to power failure.
7. Subject to any statutory provisions to the contrary, Rinnai does not accept:
a. liability for consequential damage or any incidental expenses resulting from any breach of the
warranty,
b. claims for damage to building or any other consequential loss either directly or indirectly due to
leaks or any other faults.
TDS (Total Dissolved Solids) Total Hardness CaCO3Dissolved (free) CO3pH Langelier Index
Up to 600 mg/L or ppm Up to 200 mg/L or ppm Up to 25 mg/L or ppm 6.5-8.5 Between -1.0-0.8

18 | Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15
Warranty examples in the real-world
We understand warranty information can be confusing. To help clarify what this means in the real-
world we have developed some single residential application scenarios to clarify what would fall within
warranty and what wouldn’t.
Scenario Ageofpart/
cylinder
Withinwarranty
Faulty thermostat 10 months Yes All costs covered by Rinnai.
Faulty element 3 years No All costs covered by the owner.
Cylinder leaks as a result of
a faulty inner cylinder and
causes damage to carpets
and flooring
11 months Yes Cost of cylinder replacement covered by
Rinnai. Consequential loss, damage to
carpets and flooring, is not1.
Inner cylinder fails 7 years Yes Cost of cylinder replacement covered by
Rinnai. The cost of removal of the cylinder,
re-installation, and labour costs are the
responsibility of the owner.
Outer cylinder showing signs
of corrosion
3 years No Only the inner cylinder is covered by
warranty
1Consequential losses
All cylinders are required to be installed with a drip tray, this is a mandatory requirement of the
installation. If damage is caused by a leaking cylinder that has not been installed with a drip tray the
owner can seek compensation through the installer or consider claiming on insurance.
Proratawarrantyexplanationandscenarios
Years 11-20 of the HJ Cooper by Rinnai Mains Pressure Stainless Steel cylinders are covered by a pro
rata warranty where the replacement cost is reduced according to the age of the cylinder. This is
calculated using the following formula.
Original purchase price x remaining warranty in years ÷ total warranty period of the cylinder.
Scenario example 1
A warranty claim is approved where an inner cylinder fault is identified. The cylinder is 11 years old.
Original purchase price was $1000. The cylinder needs replacing at a cost of $1200. The owner in this
example would need to pay $750 for the replacement cylinder plus labour and installation costs.
$1000 (orig. purchase price) x 9 (remaining warranty in years) ÷ 20 (total warranty period of cylinder) = $450
$1200 (replacement cost of cylinder) - $450 = $750 (owner to pay*)
Scenario example 2
A warranty claim is approved where an inner cylinder fault is identified. The cylinder is 18 years old.
Original purchase price was $1000. The tank needs replacing at a cost of $1200. The owner in this
example would need to pay $1100 for the replacement cylinder plus labour and installation costs.
$1000 (orig. purchase price) x 2 (remaining warranty in years) ÷ 20 (total warranty period of cylinder) = $100
$1200 (replacement cost of cylinder) - $100 = $1100 (owner to pay*)
* Does not include labour or installation costs

Mains pressure indoor stainless steel cylinders: Owner and installer guide: 20132-D 04-15 | 19
Please keep these details in a safe place for future reference.
ATTACH YOUR PROOF OF
PURCHASE HERE:
RECORD YOUR DETAILS
OF PURCHASE BELOW:
Retailer:
Retailer address:
Date of purchase:
Product details:
Proof of purchase
Installer details
Company name:
Installer name:
Address:
Phone: Mobile:
Signed: Date:

Rinnai.co.nz
Experience our innovation
0800 746 624
http://www.youtube.com/rinnainz
http://www.facebook.com/rinnainz
20132-D: 04-15
