Rinnai Infinity 20e User manual

Installation and User Manual
Infinity 20e and 16e
Infinity 20e and 16e

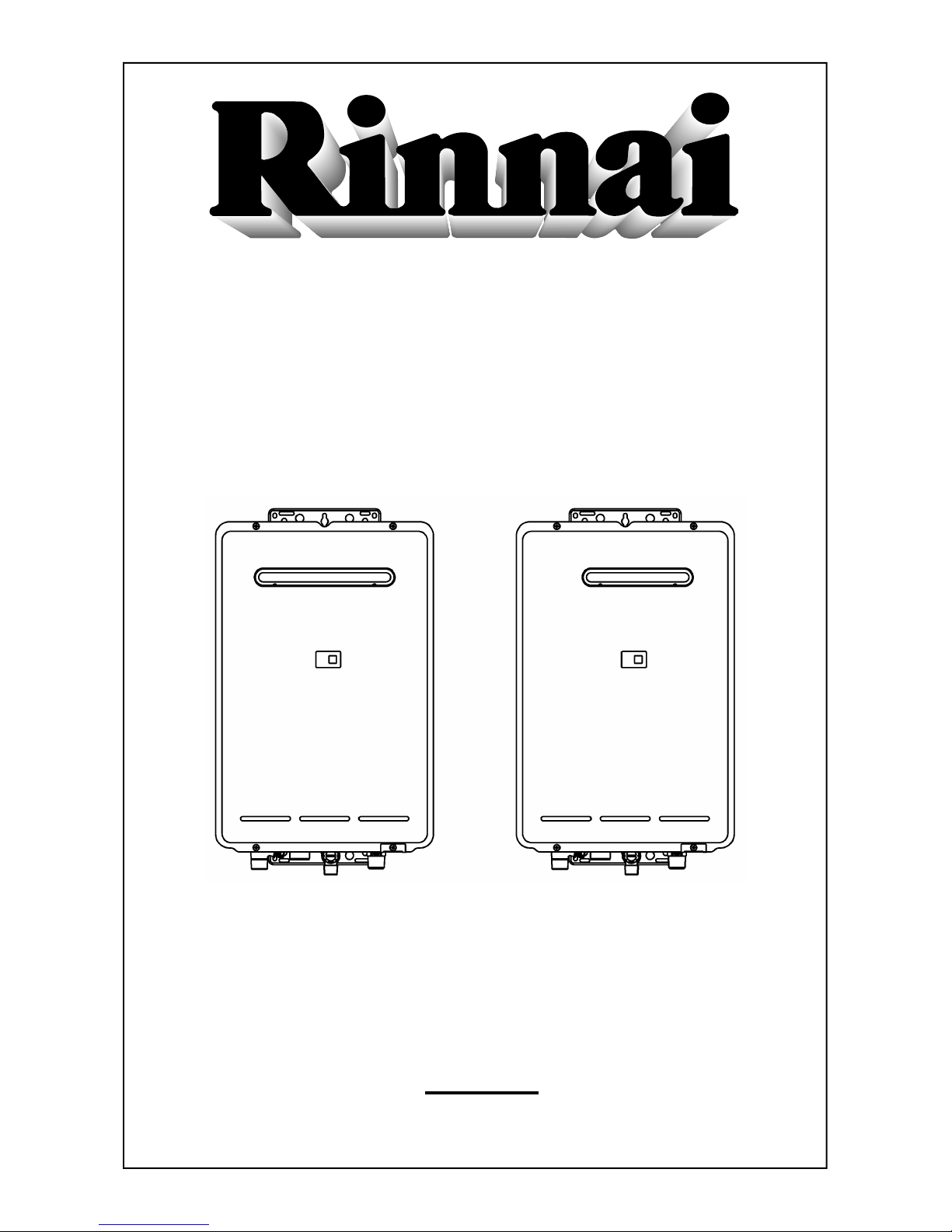

Continuous Flow Water Heater
Important.
Read these instructions carefully before attempting installation or use of
this appliance. All work must be carried out by competent persons.

RINNAI UK WARRANTY
As the purchaser of this high quality Rinnai Water Heater you are provided with the following
conditional warranty
Definition of Standard Use.
The warranty period allocated under Standard Use is based on Domestic and Light Commercial hot
water usage. Rinnai Standard Use warranty periods apply only where Rinnai water heaters are
installed in domestic and light commercial situations at operating temperatures below 65°C and do not
include installations incorporating storage cylinders or building flow and return systems.
The warranty shall apply to any Rinnai water heater from the Infinity range used in this way.
Definition of Commercial Use.
The warranty period allocated under Commercial Use are for Infinity water heaters installed at
premises such as commercial and industrial buildings, cafes, caravan parks, and sporting complexes.
Commercial Use warranty applies to:
Water heaters supplying a central shower block.
Water heaters supplying kitchens used for the bulk preparation of food.
Water heaters set to 65°C or higher.
Water heaters used in commercial or industrial processes.
Any application that uses Rinnai water heaters in conjunction with storage tanks.
Any application that uses Rinnai water heaters in conjunction with a flow / return system.
Water heaters installed ascomponents ofcentralised bulk hotwater systems.
Rinnai Infinity units used in Commercial Situations are only subject to a 1 year warranty across
the board. Commercial situations should be supplied from the Rinnai Commercial range.
No Rinnai warranty will cover faults arising from improper installation or gas supply, water
contaminants beyond defined limits, environmental factors, plumbing fittings, or other outside
influences of which Rinnai is not responsible. Service calls for these issues will be chargeable.
Heat Exchanger All Other Parts
Parts Labour Parts Labour
Standard Use
3 Ye
1 Y
ars 1 Year 3 Years 1 Year
Infinity 20e
Infinity 16e
Infinity 20e
Infinity 16e
Commercial Use
ear* 1 Year 1 Year 1 Year
Description pH Total Dissolved
Solids (TDS) Total Hardness Chlorides Magnesium Calcium Sodium Iron
Maximum Recommended
Levels 6.5 - 9.0 600 mg/litre 200 mg/litre 300 mg/litre 10 mg/litre 20 mg/litre 150 mg/litre 1 mg/litre
2

3
CONTENTS
Unpacking Rinnai Water Heater.……………………………………………………………
Installation Instructions………………………………………………………………………
Flue Requirements...…………………………………………………………………………
Dimensions...…………………………………………………………………………………
Technical Details.……………………………………………………………………………
Features and Benefits………………………………………………………………………
Important Information.………………………………………………………………………
Operation without Remotes..………………………………………………………………
Temperature Controls………………………………………………………………………
Testing.………………………………………………………………………………………
Gas Pressure Setting.………………………………………………………………………
Dip Switch Setting..…………………………………………………………………………
Error Messages..……………………………………………………………………………
Restarting the Rinnai Water Heater.………………………………………………………
Wiring Diagram...……………………………………………………………………………
Diagnostic Points……………………………………………………………………………
Specification…………………………………………………………………………………
S
Commissioning Check List…………………………………………………………………
ervice Contact..……………………………………………………………………………
5
4
Rinnai UK Warranty .…………………………………………………………………………2
8
9
10
11
12
14
15
26
27
29
31
33
34
35
36
38
39

4
UNPACKING RINNAI WATER HEATER
•After unpacking the appliance check for damage, if the heater is damaged contact
your supplier immediately. Do not install a damaged appliance before checking
with your supplier.
•C
•A heater accessories pack is inside the carton. One remote control is supplied
with the Infinity 20e and the Infinity 16e.
heck that
to
the appliance supplied is the correct gas type for the installation. Refer
the data plate located on the left-hand side of the appliance.
•Remove the heater and the accessories from the carton, and check that all the
parts are included . The remote control cable is provided with spade connectors.

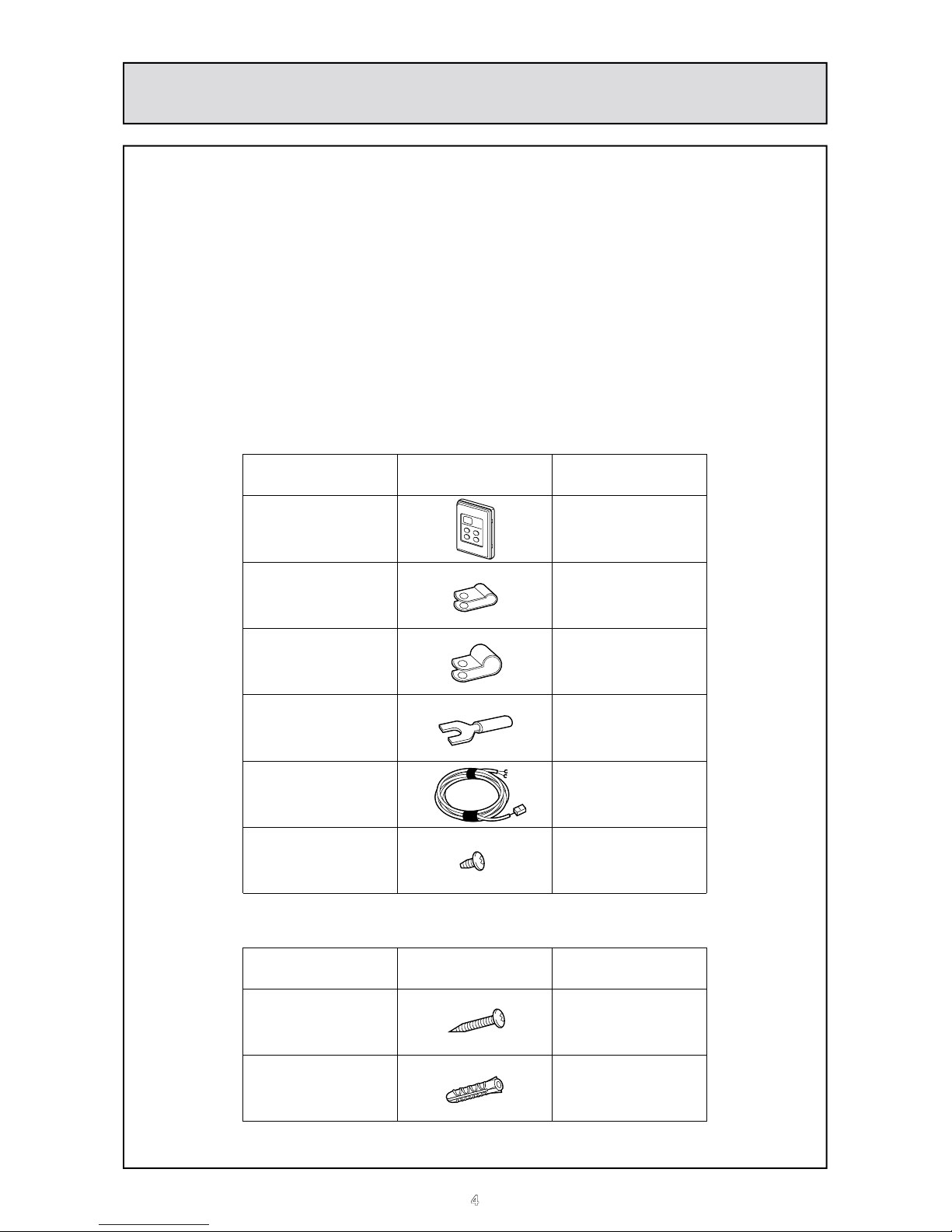

Quantity Diagram Description
1 Temperature con-
troller MC-91-1A
1 Cable Clamp
(to fix one Control Cable)
1
5 Spade Connectors
1 Control Cable 20
metres
5 Screw
5 Wall Plug
Remote Control Parts
Unit Mounting Fasteners
Quantity Diagram Description
1 Clamp Screw
Cable Clamp
(to fix two Control Cables)

5
IMPORTANT INFORMATION
1. Gas safety (Installation & Use) regulations 1998 are the ‘Rules in force’. In your
own interest and that of safety, it is law that all gas appliances are installed by
competent persons in accordance with the above regulations. Failure to install
appliances correctly could lead to prosecution. Other persons should NOT attempt to
install this equipment.
2. Unpack the appliance and check it carefully. If it appears to have any defects or
damage DO NOT INSTALL, contact your supplier.
3. This appliance is for normal hot water supply only and should not be used as pool or
spa water heater.
4. The heater must be installed in the vertical position with the gas and water
connections on the underside pointing vertically downward.
5. Installation must be carried out in accordance with the current issue of the following:
Building regulations issued by the Department of the Environment and
Building Standards (Scotland) Regulations.
I.E.E. Wiring regulations for electrical installations.
Gas safety (Installation and Use) Regulations current issue.
BS 5546
BS 5440
BS 6891
BS 5482
BS 6700
Local byelaws
Water regulations
Health and safety at work etc. Act 1974
Such other specifications and regulations that may supersede or complement the
above documents.
Please be sure that you are fully aware of your obligations and responsibilities
under these regulations.
INSTALLATION INSTRUCTIONS

6
General Installation Information.
External Installations.
The Rinnai Infinity 20e and Infinity 16e are for external mounting only.
The unitsare classedas Category A3 flueless appliancesas described by CEN CR1749.
Although BS 5440 does not relate directly to heaters in this category the rules must be
followed when positioning the appliance, especially with regard to other appliances,
openings, and boundaries. Figure C.1 from BS5440-1:2000 is provided for your
guidance.
The appliance must be mounted on a vertical wall or structure with the water and the gas
connections on the underside pointing towards the ground.
THIS APPLIANCE MUST NOT BE USED AS A DOMESTIC SPA OR SWIMMING
POOL HEATER.
Appliance Location.
The appliance should be placed as close as practicable to the most frequently used hot
water outlet point or points to minimise the delay time for hot water delivery. For
installations where the distance between the unit and hot water outlet points is
considerable, the appliance can also be fitted in a 'flow and return system' which
minimises the waiting time for hot water delivery. Alternatively, multiple appliances can
be strategically placed to service outlet points with minimal delay time. Contact Rinnai
for further information.
Location of the appliance flue terminal must be in accordance with the clearances shown
on page 8. Ensure that the flue terminal and hot water outlet connection cannot be
touched by children. The appliance must be clear of obstructions and shrubbery.
The wall or structure on which it is mounted must be capable of supporting the weight of
the appliance (20e : 16kg , 16e : 15kg) and associated pipework. Ensure that suitable
screws or bolts are used to secure the water heater to the wall. Bracket and fixing hole
locations are shown on page 9. The top bracket has a keyhole slot so that the appliance
can be hung on one screw, and then the other fixings can be added to secure the unit.
The appliance must be in an accessible location. Sufficient clearances shall allow
access to, and removal of, all serviceable components. The appliance should not be
mounted higher than 3.5 metres from the ground or floor level unless the customer can
arrange permanent and safe access or can arrange another means of access, for
example, by means of scissor or boom lifts.
Multiple heater installations can be installed with the heaters manifolded together.
The design of the heater draws combustion air through the casing for the external model.
Heater guards and pipe cover boxes for security and safety are available from Rinnai.
INSTALLATION INSTRUCTIONS - POSITIONING

7
INSTALLATION INSTRUCTIONS - CONNECTIONS
Water Supply.
Where the water supply pressure exceeds 10 bar, an approved pressure reducing
device is required at the inlet of the appliance. To achieve the rated flow a minimum
water supply pressure of 1.0 bar is required at the appliance inlet. The unit will operate
at lower supply pressures but the rated flow will not be achieved. Contact Rinnai for
'gravity fed' or 'low pressure' hot water installations.
Water pipe sizing and layout should be designed correctly to ensure the given water
flows from the Rinnai Infinity are available. All hot water pipework should be insulated to
optimise maximum performance and energy efficiency.
Water Connection.
Connect the hot and cold water supply pipes. An approved isolation valve and strainer
MUST be installed in the cold water inlet pipe. An approved isolation valve should be
installed onthehot wateroutlet pipe.There must be a union or release fittingonthe
heater side of the isolation valves. A non return valve is not required unless dictated by
local regulations. A pressure relief valve should be installed in the pipework to
discharge safely into a suitable drain when the system has a flow and return, or tank.
Positions of the cold water inlet, hot water outlet and gas connections are shown on
page 9. Water connections are 1/2 inch BSP, gas is 3/4 inch BSP. This is NOT an
indication of the pipe sizes required.
If the heater is in a hard water area a suitable water conditioning device should be in-
stalled to prevent the build up of limescale within the heat exchanger. Heat exchangers
damaged by scaling are not covered by the manufacturer’s warranty. Guidelines are
given below. If the local water exceeds these values the heater must be protected.
Gas Connection
Check pipe sizing required for the heater input. The heat input for the Infinity 20e is 44.4kW.
The heat input for the Infinity 16e is 34.7kW. Refer to BS6891 (Natural Gas) and BS5482.
(Propane) for guidance on correct pipe sizing calculation.
Check that the size of the gas meter and pipework will be sufficient for all appliances on
the main. Sufficient gas must be available at the appliance if correct operation is to be
expected. An approved gas isolation valve must be fitted at the gas inlet. A union or
release fitting should be installed after the isolation valve.
Electrical Connection.
The appliance must be earthed. The appliance is suitable for 230VAC – 50Hz mains
only and all wiring must be carried out to the I.E.E regulations latest edition. The heater
electrical supply must be provided with a fused (3A) local isolator with a contact
separation of 3mm minimum on all poles for servicing. Observe polarity and ensure that
wiring is correctly restrained.
Description pH Total Dissolved
Solids (TDS) Total Hardness Chlorides Magnesium Calcium Sodium Iron
Maximum Recommended
Levels 6.5 - 9.0 600 mg/litre 200 mg/litre 300 mg/litre 10 mg/litre 20 mg/litre 150 mg/litre 1 mg/litre

8
Dime
J
L
HH
K
FI
nsion Terminal Position Distance
A Directly below an opening, air brick, opening windows, etc. 300mm
B Above an opening, air brick , opening window, etc. 300mm
C Horizontally to an opening, air brick , opening window, etc. 300mm
D Below gutters, soil pipes or drain pipes. 75mm
E Below eaves. 200mm
F Below balconies or car port roof. 200mm
G From a vertical drain pipe or soil pipe. 150mm
H From an internal or external corner. 200mm
I Above ground, roof or balcony level. 300mm
J From a surface facing the terminal. 600mm
K From a terminal facing a terminal 1200mm
L 1200mm
M Vertically from a terminal on the same wall. 1500mm
N Horizontally from a terminal on the same wall. 300mm
O From the wall on which the terminal is mounted N/A
P From a vertical structure on the roof. N/A
Q Above an intersection with roof. N/A

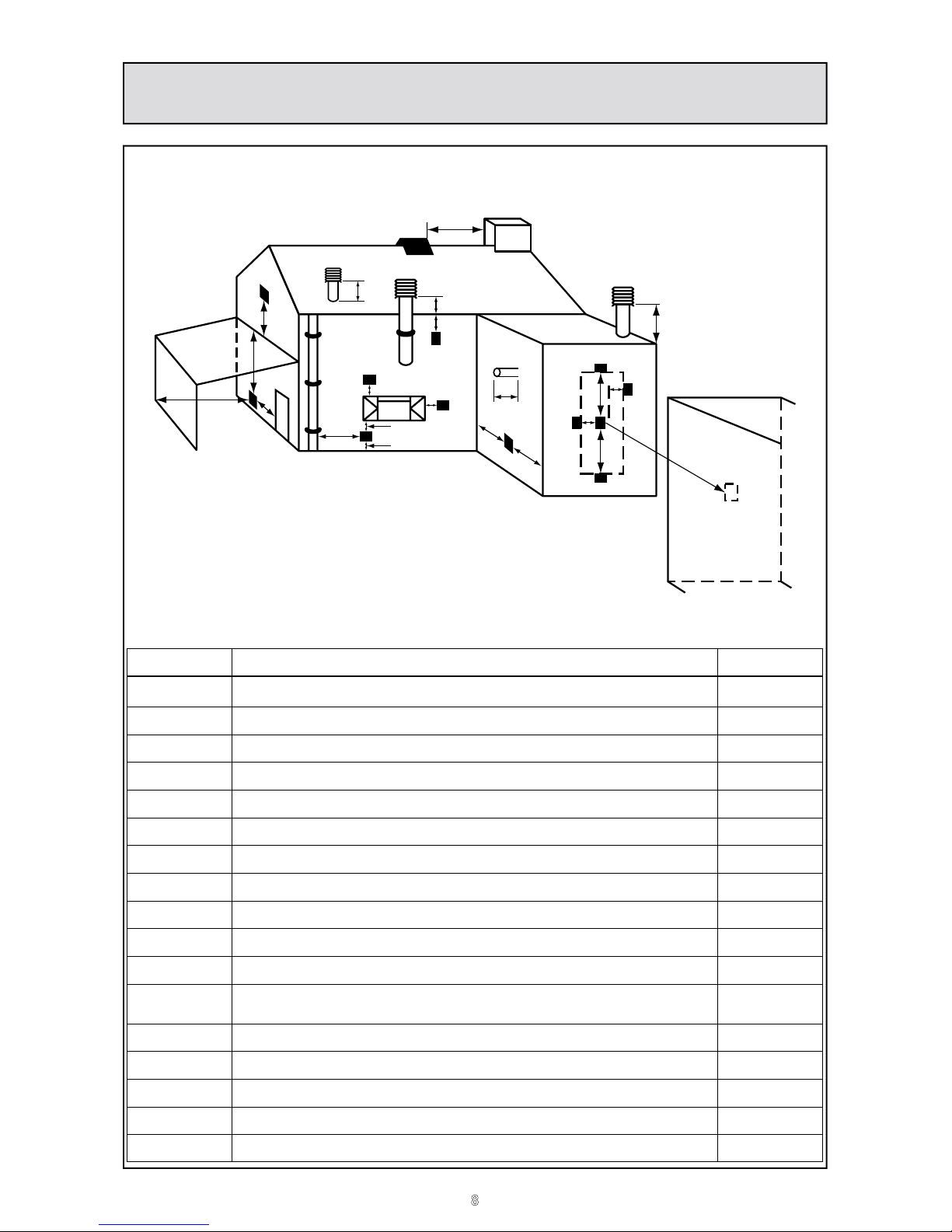

FLUE REQUIREMENTS - POSITIONING
Q
Q
Q
G
B
D,E
O
N
MM
N
P
A
C
I
From an opening in a car port. ( e.g. door, window) into a dwell-
ing

9
DIMENSIONS
Infinity 20e
Infinity 16e
Note:All dimensions are in mm.
A DIMENSIONS
40
50
39
GAS
COLD
HOT 26
CABLE ACCESS
Note:All dimensions are in mm.
A DIMENSIONS
40
50
39
GAS
COLD
HOT 26
CABLE ACCESS

10
TECHNICAL DETAILS
Infinity Model Infinity 20e Infinity 16e Units
Installation ExternalExternal
Nat Gas Press Low 1.8 1.8 mbar
Nat Gas Press High 9.2 8.8 mb
–
–
–
ar
LPG Press Low 1.9 1.8 mbar
LPG Press High 8.4 8.1 mbar
Height 530 530 mm
Width 350 350 mm
Depth 170 170 mm
Weight 16 15 kg
Flue System
Temp. Range Controllers 37 - 55
40, 43, 50, 55*
65, 75
40, 43, 50, 55*
65, 75,
37 - 55 deg C
Ignition Direct Electronic Ignition
Gas Consumption Low
Nat Gas 5.6 5.0 kW
LPG
Nat Gas
LPG
55.9 .2 kW
Gas Consumption High
44.4 34.7 kW
34.744.4 kW
Max Flow raised 33C 15.4 12 L/min
Min Operation Flow 2.4** L/min
Water Pressure Nom. 1.0 - 8.3 bar
Power Supply
Electric Consumption 55 47 Watts
Forced Exhaust
Temp. Range without
Controllers
* Factory Setting
** Minimum operation flow based on temperature setpoint and
inlet conditions.
deg C
V/Hz230 / 50

11
Congratulations on purchasing the Technologically Advanced, Temperature Controlled,
Rinnai Hot Water System.
•The Rinnai Infinity 20e and Infinity 16e NEVER RUN OUT of hot water. As long
as electricity, water, and gas supplies are connected, hot water is available when
hot water taps are open.
•Built into the main micro-processor is the facility to LIMIT THE MAXIMUM
TEMPERATURE of the hot water supplied. The water temperature may be limited to
various maximum temperatures. This is particularly useful when the hot water unit is
installed where young children or the infirm may be using the hot water. The Infinity
20e and Infinity 16e delivered with a preset temperature of 55°C. If required, the
temperature limits can be changed by an authorised person. For further information,
please contact Rinnai.
•TheRinnai Infinity external units are powered flue appliances. This makes them
COMPACT, saving both floor and wall space.
•The temperature of outgoing hot water is CONSTANTLY MONITORED by a BUILT-
IN SENSOR. If the temperature of the outgoing hot water rises to more than 3°C
above the selected temperature the burner is shut OFF and only turned ON again
when the temperature falls to below the selected temperature.
•The burner lights automatically when the hot water tap is opened, and distinguishes
when the tap is closed. IGNITION IS ELECTRONIC, so there is no pilot light. When
the hot water tap is off, no gas is used.
•Up to three temperature controllers can be mounted remotely from the heater. This
offers the following additional features:
Localised temperature setting.
Diagnostic message.
•‘Deluxe’ Temperature Controllers are an optional extra. These provide functions
including Bath Fill, Voice Prompt, and Clock Setting.
•Temperatures selected at the controllers are retained in the SYSTEM MEMORY.
•Operating NOISE LEVEL IS VERY LOW.
•ERROR MESSAGES ARE DISPLAYED on the Temperature Controllers, assisting
with service.
•FROST PROTECTION device built in as standard.
FEATURES AND BENEFITS

12
Excessively hot water is dangerous, especially for young children and the infirm. The
water heater allows you to control the temperature of your hot water to safe levels.
Do stay with children
whenever they are in the bathroom.
Do take them out of the bathroom if
you need to answer the phone or
door.
Do test the temperature of the water
with your elbow before placing your
child in the bath.
Do make sure that the tap is turned
off tightly.
Do consider setting your Rinnai
Infinity 20e or Infinity 16e at a
maximum temperature of 50°C.
Do install a child proof tap cover OR,
Do install a child resistant tap.
Do not leave a toddler in the care of
another small child. The older child
may not have safely set the temperature.
IMPORTANT INFORMATION
Water temperature over 50ºC can cause severe
burns instantly or even death from scalding.
Children, disabled and the elderly are at the
highest risk of being scalded by excessively hot
water.
Always test the temperature of the water before
bathing or showering.
Burns from hot water taps can result in very
severe injuries to young children.
Hot water at 65°C can severely burn a child in less
than half a second. At 50°C it takes five minutes.
Burns can occur when children are exposed
directly to hot water or when they are placed into a
bath which is too hot.
DO
•Consider child—resistant taps
or inexpensive tap covers,
both of which prevent a child’s
hand from turning on the tap.
•Consider reducing the
temperature of the water
supplied to the hot tap to
50°C.
This approach can be extremely
valuable because it requires a
one time action for a long term
reduction in risks of scalds.
This type of automatic protection
is important during times when a
parent or carer has been
distracted.
DO
NOT

13
IMPORTANT INFORMATION
Always check water temperature before
use.
Refer to warning about hot water on
page 12 for important safety information.
Hot water may go out without warning at
low water flows.
The Infinity 20e and Infinity 16e control
the water temperature automatically. For
high temperatures it may reduce the flow.
The water from the hot tap may be
reduced after the temperature shown on
the remote control is raised. The water
flow may also vary with the temperature
of the incoming water supply.
Keep flammable materials, trees, shrubs,
chemicals etc. away from the heater.
Do not touch the unit cover or the flue
outlet. Do not insert objects into the flue
outlet.
On cold days steam may be discharged
from the flue outlet. This is normal, do
not be alarmed. It does not indicate a
fault.
OFF
If freezing temperatures
are expected, turn off the
water and gas, and
drain the water
heater.
1. Water Off
2. Gas Off
3. Drain Water
If the power is left on the
Automatic Frost Protection
will prevent the unit from
Freezing. Frost protection
is standard on the external
units.
48

Te
14
Rinnai Infinity 20e and Infinity 16e products have no pilot light and when installed without
Temperature Controllers, the appliance will operate automatically as soon as a hot water
tap is opened.
The burner ignites with electronic ignition and the flame extinguishes as soon as water
flowing through the appliance stops.
Turn On by opening the hot water tap
Rinnai Infinity water heaters without controllers are factory pre-set to a temperature limit
of 55°C. Other limits, lower or higher, are available on request for the Infinity range.
mperature controllers are available that allow precise digital temperature control.
Higher temperatures may be necessary for circulation loop systems.
Controllers can be easily added at any time after installation.
OPERATION WITHOUT REMOTES

15
TEMPERATURE CONTROLS - GENERAL
When deciding on the best position for the temperature controls, the following points
should be taken into account.
•Fit the controls out of reach of children (suggested height from the floor 1.5m.)
•Avoid positions where the controllers will become hot. Do not fit them near stoves or
ovens, or above radiators or heaters.
•If possible, avoid exposure to direct sunlight or positions where bright lights will make
the digital display difficult to read.
•Position away from areas where the controller will be prone to splashing by cooking
products such as oils and fats.
•The temperature controllers are water resistant, however they should be positioned
away from areas where direct or persistent splashing could occur.
•Refer to the I.E.E electrical wiring regulations current edition for location requirements
in shower and bath areas.
•The cables to the temperature controller carry only 12VDC (extra low voltage.)
•When using more than one temperature controller the signal cable should be run in
parallel. That is, from controller to controller to heater, or from each controller to the
heater. Do not wire the controllers in series.
The installation in every application will vary, therefore the temperature controller cable
has been provided so that you may cut the length accordingly and fit the spade
connectors, ensuring a good connection.
Cables are simply ‘piggy-backed’ at the water heater or at the primary temperature
controller. Polarity is not important when connecting the cables, either colour wire can
be connected to either terminal at both the heater or primary temperature controller. If
more cable is needed any cable with similar specification to the cable supplied with the
controller can be used. Maximum length is 50 metres.

16

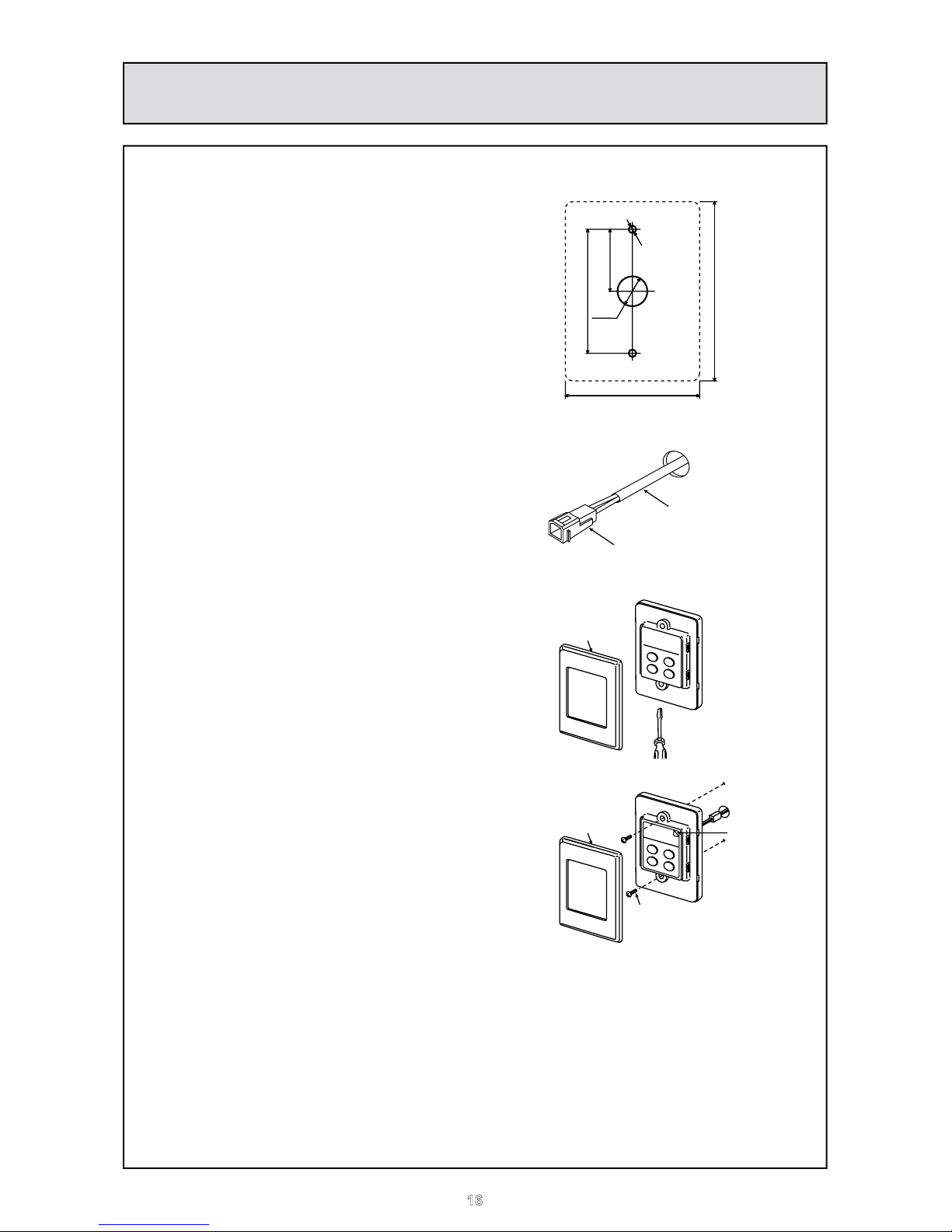

TEMPERATURE CONTROLS - INSTALLATION
Universal Temperature Controller
MC-91-1A
1. Determine the most suitable position for
the temperature controller.
2. Drill 3 holes in the wall as shown in fig.1,
one for the cable and two for the
securing screws. Ensure holes are
drilled deep enough. Fit wall plugs if
needed. (ensure controller is level.)
3.
Remove the face plate from the
controller using a flat screwdriver. Take
care not to damage the cover. (fig. 3)
4.
Run the cable provided through the hole
in the wall-ensuring that the end fitted
with the connector is nearest the
controller. (fig. 2)
5. Connect the cable to the temperature
controller.
6. Fix the controller to the wall and fasten
with the phillips head screws supplied
as shown in fig. 4.
7. Remove the protective plastic film from
the controller face as shown in fig. 4.
8. Replace the face plate.
fig.1
fig.3
fig.4
Face Plate
Outline of Remote Control
Securing
Screw
Wire
Hole
90
83
120
41.5
ø20
Face Plate
Screw
Film
fig.2
Connector
Remote Control
Cable

17

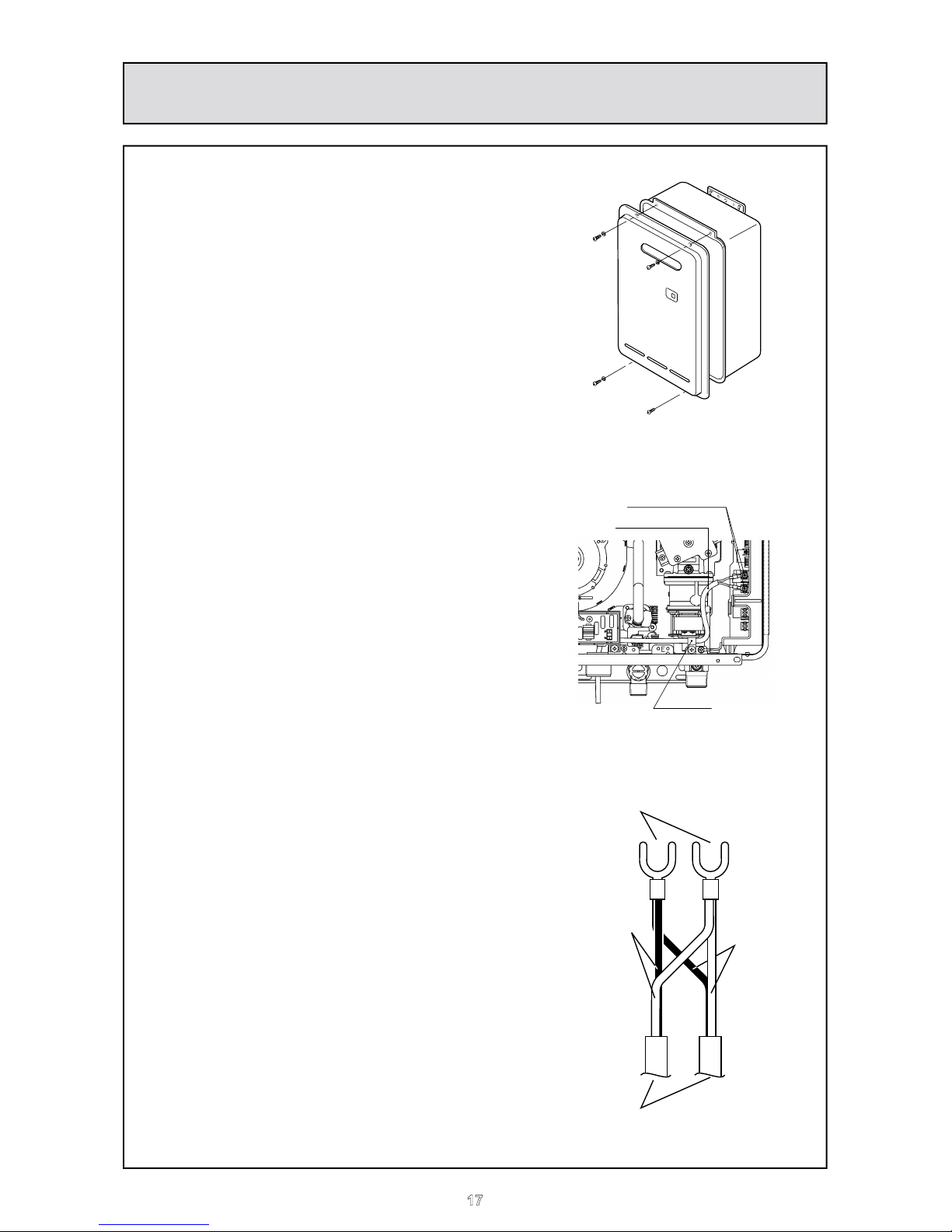

TEMPERATURE CONTROLS - INSTALLATION
Connecting One or Two Controllers
1. Isolate the power supply.
2. Remove the front cover from the Appliance (4
screws) fig. 1.
3. Thread the cable through the cable access hole
at the base of the appliance.
4. Connect the spade connectors to the terminals
marked "Remote Control" on the printed circuit
board (fig.2). Polarity is not important. Either
wire colour can be connected to either terminal.
5. Replace cover of the Appliance. Ensure that the
special earth screw is placed at the bottom right
hand corner for earthing purposes.
Connecting Three Controllers
1. Isolate the power supply.
2. Remove the front cover from the Appliance (4
screws) fig.1.
3. Thread the cables through the cable access
hole at the base of the appliance.
4. Cut the spade connectors from two controller
cables (4 connectors should be cut off) and
discard. Connect the wires and terminate into
two new spade connectors as shown in fig. 3.
5. Thread the 3 cables through the cable access
hole at the base of the appliance. Connect the
4 spade connectors to the terminals marked
“Remote Control" on the printed circuit board
(fig.2). Polarity is not important. Either wire
colour can be connected to either terminal.
6. Replace cover of the Appliance. Ensure that the
special earth screw is placed at the bottom right
hand corner for earthing purposes.
fig.2
fig.3
New spade connectors
Cable
wires Cable
wires
Remote control cables
CABLE CLAMP
fig.1
REMOTE CONTROL CABLE
TERMINALS FOR CONTROLS

18
TEMPERATURE CONTROLS
The purpose of a Temperature Controller is to enable the user to have complete control
over the hot water supply. Used correctly, the hot water unit will supply hot water at the
temperature selected, even when the water flow is varied, or when more than one tap is
used. Adjustments to the operation of your hot water unit can be made with any of the
Temperature Controllers. Each Temperature Controller can be individually programmed.
Up to three Universal and Deluxe Temperature Controllers can be fitted with the Infinity
20e and 16e. Universal Controllers allow temperature selection only and come as
standard with the water heaters. Deluxe Temperature Controllers are an optional extra.
These controllers have temperature selection, bath fill, voice recognition, and time clock
functions. When more than one Universal Controller is used one may be set as the
Master Controller to allow higher temperatures.
Various water temperatures (°C) can be selected as follows:
Universal Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50°C
Master Universal Controller:
Deluxe Bathroom Controller:
Hot Water Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50°C
Bath fill Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48°C
Deluxe Kitchen Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50, 55°C
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50, 55°C
If a temperature 43°C or higher is selected on any controller and this temperature is then
decreased to below 43°C and increased again whilst the water is running, the maximum
selectable temperature will become 43°C. This provides additional safety for the
consumer.
Suggested temperatures are:
Kitchen 50°C - 65°C*; Shower 39°C - 43°C; Bath fill 39°C - 45°C
* This temperature may not be available on all installations.
These temperatures are suggested starting points for selection. You may find higher or
lower temperatures are more comfortable. Maintaining lower temperatures helps to save
energy. To obtain water temperatures lower than 37°C simply add cold water.
Up to three controllers can be used for one Infinity 20e or Infinity 16e. When multiple
temperature controllers are used they allow the temperature to be set from various
locations by pushing the transfer button which gives that controller priority over the
system. The temperature selected by the controller with priority will be available to all
outlets.

19
Remote temperature controllers are a feature that provides control over the water
temperature. Rinnai Infinity water heaters can be operated with 1, 2, 3, or no
temperature controllers. The Universal controller MC-91-1A comes as standard with all
Infinity water heaters.
NOTE:
Each time a button is pressed, a BEEP will sound.
The BEEP sound can be muted by depressing the Temperature Controller Up and Down
buttons simultaneously for more than 3 seconds.
This can be done for each Temperature Controller.
To return to original settings, repeat this step.
TEMPERATURE CONTROLS - OPERATING
Indicates the temperature
selected. Error message
flashes in the event of a fault.
Used to select water
temperature.
Indicates if this temperature
controller is in control of
water delivery temperature.
Used to switch temperature
controllers on and off.
Indicates that a hot water tap
is open (in any location).
Used to transfer between the
temperature controllers.
The controller with priority
has command of hot water
delivery temperature.

20
TEMPERATURE CONTROLS - OPERATING
Using 1 Universal Temperature Controller.
Press the On/Off button on the temperature controller.
The ON indicator will glow on the Temperature
This indicates that the heater is ready to supply
when a tap is opened.
To operate the heater, simply turn any hot water tap on. This
will automatically light the burner providing hot water. The
red In Use indicator will glow on the temperature controller.
Adjusting Temperature
Simply press the Hot Water Temperature Up or Down arrow
button until the desired temperature is displayed on the
digital display.
Caution: Always check water temperature before use.
Note:
With the hot water tap open and a temperature of 43°C or higher selected,
if the temperature is decreased to below 43°C, and then raised again the
maximum available temperature will be 43°C. For safety reasons
temperature ‘priority’ cannot be transferred between controllers when a
hot water tap is open.
Controller.
hot water
