Rinnai RUR98i User manual

Direct Vent Tankless Water Heater
with Integrated Pump
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•
•If you cannot reach your gas supplier, call the fire department.
—
may result causing property damage, personal injury, or death.
WARNING
READ ALL OF THE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR OPERATING THIS WATER HEATER.
safety
performed.
FOR INDOOR APPLICATIONS ONLY
RUR98i.................. REU-KBP3237FFUD-US
FOR OUTDOOR APPLICATIONS ONLY
RUR98e................. REU-KBP3237WD-US
ANSI Z21.10.3 ● CSA 4.3
U306-1465X01(00) 060 00012 37150 5
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

2 KBP Series Manual
Table of Contents
This is the safety alert symbol. This symbol alerts you to poten al hazards that can kill or hurt you
and others.
Indicates an imminently hazardous situa on which, if not avoided, will result in personal
injury or death.
Indicates a potenti lly hazardous situa on which, if not avoided, could result in personal
injury or death.
Indicates a potenti lly hazardous situa on which, if not avoided, could result in minor or
moderate injury. It may also be used to alert against unsafe prac ces.
DANGER
CAUTION
WARNING
Table of Contents ..................................................... 2
Safety Behaviors and Prac ces for the
Consumer and Installer ............................................ 3
Installati n Instructi ns
(for the licensed professional) .............................. 4
Prepare for Installa on ...................................... 5
Determine Installa on Loca on ........................ 6
Freeze Protec on ............................................ 10
Checklist to Determine Installa on Loca on .. 12
Mount to Wall ................................................. 12
Remove the Front Panel .................................. 12
Installa on of Ven ng (indoor models only) ... 13
Determining Vent Con gura on ..................... 15
Twin Pipe PVC/CPVC Vent Installa on ............ 19
Condensate ...................................................... 37
Checklist for Ven ng and Condensate
(indoor models only) ....................................... 37
Installa on of Plumbing ................................... 38
Checklist for Plumbing ..................................... 40
Recircula on Modes ........................................ 41
Installa on of Gas Supply ................................ 46
Connect Electricity ........................................... 47
Adjustment for High Al tude .......................... 48
Adjustment for Vent Length
(indoor models only) ....................................... 48
Checklist for Gas and Electricity ....................... 48
Installa on of Temperature Controller ............ 49
Final Checklist .................................................. 50
Technical Data ........................................................ 52
Speci ca ons ................................................... 52
Dimensions ...................................................... 53
Pressure Drop and Water Flow Curves ............ 54
Ladder Diagram ............................................... 55
Operati n Instructi ns ....................................... 56
Consumer Operati n Guidelines for the
Safe Opera on of your Water Heater .................... 57
How to Set the Temperature ................................. 59
How to Use the Temperature Controller ............... 60
Required Maintenance ........................................... 68
Freeze Protec on and Winteriza on ............... 69
Flushing the Heat Exchanger ........................... 70
Manual Draining of the Water Heater ............. 71
Diagnosti Codes .................................................... 72
State Regula ons ................................................... 75
Replacement Parts ................................................. 76
Warranty ................................................................ 77
French Version ....................................................... 81
Important Safety Informatio
Safety Defini ns
NOTICE: Rinnai some mes shares customer contact informa on with businesses that we believe provide
products or services that may be useful to you. By providing this informa on, you agree that we can
share your contact information f r this purpose. If you prefer not to have your informa on shared with
these businesses, please contact customer service and ask not to have your informa on shared. We
will however, conti ue to contact you with informa on relevant to the product(s) you registered and/
or your account with us.
If you have any questi ns or feel that the manual is incomplete contact Rinnai at 1-800-621-9419.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

KBP Series Manual 3
CAUTION
 BURN HAZARD. Hot exhaust and vent may cause
serious burns. Keep away from the water heater
unit. Keep small children and animals away from
the unit.
 Hot water outlet pipes leaving the unit can be hot
to touch. In residen al applicati ns, insula on
must be used for hot water pipes below 36” due to
burn risk to children.
Safety Behaviors and Practi es for the Consumer and Installer
 Before operati g, smell all around the appliance
area for gas. Be sure to smell next to the  oor
because some gas is heavier than air and will sett e
on the  oor.
 Keep the area around the appliance clear and free
from combusti le materials, gasoline, and other
 ammable vapors and liquids.
 Combusti le construc on refers to adjacent walls
and ceiling and should not be confused with
combusti le or  ammable products and materials.
Combusti le and/or  ammable products and
materials should never be stored in the vicinity of
this or any gas appliance.
 Always check the water temperature before
entering a shower or bath.
 To protect yourself from harm, before performing
maintenance:
 Turn o the electrical power supply by
unplugging the power cord or by turning off the
electricity at the circuit breaker. (The
temperature controller does not control the
electrical power.)
 Turn o the gas at the manual gas valve, usually
located immediately below the water heater.
 Turn o the incoming water supply. This can be
done at the isola on valve immediately below
the water heater or by turning off the water
supply to the building.
WARNING
 Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, do not try to repair it; call a
licensed professional. Force or att mpted repair
may result in a  re or explosion.
 Do not use this appliance if any part has been under
water. Immediately call a licensed professional to
inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
 Do not use substit te materials. Use only parts
certi d for the appliance.
 Should overhea ng occur or the gas supply fail to
shut off, turn o the manual gas control valve to the
appliance.
 Do not adjust the DIP switch unless speci cally
instructed to do so.
 Do not use an extension cord or an adapter plug
with this appliance.
 Any altera on to the appliance or its controls can be
dangerous and will void the warranty.
 Proper ven ng is required for the safe operati n of
this appliance.
 Ensure appliance ven ng is not blocked or parti lly
blocked.
 Ensure that in cases of freezing weather the water
heater and its water lines are protected to prevent
freezing.
California law requires this notice to be provided:
California Propositi n 65:
This product contains chemicals known to the state of California to cause cancer, birth defects, or other
reproducti e harm.
WARNING
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

4 KBP Series Manual
A licensed professional must install the appliance,
inspect it, and leak test it before use. The warranty
will be voided due to improper installa on.
The installer should have skills such as:
 Gas sizing.
 Connectin gas lines, water lines, valves, and
electricity.
 Knowledge of applicable na onal, state, and
local codes.
 Installing ven ng through a wall or roof.
 Training in installa on of tankless water heaters.
(Training can be accessed on-line at
www.trainingevents.rinnai.us)
Installati n Instruc ons
(for the licensed professional)
Installati n Steps
Prepare for Installa on ...................................... 5
Determine Installa on Loca on ......................... 6
Checklist to Determine Installa on Loca on ... 12
Mount to Wall .................................................. 12
Remove the Front Panel .................................. 12
Installa on of Ven ng (indoor models only) ... 13
Condensate (indoor models only) .................... 37
Checklist for Ven ng and Condensate
(indoor models only) ........................................ 37
Installa on of Plumbing ................................... 38
Checklist for Plumbing ..................................... 40
Installa on of Gas Supply ................................. 46
Connect Electricity ........................................... 47
Adjustment for High Al tude ........................... 48
Adjustment for Vent Length
(indoor models only) ........................................ 48
Checklist for Gas and Electricity ....................... 48
Installa on of Temperature Controller ............ 49
Final Checklist................................................... 50
General Instructi ns Installer Quali cati ns
DO NOT
 Do not install the RUR98i outdoors.
 Do not install the RUR98e indoors.
 Do not electronically manifold (MSB/EZ connect)
mul ple units together.
 Do not install the appliance in an area where water
leakage of the unit or connecti ns will result in
damage to the area adjacent to the appliance or to
lower  oors of the structure. When such locati ns
cannot be avoided, it is recommended that a
suitable drain pan, adequately drained, be installed
under the appliance. The pan must not restrict
combusti n air  ow.
 Do not obstruct the  ow of combusti n and
ven la on air. Combusti n air shall not be
supplied from occupied spaces.
 Do not use this appliance in an applicati n such as
a pool or spa heater that uses chemically treated
water . (This appliance is suitable for  lling large or
whirlpool spa tubs with potable water.)
 Do not use substit te parts that are not authorized
for this appliance.
MUST DO
 The installa on must conform with local codes or,
in the absence of local codes, with the Nati nal
Fuel Gas Code, ANSI Z223.1/NFPA 54, or the
Natural Gas and Propane Installati n Code, CSA
B149.1. If installed in a manufactured home, the
installa on must conform with the Manufactured
Home Construc on and Safety Standard, Title 24
CFR, Part 3280 and/or CAN/SCA Z240 MH Series,
Mobile Homes.
 The appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the Nati nal Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
 The appliance and its appliance main gas valve
must be disconnected from the gas supply piping
system during any pressure testi g of that system
at test pressures in excess of 1/2 psi (3.5 kPa)
(13.84 in W.C.).
Type of installatio
 For installa on in residen al and commercial
domestic ot water applications nly. (The unit is
not permi ed for installa on in hydronic heati g
applica ons of any type.)
 Certi d for installation i manufactured (mobile)
homes.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

KBP Series Manual 5
Prepare for installati n
Parts included
Tools needed
Materials needed
 The appliance must be isolated from the gas supply
piping system by closing its individual manual
shuto valve during any pressure testi g of the gas
supply piping system at test pressures equal to or
less than 1/2 psi (3.5 kPa) (13.84 in W.C.).
 You must follow the installa on instruc ons and
those in Care and Maintenance for adequate
combusti n air intake and exhaust.
INFORMATION
 If the water heater is installed in a closed water
supply system, such as one having a back ow
preventer in the cold water supply line, means
shall be provided to control thermal expansion.
Contact the water supplier or local plumbing
inspector on how to control thermal expansion.
 Should overhea ng occur or the gas supply fail to
shut off, turn o the manual gas control valve to
the appliance.
 Keep the air intake locati n free of chemicals, such
as chlorine or bleach, that produce fumes. These
fumes can damage components and reduce the life
of the appliance.
 Tankless water heater with integrated pump
 Color coded cold (blue) and hot (red) isolati n valves
 Pressure relief valve
 MC-195T temperature controller
 Self Tapping Screws (Qty - 2)
 Thermal By-Pass Valve
 Pipe wrenches (2)
 Adjustable pliers
 Screwdrivers (2)
 Wire cutt rs
 Gloves
 Safety glasses
 Level
Tools that might be needed
 Hammer drill with
concrete bits
 Saw
 Threading machine with
heads and oiler
 Core drill with diamond
head
 Torch set
 Copper tubing cutt r
 Steel pipe cutt r
Materials that may be needed
 Soap or gas leak detector
soluti n
 Approved ventin
 Thermal Expansion Tank
 Te on tape
(recommended) or pipe
compound
 Heat tape
 Pipe insulati n
 Electrical wire and
conduit per local code
 Concrete wall anchors
 Opti nal pipe cover
 Opti nal temperature
controller
 5/8” ID PVC  exible
tubing
 2 conductor 22 AWG
wire for controller
 Single gang electrical box
 Wire nuts
 Unions and drain valves
 Additi nal Piping (for
dedicated return
applicati ns)
 Pressure Regulator
 Check Valve
 Air Separator
General Instructi ns (conti ued)
NOTE
The MC-195T temperature controller is
contained within the Styrofoam packing of the
tankless water heater, be sure not to discard it.
This controller is necessary for opera on with this
tankless unit.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

6 KBP Series Manual
Considerati n of care for your water heater should
include evaluati n of water quality.
The water must be potable, free of corrosive chemicals,
sand, dirt, or other contaminates. It is up to the
installer to ensure the water does not contain corrosive
chemicals, or elements that can affe t or damage the
heat exchanger. Water that contains chemicals
exceeding the levels below affec and damage the heat
exchanger. Replacement of the heat exchanger due to
water quality damage is not covered by the warranty.
Maximum Level
Total Hardness Up to 200 mg / L
Aluminum * Up to 0.2 mg / L
Chlorides * Up to 250 mg / L
Copper * Up to 1.0 mg / L
Dissolved Carbon Dioxide (CO2) Up to 15.0 mg / L or PPM
Iron * Up to 0.3 mg / L
Manganese * Up to 0.05 mg / L
pH * 6.5 to 8.5
TDS (Total Dissolved Solids) * Up to 500 mg / L
Zinc * Up to 5 mg / L
Determine Installati n Locati n Environment
Air surrounding the water heater, ventin , and vent
terminati n(s) is used for combusti n and must be free
of any compounds that cause corrosion of internal
components. These include corrosive compounds that
are found in aerosol sprays, detergents, bleaches,
cleaning solvents, oil based paints/ varnishes, and
refrigerants. The air in beauty shops, dry cleaning
stores, photo processing labs, and storage areas for pool
supplies often ontains these compounds. Therefore it
is recommended that outdoor models be used for these
locati ns.
The water heater, venti g, and vent terminati n(s)
should not be installed in any areas where the air may
contain these corrosive compounds. If it is necessary for
a water heater to be located in areas that may contain
corrosive compounds, the following instructi ns are
strongly recommended.
IMPORTANT CONSIDERATIONS FOR:
Indoor/Internal Water Heaters
 DO NOT Install in areas where air for combusti n
can be contaminated with chemicals.
 Before installati n, consider where air has the
ability to travel within the building to the water
heater.
 Where possible, install the water heater in a sealed
closet so that it is protected from the potentia of
contaminated indoor air.
 Chemicals that are corrosive in nature should not
be stored or used near the water heater.
Outdoor/External Water Heaters and Vent
Terminati ns of Indoor/Internal Water Heaters
 Install the water heater as far away as possible
from exhaust vent hoods.
 Install as far away as possible from air inlet vents.
Corrosive fumes may be released through these
vents when air is not being brought in through
them.
 Chemicals that are corrosive in nature should not
be stored or used near the water heater or vent
terminati n.
Damage and repair due to corrosive compounds in the
air is not covered by warranty.
Water Quality
* Source: Part 143 Na onal Secondary Drinking Water
Regula ons
If you install this water heater in an area that is known
to have hard water or that causes scale build-up the
water must be treated and the heat exchanger  ushed
regularly.
When scale build-up in the heat exchanger begins to
a ect the performance of the water heater, a diagnostic
code “LC#” will display. Flush the heat exchanger to
prevent damage to it. Scale build up is caused by hard
water set at a high temperature.
Rinnai o ers Southeastern Filtrati n’s “ScaleCutt r
Water Conditi ning System” that o ers superior lime
scale preventi n and corrosion control by feeding a
blend of control compounds into the cold water supply.
You must ensure that clearances will be met and that
the vent length will be within required limits. Consider
the installati n environment, water quality, and need
for freeze protecti n. Requirements for the gas line,
water lines, electrical connecti n, and condensate
disposal can be found in their respec ve installati n
secti ns of this manual.
Part Number Descrip on
103000038 Southeastern Filtratrion
ScaleCu er System 3/4” Feed
103000039 ScaleCu er Refil
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

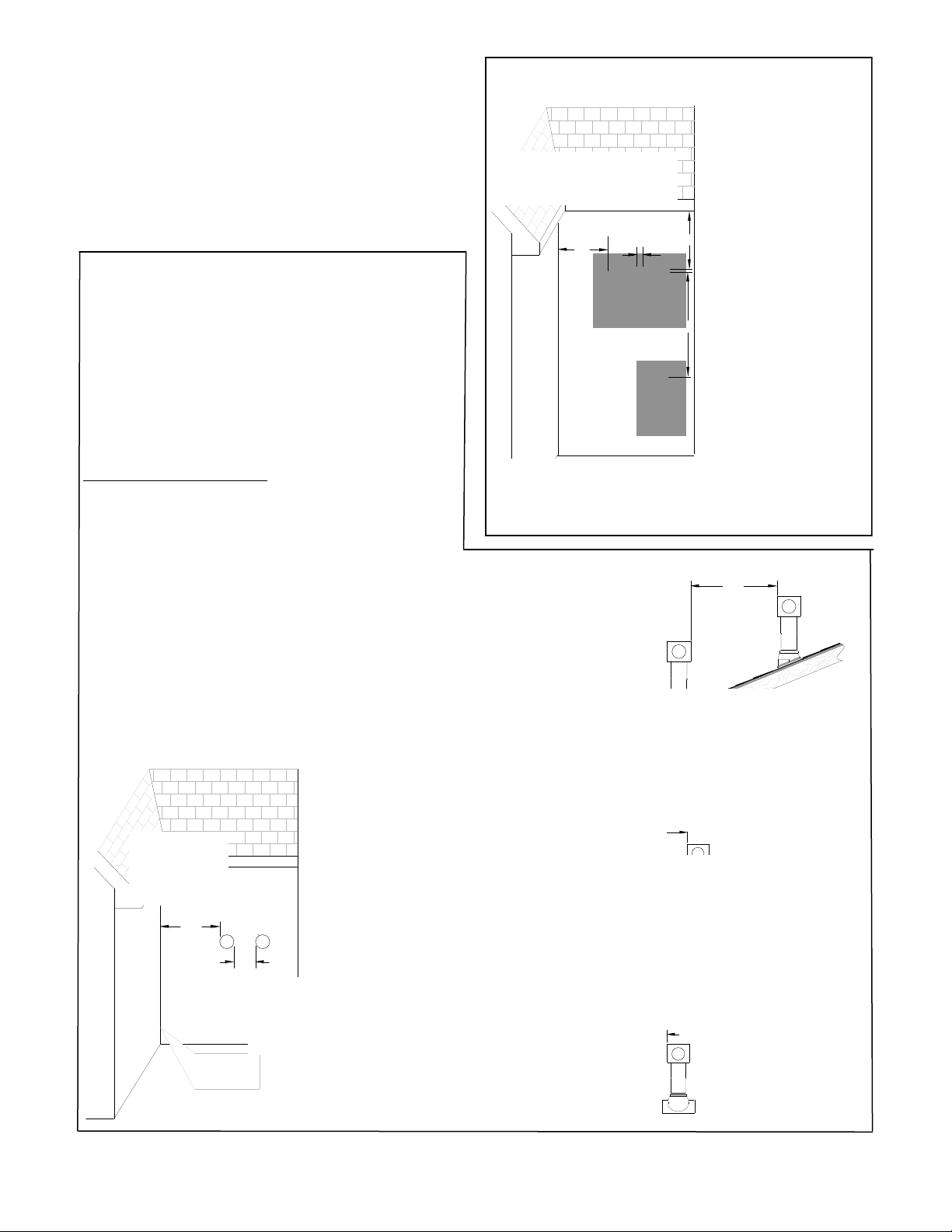

KBP Series Manual 7
INSIDE
CORNER DETAIL
FIXED
CLOSED
OPERABLE
FIXED
CLOSED
OPERABLE
B
B
BA
J
BM
C
F
B
B
E
D
L
G
A
H
K
I
[1] A vent shall not terminate directly above a sidewalk or paved driveway
that is located between two single family dwellings and serves both
dwellings.
[2] Permi ed only if veranda, porch, deck, or balcony is fully open on a
minimum of two sides beneath the  oor.
 For clearances not speci ed in ANSI Z223.1/NFPA 54, clearances are in
accordance with local installa on codes and the requirements of the gas
supplier.
Clearance to opposite wall is 24 inches (60 cm).
X
V
AIR SUPPLY INLET
VENT TERMINAL
AREA WHERE TERMINAL
IS NOT PERMITTTED
For indoor models, you must install a vent termina on to bring in combusti n air and expel exhaust to the outside.

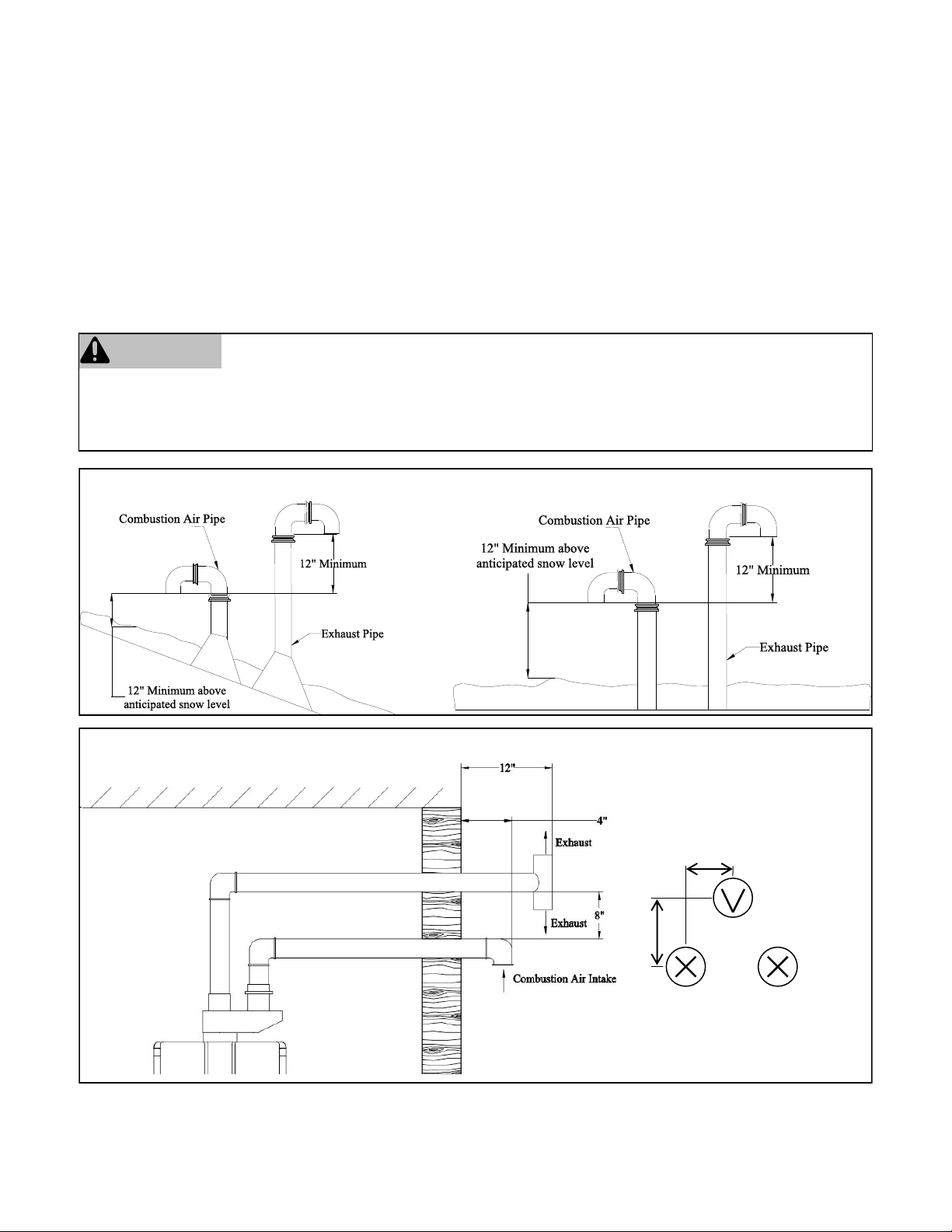

SNOW
TERMINATION
Clearance in
Ref. A also
applies to
anticipated
snow line
Ref Descripti n Canadian Installa ons US Installa ons
A Clearance above grade, veranda, porch, deck, or balcony 12 inches (30 cm) 12 inches (30 cm)
B Clearance to window or door that may be opened 36 inches (91 cm) 12 inches (30 cm)
C Clearance to permanently closed window * *
D
Ver cal clearance to ven lated so , located above the terminal within
a horizontal distance of 2 feet (61 cm) from the center line of the
terminal
* *
E Clearance to unven lated so * *
F Clearance to outside corner * *
G Clearance to inside corner * *
H Clearance to each side of center line extended above meter/regulator
assembly
3 feet (91 cm) within a height 15
feet (4.5 m) above the meter/
regulator assembly
*
I Clearance to service regulator vent outlet 36 inches (91 cm) *
J Clearance to nonmechanical air supply inlet to building or the 36 inches (91 cm) 12 inches (30 cm)
K Clearance to a mechanical air supply inlet 6 feet (1.83 m) 3 feet (91 cm) above if within 10
feet (3 m) horizontally
L Clearance above paved sidewalk or paved driveway located on public
property 7 feet (2.13 m)  *
M Clearance under veranda, porch, deck, or balcony 12 inches (30 cm)  *
Direct Vent Terminal Clearances (Indoor Units)
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

8 KBP Series Manual
Other Than Direct Vent Terminal Clearances (Outdoor Units)
INSIDE
CORNER DETAIL
FIXED
CLOSED
OPERABLE
FIXED
CLOSED
OPERABLE
B
B
BA
J
BM
C
F
B
B
E
D
L
G
A
H
K
I
[1] A vent shall not terminate directly above a sidewalk or paved driveway
that is located between two single family dwellings and serves both
dwellings.
[2] Permi ed only if veranda, porch, deck, or balcony is fully open on a
minimum of two sides beneath the  oor.
 For clearances not speci ed in ANSI Z223.1/NFPA 54, clearances are in
accordance with local installa on codes and the requirements of the gas
supplier.
Clearance to opposite wall is 24 inches (60 cm).
X
V
AIR SUPPLY INLET
VENT TERMINAL
AREA WHERE TERMINAL
IS NOT PERMITTTED
Ref Descripti n Canadian Installa ons
(CSA B149.1)
US Installa ons
(ANSI Z223.1 / NFPA 54)
A Clearance above grade, veranda, porch, deck, or balcony 12 inches (30 cm) 12 inches (30 cm)
B Clearance to window or door that may be opened
6 in (15 cm) for appliances ≤ 10,000 Btuh (3
kW), 12 in (30 cm) for appliances > 10,000
Btuh (3 kW) and ≤ 100,000 Btuh (30 kW), 36 in
(91 cm) for appliances >100,000 Btuh (30 kW)
4  (1.2 m) below or to side of opening;
1  (300 mm) above opening
C Clearance to permanently closed window * *
D Ver cal clearance to ven lated so , located above the terminal within a
horizontal distance of 2 feet (61 cm) from the center line of the terminal * *
E Clearance to unven lated so * *
F Clearance to outside corner * *
G Clearance to inside corner * *
H Clearance to each side of center line extended above meter/regulator
assembly
3 feet (91 cm) within a height 15 feet (4.5 m)
above the meter/regulator assembly *
I Clearance to service regulator vent outlet 36 inches (91 cm) *
J Clearance to non-mechanical air supply inlet to building or the combus on
air inlet to any other appliance
6 in (15 cm) for appliances ≤ 10,000 Btuh (3
kW), 12 in (30 cm) for appliances > 10,000
Btuh (3 kW) and ≤ 100,000 Btuh (30 kW), 36 in
(91 cm) for appliances >100,000 Btuh (30 kW)
4  (1.2 m) below or to side of opening;
1  (300 mm) above opening
K Clearance to a mechanical air supply inlet 6 feet (1.83 m) 3 feet (91 cm) above if within 10 feet (3
m) horizontally
L Clearance above paved sidewalk or paved driveway located on public
property 7 feet (2.13 m)  *
M Clearance under veranda, porch, deck, or balcony 12 inches (30 cm)  *
Clearance in
Ref. A also
applies to
antic pated
snow line
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

KBP Series Manual 9
Additional clearances
Check to determine whether local codes supersede
these clearances.
 Avoid termina on loca ons near a dryer vent.
 Avoid termina on loca ons near commercial
cooking exhaust.
 You must install a vent termina on at least 12
inches above the ground or an cipated snow
level if higher.
(0.30 m) between
terminals at same
level
(1.52 m)
vertica ly
between
terminals
2"
12"
60"
36"
60"
V
V
(1.52 m)
between
terminals at
diff rent levels
24"
V
(0.61 m) to wall or parapet
12"
V V
V
60"
V
RUR98e
RUR98i
12"
12"
36"
INSIDE
CORNER
V V
(0.30 m) between
terminals at same
level
(0.30 m ) to
an inside
corner
(0.91 m) to ven lated
or unven lated so t
or eve vent; or to a
deck or porch
(1.52 m) vertica ly
between terminals
(50 mm) between
terminals at same level
(0.30 m) to an
inside corner
The vent for this appliance shall not terminate
 Over public walkways; or
 Near so t vents or crawl space vents or other
area where condensate or vapor could create a
nuisance or hazard or cause property damage; or
 Where condensate or vapor could cause damage
or could be detrimental to the operati n of
regulators, relief valves, or other equipment.
Important considerati ns for locati g vent
termina on under a so t (ven lated or unven lated
or eave vent; or to a deck or porch)
 Do not install vent termination u der a so t vent
such that exhaust can enter the so t vent
 Install vent termina on such that exhaust and rising moisture
will not collect under eaves. Discolora on to the exterior of
the building could occur if installed too close.
 Do not install the vent termina on too close under the so t
where it could present recircula on of exhaust gases back
into the combus on air intake part of the termina on.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

10 KBP Series Manual

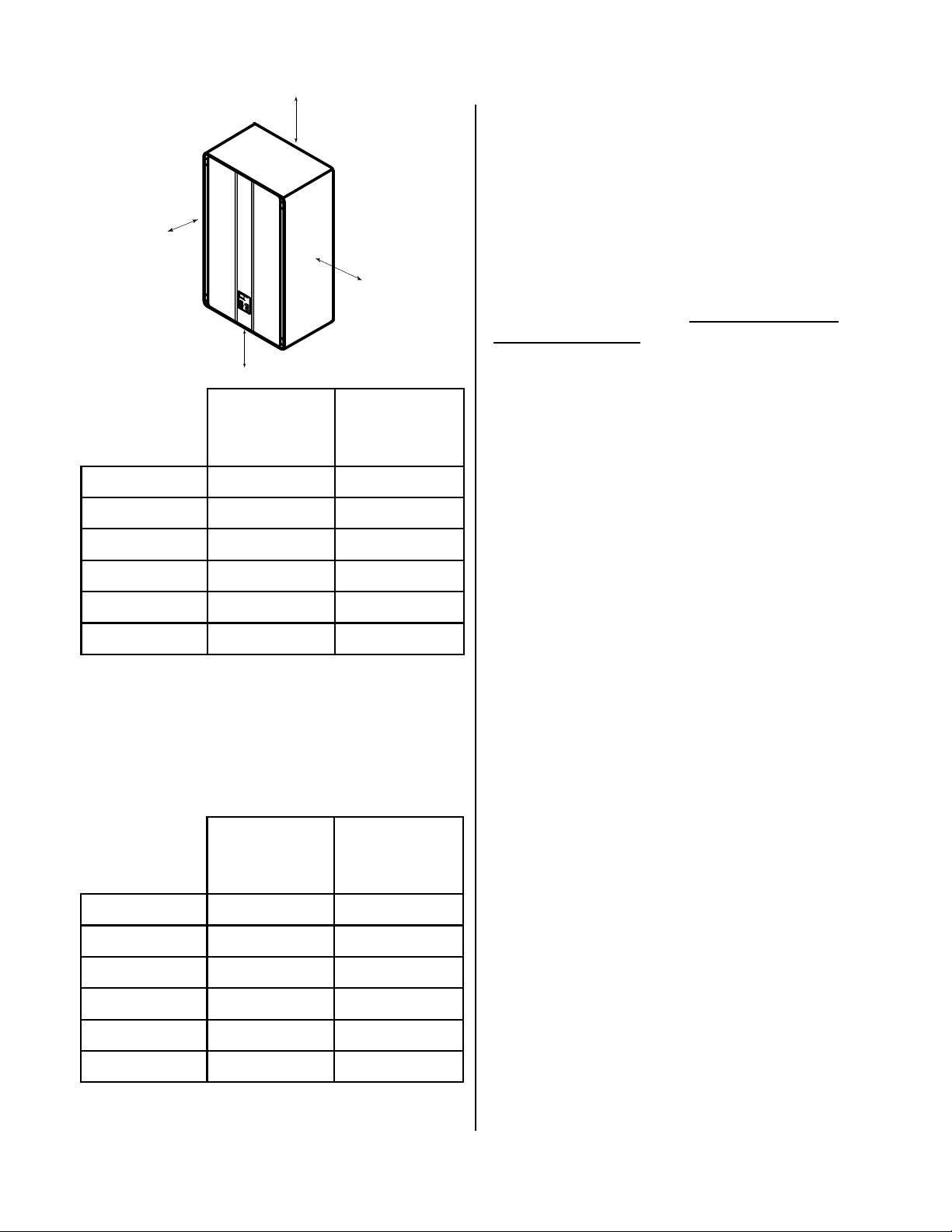

Unit clearances
Indoor
model
RUR98i
to Combustibl s
inches (mm)
to Non-
Combustibl s
inches (mm)
Top of Heater 6 * (152) 2 *(51)
Back of Heater 0 (zero) 0 (zero)
Front of Heater 6 (152) 6 (152)
Sides of Heater 2 (51) 1/2 (13)
Ground/Bo om 12 (305) 12 (305)
Vent 0 (zero) 0 (zero)
* 0 inches from vent components and condensate drain
line.
The clearance for servicing is 24 inches in front of the
water heater.
For closet installatio , clearance is 6 inches (152 mm from
the front.
Outdoor
model
RUR98e
to Combustibl s
inches (mm)
to Non-
Combustibl s
inches (mm)
Top of Heater 12 (305) 2 (51)
Back of Heater 0 (zero) 0 (zero)
Front (panel) 24 (610) 0 (zero)
Front (exhaust) 24 (610) 24 (610)
Sides of Heater 6 (152) 1/8 (3.2)
Ground/Bo om 12 (305) 2 (51)
The clearance for servicing is 24 inches in front of the
water heater.
to side
to front
to top
to floor/ground
Freeze Protectio
Make sure that in case of freezing weather the water
heater and its water lines are protected to prevent
freezing. Damage due to freezing is not covered by
the warranty.
Loss of freeze protec on may result in water damage
from a burst heat exchanger or water lines.
With electrical power supplied, the water heater will
not freeze when the outside air temperature is as cold
as –22°F (-30°C) for indoor models or is as cold as –4°F
(-20°C) for outdoor models, when protected from
direct wind exposure. Because of the “wind-chill”
e ect, any wind or circula on of the air on the unit
will reduce its ability to freeze protect.
The unit may be drained manually. However, it is
highly recommended that:
 drain down solenoid valves be purchased and
installed that will automa cally drain the unit if
power is lost. These are available in a kit,
104000059. (The condensate trap drain plug,
water drain plug, and pump drain plug are not
aff cted by the auto drain down solenoid valves
and will have to be manually opened.)
 a surge protector with terminals be purchased
and installed which allows the solenoid valves to
operate if the unit is disabled due to a diagnostic
code. This is available as 104000057.
In addi on, the solenoid valves should be connected
electrically to a surge protector with terminals. This
allows the solenoid valves to operate if the water
heater is disabled due to a diagnostic ode.
The freeze protecti n features will not prevent the
external piping from freezing. It is recommended that
hot and cold water pipes be insulated. Pipe cover
enclosures may be packed with insula on for added
freeze protecti n.
It is recommended that the condensate trap drain line
be insulated. A frozen condensate trap drain line
results in diagnostic ode 25.
In the event of a power failure at temperatures below
freezing, the water heater should be drained of all
water to prevent freezing damage. In addi on, drain
the condensate trap, drain line, and pump drain.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

KBP Series Manual 11

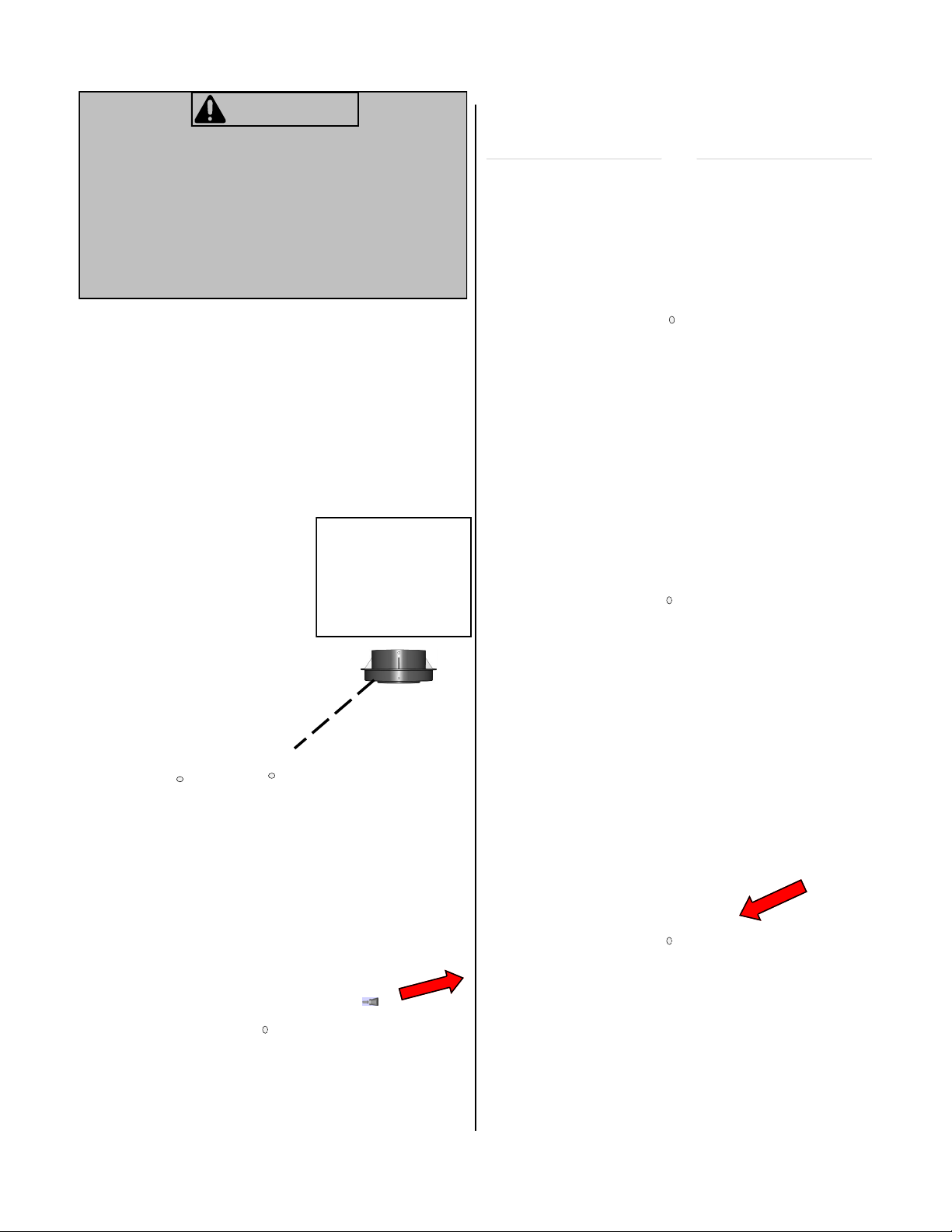

Maximum vent length
Maximum Vent Length with Concentric Ven ng
1. Determine the number of 90 degree elbows in
the vent system. (Two 45 degree elbows count as
one 90 degree elbow.)
2. Refer to the table to  nd the maximum vent
length based on the number of elbows.
3. Adjust SW1 in the DIPSW 1 (tan switches) if
required by the applicable note.
 If the length is greater than 21  (6.4 m) then
move SW1 to OFF.
 If the length is greater than 15  (4.6 m) then
move SW1 to OFF.
 If the length is greater than 9  (2.7 m) then move
SW1 to OFF.
 Move SW1 to OFF.
If you have a longer vent length (see number 3
regarding max. vent length), SW1 in DIPSW 1 is
required to be in the OFF posi on. This ensures the
water heater will run properly. Blocked  ue
diagnostic odes and shutdowns may result if SW1 in
DIPSW 1 is not in the correct posi on.
NOTICE
Vent length using short radius elbow
(Intake is the short UV protected 90° elbow)
Number of
90° Short
Radius
Elbows
Maximum
Straight Vent
Length
SW1 in DIPSW 1
If length is greater
than:
0 41 ft 12.50 m) 18 ft 5.49 m) move SW1
to OFF
1 26 ft 7.93 m) 3 ft (0.91 m) move SW1
to OFF
2 11 ft 3.35 m) move SW1 to OFF for
any length
Number of
90° Long
Radius
Elbows
Maximum
Straight Vent
Length
SW1 in DIPSW 1
If length is greater
than:
0 41  (12.50 m) 21  (6.40 m) move
1 35  (10.67 m) 15  (4.57 m) move
2 29  (8.84 m) 9  (2.74 m) move
3 23  (7.01m) 3  (0.91 m) move
4 17  (5.18 m)
move SW1 to OFF
for any length
5 11  (3.35 m)
6 5  (1.52 m)
Vent length using long radius elbow
(Intake is the long UV protected 90° elbow)
Maximum Vent Length for Centrotherm 2 Pipe
InnoFlue Vent System (single wall SW, 3 inch diameter)
Propane Units Only
Concentric
(90° elbow is equivalent to 6 feet; 45° elbow is equivalent to 3 feet.)
Maximum Equivalent Vent Length 41  (12.5 m)
# of 90° Elbows
Maximum Vent Length in feet
(meters)
0 41 (12.5)1
1 35 (10.7)2
2 29 (8.8)3
3 23 (7.0)4
4 17 (5.2)4
5 11 (3.4)4
6 5 (1.5)4
Natural Gas Units Only
Concentric
(90° elbow is equivalent to 6 feet; 45° elbow is equivalent to 3 feet.)
Maximum Equivalent Vent Length 65  (19.8 m)
# of 90° Elbows
Maximum Vent Length in feet
(meters)
0 65 (19.8)1
1 59 (18.0)2
2 53 (16.2)3
3 47 (14.3)4
4 41 (12.5)4
5 35 (10.7)4
6 29 (8.8)4
Example: If you have one elbow then your
maximum vent length is 35 feet (10.7 m).
If your actual length is greater than 15 
(4.6 m) then move SW1 in DIPSW 1 to
OFF.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

12 KBP Series Manual

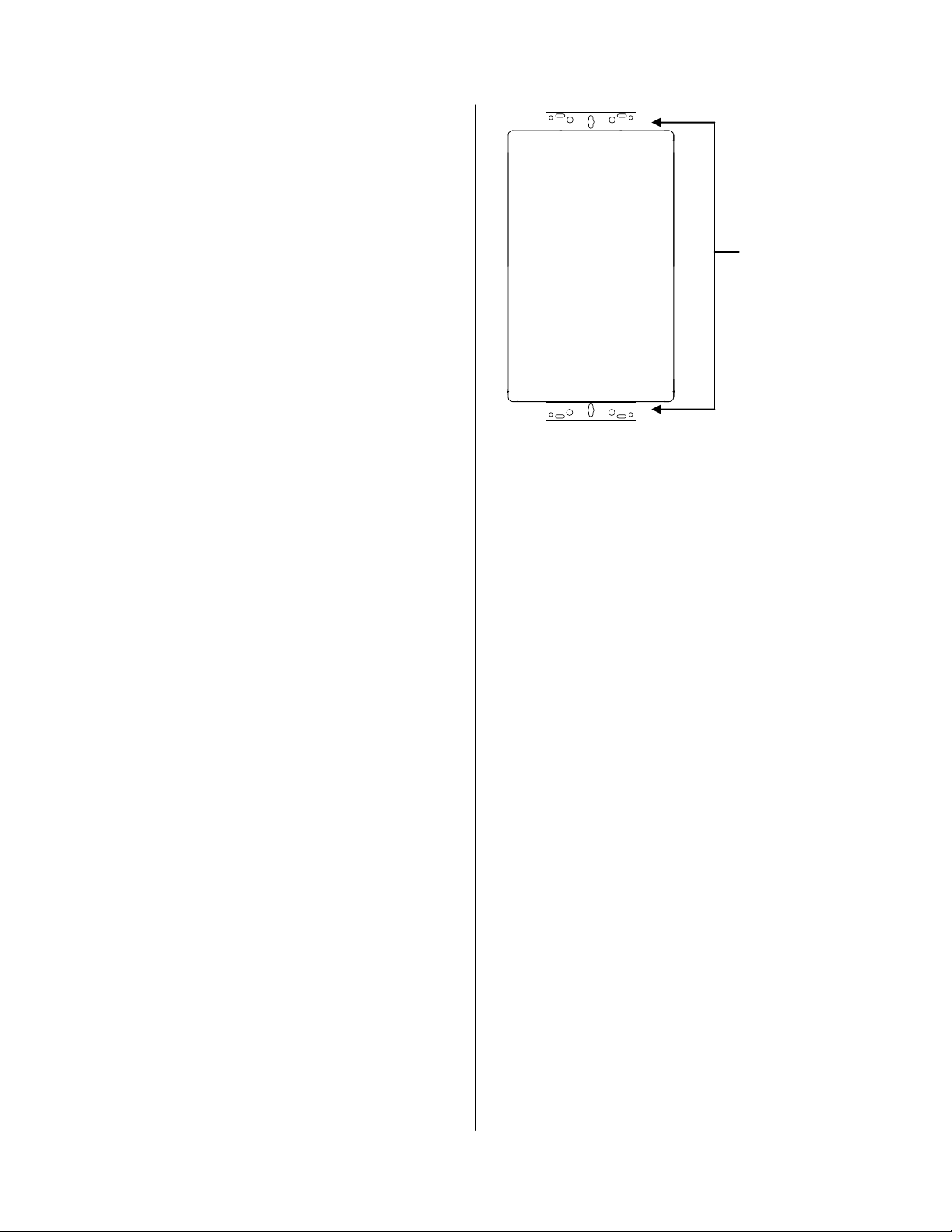

Mount to Wall
wall installa on
brackets
1. Iden fy the installatio loca on and con rm that
the installa on will meet all required clearances.
2. Securely attac the water heater to the wall
using any of the holes in the wall installation
brackets which are at the top and bo om of the
water heater. Ensure that the attac ment
strength is su cient to support the weight.
Refer to the weight of the water heater in the
Speci ca ons secti n.
Use a leveling tool to ensure that the water
heater is level. Proper opera on requires that
the water heater be level.
NOTE: The water heater should be installed in an
upright posi on. Do not install upside down or on its
side.
Checklist to Determine Installati n
Locati n
□ The water heater is not exposed to corrosive
compounds in the air.
□ The water heater locati n complies with the
required clearances.
□ For indoor models, the planned ven ng will not
exceed the maximum length for the number of
elbows used.
□ The planned ven ng termina on/air intake
loca on meets the required clearances.
□ The water supply does not contain chemicals or
exceed total hardness that will damage the heat
exchanger.
□ A standard 3 prong 120 VAC, 60 Hz properly
grounded wall outlet (for indoor models) or other
120 VAC, 60 Hz source is available.
□ The installa on must conform with local codes or,
in the absence of local codes, with the Nati nal
Fuel Gas Code, ANSI Z223.1/NFPA 54, or the
Natural Gas and Propane Installati n Code, CSA
B149.1. If installed in a manufactured home, the
installa on must conform with the Manufactured
Home Construc on and Safety Standard, Title 24
CFR, Part 3280 and/or CAN/SCA Z240 MH Series,
Mobile Homes.
□ Leave the enti e manual taped to the water
heater (indoor models), temperature controller
(outdoor models), or give the enti e manual
directly to the consumer. Remove the Front Panel
Slide o the plastic tr m pieces on each side of the
water heater to expose the screws.
Remove the 4 screws and pull off the front panel.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

KBP Series Manual 13
Installati n of Venti g (indoor models only)
Install the correct ven ng for your model according to the ven ng manufacturer’s instructi ns and the guidelines
below. Refer to the vent manufacturer’s technical literature for specifi part numbers and instructi ns.
Manufacturer Vent Product Verti al Terminati n Horizontal Terminati n
Ubbink Rolux 184162PP 223176PP, 223177PP
Centrotherm InnoFlue ICRT3539 ISELL0387UV
Heat-Fab Saf-T Vent Saf-T Vent CI Plus Wall
Terminati n Saf-T Vent CI Plus Rain Cap
Metal-Fab Corr/Guard 3CGRVDK 3CGRVT
Ipex Concentric Kit 3”- 196006 /197009
4”-196021 /197021
3”- 196006 / 197009
4”-196021 / 197021
Ipex Low Pro le Terminati n Kit — 3”- 196985
4”- 196986
Various
Manufacturers
Schedule 40 PVC DWV Solid
Core Pipe (or approved equal)
CPVC schedule 40
Reference “Approved PVC/CPVC
Vent Con gurati ns” Table
Reference “Approved PVC/
CPVC Vent Con gurati ns”
Table
Manufacturer Listed and Tested Vent
Products Telephone Fax Contact
Ubbink Rolux Condensing
Vent System 800-621-9419 678-829-1666 www.rinnai.us
Centrotherm InnoFlue Vent System (single
wall SW, 3 inch diameter) 877-434-3432 518-618-3166 [e-mail]
www.centrotherm.us.com
Heat-Fab Saf-T Vent SC system 800-772-0739 413-863-4803 [e-mail],
www.heatfab com
Metal-Fab Corr/Guard Vent/Air Intake
System 800-835-2830 316-943-2717 [email protected]m, www.metal-fabinc.com
Ipex Concentric Kit / Low Pro le
Terminati n Kit
U.S. - 800-463-9572
CA. - 866-473-9462 — www.ipexamerica.com www.ipexinc.com
Various
Manufacturers
Schedule 40 PVC DWV Solid Core
Pipe (or approved equal)
CPVC schedule 40
— — —
Approved Vent Manufacturers
Approved Vent Products
Proper venti g is required for the safe operati n of this appliance.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

14 KBP Series Manual
Ven ng Guidelines
DO NOT
 Do not use cellular core PVC/CPVC.
 Do not use Radel, ABS, or galvanized material to
vent this appliance.
 Do not combine vent components from di erent
manufacturers.
 Vent diameter must not be reduced.
 Do not connect the ven ng system with an
exis ng vent or chimney.
 Do not common vent with the vent pipe of any
other manufacturer’s water heater or appliance.
Rinnai water heaters can only be common vented
using a Rinnai cer  ed common vent system.
MUST DO
 This water heater is a direct vent water heater and
therefore is cer  ed and listed with the vent
system. You must use vent components that are
certi d and listed with the water heater model.
 The vent system must vent directly to the outside
of the building and use outside air for combusti n.
 Avoid dips or sags in horizontal vent runs by
installing supports per the vent manufacturer’s
instruc ons.
 Support horizontal vent runs every four feet and
all verti al vent runs every six feet or in
accordance with local codes, beginning as close as
possible to the water heater to ensure no
movement and that the weight of the vent is
independently supported.
 Venti g should be as direct as possible with a
minimum number of pipe  tti s.
 Gasketed type vent connections must be  rmly
pressed together to form an air ti ht seal.
 The vent piece connected to the water heater
must be secured with one self-tapping screw.
INFORMATION
 Refer to the instruc ons of the vent system
manufacturer for component assembly
instruc ons.
 If the vent system is to be enclosed, it is suggested
that the design of the enclosure shall permit
inspection of the vent system. The design of such
enclosure shall be deemed acceptable by the
installer or the local inspector.
NOTICE
If it becomes necessary to access an enclosed vent
system for service or repairs, Rinnai is not responsible
for any costs or di cul es in accessing the vent
system. The warranty does not cover obtaining
access to a vent system in an enclosed environment.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

KBP Series Manual 15
Determining Vent Confi urati n
 Prior to the installa on of the vent system, the
unit must be properly adjusted for the ven ng
con gura on selected for the applicati n.
 Any issues resulti g from improper installa on
will not be covered by warranty.
 Ducted outside air is mandatory for all twin pipe
con gura ons.
NOTICE
Exhaust Adapter
Ring to be removed
and discarded for
concentric vent
con gura on
Concentric Vent Config ration
(Same procedure to be used for Twin Pipe with
Centrotherm Adapter Confi ura on)
Removal of Exhaust Adapter Ring
1. Remove fastener from concentric  ue
connec on.
2. Remove exhaust adapter ring.
3. Install the concentric vent. Ensure it is properly
seated.
4. Secure the vent pipe to the unit with the supplied
screw (in the carton box).
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

16 KBP Series Manual
Intake Cap to be removed and discarded
for twin pipe PVC/CPVC con gura on.
Determining Vent Confi urati n (contin ed)
Removal of Intake Cap
1. Remove the fastener from intake connec on.
2. Remove the intake cap.
Twin Pipe PVC/CPVC Config ration
(3”or 4”)
3. Install the intake pipe. Ensure it is properly
seated.
4. Secure the intake pipe to the unit with the
supplied screw (in the carton box).
5. Install the exhaust pipe. Ensure it is properly
seated.
6. Secure the exhaust pipe to the unit with the
supplied screw (in the carton box).
WARNING
DO NOT apply PVC glues, solvents, or cleaners
to the water heater’s intake or exhaust gasket
connec ons. Failure to correctly assemble the
components according to these instruc ons
may result in property damage, personal injury,
or death.
Intake Gasket Connec on
Exhaust Gasket Connec on
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

KBP Series Manual 17
Flue Installation with Concentric Venti g (indoor models only)
Install the ven ng termination ac ording to diagrams below and vent manufacturer’s instruc ons.
Secure the first vent component to the water heater
at the flange using the provided self-tapping screw.
Horizontal Termination
Vertical Termination
Slope the venting 1/4” per foot toward the
appliance according to the vent manufacturer’s
installation instructions.
Dispose of condensate per local codes.
Slope the venting 1/4” per foot toward the
appliance according to the vent manufacturer’s
installation instructions.
Dispose of condensate per local codes.
Securing Screw
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

18 KBP Series Manual
 Comply with the exhaust clearances found in the Rinnai Installa on and Opera on Manual.
 Only one appliance can be a ached to the vent system.
 Install the system according to the Centrotherm installa on instruc ons.
 The vent termina on and air intake must be in the same pressure zone.
 Do not exceed maximum straight vent length with number of elbows as shown in the tables in the following
section
 Maintain the clearances shown in the  gures below.
WARNING The following vent materials are NOT APPROVED for use with this appliance:
 Cellular core PVC/CPVC
 Radel, ABS, and/or Galvanized ducts.
Failure to use approved vent materials can result in property damage, personal injury, or death.
Ver cal Termina on
Flue Installation with Centrotherm Ven ng (indoor models only)
Install the ven ng termination ac ording to the diagrams and instruc ons below.
Horizontal Termina on
11”
5”
Intake
Op onal
Vent
Slope horizontal exhaust run towards the water heater 1/4” per foot. DO NOT slope combustio air pipe towards unit. Be
sure to dispose of condensate per local codes.
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

KBP Series Manual 19
Installatio s must comply with local requirements and with the Nati nal Fuel Gas Code, ANSI Z223.1/NFPA 54 for U.S.
installatio s or CSA B149.1 for Canadian installatio s. DO NOT use cellular core PVC, CPVC, or Radel based pipe materials
for the exhaust vent. Vents MUST be of solid core pipes ONLY.
WARNING
Use only the materials listed in this sectio for vent, air intake pipe, and   gs (See vent and air piping materials table).
Failure to comply with this warning could result in property damage, personal injury, or death.
WARNING
PVC venting cannot be used if the water heater is installed in a recirculatio system and the thermostat se g is greater
than 150° F (65.5 °C).
NOTICE
Twin Pipe PVC/CPVC Vent Installatio
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer

20 KBP Series Manual
Tankless Water Heaters with PVC/CPVC ven ng must be con gured with intake air and exhaust vent using
piping and methods described in this secti n. Each water heater must have its own intake and vent. DO NOT
common vent with any other appliance using this method. Inspect  nished vent and intake air piping thoroughly
to ensure all are air ght and comply with the instruc ons provided and with all requirements of applicable
codes. Failure to provide a properly installed vent and air system will cause personal injury or death.
DANGER
Combusti n Air Intake - The combus on air intake termina on  tti must be installed with the clearances and
geometry rela ve to the exhaust (vent) depicted in this sec on to ensure that  ue products do not enter the
combusti n air intake. Ensure that the intake air will not contain any of the contaminants as outlined in the
“Determine Installati n Locati n” secti n of this manual. Contaminated intake air will damage the water
heater, resul ng in possible property damage, personal injury, or death.
Exhaust - The exhaust (vent) termina on  tti must be installed with the clearances and geometry rela ve to
the combus on air pipe as depicted in this secti n to ensure that  ue products do not enter the combusti n air
intake
WARNING
The installa on must conform with local codes or, in the absence of local codes, with the Nati nal Fuel Gas
Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installati n Code, CSA B149.1. DO NOT use
cellular core PVC, CPVC, Radel, ABS, or galvanized material for the exhaust vent. Vents MUST be of solid core
pipes ONLY.
WARNING
Use only the materials listed in this manual for vent, combus on air intake pipe, and  tti s (See “Vent and Air
Piping” table) . Failure to comply with this warning could result in property damage, personal injury, or death.
WARNING
If used, a masonry chimney can ONLY be used as a CHIMINEY CHASE for the exhaust and combus on air intake
pipes. The exhaust and air piping must be installed as instructed in this manual. The chimney chase must be
used only for the Rinnai Water Heater(s) vent chase. NO OTHER appliance or  replace can be connected to the
chimney chase. Exhaust and air piping materials must comply with this instruc on. The chimney chase must be
  ed with a sealed access opening to facilitate interior inspection. The chimney chase (and liner, if installed) to
be inspected annually for any degrada on. Failure to comply could result in property damage, personal injury,
or death.
WARNING
Downloaded from http://GadgetsGo.com Rinnai Authorized Dealer
