Rinnai INFINITY 26i User manual

Installation and User Manual
Infinity 26i and HD50i
Infinity 26i and HD50i
Continuous Flow Water Heater
Important.
Read these instructions carefully before attempting installation or use of
this appliance. All work must be carried out by competent persons.

2
RINNAI UK WARRANTY (from Jan 2005)
As the purchaser of this high quality Rinnai Water Heater you are provided with the following
conditional guarantee.
Definition of Standard Use.
The warranty period allocated under Standard Use is based on Domestic and Light Commercial hot
water usage. Rinnai Standard Use warranty periods apply only where Rinnai water heaters are
installed in domestic and light commercial situations at operating temperatures below 650C and do not
include installations incorporating storage cylinders or building flow and return systems.
The warranty shall apply to any Rinnai water heater from the Infinity or HD range used in this way.
Definition of Commercial Use.
The warranty period allocated under Commercial Use are for Rinnai HD water heaters installed at
premises such as commercial and industrial buildings, cafes, caravan parks, and sporting complexes.
Commercial Use warranty applies to:
Water heaters supplying a central shower block
Water heaters supplying kitchens used for the bulk preparation of food.
Water heaters set to 650C or higher.
Water heaters used in commercial or industrial processes.
Any application that uses Rinnai water heaters in conjunction with storage tanks
Any application that uses Rinnai water heaters in conjunction with a flow / return system.
Water heaters installed as components of centralised bulk hot water systems.
Situations defined as Commercial Use MUST have the Rinnai HD range of water heaters to be
eligible for the Commercial Use warranty. Rinnai Infinity units used in Commercial Situations are only
subject to a 1 year warranty across the board.
No Rinnai warranty will cover faults arising from improper installation or gas supply, water
contaminants beyond defined limits, environmental factors, plumbing fittings, or other outside
influences of which Rinnai is not responsible. Service calls for these issues will be chargeable.
Heat Exchanger All Other Parts
Parts Labour Parts Labour
Standard Use 3 Years 1 Year 3 Years 1 Year
(26i)
Commercial Use 5 Years 1 Year 5 Years 1 Year
(HD 50i
Description pH
Total Dissolved
Solids (TDS) Total Hardness Chlorides Magnesium Calcium Sodium Iron
Maximum Recommended
Levels 6.5 - 9.0 600 mg/litre 200 mg/litre 300 mg/litre 10 mg/litre 20 mg/litre 150 mg/litre 1 mg/litre

3
Warranty…………………………………
Unpacking Rinnai Water Heater…………
Installation Instructions……………………
Flue Requirements………………………...
Dimensions…………………………………
Technical Details..…………………………
Features and Benefits…………………….
Important Information……………………..
Operation without Remotes………………
Temperature Controls……………………..
Testing………………………………………
Gas Pressure Setting……………………..
Dip Switch Setting…………………………
Error Messages……………………………
Restarting the Rinnai Water Heater……..
Wiring Diagram…………………………….
Diagnostic Points…………………………..
Specification………………………………..
Service Contact……………………………
…………………………………………………2
…………………………………….…………..3
…………………………………………………4
…………………………………………………8
……………………………………………….10
……………………………………………….11
……………………………………………….12
……………………………………………….13
……………………………………………….15
……………………………………………….16
……………………………………………….27
……………………………………………….28
……………………………………………….30
……………………………………………….32
……………………………………………….34
……………………………………………….35
……………………………………………….36
……………………………………………….37
……………………………………………….38
CONTENTS

4
UNPACKING RINNAI WATER HEATER
• After unpacking the appliance check for damage, if the heater is damaged contact
your supplier immediately. Do not install a damaged appliance before checking
with your supplier.
• A heater accessories pack is inside the carton. One remote control is supplied
with the Infinity 26i. The HD50i does not come with controllers because it is a
commercial unit. It is compatible with them if they are required.
• Check that the appliance supplied is the correct gas type for the installation. Refer
to the data plate located on the left-hand side of the appliance.
• Remove the heater and the accessories from the carton, and check that all the
parts are included . The remote control cable is provided with spade connectors.
Quantity Description
Remote Control Parts
1 Temperature controller MC-91-1A
1 Cable clamp
1 Cable Clamp
5 Spade connectors
1 Control cable 20 metres
Unit Mounting Fasteners
1 Clamp screw
5 Screw
5 Screw

5
IMPORTANT INFORMATION
1. Gas safety (Installation & Use) regulations 1998 are the ‘Rules in force’. In your
own interest and that of safety, it is law that all gas appliances are installed by
competent persons in accordance with the above regulations. Failure to install
appliances correctly could lead to prosecution. Other persons should NOT attempt to
install this equipment.
2. Unpack the appliance and check it carefully. If it appears to have any defects or
damage DO NOT INSTALL, contact your supplier.
3. This appliance is for normal hot water supply only and should not be used as pool or
spa water heater.
4. The heater must be installed in the vertical position with the gas and water
connections on the underside pointing vertically downward.
5. Installation must be carried out in accordance with the current issue of the following:
Building regulations issued by the Department of the Environment and
Building Standards (Scotland) Regulations.
I.E.E. Wiring regulations for electrical installations.
Gas safety (Installation and Use) Regulations current issue.
BS 5546
BS 5440
BS 6891
BS 5482
BS 6700
Local byelaws
Water regulations
Health and safety at work etc. Act 1974
Such other specifications and regulations that may supersede or complement the
above documents.
Please be sure that you are fully aware of your obligations and responsibilities
under these regulations.
INSTALLATION INSTRUCTIONS

6
General Installation Information.
Internal Installations
The Rinnai Infinity 26i and the Rinnai HD50i are for internal installation in
conjunction with the Rinnai Power flue system.

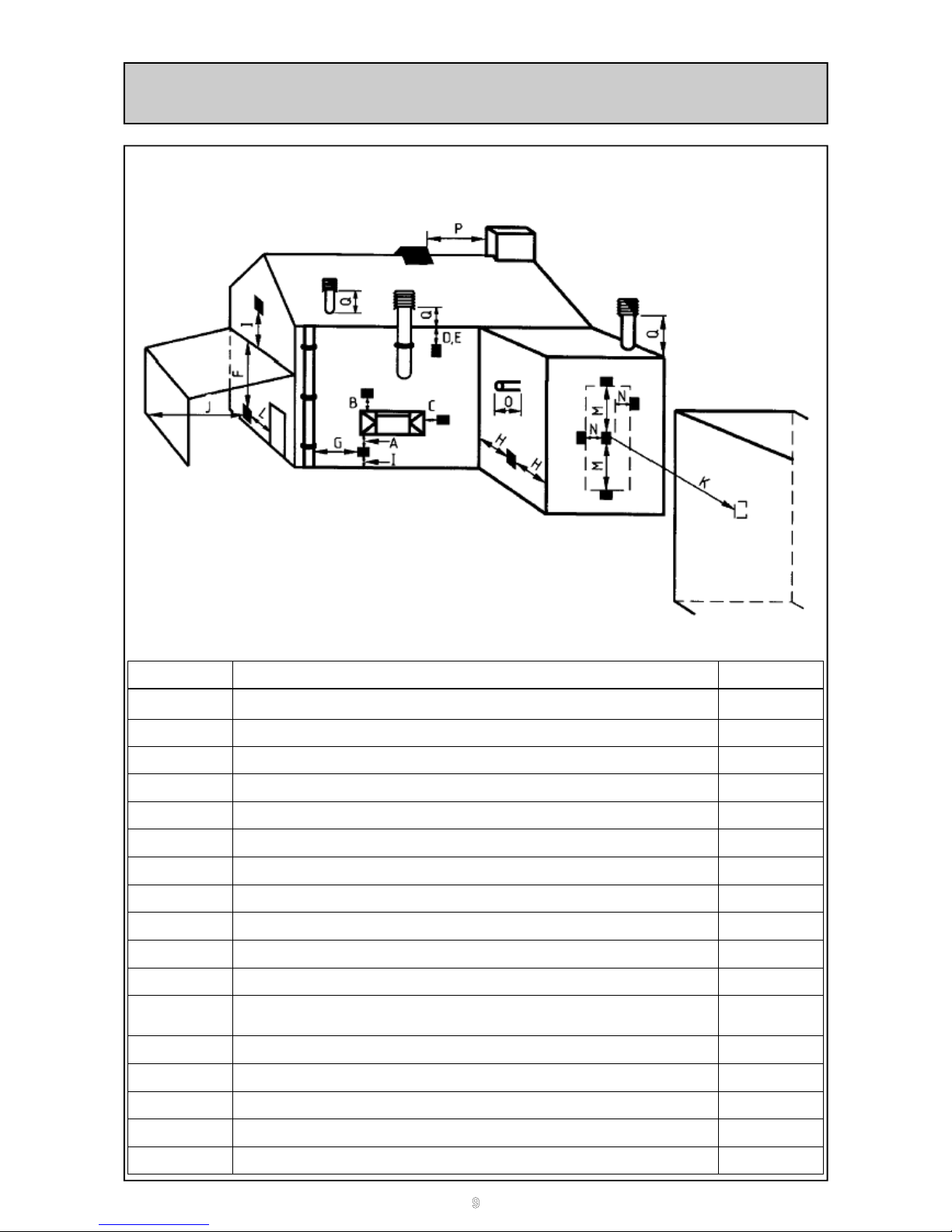

The flue terminal clearances must be in accordance with the requirements of BS 5440.
Consideration should be given to other appliances, openings, and boundaries. Table and
Figure C.1 from BS5440-1:2000 is provided for your guidance.
The appliance must be mounted on a vertical wall or structure with the water and the gas
connections on the underside pointing towards the ground.
THIS APPLIANCE MUST NOT BE USED AS A DOMESTIC SPA OR SWIMMING
POOL HEATER.
Appliance Location.
The appliance should be placed as close as practicable to the most frequently used hot
water outlet point or points to minimise the delay time for hot water delivery. For
installations where the distance between the unit and hot water outlet points is
considerable, the appliance can also be fitted in a 'flow and return system' which
minimises the waiting time for hot water delivery. Alternatively, multiple appliances can
be strategically placed to service outlet points with minimal delay time. Contact Rinnai
for further information.
Location of the appliance flue terminal must be in accordance with the clearances shown
on page 8. Ensure that the flue terminal and hot water outlet connection cannot be
touched by children. The flue must be clear of obstructions and shrubbery.
The wall or structure on which it is mounted must be capable of supporting the weight of
the appliance (22 kg) and associated pipework. Ensure that suitable screws or bolts are
used to secure the water heater to the wall. Bracket and fixing hole locations are shown
on page 10. The top bracket has a keyhole slot so that the appliance can be hung on
one screw, and then the other fixings can be added to secure the unit.
The appliance must be in an accessible location. Sufficient clearances shall allow
access to, and removal of, all serviceable components. The unit should be mounted
high enough that the flue terminal will be above head height. If the terminal is below 2m
a guard must be put around it.
Multiple heater installations can be installed with the heaters manifolded together. The
minimum distance required between the heaters is based on the installation of the flue.
Refer to page 9 for more information on flue installation.
Although the flue and appliance have been specially designed to prevent condensation
in the flue for short runs (under 1.5m) care should be given to the placement of the
terminal to prevent risk in the unlikely event of condensation. Condensation water can
cause burns, and during winter could cause a slip hazard. It is the responsibility of the
installer to decide the best place for the terminal as every situation is different.
INSTALLATION INSTRUCTIONS - POSITIONING

7
General Information.
The unit must be installed by a competent, authorised person. It is the installer’s
responsibility to ensure that the unit has been installed to all current requirements.
The Rinnai Infinity 26i and HD50i are room sealed appliances. Ventilation requirements
of BS 5440 allow room sealed appliances to be installed in spaces and rooms, including
bedrooms, without ventilation.
If the Rinnai Infinity 26i or HD50i is installed in a compartment it must have the following
amount of permanent ventilation.
Ventilation from compartment to room:
540 cm2at high level AND
540 cm2at low level
Ventilation from compartment directly to outside:
270 cm2 at high level AND
270 cm2 at low level
The area given is the free area of the vent or equivalent free area for ventilators of more
complex design. Any space taken up by grille louvers should be subtracted from the
total area to find the free area of the vent.
Windows and doors can not be considered ventilation unless they are permanently fixed
in the open position.
Please refer to IGE/UP/10 Part 1. Edition 2 for further information or contact Rinnai UK.
INSTALLATION INSTRUCTIONS - VENTILATION

8
INSTALLATION INSTRUCTIONS - CONNECTIONS
Water Supply.
Where the water supply pressure exceeds 12 bar, an approved pressure reducing
device is required at the inlet of the appliance. To achieve the rated flow a minimum
water supply pressure of 1.4 bar is required at the appliance inlet. The unit will operate
at lower supply pressures but the rated flow will not be achieved. Contact Rinnai for
'gravity fed' or 'low pressure' hot water installations.
Water pipe sizing and layout should be designed correctly to ensure the given water
flows from the appliance are available. All hot water pipework should be insulated to
optimise maximum performance and energy efficiency.
Water Connection.
Connect the hot and cold water supply pipes. An approved isolation valve and strainer
MUST be installed in the cold water inlet pipe. An approved isolation valve should be
installed in the hot water outlet pipe. There must be a union or release fitting on the
heater side of the isolation valves. A non return valve is not required unless dictated by
local regulations. A pressure relief valve should be installed in the pipework to
discharge safely into a suitable drain when the system has a flow and return, or tank.
Positions of the cold water inlet, hot water outlet and gas connections are shown on
page 11. All connections are ¾ inch BSP. This is NOT an indication of the pipe sizes
required.
If the heater is in a hard water area a suitable water conditioning device should be in-
stalled to prevent the build up of limescale within the heat exchanger. Heat exchangers
damaged by scaling are not covered by the manufacturers guarantee. Guidelines are
given below. If the local water exceeds these values the heater must be protected.
Gas Connection
Check pipe sizing required for the heater input. The heat input for the Infinity 26i and
HD50i is 54 kW. Refer to BS6891 (Natural Gas) and BS5482 (Propane) for guidance on
correct pipe sizing calculation.
Check that the size of the gas meter and pipework will be sufficient for all appliances on
the main. Sufficient gas must be available at the appliance if correct operation is to be
expected. An approved gas isolation valve must be fitted at the gas inlet. A union or
release fitting should be installed after the isolation valve.
Electrical Connection.
The appliance must be earthed. The appliance is suitable for 230VAC – 50Hz mains
only and all wiring must be carried out to the I.E.E regulations latest edition. The heater
electrical supply must be provided with a fused (3A) local isolator with a contact
separation of 3mm minimum on all poles for servicing. Observe polarity and ensure that
wiring is correctly restrained.
Description pH
Total Dissolved
Solids (TDS) Total Hardness Chlorides Magnesium Calcium Sodium Iron
Maximum Recommended
Levels 6.5 - 9.0 600 mg/litre 200 mg/litre 300 mg/litre 10 mg/litre 20 mg/litre 150 mg/litre 1 mg/litre

9
Dimension Terminal Position Distance
A Directly below an opening, air brick, opening windows, etc. 300mm
B Above an opening, air brick , opening window, etc. 300mm
C Horizontally to an opening, air brick , opening window, etc. 300mm
D Below gutters, soil pipes or drain pipes. 75mm
E Below eaves. 200mm
F Below balconies or car port roof. 200mm
G From a vertical drain pipe or soil pipe. 150mm
H From an internal or external corner. 200mm
I Above ground, roof or balcony level. 300mm
J From a surface facing the terminal. 600mm
K From a terminal facing a terminal 1200mm
L
From an opening in a car port. ( e.g. door, window) into a dwell-
ing 1200mm
M Vertically from a terminal on the same wall. 1500mm
N Horizontally from a terminal on the same wall. 300mm
O From the wall on which the terminal is mounted N/A
P From a vertical structure on the roof. N/A
Q Above an intersection with roof. N/A
FLUE REQUIREMENTS - POSITIONING

10
FLUE REQUIREMENTS - INSTALLING
General.
The flue must be installed in accordance with:
Manufacturers Installation Instructions
British Standards including BS5440
Gas Safety (Installation and Use) Regulations
IGE/UP/10 Part1 Edition 2.
Building Regulation J
The flue must be installed by a competent, authorised person. It is the installer’s
responsibility to ensure that the unit has been installed to all current requirements.
The Rinnai Infinity 26i and HD50i are internal units which may only be installed with the
approved Rinnai Infinity and HD flue kit provided. These instructions only apply to
coaxial Rinnai Flues with stainless steel inner pipe, and white plastic outer pipe. These
instructions do not apply to Rinnai Flues with stainless steel single skin or stainless steel
coaxial flue. If in doubt contact Rinnai UK.
The required clearance of the flue terminal is shown on page 9. When multiple units are
installed together there must be enough of a gap to satisfy the requirements of the
regulations. Under current regulations the heaters should have at least an 100mm gap
between them. The flue terminal should be over 2m from ground level whenever
possible. For lower installations a terminal guard cage must be installed.
The Rinnai Infinity 26i and HD50i comes standard with a horizontal flue kit consisting of
a 90 degree adapter bend and 700mm length of flue pipe with wall terminal and wall
plate. If the installation requires a vertical flue kit or any additional pipe or bends they
must be ordered separately. 45 degree bends are available.
Vertical Termination.
If the flue is to terminate vertically the maximum flue length is 9m. At that length three
900bends are permitted. For an additional 900bend 2m must be subtracted from the
maximum length (1m for each 450 bend.) No more than four 900bends are permitted.
Horizontal Termination
If the flue is to terminate horizontally the maximum flue length is 15m. 2m must be sub-
tracted for each 900bend, including the 900adapter, up to a maximum of four 900bends
(Subtract 1m per 450bend.) With four 900bends the maximum length would be 7m.
Take care when fitting the flue pieces together not to damage the seals. The use of soft
liquid soap such as hand soap will allow the pieces to slide together. Do not use hard
detergents as they may damage the seals. When cutting sections of the flue remove all
burrs and file a slight chamfer on to the outer edge to prevent damage to the seals.
Flue pipes must include a condensate drain if the total flue height exceeds 1.5m. There
is a special condensate drain collector piece available through Rinnai UK. For flue runs
requiring a drain the horizontal sections should slope towards the appliance, and the flue
should be bracketed to prevent sagging. If the flue run is less than 1.5m it should slope
gently to the outside to prevent ingress of rain.
The drain pipe should be run in 22mm PVC, uPVC, or ABS pipe, copper is not recom-
mended. The drain pipe MUST be trapped. A trap with pipe is available from Rinnai UK.

11

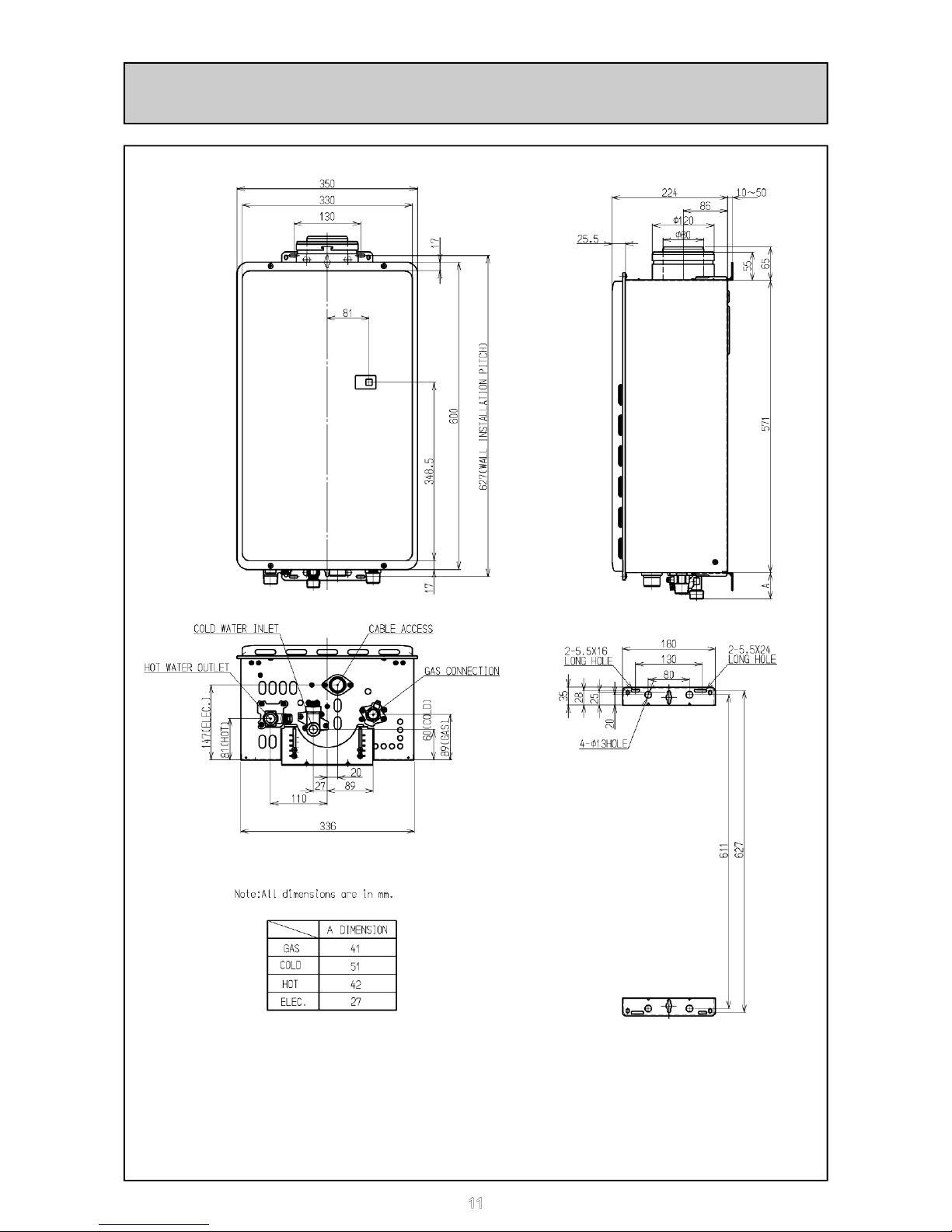

DIMENSIONS

12
TECHNICAL DETAILS
* Factory Setting
** Minimum operation flow based on temperature setpoint and inlet
conditions.
Infinity Model Infinity 26i HD50i Units
Installation Internal Internal
Nat Gas Press Low 1.9 1.9 mbar
Nat Gas Press High 8.5 8.5 mbar
LPG Press Low 2.3 2.3 mbar
LPG Press High 10.8 10.8 mbar
Height 600 600 mm
Width 350 350 mm
Depth 224 224 mm
Weight 22 22 kg
Flue System Direct Forced Vent
Temp. Range Controllers 37C - 55C 37C - 65C deg C
Ignition
Gas Consumption Low
Nat Gas 4.4 4.4 kW
LPG 4.4 4.4 kW
Gas Consumption High
Nat Gas 54 54 kW
LPG 54 54 kW
Max Flow raised 33C 19.6 19.6 L/min
Min Operation Flow 2.4** L/min
Water Pressure Nom. 1.4 - 8.3 bar
Power Supply 230 V / 50 Hz
Electric Consumption 80 80 Watts
Direct Electronic Ignition
Temp. Range without
Controllers
40,43,50,55*,
60,65,75
40,43,50,55,
60,65*,75,85 deg C

13
Congratulations on purchasing the Technologically Advanced, Temperature Controlled,
Rinnai Hot Water System.
• The Rinnai Infinity 26i and HD50i NEVER RUN OUT of hot water. As long as
electricity, water, and gas supplies are connected, hot water is available when hot
water taps are open.
• Built into the main micro-processor is the facility to LIMIT THE MAXIMUM
TEMPERATURE of the hot water supplied. The water temperature may be limited to
various maximum temperatures. This is particularly useful when the hot water unit is
installed where young children or the infirm may be using the hot water. The Infinity
26i is delivered with a preset temperature of 550C, and the HD50i is delivered with a
preset temperature of 650C. If required, the temperature limits can be changed by an
authorised person. For further information, please contact Rinnai.
• The Rinnai Infinity and HD internal units are powered flue appliances. This makes it
COMPACT, saving both floor and wall space.
• The temperature of outgoing hot water is CONSTANTLY MONITORED by a BUILT-
IN SENSOR. If the temperature of the outgoing hot water rises to more than 3°C
above the selected temperature the burner is shut OFF and only turned ON again
when the temperature falls to below the selected temperature.
• The burner lights automatically when the hot water tap is opened, and extinguishes
when the tap is closed. IGNITION IS ELECTRONIC, so there is no pilot light. When
the hot water tap is off, no gas is used.
• Up to four temperature controllers can be mounted remotely from the heater. This
offers the following additional features:
Localised temperature setting.
Diagnostic message.
• ‘Deluxe’ Temperature Controllers are an optional extra. These provide functions
including Bath Fill, Voice Prompt, and Clock Setting.
• Temperatures selected at the controllers are retained in the SYSTEM MEMORY.
• Operating NOISE LEVEL IS VERY LOW.
• ERROR MESSAGES ARE DISPLAYED on the Temperature Controllers, assisting
with service.
• FROST PROTECTION device built in as standard.
FEATURES AND BENEFITS

14
Excessively hot water is dangerous, especially for young children and the infirm. The
water heater allows you to control the temperature of your hot water to safe levels.
Do stay with children whenever
they are in the bathroom.
Do take them out of the bathroom if
you need to answer the phone or
door.
Do test the temperature of the water
with your elbow before placing your
child in the bath.
Do make sure that the tap is turned
off tightly.
Do consider setting your Rinnai
Infinity or HD50i at a maximum
temperature of 500C.
Do install a child proof tap cover
OR,
Do install a child resistant tap.
Do not leave a toddler in the care of
another small child. The older child
may not have safely set the temperature.
IMPORTANT INFORMATION
Water temperature over 50ºC can cause severe
burns instantly or even death from scalding.
Children, disabled and the elderly are at the
highest risk of being scalded by excessively hot
water.
Always test the temperature of the water before
bathing or showering.
Burns from hot water taps can result in very
severe injuries to young children.
Hot water at 65°C can severely burn a child in less
than half a second. At 50°C it takes five minutes.
Burns can occur when children are exposed
directly to hot water or when they are placed into a
bath which is too hot.
DO
• Consider child—resistant taps
or inexpensive tap covers,
both of which prevent a child’s
hand from turning on the tap.
• Consider reducing the
temperature of the water sup-
plied to the hot tap to 500C.
This approach can be extremely
valuable because it requires a
one time action for a long term
reduction in risks of scalds.
This type of automatic protection
is important during times when a
parent or carer has been
distracted.
DO
NOT

15
IMPORTANT INFORMATION
Always check water temperature before
use.
Refer to warning about hot water on
page 14 for important safety information.
Hot water may go out without warning at
low water flows.
The Infinity 26i and HD50i control the
water temperature automatically. For
high temperatures it may reduce the flow.
The water from the hot tap may be
reduced after the temperature shown on
the remote control is raised. The water
flow may also vary with the temperature
of the incoming water supply.
Keep flammable materials, trees, shrubs,
chemicals etc. away from the flue outlet.
Do not touch the unit cover or the flue
outlet. Do not insert objects into the flue
outlet.
On cold days steam may be discharged
from the flue outlet. This is normal, do
not be alarmed. It does not indicate a
fault.
OFF
If freezing temperatures
are expected, turn off the
water and gas, and
drain the water
heater.
1. Water Off
2. Gas Off
3. Drain Water
If the power is left on the
Automatic Frost Protection
will prevent the unit from
Freezing. Frost protection
is standard on all units.

16
Rinnai Infinity and HD products have no pilot light and when installed without
Temperature Controllers, the appliance will operate automatically as soon as a hot water
tap is opened.
The burner ignites with electronic ignition and the flame extinguishes as soon as water
flowing through the appliance stops.
Turn On by opening the hot water tap
Rinnai Infinity water heaters without controllers are factory pre-set to a temperature limit
of 55°C. Rinnai Heavy Duty (HD) series are factory pre-set to a temperature limit of
65°C. Other limits, lower or higher, are available on request for both the Infinity and HD
range. Temperature controllers are available that allow precise digital temperature
control. Higher temperatures may be necessary for circulation loop systems.
Controllers can be easily added at any time after installation.OTE
OPERATION WITHOUT REMOTES

17
TEMPERATURE CONTROLS - GENERAL
When deciding on the best position for the temperature controls, the following points
should be taken into account.
• Fit the controls out of reach of children (suggested height from the floor 1.5m.)
• Avoid positions where the controllers will become hot. Do not fit them near stoves or
ovens, or above radiators or heaters.
• If possible, avoid exposure to direct sunlight or positions where bright lights will make
the digital display difficult to read.
• Position away from areas where the controller will be prone to splashing by cooking
products such as oils and fats.
• The temperature controllers are water resistant, however they should be positioned
away from areas where direct or persistent splashing could occur.
• Refer to the I.E.E electrical wiring regulations current edition for location requirements
in shower and bath areas.
• The cables to the temperature controller carry only 12VDC (extra low voltage.)
• When using more than one temperature controller the signal cable should be run in
parallel. That is, from controller to controller to heater, or from each controller to the
heater. Do not wire the controllers in series.
The installation in every application will vary, therefore the temperature controller cable
has been provided so that you may cut the length accordingly and fit the spade
connectors, ensuring a good connection.
Cables are simply ‘piggy-backed’ at the water heater or at the primary temperature
controller. Polarity is not important when connecting the cables, either colour wire can
be connected to either terminal at both the heater or primary temperature controller. If
more cable is needed any cable with similar specification to the cable supplied with the
controller can be used. Maximum length is 50 metres.

18
TEMPERATURE CONTROLS - INSTALLATION
Universal Temperature Controller
MC-91-1A

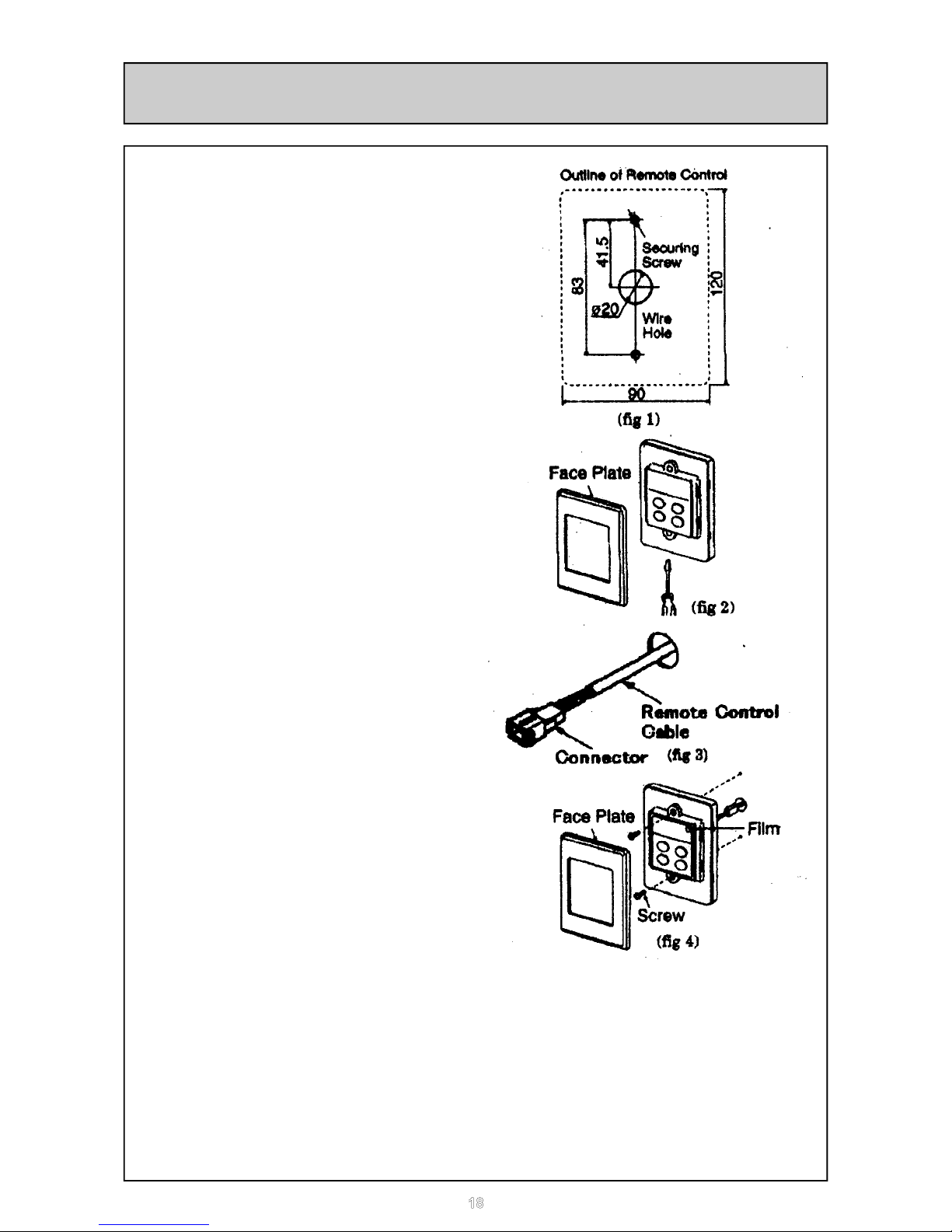

1. Determine the most suitable position for
the temperature controller.
2. Drill 3 holes in the wall as shown in fig 1,
one for the cable and two for the
securing screws. Ensure holes are
drilled deep enough. Fit wall plugs if
needed. (ensure controller is level.)
3. Run the cable provided through the hole
in the wall-ensuring that the end fitted
with the connector is nearest the
controller. (fig 2.)
4. Remove the face plate from the
controller using a flat screwdriver. Take
care not to damage the cover (fig 3.)
5. Connect the cable to the temperature
controller.
6. Fix the controller to the wall and fasten
with the phillips head screws as shown
in (fig 4.)
7. Remove the protective plastic film from
the controller face as shown in (fig 4.)
8. Replace the face plate.
NOTE

19
TEMPERATURE CONTROLS - INSTALLATION
Connecting One or Two Controllers
1. Isolate the power supply.

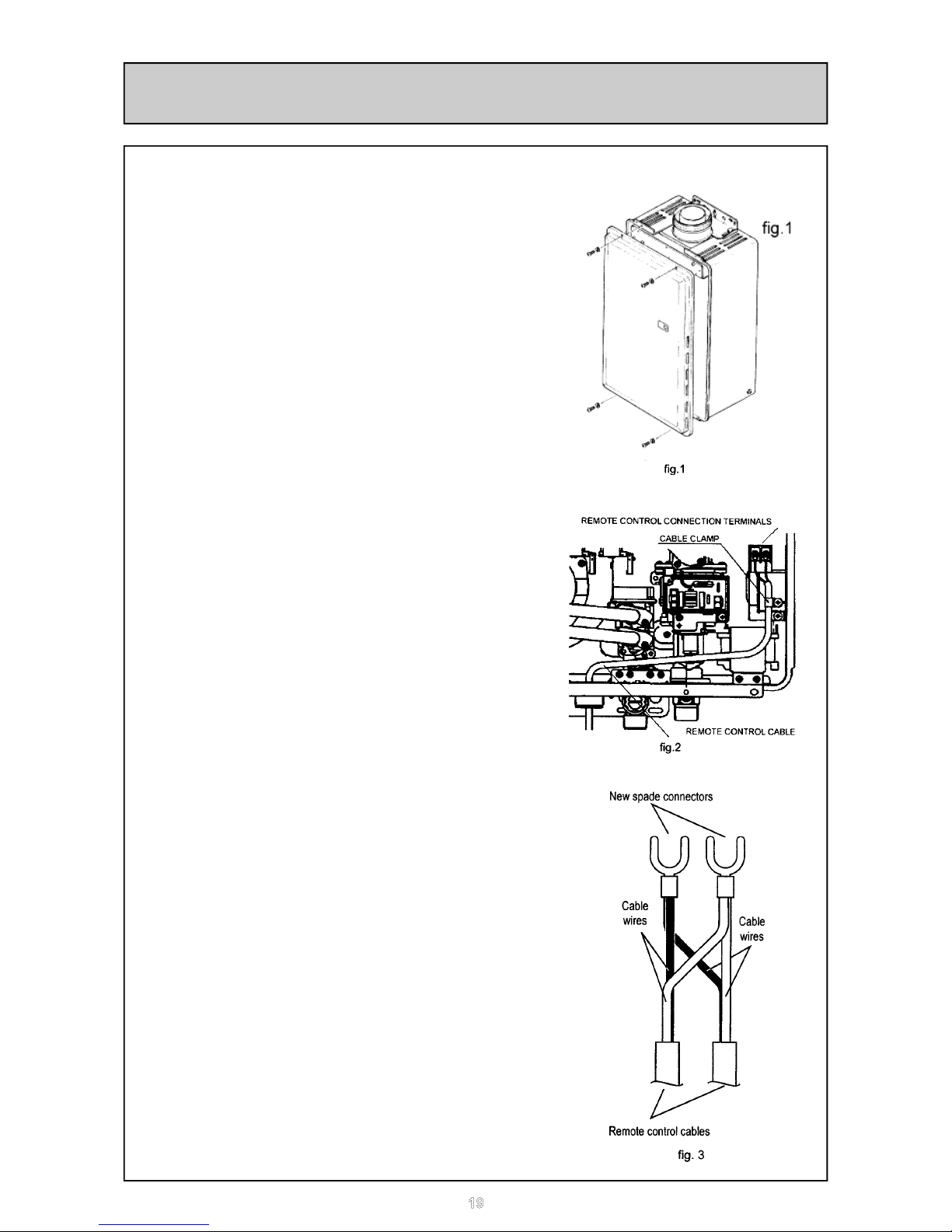

2. Remove the front cover from the Appliance (4
screws) fig. 1.
3. Thread the cable through the cable access hole at
the base of the appliance.
4. Connect the spade connectors to the terminals
marked "Remote Control" on the printed circuit
board (fig.2). Polarity is not important. Either wire
colour can be connected to either terminal.
5. Replace cover of the Appliance. Ensure that the
special earth screw is placed at the bottom right
hand corner for earthing purposes.
Connecting Three Controllers
1. Isolate the power supply.
2. Remove the front cover from the Appliance (4
screws) fig.1.
3. Thread the cables through the cable access hole
at the base of the appliance.
4. Cut the spade connectors from two controller
cables (4 connectors should be cut off) and
discard. Connect the wires and terminate into
two new spade connectors as shown in fig. 3.
5. Thread the 3 cables through the cable access
hole at the base of the appliance. Connect the
4 spade connectors to the terminals marked
“Remote Control" on the printed circuit board
(fig.2). Polarity is not important. Either wire
colour can be connected to either terminal.
6. Replace cover of the Appliance. Ensure that the
special earth screw is placed at the bottom right
hand corner for earthing purposes.
Connecting Four Controllers
1. Isolate the power supply.
2. Remove the front cover from the Appliance (4
screws) fig.1.
3. Cut the spade connectors from all four controller
cables to be connected to the appliance (8
connectors should be cut off) and discard.
Connect the wires from two remotes and
terminate into two new spade connectors as
shown in fig. 3.
4. Repeat for remaining two remotes.
5. Thread the 4 cables through the cable access
hole at the base of the appliance. Connect the 4
spade connectors to the terminals marked
“Remote Control" on the printed circuit board
(fig.2). Polarity is not important. Either wire colour
can be connected to either terminal.
5. Replace cover of the Appliance. Ensure that the
special earth screw is placed at the bottom right
hand corner for earthing purposes.

20
TEMPERATURE CONTROLS
The purpose of a Temperature Controller is to enable the user to have complete control
over the hot water supply. Used correctly, the hot water unit will supply hot water at the
temperature selected, even when the water flow is varied, or when more than one tap is
used. Adjustments to the operation of your hot water unit can be made with any of the
Temperature Controllers. Each Temperature Controller can be individually programmed.
Up to four Universal and Deluxe Temperature Controllers can be fitted with the Infinity
26i and HD50i. Universal Controllers allow temperature selection only and come as
standard with the water heaters. Deluxe Temperature Controllers are an optional extra.
These controllers have temperature selection, bath fill, voice recognition, and time clock
functions. When more than one Universal Controller is used one may be set as the
Master Controller to allow higher temperatures.
Various water temperatures (°C) can be selected as follows:
Universal Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 500C
Master Universal Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50, 55°C ( 60, 65°C HD )
Deluxe Bathroom Controller:
Hot Water Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50°C
Bath fill Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48°C
Deluxe Kitchen Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50, 55°C ( 60, 65°C HD )
If a temperature 43°C or higher is selected on any controller and this temperature is then
decreased to below 43°C and increased again whilst the water is running, the maximum
selectable temperature will become 43°C. This provides additional safety for the
consumer.
Suggested temperatures are:
Kitchen 50°C - 65°C*; Shower 39°C - 43°C; Bath fill 39°C - 45°C
* This temperature may not be available on all installations.
These temperatures are suggested starting points for selection. You may find higher or
lower temperatures are more comfortable. Maintaining lower temperatures helps to save
energy. To obtain water temperatures lower than 37°C simply add cold water.
Up to four controllers can be used for one Infinity 26i or HD50i. When multiple
temperature controllers are used they allow the temperature to be set from various
locations by pushing the transfer button which gives that controller priority over the
system. The temperature selected by the controller with priority will be available to all
outlets.
