Rinnai infinity 32 HD 250 E User manual

How to use your
Water Heater
Temperature
Controlled
Operation
Your installer is responsible for correct installation.
Installation instructions are located in a pouch attached
to the inside front panel of the water heater.
24 Hr Hot Water
In all areas
0800 746624
Infinity 32
HD 250 E
Infinity 26
HD 200 E
Infinity
26 Internal
HD 200 I
Infinity 24

- 1 -
CONTENTS
FEATURES & BENEFITS ......................................................................................... 2
IMPORTANT INFORMATION ................................................................................. 3
OPERATION WITHOUT TEMPERATURE CONTROLLERS ............................... 7
TEMPERATURE CONTROLLERS .......................................................................... 8

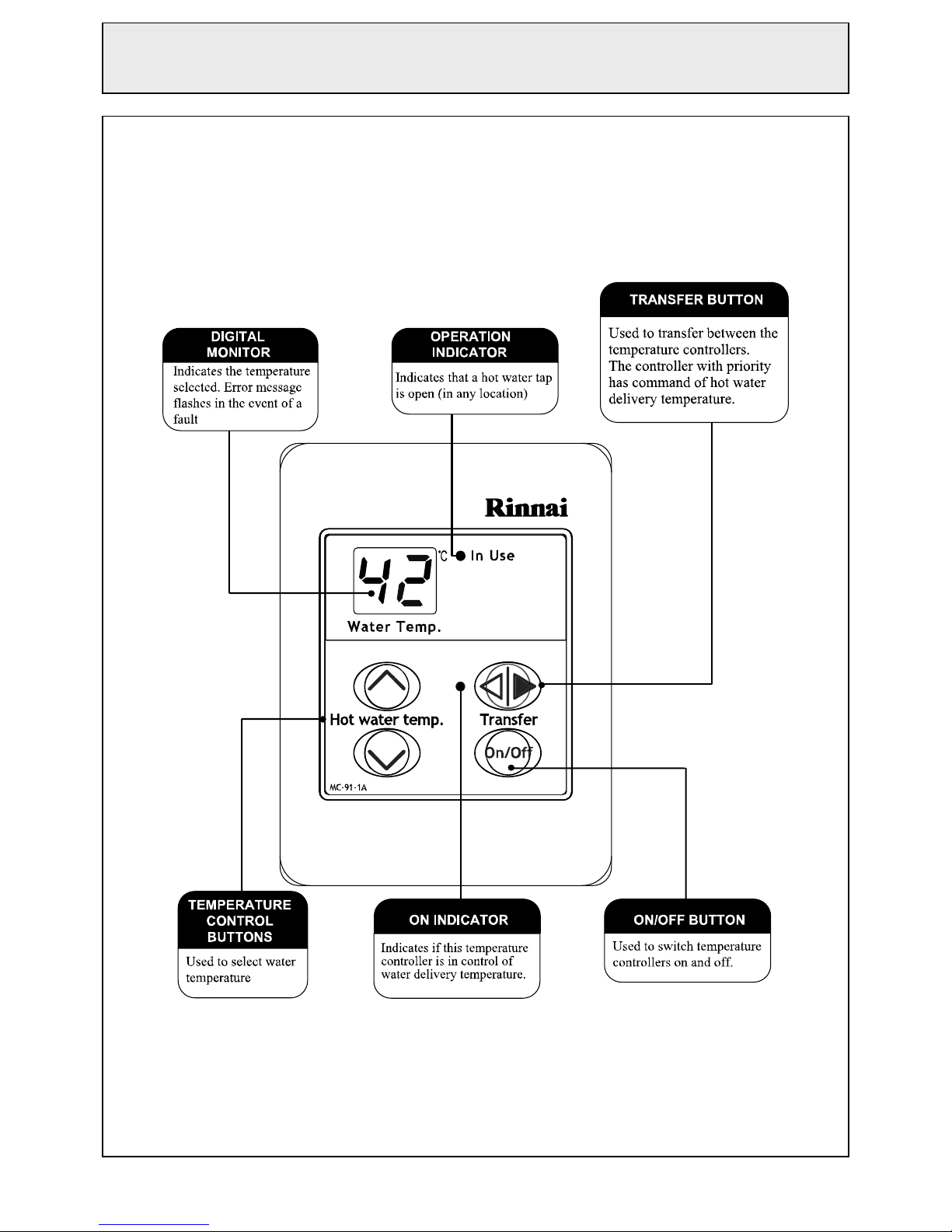

STANDARD TEMPERATURE CONTROLLERS ................................................... 9

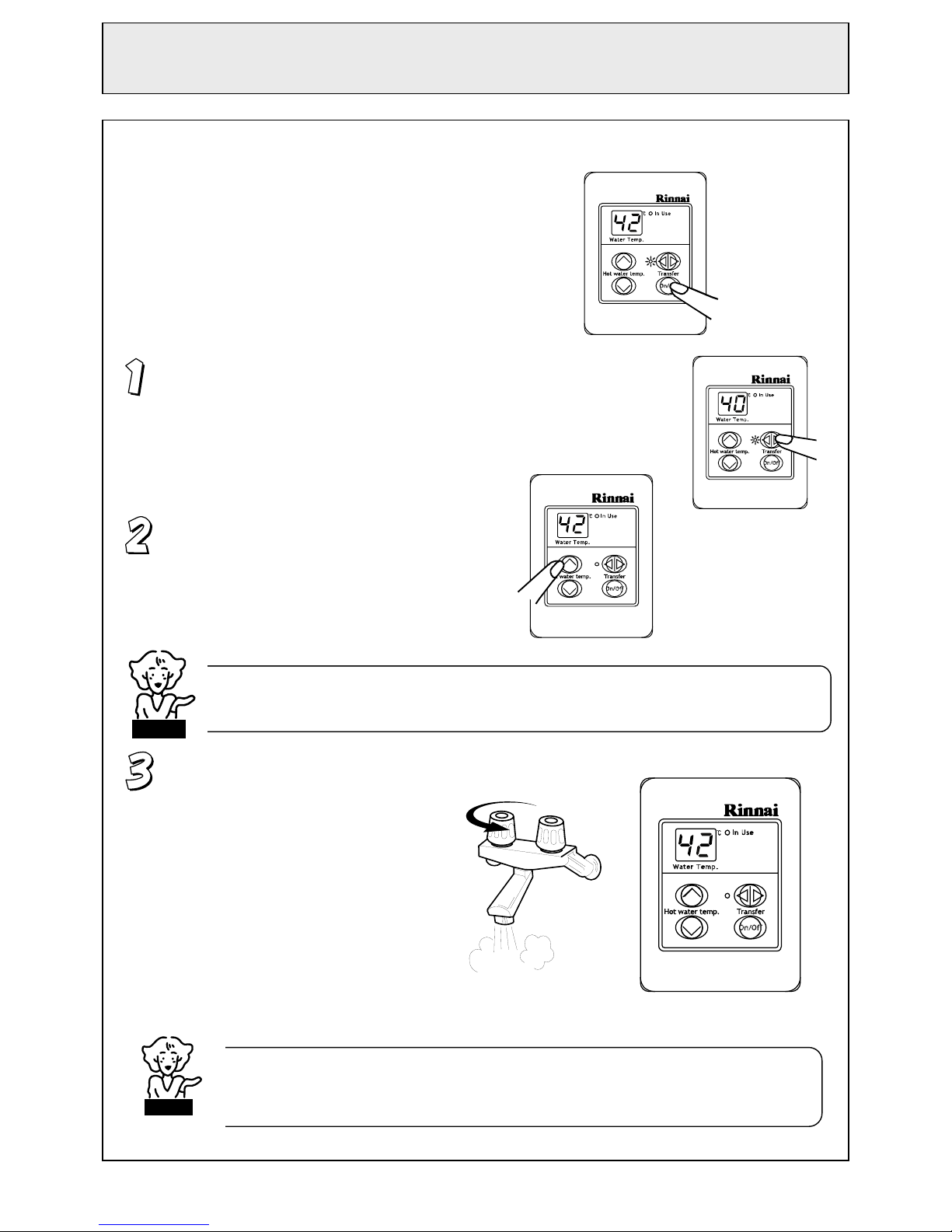

Using the Infinity with 1 Standard Temperature Controller ............................... 10
Using the Infinity with 2 or more Standard Temperature Controller ................. 11

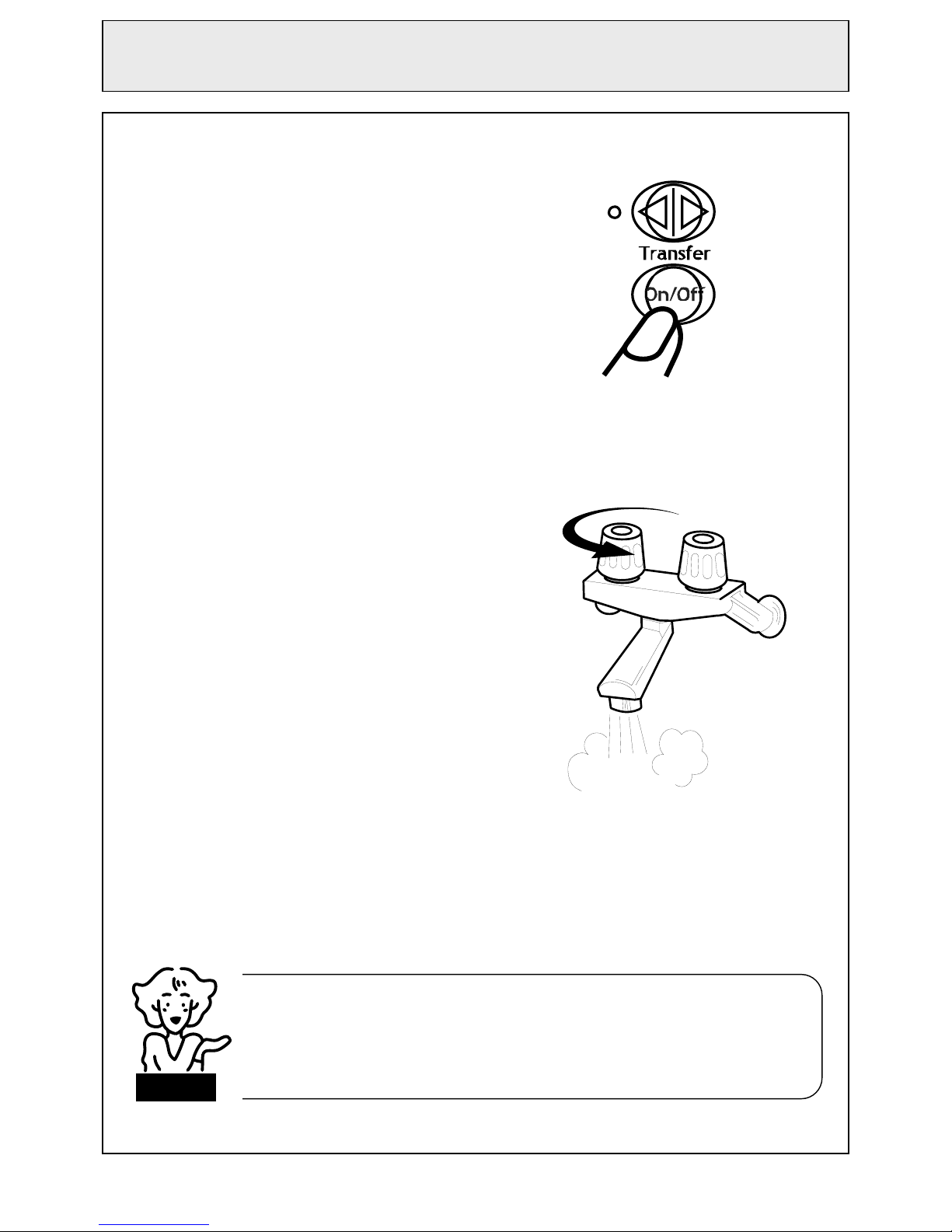

To Turn Off your hot water system ..................................................................... 12
DELUXE BATHFILL TEMPERATURE CONTROLLERS .................................... 13
Deluxe Bathfill Kitchen Temperature Controller (MC-70-2A) .......................... 14

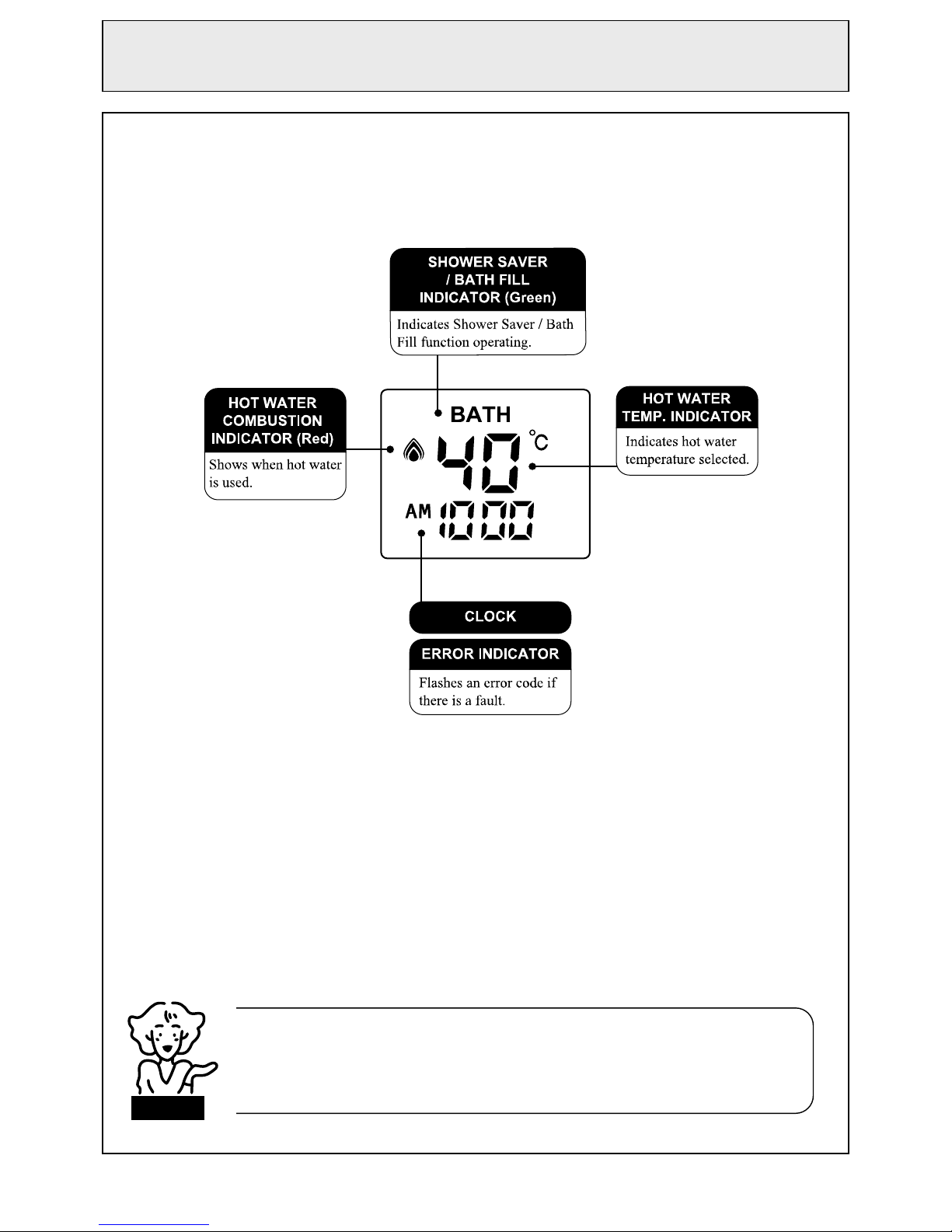

Deluxe Bathfill Bathroom Temperature Controller Monitor .............................. 15
Deluxe Bathfill Bathroom Temperature Controller (BC-70-2A)........................ 16

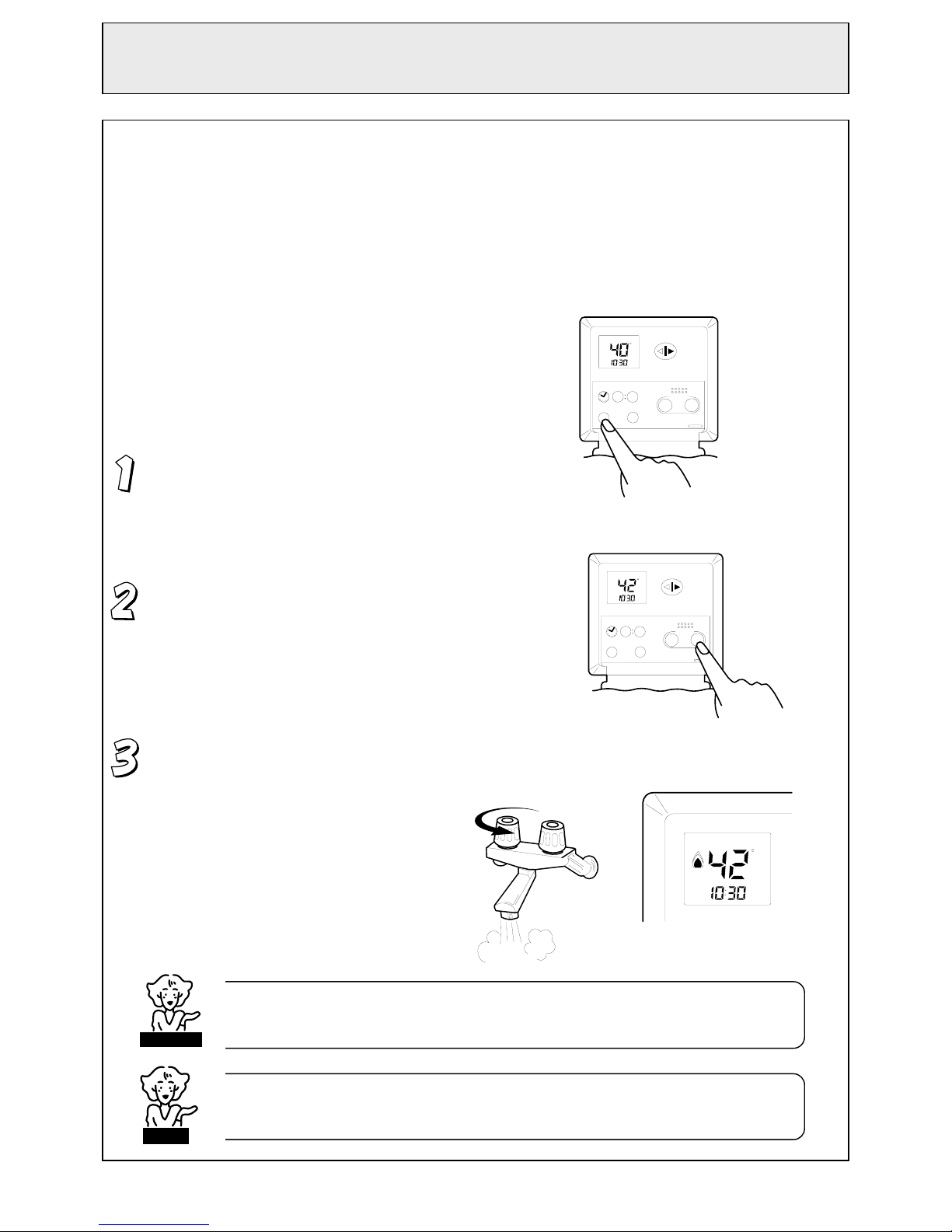

Using the Infinity with 1 Deluxe Bathfill Temperature Controller...................... 17
Setting the Sound Volume – Kitchen Bathfill Controller .................................... 18
Using the Infinity with 2 Deluxe Bathfill Temperature Controllers.................... 19
Setting the Sound Volume –Bathfill Kitchen Controller ................................... 19
Deluxe Bathfill Bathroom Controller.................................................................. 21
Using the Infinity with 3 Deluxe Bathfill Temperature Controllers and 1 Standard
Temperature Controller (Infinity 26, Heavy Duty 26 and Heavy Duty 26-Internal
Only)....................................................................................................................... 24
Using the Infinity with 3 Deluxe Temperature Controllers and
1 Standard Temperature Controller ..................................................................... 25
Shower Saver / Bath Fill Function ......................................................................... 25
TROUBLE SHOOTING .............................................................................................. 26
WARRANTY............................................................................................................... 27

- 2 -
FEATURES AND BENEFITS
Congratulations on purchasing the latest in Technology Advanced Temperature Controlled Rinnai Hot
Water System.
The Rinnai Infinity NEVER RUNS OUT of hot water. Whilst electricity, water and gas supplies are
connected, hot water is available whenever hot water taps are open.
Built into the main micro-processor is the facility to LIMIT THE MAXIMUM TEMPERATURE of
the hot water supplied. The water temperature may be limited to various maximum temperatures.
This is particularly useful when the hot water unit is installed where young children or the infirm
may be using the hot water. The Infinity is delivered with a preset temperature of 55°C. If required,
the temperature limits can be changed by an authorised person. For further information, please
contact Rinnai.
The Rinnai Infinity is a power flued appliance. This makes it COMPACT, saving both floor and
wall space.
The temperature of outgoing hot water is CONSTANTLY MONITORED by a BUILT-IN
SENSOR. If the temperature of the outgoing hot water rises to more than 3°C above the selected
temperature the burner is turned OFF and only turned ON again when the temperature falls to
below the selected temperature.
The burner lights automatically when the hot water tap is opened, and goes out when the tap is
closed. IGNITION IS ELECTRONIC, so there is no pilot light. When the hot water tap is off, no
gas is used.
‘Deluxe Bathfill’ or ‘Standard’ Temperature Controllers are available as an optional extra.
Depending on the models chosen, these offer the following additional features:
¾Localised Temperature Controllers for up to one kitchen and three bathrooms
¾Bath fill function (Deluxe Bathfill Bathroom Control Only)
¾Voice Prompting (Deluxe Bathfill Control Only)
¾Clock (Deluxe Bathfill Control Only)
Temperatures selected at the controllers are retained in the SYSTEM MEMORY.
Operating NOISE LEVEL IS VERY LOW.
ERROR MESSAGES ARE DISPLAYED on the Temperature Controllers, assisting with service.

- 3 -
IMPORTANT INFORMATION
Always check water temperature by hand before
entering the shower or bath.
At low water flows, the hot water unit may go out
without warning.
Keep flammable materials, trees, shrubs etc.
away from the flue outlet.
Do not spray water directly into the flue terminal.
The hot water unit controls the water temperature
automatically. To do this it sometimes needs to
change the water flow accordingly. The water
flow from the hot water tap may vary after the
selected temperature at the Temperature
Controller is altered. The water flow may also
vary from summer to winter, as incoming water
temperatures differ.
If freezing conditions are expected, turn off water
and gas, and drain all water from the appliance.
Water Off
↓
Gas Off
↓
Drain Water
If power and the automatic
frost protection are connected,
freezing will be prevented.
(“K” Series only)
Do not touch the unit cover or the flue outlet.
Do not insert objects into the flue outlet.
On cold days steam may be discharged from the
flue outlet. This is normal with a high efficiency
appliance and does not indicate a fault.
OFF
DRAIN
FILTER
WATER
GAS
EXTERNAL INTERNAL
EXTERNAL INTERNAL
48º C 55º C

- 4 -
IMPORTANT INFORMATION
Do not clean the Temperature Control with
solvents. Use a soft damp cloth.
When the hot water tap is open, and hot water is
flowing, the water temperature can only be
increased to a maximum of 43°C on the
Temperature Controller with priority.
If a temperature is higher than 50°C, and has
been selected at the Kitchen Controller and then
priority of temperature selection is transferred to
a Bathroom Controller and back again, the
temperature on the Kitchen Controller will drop
to 50°C. This is a safety feature.
Do not push the ON/OFF button on the Kitchen
Controller after having transferred priority of
temperature selection to the Bathroom Controller
as the system will no longer heat the water.
Turn OFF then ON.
WARNING
Someone may be about to enter a shower or fill
the bath.
Depending on the weather conditions and the
length of the pipe between the hot water unit and
the tap in use, there may be a variation between
the temperatures displayed at the Temperature
Controller(s) and the temperature of the water at
the tap.
There is no need to turn the Temperature
Controller(s) off after use. However, if you prefer
to turn the Temperature Controller(s) off,
selected temperatures will be stored in the system
memory at all times whilst mains power remains
connected.
43oC
ONLY
48°C

- 5 -
IMPORTANT
New Zealand has a service and
spare parts network in all areas.
Our Service network personnel are fully trained and equipped to
give the best service on your Rinnai appliance. If your appliance
needs service, please ring the 0800 Rinnai service contact
number on the back of this booklet. Rinnai recommend that this
appliance should be serviced every 3 years.
This appliance shall be installed in accordance with:
•Manufacturer’s Installation Instructions.
•Current AS/NZS 3500.4
•Current AS/NZS 3000
•Local Water Authority Regulations.
•Local Gas Fitting Regulations.
•Municipal Building Codes.
•NZS 5261 Gas Appliance Installation Code.
•Any other relevant Statutory Regulations.
This Infinity must be installed correctly by an authorized person. The installation
of gas, water, and electricity must conform to local regulations.
The installation must also comply with the instructions supplied by Rinnai.
Your heater has been approved by the Australian Gas Association
A.G.A. Approval Number shown on Data plate.
Please keep this instruction booklet in a safe place for future reference.
All dimensions referred to in these instructions are in millimeters, unless otherwise
specified.
N10378
Distributed and Serviced in Australia under
a Quality system certified as complying with
ISO 9002 by Standards Australia Quality
Assurance Services

- 6 -
IMPORTANT INFORMATION
Excessively hot water is dangerous, especially for young children and the infirm. The Infinity allows
you to control the temperature of your hot water to safe levels.
Water temperatures over 50°C can cause severe burns
instantly or death from scalds.
Children, disabled, and the elderly are at highest risk of
being scalded.
Feel water before bathing or showering.
Burns from hot water taps can result in very severe
injuries to young children.
Hot water at 65°C (the average hot water temperature
in New Zealand) can severely burn a child in less than
half a second. At 50°C it takes five minutes.
Burns can occur when children are exposed directly to
hot water or when they are placed into a bath which is
too hot.
BURN
HOT
DANGER
Do stay with children whenever they
are in the bathroom. (Take the phone
off the hook).
Do take them out of the bathroom if
you need to answer the phone or
door.
Do test the temperature of the water
with your elbow before placing your
child in the bath.
Do make sure that the tap is turned
off tightly.
Do consider setting your Infinity at a
maximum temp. of 50°C.
(Contact Rinnai New Zealand)
Do install a child proof tap cover OR,
Do install a child resistant tap.
Don’t leave a toddler in the care of
another small child. The older child
may not have set the water temperature
to a safe level.
Consider child-resistant
taps or inexpensive tap
covers, both of which
prevent a small hand
being able to turn on the
tap.
Consider reducing the
temperature of the
water coming from the
hot water tap to 50°C.
This approach can be
extremely valuable
because it requires a one
time action for a long-
term reduction in the risk
of scalds.
This type of automatic
protection is important
during times when a
parent or carer has been
distracted.
DO
DON’T

- 7 -
OPERATION WITHOUT TEMPERATURE CONTROLLERS
The Infinity has no pilot light and when installed without Temperature Controllers, the Infinity will
operate automatically as soon as a hot water tap is opened.
The burner ignites with electronic ignition and the flame extinguishes as soon as water flowing
through the appliance stops.
Simply, open a hot water tap.
The Infinity is factory pre-set to 55°C. If you require greater control over
the temperature of your hot water, contact Rinnai about our temperature
controllers to allow precise digital temperature control in the range
37
°
C
~
55
°
C.
Controllers can be easily fitted at any time after installation.
NOTE
NOTE
HOT COLD
55°C

- 8 -
TEMPERATURE CONTROLLERS
The purpose of the Temperature Controllers is to enable the user to have complete control over the
hot water unit. Used correctly, the hot water unit will supply hot water at the temperature selected,
even when the water flow is varied, or when more than one tap is used. Adjustments to the operation
of your hot water unit can be made with any of the Temperature Controllers. Each Temperature
Controller can be individually programmed.
Various water temperatures (°C) can be selected as follows:
Kitchen Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50, 55°C
Bathroom Controller
Hot Water Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50°C
Bath fill Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48°C
If a temperature between 43°C and 50°C is selected on a Bathroom Controller and this temperature
is then decreased to below 43°C and increased again whilst the water is running, the maximum
selectable temperature will become 43°C. This provides additional safety for the consumer.
Suggested temperatures are:
Kitchen 50°C
Shower 42°C
Bath fill 40°C
These temperatures are suggested starting points for selection. You may find higher or lower
temperatures are more comfortable. Maintaining lower temperatures helps to save energy. To obtain
water temperatures lower than 37°C simply add cold water.
Temperature Controllers are an optional extra. ‘Standard’ and ‘Deluxe Bathfill’ Temperature
Controllers can be fitted. Standard Controllers allow temperature selection only. Deluxe Bathfill
Controllers have temperature selection, bath fill and clock functions.
Temperature Controllers allow the temperature to be set from various locations. The temperature
selected will be available to all outlets.
Controller Options
Model Deluxe Bathfill Temperature
Controllers Standard Temperature Controllers
Infinity 26
Infinity 32
Infinity 24
MC-70-2A, BC-70-2A, MC-91-1A

- 9 -
STANDARD TEMPERATURE CONTROLLER
Standard Kitchen Temperature Controller (MC-91-1A)
Temperature Controllers are not required to operate the Infinity unit. They are an optional extra
providing control of water temperature. Up to 4 Standard Controllers can be fitted to one Infinity unit.
They are normally installed in the areas where the majority of hot water is used, for example, the
kitchen, bathroom, ensuite and laundry. Instead of the laundry, the 4th Controller could also be
installed in the toilet or additional bathroom.

- 10 -
OPERATION WITH STANDARD TEMPERATURE CONTROLLERS
Using the Infinity with 1 Standard Temperature Controller
Press the ON/OFF button on the Temperature Controller.
The yellow ON indicator will glow on the
Temperature Controller. This indicates that the hot
water unit is ready to supply hot water when a tap
is open.
To operate the hot water unit, simply turn any hot
water tap on. This will automatically light the
burner providing hot water. The red IN USE
indicator will glow on the Temperature Controller.
Adjusting Temperature
Simply press the HOTTER ∧or COOLER ∨
button until the required temperature is displayed
on the Digital Monitor.
CHECK WATER TEMPERATURE BEFORE USE.
A parent should always check the temperature before a child is placed in contact with hot water.
CAUTION
When any hot water tap is open, temperature cannot be adjusted except between 37°C and 43°C.
For safety reasons, temperature ‘priority’ cannot be transferred between controllers when a hot
water ta
p
is o
p
en
NOTE

- 11 -
OPERATION WITH STANDARD TEMPERATURE CONTROLLERS
Using the Infinity with 2 or more Standard Temperature Controllers
Switching the System ‘ON’:
The hot water system and all controllers can be switched
ON and OFF from any controller by pressing the ‘ON/OFF’
Button as shown. When the system is turned ON the water
Temperature display will be lit. During normal operation
the system is left ON.
Using Hot Water
Ensure the system is switched ‘ON’.
When the system is ON, the temperature
displays will be lit. Ensure the transfer button
is lit. If not press the TRANSFER button once.
This will transfer priority to this controller
which will then have control of the water
delivery temperature.
Select the desired temperature using the ‘hot
water temp’ buttons. The selected temperature
will be displayed on all controller monitors.
This is the water temperature which will be
supplied to all outlets.
Open the Hot Water Tap.
The Infinity unit will be activated
and the ‘in use’ indicator will light up.
Temperatures no higher than 50•C should be able to be selected on controllers installed in bathrooms,
ensuites or toilets. This is to help reduce the risk of burns from hot water. If this is not the case, the
controllers have been incorrectl
y
installed. CONTACT YOUR INSTALLER.
NOTE
HOT COLD
When any hot water tap is open, temperature can not be adjusted except between 37º C and 43º C.
For safety reasons, temperature ‘priority’ can not be transferred between controllers when hot
water tap is open
NOTE

- 12 -
OPERATION WITH STANDARD TEMPERATURE CONTROLLERS
To TURN OFF your hot water system
During normal operation the system is left ‘ON’.
Simply press the ON/OFF button on any
Temperature Controller (where fitted). This will
shut the Infinity down completely including the
Temperature Controller digital displays.
The ON indicator will go out.
If hot water taps are opened when the Infinity is
OFF, cold water will flow from the taps.
Additional SAFETY features
Whilst the hot water tap is open, the following
safety features apply.
•Temperature selection cannot be transferred.
•Water temperature can only be adjusted between
37°C and 43°C from the controller that has
control.
•Other controllers are unable to change the
delivery temperature of the water heater.
The temperature of outgoing hot water is constantly monitored by a built-in sensor. If the
temperature of the outgoing hot water rises to more than 3°C above the selected temperature
shown on the Digital Monitor or the pre-set limit when Temperature Controllers are not fitted,
the burner will automatically go out. The red operation indicator will also go out. The burner
will ignite again once the outgoing hot water temperature falls to that shown on the Digital
Monitor
(
or the
p
re-set limit of the Infinit
y
unit
)
.
NOTE

- 13 -
DELUXE BATHFILL TEMPERATURE CONTROLLER
Deluxe Bathfill Kitchen Temperature Controller Monitor
•Each time a button is pressed, a ‘beep’ will sound.
•The ‘beep’ sound and the ‘bath fill complete’ buzzer can be muted by pressing the
Temperature Controller Up and Down buttons simultaneously for more than 3 seconds.
This can be done for each Temperature Controller.
To return to ori
g
inal settin
g
s
,
re
p
eat this ste
p
.
NOTE

- 14 -
DELUXE BATHFILL TEMPERATURE CONTROLLER
Deluxe Bathfill Kitchen Temperature Controller (MC-70-2A)
This temperature controller is installed in the kitchen. Each button confirms its operation with a beep
and / or voice.
Be careful not to get water in the speaker as it may cause damage.
CAUTION

- 15 -
Deluxe Bathfill Bathroom Temperature Controller Monitor
DELUXE BATHFILL TEMPERATURE CONTROLLER
•Each time a button is pressed, a ‘beep’ will sound.
•The ‘beep’ sound and the ‘bath fill complete’ buzzer can be muted by pressing the
Temperature Controller Up and Down buttons simultaneously for more than 3 seconds.
This can be done for each Temperature Controller.
To return to ori
g
inal settin
g
s
,
re
p
eat this ste
p
.
NOTE

- 16 -
DELUXE BATHFILL TEMPERATURE CONTROLLER
Deluxe Bathfill Bathroom Temperature Controller (BC-70-2A)
This temperature controller is installed in the bathroom. Each button confirms its operation with a
beep and / or voice.
Be careful not to get water in the speaker as it may cause damage.
CAUTION

- 17 -
DELUXE BATHFILL TEMPERATURE CONTROLLERS
Using the Infinity with 1 Deluxe Bathfill Temperature Controller
When one Temperature Controller is required, the kitchen model
must be used (MC-70-2A).
Switching the system ON
The hot water system and controller can be switched on and off
pressing the ‘ON/OFF’ button as shown.
When the system is turned on, the monitor will be lit. During
normal operation the system is left on.
Setting the Clock
The clock is of the 12 hour AM/PM type.
Press the ‘Clock’ button. The digital monitor will flash AM 12:00.
Set the time using the ‘Hour’ and ‘Min.’ buttons.
The time is displayed on the monitor as the buttons are pressed.
The numbers on the monitor will continuously
change if you keep the buttons depressed.
When you get close to the desired time, press
the button intermittently.
Press the ‘Clock’ button again to activate the
clock.
Clock Hour Min.
Vol.
C
AM
Hot water
temp.
00 00
ON/OFF
MC -70 -1A
Trans fer
Sound Cooler Hotter
Clock Hour Min.
Vol.
C
AM
Hot water
temp.
00 00
ON/OFF
MC -70 -1A
Transfer
Sound Cooler Hotter
Clock Hour Min.
Vol.
C
AM
00 00
ON/OFF
Sound
Clock Hour Min.
Vol.
C
AM
00 00
ON/OFF Sound
The time is always displayed regardless of whether the Temperature Controller is turned ON or OFF.
The clock may need to be reset after a power failure.
NOTE
Clock Hour Min.
Vol.
C
AM
00 00
ON/OFF
Sound

- 18 -
DELUXE BATHFILL TEMPERATURE CONTROLLERS
Setting the Sound Volume
The ‘Sound Vol.’ Button located behind the flip panel is not used when one Kitchen Controller
is connected.
Using Hot Water
The hot water delivery temperature can be controlled
from the Kitchen Controller (MC-70-2A).
Ensure the system is switched ON. If not,
press the ‘ON/OFF’ button behind the flip
panel once. The ‘Transfer’ button will light up.
Select the desired temperature using the ‘Hot
water temp.’ buttons. The selected
temperature will be displayed on the controller
monitor.
Open the hot water tap. The hot water unit will
activate and the red combustion symbol will
light up on the monitor.
Clock Hour Min.
Vol.
C
AM
Hot water
temp.
00 00
ON/OFF
MC -70 -1A
Transfer
Sound Cooler Hotter
Clock Hour Min.
Vol.
C
AM
Hot water
temp.
00 00
ON/OFF
MC -70 -1A
Transfer
Sound Cooler Hotter
C
AM
HOT COLD
CHECK WATER TEMPERATURE BEFORE USE.
A parent should always check the temperature before a child is placed in contact with hot water.
CAUTION
When any hot water tap is open, temperature cannot be adjusted except between 37°C and 43°C.
For safety reasons, temperature ‘priority’ cannot be transferred between controllers when a hot
water ta
p
is o
p
en
NOTE

- 19 -
OPERATION WITH DELUXE BATHFILL TEMPERATURE
CONTROLLERS
Using the Infinity with 2 Deluxe Bathfill Temperature
Controllers
When 2 Temperature Controllers are used, they must be
models MC-70-2A (Kitchen) and BC-70-2A (Bathroom).
Switching the System ON
The hot water system and both controllers can be
switched on and off from either controllers by
pressing the ‘ON/OFF’ button as shown. When the
system is turned on, the monitor will be lit. During
normal operation the system is left on.
Setting the Clock
The clock is of the 12 hour AM/PM type and is set on the
Kitchen Controller (MC-70-2A).
Press the ‘Clock’ button. The digital monitor
will flash AM 12:00.
Set the time using the ‘Hour’ and ‘Min.’
buttons. The time is displayed on the monitor
as the buttons are pressed. The numbers on the
monitor will continuously change if you keep
the buttons depressed. When you get close to
the desired time, press the button
intermittently.
Press the ‘Clock’ button again to activate the
clock.
Cloc k Hour Min.
Vol .
C
AM
Hot wa te r
tem p.
00 00
ON/OFF
MC-70-1A
Trans fer
Sound Cooler Hotter
Clock Hour Min.
Vol.
C
AM
00 00
ON/OFF
Sound
Clock Hour Min.
Vol.
C
AM
00 00
ON/OFF
Sound
Clock Hour Min.
Vol.
C
AM
00 00
ON/OFF Sound
The time displayed on the Kitchen Controller is automatically displayed on all Bathroom
Controller(s) when the Bathroom Controller(s) are ON. If the controllers are OFF, the time is
onl
y
dis
p
la
y
ed on the Kitchen Controller. The clock ma
y
need to be reset after a
p
ower failure.
NOTE
Clock Hour Min.
Vol .
AM
Hot wa ter
tem p.
00 00
ON/OFF
MC-70-1A
Trans fe r
Sound Cooler Hotter
