Rinnai Mains Pressure Cylinder Instructions for use

Mains pressure indoor stainless steel cylinders
Owner and installer guide

Important
Cylinders shall be installed in accordance with:
-Manufacturer’s installation instructions
-Current AS/NZS 3000, AS/NZS 3500, and G12/AS1
Installation, servicing and repair shall be carried out only by authorised
personnel.
Not suitable as a spa or swimming pool heater.
-Owner, please retain this guide for future reference
-Installer, please leave this guide with the owner
Warning
Improper installation, adjustment, alteration, service and maintenance
can cause property damage, personal injury or loss of life.
This appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
For more information about buying, using, and servicing of Rinnai
appliances call: 0800 RINNAI (0800 746 624).
Rinnai New Zealand Limited
105 Pavilion Drive, Mangere, Auckland
PO Box 53177, Auckland Airport, Auckland 2150
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: rinnai.co.nz
youtube.com/rinnainz
facebook.com/rinnainz

About your cylinder...............................................4
Maintenance and servicing...................................4
Troubleshooting....................................................6
Installation
Specication summary .........................................8
Dimensions...........................................................9
Plumbing setup.....................................................10
Storage and delivery temperatures ......................11
Water quality.........................................................12
Electrical supply and connections ........................13
Valves and ttings.................................................14
Commissioning.....................................................14
Limited Warranty ..................................................15
Warranty examples in the real-world ....................18
Proof of purchase .................................................19
Installer details......................................................19
Contents

4 | MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20
About your cylinder
Safety messages
• Element cover
Do not remove the
element cover as this will
expose 230 V wiring and
must only be removed by
an authorised person.
• Thermostat setting
Must only be adjusted
by an electrician or
other suitably qualied
tradesperson.
• Damaged components
If any component is
damaged, it must be
replaced by an authorised
person using Rinnai
replacement parts.
• Child supervision
Children should be
supervised to ensure they
do not play with any part of
the hot water system.
• Hot pipe work
Care should be taken not
to touch the pipe work
from the cylinder as this
could be very hot.
Safety devices
Your cylinder is tted with a:
• Temperature & Pressure
and Relief (TPR) valve,
designed to automatically
release water in the
event that temperature
or pressure exceeds safe
levels.
• Automatic thermostat
to maintain water
temperature.
• Temperature override
cutout for heating element.
In the case of a standard
cylinder (not installed in
a solar application), the
operation of the thermal
cutout can indicate a
dangerous situation. Do
not reset the thermal
cutout until the water
heater has been serviced
by a qualied person.
Do not operate the system
unless all the safety devices
are tted and are in working
order. It is also important that
you do not tamper or remove
any of these devices.
Cylinder thermostat setting
To meet the New Zealand
Building Code requirement1to
disinfect water for legionella
bacteria2, the thermostat has
been set to 65 °C.
Turning the cylinder on/o󰀨
If you plan to be away for a
few nights we suggest you
leave the system switched on.
If it is necessary to switch it
o󰀨, when switching back on,
remember that the cylinder
will take time to heat back up
again.
Draining and lling the
system
This normally occurs during
installation or servicing and
must be carried out by an
authorised person.
Installation by a licensed
tradesperson
Only a licensed tradesperson
can install, adjust, maintain,
and service this water heater.
Any work carried out by a
non-licensed tradesperson
is illegal and will void any
warranty.
Important
All cylinders have the potential to leak water. To minimise damage to other
areas of your home, ensure that your cylinder has been installed with a drip
tray—the person doing the installation is responsible for this.
* Refer to the warranty terms and conditions in this guide for more information.
1Clause G12.3.9, Acceptable Solution G12/AS1 6.14.3
2 Legionella is a bacterium that can cause Legionnaires’ disease―a severe form of pneumonia
Water is heated by an electric element, or elements located in the cylinder. The temperature of the
water is controlled by an automatic thermostat that is set by your installer, usually to 65 °C.

MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20 | 5
Maintenance and servicing
Hot water systems, like cars, require regular maintenance and servicing. To ensure
longevity of your cylinder we recommend the following.
Period What needs to be done
Every six months TPR (temperature & pressure relief) operate the easing gear
Year ve Inspection and service the entire hot water system, including element*
Every 24 months after
year ve
Inspection and service the entire hot water system, including element*
* In hard water areas the element(s) must be periodically descaled. To do this the cylinder must be drained and the
element(s) removed
TPR valve
This valve is located near
the top of the cylinder and is
essential for safe operation.
The TPR valve works by
automatically venting hot
water if the temperature or
pressure of the water in the
cylinder gets too high.
Every six months operate the
easing gear to remove lime
deposits and to check that
it is not blocked. As this will
discharge hot water, ensure
no one is near the drain line.
Failure to operate the
relief valve easing
gear at least once
every six months may
result in the water
heater exploding.
Continuous leakage
of water from the
valve may indicate a
problem.
It is important that you raise
and lower the easing gear
gently. During the operation, if
the valve does not discharge
water when the easing gear
is lifted, or does not seal
again when closed, arrange
for an authorised person to
come and inspect the system
immediately.
During servicing of
your cylinder the
TPR valve needs to
be checked and/or
replaced. This needs
to be done by an
authorised person at
intervals not exceeding
ve years, or more
frequently in areas
where the water is
classied as hard.
A TPR valve must not be
replaced with one that has a
higher pressure rating than
that specied for the cylinder.
Maintenance and servicing
Rinnai has a maintenance,
service, and spare parts
network with personnel who
are fully trained and equipped
to give the best advice on
your Rinnai product. Regular
maintenance and servicing
is not covered by the Rinnai
warranty.
For help locating a service
person in your area call 0800
RINNAI (0800 746 624).
Lift until water flows
from the drain line,
lower gently
To
water
heater
To drain line
How to operate the easing gearTPR position - top
of cylinder

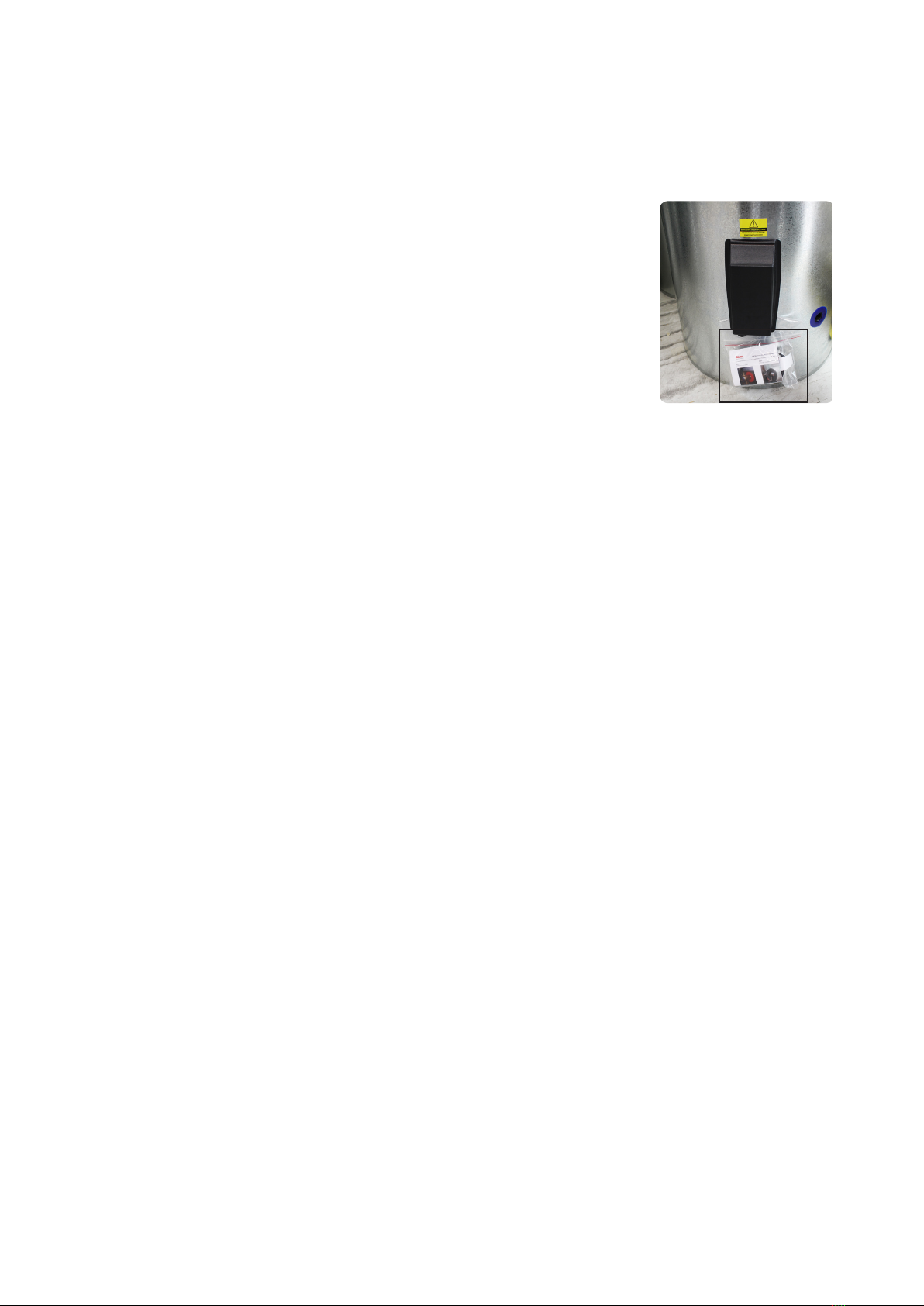

Insulated TPR valve for the
250 and 300 L cylinders
WARNING
IMPORTANT

6 | MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20
Troubleshooting
Do not attempt to carry out any work other than that mentioned in this troubleshooting section. If
you have any other faults or problems, please contact your installer, or contact Rinnai.
Problem Possible solution
Lack of hot
water or no hot
water
Is there electricity supply to the cylinder?
Check that the isolating switch marked ‘hot water’ or ‘water heater’, at the
meter box, is switched on. Also check any isolating switches near the water
heater are switched on.
Check the fuse or circuit breaker marked ‘hot water’ or ‘water heater’ at
the meter box. Repeated failure of the fuse or tripping of the circuit breaker
indicates a fault, which must be investigated by an authorised tradesperson.
Most hot water cylinders are controlled at peak times by your electricity
supplier via a ripple relay. Contact your electricity supplier to determine if there
have been any issues with the power supply.
Lack of hot
water or no hot
water
Are you using more hot water than you think?
Often you don’t realise how much water is actually being used. This applies
especially when showering. Typical ow rates for showers is approximately
8-10 litres per minute. Conduct a simple experiment by placing a measured
bucket under your shower for ten seconds and multiply by six to determine
the amount of water produced over a minute. If your result is signicantly
more than the rates mentioned you may want to consider installing a low ow
shower rose―available at all good plumbing stores.
Lack of hot
water or no hot
water
Cold water relief valve discharging continuously?
It is normal for the cold water relief valve to discharge a small quantity of water
through the drain line. If water is discharging continuously there may be a fault
with one of the valves, contact the installer to discuss.
Water is too hot If possible check the temperature of the water coming out of a hot water tap
with a thermometer. If it is higher than 55 °C then this indicates a problem with
your system—contact an electrician for advice.
High electricity
bills
If you think your electricity bill is too high, investigate the following:
• Has your electricity tari󰀨 changed?
• Is your cold water relief valve discharging continuously?
• Are you using more hot water than normal?
• Has there been any leaking hot water pipes, or taps?

Installation
Installation, servicing and repair
shall be carried out only by
authorised personnel.

8 | MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20
Specication summary
Suitability
• Indoor mains and low pressure systems
• Residential and commercial applications
• Left or right hand cold inlet connections
Not suitable as a pool or spa heater.
The 180 L, 250 L, and 300 L cylinders can be
connected to an open loop solar or hot water
heat pump system via the eco connection.
System should be located and arranged so as
to achieve the closest proximity to water draw
o󰀨 points.
Not suitable for bore or tank water, or for
mains supply where the water is hard and/or
aggressive. Refer p.12 and p.17 for cylinder
water quality and impurity limits.
Operating pressures
Maximum working pressure = 850 kPa

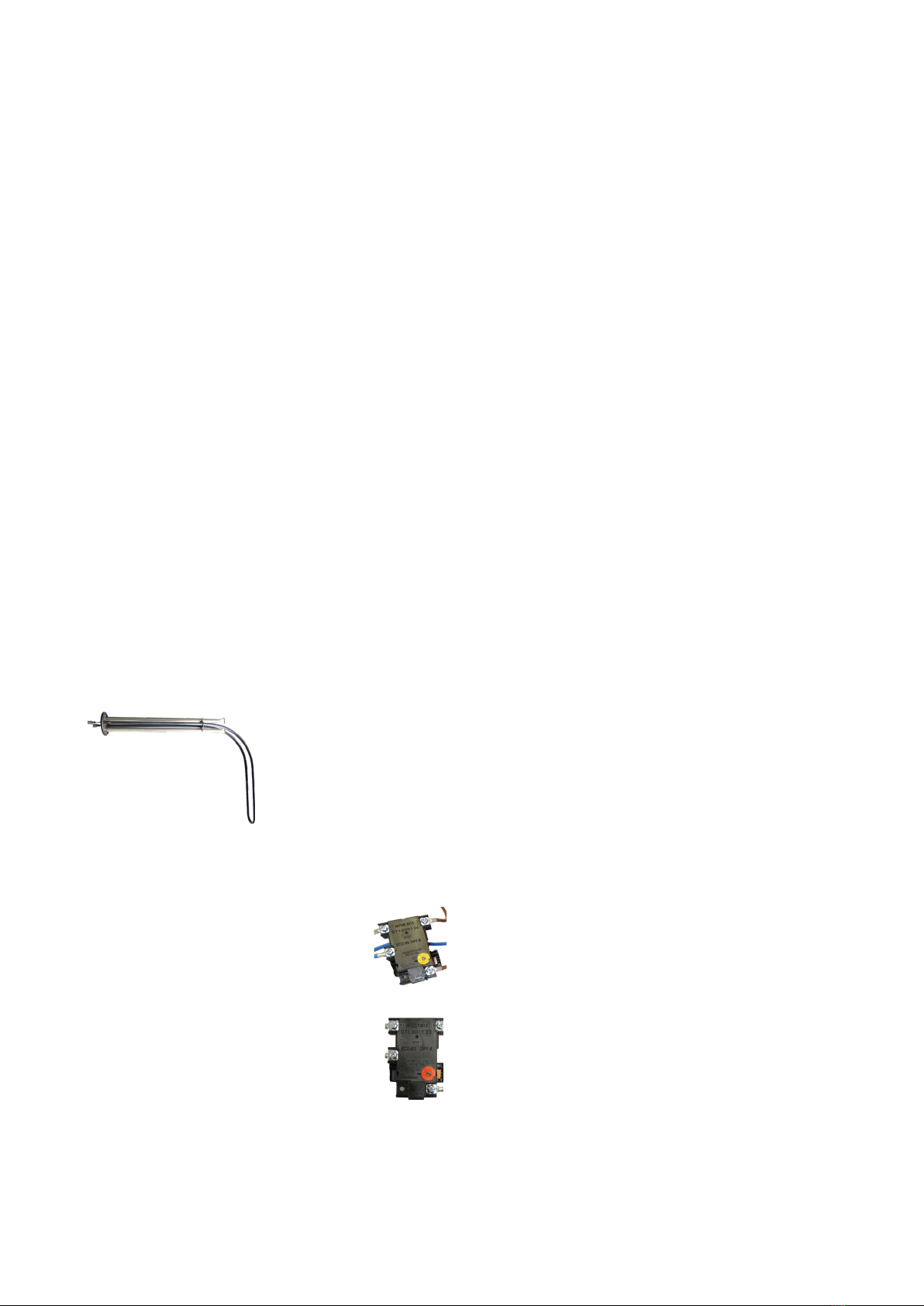

Element
Incoloy 825 alloy sheath curved element
positioned at the bottom of the cylinder, and
midway if a dual element is purchased.
Thermostat
The thermostat setting is between 60-80 °C.
Standard cylinder
Robert Shaw 30 A contact
thermostat, manually resettable at
85 °C (yellow dial).
Cylinder in a solar installation
Robert Shaw 30 A contact auto-
reset thermostat (red dial).
Weights empty full
• 135 L: 27 kg 162 kg
• 180 L: 32 kg 212 kg
• 250 L: 41 kg 291 kg
• 300 L: 47 kg 347 kg
Pressure limiting (reducing) valve
This water heater MUST be installed with a
500 kPa or less pressure limiting valve and
appropriate cold water expansion valve.
TPR valve
A temperature and pressure relief valve is
supplied with the water heater and MUST be
tted. A TPR insulation kit, to reduce heat loss,
is also supplied with the larger 250 and 300 L
cylinders—this also needs to be tted.
The TPR valve thread should be sealed with
teon tape, do not use paste and hemp. Use
the spanner ats on the valve body to tighten,
DO NOT use a wrench on the valve body.
The TPR valve must be tted with a drain pipe
to direct any water discharged to a visible point
outside the property. The drain pipe must have
a continuous fall and be at least the same size
as the TPR valve outlet (½ ˝BSP). Where the
drain pipe exceeds three metres in length it is
recommended an air break be provided within
300 mm of the TPR valve outlet. Where an air
break is used it is recommended that the pipe
size after the air break be increased to one
size larger than the TPR valve. It must also be
protected from freezing conditions.
Protection against water
IPX1

MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20 | 9
Height
Upper element
Ø 550 mm
½ “ female TPR (all sizes)
460 mm
310 mm
½ “ female eco inlet
(180, 250, 300 L only)
¾ female“ side
cold inlet (all sizes)
Hot water outlet ¾ “ female
Side cold inlet
Element
Side cold inlet
TPR
40°
40°
45°
325 mm
TPR
Tank size Upper element TPR Height
135 L N/A 690 mm 1015 mm
180 L N/A 970 mm 1295 mm
250 L 1080 mm 1410 mm 1730 mm
300 L 1380 mm 1725 mm 2045 mm
Dimensions

10 | MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20
Cylinders should be installed in accordance with G12/AS1, and AS/NZS 3500.4:2018. For servicing
and maintenance, please allow su󰀩cient room for access to covers and valves.
For ease of reference, the below diagrams have been reproduced from AS/NZS 3500.4:2018 and
were accurate at the time of print, always refer to the latest standard.
Fitting a dedicated cylinder drain, separate from any other valve, is highly recommended to enable
servicing of the water heater to be undertaken.

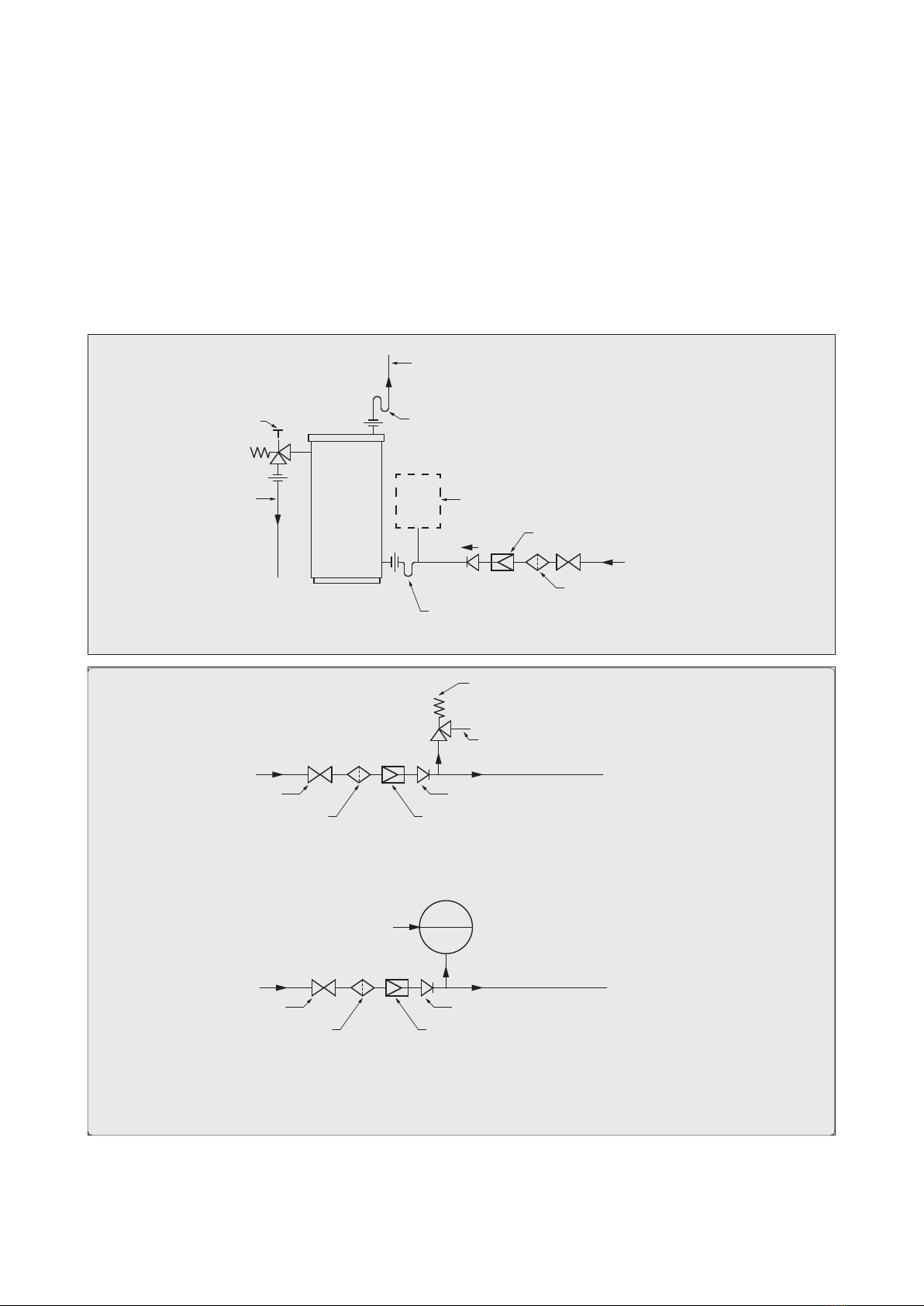

Plumbing setup
Mains
pressure
storage
water
heater
To drain
(see clause 5.11)
Heated water outlet
Heat trap
Temperature/pressure
relief valve
Drain pipe
Heat trap (optional)
Expansion control (see Figure 5.9.4(A))
Pressure-limiting valve
(where required)
Cold water inlet
Line strainer (where fitted)
Figure 5.9.4(C) TYPICAL INSTALLATION OF A MAINS PRESSURE STORAGE WATER HEATER
Expansion control valve
(see Clause 5.9)
Expansion control valve drain line
(see Clause 5.11)
Isolating valve
Strainer (where fitted)
Non-return valve
Pressure-limiting valve or
pressure-reducing valve
(where required)
(a) Typical assembly incorporating a pressure-limiting or pressure-reducing valve using an expansion control valve
Isolating valve
Strainer (where fitted) Pressure-limiting valve or
pressure-reducing valve
(where required)
Expansion vessel
(Clause 5.9)
(b) Typical assembly with no pressure-limiting or pressure-reducing valve using an expansion vessel
Note: Expansion control valve may be combined with the pressure-limiting valve.
Figure 5.9.4(A) TYPICAL INSTALLATION OF VALVES
Mains
pressure
storage
water
heater
To drain
(see clause 5.11)
Heated water outlet
Heat trap
Temperature/pressure
relief valve
Drain pipe
Heat trap (optional)
Expansion control (see Figure 5.9.4(A))
Pressure-limiting valve
(where required)
Cold water inlet
Line strainer (where fitted)
Figure 5.9.4(C) TYPICAL INSTALLATION OF A MAINS PRESSURE STORAGE WATER HEATER
Expansion control valve
(see Clause 5.9)
Expansion control valve drain line
(see Clause 5.11)
Isolating valve
Strainer (where fitted)
Non-return valve
Pressure-limiting valve or
pressure-reducing valve
(where required)
(a) Typical assembly incorporating a pressure-limiting or pressure-reducing valve using an expansion control valve
Isolating valve
Strainer (where fitted) Pressure-limiting valve or
pressure-reducing valve
(where required)
Expansion vessel
(Clause 5.9)
(b) Typical assembly with no pressure-limiting or pressure-reducing valve using an expansion vessel
Note: Expansion control valve may be combined with the pressure-limiting valve.
Figure 5.9.4(A) TYPICAL INSTALLATION OF VALVES

MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20 | 11
Base requirements
Cylinders should be installed on a at level base of su󰀩cient strength to support the weight of the
water heater when full.
The water heater must also be suitably restrained against seismic activity, ‘G12/AS1 Figure 14’
details an acceptable method of restraint.
Drip tray/catch pan (MUST be tted)
The Rinnai warranty does not cover any consequential loss from leaks to the cylinder, so it’s
important a suitably drained drip tray/catch pan is tted as per AS/NZS 3500.4:2015 5.4 and
G12/AS1 6.11.3.
Pipe work
It is the installer’s responsibility to adequately size the distribution pipe work in a property to ensure
su󰀩cient performance from all outlet ttings. Water pipe sizing should be performed in accordance
with AS/NZS 3500.4 and/or G12 AS1. Pipe sizing and valve selection must be performed to allow
for the water supply pressure.
A drain o󰀨 tap or line must be tted to the inlet of the water heater.
All hot water pipe work should be insulated with polythene foam or equivalent insulation to optimise
performance and energy e󰀩ciency.
To prevent damage to the water heater when attaching pipe clips or saddles to the jacket, it is
recommended that self drilling screws with a maximum length of 12 mm are used. If drilling is
required take extreme care not to penetrate the inner cylinder.
Storage and delivery temperatures
Storage temperature
To meet the New Zealand Building Code requirement
1
to disinfect water for legionella bacteria, the
cylinder thermostat has been set to 65 °C.
Thermostat settings must only be adjusted by an electrician or other suitably qualied
tradesperson. The access cover to the element and thermostat must only be removed by
an electrician or other suitably qualied tradesperson.
Sanitary xtures delivery temperature
Water temperatures over 55 °C can cause severe scalds. Local regulations must be considered
regarding temperature limitations of hot water supplied to areas used primarily for personal
hygiene. The temperature is limited to 45 °C for early childhood centres, schools, nursing
homes or similar facilities and 55 °C for all other buildings. To comply with these requirements, a
temperature limiting device, such as a tempering or thermostatic mixing valve will be required on
all installations.
WARNING
1Clause G12.3.9, Acceptable Solution G12/AS1 6.14.3

12 | MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20
Water quality
Rinnai cylinders are manufactured to suit most NZ council water supplies. However
some water supplies can have a detrimental e󰀨ect on the water heater, its operation,
and life expectancy.
Pitting corrosion
Rinnai stainless steel cylinders are made from 2101 grade duplex stainless steel and are highly
resistant to pitting corrosion, but not completely immune from it. Pitting corrosion may occur in the
form of deposit attack if the water supply has a high percentage of dissolved solids present.
Hard water
Hard water (containing calcium carbonate) can cause scaling on hot surfaces. We recommend
a water temperature of no more than 65 °C to minimise scale build-up. Scale reducing or water
softening devices should be considered in hard water areas. The unit is not guaranteed against
damage due to scaling.
Water quality outside the limits (as set down below) will void this warranty.
Water Quality and Impurity Limits
Most metropolitan water supplies fall within these limits. If you are unsure about water quality,
please test your water for compliance to Rinnai standards. If sludge or foreign matter is present in
the water supply, a suitable lter should be incorporated in the water supply.
Some examples of water quality issues where water may need to be treated:
• Hard water (areas including Wanganui)
• Aggressive water (areas including Christchurch)
Stainless steel cylinders are not suitable for tank or bore water.
TDS (Total Dissolved Solids) Total Hardness CaCO3Dissolved (free) CO2pH Langelier Index
Up to 600 mg/L or ppm Up to 200 mg/L or ppm Up to 25 mg/L or ppm 6.5-8.5 Between -1.0-0.8
IMPORTANT

MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20 | 13
Electrical supply and connections
The electrical connection must be carried out by a qualied person in accordance with NZ
Electrical Regulations. The water heater must have the heating element connected to an
independent, fused, AC 230 V 50 Hz power supply with an isolating switch installed at the switch
board. Disconnect all power prior to installation and commissioning.
• The water heater must be lled with water prior to connection to the power supply
• Household wiring to the heater must be capable of withstanding the appliance load
• Fixed wiring must be protected from contact with the internal hot surface of the water heater
Electrical access is via a hole in the element cover for mounting with an approved electrical conduit
gland. For entry to the element cover remove the two xing screws.

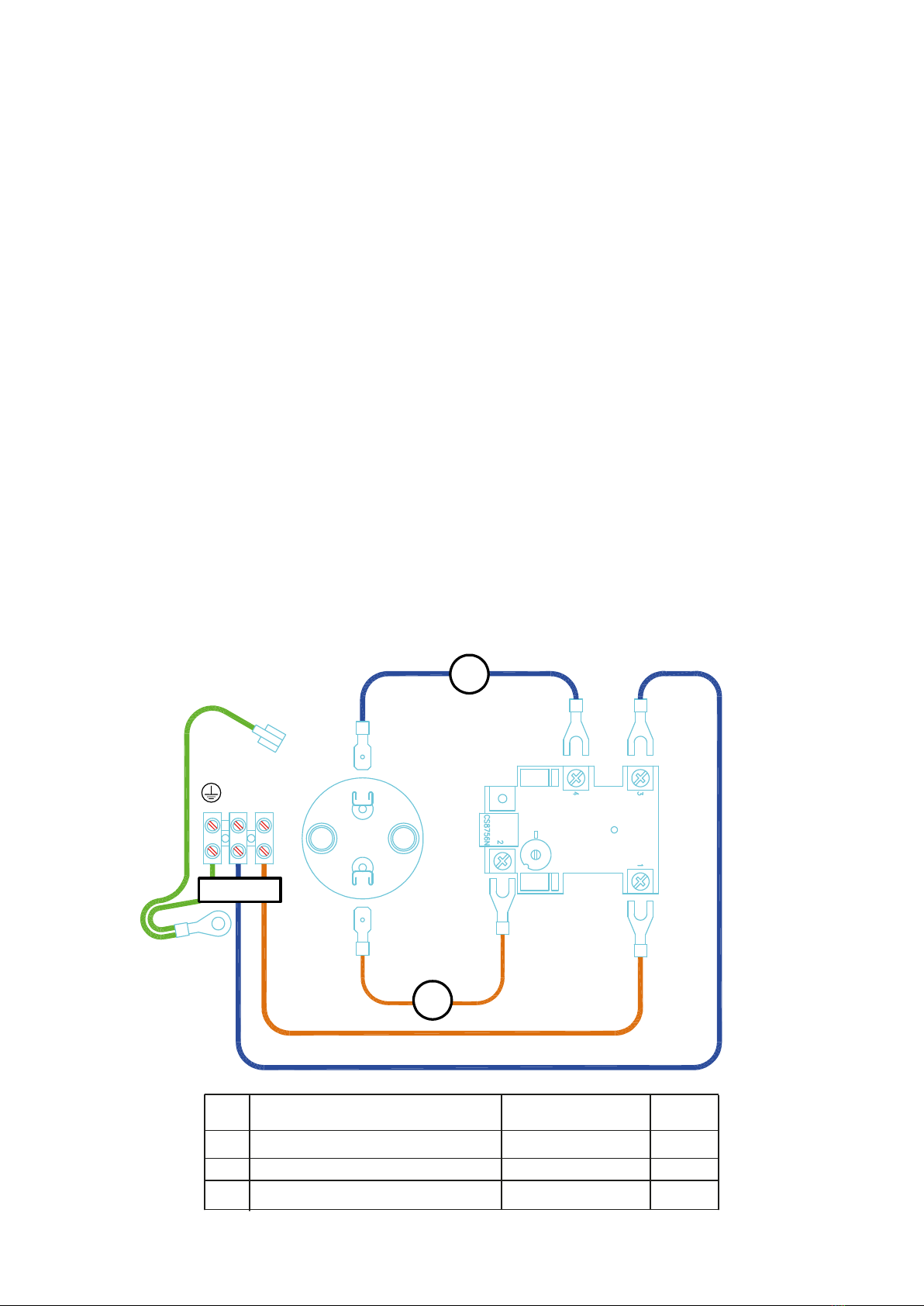

Connect all LIVE, NEUTRAL and EARTH wires in accordance with the wiring diagram. Inspect and
ensure all wiring links are secure prior to xing the access cover and turning the power on.
To ensure the over-temperature and energy cutout is set press the ‘reset’ button on the thermostat.
The appliance is intended to be connected to cables of xed wiring which has a cross-sectional
area of 1.5 mm2 - 2.5 mm2.
Terminal
block
Element
Reset
Thermostat
3
2
Wire
No.
Description Colour Code
1
2
3
Wiring main loom R/Shaw assy.
Wire link brown R/Shaw assy.
Wire link blue R/Shaw assy.
Green/brown/blue
Brown
Blue
20197
20198
20199
A
N
1

14 | MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20
Valves and ttings
Valves with pressure ratings other than those listed in this manual must not be used.
Fittings supplied with the cylinder
TPR valve, brass plugs, to plug unused connections, a key spanner, and
the owner and installer guide are packaged inside the element cover.
The TPR valve insulation kit, for the 250 and 300 L cylinders, and
instructions are supplied in a clear plastic bag xed to the element cover
as shown. The valve insulation kit is provided to reduce heat loss from the
TPR and must be tted.
Commissioning
Commissioning and draining activities must be carried out by an authorised person.
To ll and turn on the water heater
1. Open all hot water taps in the house including the shower.
2. Open the cold water isolation valve to the water heater. Air will now be forced out of the taps.
3. Close each tap when the water runs freely without air bubbles.
4. Check all plumbing connections and pipe work for water leaks.
5. Switch on the electric power supply.
To turn o󰀨 the water heater
It may be necessary to turn o󰀨 a water heater after installation and commissioning, for example
during building activities or if the premises are vacant.
1. Switch o󰀨 the electricity supply at the isolating switch to the water heater.
2. Close the cold water isolation valve at the inlet to the water heater.
To drain the water heater
1. Turn o󰀨 the water heater as above.
2. Close all the hot water taps.
3. Gently operate the TPR valve release, this will relieve the pressure in the water heater.
4. Open the drain valve—make sure no damage will occur from discharged water.
5. Operate the TPR valve again. This allows air into the water heater and will result in the water
draining.
250 and 300 L TPR
valve insulation kit

MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20 | 15
This warranty is applicable to all Rinnai Stainless Steel Indoor cylinders.
All terms of the warranty, subject to the conditions below, are e󰀨ective from the date of rst
installation. Proof of purchase and installation date will be required at the time of any warranty
claim. Where the date of installation is not known or cannot be proven the warranty will commence
one month after the date of manufacture—refer to the data label on the cylinder. This warranty is
only valid within the country of purchase.
Residential
application
Commercial
application
Cylinder only 10 years 3 years
Labour 5 years 1 year
All other parts supplied by Rinnai (thermostats, elements, seals etc.) Parts 1 year 1 year
Labour 1 year 1 year
Single residential application warranty
A residential application is dened as an installation where the water heater, with the thermostat
set below 70 °C, delivers hot water to a single family residential dwelling, not used for commercial
purposes.
Examples where a residential dwelling is used for commercial purposes; hair salon, catering
kitchen, communal care facility etc. These installations would be considered commercial
applications. An exception would be an accommodation business such as a motel, where the water
heater serves the equivalent of a single family dwelling, this would be a residential application.
Commercial application warranty
For constant use applications such as, but not limited to these, underoor heating and circulating
ring mains. The cylinder must be sized and installed according to written guidelines from Rinnai.
General warranty terms
Rinnai reserves the right to make modications and change specications and its parts without
notice.
For the purposes of the Consumer Guarantees Act 1993, Rinnai only guarantees the availability of
repair facilities and spare parts for the express warranty periods recorded in the Rinnai warranty
summary table.
If the cylinder is being acquired for personal, domestic or household use, this warranty does not
limit any consumer rights or guarantees that may apply under the Consumer Guarantees Act 1993.
If the product is being acquired for the purposes of a business, the provisions of the Consumer
Guarantees Act 1993 do not apply and no other warranties (either express or implied by law) apart
from those stated in this warranty apply.
Limited Warranty
Rinnai brings you peace of mind with a:
10-year warranty

16 | MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20
Warranty terms and conditions
1. All terms of this warranty are e󰀨ective from the date of rst installation. The attending
service person reserves the right to verify this date.
2. All Rinnai cylinders must be installed, commissioned, serviced, repaired and removed
in accordance with the manufacturer’s installation instructions, local regulations, and
municipal building codes by persons authorised to do so.
3. All Rinnai cylinders must be operated and maintained in accordance with
manufacturer’s instructions.
4. The warranty applies only to the components supplied by Rinnai. It does not apply
to components supplied by others, such as, but not limited to these, isolating valves,
electrical switches, pipe work, electrical cables, and fuses.
5. Where the cylinder has not been sited in accordance with the installation instructions or
installed such that normal service access is di󰀩cult, a service charge will apply. If at the
discretion of the attending service person the installation is deemed illegal or access
is dangerous, service will be refused. Any work required to gain reasonable access to
the cylinder will be chargeable by the attending service person (for example, removal of
cupboards, doors, walls, or the use of special equipment to move components, but not
limited to these).
6. The cylinder warranty is for the period indicated in the summary table. Where the
cylinder and/or part is replaced under warranty the balance of the original warranty will
remain e󰀨ective.
7. Rinnai reserve the right to transfer functional components from defective water heaters
if they are suitable.
8. Rinnai reserve the right to have the installed product returned to the factory for
inspection.
9. Where the cylinder is installed outside the metropolitan area or further than 40 km from
a Rinnai authorised service centre, travel costs shall be the owner’s responsibility.
10.Rinnai reserves the right to replace the cylinder for another type if upon inspection it is
deemed another cylinder of a di󰀨erent construction is more suitable.

MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20 | 17
Warranty exclusions
The following exclusions may cause the warranty to become void and will result in a
service charge and costs of parts (if required).
1. Accidental damage and acts of God.
2. Failure due to abuse or misuse, improper maintenance or improper storage.
3. Failure due to incorrect or unauthorised installations.
4. Failure or damage caused by alterations, service or repair work carried out by persons
other than those authorised by Rinnai.
5. Where the cylinder has failed directly or indirectly as a result of poor water quality
outside the limits specied and/or used with bore or tank water.
6. Where it is found that there is no fault with the cylinder and the issue is related to the
installation or is due to power failure.
7. Subject to any statutory provisions to the contrary, Rinnai does not accept:
a. liability for consequential damage or any incidental expenses resulting from any
breach of the warranty.
b. claims for damage to building or any other consequential loss either directly or
indirectly due to leaks or any other faults.
TDS (Total Dissolved Solids) Total Hardness CaCO3Dissolved (free) CO2pH Langelier Index
Up to 600 mg/L or ppm Up to 200 mg/L or ppm Up to 25 mg/L or ppm 6.5-8.5 Between -1.0-0.8

18 | MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20
Warranty examples in the real-world
We understand warranty information can be confusing. To help clarify what this means in the real-
world we have developed some residential application scenarios to clarify what would fall within
warranty and what wouldn’t.
Scenario Age of part/
cylinder
Within warranty
Faulty thermostat 10 months Yes All costs covered by Rinnai.
Faulty element 3 years No All costs covered by the owner.
Cylinder leaks as a result of
a faulty inner cylinder and
causes damage to carpets
and ooring
11 months Yes/No Cost of cylinder replacement covered by
Rinnai. Consequential loss, damage to
carpets and ooring, is not1.
1Consequential losses
All cylinders are required to be installed with a drip tray, this is a mandatory requirement of the
installation. If damage is caused by a leaking cylinder that has not been installed with a drip tray
the owner can seek compensation through the installer or consider claiming on insurance.

MP indoor stainless steel cylinders: Owner and installer guide: 20132-I 09-20 | 19
Purchase details
Please keep these details in a safe place for future reference.
ATTACH YOUR PROOF OF
PURCHASE HERE:
Retailer:
Retailer address:
Date of purchase:
Product details:
Record your purchase details below
Installer details
Company name:
Installer name:
Address:
Phone: Mobile:
Signed: Date:
Register your Rinnai cylinder online at www.rinnai.co.nz/register/ for service reminders, product
updates and special o󰀨ers—you can unsubscribe at any time.

20132-I: 09-20
Tel: [phone]
http://www.youtube.com/rinnainz
http://facebook.com.rinnainz
Rinnai.co.nz
