Rinnai REU-KM3237FFUD-E User manual

Installation and User Manual
REU-KM3237FFUD-E
Infinity Condensing 32i
REU-KM3237WD-E
Infinity Condensing 32e
REU-KM3237FFUDHD-E
Infinity HDC 1500i
REU-KM3237WDHD-E
Infinity HDC 1500e
Continuous Flow Water Heater
Important.
Read these instructions carefully before attempting installation or use of
this appliance. All work must be carried out by competent persons.

2
The Rinnai Infinity range of
water heaters, when correctly
installed, comply with the
requirements of the United
Kingdom Water Regulations /
Byelaws (Scotland). These
Products can be found listed in
the Water Fittings and Materials
Directory.
The Rinnai Infinity condensing 32i
and condensing 32e water heaters are
CE Marked as allowed by Technigas.
Certificate number:
ID number:
Date of Issue
Quality System Standard
ISO 9001 - 2000
The Design, Development, and Manufacture of Gas Water Heating Appliances
done under Rinnai’s Quality Management System is certified under the Quality
Management System Standard ISO 9001.
Registration Number JQ0003D
Registered since: February 1994
Certified by JIA—QA Center.

3
Contents………………………………………………………………..…………………3
User Instructions.....................................................................................................4
Features and Benefits………………………………………………..………….5
Important Information…………………………………………...……..………..6
Operation without Remotes……………………………………………….……8
Status Monitor..............................................................................................8

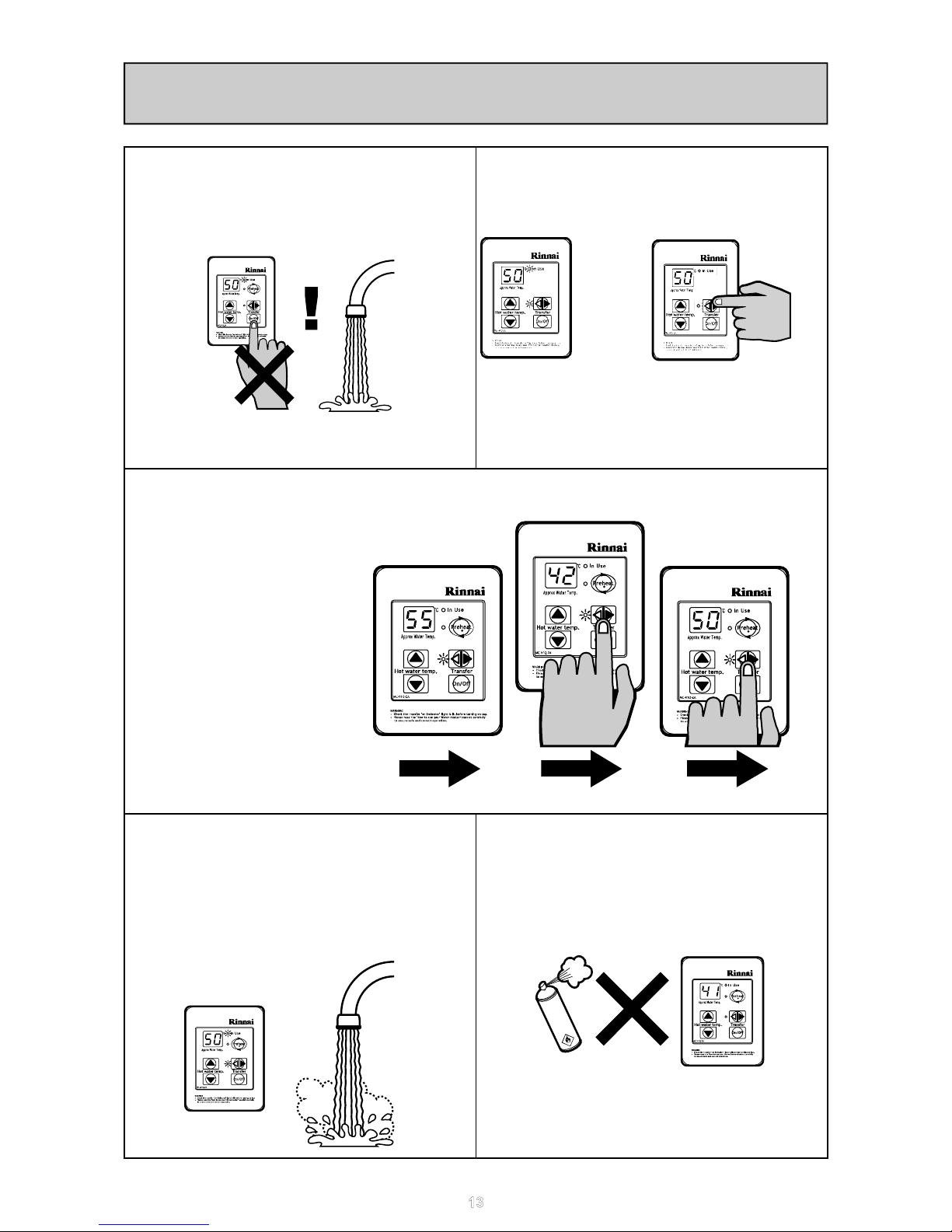

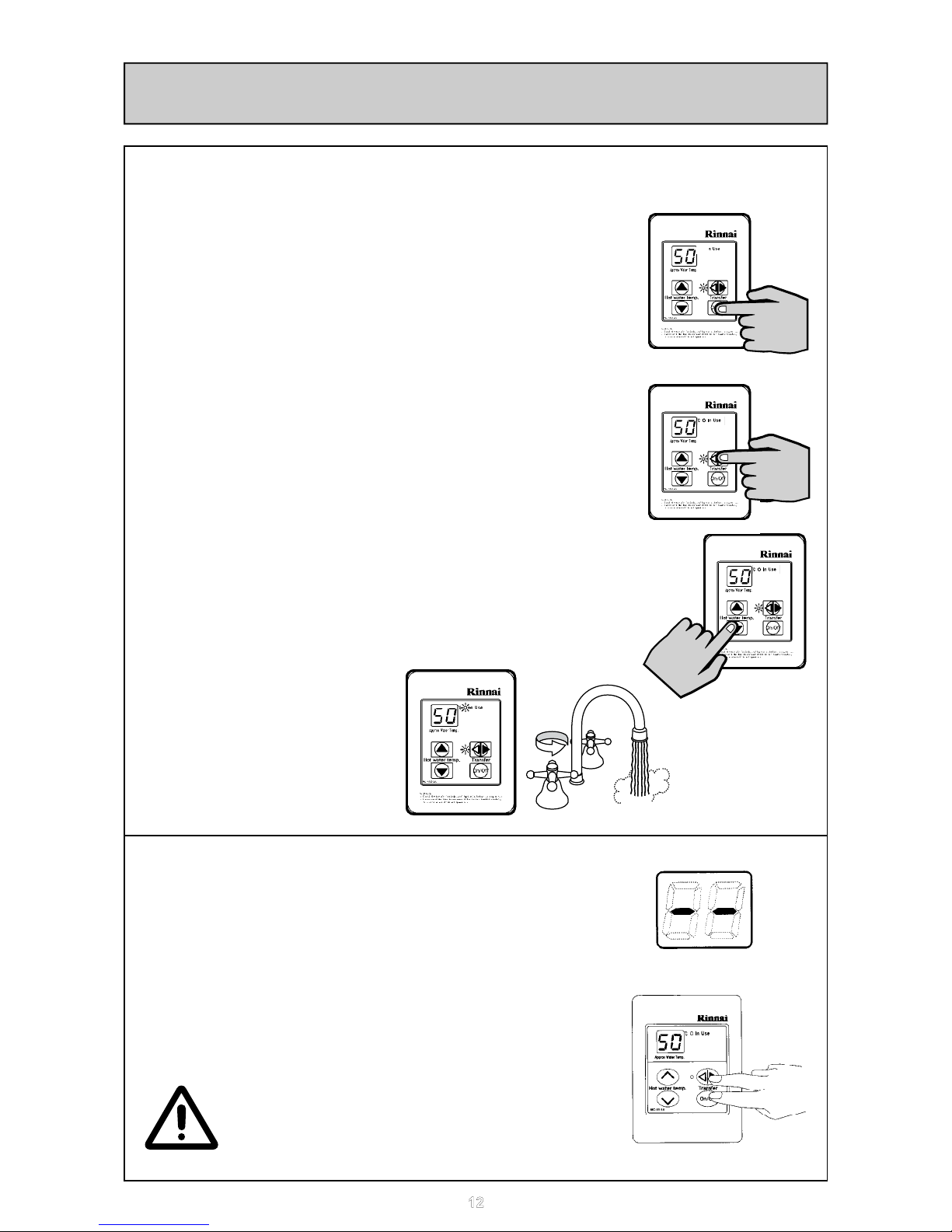

Temperature Controls…………………………………………….…………..…9
Error Messages…………………………………………………………………14
Restarting the Rinnai Water Heater………………………………………….16
Caring for the Infinity……...……………………………………………………16
Installation Instructions…………………………………………….………..…………17
UK Installation Instructions…………………………………………………….18

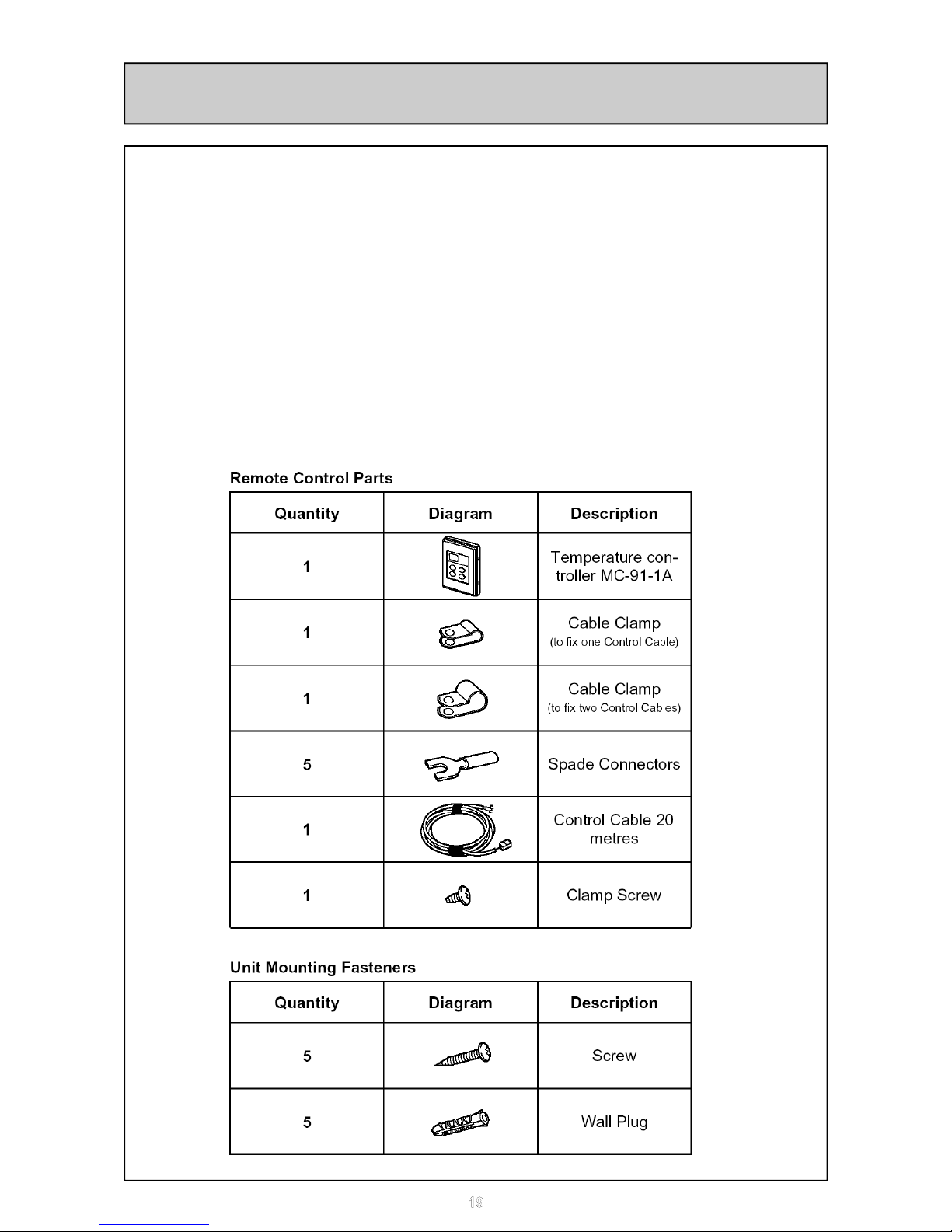

Unpacking Rinnai Water Heater…………………………….………………...19

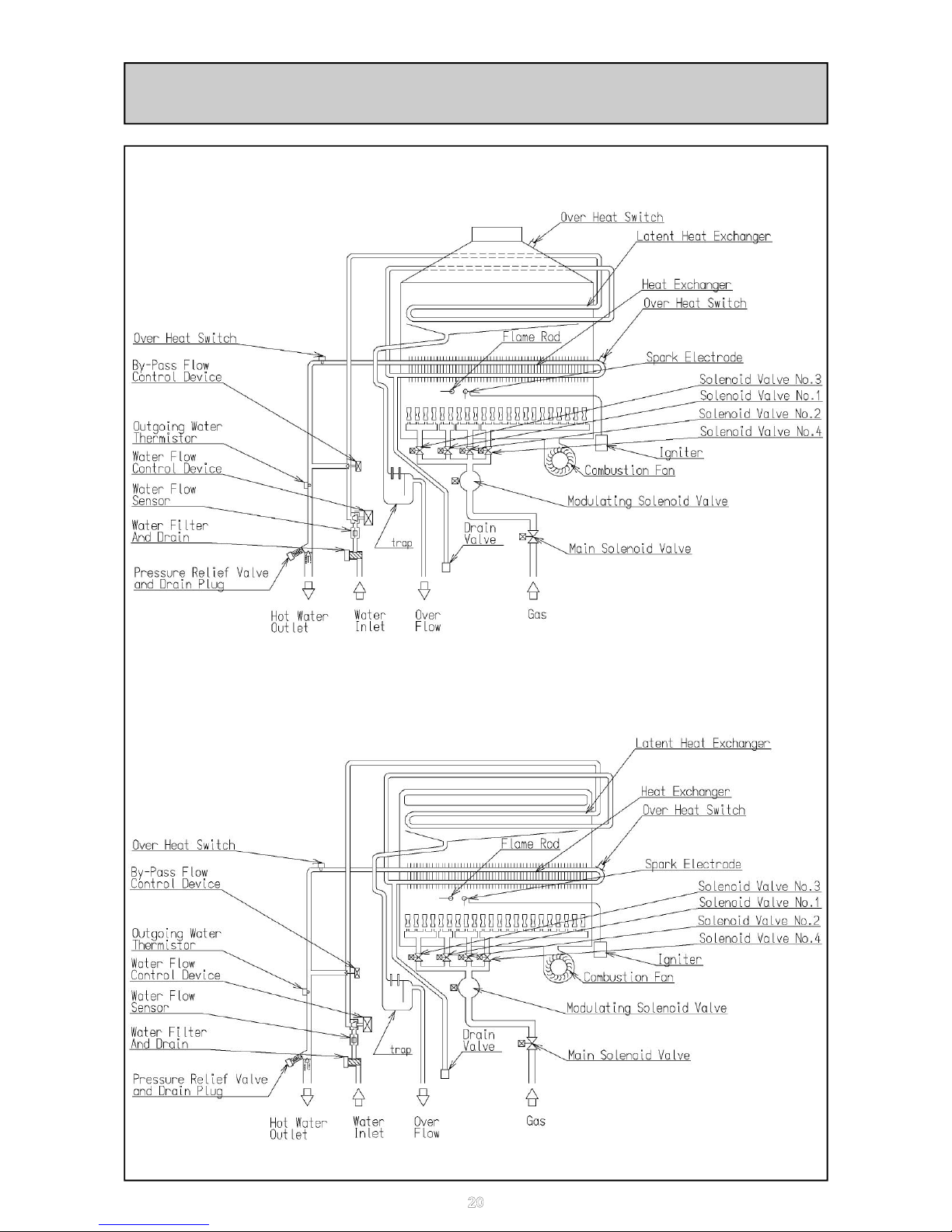

Operation ..............……………………………………………...……………...20
Main Components………………………………………………..……………..22
Installation Instructions……………………………………………….………...23
Flue Requirements……………………...…….………………………………..28
Condensate Disposal…………………………………………………………...31
Temperature Controls…………………………………………………………..33
EZ Connect.................................................................................................35
Testing…………………………………………………………………......…….36
Gas Pressure Setting…………………………………………………….....….37
Dip Switch Setting………............……………………………………………...39
Dimensions…………………………...........................………………………..41
Technical Details..……………………………………............………………...42
Flow Chart…….………………………………………………......………..……43
Wiring Diagram…….……………………………………………………………44
Diagnostic Points…………………………………………………………….....45
Water Flow Characteristics.........................................................................46
Letter of Compliance……………………………………………………....…...47
CE Certificate……………………………..……………………………………..48
Commissioning Checklist…………………...………………………………….49
UK Warranty………………………………….………………………………….50
Specification................................................................................................52
Contact........................................................................................................53
Heater Details.............................................................................................53
CONTENTS

4
USERS INSTRUCTIONS
The following instructions are designed for the user of the water heater. The user may
not install or adjust the appliance in any way that requires the removal of the front cover
of the unit. To remove the front cover of the unit you must be certified competent to do
so. Information for the Installer is given on page 17.
All work done on this appliance must be done by a qualified gas
engineer. A qualified gas engineer must carry an up to date CORGI
Registered Gas Installer photo identification card while working on gas
appliances. If you are unsure do not be afraid to ask the engineer to
show you the card. If you are still not satisfied call CORGI on 0870 401
2300 and verify the engineer’s name with their database. This is for your
own safety.
Responsibilities of the USER
The user must abide by all warnings given in this book. The user must only reference
the user section of the book, and may not carry out any procedure listed in the installer
section. This installation manual should be kept with the appliance for maintenance and
user information.
The user must have the unit checked and maintained annually by a gas engineer.
The user must periodically check the water filter on the inlet to the appliance.
The user must not use the appliance in any way that it was not meant to be used. The
user may only use the heater as detailed in the User portion of this manual.
Interference with a sealed component is not permitted
Conversion to other gas types should only be carried out by a qualified installer or a gas
distributor according to the practice in the country where the unit is installed.
The user must not store or use any flammable vapours or liquids in the vicinity of this or
any other appliance.
The user should familiarise themselves with the water heaters gas service valve and the
main gas valve to the premises.
IF YOU SMELL GAS
Isolate the gas supply and get out of the building.
Do not try to light any appliance.
Do not turn any light or other electrical switch on or off.
Do not use any telephone in the building.
Call your gas engineer from a safe location and follow their
instructions.
If you cannot reach your gas engineer ring the following:
National Grid 0800 111 999

5
Congratulations on purchasing the Technologically Advanced, Temperature Controlled,
Rinnai Hot Water System.
x Rinnai water heaters will NEVER RUN OUT of hot water. As long as electricity,
water, and gas supplies are connected, hot water is available when hot water taps are
open.
x Built into the main micro-processor is the facility to LIMIT THE MAXIMUM
TEMPERATURE of the hot water supplied. The water temperature may be set to
various temperatures. This is particularly useful when the hot water unit is installed
where young children or the infirm may be using the hot water. If required, the
temperature can be changed via the dip switches on the PCB or with a localised
controller. For further information, please contact Rinnai.
x Rinnai Infinity water heaters are powered flue appliances. This makes them
COMPACT, saving both floor and wall space.
x The temperature of outgoing hot water is CONSTANTLY MONITORED by a BUILT-
IN SENSOR. If the temperature of the outgoing hot water rises to more than 3°C
above the selected temperature the burner is shut OFF and only turned ON again
when the temperature falls to below the selected temperature.
x The burner lights automatically when the hot water tap is opened, and extinguishes
when the tap is closed. IGNITION IS ELECTRONIC, so there is no pilot light. When
the hot water tap is off, no gas is used.
x The Infinity Condensing 32i / HDC1500i and Condensing 32e / HDC1500e have a
built in Status Monitor on the front of the unit to display error codes and run
condition. Up to four external temperature controllers can be mounted remotely from
the heater. This offers the following additional features:
Localised temperature setting.
Diagnostic information.
Error Codes.
Clock
Bath fill
x ‘Deluxe’ Temperature Controllers are an optional extra. These provide functions
including Bath Fill, Voice Prompt, and Clock Setting.
x Temperatures selected at the controllers are retained in the SYSTEM MEMORY
x Operating NOISE LEVEL IS VERY LOW.
x ERROR MESSAGES ARE DISPLAYED on the Temperature Controllers, assisting
with service.
x FROST PROTECTION device built in as standard.
FEATURES AND BENEFITS

6
Excessively hot water is dangerous, especially for young children and the infirm. The
water heater allows you to control the temperature of your hot water to safe levels.
Do stay with children whenever
they are in the bathroom.
Do take them out of the bathroom if
you need to answer the phone or
door.
Do test the temperature of the water
with your elbow before placing your
child in the bath.
Do make sure that the tap is turned
off tightly.
Do consider setting your Rinnai
Water Heater at a maximum
temperature of 50°C.
Do install a child proof tap cover
OR,
Do install a child resistant tap.
Do not leave a toddler in the care of
another small child. The older child
may not have safely set the temperature.
IMPORTANT INFORMATION
Water temperature over 50ºC can cause severe
burns instantly or even death from scalding.
Children, disabled and the elderly are at the
highest risk of being scalded by excessively hot
water.
Always test the temperature of the water before
bathing or showering.
Burns from hot water taps can result in very
severe injuries to young children.
Hot water at 65°C can severely burn a child in less
than half a second. At 50°C it takes five minutes.
Burns can occur when children are exposed
directly to hot water or when they are placed into a
bath which is too hot.
x Consider child—resistant taps
or inexpensive tap covers, both
of which prevent a child’s hand
from turning on the tap.
x Consider reducing the
temperature of the water
supplied to the hot tap to 50°C.
This approach can be extremely
valuable because it requires a
one time action for a long term
reduction in risks of scalds.
This type of automatic protection
is important during times when a
parent or carer has been
distracted.
DO
DO
NOT

7
IMPORTANT INFORMATION
Always check water temperature before
use.
Refer to warning about hot water on
page 6 for important safety information.
Hot water may go cold without warning at
very low water flows (less than 3 l/min.)
The delivered water temperature is
controlled automatically. The water from
the hot tap may be reduced after the
temperature shown on the remote control
is raised. The water flow may also vary
with the temperature of the incoming
water supply.
Keep flammable materials, trees, shrubs,
chemicals, etc. away from the flue outlet /
terminal.
Do not spray water into flue terminal
Do not touch the flue outlet. Do not insert
objects into the flue outlet / terminal.
On cold days steam may be discharged
from the flue outlet. This is normal, do
not be alarmed. It does not indicate a
fault.
If freezing temperatures are expected, turn
off the water and gas, and drain the water
heater.
If the power is left on the Automatic Frost Protection
will prevent the unit from Freezing. Frost protection
is standard on all units.
OFF!
43°C
55°C
Filter
Drain
Gas
Valve
GasColdHot
Turn Water Off
Turn Gas Off
Drain Water
HOT!

8
Rinnai Infinity products have no pilot light and operate automatically as soon as water flow is
sensed.
The burner ignites with electronic ignition and the flame extinguishes as soon as water
flowing through the appliance stops.
Turn On by opening the hot water tap
The Rinnai Infinity range of water heaters are factory preset to a
temperature of 55°C; the HD range are preset to 65°C. Other limits, lower or
higher, are available on request. Temperature controllers are available to
allow precise digital temperature control. Controllers can be installed at any
time after installation of the hot water unit.
Excessively hot water is dangerous. Rinnai water heaters allow you to
control the temperature of your hot water to a safe level.
Water temperatures above 50°C can cause severe burns instantly, such
scalding may even result in death. Those most at risk are children,
disabled, elderly and the infirm. Hot water at 65°C (a very common water
temperature in the UK) can severely burn a child in less than half a
second. At 50°C it takes five minutes.
Consider using Thermostatic Mixing Valves on the Hot Water Outlets.
OPERATION WITHOUT REMOTES
CAUTION
NOTE
The new series of Rinnai Water Heaters have a built in status monitor on the front.
The status monitor has three conditions:
1 - The water heater is off (no water flowing): the monitor is blank.
2 - The water heater is on (heating water): The monitor displays the set
temperature.
3 - The water heater should be on, but is not (water is flowing, heater is
not on): The monitor will display a flashing error code.
STATUS MONITOR
NEW FEATURE
STATUS MONITOR
HOTHOT
COLDCOLD
OFF!OFF!
OFF!OFF!
HOTHOT
COLDCOLD
ON!ON!
ON!ON!

9
TEMPERATURE CONTROLS
The purpose of a Temperature Controller is to enable the user to have localised control
over the hot water supply. Used correctly, the hot water unit will supply hot water at the
temperature selected, even when the water flow is varied, or when more than one tap is
used. Adjustments to the operation of your hot water unit can be made with any of the
Temperature Controllers. Each Temperature Controller can be individually programmed.
Up to four Universal and/or Deluxe Temperature Controllers can be fitted with Rinnai
water heaters. Universal Controllers allow temperature selection only and one comes as
standard with the water heaters. Deluxe Temperature Controllers are an optional extra.
These controllers have temperature selection, bath fill, voice prompt, and time clock
functions. When more than one Universal Controller is used one may be set as the
Master Controller to allow temperatures above 50°C.
Various water temperatures (°C) can be selected as follows:
Universal Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 500C
Master Universal Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50, 55°C ( 60, 65°C HD )
Deluxe Bathroom Controller:
Hot Water Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50°C
Bath fill Delivery: 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48°C
Deluxe Kitchen Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 48, 50, 55°C ( 60, 65°C HD )
If a temperature of 43°C or higher is selected on any controller and this temperature is
then decreased to below 43°C and increased again whilst the water is running, the
maximum selectable temperature will be 43°C. This provides additional safety for the
user.
Suggested temperatures are:
Kitchen 50°C - 65°C*; Shower 39°C - 43°C; Bath fill 39°C - 45°C
* This temperature may not be available on all installations.
These temperatures are suggested starting points for selection. You may find higher or
lower temperatures are more comfortable. Maintaining lower temperatures helps to save
energy. To obtain water temperatures lower than 37°C simply add cold water.
When multiple temperature controllers are used they allow the temperature to be set
from various locations by pushing the transfer button which gives that controller priority
over the system. The temperature selected by the controller with priority will be available
to all outlets.

10
TEMPERATURE CONTROLS - OPERATING
Safety features
Whilst the hot water tap is open, the
following safety features apply:
x Temperature selection cannot be
transferred.
x The temperature setpoint on the
controller with priority can always be
lowered, but the setpoint can only be
raised to 43°C.
x Other controllers are unable to take
priority or change the delivery
temperature of the water.
x If off, the controller cannot be turned on.
The temperature of the outgoing
water is constantly monitored by
a built in sensor.
If the temperature of the outgoing
hot water rises to more than 3ºC above the
selected temperature shown on the digital
display, or the preset limit if controllers are
not fitted, the burner will automatically go
out.
The red operation indicator will also go out.
The burner will ignite again once the
outgoing hot water temperature falls to that
shown on the digital display (or the pre-set
limit of the Rinnai Infinity heater).
Remote temperature controllers provide control over the water temperature. Rinnai water
heaters can be operated with 1, 2, 3, 4 or no temperature controllers.
Each time a button is pressed, a BEEP will sound. The BEEP sound can be
muted by depressing the Temperature Controller Up and Down buttons
simultaneously for more than 3 seconds. This can be done for each
Temperature Controller. To return to original settings, repeat this step.
NOTE
NOTE

11
TEMPERATURE CONTROLS - OPERATING
Using the Temperature Controllers
Press the ON/OFF button on a
temperature controller after making sure
that water is not flowing.
The system will become
active, the temperature
will default to 40°C and
the controller that turned
the system on will have
priority.
The temperature setting
on the controller will light
up.
Adjusting Temperature
Simply press the Hot Water Temperature
Up or Down arrow button until the desired
temperature is
displayed on
the digital
display.
Using Hot Water
To operate the heater, simply turn any hot
water tap on. This will automatically light
the burner providing hot water. The red IN
USE indicator will glow on the temperature
controller.
To turn off your hot water system
During normal operation the system is left
on.
To turn the system off simply press the
ON/OFF button on any temperature
controller (where fitted). This will shut the
water heater down completely including
the temperature controller digital display.
The Digital Monitor will go out.
If hot water taps are opened when the
Rinnai Infinity is off, cold water will flow
from the taps.
If the system is to be left off over the winter
be sure to drain it down if there is a
possibility of freezing temperatures.
Using High Temperature Display Controllers
You will need to program the Master controller if you want to
display and use temperatures over 50°C. Programming only
needs to be done on Master universal controller; other universal
controllers will not allow this.
Deluxe Kitchen controllers are supplied already programmed to
allow high temperatures.
STEP 1: On the Master controller only press and hold the
Transfer and On/Off buttons simultaneously (see fig 1.) until a
“beep” is heard (approx. 5 seconds)
STEP 2: When the Primary controller is switched on it should be possible to select
temperatures higher than 50ºC. If not repeat STEP 1.
If the master controller is replaced, repeat STEP
1 above for the new controller.
COOLER
HOTTER
HOTHOT
COLDCOLD
ON!ON!
Fig 1.
NOTE

12
TEMPERATURE CONTROLS - OPERATING
Using 2 or more Universal Temperature Controllers.
Switching the system ON.
The hot water system and all controllers can be switched ON
and OFF from any controller by pressing the On/Off button as
shown. When the system is turned ON the water temperature
display will be lit.
During normal operation the system is left ON. Do not push the
On/Off button when water is running.
Using hot water.
Ensure the system is switched On by verifying the temperature
display is lit. Ensure the local controller has priority by verifying
the Transfer LED indicator is lit. If it is not then press the
Transfer button once. This gives the local controller priority of
temperature over the system.
Select the desired temperature using the Hot water temp.
buttons. The selected temperature will be displayed on all
controller displays. This is the water temperature which will be
supplied from the heater.
Bathroom temperatures
should be no more than 50°C.
Open the hot water tap. The
appliance will be activated and
the In Use indicator will be lit.
Using 4 Universal Temperature Controllers.
You will need to activate the fourth controller.
STEP 1: On the Master controller press and hold the
Transfer and On/Off buttons simultaneously (see fig 2.)
until a “beep” is heard (approx. 5 seconds)
STEP 2: Check that the display on all Four controllers is lit
and displaying a temperature when switched on. If any
ONE of the controllers displays two dashes (see fig 1.) in
the display repeat STEP 1.
If the master controller is replaced, repeat
STEP 1 above for the new controller.
NOTE
Fig 1.
Fig 2.
HOTHOT
COLDCOLD
ON!ON!

13
Do not push the ON/OFF button on the
Master controller after transferring priority
of temperature selection to a Secondary
controller as the system will shut down.
Do Not Turn OFF the Master Controller
Temperature priority cannot be switched
to another controller when the water is
flowing through the water heater.
Depending on the weather conditions
and the length of the pipe between the
heater and the tap in use, there may be a
variation between the temperature
displayed at the controller and the
temperature at the tap.
Do not clean the control with
solvents or detergents. Use only a soft
damp cloth.
TEMPERATURE CONTROLS - INFORMATION
If a temperature over 50°C
has been selected on a
controller and priority of
temperature selection is
transferred to another
controller, then back again,
the temperature on the
controller will automatically
drop to 50ºC. If the set
point is 50°C or less it will
not alter. This is a safety
feature.
Controller 1
in use
Controller 2
cannot take
priority
49°C
50°C
S
O
L
V
E
N
T
Kitchen Kitchen
Bathroom
X

14
ERROR MESSAGES
Rinnai water heaters have the ability to check their own operation continuously. If a fault
occurs, an error code will flash on the Digital Display (and on the Status Monitor) if you
have temperature controllers installed. This assists with diagnosing the fault, and may
enable you to overcome a problem without a service call. Please quote the code
displayed when enquiring about service.
* In all cases, you may be able to clear the Error code by turning the hot water tap OFF, then ON
again. If this does not clear the error, try pushing the On/Off button OFF then ON again. If the Error
Code still remains contact Rinnai or your nearest service agent for advice.
** Faults caused by insufficient gas/water supply or gas/water quality and installation errors are not
covered by the manufacturer’s warranty.
*** The display will alternate between temperature setting and LC code. The controller will continue to
beep. The LC code will reset if power is turned Off and then On.
Code
Displayed Fault Remedy
-Noticeable reduction in water flow Inlet water filter needs to be cleaned.
03
Power interruption during operation
(water will not flow when power
returned)
Turn off all hot water taps and circulating
pumps. Press ‘On/Off’ twice
10 Not enough combustion air Check for physical blockages around air intake
or exhaust. Check combustion fan.
11 No Ignition / Gas supply Check gas valves, gas supply and sparker
unit.
12 Flame failure / Earth Leakage
Check gas valves and gas supply.
Check flame rod.
Check earth wire lead.
Check remote control.
14 High flame safety device Service Call
16 Over temperature warning Service Call
25 Condensate pipe blockage Check for blockage on condensate drain path.
32 Outgoing water temperature sensor
faulty Service Call
52 Gas modulating valve faulty Service Call
61 Combustion fan failure Service Call
65 Water flow control faulty (does not
stop flow properly) Service Call
71 Micro-processor failure Service Call
72 Flame rod circuit error Service Call
33 Heat exchanger outlet sensor faulty Service Call
LC (00)*** Scale build-up in heat exchanger Service Call

15
ERROR MESSAGES
Troubleshooting without controllers
If you have not installed temperature controllers and experience the following
symptoms, please carry out the suggestions below. If symptoms continue, please
contact Rinnai for advice.
NOTE: Faults caused by insufficient gas/water supply or gas/water quality and
installation errors are not covered by the manufacturer’s warranty.
Installations with circulation pumps
With temperature controller fitted.
If you have an installation using a secondary circulation pump this must be
switched off so that there is no flow through the heater when starting or after a
power failure. If the pump is running the unit will not operate (no display on the
controller). Isolate pump then start heater before restarting pump. This is a safety
feature.
The pump should also be fitted with a timer to prevent the consumption of energy
while the building is not used. The timer should bring the system back on at least
one hour before it is to be used.
Without temperature controller fitted.
The heater should automatically reset and provide water at the temperature set by
the internal limit switches.
Fault Remedy
Heater does not attempt
to start at all.
Check the power is on at the heater.
Check the cold water valve supplying the heater is open.
Heater starts then shuts
down immediately.
Check the power is on.
Check the gas valve at the heater and at the gas meter is fully open.
Open the hot water tap fully.
Heater starts then the
water goes cold.
Check the power is on.
Open your hot water tap further or try another hot outlet.

16
RESTARTING THE RINNAI WATER HEATER
The heaters should be restarted in this manner.
Standard system.
Single or multiple water heaters without remote controllers.
The heaters will automatically reset without any user involvement.
Single or multiple water heaters with remote controllers.
The heaters will be required to be switched on using the ON/OFF button on a remote
controller. Ensure that all taps/water outlets are closed and no water is flowing through
heaters.
Hot water system incorporating secondary recirculation pump.
Single or multiple water heaters without remote controllers.
The heater(s) will automatically reset without any user involvement.
Single or multiple water heater(s) with remote controller(s).
To reset the heaters follow the steps.
1. Turn off all hot water taps.
2. Turn off supply to secondary circulating pump or alternatively, isolate pump flow.
3. Turn on heater at remote control.
4. Select required temperature.
5. Switch on supply to secondary circulating pump or open valve on pump flow.
The heater will now be ready to supply water at the set temperature.
If following the above procedure does not reset the heater switch it on and off at its main
supply, and then go through these steps again. If heater is still not working call your local
service agent or Rinnai for assistance.
CARING FOR THE INFINITY
Maintenance
Even if there does not seem to be a problem with the water heater it is required in the UK
that all gas appliances are serviced every year by a certified gas engineer. This is to ensure
continued safety of the gas appliance. If you need a recommended service engineer contact
Rinnai or your supplier.
Care
When the appliance casing, operation panel, and remote controls surfaces become dirty
gently wipe them clean with a soft, damp cloth. Do not use detergents on these parts.
Filter
The water heater has a filter on the cold water inlet connection. This filter will need to be
cleaned occasionally. How often will be determined by the local water conditions. The water
filter can be located on the diagram on page 20. Isolate the cold water inlet and hot water
outlet with the valves near the heater. Release the pressure in the heater by unscrewing the
drain valve (shown on page 20.) Then remove the filter, clean it and replace it.

17
STOP
To go beyond this point in the manual you must be a
registered gas engineer.
Do not attempt to install this appliance if you are not
qualified. This can void the warranty.
If the information in this manual is not followed exactly a
fire or explosion could result.
This manual must be read in its entirety before installing
the appliance.
If you are unsure of any point contact Rinnai or your
supplier.
INSTALLATION INSTRUCTIONS

18
IMPORTANT INFORMATION
This appliance may only be installed by someone certified competent to do so.
At the time of printing the only people deemed competent to install this
appliance are those that are CORGI registered for this type of appliance in this
type of location who have a current ACS certificate.
1. Gas safety (Installation & Use) regulations 1998 are the ‘Rules in force’. In your
own interest and that of safety, it is law that all gas appliances are installed by
competent persons in accordance with the above regulations. Failure to install
appliances correctly could lead to prosecution. Other persons should NOT attempt to
install this equipment.
2. Building Regulations G3 require installers of unvented systems to be competent to
do so. Competence can be shown by holding a current certificate in Unvented
Domestic Hot Water Systems. If the Infinity is installed in a flow and return, or tank
system, or any other closed system then the system is unvented.
3. Installation must be carried out in accordance with the current issue of the following:
Building Regulations issued by the Department of the Environment
Building Standards (Scotland) Regulations.
I.E.E. Wiring regulations for electrical installations.
Gas safety (Installation and Use) Regulations current issue.
BS 5546
BS 5440
BS 6891
BS 5482
BS 6700
BS 6644
Institute of Gas Engineers Publications
Local byelaws
Water regulations
Health and safety at work etc. Act 1974
IGE/UP/10 Part1 Edition 2.
Building Regulation J and G
Such other specifications and regulations that may supersede or complement the
above documents.
It is the installer’s responsibility to ensure that the unit has been installed to all current
requirements.
Please be sure that you are fully aware of your obligations and responsibilities
under these regulations.
UK INSTALLATION INSTRUCTIONS

19
UNPACKING RINNAI WATER HEATER
x After unpacking the appliance check for damage, if the heater is damaged contact
your supplier immediately. Do not install a damaged appliance before checking
with your supplier.
x A heater accessories pack is inside the carton. One remote control is supplied
with the Infinity range of water heaters. Remote controllers are not supplied with
the Rinnai HD range of heaters because they are commercial units. If you require
controllers in commercial situations they are compatible with the HD range and
available from Rinnai UK or your supplier.
x Check that the appliance supplied is the correct gas type and pressure for the
installation. Refer to the data plate located on the left-hand side of the appliance.
x Remove the heater and the accessories from the carton, and check that all the
parts are included. The remote control cable is provided with spade connectors.

20
OPERATION - SCHEMATIC
Infinity Condensing 32e and HDC1500e
Infinity Condensing 32i and HDC1500i
