Rinnai infinity 20-2021 User manual

Temperature Controlled Continuous Gas Hot Water System
Simply the best hot water system available.
^
CUSTOMERS OPERATING
INFORMATION
AND
-
m zzzz INSTALLATION INSTRUCTIONS
This appliance shall be installed in accordance with:-
Manufacturer’s Installation Instructions
Local Water Authority Regulations
Local Gas Fitting Regulations
Municipal Building Codes
A.G.A.1G.A.N.Z. Installation Code for Gas Burning Equipment
Any other relevant Statutory Regulation
This appliance must only be installed, serviced and removed by an
Authorised Person.

CONTENTS
Features ................................................................................. 1
CUSTOMERSOPERATINGINFORMATION
Remote Controls ........................................................................ 2
Remote Control Layout ................................................................ 3
Turning the Infinity 20 ON .............................................................. 4
Adjusting Temperature ................................................................. 4
Transferring Priority of Temperature Selection ....................................... 5
Turning the Infinity 20 OFF ............................................................ 6
Safety Points ............................................................................ 7
Important Points ............................ ..‘. ......................................... 8

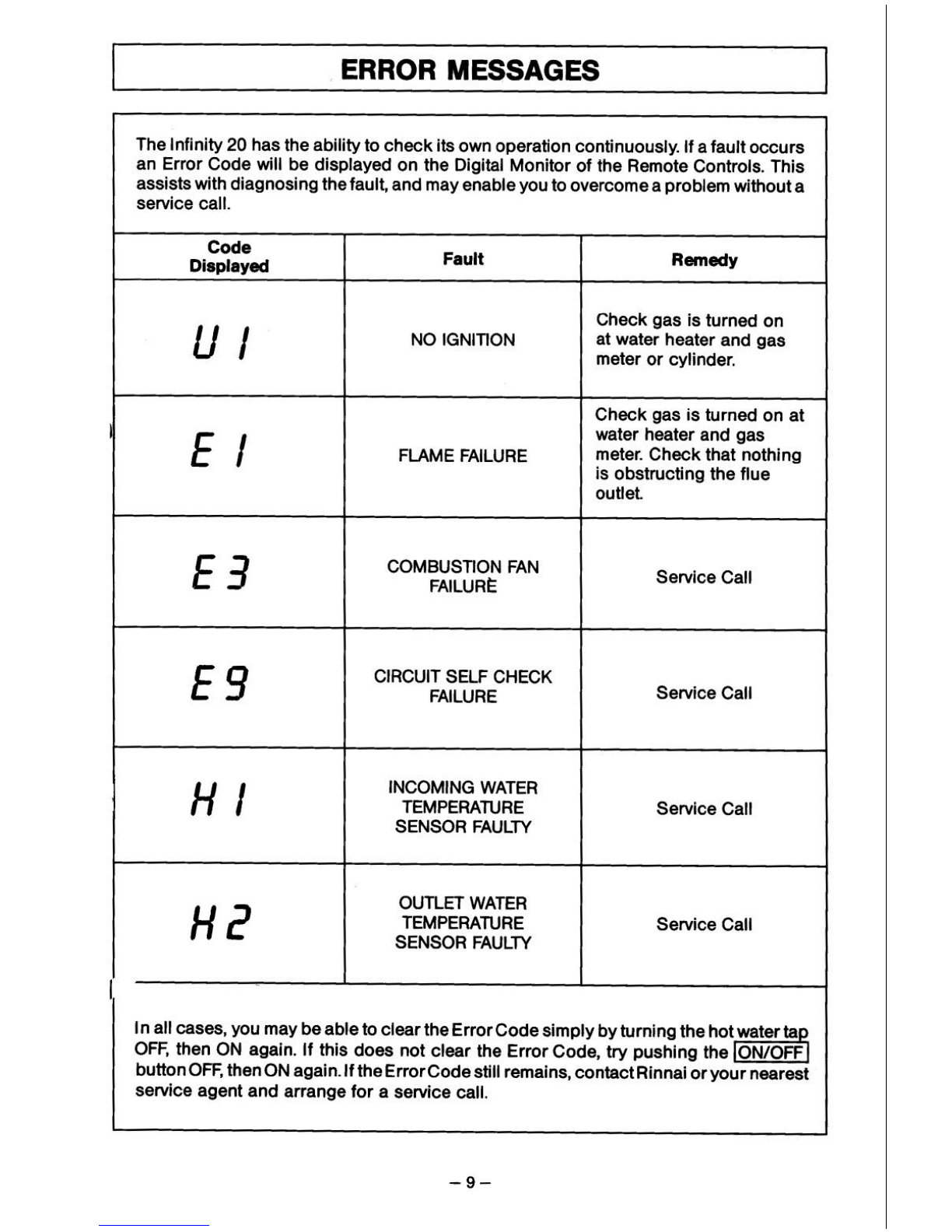

Error Messages ......................................................................... 9
Guarantee Information ............................................................... 10
INSTALLATIONINSTRUCTIONS

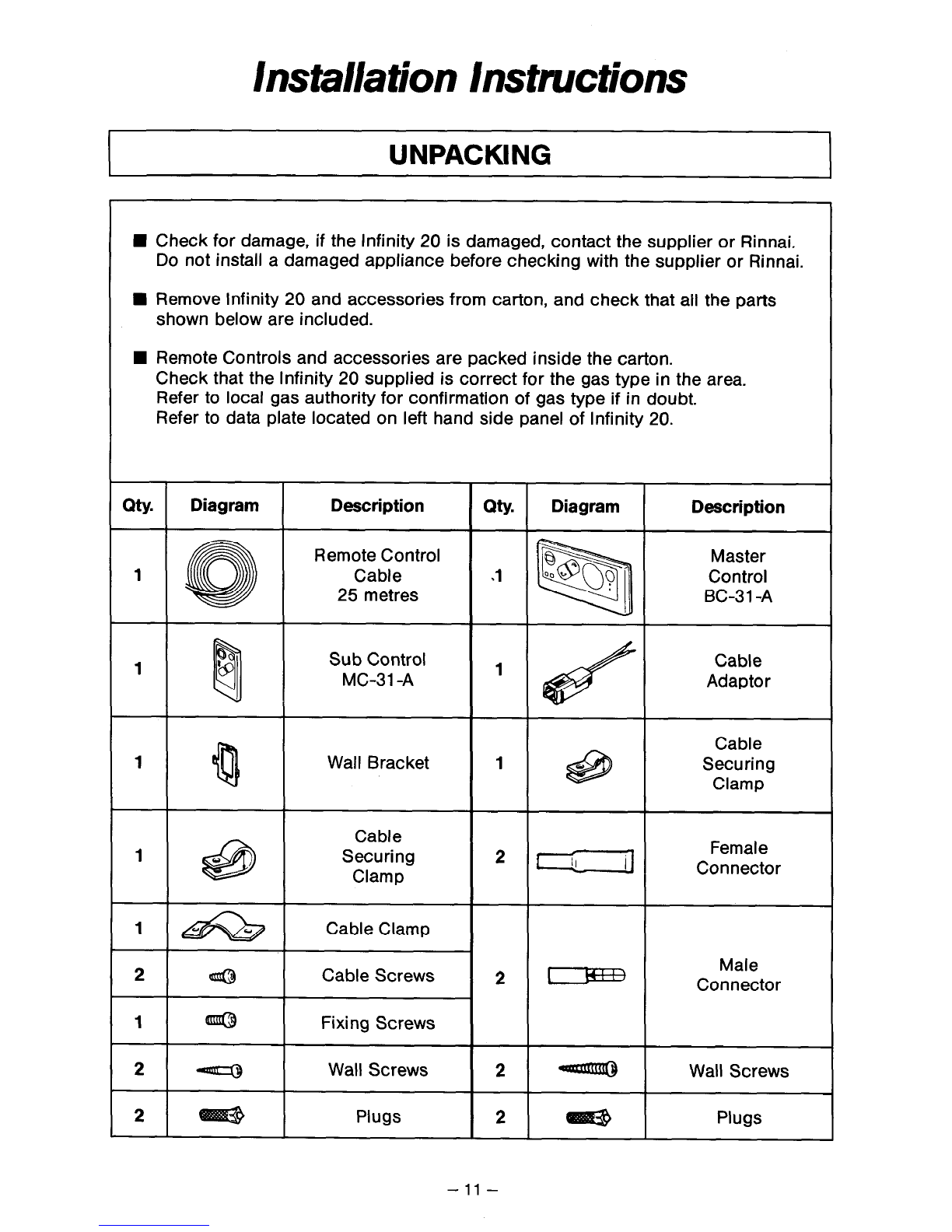

-Unpacking ...................................................................... 11
- Positioning ..................................................................... 12
- Installation - General ......................................................... 13
- Remote Controls - General .................................................. 14
- Remote Controls - Installation ............................................ 15-17
- Testing .......................................................................... 18
Wiring Diagram .......................... ............................................. 19
Block Diagram ........................................................................ 20
Dimensions ........................................................................... 21

FEATURES OF YOUR INFINITY 20
n The Infinity 20 is one of the most advanced water heaters available. It supplies hot
water at the temperatures selected on either of the two electronic Remote Controls
supplied as standard with the appliance.
w The Master Control (larger control) can be fitted conveniently close to the shower
or bath area, and is used to override the Sub Control (smaller control) which is
normally fitted in the kitchen or other convenient area.
n The Transfer button on the Master Control enables you to select and lock the
preferred temperature for shower or bath water. When locked in, this selected
temperature cannot be overridden by the Sub Control.
n The Sub Control is used to select temperatures for kitchen, laundry etc.
n Temperatures selected at both Controls are retained in the system memory.
n The Infinity 20 never runs out. While the electricity, gas and water supplies are
connected, hot water is available for as long as the hot water tap is open.
n The burner lights automatically when the hot water tap is opened, and goes out
when the tap is closed.
n AGA’s 5 Star Energy Rating makes the Infinity 20 one of the most efficient water
heaters available.
n The Infinity 20 is an externally mounted, power flued appliance. It is very compact,
saving both floor and wall space.
n Operating noise levels are very low.
H Error codes are displayed on the Remote Controls, assisting with service.
H Other features include automatic frost protection and over heat protection.
This Infinity 20 must be installed correctly by an authorised person. The installation
of gas, water and electricity must conform to local regulations.
The installation must also comply with the instructions supplied by Rinnai.
Your Infinity20 has been approved byThe Australian Gas Association andTheGas
Association of New Zealand.
A.G.A. Approval Number 4673
G.A.N.Z. Approval Number 694
Please keep this instruction booklet in a safe place for future reference.
All dimensions referred to in these instructions are in mm,
unless otherwise specified.
-l--

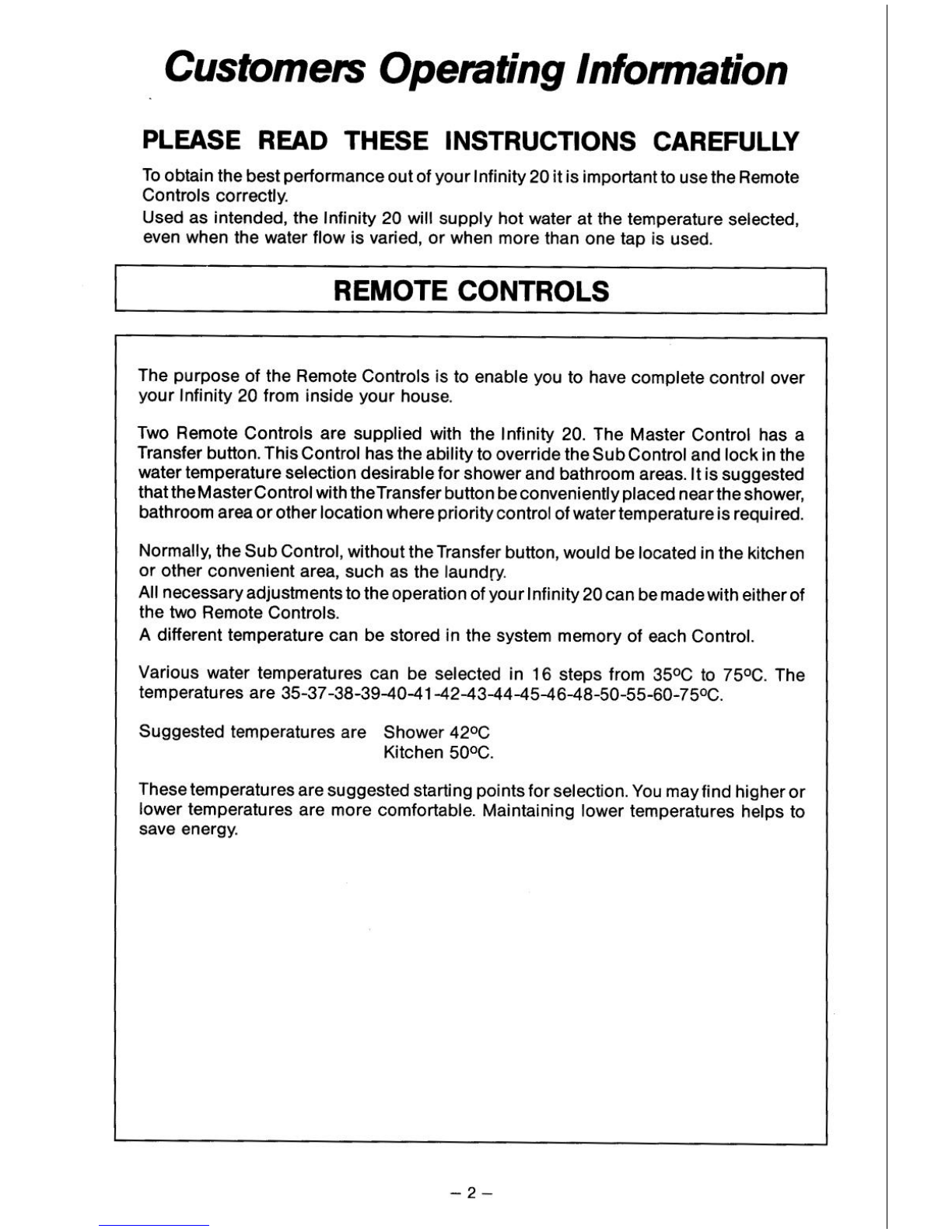

Customers Opemting Infomtation
PLEASE READ THESE INSTRUCTIONS CAREFULLY
To obtain the best performance out of your Infinity 20 it is important to use the Remote
Controls correctly.
Used as intended, the Infinity 20 will supply hot water at the temperature selected,
even when the water flow is varied, or when more than one tap is used.
1 REMOTE CONTROLS ~~~-1
The purpose of the Remote Controls is to enable you to have complete control over
your Infinity 20 from inside your house.
Two Remote Controls are supplied with the Infinity 20. The Master Control has a
Transfer button. This Control has the ability to override theSubControl and lock in the
water temperature selection desirable for shower and bathroom areas. It is suggested
that theMasterControl with theTransfer button beconvenientlyplaced nearthe shower,
bathroom area or other location where priority control of water temperature is required.
Normally, the Sub Control, without theTransfer button, would be located in the kitchen
or other convenient area, such as the laundry.
All necessary adjustments to the operation of your Infinity 20 can be made with either of
the two Remote Controls.
A different temperature can be stored in the system memory of each Control.
Various water temperatures can be selected in 16 steps from 35W to 75%. The
temperatures are 35-37-38-39-40-41-42-43-44-45-46-48-50-55-60-75OC.
Suggested temperatures are Shower 42OC
Kitchen 50°C.
These temperatures are suggested starting points for selection. You may find higher or
lower temperatures are more comfortable. Maintaining lower temperatures helps to
save energy
-2-

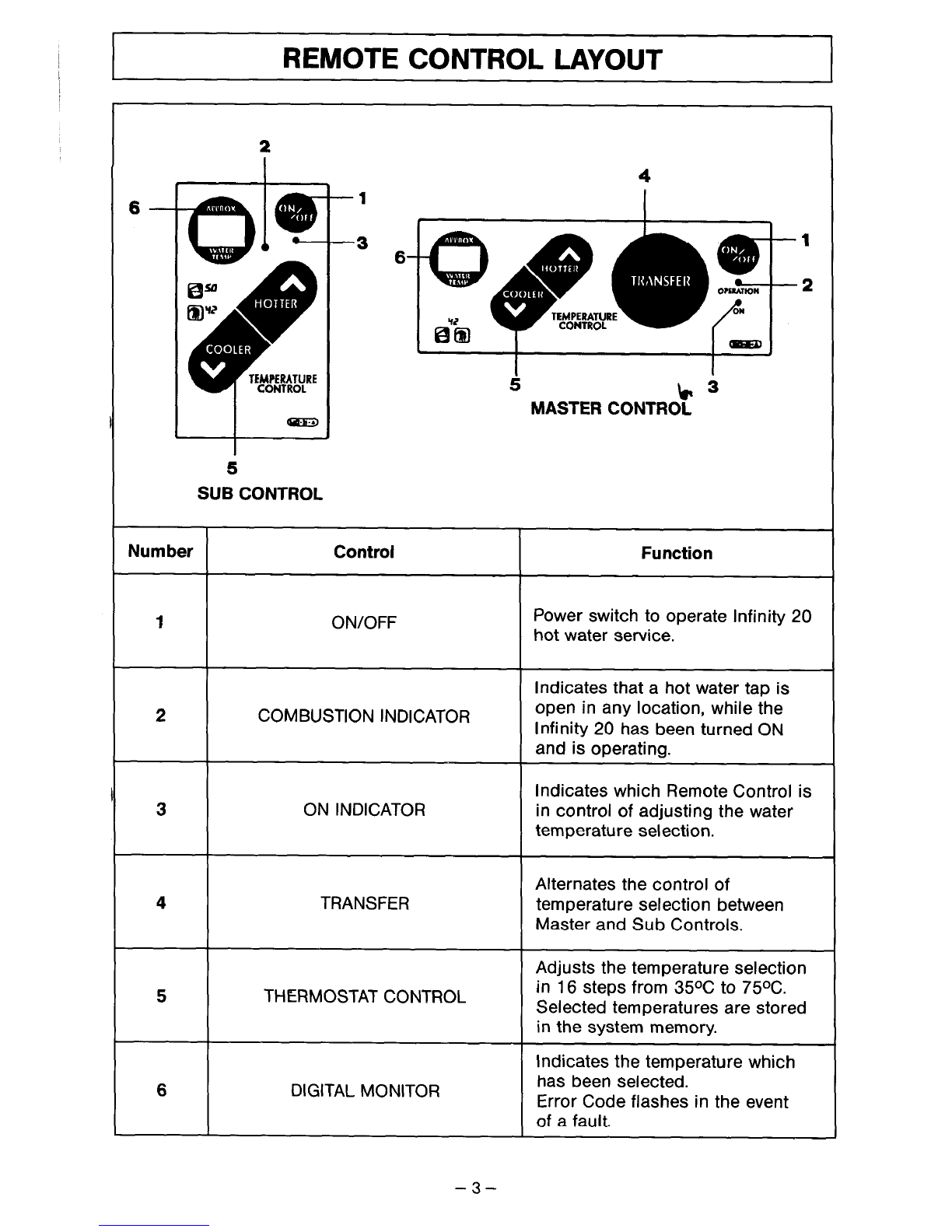

REMOTE CONTROL LAYOUT
1
2
6 1
3 1
6
2
MASTER CONTROL
6
SUB CONTROL
Number Control Function
1 ON/OFF Power switch to operate Infinity 20
hot water service.
2 COMBUSTION INDICATOR
Indicates that a hot water tap is
open in any location, while the
Infinity 20 has been turned ON
and is operating.
3 ON INDICATOR Indicates which Remote Control is
in control of adjusting the water
temperature selection.
4 TRANSFER Alternates the control of temperature selection between
Master and Sub Controls.
5 THERMOSTAT CONTROL
Adjusts the temperature selection
in 16 steps from 35% to 75%.
Selected temperatures are stored
in the system memory.
6 DIGITAL MONITOR
Indicates the temperature which
has been selected.
Error Code flashes in the event
of a fault.
-3-

TURNING THE INFINITY 20 ON
n TO TURN YOUR INFINITY 20 ON.
Simply press the ION/OFFI button
on either Control.
The ON indicator will glow on the
Control which you have operated.
This indicates that the Infinity 20 is
ready to supply hot water as soon
as a tap is opened.
To operate the Infinity 20 simply
turn any hot water tap on. This
will automatically light the burner
providing hot water at the
temperature displayed on the
Digital Monitor.
After installation, and when the
loN/OFFI button is first pushed,
42% will be displayed on the Digital
Monitor.
This is a safety feature. Thus even
if the shower is used without first
adjusting the temperature the hot
water will be at a safe temperature.
Master Control
Sub Control
r ADJUSTING TEMPERATURE
n TO INCREASE OR DECREASE
THE WATER TEMPERATURE.
The temperature can only be
adjusted on the Remote Control
where the ON indicator is
glowing, and the same
temperature will be displayed
on both Controls.
required temperature is displayed
on the Digital Monitor.
When any hot water tap is turned
on, hot water will be supplied at
the temperature displayed on the
Digital Monitor.
CHECK WATER TEMPERATURE
BEFORE ENTERING SHOWER
OR BATH
-4-

TRANSFERRING PRIORITY OF
TEMPERATURE SELECTION
n To Transfer priority of water
temperature selection to the
Master Control, simply press the
ITRANSFER 1button on the
Master Control.
The ON indicator on the Master
Control will glow to indicate that
priority of water temperature
selection has been transferred
to the Master Control.
After having transferred the
priority of water temperature
selection, 42W will be displayed
on the Digital Monitor.
.
n The water temperature can now be
selected using the Master Control.
Once the desired water
temperature is selected, the
Remote Control will store it in
the system memory until the
temperature is changed or the
mains power supply is turned off.
You can alternate priority of
water temperature selection
between the Master and Sub
Controls, without erasing the
individually stored temperatures
from the system memory.
n To Transfer priority of water
temperature selection back to
the Sub Control, simply press the
1st button again. The
temperature displayed will then
return to the temperature which
was previously selected at the Sub
Control, and the ON indicator will
glow to indicate priority control of
water temperature selection. Master Control
-5-

TURNING THE INFINITY 20 OFF
n TO TURN YOUR INFINITY 20 OFF
Simply press the -1 button
on either Remote Control.
This will shut the Infinity 20 down
completely
If hot water taps are opened when
the Infinity 20 is OFF,cold water will
flow from the taps.
Selected temperatures are retained
in the system memory, even when
the Remote Controls have been
turned OFF.
When the Controls are turned ON
again, the previously selected
temperatures will be displayed on
the Digital Monitor.
.
NOTE:
It is recommended that during long
periods of non-use, the system be
switched off at the Remote Controls.
-6-

SAFETY POINTS
ALWAYS CHECK WATER NEVER CHANGE WATER
TEMPERATURE BY HAND BEFORE TEMPERATURES OR OPERATE THE
ENTERING THE SHOWER OR BATH. REMOTE CONTROLS WHILE
SOMEONE ELSE IS IN THE SHOWER.
If 75OChas been selected at the Sub
Control and then priority of Do not push themlbutton on the Sub Control after having
temperature selection is transferred
to the Master Control and back
again, the temperature on the Sub
Control will drop to 60%. This is a
safety feature.
transferred priority of temperature
selection to the Master Control.
This procedure could cause sudden
changes in water temperature.
Do not touch the flue outlet when the
Infinity 20 is in operation. Keep flammable materials, trees,
shrubs etc. away from the Infinity 20.
On cold days steam may be
discharged from the flue outlet, this is
normal with a high efficiency appliance
and does not indicate a fault.
-7-

IMPORTANT POINTS
solvents. Use a soft damp cloth. the power supply and freezing
conditions are expected, turn off water
and gas, and drain all water from the
Drain Water
rn the Infinity 20 Water flow needs to be more than
off at the Remote Controls after use. 2.5Umin. to operate the Infinity 20.
However, if you prefer to turn the Hot water temperature may vary at low
Controls off, selected temperatures will water flows or the Infinity 20 may go
be stored in the system memory at all . out without warning.
times while mains power remains
connected.
The Infinity 20 controls the water
temperature automatically. To do this it
sometimes needs to change the water
flow accordingly. The water flow from
the hot water tap may vary when the
selected temperatures on the Remote
Controls are adjusted. The water flow
may also vary from summer to winter,
as incoming water temperatures differ.
Depending on the weather conditions
and the length of the pipe between the
Infinity 20 and the tap in use, there
may be some variation between the
temperatures displayed at the Remote
Control and the temperature of the
water at the tap.
-8-

ERROR MESSAGES
The Infinity 20 has the ability to check its own operation continuously. If a fault occurs
an Error Code will be displayed on the Digital Monitor of the Remote Controls. This
assists with diagnosing the fault, and may enable you to overcome a problem without a
service call.
Code
Displayed Fault RMlledy
NO IGNITION Check gas is turned on
at water heater and gas
meter or cylinder.
FLAME FAILURE
Check gas is turned on at
water heater and gas
meter. Check that nothing
is obstructing the flue
outlet.
E3 COMBUSTION FAN
FAILURE Service Call
ES CIRCUIT SELF CHECK
FAILURE Service Call
INCOMING WATER
TEMPERATURE
SENSOR FAULTY Service Call
HZ OUTLET WATER
TEMPERATURE
SENSOR FAULTY Service Call
In all cases, you may be able to clear the Error Code simply by turning the hot water tap
OFF, then ON again. If this does not clear the Error Code, try pushing the [ON/OFF/
button OFF,then ON again. If the Error Code still remains, contact Rinnai or your nearest
service agent and arrange for a service call.
-9-

GUARANTEE INFORMATION
Please record below the following information for your own records.
Your Retailer:
Address:
Date of Purchase:
Your Installer:
Address:
Phone:
Installer’s Licence No.
Phone:
Date of Installation:
The installer is responsible for the correct installation of your Infinity 20.
Keep this guarantee in a safe place as your record.
-lO-

Installation Instnrctions
I UNPACKING
H Check for damage, if the Infinity 20 is damaged, contact the supplier or Rinnai.
Do not install a damaged appliance before checking with the supplier or Rinnai.
n Remove Infinity 20 and accessories from carton, and check that all the parts
shown below are included.
n Remote Controls and accessories are packed inside the carton.
Check that the Infinity 20 supplied is correct for the gas type in the area.
Refer to local gas authority for confirmation of gas type if in doubt.
Refer to data plate located on left hand side panel of Infinity 20.
Remote Control
Wall Bracket
Connector
Connector
Wall Screws

POSITIONING
n The Infinity 20 is an externally mounted, power flued appliance. IT MUST ONLY BE
FllTED OUTSIDE THE BUILDING.
H When determining a suitable position for the1nfinity 20, the length of hot water pipe
runs should be taken into consideration. In principle, the Infinity 20 should be as
close as possible to the most often used taps, or in a central location between taps,
showers etc.
W Minimum mounting height from the ground is 1500mm.
n See diagram on page 21 for position of gas, water and power connections.
n The location of the flue terminal must comply with the clearances shown below.
/\ \
a - Below eaves, balconies or other projections:
Appliances over 50MJ h input . . . . . . . . . . . . . . . . . . . . . .
b - From the ground or above a balcony . . . . . .
c - From a return wall or external corner . . . .
d - From a gas meter (M) . . . . . . . .
e - From an electricity meter or fuse box (P) . .
f - From a drain or soil pipe . . . . . . . .
g - Horizontally from any building structure or obstruction facing a terminal . . . .
h - From any other flue terminal, cowl, or combustion air intake . . . .
j - Horizontally from an openable window, door, inlet, or any other
opening into a building, with the exception
of sub-floor ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . Aust. 1500
k - From a mechanical air inlet, including a spa blower. . . . . . . . . . . . . . .
n - Vertically below an openable window, inlet or any other
opening into a building, with the exception of sub-floor
ventilation . . . . . . .
. . . 500
. 1500
500
1000
. 500
150
. . . 500
500
N.Z. 500
1500
1500
Note: If you are unsure about clearances not indicated here, in Australia refer to
AG601 or your local authority. In New Zealand refer to DZ5261 or your local
authority.
-12-

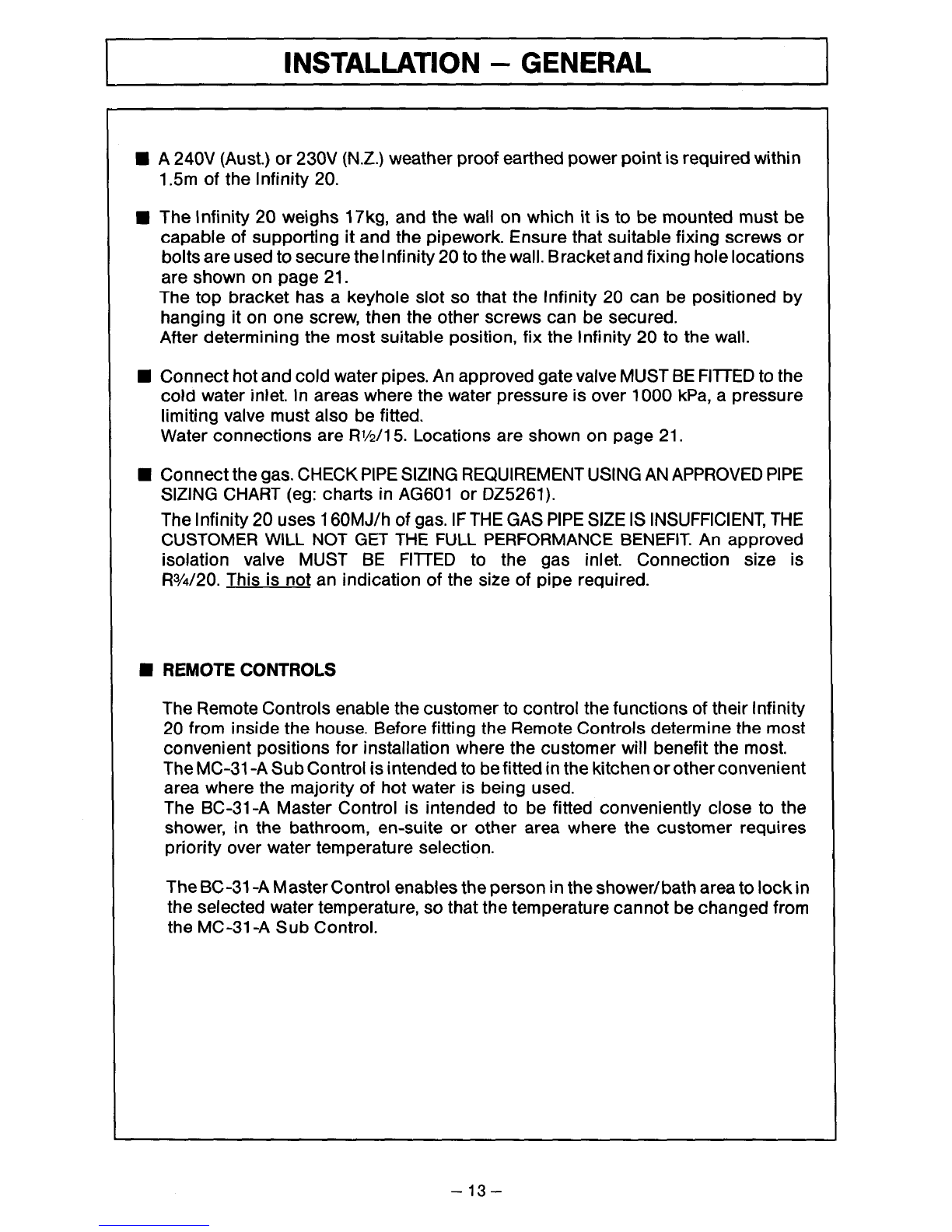

INSTALLATION - GENERAL
n A 240V (Aust.) or 230V (N.Z.) weather proof earthed power point is required within
1.5m of the Infinity 20.
n The Infinity 20 weighs 17kg, and the wall on which it is to be mounted must be
capable of supporting it and the pipework. Ensure that suitable fixing screws or
bolts are used to secure the Infinity 20 to the wall. Bracket and fixing hole locations
are shown on page 21.
The top bracket has a keyhole slot so that the Infinity 20 can be positioned by
hanging it on one screw, then the other screws can be secured.
After determining the most suitable position, fix the Infinity 20 to the wall.
n Connect hot and cold water pipes. An approved gate valve MUST BE FITTED to the
cold water inlet. In areas where the water pressure is over 1000 kPa, a pressure
limiting valve must also be fitted.
Water connections are R/2/1 5. Locations are shown on page 21.
H Connect the gas. CHECK PIPE SIZING REQUIREMENT USING AN APPROVED PIPE
SIZING CHART (eg: charts in AG601 or DZ5261).
The Infinity 20 uses 1GOMJ/h of gas. IF THE GAS PIPE SIZE IS INSUFFICIENT, THE
CUSTOMER WILL NOT GET THE FULL PERFORMANCE BENEFIT. An approved
isolation valve MUST BE FITTED to the gas inlet. Connection size is
R%/20. This is not an indication of the size of pipe required.
n REMOTE CONTROLS
The Remote Controls enable the customer to control the functions of their Infinity
20 from inside the house. Before fitting the Remote Controls determine the most
convenient positions for installation where the customer will benefit the most.
The MC-31 -A Sub Control is intended to befitted in the kitchen or other convenient
area where the majority of hot water is being used.
The BC31-A Master Control is intended to be fitted conveniently close to the
shower, in the bathroom, en-suite or other area where the customer requires
priority over water temperature selection.
The BC-31 -A Master Control enables the person in the shower/bath area to lock in
the selected water temperature, so that the temperature cannot be changed from
the MC-31 -A Sub Control.
- 13-

REMOTE CONTROLS - GENERAL
n When deciding on the best positions for the Remote Controls, the following points
should be taken into consideration.
1. Fit the Controls out of reach of children. (Suggested height from floor -
1500mm).
2. Avoid positions where the Remote Control will become hot (eg: over hotplates,
near ovens or heaters).
3. If possible, avoid direct sunlight (The Digital Monitor is difficult to read in direct
sunlight).
4. Avoid areas where Remote Control will be affected by oil splashing or cooking.
5. The BC-31-A Master Control is water resistant, however it should not be
positioned where it may be splashed directly (ie: shower recess).
6. Refer to AS3000 1986 Section 6.3. for location requirements in shower and
bath areas.
7. The cables to the Remote Controls only carry 12vDC (extra low voltage).
8. Cables should run back to the Infinity 20 from both RemoteControls, or cables
should run between the Controls then back to the Infinity 20.
Possrb\e cable arrangemen& are shown below.
Control
Master
Control
Sub
Control
Master
Control
Both Controls are equal Master Control is closer to
distance from Infinity 20. Infinity 20 than Sub Control. Sub Control is closer to
Infinity 20 than Master Control.
Cables are simply piggy-backed at either the Infinity 20 or Remote Control. Polarity
is not important when connecting Controls. Either colour wire can be connected to
either terminal at both the Infinity 20 and Control terminals. If more cable is needed
any cable with a similar specification to the cable supplied with the Infinity 20 can
be used. Maximum length is 50m.
-14-

REMOTE CONTROLS - INSTALLATION

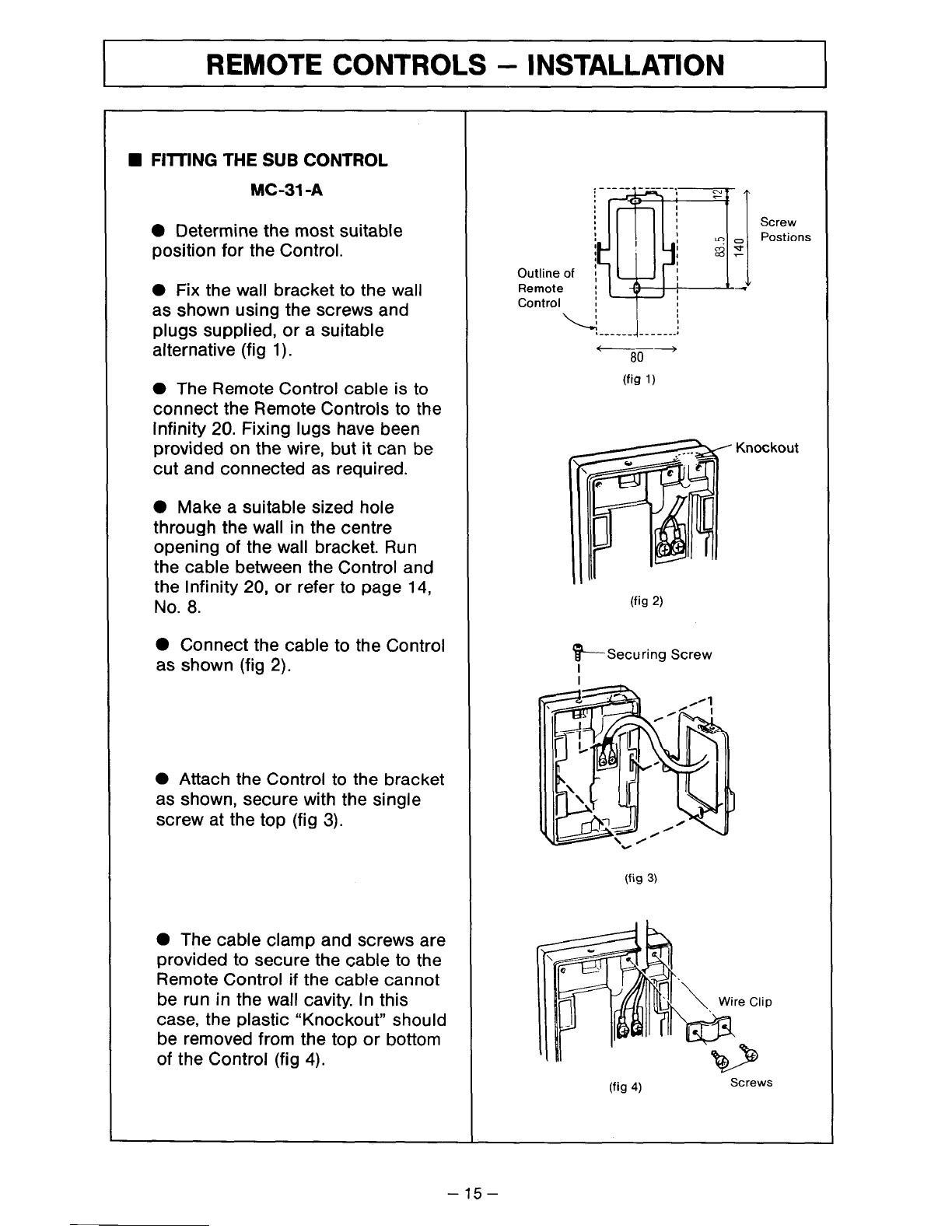

n FllTlNG THE SUB CONTROL
MC-31 -A
l Determine the most suitable
position for the Control.
0 Fix the wall bracket to the wall
as shown using the screws and
plugs supplied, or a suitable
alternative (fig 1).
0 The Remote Control cable is to
connect the Remote Controls to the
Infinity 20. Fixing lugs have been
provided on the wire, but it can be
cut and connected as required.
0 Make a suitable sized hole
through the wall in the centre
opening of the wall bracket. Run
the cable between the Control and
the Infinity 20, or refer to page 14,
No. 8.
0 Connect the cable to the Control
as shown (fig 2).
0 Attach the Control to the bracket
as shown, secure with the single
screw at the top (fig 3).
0 The cable clamp and screws are
provided to secure the cable to the
Remote Control if the cable cannot
be run in the wall cavity. In this
case, the plastic “Knockout” should
be removed from the top or bottom
of the Control (fig 4).
Outline of
Remote
;-_--_ _----_. c
L?o
IKLD
Eaaf
% ______1_______!
80-
(fig1)
Postions
Knockout
(fig 2)
-Securing Screw
I
(fig 3)
(fig 4) Screws
- 15-

REMOTE CONTROLS - INSTALLATION

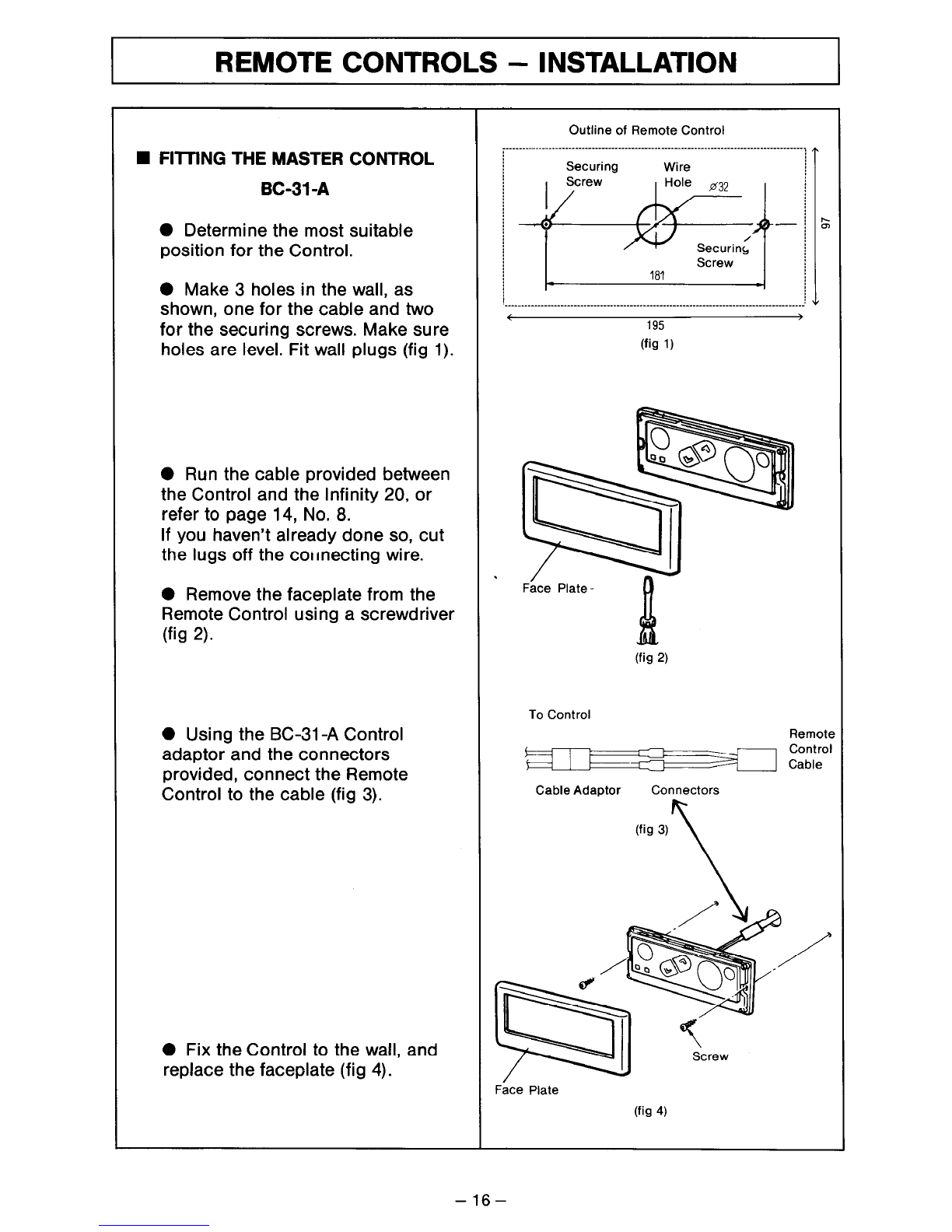

n FIll-lNG THE MASTER CONTROL
K-31 -A
0 Determine the most suitable
position for the Control.
0 Make 3 holes in the wall, as
shown, one for the cable and two
for the securing screws. Make sure
holes are level. Fit wall plugs (fig 1).
0 Run the cable provided between
the Control and the Infinity 20, or
refer to page 14, No. 8.
If you haven’t already done so, cut
the lugs off the cotrnecting wire.
0 Remove the faceplate from the
Remote Control using a screwdriver
(fig 2).
0 Using the BC-31-A Control
adaptor and the connectors
provided, connect the Remote
Control to the cable (fig 3).
0 Fix the Control to the wall, and
replace the faceplate (fig 4).
Outline of Remote Control
195
(fig 1)
8
(fig2)
To Control
Remote
Ezlx!L-- ZY
Cable Adaotor Connectors
(fig 3) T
F&e Plate
(fig 4)
-16-

REMOTE CONTROLS - INSTALLATION

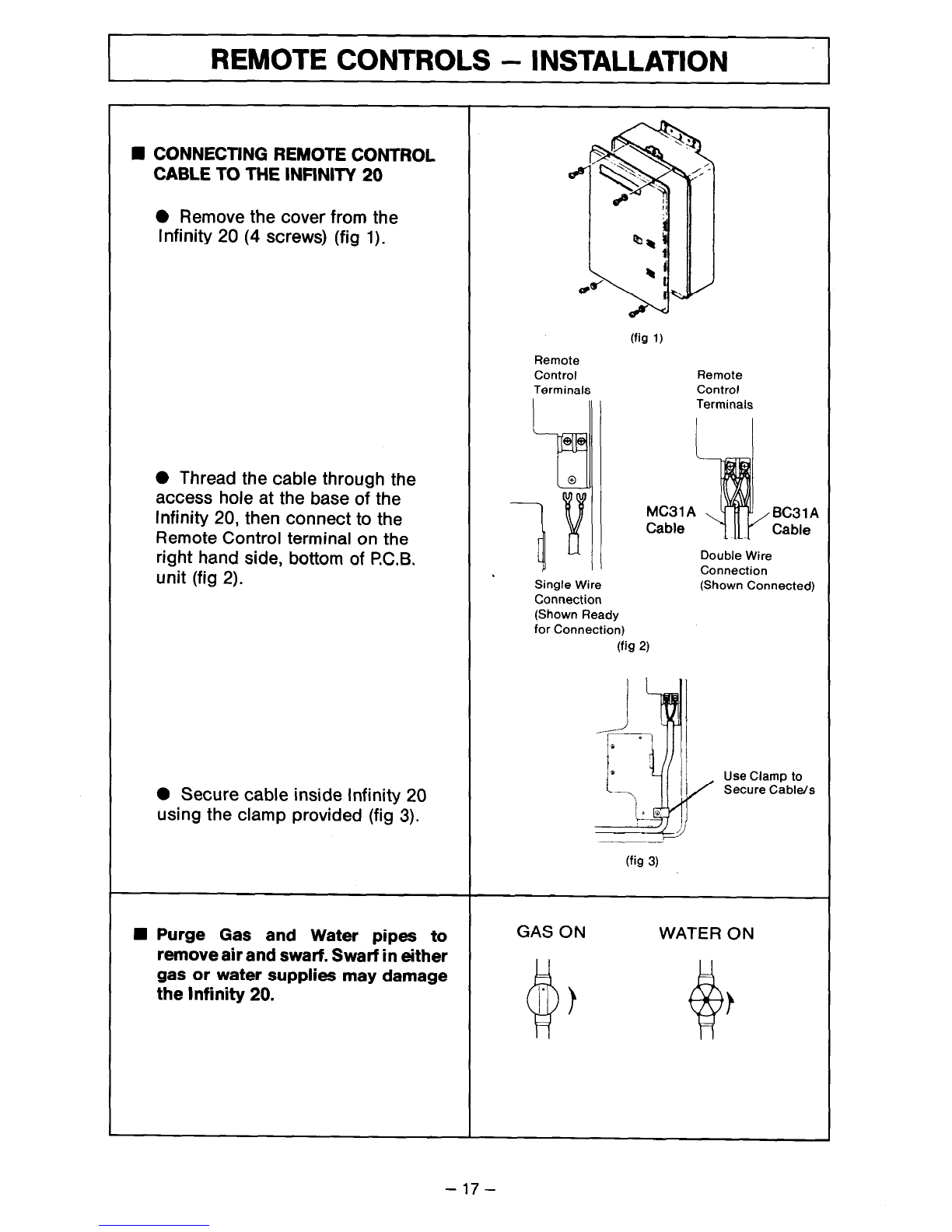

n CONNECTING REMOTE CONTROL
CABLE TO THE INFINITY 20
0 Remove the cover from the
Infinity 20 (4 screws) (fig 1).
Remote
Control
Terminals
(fig1)
Remote
Control
0 Thread the cable through the
access hole at the base of the
Infinity 20, then connect to the
Remote Control terminal on the
right hand side, bottom of P.C.6.
unit (fig 2).
:“1
$
0
*1”
MC3lA BC31A
Cable Cable
Double Wire
Connection
Single Wire (Shown Connected)
Connection
(Shown Ready
for Connection)(fig 2)
Use Clamp to
0 Secure cable inside Infinity 20
using the clamp provided (fig 3). -___--,
(fig 3)
Secure Cable/s
n Purge Gas and Water pipes to
remove air and swarf. Swarf in either
gas or water supplies may damage
the Infinity 20.
GAS ON WATER ON
- 17-

TESTING

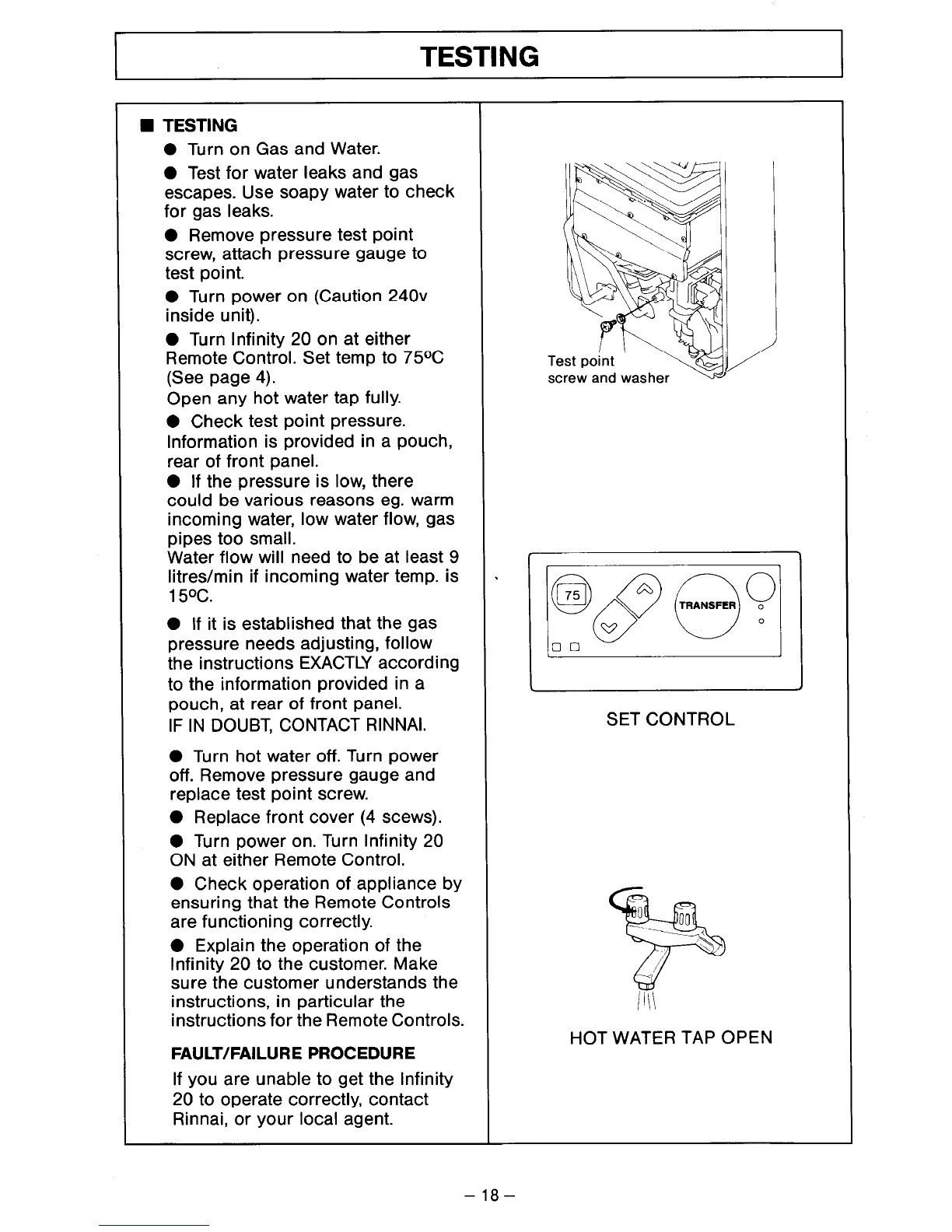

W TESTING
0 Turn on Gas and Water.
0 Test for water leaks and gas
escapes. Use soapy water to check
for gas leaks.
0 Remove pressure test point
screw, attach pressure gauge to
test point.
0 Turn power on (Caution 240~
inside unit).
0 Turn Infinity 20 on at either
Remote Control. Set temp to 75%
(See page 4).
Open any hot water tap fully.
0 Check test point pressure.
Information is provided in a pouch,
rear of front panel.
0 If the pressure is low, there
could be various reasons eg. warm
incoming water, low water flow, gas
pipes too small.
Water flow will need to be at least 9
litres/min if incoming water temp. is
15%.
0 If it is established that the gas
pressure needs adjusting, follow
the instructions EXACTLY according
to the information provided in a
pouch, at rear of front panel.
IF IN DOUBT, CONTACT RINNAI.
0 Turn hot water off. Turn power
off. Remove pressure gauge and
replace test point screw.
0 Replace front cover (4 stews).
0 Turn power on. Turn Infinity 20
ON at either Remote Control.
0 Check operation of appliance by
ensuring that the Remote Controls
are functioning correctly.
0 Explain the operation of the
Infinity 20 to the customer. Make
sure the customer understands the
instructions, in particular the
instructions for the Remote Controls.
FAULT/FAILURE PROCEDURE
If you are unable to get the Infinity
20 to operate correctly, contact
Rinnai, or your local agent.
- 18-
SET CONTROL
HOT WATER TAP OPEN
