INSTRUCTION MANUAL
INTERFACE UNIT
UV-22

i
Organization of this manual
This manual describes the features, operation, and other aspects of the Interface
Unit UV-22. If the unit is used together with other equipment to congure a mea-
surement system, consult the documentation of all other components as well. The
section starting on page iii contains important information about safety. Be sure to
read and observe these precautions in full.
This manual contains the following sections.
Outline
Gives basic information about the unit.
Names of Parts and Functions
Briey identies and explains the front panel controls, rear panel connectors
and all other parts of the unit.
Linking
Explains how to congure multiple units as a system.
Power Supply Connection
Explains how to make connections for powering the unit.
Preparations
Explains the procedure for communication with a computer (via USB or
Ethernet) and the procedure for installing the USB driver.
Commands
Explains the communication protocol and sequence, and provides a de-
nition of all commands.
Supplied CD-ROM
Explains the contents of the supplied CD-ROM.

ii
* Company names and product names mentioned in this manual are usually
trademarks or registered trademarks of their respective owners.
Specications
Lists the technical specications of the unit.
Reference Material
Provides an explanation of maintenance parts.

iii
FOR SAFETY
In this manual, important safety instructions are specially marked as shown
below. To prevent the risk of death or injury to persons and severe damage
to the unit or peripheral equipment, make sure that all instructions are fully
understood and observed.
Caution
WARNING
Important
Disregarding instructions print-
ed here incurs the risk of death or
severe injury to persons.
Disregarding instructions print-
ed here incurs the risk of injury
to persons and/or damage to
peripheral equipment.
Disregarding instructions print-
ed here incurs the risk of damage
to the product.
Additional information about
using the unit. (These notes do
not directly affect safety.)
Note

iv
The product described in this manual is in conformity with the
following standards;
Electrical equipment for measurement control and laboratory use.
RION Co., Ltd.
3-20-41 Higashimotomachi, Kokubunji, Tokyo 185-8533, Japan
This product can be used in any areas including residential areas.

v
Precautions
•Operate the unit only as described in this manual.
•Do not disassemble the unit or attempt internal alterations.
•Observe the following precautions before using the unit:
- Make sure that all connections are properly and safely established.
- Make sure that the unit is operating normally.
•The permissible ambient temperature range for operation of the unit is
−10°C to +50°C. Relative humidity must be 90% or below.
•The power cord used to connect the optional AC adapter to an AC outlet
is a 100 V AC cord for domestic use in Japan, which is compliant with
Japanese laws and electrical safety standards. Do not use this power cord
outside Japan or with any voltage other than 100 V AC. Otherwise, RION
cannot guarantee the safety of the equipment. Use a power cable that is
compliant with the laws and electrical safety standards of your location.
•If you notice any sign of a problem during use, disconnect the AC adapter
or battery unit, and contact your supplier.
•Do not use or store the unit in locations which
- may be subject to strong magnetic elds or strong radiation, or
- may be subject to high levels of dust or splashes of water, or
- may be subject to gases or air with high salt or sulphur content, or
are in the vicinity of stored chemicals, or
- may be subject to high temperature, humidity, or to direct sunlight, or
- may be subject vibrations or shock.
•Always switch off the power after using the unit.
•When disconnecting cables, always hold the plug and do not pull the cable.
•Use only the specied AC adapter or other specied power source.
•This is a precision device. Take care not to drop the unit and protect it
from shocks.
•In case of malfunction, do not attempt any repairs. Note the condition of
the unit clearly and contact the supplier.
•When disposing of the unit, follow national and local regulations regarding
waste disposal.

vi
Contents
Precautions......................................................................................v
Outline ............................................................................................1
Names of Parts and Functions.........................................................3
Front Panel ................................................................................3
Rear panel .................................................................................5
Top panel ..................................................................................6
Bottom panel ............................................................................6
Linking ...........................................................................................7
Linking procedure ....................................................................8
Removing the cable from the link connector ...........................12
Power Supply Connection..............................................................13
Preparations .................................................................................. 14
Setting the ID number ............................................................ 14
LOCAL (MASTER/SLAVE) ..................................................16
Master/Slave Operation ........................................................... 17
Master/Slave operation for calibration ...............................17
Master/Slave operation for setup ........................................18
Master/Slave operation for numeric readout switching .......18
Communication .................................................................19
LAN connection ................................................................20
Installing the USB driver ...................................................21
Installation procedure ........................................................22
Ethernet setup ...................................................................27

vii
Commands ....................................................................................30
Transfer method and sequence ................................................30
Transfer codes ...................................................................30
Transfer format .......................................................................31
Block reception processing .....................................................33
Command types ................................................................33
Error processing ................................................................33
Transfer sequence ..............................................................34
Ratings ...................................................................................40
Guaranteed values .............................................................40
Rated values ......................................................................40
Commands ..............................................................................41
Command Format .............................................................42
Command Reference ...............................................................44
Getting measurement values ...................................................56
Measurement value data format .........................................57
Supplied CD-ROM........................................................................60
Specications ................................................................................61
Rack Mounting Base .....................................................................64
Reference Material ........................................................................65
Maintenance parts ..............................................................65
User Filter .........................................................................66

viii

1
Outline
The UV-22 is a dedicated interface unit for use with the Sound Level Meter
Unit UN-14 and Vibration Meter Unit UV-15. Up to 16 UN-14 and UV-15
units can be linked to a single UV-22. Both USB and Ethernet (LAN) in-
terfaces are provided for connection of the UV-22 to a computer, allowing
setup, measurement control, and data retrieval for the UN-14 and UV-15
from the computer.
The supplied UV-22Viewer software makes it easy to establish settings for
the UN-14 and UV-15 and display measurement results on the computer. User
lter settings *1for the UN-14/UV-15 can also be made.
The Master/Slave function *2of the UN-14/UV-15 is supported as well, which
simplies operation of multiple units.
*1 User lter
One cutoff frequency as specified below can be added by the user to
the factory default high-pass filter and low-pass filter settings of the
UN-14/UV-15.
Cutoff frequency (UV-15: −10% attenuation, UN-14: −3 dB attenuation)
HPF: 3 Hz, 3.15 Hz, 4 Hz, 5 Hz, 6.3 Hz, 8 Hz, 10 Hz, 12.5 Hz, 15 Hz,
16 Hz, 20 Hz, 25 Hz, 30 Hz, 31.5 Hz, 40 Hz, 50 Hz, 63 Hz, 80 Hz,
100 Hz, 125 Hz, 150 Hz, 160 Hz.
Attenuation slope: −18 dB/oct
LPF: 300 Hz, 315 Hz, 400 Hz, 500 Hz, 630 Hz, 800 Hz, 1 kHz, 1.25 kHz,
1.5 kHz, 1.6 kHz, 2 kHz, 2.5 kHz, 3 kHz, 3.15 kHz, 4 kHz, 5 kHz,
6.3 kHz, 8 kHz, 10 kHz, 12.5 kHz, 15 kHz, 16 kHz, 20 kHz (25 kHz,
31.5 kHz, 40 kHz, 50 kHz).
Settings in brackets are for UN-14 only.
Attenuation slope: −18 dB/oct
Frequency response characteristics for the high-pass lter and low-pass lter
are shown in the “Reference Material” section (from page 66).

2
Outline
*2 Master/Slave function
When multiple UN-14 or UV-15 units are linked, the settings of other
units (Slave units) can be changed from one unit (Master unit) using this
function.
For example, if you set one UN-14 (Master unit) to CAL (calibration)
mode using a special key action, all other UN-14 units (Slave units) will
also go into calibration mode. (To do this, you simply need to press and
hold the CAL key on the unit you want to use as Master unit.)
The following optional equipment is available.
- Sound Level Meter Unit UN-14
Single-channel sound level meter unit supporting the connection of a
measurement microphone with preamplier.
- Vibration Meter Unit UV-15
Single-channel vibration meter unit supporting the connection of an
accelerometer.

3

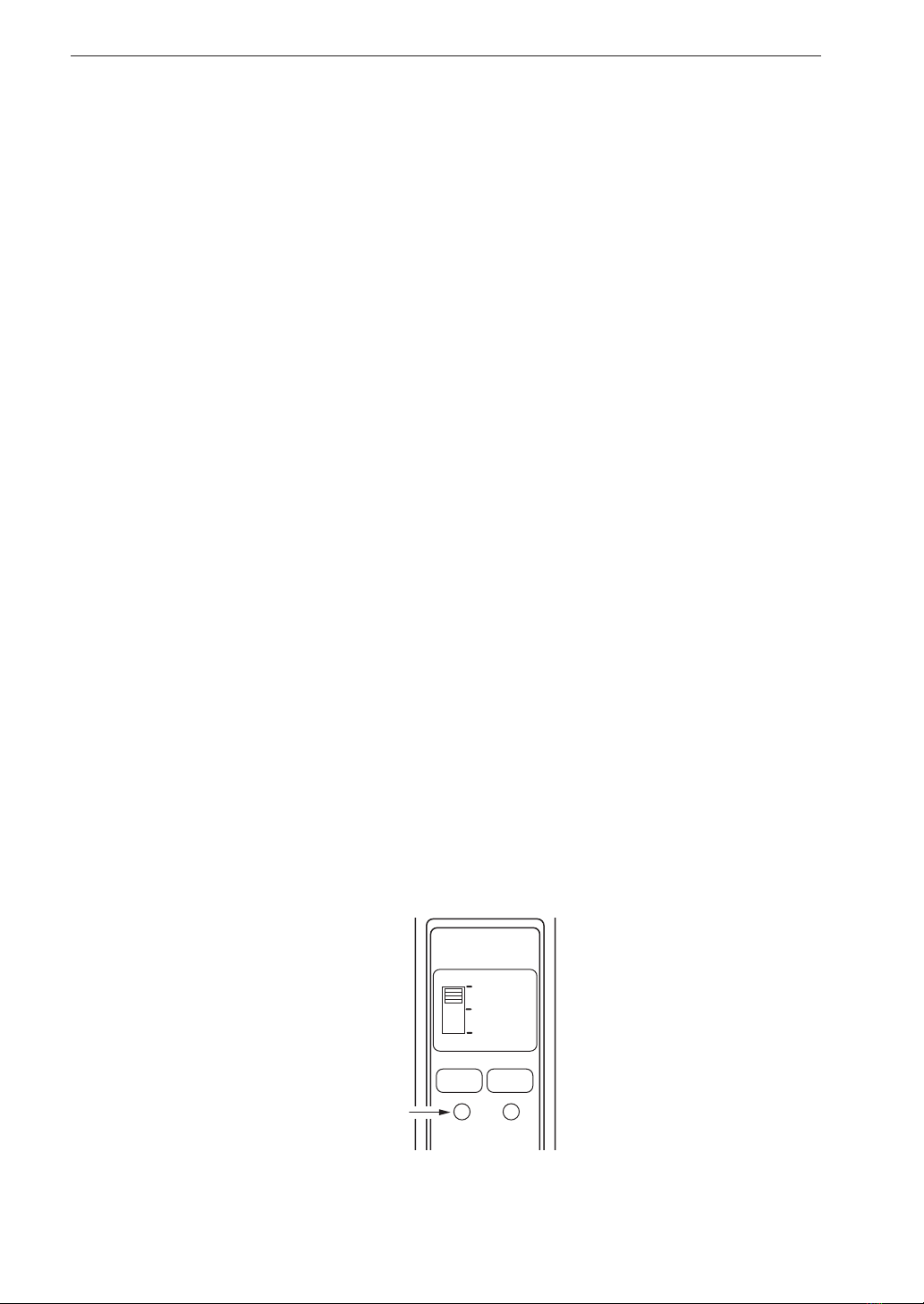

Names of Parts and Functions
Front Panel
Communication function selector
LOCAL (MASTER/SLAVE)
Select this position when the linked UN-14/UV-15 units are not to be
controlled via a USB or Ethernet connection but by their own switches
and operation keys.
USB:
Select this position to use the USB interface for communication.
Ethernet:
Select this position to use the Ethernet (LAN) interface for commu-
nication.
RESET switch
Pressing this switch resets the UV-22 as well as linked UN-14/UV-15 units
and performs a restart. Use this in case of a communication problem.
I
O
UV-22
POWER
RED:ERROR
USB
LOCAL
MASTER/SLAVE
USB
ETHERNET
POWER RESET
Communication function selector
RESET switch
USB port
Indicator lamp
POWER switch
Front view

4
Names of Parts and Functions
USB port
To use USB for the connection to a computer, plug the USB cable into
this connector.
The connector on the cable must be a mini-B type.
If using USB for the rst time, the USB driver must be installed on
the computer.
POWER switch
Set to ON to activate the unit.
If an AC adapter is connected to the UV-22, setting the POWER switch
to ON will also supply power to the linked UN-14/UV-15 units.
When using the Battery Unit BP-17, connect the AC adapter to the
BP-17 and leave the POWER switch of the UV-22 set to ON. Power
on/off then is controlled with the power switch of the BP-17.
Indicator lamp
This LED indicator shows power on/off status, initialization, and error
information.
LED ashes green: Initialization in progress
Communication commands cannot be received.
LED light in green: Unit operative, send/receive enabled.
LED light in red or ashing in red:
Error has occurred.
LED off: Power is off.
UV-22
RED:ERROR
LOCAL
MASTER/SLAVE
USB
ETHERNET
POWER RESET
Indicator lamp
Front view

5
Names of Parts and Functions
Rear panel
ETHERNET port
The LAN cable for Ethernet connection must be plugged in here.
Name plate
Shows the serial number and other information about the unit.
DC IN jack
The optional AC adapter NC-99 series or an external DC power supply
can be connected here.
Rear view
DC IN
9-15V
+
15
No. 12345678
RION CO.,LTD.
MADE IN JAPAN
DC IN jack
Name plate
ETHERNET
ETHERNET port

6
Names of Parts and Functions
Top panel
The top panel of the unit has two hooks which can be used to join multiple
units together.
Top viewLink hook Link hook
Bottom panel
Removing the cover plates on the bottom of the unit gives access to a
connector that is used to supply power and for signal transfer when linking
UN-14/UV-15 units.
Use the link plate supplied with the UN-14/UV-15 to join multiple units.
Link connector
Bottom view

7
Linking
Install the Interface Unit UV-22 in the leftmost position of a
linked series of units as seen from the front.
Required tool:
Phillips screwdriver (JIS B 4633:1998, type H, No. 2)
Important
Precautions for linking units
• Make sure that power is OFF before starting:
- Disconnect AC adapter.
- When using Battery Unit BP-17: Remove
batteries
• Do not use any screws other than the ones
supplied with the product.
• Do not insert any objects (pieces of metal,
pencil lead, etc.) into the unit.
• Use only the specied screwdriver (Phillips
screwdriver, JIS B 4633:1998, type H, No. 2).
Otherwise the cross-shaped slots on the
screw heads may be damaged.
Vibration Meter Unit
UV-15
I
O
UV-22
POWER
Interface Unit UV-22
(leftmost position)
RED:ERROR
USB
LOCAL
MASTER/SLAVE
USB
ETHERNET
POWER RESET
PICKUP
VIBRATION METER UNIT
UV-15
CAL
DISPLAY
INPUT
MEAS
RANGE
RMS
EQ PEAK EQ P-P
SETUP
PICKUP
VIBRATION METER UNIT
UV-15
CAL
DISPLAY
INPUT
MEAS
RANGE
RMS
EQ PEAK EQ P-P
SETUP
INPUT
SOUND LEVEL METER UNIT
UN-14
CAL
DISPLAY
INPUT
MEAS
RANGE
ACZ
SETUP
INPUT
SOUND LEVEL METER UNIT
UN-14
CAL
DISPLAY
INPUT
MEAS
RANGE
ACZ
SETUP
Sound Level Meter Unit
UN-14
Example for linked units

8
Linking
Linking procedure
1. Remove the two link hooks on the top panel. Do not remove these
hooks for the unit that will be the rightmost unit as seen from the
front.
Put the screws and hooks in a box or other suitable container, to
make sure that you do not lose any parts. The parts will be required
later for reassembly.
2. Plug the link connector of each unit into the link connector of the
next unit.
I
O
Link hooks and fastening screws
Unit bottom
Front side
UV-22 UV-15/UN-14
Plug into link connector

9
Linking
3. After plugging in the link connectors, use the link plates supplied with
the UN-14/UV-15 and the screws removed in step 1 to provisionally
join the units as shown below.
Be sure to use the screws removed in step 1.
Why not to use other screws:
Too short screws will not properly secure the plate.
Too long screws may damage parts inside the unit.
4. Attach the link hooks removed in step 1 to the unit tops, so that the
units are locked together.
Unit bottom
UV-22
Front side UN-14/UV-15
Mount cover plate on leftmost unit
(Interface Unit UV-22) as seen
from the front.
After connecting link connectors,
provisionally join units with link plates
supplied with UN-14/UV-15.
(Do not fully tighten screws yet.
Only rotate all four M3 at-head
screws by about a half turn.)
Rotate 90 degrees
Attach link hook on
rightmost unit with
orientation as shown
Lock unit tops with link hooks
Link hooks
Insert link hook into slit of link hook
on next unit and fasten Front side

10
Linking
5. Make sure that all link connectors are plugged in, and sequentially
link the units with the link plates supplied with the UN-14/UV-15.
Attach the cover plates to the leftmost and rightmost unit.
Securely tighten all at-head screws.
Use the screws removed in step 1 to fasten the plates.
Why not to use other screws:
Too short screws will not properly secure the plate.
Too long screws may damage parts inside the unit.
Join with link plates supplied
with UN-14/UV-15
Attach cover plates on both sides
UN-14/UV-15 front side
UV-22
front side
Fasten with screws removed in step 1
Do not use other screws
Screws too short: plate not secure
Screws too long: interior damage
Unit bottom
