Risco RWX73M User manual

RTTE Compliance Statement
Hereby, RISCO Group declares that this equipment is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. For the CE
Declaration of Conformity please refer to our website:
www.riscogroup.com
MAIN FEATURES
The RWX73M is a 2-way supervised transmitter that
combines Magnetic/Door contact against opening doors
and windows with additional universal input.
The RWX73M operates with RISCO Group 2-Way
wireless systems
NORMALLY CLOSED
INPUT CONFIGURATION
NORMALLY OPEN INPUT
CONFIGURATION
Step 2: Input Wiring
Use the following diagrams for appropriate input
termination wiring. For DEOL termination connect
two 10K Ohm resistors (supplied) illustrated as follows:
ALARM
DETECTOR
ALARM
DETECTOR
INSTALLATION
 Communication: i-directional
 Range: up to 1,000 ft. (300m) range (Outdoor)
 Supervision: Up to 255 minutes
 Selective input termination : NO, NC, DEOL
 Selective input response: 10 / 500ms
 Tamper protection: ac  Cover
Step 1: Transmitter Receiver Communication Set Up
The RWX73M must identify itself to the system's receiver
by writing its coded message into the receiver's address
memory.
This registration is performed either by entering the
RWX73M’s 11-digit serial code number or by performing
the following RF allocation steps:
1. Remove the front cover (Fig 1)
2. Set the main unit to Learn Mode.
3. Remove the battery from the insulation material and
reinsert it into the transmitter, paying attention to the
polarity (Fig. 4).
4. Send a write message by pressing both tamper
switches (bac and cover) for at least 3 seconds
until panel recognition is displayed.
DOULE END OF LINE INPUT CONFIGURATION
10k
ALARM TAMPER
10k
DETECTOR
Step 3: Select The Mounting Location
1. Select a location best suited for communication quality
and near the intended wired detector. RISCO recom-
mends you place the unit at the highest possible position.
2. Temporarily attach the unit to this point using two sided
adhesive tape
3. Generate an Alarm signal (by momentarily opening or
closing the input terminals) and verify that the receiver
has received the signal. If the alarm signal is not
detected, reposition the transmitter and try again.

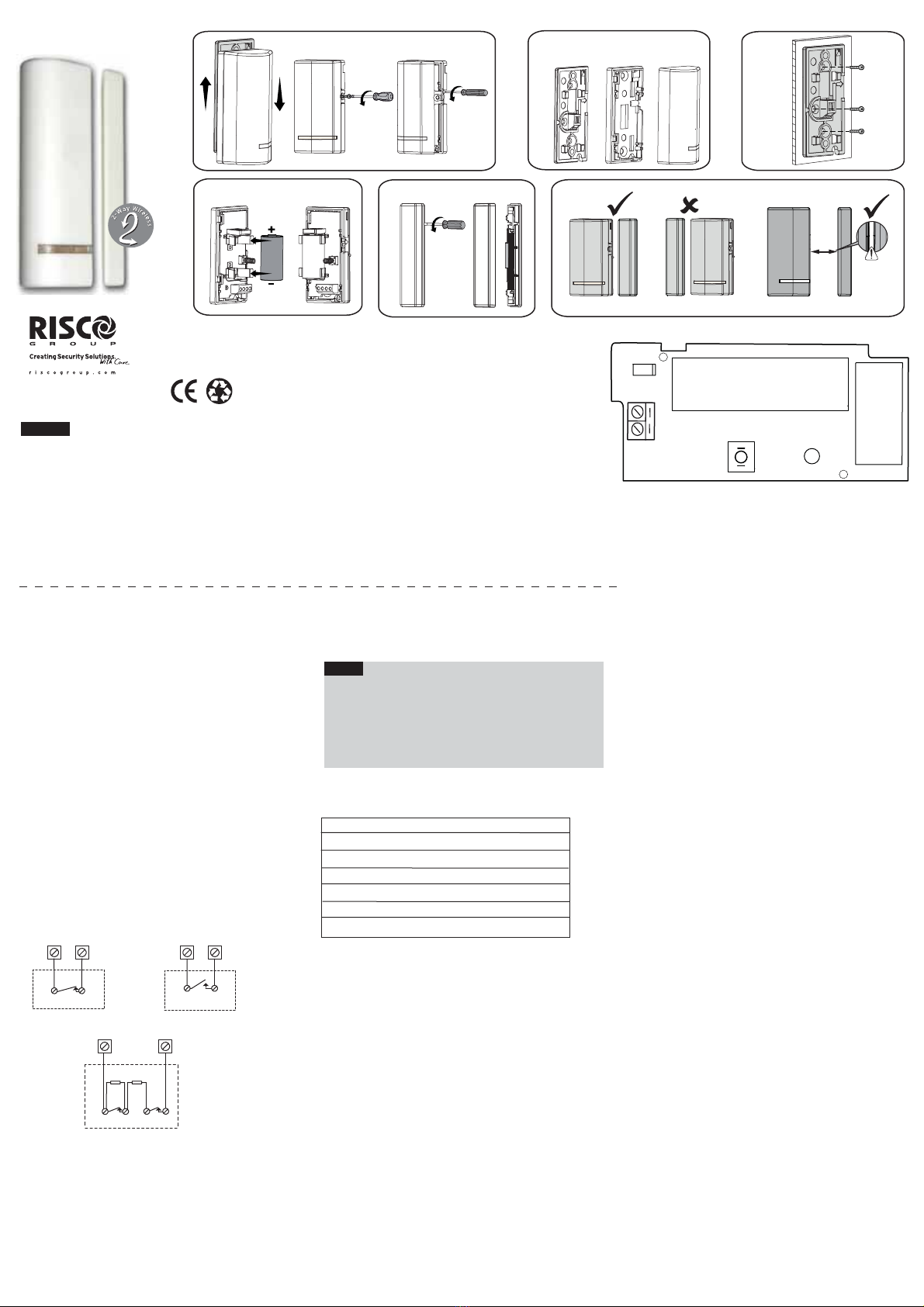

Step 4: Final Mounting (Figures 1,2 and 3)
1. Separate the bac part of the transmitter and mount all
the parts in place (Fig. 2 and 3)
2. Mount the magnet (Fig. 5).
Notes:
1. The mar on the magnet's plastic case should be
aligned with the mar on the transmitter's case (Fig. ).
2. For installations on wood or alloy, the maximum
distance for normal operation is 10mm, while for metal
ferromagnetic materials (iron) it is 5mm.
SW1
LED ATTERY
ANTENNA
+-
C RISCO
IN1
T.
Step 5: Parameters
The following parameters can be dened for RWX73M:
Parameter Option
Supervision Yes/No
LED Enable Yes/No
Magnet Enable/Disable
Alarm Hold On/Off
Termination IN1: NO/NC/DEOL
Response 10ms/500ms
TECHNICAL SPECIFICATIONS
ELECTRICAL
attery Type: CR123 3 Lithium attery
Current Consumption: 11A standby
Frequency: RWX73M00A .5 MH
RWX73M43300A 433.92 MH
Dead Time (HOLD ON): 2.5 minutes
Supervision Transmission: 0-255 minutes
Modulation Type: ASK
attery Life: 3 years (Upon usage)
Contact Sie: 32 x 35 x 72 mm (1.3 x 1.4 x 2. in.)
Magnet Sie: 1 X 11 X 72 mm (. X .44 X 2. in.)
ENVIRONMENTAL
RF immunity: According to EN50130-4
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -20°C to 0°C (-4°F to 140°F)
Specications are subect to change without prior notice.
Should any questions arise please contact your supplier.
LED INDICATION
 Upon successful learning: short ash sequence
 Normal operation: brief light upon transmission
 Low battery: short ash sequence during transmission
Fig. 3
Fig. 2
1
23
Fig. 6
Max.
1cm
Fig. 4
Fig. 5
-
Fig. 1
EN 50131-2- Grade 2 Environmental Class II
2-Way Wireless
Magnetic/Door Contact
(Model RWX73M)
© RISCO Group 11/2012 5IN1943 
Operating Mode
The RWX73M reports events from IN1 and from the magnetic reed switch. In normal operation mode alarm is sent when the
input or magnet are triggered. When restored, it transmits a restoral message
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and afliates ("Seller") warrants its
products to be free from defects in materials and wormanship under
normal use for 24 months from the date of production. ecause Seller
does not install or connect the product and because the product may
be used in conunction with products not manufactured by the Seller,
Seller cannot guarantee the performance of the security system
which uses this product. Seller's obligation and liability under this
warranty is expressly limited to repairing and replacing, at Seller's
option, within a reasonable time after the date of delivery, any product
not meeting the specications. Seller maes no other warranty,
expressed or implied, and maes no warranty of merchantability or of
tness for any particular purpose. In no case shall seller be liable for
any consequential or incidental damages for breach of this or any
other warranty, expressed or implied, or upon any other basis of
liability whatsoever.
Seller's obligation under this warranty shall not include any transporta-
tion charges or costs of installation or any liability for direct, indirect,
or consequential damages or delay. Seller does not represent that its
product may not be compromised or circumvented; that the product
will prevent any personal inury or property loss by burglary, robbery,
re or otherwise; or that the product will in all cases provide adequate
warning or protection.
Seller, in no event shall be liable for any direct or indirect damages or
any other losses occurred due to any type of tampering, whether
intentional or unintentional such as masing, painting or spraying on
the lenses, mirrors or any other part of the detector.
uyer understands that a properly installed and maintained alarm
may only reduce the ris of burglary, robbery or re without warning,
but is not insurance or a guaranty that such event will not occur or that
there will be no personal inury or property loss as a result thereof.
Consequently seller shall have no liability for any personal inury,
property damage or loss based on a claim that the product fails to
give warning. However, if seller is held liable, whether directly or
indirectly, for any loss or damage arising under this limited warranty
or otherwise, regardless of cause or origin, seller's maximum liability
shall not exceed the purchase price of the product, which shall be
complete and exclusive remedy against seller.
No employee or representative of Seller is authoried to change this
warranty in any way or grant any other warranty.
WARNING: This product should be tested at least once a wee.
CAUTION: ris of explosion if battery is replaced by an incorrect type.
Dispose of used batteriess according to local regulations.
Hahoma 14, Rishon Leion, ISRAEL
Contacting RISCO Group
UK
Tel: 44-(0)-11-55-5500
E-mail: support-u@riscogroup.com
ITALY Tel: 39-02-590054
E-mail: [email protected]
SPAIN Tel: 34-91-490-2133
E-mail: [email protected]
FRANCE Tel: 33-14-73-2-50
E-mail: [email protected]
BELGIUM Tel: 32-2522-722
E-mail: [email protected]
U.S.A Tel: 1-31-719-4400
E-mail: [email protected]
BRAZIL Tel: 55-11-31-77
E-mail: [email protected]
CHINA (Hu) Tel: -21-523900
E-mail: [email protected]
CHINA (SZ) Tel: -755-27925
E-mail: [email protected]
POLAND Tel: 48-22-500-28-40
E-mail: [email protected]
ISRAEL Tel: 972-3-93-7777
E-mail: [email protected]
GENERAL DESCRIPTION
English

© RISCO Group 11/2012 5IN1943 
Fig. 3
Fig. 2
1
23
Fig. 6
Max.
1cm
Fig. 4
Fig. 5
-
Fig. 1
SW1
LED PILE
ANTENNE
+-
C RISCO
IN1
T.
Déclaration de conformité RTTE
Par la présente, RISCO Group déclare que cet équipe-
ment est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Pour la Déclaration de conformité CE, veuille s'il vous plat
consulter notre site www.riscogroup.com
DESCRIPTION GENERALE PRINCIPALES CARACTERISTIQUES
Etape 2: Câblage de Entrées
Utilise les schémas ci-dessous pour le câblage
de terminaison d'entrée approprié. Pour la
terminaison DEOL, veuille connecter deux résis-
tances 10K ohms (fournies) comme illustré ci-dessous:
NORMALLY OPEN INPUT
CONFIGURATION
ALARM
DETECTOR
NORMALLY CLOSED
INPUT CONFIGURATION
ALARM
DETECTOR
INSTALLATION
Etape 1: Etablissement de la communication
Transmetteur/ Récepteur
Le transmetteur RWX73M doit s'identier auprs du
récepteur du systme en inscrivant ses messages codés
dans le registre d'adresses du récepteur.
Cet enregistrement se fera soit en entrant le numéro de
série à 11 chiffres du RWX73M ou en au moyen des
étapes suivantes par allocation RF:
1. Retire le couvercle frontal comme l'indique le
schéma en g.1
2. Régle le récepteur en mode écriture (suive pour
cela les instructions correspondantes).
3. Retire la pile de sa protection isolante et insére-la
dans le transmetteur en respectant la polarité
indiquée (cf. g. 4).
4. Envoye un message d’écriture en appuyant sur les
deux boutons d'autoprotection (avant et arrire)
pendant au moins 3 secondes et usqu’à
reconnaissance par la centrale.
DOULE END OF LINE INPUT CONFIGURATION
10k
ALARM TAMPER
10k
DETECTOR
SPECIFICATIONS TECHNIQUES
ELECTRIQUES
Type de Pile: Pile Lithium 3V CR123
Consommation électrique: 11A au repos
Fréquence: RWX73M8800A 88.5 MH
RWX73M43300A 433.92 MH
Temps mort (Attente): 2.5 minutes
Supervision Transmission: 0-255 minutes
Type de Modulation: ASK
Durée de vie de la pile: 3 ans (selon usage)
Taille Contact: 32 x 35 x 72 mm
Taille Aimant: 1 X 11 X 72 mm
ENVIRONMENTALES
Immunité RF: Conforme à EN50130-4
Température de fonctionnement: 0°C to 40°C
Température de stocage: -20°C to 0°C
Ces spécications sont susceptibles d'tre modiées sans
avis préalable.
Pour tout renseignement, veuille contacter votre revendeur.
INDICATEUR LED
 Lors de la réussite de l'apprentissage: séquence de
clignotement courte
 Fonctionnement normal: bref allumage lors de la
transmission
 Pile faible: clignotement court lors de la transmission
Hahoma 14, Rishon Leion, ISRAEL
EN 50131-2- Grade 2 Environmental Class II
Contacter RISCO Group
Grande-Bretagne
Tel: 44-(0)-11-55-5500
E-mail: support-u@riscogroup.com
ITALIE Tel: 39-02-590054
E-mail: [email protected]
ESPAGNE Tel: 34-91-490-2133
E-mail: [email protected]
FRANCE Tel: 33-14-73-28-50
E-mail: [email protected]
BELGIQUE Tel: 32-2522-722
E-mail: [email protected]
Etas-Unis Tel: 1-31-719-4400
E-mail: [email protected]
Brésil Tel: 55-11-31-877
E-mail: [email protected]
CHINE (Hu) Tel: 8-21-523900
E-mail: [email protected]
CHINE (SZ) Tel: 8-755-82789285
E-mail: [email protected]
POLOGNE Tel: 48-22-500-28-40
E-mail: [email protected]
Israël Tel: 972-3-93-7777
E-mail: [email protected]
Etape 3: Choix de l'emplacement de l'installation
1. Choisisse l'emplacement le mieux adapté pour assurer
la qualité de la communication, tout en restant au plus
prs du détecteur laire prévu. Risco recommande de
placer l’unité en position la plus haute possible.
2. Fixe provisoirement l'appareil à ce point à l'aide d'un
ruban adhésif double face.
3. Génére un signal d'alarme (en ouvrant ou en fermant
momentanément les bornes d'entrée) et vérie que le
récepteur a bien reçu le signal. Si le signal d'alarme
n'est pas détecté, replace le transmetteur et essaye
à nouveau.
Etape 4: Montage Final (Figures 1,2 et 3)
1. Sépare la partie arrire du transmetteur et assembler
toutes les parties (Fig. 2 et 3).
2. Monter l’aimant (Fig. 5).
Notes:
1. La marque faite sur le botier en plastique de l'aimant
doit se trouver face à celle du botier de l'émetteur
(Fig. ).
2. Pour les installations sur bois ou alliage, la distance
maximale pour un fonctionnement normal est de
10 mm, tandis que pour les matériaux métalliques
ferromagnétiques (fer), elle est de 5mm.
Etape 5: Paramètres
Les paramtres suivants peuvent tre dénis pour le
RWX73M:
Paramètres Option
Supervision Oui/No
LED validée Oui/Non
Magnétique Validé/Dé validé
Alarme Mémorisée On/Off
Terminaison IN1: NO/NC/DEOL
Réponse 10ms/500ms
Le RWX73M est un transmetteur bidirectionnel
supervisé combinant un contact magnétique de
portes/fentres et une entrée additionnelle.
Le RWX73M fonctionne avec les récepteurs sans
l bidirectionnels du Groupe RISCO.
 Communication: idirectionnelle
 Portée de fonctionnement usqu'à 300 m
(1000 ft) (en extérieur)
 Supervision: usqu’à 255 minutes
 Terminaison de one sélective: NO, NC, DEOL
 Temps de réponse de one sélectif: 10/500ms
 Protection anti-sabotage: Arrire  Couvercle
Contact Magnétique
Porte/Fentre sans-l
bidirectionnel
(Model RWX73M)
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and afliates ("Seller") warrants its
products to be free from defects in materials and wormanship under
normal use for 24 months from the date of production. ecause Seller
does not install or connect the product and because the product may
be used in conunction with products not manufactured by the Seller,
Seller cannot guarantee the performance of the security system which
uses this product. Seller's obligation and liability under this warranty is
expressly limited to repairing and replacing, at Seller's option, within a
reasonable time after the date of delivery, any product not meeting the
specications. Seller maes no other warranty, expressed or implied,
and maes no warranty of merchantability or of tness for any
particular purpose. In no case shall seller be liable for any consequen-
tial or incidental damages for breach of this or any other warranty,
expressed or implied, or upon any other basis of liability whatsoever.
Seller's obligation under this warranty shall not include any transporta-
tion charges or costs of installation or any liability for direct, indirect, or
consequential damages or delay. Seller does not represent that its
product may not be compromised or circumvented; that the product
will prevent any personal inury or property loss by burglary, robbery,
re or otherwise; or that the product will in all cases provide adequate
warning or protection.
Seller, in no event shall be liable for any direct or indirect damages or
any other losses occurred due to any type of tampering, whether
intentional or unintentional such as masing, painting or spraying on
the lenses, mirrors or any other part of the detector.
uyer understands that a properly installed and maintained alarm may
only reduce the ris of burglary, robbery or re without warning, but is
not insurance or a guaranty that such event will not occur or that there
will be no personal inury or property loss as a result thereof.
Consequently seller shall have no liability for any personal inury,
property damage or loss based on a claim that the product fails to give
warning. However, if seller is held liable, whether directly or indirectly,
for any loss or damage arising under this limited warranty or
otherwise, regardless of cause or origin, seller's maximum liability
shall not exceed the purchase price of the product, which shall be
complete and exclusive remedy against seller.
No employee or representative of Seller is authoried to change this
warranty in any way or grant any other warranty.
WARNING: This product should be tested at least once a wee.
CAUTION: ris of explosion if battery is replaced by an incorrect type.
Dispose of used batteriess according to local regulations.
Mode Opérationnel
Le RWX73M rapporte les événements de l’entrée IN1 et de l’interrupteur magnétique (ILS). En mode normal de
fonctionnement l'alarme est envoyée lorsque l’entrée ou l’aimant sont déclenchés. Lors d'une restauration, il transmet un
message de rétablissement.
Français
