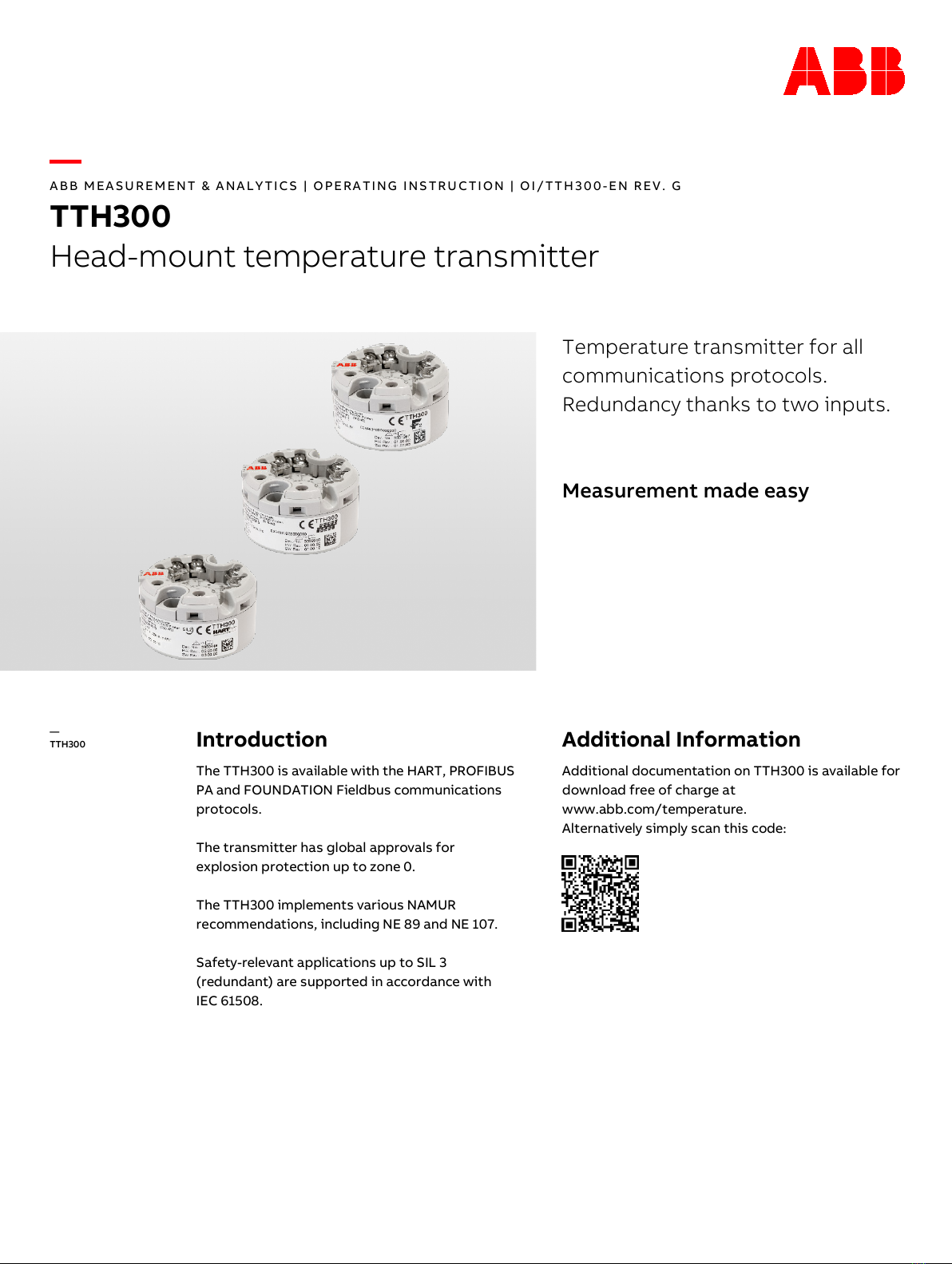

ABB TTH300 Series User manual

—
ABB MEASUREMENT & ANALYTICS |
OPERATING INSTRUCTION | OI/TTH300-EN REV. G
TTH300
Head
-mount temperature transmitter
—
ABB Measurement & Analytics
For your local ABB contact,
visit:
www.abb.com/contacts
For more product information, visit:
www.abb.com/temperature
Temperature transmitter for all
communications protocols.
Redundancy thanks to two inputs.
Measurement made easy
OI/TTH300
-EN Rev. G 02.2021
—
TTH300
Introduction
The TTH300 is available with the HART, PROFIBUS
PA and FOUNDATION Fieldbus communications
protocols.
The transmitter has global approvals for
explosion protection up to zone
0.
The TTH300 implements various NAMUR
recommendations, including NE
89 and NE 107.
Safety
-relevant applications up to SIL 3
(redundant) are supported in accordance with
IEC 61508.
Additional Information
Additional documentation on
TTH300 is available for
download free of charge at
www.abb.com/
temperature.
Alternatively simply scan this code:
—
We reserve the right to make technical changes or
modify the contents of this document
without prior
notice. With regard to purchase orders, the agreed particulars shall prevail.
ABB does not accept any
responsibility whatsoever for potential errors or possible lack of
information in this document.
We reserve all rights in this document and in the
subject matter and illustrations contained
therein.
Any reproduction, disclosure to third parties or utilization of its contents – in whole or
in parts
– is forbidden without prior written consent of ABB.
© ABB 2021 3KXT231001R4201

2 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
Table of contents
1Safety ........................................................................ 5
General information and instructions .................................5
Warnings..................................................................................5
Intended use............................................................................6
Improper use...........................................................................6
Warranty provisions...............................................................6
Notes on data safety..............................................................6
Manufacturer’s address.........................................................6
2Use in potentially explosive atmospheres in
accordance with ATEX and IECEx ............................7
Ex marking...............................................................................7
Transmitter.........................................................................7
LCD indicator......................................................................7
Temperature data ..................................................................8
Transmitter.........................................................................8
LCD indicator......................................................................8
Electrical data .........................................................................8
Transmitter.........................................................................8
LCD indicator......................................................................9
Installation instructions ........................................................9
ATEX / IECEx.......................................................................9
IP protection rating of housing .......................................9
Electrical connections .....................................................10
Commissioning..................................................................... 12
Operating instructions ........................................................ 12
Protection against electrostatic discharges ............... 12
3Use in potentially explosive atmospheres in
accordance with FM and CSA.................................13
Ex marking............................................................................. 13
Transmitter....................................................................... 13
LCD indicator.................................................................... 13
Installation instructions ......................................................14
FM / CSA ...........................................................................14
IP protection rating of housing .....................................14
Electrical connections .....................................................14
Commissioning.....................................................................14
Operating instructions ........................................................14
Protection against electrostatic discharges ...............14
4Design and function................................................15
Input functionality................................................................15
Sensor Redundancy.........................................................15
Sensor drift monitoring.................................................. 17
Sensor error adjustment in accordance with Callendar-
Van Dusen ......................................................................... 17
5Product identification ............................................18
Name plate ............................................................................18
6Transport and storage ...........................................19
Inspection ..............................................................................19
Transporting the device.......................................................19
Storing the device.................................................................19
Ambient conditions .........................................................19
Returning devices .................................................................19
7Installation...............................................................19
Ambient conditions..............................................................19
Ambient temperature......................................................19
Transport- / Storage temperature................................19
Climate class in accordance with DIN EN 60654-1 ......19
Max. permissible humidity in accordance with
IEC 60068-2-30 .................................................................19
Vibration resistance in accordance with IEC 60068-2-6
............................................................................................19
Shock resistance in accordance with IEC 60068-2-27.19
IP rating .............................................................................19

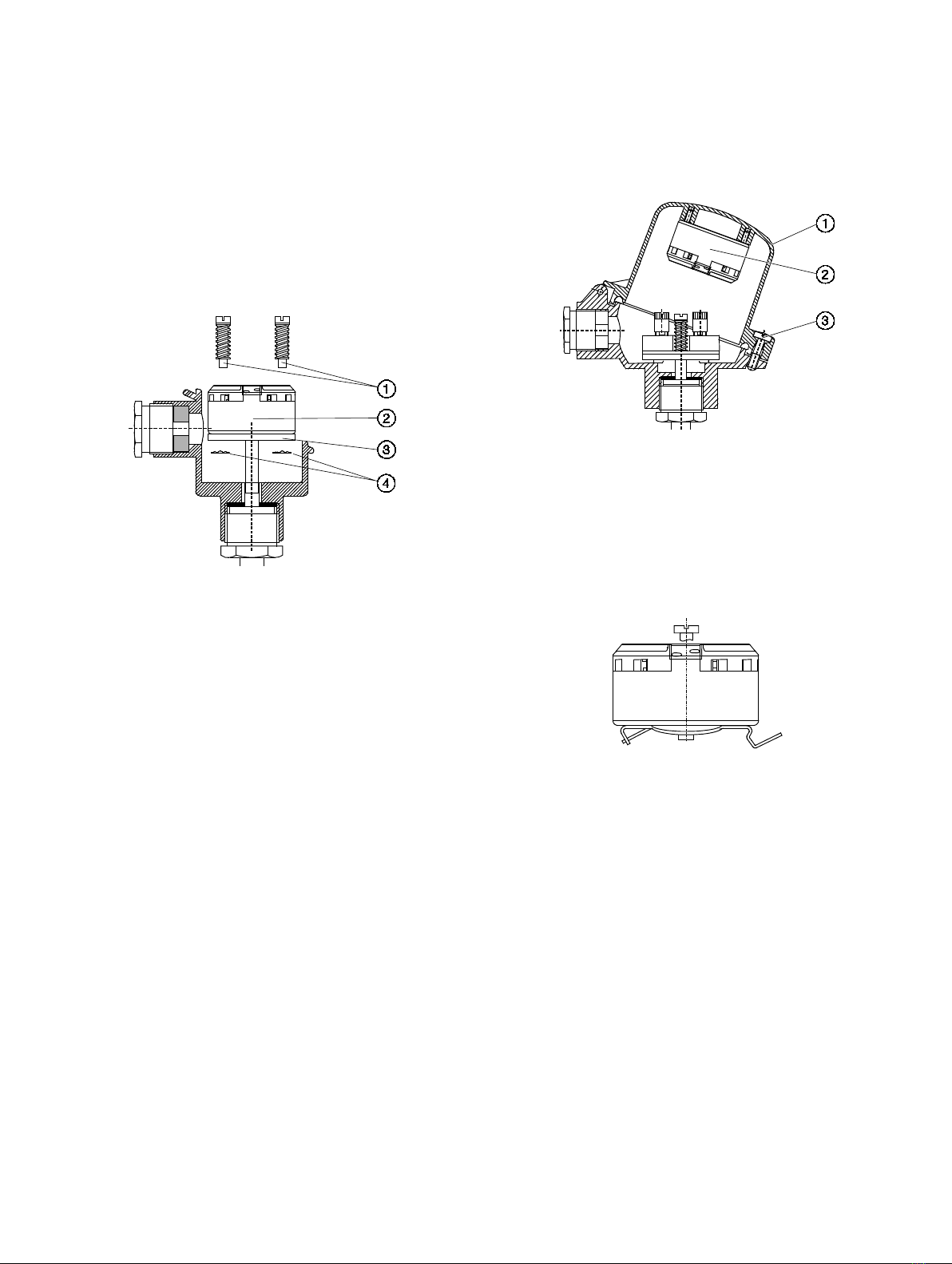

Installation options ............................................................. 20
Installation on the measuring inset.............................. 20
Installation in the cover of the connection head ........ 20
Installation on the top-hat rail ...................................... 20
Installing / removing the optional LCD indicator ............21
Disassembling the LCD indicator ..................................21
Installing the LCD indicator............................................21
Rotating the LCD indicator.............................................21
8Electrical connections ............................................ 21
Safety instructions ...............................................................21
Protection of the transmitter from damage caused by
highly energetic electric interferences ............................. 22
Suited protective measures........................................... 22
Conductor material.............................................................. 22
Terminal assignment........................................................... 23
Resistance thermometers (RTD) / resistors
(potentiometer)............................................................... 23
Thermocouples / voltages and resistance
thermometer (RTD) / thermocouple combinations... 24
Electrical data for inputs and outputs.............................. 25
Input - resistance thermometer / resistances............ 25
Resistance thermometer ............................................... 25
Resistance measurement............................................... 25
Sensor connection type.................................................. 25
Connection lead............................................................... 25
Measurement current..................................................... 25
Sensor short circuit......................................................... 25
Sensor wire break............................................................ 25
Detection of sensor wire break in accordance with
NE 89 in all lines............................................................... 25
Sensor error signaling .................................................... 25

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 3
Input - thermocouples / voltages..................................25
Types .................................................................................25
Voltages ............................................................................25
Connection lead ...............................................................25
Detection of sensor wire break in accordance with
NE 89 in all lines ...............................................................25
Input resistance ...............................................................25
Internal reference junction Pt1000, IEC 60751 Cl. B....25
Sensor error signaling.....................................................25
Output – HART®................................................................26
Output – PROFIBUS PA®..................................................26
Output – FOUNDATION Fieldbus®................................. 27
Power supply ....................................................................27
Power supply – HART®.....................................................27
Power supply – PROFIBUS / FOUNDATION Fieldbus..28
9Commissioning....................................................... 29
General ...................................................................................29
Checks prior to commissioning .........................................29
Communication ....................................................................29
HART® Communication...................................................29
Operating modes.............................................................29
Configuration options / tools....................................... 30
Diagnosis notice ............................................................. 30
Tracking of events and configuration changes, from
SW-Rev. 3.00.................................................................... 30
PROFIBUS® Communication ......................................... 30
Voltage / current consumption.................................... 30
FOUNDATION Fieldbus® Communication.................... 31
Voltage / current consumption..................................... 31
Basic Setup............................................................................ 31
10 Operation .................................................................32
Safety instructions...............................................................32
Hardware settings................................................................32
Devices with HART® from HW-Rev. 2.00 (corresponds
to SW-Rev. 3.00 and higher) ...........................................32
Devices with PROFIBUS PA®, FOUNDATION Fieldbus®
and HART® to HW-Rev. 1.07 ............................................32
Menu navigation ...................................................................33
HART® menu levels...........................................................34
PROFIBUS PA® and FOUNDATION Fieldbus® H1 menu
levels ..................................................................................35
Process display .....................................................................36
Error messages in the HART® LCD display...................36
Error messages in the LCD display PROFIBUS PA® and
FOUNDATION Fieldbus® .................................................37
Switching to the information level.....................................38
Switching to the configuration level (parameterization)
..............................................................................................38
Selecting and changing parameters..................................39
Entry from table...............................................................39
Parameter overview HART® (for devices to SW-Rev. 1.03)
............................................................................................. 40
Parameter description HART® (for
HART®-devices to SW-Rev. 1.03) ........................................ 42
Menu: Device Setup......................................................... 42
Menu: Device Info ............................................................45
Menu: Display................................................................... 45
Menu: Process Alarm.......................................................46
Menu: Communication ...................................................46
Menu: Calibrate................................................................46
Menu: Diagnosis .............................................................. 47
Activating write protection ........................................... 47
Deactivating write protection....................................... 47
Parameter overview HART®
(for HART-devices from SW-Rev. 3.00).............................. 48
Parameter description HART®
(for HART®-devices from SW-Rev. 3.00).............................51
Menu: Easy Setup .............................................................51
Menu: Device Setup......................................................... 54
Menu: Display................................................................... 55
Menu: Process Alarm....................................................... 55
Menu: Communication ................................................... 56
Menu: Calibrate................................................................ 57
Menu: Diagnosis.............................................................. 57
Menu: Device Info ............................................................ 58
Menu: Service................................................................... 58
Enable or disable write protection ............................... 58
PROFIBUS PA® und FOUNDATION Fieldbus® Parameter
overview ................................................................................ 59
Parameter description PROFIBUS PA® and
FOUNDATION Fieldbus® .....................................................60
Menu: Device Setup.........................................................60
Menu: Device Info ............................................................ 62
Menu: Communication ................................................... 62
Menu: Service Menu ........................................................ 63
Menu: Display...................................................................64
Menu: Calibrate................................................................64
Factory settings................................................................... 65
Firmware settings........................................................... 65
Devices with PROFIBUS PA®, FOUNDATION Fieldbus®
and HART® (all SW revisions)......................................... 65
11 Diagnosis / error messages.................................. 66
Diagnostic information....................................................... 66
Monitoring of operating data .......................................66
Operating hours statistics............................................. 66
Calling up the error description......................................... 67
Possible error messages – HART® devices to SW-Rev. 1.03
..............................................................................................68
Possible error messages – HART® devices from
SW-Rev. 3.00 ......................................................................... 70
Possible error messages – PROFIBUS PA® and
FOUNDATION Fieldbus® ......................................................71

4 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
12 Maintenance ............................................................72
Safety instructions...............................................................72
Cleaning .................................................................................72
13 Repair .......................................................................72
Safety instructions...............................................................72
Returning devices.................................................................72
14 Recycling and disposal ...........................................73
15 Specification............................................................73
16 Additional documents ............................................73
17 Appendix ................................................................. 74
Return form ...........................................................................74

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 5
1Safety
General information and instructions
These instructions are an important part of the product and
must be retained for future reference.
Installation, commissioning, and maintenance of the product
may only be performed by trained specialist personnel who have
been authorized by the plant operator accordingly. The specialist
personnel must have read and understood the manual and must
comply with its instructions.
For additional information or if specific problems occur that are
not discussed in these instructions, contact the manufacturer.
The content of these instructions is neither part of nor an
amendment to any previous or existing agreement, promise or
legal relationship.
Modifications and repairs to the product may only be performed
if expressly permitted by these instructions.
Information and symbols on the product must be observed.
These may not be removed and must be fully legible at all times.
The operating company must strictly observe the applicable
national regulations relating to the installation, function testing,
repair and maintenance of electrical products.
Warnings
The warnings in these instructions are structured as follows:
DANGER
The signal word ‘DANGER’ indicates an imminent danger.
Failure to observe this information will result in death or
severe injury.
WARNING
The signal word ‘WARNING’ indicates an imminent danger.
Failure to observe this information may result in death or
severe injury.
CAUTION
The signal word ‘CAUTION’ indicates an imminent danger.
Failure to observe this information may result in minor or
moderate injury.
NOTICE
The signal word ‘NOTICE’ indicates possible material damage.
Note
‘Note’ indicates useful or important information about the
product.

6 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
… 1 Safety
Intended use
This device is intended for the following uses:
• To measure the temperature of fluid, pulpy or pasty
substances and gases or resistance/voltage values.
The device has been designed for use exclusively within the
technical limit values indicated on the name plate and in the data
sheets.
• The maximum ambient temperature must not be exceeded.
• The IP rating of the housing must be observed during
operation.
• For use in potentially explosive atmospheres, follow the
associated guidelines.
• When using as a SIL-device in safety-relevant applications,
the SIL Safety Manual should be observed.
Improper use
The following are considered to be instances of especially
improper use of the device:
• Material application, for example by painting over the
housing, name plate or welding/soldering on parts.
• Material removal, for example by spot drilling the
housing.
Warranty provisions
Using the device in a manner that does not fall within the scope
of its intended use, disregarding this manual, using
underqualified personnel, or making unauthorized alterations
releases the manufacturer from liability for any resulting
damage. This renders the manufacturer's warranty null and void.
Notes on data safety
This product is designed to be connected to and to
communicate information and data via a network interface.
It is operator’s sole responsibility to provide and continuously
ensure a secure connection between the product and your
network or any other network (as the case may be).
Operator shall establish and maintain any appropriate measures
(such as but not limited to the installation of firewalls,
application of authentication measures, encryption of data,
installation of anti-virus programs, etc.) to protect the product,
the network, its system and the interface against any kind of
security breaches, unauthorized access, interference, intrusion,
leakage and / or theft of data or information.
ABB Automation Products GmbH and its affiliates are not liable
for damages and / or losses related to such security breaches,
any unauthorized access, interference, intrusion, leakage and /
or theft of data or information.
Manufacturer’s address
ABB Automation Products GmbH
Measurement & Analytics
Schillerstr. 72
32425 Minden
Germany
Tel: [phone]
Fax: [phone]
Customer service center
Tel: [phone]
Email: [e-mail]

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 7
2Use in potentially explosive atmospheres in accordance with ATEX and IECEx
Note
• Further information on the approval of devices for use in
potentially explosive atmospheres can be found in the
explosion protection test certificates (at
www.abb.com/temperature).
• Depending on the design, a specific marking in accordance
with ATEX or IECEx applies.
Ex marking
Transmitter
ATEX intrinsic safety
The device fulfills the requirements of Directive 2014/34/EU in
case of corresponding purchase orders and is approved for use
in Zone 0, 1 and 2.
Model TTH300
-E1H
To HW
-Rev. 1.07:
Type Examination Test Certificate
From HW Rev. 02.00.00:
Type Examination Test Certificate
PTB 05 ATEX 2017 X
PTB 20 ATEX 2008 X
Model TTH300-E1P and TTH300-E1F
Type Examination Test Certificate
PTB 09 ATEX 2016 X
II 1 G
Ex ia IIC T6...T1 Ga
II 2 (1) G
Ex [ia IIC Ga] ib IIC T6...T1 Gb
II 2 G (1D)
Ex [ia IIIC Da] ib IIC T6...T1 Gb
ATEX non-sparking and increased safety
The device fulfills the requirements of Directive 2014/34/EU in
case of corresponding purchase orders and is approved for use
in Zone 2.
Model TTH300-E2
Declaration of conformity
II 3 G Ex nA IIC T6...T1 Gc
II 3 G Ex ec IIC T6...T1 Gc
IECEx intrinsic safety
Approved for use in Zone 0, 1, and 2.
Model TTH300-H1H
To HW
-Rev. 1.07:
IECEx
certificate of conformity
From HW Rev. 02.00.00:
IECEx certificate of conformity
IECEx PTB 09.0014X
IECEx PTB 20.0035X
Model TTH300
-H1P and TTH300-H1F
IECEx certificate of conformity
IECEx PTB 11.0108X
Ex ia IIC T6...T1 Ga
Ex [ia IIC Ga] ib IIC
T6...T1 Gb
Ex [ia IIIC Da] ib IIC T6...T1 Gb
LCD indicator
ATEX intrinsic safety
The device fulfills the requirements of Directive 2014/34/EU in
case of corresponding purchase orders and is approved for use
in Zone 0, 1 and 2.
Type
Examination Test Certificate
PTB 05 ATEX 2079 X
II 1G Ex ia IIC T6…T1 Ga
ATEX non-sparking and increased safety
The device fulfills the requirements of Directive 2014/34/EU in
case of corresponding purchase orders and is approved for use
in Zone 2.
Declaration of conformity
II 3 G Ex nA IIC T6...T1 Gc
II 3 G Ex ec IIC T6...T1 Gc
IECEx intrinsic safety
Approved for use in Zone 0, 1, and 2.
IECEx certificate of conformity
IECEx PTB 12.0028X
Ex ia IIC T6…T1 Ga

8 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
… 2 Use in potentially explosive atmospheres in accordance with ATEX and IECEx
Temperature data
Transmitter
ATEX / IECEx intrinsic safety, ATEX non-sparking and increased
safety
Temperature class
Permissible ambient temperature range
T6
−50 to 56 °C (−58 to
132.8 °F)
T4-T1
−50 to 85 °C (−58 to 185.0 °F)
LCD indicator
ATEX / IECEx intrinsic safety, ATEX non-sparking and increased
safety
Temperature class
Permissible ambient temperature range
T6
−
50 to 56 °C
(−58 to 132.8 °F)
T4
-T1 −
50 to 85 °C
(−58 to 185 °F)
Electrical data
Transmitter
Intrinsic safety type of protection Ex ia IIC (part 1)
Power supply circuit*
TTH300-
E1H
TTH300-
H1H
TTH300-E1P/-
H1P
TTH300-E1F/-H1F
FISCO1
ENTITY
Max. voltage
U
i
= 30 V U
i
≤ 17.5 V
U
i
≤ 24.0 V
Short
-circuit current I
i
= 130 mA
I
i
≤ 183 mA
2
I
i
≤ 250 mA
Max. power
P
i
= 0.8 W
P
i
≤ 2.56 W
2
P
i
≤ 1.2 W
Internal inductance
Li= 160 μH3
Li≤ 10 μH
Li≤ 10 μH
Internal capacitance
C
i
= 0.57 nF
4
C
i
≤ 5 nF
C
i
≤ 5 nF
1 FISCO according to 60079-27
2 II B FISCO: Ii ≤ 380 mA, Pi ≤ 5.32 W
3 For HART variant only. From Hardware Rev. 02.00.00, previously 0.5 mH
4 For HART variant only. From hardware revision 1.07, previously 5 nF
Intrinsic safety type of protection Ex ia IIC (part 2)
TTH300-E1H, TTH300-H1H
Measurement current circuit
Resistance
thermometers,
resistors
Thermocouples, voltages
Max. voltage
U
o
= 6.5 V
U
o
= 1.2 V
Short-circuit current
Io= 17.8 mA*
Io= 50 mA
Max. power
P
o
= 29 mW**
P
o
= 60 mW
Internal inductance
Li≈ 0 mH (negligible)
Li≈ 0 mH (negligible)
Internal capacitance
C
i
= 49 nF
C
i
= 49 nF
Maximum permissible
external inductance
Lo
= 5 mH
Lo
= 5 mH
Maximum permissible
external capacitance
Co
= 1.55 μF
Co
= 1.05 μF
* From Hardware Rev. 02.00.00, previously 25 mA
** From Hardware Rev. 02.00.00, previously 38 mW

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 9
Intrinsic safety type of protection Ex ia IIC (part 2)
TTH300-E1P, TTH300-H1P, TTH300-E1F, TTH300-H1F
Measurement current circuit
Resistance
thermometers,
resistors
Thermocouples, voltages
Max. voltage
Uo= 6.5 V
Uo= 1.2 V
Short
-circuit current I
o
= 25 mA
I
o
= 50 mA
Max. power
Po= 38 mW
Po= 60 mW
Internal inductance
L
i
≈ 0 mH (negligible)
L
i
≈ 0 mH (negligible)
Internal capacitance
Ci= 49 nF
Ci= 49 nF
Maximum permissible
external inductance
Lo
= 5 mH
Lo
= 5 mH
Maximum permissible
external capacitance
Co
= 1.55 μF
Co
= 1.05 μF
Intrinsic safety type of protection Ex ia IIC (part 3)
LCD indicator interface
Max. voltage
Uo= 6.2 V
Short
-circuit current I
o
= 65.2 mA
Max. power
P
o
= 101 mW
Internal inductance
L
i
≈ 0 mH (negligible)
Internal capacitance
C
i
≈ 0 nF (negligible)
Maximum permissible
external inductance
Lo
= 5 mH
Maximum permissible
external capacitance
Co
= 1.4 μF
LCD indicator
Intrinsic safety type of protection Ex ia IIC
Supply circuit
Max. voltage
Ui= 9 V
Short-circuit current
Ii= 65.2 mA
Max. power
Pi= 101 mW
Internal inductance
L
i
≈ 0 mH (negligible)
Internal capacitance
Ci≈ 0 nF (negligible)
Installation instructions
ATEX / IECEx
The installation, commissioning, maintenance and repair of
devices in potentially explosive atmospheres must only be
carried out by appropriately trained personnel. Works may be
carried out only by persons, whose training has included
instructions on different types of protection and installation
techniques, concerned rules and regulations as well as general
principles of zoning. The person must possess the appropriate
competences for the type of work to be conducted.
When operating with combustible dusts, comply with
EN 60079-31.
The safety instructions for electrical apparatus in potentially
explosive areas must be in accordance with Directive
2014/34/EU (ATEX) and IEC 60079-14 (Installation of electrical
equipment in potentially explosive areas).
Comply with the applicable regulations for the protection of
employees to ensure safe operation.
IP protection rating of housing
The temperature transmitter and LCD indicator Type AS must be
installed according to the ‘intrinsic safety’ IP rating such that an
IP rating of at least IP 20 is achieved in accordance with
IEC 60529.
Perform installation according to the ‘non-sparking’ (nA) IP
rating or the ‘increased safety’ (ec) IP rating such that an IP
rating of at least IP 54 is achieved in accordance with IEC 60529.

10 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
… 2 Use in potentially explosive atmospheres in accordance with ATEX and IECEx
… Installation instructions
Electrical connections
Grounding
If, for functional reasons, the intrinsically safe circuit needs to be
grounded by means of a connection to the potential
equalization, it may only be grounded at one point.
Intrinsic safety installation check
If transmitters are operated in an intrinsically safe circuit, proof
that the interconnection is intrinsically safe must be provided in
accordance with IEC/EN 60079-14 as well as IEC/EN 60079-25.
The supply isolators / DCS inputs must feature intrinsically safe
input protection circuits in order to eliminate hazards (spark
formation).
In order to provide proof of intrinsic safety, the electrical limit
value must be used as the basis for the EC-type examination
certificates for the equipment (devices); this includes the
capacitance and inductance values of the cables.
Proof of intrinsic safety is said to have been provided if the
following conditions are fulfilled when a comparison is carried
out in relation to the limit values of the equipment:
Transmitter
(intrinsically safe equipment)
Supply isolator
/ DCS input
(related equipment)
U
i
≥
Uo
Ii
≥
Io
P
i
≥
Po
Li+ Lc(cable)
≤
Lo
C
i
+ C
c
(cable)
≤
Co
Field (Ex area)
Control room (safe area)
A
Transmitter
B
Supply isolator / DCS input with
supply / segment coupler

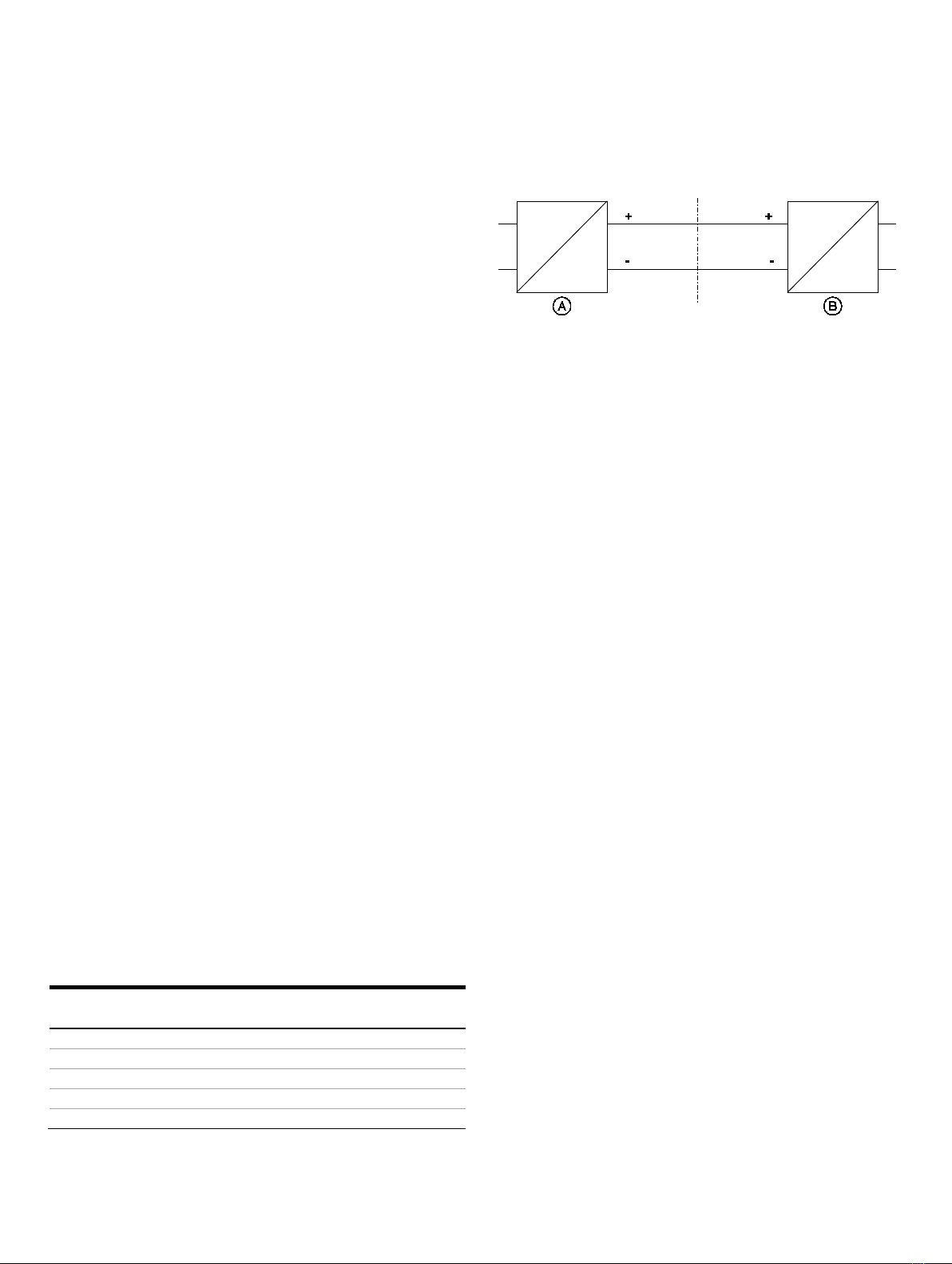

Figure 1: Intrinsic safety installation check
Installation in a potentially explosive atmosphere
Transmitters can be installed in all kinds of industrial sectors.
Potentially explosive systems are divided into zones,
meaning that a wide range of different instruments are also
required. For this, pay attention to the country-specific
guidelines and certificates!
Note
Ex relevant specifications must be taken from the EC-type
examination certificates and other relevant certificates that
apply in each case.
With transmitters for PROFIBUS PA and FOUNDATION
Fieldbus H1 applications, FISCO interconnection methods can be
used.
ATEX – Zone 0
Marking: II 1 G Ex ia IIC T6...T1 Ga
Ex area Zone 0 Safe area
A
Sensor
B
Transmitter in housing with IP-
rating
IP 20
C
Supply isolator [Ex ia]
D
Interface for LCD indicator
Figure 2: Hookup in ATEX – Zone 0
When using the transmitter in Zone 0, it must be installed in a
suitable housing with IP -rating IP 20.
The input for the supply isolator must be designed with ‘Ex ia’
type of protection.
When using the transmitter in Zone 0, make sure that
impermissible electrostatic charging of the transmitter is
avoided (observe the warnings on the device).
As the user, it is your responsibility to ensure that the sensor
instrumentation meets the requirements of applicable explosion
protection standards.
Note
When operating the transmitter in Zone 0 (EPL ‘Ga’), the
compatibility of the device materials with the surrounding
atmosphere must be ensured.
Encapsulation material used for the transmitter:
Polyurethane (PUR), WEVO PU-417

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 11
ATEX – Zone 1 (0)
Marking: II 2 (1) G Ex [ia IIC Ga] ib IIC T6...T1 Gb
Zone 0 or 1
Ex area Zone 1
Safe area
A
Sensor
B
Transmitter in housing with IP
rating IP 20
C
Supply isolator [Ex ib]
D
Interface for LCD indicator
Figure 3: Hookup in ATEX - Zone 1 (0)
When using the transmitter in Zone 1, it must be installed in a
suitable housing with IP -rating IP 20.
The input for the supply isolator must be designed with ‘Ex ib’
type of protection.
As the user, it is your responsibility to ensure that the sensor
instrumentation meets the requirements of applicable explosion
protection standards. The sensor can be installed in Zone 1 or
Zone 0.
When using the transmitter in Zone 1, you must ensure that
impermissible electrostatic charging of the temperature
transmitter is prevented (observe the warnings on the device).
ATEX – Zone 1 (20)
Marking: II 2 G (1D) Ex [ia IIIC Da] ib IIC T6...T1 Gb
Zone 20 or
21
Ex area Zone 1 Safe area
A
Sensor
B
Transmitter in housing with IP
rating IP 20
C
Supply isolator [Ex ib]
D
Interface for LCD indicator
Figure 4: Hookup in ATEX - Zone 1 (20)
When using the transmitter in Zone 1, it must be installed in a
suitable housing with IP -rating IP 20.
The input for the supply isolator must be designed with ‘Ex ib’
type of protection.
As the user, it is your responsibility to ensure that the sensor
instrumentation meets the requirements of applicable explosion
protection standards. The sensor can be installed in Zone 20 or
Zone 21.
When using the transmitter in Zone 1, make sure that
impermissible electrostatic charging of the temperature
transmitter is avoided (observe the warnings on the device).

12 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
… 2 Use in potentially explosive atmospheres in accordance with ATEX and IECEx
… Installation instructions
ATEX – Zone 2
Marking:
II 3 G Ex nA IIC T6...T1 Gc
II 3 G Ex ec IIC T6...T1 Gc
Ex area Zone 2
Safe area
A
Sensor
B
Transmitter in housing with IP
rating IP 54
C
Supply isolator
D
Interface for LCD indicator
Figure 5: Hookup in ATEX – Zone 2
When using the transmitter in Zone 2, observe the following:
• The temperature transmitter must be installed in its own
housing. This housing must at least meet IP rating IP 54
(in accordance with EN 60529) and other requirements
for potentially explosive atmosphere (e.g. a certified
housing). Suitable cable glands must be used for this
purpose.
• External measures must be made for the power supply
circuit in order to prevent the rated voltage from being
up-scaled by more than 40 % in the event of transient
disturbances.
• The electrical connections must only be opened or closed
when there is no hazardous atmosphere.
• When using the transmitter in Zone 2, make sure that
impermissible electrostatic charging of the temperature
transmitter is prevented (observe the warnings on the
device).
Commissioning
The commissioning and parameterization of the device may also
be carried out in potentially explosive atmospheres using a
handheld terminal that has been approved accordingly under
consideration of an intrinsic safety installation check.
Alternatively, an Ex modem can be connected to the circuit
outside the potentially explosive atmosphere.
Operating instructions
Protection against electrostatic discharges
The plastic parts inside the device can store electrostatic
charges.
Make sure that no electrostatic charges can accumulate when
handling the device.

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 13
3Use in potentially explosive atmospheres in accordance with FM and CSA
Note
• Further information on the approval of devices for use in
potentially explosive atmospheres can be found in the
explosion protection test certificates (at
www.abb.com/temperature).
• Depending on the design, a specific marking in accordance
with FM or CSA applies.
Ex marking
Transmitter
FM Intrinsically Safe
Model TTH300-L1H
To HW
-Rev. 1.07:
Control Drawing
SAP_214829
From HW Rev. 02.00.00:
Control Drawing
See attached information
Model TTH300-L1P
Control Drawing
TTH300-L1P (IS)
Model TTH300
-L1F
Control Drawing
TTH300-
L1F (IS)
Class I, Div. 1 + 2,
Groups A, B, C, D
Class I, Zone 0, AEx ia IIC T6
FM Non-Incendive
Model TTH300-L2H
To HW
-Rev. 1.07:
Control Drawing
214831 (Non-
Incendive)
From HW Rev. 02.00.00:
Control Drawing
See attached information
Model TTH300-L2P
Control Drawing
TTH300-
L2P (NI_PS)
TTH300-L2P (NI_AA)
Model TTH300-L2F
Control Drawing
TTH300-
L2F (NI_PS)
TTH300-
L2F (NI_AA)
Class I, Div. 2, Groups A, B, C, D
CSA Intrinsically Safe
Model TTH300-R1H
To HW
-Rev. 1.07:
Control Drawing
214826
From HW Rev.
02.00.00:
Control Drawing
See attached information
Model TTH300-R1P
Control Drawing
TTH300-R1P (IS)
Model TTH300
-R1F
Control Drawing
TTH300-
R1F (IS)
Class I, Div. 1 + 2, Groups A, B, C, D
Class I, Zone 0, Ex ia IIC T6
CSA Non-Incendive
Model TTH300
-R2H
To HW
-Rev. 1.07:
Control Drawing
SAP_214824 (Non-
Incendive)
SAP_214896 (Non-
Incendive)
From HW Rev. 02.00.00:
Control Drawing
See attached information
Model TTH300-R2P
Control Drawing
TTH300-
R2P (NI_PS)
TTH300-
R2P (NI_AA)
Model TTH300-R2F
Control Drawing
TTH300-
R2F (NI_PS)
TTH300-R2F (NI_AA)
Class I, Div. 2, Groups A, B, C, D
LCD indicator
FM Intrinsically Safe
Control Drawing
SAP_214 748
I.S. Class I Div 1 and Div 2, Group: A, B, C, D or
I.S. Class I Zone 0 AEx ia IIC T*
Ui/ Vmax = 9 V, Ii/ Imax < 65.2 mA, Pi= 101 mW, Ci= 0.4 μF, Li= 0
FM Non-Incendive
Control Drawing
SAP_214 751
N.I. Class I Div 2, Group: A, B, C, D
or Ex nL IIC T**, Class I Zone 2
Ui/ Vmax = 9 V, Ii/ Imax < 65.2 mA, Pi= 101 mW, Ci= 0.4 μF, Li= 0
CSA Intrinsically Safe
Control Drawing
SAP_214 749
I.S. Class I Div 1 and Div 2; Group: A, B, C, D or
I.S Zone 0 Ex ia IIC T*
Ui/ Vmax = 9 V, Ii/ Imax < 65.2 mA, Pi= 101 mW, Ci< 0.4 μF, Li= 0
CSA Non-Incendive
Control Drawing
SAP_214 750
N.I. Class I Div 2, Group: A, B, C, D
or Ex nL IIC T**, Class I Zone 2
Ui/ Vmax = 9 V, Ii/ Imax < 65.2 mA, Pi= 101 mW, Ci< 0.4 μF, Li= 0
* Temp. Ident: T6 Tamb 56 °C, T4 Tamb 85 °C
** Temp. Ident: T6 Tamb 60 °C, T4 Tamb 85 °C

14 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
… 3 Use in potentially explosive atmospheres in accordance with FM and CSA
Installation instructions
FM / CSA
The installation, commissioning, maintenance and repair of
devices in areas with explosion hazard must only be carried out
by appropriately trained personnel.
The operator must strictly observe the applicable national
regulations with regard to installation, function tests, repairs,
and maintenance of electrical devices. (e. g. NEC, CEC).
IP protection rating of housing
The temperature transmitter and LCD indicator Type A and
Type AS must be installed such that an IP rating of at least IP 20
is achieved in accordance with IEC 60529.
Electrical connections
Grounding
If, for functional reasons, the intrinsically safe circuit needs to be
grounded by means of a connection to the potential
equalization, it may only be grounded at one point.
Intrinsic safety installation check
If transmitters are operated in an intrinsically safe circuit, proof
that the interconnection is intrinsically safe must be provided in
accordance with IEC/EN 60079-14 as well as IEC/EN 60079-25.
The supply isolators / DCS inputs must feature intrinsically safe
input protection circuits in order to eliminate hazards (spark
formation).
In order to provide proof of intrinsic safety, the electrical limit
value must be used as the basis for the EC-type examination
certificates for the equipment (devices); this includes the
capacitance and inductance values of the cables.
Note
When operating the transmitter in Zone 0, the compatibility of
the device materials with the surrounding atmosphere must be
guaranteed.
Encapsulation material used for the transmitter:
Polyurethane (PUR), WEVO PU-417
Proof of intrinsic safety is said to have been provided if the
following conditions are fulfilled when a comparison is carried
out in relation to the limit values of the equipment:
Transmitter
(intrinsically safe equipment)
Supply isolator
/ DCS input
(related equipment)
U
i
≥
Uo
Ii
≥
Io
P
i
≥
Po
Li+ Lc(cable)
≤
Lo
C
i
+ C
c
(cable)
≤
Co
Field (Ex area)
Control room (safe area)
A
Transmitter
B
Supply isolator / DCS input with
supply / Segment coupler
Figure 6: Intrinsic safety installation check
Installation in a potentially explosive atmosphere
Transmitters can be installed in all kinds of industrial sectors.
Potentially explosive systems are divided into zones,
meaning that a wide range of different instruments are also
required. For this, pay attention to the country-specific
guidelines and certificates!
Note
Ex relevant specifications must be taken from the EC-type
examination certificates and other relevant certificates that
apply in each case.
With transmitters for PROFIBUS PA and FOUNDATION
Fieldbus H1 applications, FISCO interconnection methods can be
used.
Commissioning
The commissioning and parameterization of the device may also
be carried out in potentially explosive atmospheres using a
handheld terminal that has been approved accordingly under
consideration of an intrinsic safety installation check.
Alternatively, an Ex modem can be connected to the circuit
outside the potentially explosive atmosphere.
Operating instructions
Protection against electrostatic discharges
The plastic parts inside the device can store electrostatic
charges.
Make sure that no electrostatic charges can accumulate when
handling the device.

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 15
4Design and function
Digital transmitters are communication-ready devices with
microprocessor-controlled electronics. They conform to the
requirements of IP rating IP 20 and are suited for integration
into DIN A and DIN B sensor heads.
With HART® transmitters, an FSK signal is superimposed on the
4 to 20 mA output signal in accordance with the HART standard
to facilitate bidirectional communication.
With PROFIBUS PA® transmitters, communication takes place in
accordance with PROFIBUS-MBP (IEC 61158-2), PROFIBUS PA
Profile 3.01.
In the case of the FOUNDATION Fieldbus® transmitter,
communication takes place in accordance with FOUNDATION
Fieldbus H1 (IEC 61158-2), ITK version 6.x (from SW-Rev. 1.02.00,
previously ITK 5.x).
The transmitters can be configured using various tools / drivers.
Status and measured values can also be queried. This includes
DTM, EDD and FDI package of Field Information Manager (FIM).
These tools provide an event monitor and a configuration
monitor for HART devices from SW-Rev. 3.00. This allows critical
events such as exceeding or falling below specified limit values
and configuration changes to be output and logged. See the
HART interface description (COM/TTX300/HART).
As an option, the transmitter can be fitted with a type A or a type
AS LCD indicator. Type AS is used exclusively for visualizing
current process values. Type A also supports the option of
configuring the transmitter. It is recommended that you use this
combination.
The electrical connection between the LCD display and
transmitter is provided by a 6-pin flat ribbon cable with a plug
connector. The LCD display can only be operated when
connected to transmitters that have an LCD display interface.
Input functionality
Sensor Redundancy
To enhance system availability, the TTH300 has two sensor
inputs.
The second sensor input can be used redundantly for both
resistance thermometers (2 x three-wire circuit or 2 x two-wire
circuit) and thermocouples or a combination of both. If a
combination of both is used, the resistance sensor must be
connected to channel 1 and the thermocouple to channel 2, see
Electrical connections on page 21.
In the case of HART devices, the failure of a sensor can be
signaled with a configurable analog alarm pulse, see the HART®
interface description (COM/TTX300/HART).
Devices with PROFIBUS PA®, FOUNDATION Fieldbus® and
HART® to SW-Rev. 1.03
Sensor redundancy / sensor backup for increased availability
In the case of sensor redundancy (sensor backup), the
temperature is always measured with both sensors and the
mean value is calculated from this if the sensors are identical.
This value is provided at the output of the transmitter. If the
sensors are not identical, the measured value of channel 1
(resistance thermometer) is output. If one sensor fails, the
temperature measurement of the remaining sensor is
transmitted bumplessly to the output of the transmitter.
A corresponding diagnostic message is available via DTM, EDD,
FDI Package (FIM) or on the LCD display. The measured value
remains available and maintenance measures can be taken at the
same time.
Devices with HART® from SW-Rev. 3.00
Extended configuration options are available for redundant
operation.
The redundancy behavior can be configured for
• increased availability (default setting ex works for
redundancy),
• increased safety and
• increased accuracy (output of the mean value).

16 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
… 4 Design and function
… Input functionality
Redundancy behavior
Output behavior (behavior of the
current output)
Current output assignment to
be set (Tools: “HART Mapping”)
Redundancy configuration to be
set (Tools: “Parameter setting”)
Diagnostic message to be set
according to NAMUR NE 107
Increased availability
(Switchover for defective
sensor)
Normal operation:
Output signal follows sensor 1
Sensor
1 defective: Switching
seamlessly (with smooth transition)
to sensor
2. Output signal remains
valid.
Sensor 1 and sensor 2 defective:
output of set alarm current
“Redundancy”
“Availability”
Redundancy, S1 not available:
“Maintenance Required”
Redundancy, S2 not available:
“Maintenance Required”
Sensor drift detected:
“Maintenance Required”
Increased s
afety (use of
drift detection)
Normal operation:
Output signal
follows sensor 1
Sensor 1 or sensor 2 defective:
output of set alarm current
Sensor drift detected: output of set
alarm current
“Redundancy”
“Safety”
Redundancy, S1 not available:
“Failure”
Redundancy, S2 not available:
“Failure”
Sensor drift detected:
“Failure”
Increased accuracy
(through averaging)
Output signal follows the
arithmetic mean value of sensor 1
and sensor 2
Sensor 1 or sensor 2 defective:
output of set alarm current
“Mean value”
not relevant
Redundancy, S1 not available:
“Failure”
Redundancy, S2 not available:
“Failure”
Sensor drift detected:
“Maintenance Required”
Corresponding diagnostic messages are available via DTM, EDD, FDI package (FIM) or on the LCD display.
For the meaning of the diagnostic messages according to NAMUR 107, see Possible error messages – HART® devices from
SW-Rev. 3.00 on page 70. The error messages and options for error correction are listed in Possible error messages – HART® devices
from SW-Rev. 3.00 on page 70.
Note
Only the current output behavior and redundancy configuration can be set for the three redundancy behaviors via the HMI LCD
display with configuration function. The diagnostic messages according to NAMUR NE 107 can only be changed over in the tools and
remain in the default setting ex works (“Maintenance Required”).

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 17
Sensor drift monitoring
If two sensors are connected, sensor drift monitoring can be
FDI Package (FIM) enabled via DTM, EDD or
The sensor drift monitoring can be activated for the following
sensor types:
• 2 × resistance thermometer (RTD), two-wire circuit
• 2 × resistance thermometer (RTD), three-wire circuit
• 2 × resistors (potentiometer), two-wire circuit
• 2 × resistors (potentiometer), three-wire circuit
• 2 × thermocouple
• 2 × voltages
• 1 × resistance thermometer (RTD), two-wire circuit, and
1 × thermocouple
• 1 × resistance thermometer (RTD), three-wire circuit, and
1 × thermocouple
• 1 × resistance thermometer (RTD), four-wire circuit, and
1 × thermocouple
To activate sensor drift monitoring, the transmitter must first
be configured for the sensor types referred to above. Following
this, the maximum permissible sensor deviation must be
configured, e.g., 1 K.
Since sensor response times may differ slightly, it is then
necessary to configure a limit time period during which the
sensor deviation has to constantly exceed the maximum set.
If the transmitter registers a larger sensor deviation over the
defined period of time, the diagnostic response configured in
accordance with NE 107 is carried out (tools and LCD display).
Sensor drift monitoring with redundancy operation (devices
with PROFIBUS PA®, FOUNDATION Fieldbus® and HART® to SW-
Rev. 1.03)
If drift monitoring is performed for similar sensors (2 ×
resistance thermometers or 2 × thermocouples), the mean value
from both sensors is mapped on the output signal of the
transmitter as a process variable in redundancy mode.
If a thermocouple is used for drift monitoring of a resistance
thermometer, the resistance thermometer must be connected to
channel 1 and the thermocouple to channel 2 (see Electrical
connections on page 21). The measured value of channel 1
(resistance thermometer) is mapped as a process variable at the
transmitter output.
Sensor drift monitoring with redundancy operation (devices
with HART® from SW-Rev. 3.00)
If a thermocouple is used for drift monitoring of a resistance
thermometer, the resistance thermometer must be connected to
channel 1 and the thermocouple to channel 2 (see Electrical
connections on page 21).
The transmitter output signal always corresponds to the
configured redundancy behavior, see Sensor Redundancy on
page 15.
Note
Before configuring the maximum permissible sensor deviation
with regard to drift monitoring, sensor calibration should be
carried out with reference to the sensor channel 1 value using the
TTH300DTM, for example.
Sensor error adjustment in accordance with Callendar-
Van Dusen
Under normal circumstances, the standard Pt100 characteristic
curve is used for resistance thermometer measurement.
However, recent advances in technology now mean that
maximum measuring accuracy can be achieved where necessary
by carrying out individual sensor error adjustment.
Sensor characteristic curves are optimized by using a Pt100
polynomial in accordance with IST-90 / IEC 751, and EN 60150,
and by applying A ,B, C, or Callendar-Van Dusen coefficients.
With the help of the DTM, EDD or FDI package (FIM), these
sensor coefficients (Callendar-Van Dusen) can be adjusted and
stored in the transmitter as a CVD characteristic curve. Up to
five different CVD characteristic curves can be stored for HART
and PROFIBUS PA, while up to two CVD characteristic curves can
be stored for FOUNDATION Fieldbus.

18 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
5Product identification
Name plate
Note
Products that are marked with the adjacent symbol
may
not be disposed of as unsorted municipal waste
(domestic waste).
They should be
disposed of through separate
collection of electric and electronic devices.
Note
The ambient temperature range nprovided on the name plate
refers only to the transmitter itself and not to the sensor
element used in the measuring inset.
For devices with PROFIBUS PA or FOUNDATION Fieldbus, the
device-ID is also specified.
1
Manufacturer, manufacturer address, manufacturing year - week
2
Safety integrity level, SIL logo (optional with HART transmitter)
3
CE mark (EU conformity), if not on additional plate
4
Type designation / model
5
Transmitter communications protocol (HART, FF, PA)
6
2D barcode for serial number in accordance with order
7
Serial number of the device electronics (7 or 8 digits)
8
Software revision
9
Hardware version
0
‘Follow product documentation’ symbol
k
lmHART transmitter:
k
Set measuring range of the transmitter
l
Measuring point tag (TAG) in accordance with order (optional)
m
Set sensor type and circuit type
l
mTransmitter FOUNDATION Fieldbus or PROFIBUS PA:
l
Measuring point tag (TAG) in accordance with order (optional)
m
DEVICE_ID or Ident_Number
n
Ambient temperature range, on additional plate for Ex versions
o
Transmitter specification (supply voltage range, output current range,
communications protocol)
p
Coding of the type of protection of the device (in accordance with
ordering information)
q
Serial number of the device (serial number in accordance with order)
Figure 7: HART name plate (example)
Figure 8: PROFIBUS PA name plate (example)
Figure 9: FOUNDATION Fieldbus name plate (example)
Devices with an explosion-proof design are marked with the
following special data plate.
1
Type designation in accordance
with approval
2
Type designation
3
Temperature class of the
explosion-proof design
4
CE-mark (EU conformity) and
notified body for quality
assurance
5
Ex-marking
6
IP rating explosion-proof design
Figure 10: Additional plate for explosion-protected apparatus (example)
Note
The name plates displayed are examples. The device
identification plates affixed to the device can differ from this
representation.

TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G 19
6Transport and storage
Inspection
Check the devices immediately after unpacking for possible
damage that may have occurred from improper transport.
Details of any damage that has occurred in transit must be
recorded on the transport documents.
All claims for damages must be submitted to the shipper
without delay and before installation.
Transporting the device
Observe the following instructions:
• Do not expose the device to humidity during transport.
Pack the device accordingly.
• Pack the device so that it is protected against vibrations
during transport, for example, by using air-cushioned
packing.
Storing the device
Bear the following points in mind when storing devices:
• Store the device in its original packaging in a dry and
dust-free location.
• Observe the permitted ambient conditions for transport
and storage.
• Avoid storing the device in direct sunlight.
• In principle, the devices may be stored for an unlimited
period. However, the warranty conditions stipulated in
the order confirmation of the supplier apply.
Ambient conditions
The ambient conditions for the transport and storage of the
device correspond to the ambient conditions for operation of
the device.
Adhere to the device data sheet!
Returning devices
For the return of devices, follow the instructions in Repair on
page 72.
7Installation
DANGER
Improper installation and commissioning of the device
carries a risk of explosion.
For use in potentially explosive atmospheres, observe the
information in Use in potentially explosive atmospheres in
accordance with ATEX and IECEx on page 7 and Use in
potentially explosive atmospheres in accordance with FM
and CSA on page 13!
Ambient conditions
Ambient temperature
• Default: −40 to 85 °C (−40 to 185 °F)
• Optional: −50 to 85 °C (−58 to 185 °F)
• Restricted range during operation with LCD-indicator:
−20 to 70 °C (−4 to 158 °F)
• Restricted range during operation with explosion-proof
design: see corresponding certificate
Transport- / Storage temperature
−50 to 85 °C (−58 to 185 °F)
Climate class in accordance with DIN EN 60654-1
Cx −40 to 85 °C (−40 to 185 °F) at 5 to 95 % relative air humidity
Max. permissible humidity in accordance with
IEC 60068-2-30
100 % relative air humidity
Vibration resistance in accordance with IEC 60068-2-6
10 to 2000 Hz at 5 g, during operation and transport
Shock resistance in accordance with IEC 60068-2-27
gn = 30, during operation and transport
IP rating
• Power supply circuit: IP 20
• Measurement current circuit: IP 00 or IP-rating of installation
housing

20 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. G
… 7 Installation
Installation options
There are three options for installing the transmitter:
• Installation in the cover of the connection head
(without springs)
• Direct installation on the measuring inset (with springs)
• Installation on a top-hat rail
Installation on the measuring inset
Figure 11: Installation example
Note
Before mounting the transmitter on the measuring inset, remove
the ceramic block on the measuring inset and the captive screws
in the transmitter.
To install the transmitter on the measuring inset, cambered
toothed discs and the corresponding mounting screws are
required; these must be ordered as separate accessories:
Measuring inset installation set (2 fixing screws, 2 springs,
2 toothed discs) order number: 263750
1. Remove the ceramic block from the measuring inset 3.
2. Remove the screws from the transmitter 2. Remove the
sleeves from the screw holes and then remove the screws.
3. Insert new fixing screws 1from above in the fixing holes of
the transmitter.
4. Place the cambered toothed discs 4with curve facing
upward on the downward protruding screw thread.
5. Connect the power supply cable to the transmitter according
to connection diagram.
6. Place the transmitter in the housing on the measuring inset
and secure it.
Note
The toothed discs between measuring inset and transmitter are
straightened when the screws are tightened. This enables them
to grip the mounting screws.
Installation in the cover of the connection head
Figure 12: Installation example
1. Release the screw plug 3for the cover of the connection
head.
2. Open the cover 1.
3. Secure the transmitter 2at the proper position on the
cover, using the captive screws found in the transmitter.
Installation on the top-hat rail
Figure 13: Installation example
When mounted on a top-hat rail, the transmitter can be placed at
a distance from the sensor in a housing that is suitable for the
ambient conditions.
