Riverlea Duratuf KIWI MK4B User manual

Quality – Built In
ASSEMBLY INSTRUCTIONS
MK4B
BASE SIZE 4210mm x 3380mm

• Drill
• Drill Bit 3.5mm
• Drill Bit 6mm (for clear roof panel only)
• Hex Drive 5/16
• Riveter (free Duratuf riveter supplied in kit)
• Hammer
• Nail Punch
• Tape Measure
• Ladder or Saw stool
• Spanners x 2
• String Line
• Tin Snips
• Skillsaw and Jigsaw (for floor only)
• Masonry Drill and 10mm Masonry Bit (for Bolt Down Kit only)
• Read all instructions carefully.
• Identify all parts and check quantities against checklist.
• If you are making your own floor refer to Raised Base Plate section
now.
• Do not attempt to build your shed in high winds.
• Beware of sharp edges.
• Protect your eyes and ears.
• Use electric tools with care. Use a Safety Trip Switch.
• It is easier and quicker if this shed is erected by two people.
• Your shed must be level. Achieve this by either levelling the ground
or by using blocks.
• If you shed is to be positioned on wet or damp ground, we recom-
mend that your shed is raised up off the ground slightly.
Tools Required:
Select your site:
Safety:
Before you start:
ASSEMBLY INSTRUCTIONS
2

3
8
7
2
2
2
1
1
1
4
5
2.280m
1.890m
1.890m
0.260m
0.200m
3.700m
Gable End Wall Sheets
Wall Sheets
MK4 1/2 Wall Sheets
Door - Standard Security
Instruction Booklet
Jack Studs - 140 x 45mm
Jack Studs - 60 x 45mm
Hardware Pack
Centre Door Stop
Touch-up Paint & Brush
Roof Sheets
0.580m
0.603 x 0.603m
0.588 x 0.150m
0.710 x 0.240m
1
Fixed Window Frame
Glaze Beads
Glass
Louvre Window Frame
Glass
Over Panel
Window Hardware Pack
3.700m
1.825m
1.825m
0.350m
0.900m
1
Roof Sheets
Flat Roof Sheet
Clear Roof Panel
Pressed Capping Sheet
Bevel Edge Support 45 x 45mm
Clear Roof Hardware Pack
Security Double Door Hardware Pack
Alarm - MA20
Shed light
Bolt Down Kit
Peg Down Kit
KIWI MK4B PARTS LIST
1Duratuf Riveter

MK4B TIMBER FRAME
5
Step 1: Back Wall: Select one 4.210m Base Plate (Green), one
4.210m Top Plate (Red) and six Studs (Yellow). Lay out Plates
and two Studs on a flat surface and nail together using two
75mm nails per join. Nail in remaining centre studs using Nogs
to get correct position. Position Nogs centrally between Top
and Bottom Plates and nail in place. (All Plates, Studs and
Nogs are joined together with two 75mm nails each end).
Step 2: Front Wall: Select one 4.210m Base Plate (Green), one
4.210m Top Plate (Red), four Studs (Yellow) and two
1.185m Nogs. Nail studs to each end of Plates. Nail in re-
maining two studs using 1.185m Nogs to get correct posi-
tion. Position Nogs centrally between Plates and nail in
place.
Step 3: End Wall: Select one 3.380m Base Plate (Green), one
3.380m Top Plate (Red), three Studs (Yellow) and
two .789m Nogs. Lay out Plates and one Stud on a flat sur-
face and nail Stud centrally between Plates. Nail remaining
Studs to Plates using .789m Nogs to get the correct posi-
tion. Position Nogs centrally between Plates and nail in
place. Repeat with second End Frame.
JACK STUDS
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
Note: For sheds with the Raised Floor Modification option the studs will be 1.780m long to allow the Wall Sheets to pro-
trude 20mm below the Bottom Plate. Refer to Raised Floor Modification section (Page 15).

MK4B TIMBER FRAME
6

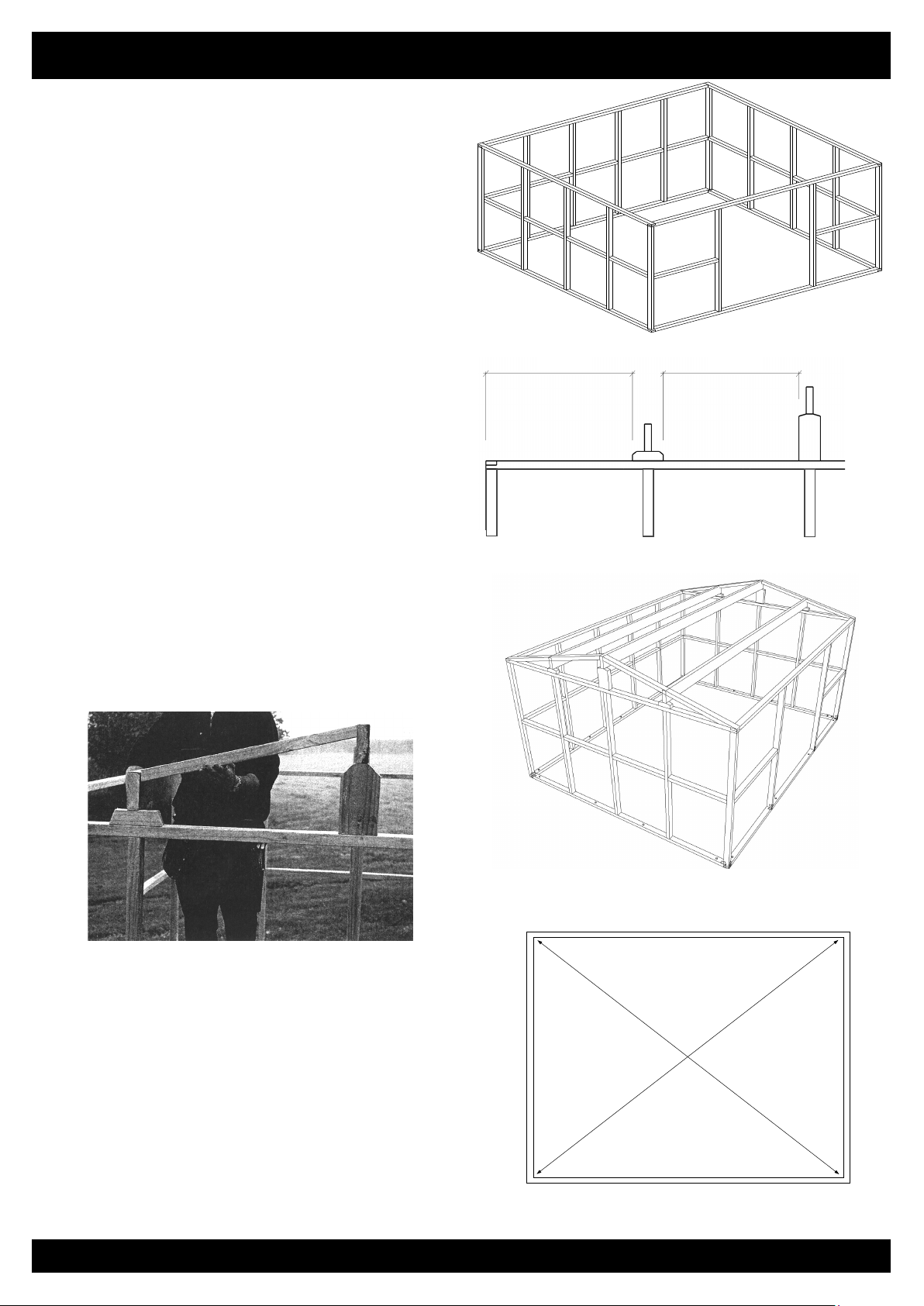

Step 4: Stand up Back Wall frame and one End frame
and nail together, using two 75mm nails per join,
top and bottom. Stand remaining Frames up and
nail together. Nail in remaining .764m Nogs in
End Walls.
Step 5: Position middle Jack Stud, centrally on End Wall
Top Plates and nail in place. Nail remaining Jack
Studs in. Position middle Ridge Beam to Jack
Stud and skew-nail in place using two 75mm
nails each end. Pre-drilling holes before nailing
will prevent timber from splitting.
Step 6: Place intermediate Roof Beams by using Roofing
Nogs to determine correct position (see fig. 2).
Nail intermediate Roof Beams in place. Nail 70 x
45mm Roofing Nogs in place (End Wall).
Step 7: Place Frame in correct position, checking the shed is
square and level. Dynabolt Frame to concrete base as
instructed on page 4.
Step 8: Nail multigrip brackets to each of the four bottom
corners (two per corner). Use 30mm Clouts supplied.
fig.2.
88mm
756mm 664

MK4B WALL CLADDING
TO AVIOD CORROSION:
• Where at all possible try not to trap metal filings between two sheets. Remove all metal filings before riveting.
• Carbon in pencils reacts with the Zinc/Aluminium coating on steel. Use ink to mark steel.
TERMS EXPLANATION
• To Tack: To Tack on a wall sheet means to use minimum nails hammered partly in to hold Wall Sheets in position. Should a Wall
Sheet need to be re-positioned, the nails can easily be prized out.
• If a window is required, identify Wall Sheet(s) with window hole pre-cut. Lean up Wall Sheets where window(s) are to be located.
Note:
When fitting Ga-
ble End Sheets
ensure they over-
lap correctly (fig
1).
The overlap di-
rection may differ
from cladding
detail.
7

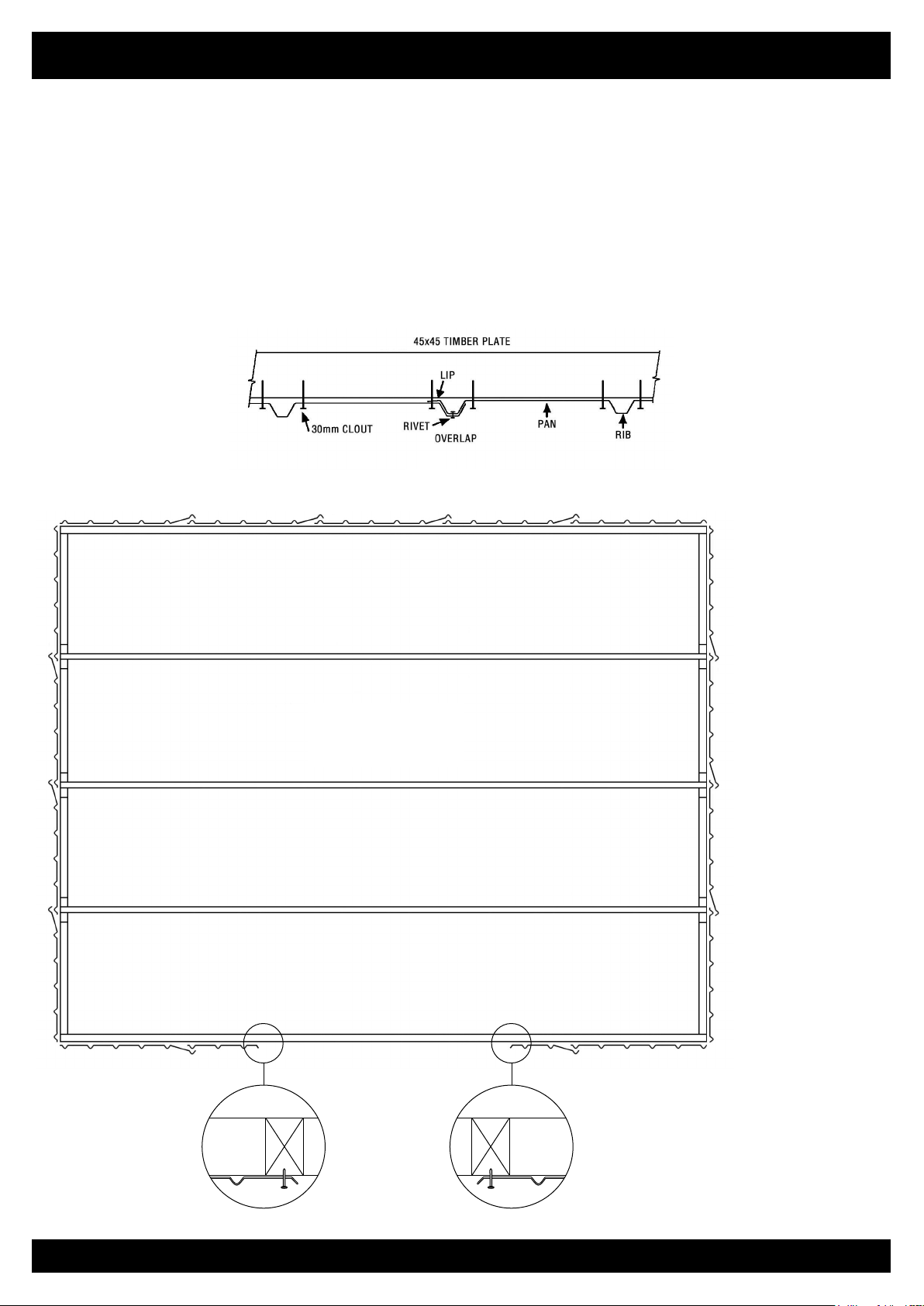

CLADDING DETAIL
Birds Eye View
fig. 1

MK4B WALL CLADDING
Step 1: Front Wall: Start at the left hand side. Position
the Wall Sheet with the LIP on the left hand
side. Ensuring the LIP is flush with side of the
Stud and the top of the Top Plate, tack in place.
Repeat with Wall Sheet on the right hand side
of doorway.
Step 2: Back Wall: Position the first Wall Sheet with
the LIP on the right hand side. Ensuring the LIP
is flush with the side of the Stud and the top of
the Wall Sheet is flush with the top of the Top
Plate, tack in place. Position the next Wall
Sheet with the LIP on the right hand side. Over-
lap as shown in fig.1 (page 7). Ensuring Wall
Sheet is flush with top of Top Plate, tack in
place. Repeat with remaining two sheets.
Step 4: Nailing Off: Nail one 30mm Clout each side of the Rib (two per Pan) into the Top Plates and Bottom Plates. Nail
Wall Sheets to mid wall Nogs (one per pan). Nail each corner Wall Sheet to Studs using two 30mm Clouts evenly
spaced.
Gable Ends: When nailing Gable Wall Sheets to the Top Plate, use a String Line. At the top of the gable nail two
30mm Clouts into the end of the Ridge Beam. This will stop it from twisting.
Step 3: End Walls: Lean Gable Wall Sheets against
the shed to form gable shape. With the LIP
flush with side of Stud tack in place ensuring
the bottom of the Wall Sheet is 10mm above
the bottom of the Bottom Plate. Tack on re-
maining Wall Sheets. Repeat with other gable
end. If fitting a window, nail in Window Studs
and Nog now. Refer to Window instructions.
8
EDGE
FLUSH
TOP
FLUSH

9
MK4B LOUVRE WINDOW (Optional)

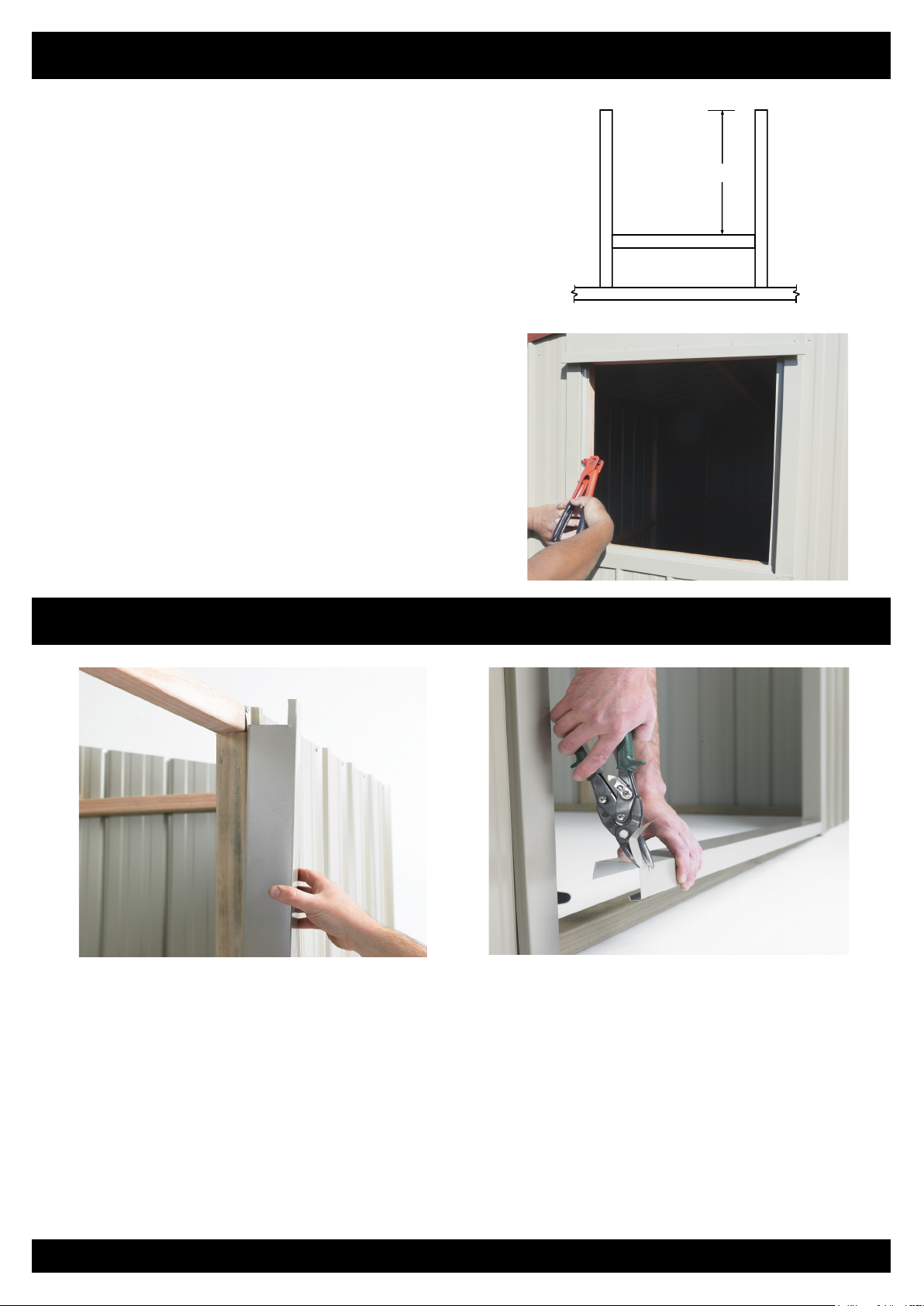

Step 2: On the inside of the shed, position studs
and Nog centrally on window opening.
Make sure the studs are parallel and nail
into Top Plate and end wall Nog.
Step 3: Nail wall Sheets to window framing using
30mm clouts. (return to step 4 on page 7
and complete). Then fit Window Frame).
Position Window Frame centrally on win-
dow opening and rivet it to ribs. Pre-drill
holes in each corner and nail Window
Frame to framing, using 50mm nails.
Step 4: If the Window is in the gable end, tempo-
rarily position the Over Panel above Win-
dow Frame. Following the same angle as
the gable, mark and cut to suit.
Step 5: Rivet Over Panel to the Window Frame
with rivets.
588mm
Step 1: Lay out the two window studs (883mm) and
Nog (634mm) on a flat surface. Position
Nog and nail in place using 2x 75mm nails
at each end.
Step 6: From the inside of the shed, slide Louvre
Glass into Louvre Units attached to the
Window Frame. Bend up tabs to keep
Glass in position.
50mm
NAILS
RIVITS

10
Step1: Fit Door Jamb Flashing (A104) in be-
tween Top and Bottom Plates and hard
against Stud. Attach Door Jamb Flash-
ing with three 30mm clouts into studs on
the inside and three rivets into Rib on
the outside. Pre-drill holes on the outside
to protect flashing. Repeat with the other
Door Jamb.
Step2: Measure and cut Doorstep Flashing (A106)
to fit in between Door Jambs. Positioning
the Doorstep Flashing in between Door
Jambs at bottom of doorway, nail through
top of flashing using five 30mm Clouts. Re-
peat with the Overdoor Flashing (A105).
Step 1: Lay out the two window studs (883mm) and
Nog (590mm) on a flat surface. Position
Nog and nail in place using two 75mm nails
at each end.
570mm
Step 6: From the outside of the shed, place glass
in Window Frame. Attach a Glazing Bead
(G100) with three rivets to each side of the
Window Frame to hold glass in place. Pre-
drilling Glazing Beads is recommended.
MK4B FIXED WINDOW (Optional)
Follow Steps 2 - 5 on page 8.
MK4B DOOR JAMB & CORNER FLASHINGS

MK4B DOOR JAMB & CORNER FLASHINGS
11
Step 3: Fit Corner Flashing (101) over
corner Ribs with the top flush with
the top of the Top Plate. Rivet in
place with six rivets, three each
side. Repeat with other three
Corner Flashings. When fitting
Corner Flashings on front wall,
ensure they are parallel with Door
Jambs.

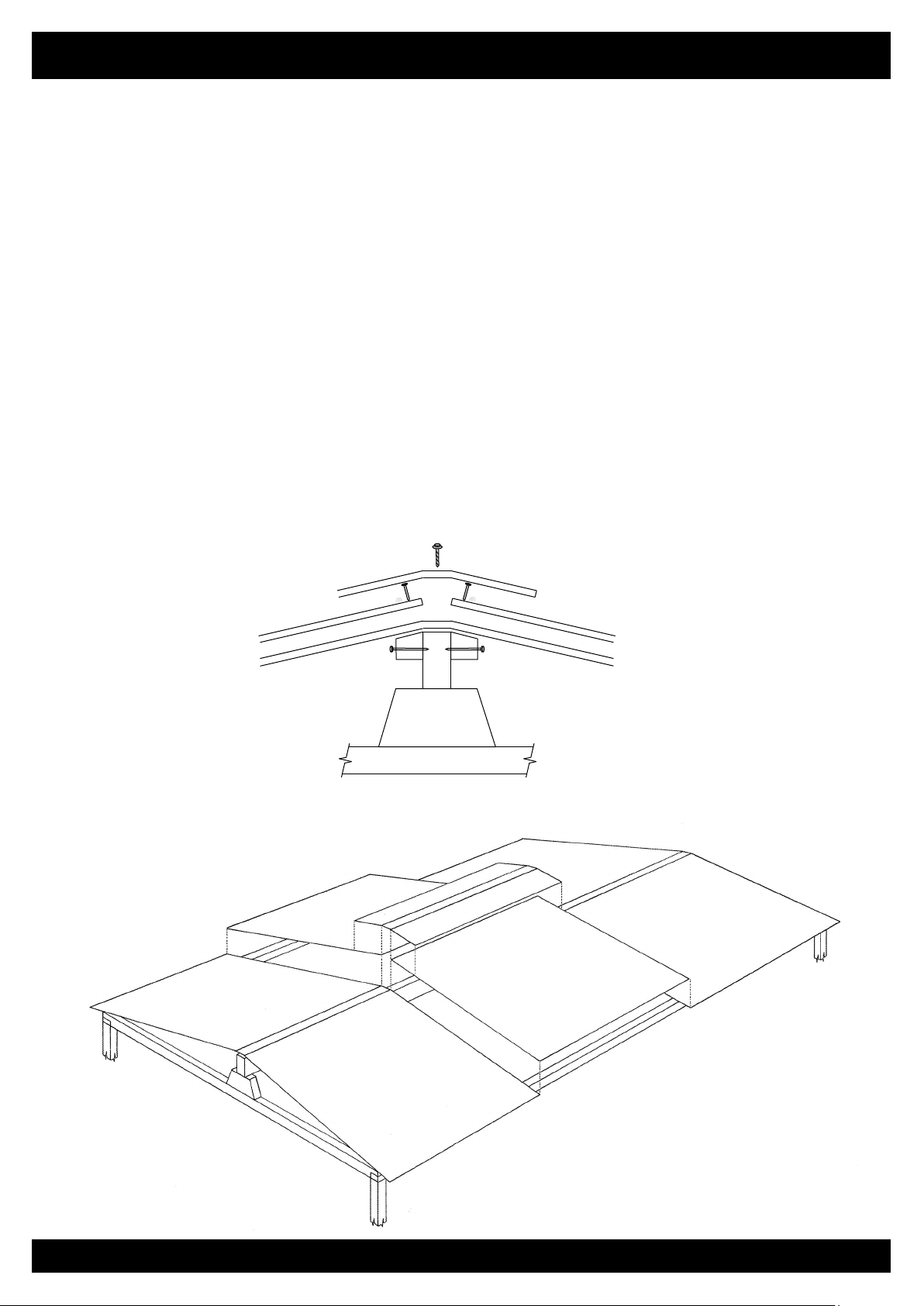

MK4B ROOF
Note: Condensation can form on the under side of shed roof. If building paper is required, fit now. Building paper will need to be sup-
ported by netting or roofing twine.
Step 2: Starting from the left hand end, centralize Roof on Ridge
Beam. Ensure Roof is tight against end Wall Sheets, predrill
then nail one 50mm Clout through Rib into the Ridge Beam.
At the back, line up Ribs on the Roof Sheet with the Ribs on
Wall Sheet. Using one 50mm Clout, nail through Rib into
Back Top Plate. Repeat at the front.
Note The 10 x 50mm Clouts on end ribs are covered by the Barge
Flashings.
Step 1: Position first Roof Sheet centrally over Ridge Beam
on the right hand end of shed with the LIP on the left
hand side. (For sheds with a Clear Roof Panel, go to
the next page). Position the next Roof Sheet. Ensure
it overlaps correctly then rivet together, one rivet in
the centre and one 600mm and 1200mm down from
the centre on both sides. Fit remaining Roof Sheet.
Step 3: Centralize Roof at the other end and nail through Rib
into the Ridge Beam and Top Plates, using 50mm
Clouts. Ensure Ridge Beams are straight, then Screw
one 50mm Roofing Screw into Ridge Beam through
each Rib on overlap (one screw per sheet per beam).
At the back, set up a String Line in centre of Top
Plate. Ensure Top Plate is straight and screw, using
one 50mm Roofing Screw per Rib. Repeat at the
front.
LIP
50mm Clout
Roofing screws

MK4B CLEAR ROOF PANEL (Optional)
12
Step 1: Leave a gap where the Clear Panel is to be fitted. Position the next Roof Sheet. Ensure it overlaps correctly, then rivet togeth-
er, one rivet in the centre and one approximately 600 mm down from the centre on both sides. Fit remaining Roof Sheets,
overlapping and riveting as you go. Nail on first Roof Sheet (refer step 3 on page 11).
Step 2: Where the Clear Roof Panel is to be positioned, nail a 45x45mm Bevelled Edge Support on each side of the Ridge Beam. fig.
1)
Step 3: Position Clear Roof Panel and Flat Roof Sheet (or second Clear Panel). The Flat Roof Sheet underlaps one sheet and overlaps
the other. The Clear Roof Panel OVERLAPS both Roof Sheets. Ensure sheet joins are flush at the outside edge then rivet flat
sheets to pressed sheets. Two rivets per join. Centralise Roof at the other end and screw in place.
Step 4: Ensure Ridge Beam is straight, then nail the Clear Panel and Flat Roof Sheet (or second Clear Panel) to 45x45mm Bevelled
Edge Supports using one 30mm Clout per Pan. Run two generous beads of Silicone on the under side of the Pressed Capping
Sheet. Position Pressed Capping Sheet on Ridge Beam and screw in place using three 50mm Roofing Screws. Screw one
50mm Roofing Screw into Ridge Beam through each rib on overlap, (one screw per sheet).
Step 5: Continue to fasten roof sheets as per step 4 on previous page (pg10)
Note: When Screwing through the Clear Panel, pre-drill a 6mm hole.
TOP PLATE
JACK STUD
RIDGE BEAM
45 x 45 BEVEL
75mm NAIL
SILICONE
30mm CLOUT
PRESSED
ROOFING SCREW
PRESSED
CLEAR ROOF
FLAT ROOF
Fig.1
Note: MK2 shown

13
MK4B DOORS
Step 2: Position right hand Door Track (D107) on front wall
up against underside of Roof, with left hand end
hard against the Centre Door Stop. Pre-drill hole in
centre and rivet in place. Remove ALL drill filings
Step 3: Hang right hand door in Door Track. At the right
hand end of Door Track, adjust up or down so that
the Door hangs parallel with shed. Fit one rivet at
right hand end to hold in place.
Step 4: Position left hand Door Track (C107). Follow Steps 2 and
3 to hang left hand Door. Where Door Tracks meet in the
centre, adjust up and down so that the Doors fit snuggly
together, then rivet in place. Remove Doors. Pre-drill
holes into each Rib and at similar spacings into Overdoor
Flashing. At approximately 1/3 in from each end of Door
Tracks put a 50mm nail. Rivet rest of holes.
Step 1: Top Door Tracks: Mark the centre of the doorway on
the Overdoor Flashing. Position Centre Door Stop on
the front face of the Overdoor Flashing and up against
the underside of roof. Pre-drill holes and nail in place
with 50mm nails.
Step 5: Clean out ALL drill filings. Also make sure the
Wheels are cleaned of drill filings. Re-hang Doors,
then insert door stops into the pre drilled holes at
end of tracks as shown in diagram. Tighten with
two spanners
Door Track
Bolt
Washer
Washer
Nut
Aluminium
Door Stop
DOOR
GUID
DOOR
CLADDING
BOT-
PLATE
Step 6: Bottom Door Guides: Slide Door to corner. Hang Door Guide (A108) on bottom of the Door. Lift up approximately 3mm so
that the Door will Slide freely. Pre-drill hole and nail in place using a 50mm nail. Slide to centre. Ensuring Door slides freely,
pre-drill hole and nail Door Guide in place. Check Door is not binding in the middle then pre-drill holes into each Rib at similar
spacing into Door Step Flashing. Nail off using 50mm nails. Repeat with other Door.
Note: For sheds with Raised Base Plate option the Door Step Flashing will protrude down past the Bottom Plate. Attach Door Guide
with rivets.

Step 3: On the back of the left hand door,
position latch so that the hook on
the door handle will be secure and
go in and out easily. Rivet in place
with four rivets.
Left Hand Door Right Hand Door
Hook
Latch
14
MK4B BARGE & SPOUTING
Step 1: Attach left hand and right hand barges (C102 &
D102) together with three rivets at top overlap. Posi-
tion Barge Flashings on gable ends. . Position Spout-
ing on the shed and rivet to barge Flashing at each
end. Repeat with other Spouting.
Step 2: Centralise Barge Flashing on gable end
and rivet in place, one rivet into every
second Rib. Fit two rivets through top of
Barge into Rib. Repeat with other Barge
Flashing. Check Spoutings are straight,
then rivet to Roof one rivet every second
Rib.
Step 1: Attach “ T” locking handle with two 8x10mm
screws TO R/H door (Door without the weather-
strip). Slide hook onto square shaft and secure
with a lock washer.
Step 2: Once doors are hung, position the Locking
Stays so they slide into the Locking Brackets
easily. Screw Locking Stays to Door Jamb.
SECURITY DOOR (Optional)

15
MK4B HASP & STAPLE
Using seven rivets, attach hasp to
Left Hand Door and the staple to the
Right Hand Door as shown.
RAISED FLOOR MODIFICATION
For sheds being placed on a purpose built floor,
(concrete, cobbles, ply etc.), the Wall Sheets will pro-
trude 20mm below the Base Plate. This will stop water
flowing in between the Base Plate and Floor.
The Floor should be made 15mm smaller than Base
Size.
Note: Although it is not essential, fitting Damp Proof
Course in between the Base Plate and the Floor
will give added protection against moisture.
CLEAN UP
• Remove all swarf (drill filings) with a soft brush or rag.
• Hose down roof and walls thoroughly.
• For Coloursteel sheds use touch-up paint provided on all nail heads, rivets and exposed cuts.

DURATUF PREMIUM SHED WARRANTY
GUARANTEE TO CUSTOMER
Congratulations on purchasing a Duratuf Storage Shed. With proper care and attention, this product will last many years.
For your benefit PLEASE READ THE FOLLOWING INFORMATION CAREFULLY.
WARRANTY ON METAL CLADDING
Riverlea Group Ltd guarantee that the metal roofing and wall cladding on Kiwi and Fortress Garden Sheds may be used in moderate and
inland corrosion zones or areas where the first year mild steel corrosion rate is less than 200g/m2, and that in these conditions, they will
not perforate due to corrosion within 30 years of date of manufacture.
TERMS AND CONDITIONS
1. Damage or corrosion due to the following circumstances is not covered by this warranty.
 Mechanical, chemical or other damage sustained during or after installation.
NOTE: Clean swarf off shed IMMEDIATELY after assembly
Do NOT mark cladding with pencil
Do NOT allow manures, chemicals or other corrosive materials to have direct contact with cladding
Chemical damage will result if these instructions are not carried out
 Force majeure or other causes beyond the control of Riverlea Group Ltd.
2. This warranty does not cover material installed in severe and very severe environmental situations, or in any area where the mild
steel corrosion rate (as published by BRANZ) exceeds 200g/m2.
3. Minimum maintenance must be carried out in accordance with instructions below.
Should the cladding fail to perform as specified above, the liability of Riverlea Group Ltd shall in all cases be limited to replacing or
repairing the defective product. The balance of the original warranty will cover any repaired or replaced material. Riverlea Group Ltd will
not be liable for any consequential loss or damage, labour or transport charges. All claims made in writing within 21 days of discovery,
quoting the reference number at the top right hand corner of this page.
MAINTENANCE
Following are the minimum maintenance requirements for cladding used in Kiwi Garden Sheds and Fortress Sheds.
 Washing all surfaces by rain, and annual hosing of sheltered areas using a hose and soft nylon brush.
 Within 2km of coast—wash every 3 months as above. After a storm, wash the cladding and the gutters as soon as possible
to remove any highly corrosive salt deposits.
 Volcanic Ash Fallout—wash as soon as possible, removing fallout from roof and gutters
 Gutters to be kept clean of leaves and dirt.
Should you require additional technical information please contact us at the details below.
Please visit http://www.riverleagroup.co.nz/warranty-garden-sheds to validate the Warranty on your shed.
Click on the Warranty Registration Link and complete all details.
If you are unable to access the computer, please phone us on 0800 438 274 and one of the customer services team will help you to acti-
vate the warranty on your garden shed.
Many thanks, from the Team at Riverlea Group.
WARRANTY REGISTRATION
