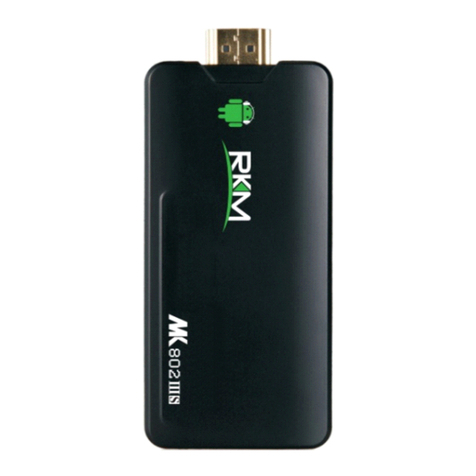

RKM MK802 IIIS User manual

RKM MK802 IIIS User Manual
Page0

RKM MK802 IIIS User Manual
Page1
Table of Contents
Declaration ............................................................................................................................................................2
1. Connector..........................................................................................................................................................3
2. Device connection Instruction...........................................................................................................................3
3. Boot state ..........................................................................................................................................................4
4. Main Screen Introduction ..................................................................................................................................5
4.1 Move/Delete desktop icon........................................................................................................................5
4.2 Function column.......................................................................................................................................7
4.3 Status bar.................................................................................................................................................8
4.4 Application................................................................................................................................................8
5. Settings..............................................................................................................................................................9
5.1 WIFI Setting ...........................................................................................................................................10
5.2 Ethernet Settin .......................................................................................................................................10
5.3 Portable host pot....................................................................................................................................10
5.4 Bluetooth (Optional, just available for MK802 IIIS-Blue tooth).............................................................. 11
5.5 PPPOE Setting....................................................................................................................................... 11
5.6 USB........................................................................................................................................................ 11
5.7 Sound.....................................................................................................................................................12
5.8 Display....................................................................................................................................................12
5.9 Screen....................................................................................................................................................12
5.10 Storage.................................................................................................................................................12
5.11 Apps......................................................................................................................................................13
5.12 Security................................................................................................................................................13
5.13 Language & input.................................................................................................................................13
5.14 Backup & reset.....................................................................................................................................13
5.15 Date & time ..........................................................................................................................................13
5.16 Developer options................................................................................................................................13
5.17 About device.........................................................................................................................................13
6. Browse /Copy Files .........................................................................................................................................14
7. Install/Uninstall Apps .......................................................................................................................................14
7.1 Online installation...................................................................................................................................14
7.2 Local installation.....................................................................................................................................15
7.3 Uninstall Apps.........................................................................................................................................15
8. DLNA...............................................................................................................................................................15
9. Multi-screen interaction................................................................................................................................... 15
10. Web Browsing ...............................................................................................................................................17
11. Local audio & video playback........................................................................................................................ 17
12. Use virtual keyboard......................................................................................................................................18
13. Switch input methods....................................................................................................................................18
14. System recovery/update ...............................................................................................................................19
14.1 Recovery/update on Windows XP system........................................................................................... 19
14.2 Recovery/update on Windows WIN7 system......................................................................................24
Question & Answer..............................................................................................................................................30
Specifications.......................................................................................................................................................31

RKM MK802 IIIS User Manual
Page2
Declaration
The user manual includes all the information of safe and correct operation instruction. To avoid
accident and product damaged, please make sure go through all the content carefully before using
the product.
Please keep the product away from high temperature, humid and dusty environment.
Do not drop or crash the product.
Do not cut off the device when it is formatting, or upgrading, otherwise it will cause operation
system error.
Do not dismantle the device. Do not clean it by alcohol, thinner and Benzene.
We keep the right to upgrade and modify the product.
Disclaimer: we only take the responsibility to provide the warranty and after service. The users
have to take care of their data in the device by themselves. We do not responsible for any data or
related lost.
The product is not water-proof.
All the pictures in the instruction are just for reference.

RKM MK802 IIIS User Manual
Page3
1. Connector
Micro-USB Power: Connect with TV USB port for charge the unit.
USB 2.0 HOST: Connect with other USB device.
USB OTG: Data transfer with PC, or connect USB device.
HDMI: High Definition Multimedia Interface Output
Micro SD: Support expanded 2GB-32GB TF card
2. Device connection Instruction
a) Take out the device insert into your TV HDMI port(if there is no enough space around HDMI
interface for MK802IIIS, please use HDMI extend cable), make sure source is HDMI input
mode.(Refer to TV set user manual).
b) Power supply connection: take out Micro USB cable to USB cable, connect the MK802IIIS with

RKM MK802 IIIS User Manual
Page4
TV via this cable; If the TV USB port can’t provide enough current, please take USB power
supply.(Any USB power supply among 5V/1A to 5V/2A are available).
c) Suggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host connector, if
only mouse plugged, the device will provide soft keyboard during operation; If the device detected
the physical keyboard, the soft keyboard will be hidden automatically.
d) Mouse left button for “ok”, right button for “return”, rolling for page up and page down, Keep
holding left button to drag icon or copy/paste file. Keep holding middle button to pop up
properties.
3. Boot state
After powered around 10 seconds, the boot screen would appear.
Then access to Rikomagic boot logo;

RKM MK802 IIIS User Manual
Page5
After around 30 seconds, device would access to main screen;
4. Main Screen Introduction
4.1 Move/Delete desktop icon
Long-press any icon in the main menu, you could put it in any position as you like, at the same time you
could put the other apps shortcut to the desktop.

RKM MK802 IIIS User Manual
Page6
Long press the icon and move it to the right above “×”and loosen, then you could delete it
Move your cursor to any space and drag towards left or right for page rolling. Also you can use the mouse
wheel for rolling page.

RKM MK802 IIIS User Manual
Page7
4.2 Function column
Return button: click to return to previous directory;
Homepage button: click it anytime to return to main menu;
Program button: Click to check all the running program;
Volume decrease button: Click to decrease volume;
Volume increase button: Click to increase volume;
Properties button: in different apps, it shows different contents. It′s equivalent to Windows
properties button;
Soft turn off button.

RKM MK802 IIIS User Manual
Page8
Hide icon: click for hide this function bar.
Search button: Located in the top left corner of the main menu, click this icon to pop up webpage
screen, user can input any website here.
Program tools button: Located in the right top corner of the desktop, click this icon to pop up all the
apps which has been installed.
4.3 Status bar
Located on the right bottom, display T-Flash Card, USB connection, Time, Wifi and Download status.
Click status bar, the hide menu will pop up:
4.4 Application
Click to pop up all the installed app and setup tools icon.

RKM MK802 IIIS User Manual
Page9
if the installed APP beyond the first page, drag the page or rolling the mouse roller will display the
second page of APP;
You can directly use these APPs, or set up related tools, or long-press those commonly used APP to
drag onto the desktop.
Click to access widgets, long press any widgets to form corresponding shortcut
on the desktop.
5. Settings
In the system user can setup according to their own requirements, such as network connection, language,
input methods, Video output resolution, Sound output and check storage space.
Click the tool bar to pop up below screen.

RKM MK802 IIIS User Manual
Page10
5.1 WIFI Setting
When opened the WIFI, the MK802 IIIS will auto search available wireless router signals within 20 meters,
user just choose a router and input correct password to connected network.
5.2 Ethernet Setting
If there is no WIFI in the house, suggest to connect a USB LAN adapter (please select right matched USB
LAN adapter) to setting Ethernet.
Setting method: Click “setting” “More” “Ethernet” tick “Use Ethernet”, then the Ethernet setting
finished.
5.3 Portable host pot
If connected the device with Ethernet (not WiFi ), then open portable host pot function, you could regard
MK802 IIIS as an wireless AP.

RKM MK802 IIIS User Manual
Page11
5.4 Bluetooth (Optional, just available for MK802 IIIS/8G/BT)
Bluetooth is a wireless technology standard for exchanging data over short distances (using
short-wavelength radio transmissions in the ISM band from 2400–2480 MHz) from fixed and mobile
devices, creating personal area networks (PANs) with high levels of security.
Open Bluetooth settings--> Scan and search equipment-->select a device, input Bluetooth wireless
password (if required) -->confirm. Then complete the Bluetooth pairing.
Notice:
Some equipment, for example, Bluetooth headset maybe have a fixed password (like 000), then you
must input corresponding password.
Some equipment without testing or without Bluetooth SIG examination and approval, may not
compatible with MK802IIIS.
5.5 PPPOE Setting
If the network needs dial-up, then click PPPOE Settings and input account and password.
Click “Setting “More” “PPPOE Settings” input account and password.
5.6 USB
For exchange data between the MK802 IIIS and PC.
Specific operation steps：
1. Equipment connection: take out the Micro USB to USB cable, connect the machine with PC through
this cable，at same time, connect the machine with TV through HDMI cable.
2. Settings: After device access to the main screen，click Settings USB Connect to PC, press
confirm. After the device access to USB mode, turn on USB storage. Now your computer could find the
device and you can copy/paste files freely.

RKM MK802 IIIS User Manual
Page12
5.7 Sound
This is for Sound settings;
Volume: Control volume level;
Operate prompt tone: Setting prompt tone during operating;
Screen saver sound: Setting screen saver sound.
5.8 Display
Font size: Setting font size according to their own request;
5.9 Screen
This is for Screen settings:
1. Screen ratio: Used for adjusting screen ratio.
2. Output Interface: Default HDMI
3. HDMI mode: User can setting corresponding output resolution according to the TV.Normally system
will be detected automatically.
5.10 Storage
In this option, user could view local storage space and external storage space, besides, user even can
uninstall or format storage equipment.
Notice: System divided the whole storage into seven partitions, only two partition visible, the other five

RKM MK802 IIIS User Manual
Page13
partition has been occupied byAndroid system which is invisible.
The balance space is equal to the sum of two partitions.
5.11 Apps
In this option, user could view installed and running apps, at same time could check DDR parameters.
5.12 Security
User can set password according to their request.
5.13 Language & input
1. User can set the language for system menus according to their Country or preference(60 languages
supported)
2. System default support Chinese and English, user need manual installing other input methods.
3. User could set keyboard and mouse cursor speed and simulated mouse step length at here.
5.14 Backup & reset
Backup: If there are some important files or apps inside, you′d better choose backup in case files lost.
Reset: If choose this option, and confirm, system will back to factory setting, all the user′s settings and
apps will missing, (Not suggest);
5.15 Date & time
Since there is no battery inside, the date and time setting can′t be saved.
Suggest setting to use the network synchronization time, as long as the network connected, then the date
and time will be with the network synchronization.
5.16 Developer options
USB debugging: During connecting with PC to exchange data, please open this option;
5.17 About device
User can check system info here.

RKM MK802 IIIS User Manual
Page14
6. Browse /Copy Files
1.Open file management on the desktop.
Internal Flash: Check internal storage space
SD Card: If TF card inside, icon will be highlight
USB: If USB device (HDD, U-disk) connected, the icon will be highlight.
Network Places: Through this option, user can access to other PC to find files and playback.
2.File Copy
Long-press a file or folder will pop-up a menu, including: Copy, Delete, Move, Paste, Rename options, if
no need execute operation, just click “cancel”.
7. Install/Uninstall Apps
MK802IIIS support many commonly used third-party apps. You can install or uninstall apps freely, there
are two methods available for installing Apps:
7.1 Online installation
Please login Google Play store or other Android marketing to download Apps (User should have Gmail
account if download from Google play store), After download system will remind you to install the Apps,
just click install according to the system prompt.

RKM MK802 IIIS User Manual
Page15
7.2 Local installation
User also can copy app from computer to U disk or TF card, insert the U disk or TF card to your device,
just click the APK icon to install according to the system prompt.
7.3 Uninstall Apps
Click SettingsApps, click anApps you want to uninstall, the uninstall window will pop up click uninstall to
uninstall. If you don′t want to uninstall just exit.
8. DLNA
DLNA : Through some special APP(such as iMedia Share Lite.), all the multimedia files can be pushed
from smart phone or Android tablet PC to big screen, user can share those pictures/music/videos with
family or friends freely.
9. Multi-screen interaction
Multi-screen interaction is the most popular technology. Through this function, user can remote control the
item by smart phone or any Android tablet PC. User can download the specialAPP (MK802 III) from
Google play store and install onto smart phone, the APK will including touch pad which can be used as
mouse; virtual keyboard, virtual remote control, return, G-sensor. Turn on G-sensor, user can play somatic

RKM MK802 IIIS User Manual
Page16
games by their smart phone freely.
Software Interface
Touch Pad
Virtual keyboard
Remote control Interface

RKM MK802 IIIS User Manual
Page17
10. Web Browsing
After connected network, you can access the webpage screen through the system browser.
New opened webpage will be shown on the screen as tag, click “+” to add new webpage, click “x“ to
close the webpage.
11. Local audio & video playback
Through the file manager, user can browse & playback those contents of TF card, USB flash or USB HDD.

RKM MK802 IIIS User Manual
Page18
12. Use virtual keyboard
If just connect USB mouse only, then below virtual keyboard will pop up;
If connect with physical keyboard, system will hidden the virtual keyboard.
13. Switch input methods
Click the keyboard icon at the right-bottom status bar from desktop;
All the installed methods will display as below picture, and you can choose one of you prefer:

RKM MK802 IIIS User Manual
Page19
14. System recovery/update
If your MK802 IIIS has following issues, please solve these issues by recovery/update methods.
1. If you need update to the latest firmware,
2. After boot, there is no signal;
3. There is only boot screen;
4. System running very slow, crashing;
5. Can’t find the wireless network equipment, or can’t connect wireless;
6. When installation apps, player loss power unexpected and cant boot up.
7. TF card update failed and can’t boot again etc.
14.1 Recovery/update on Win XP system
First, download recovery tool Batch Tool, driver and recovery firmware,(img file) from official
website.
Download, decompression the folder and find to double click, below screen will pop out,
then add img file.
