Lenovo IdeaCentre B310 User manual

Version 1.2
Machine type: 10051/4030
10052/4031
10058/7722
2010.08
Lenovo
IdeaCentre B3 Series
User Guide
31045682
31045682 IdeaCentre B3 UG_FM_V1.2 (EN)(R).indd 1 2010-7-19 14:34:32

Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
Danger: Be aware of extremely hazardous or lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2010.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 1 2010-7-19 14:34:46

31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 2 2010-7-19 14:34:46

1
Contents
Contents
Important Safety Information
Chapter 1 Using the Computer Hardware.............................. 1
1.1 Front view................................................................................2
1.2 Left and right view of the computer .........................................3
1.3 Rear view of the computer.......................................................4
1.4 Computer stand ......................................................................5
1.5 Connecting your computer ......................................................5
1.6 Important information about using the computer .....................9
1.7 Keyboard...............................................................................10
Chapter 2 Touch Screen Instructions ................................... 11
2.1 Touch Screen Calibration.......................................................12
2.2 User Gesture Instructions for the Touch screen......................12
2.3 Attentions when using the Touch Screen ...............................21
Chapter 3 Using the Rescue System .................................... 23
3.1 OneKey Recovery..................................................................24
3.2 Driver and Application Installation ..........................................24
3.3 System Setup........................................................................25
3.4 System Backup .....................................................................26
3.5 System Recovery ..................................................................26
3.6 Create Recovery Disc ............................................................26
Chapter 4 Using the Computer Software ............................. 27
4.1 Lenovo Dynamic Brightness system ......................................28
4.2 Lenovo Eye Distance System ................................................29
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 1 2010-7-19 14:34:46

2Contents
Chapter 5 System Maintenance and Recovery.................... 31
5.1 Restoring the System ............................................................32
5.2 Backup and Restore..............................................................32
5.3 Cleaning Up the Disk .............................................................32
5.4 Checking For, and Correcting Disk Errors ..............................33
5.5 Defragmenting the Disk(s)......................................................33
5.6 Performing Daily Maintenance Tasks......................................33
Chapter 6 Troubleshooting and Confirming Setup.............. 35
6.1 Troubleshooting Display Problems .........................................36
6.2 Troubleshooting Audio Problems ...........................................37
6.3 Troubleshooting Software Problems.......................................37
6.4 Troubleshooting Problems with Optical Drives and
Hard Disks.............................................................................38
6.5 Special considerations for troubleshooting Windows .............39
6.6 Wireless keyboard and mouse instructions ............................40
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 2 2010-7-19 14:34:46

1
2
3
4
5
6
Chapter
This chapter contains the following
topics:
ØComputer hardware introduction
ØInformation on computer connections
Note: The descriptions in this chapter might
vary from your computer, depending on
computer models and configurations.
User Guide 1
Using the Computer Hardware
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 1 2010-7-19 14:34:47

2User Guide
1.1 Front view
2
3 4 5 6 8 9 107
1
Camera LCD On/Off indicator
Built-in microphone Hard disk drive indicator
LCD On/Off Wireless LAN card indicator
Brightness down Bluetooth indicator
Brightness up Power button
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 2 2010-7-19 14:34:47

3
User Guide

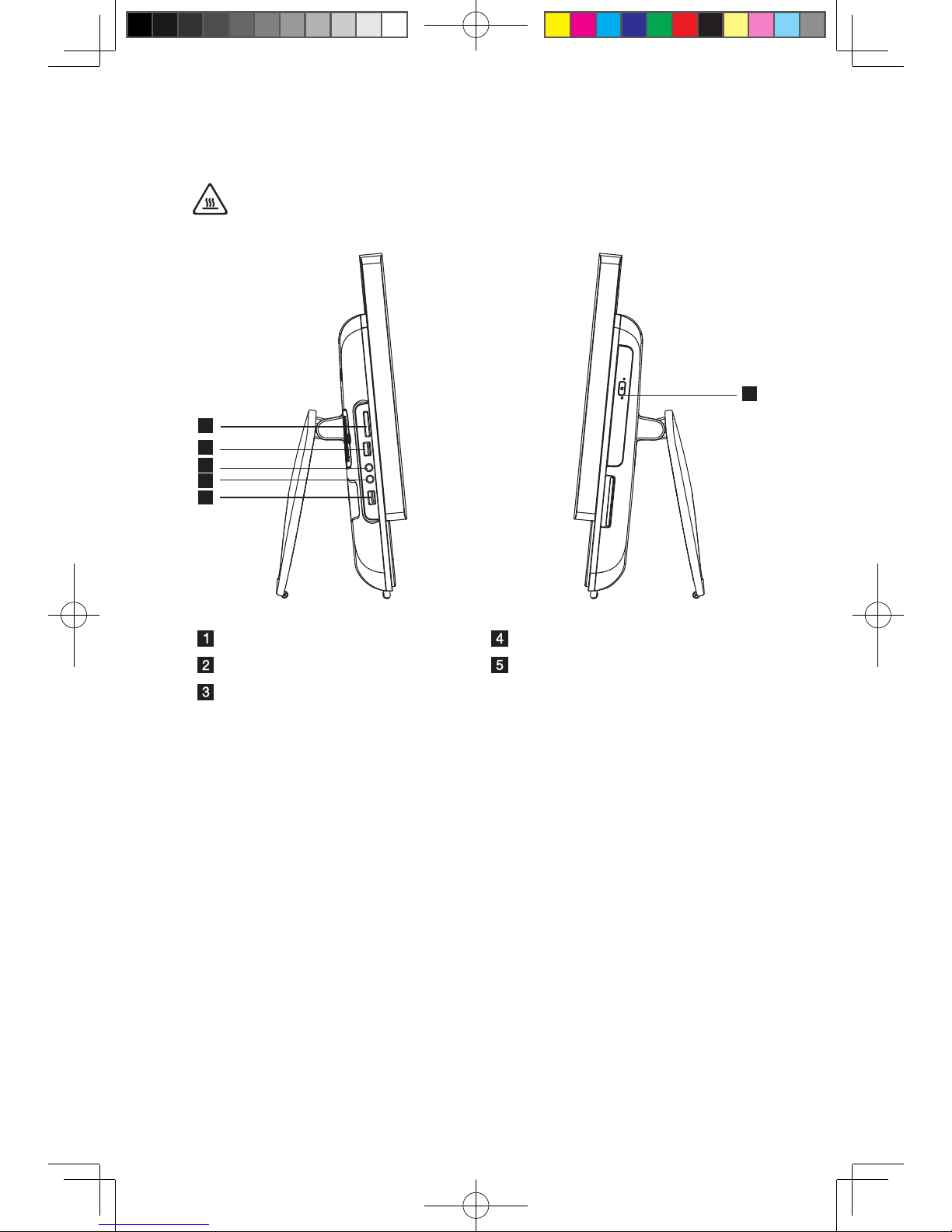

1.2 Left and right view of the computer
Attention: Be sure not to block any air vents on the computer. Blocked
air vents may cause thermal problems.
2
3
4
1
2
5
Memory card reader Microphone connector
USB connector Optical drive
Headphone connector
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 3 2010-7-19 14:34:48

4User Guide
1.3 Rear view of the computer
2
1
3
4
6
5
7
Power connector TV tuner connector (selected models)
PS/2 keyboard connector USB ports (4)
IEEE 1394 connector Wireless reset button
Ethernet connector
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 4 2010-7-19 14:34:51

5
User Guide

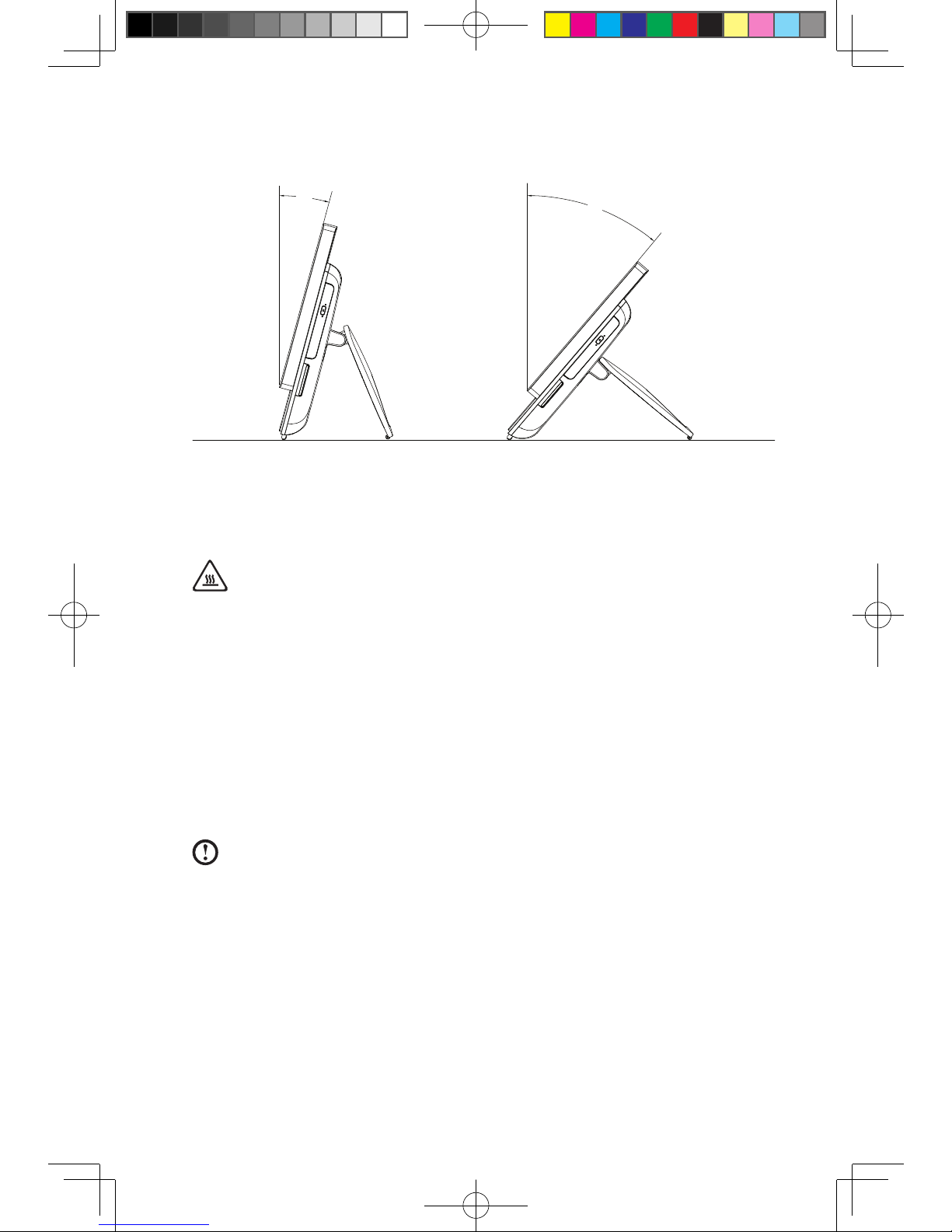

1.4 Computer stand
15°
40°
Use the stand to position the display to your preference. It can be rotated between
15º and 40º from the vertical.
The stand provides stability to the computer; it is not a removable part.
Attention:
1. The computer stand must remain installed at all times to ensure
maximum system stability.
2. Make sure the angle of the computer is at least 15 degrees from the
vertical; otherwise the computer will be unstable and could fall over.
1.5 Connecting your computer
Use the following information to connect your computer:
• Lookforthesmallconnectoriconsonthebackofyourcomputer.Matchthe
connectors to the icons.
Note: Your computer might not have all of the connectors that are
described in this section.
1.5.1 Check the voltage rating before you connect the
equipment to an electrical outlet to ensure that the
required voltage and frequency match the available
power source.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 5 2010-7-19 14:34:52

6User Guide
1.5.2 Connect the keyboard cable to the appropriate keyboard
connector (PS2 connector or USB connector).
1.5.3 Connect the mouse cable to the appropriate mouse
connector (USB connector).
1.5.4 If you have audio devices, attach them using the
following instructions:
12
Microphone Use this connector to attach a microphone (purchased separately)
to your computer when you want to record sound or if you use
speech-recognition software.
Headphone Use this connector to attach headphones (purchased separately)
to your computer when you want to listen to music or other
sounds without disturbing anyone.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 6 2010-7-19 14:34:52

7
User Guide

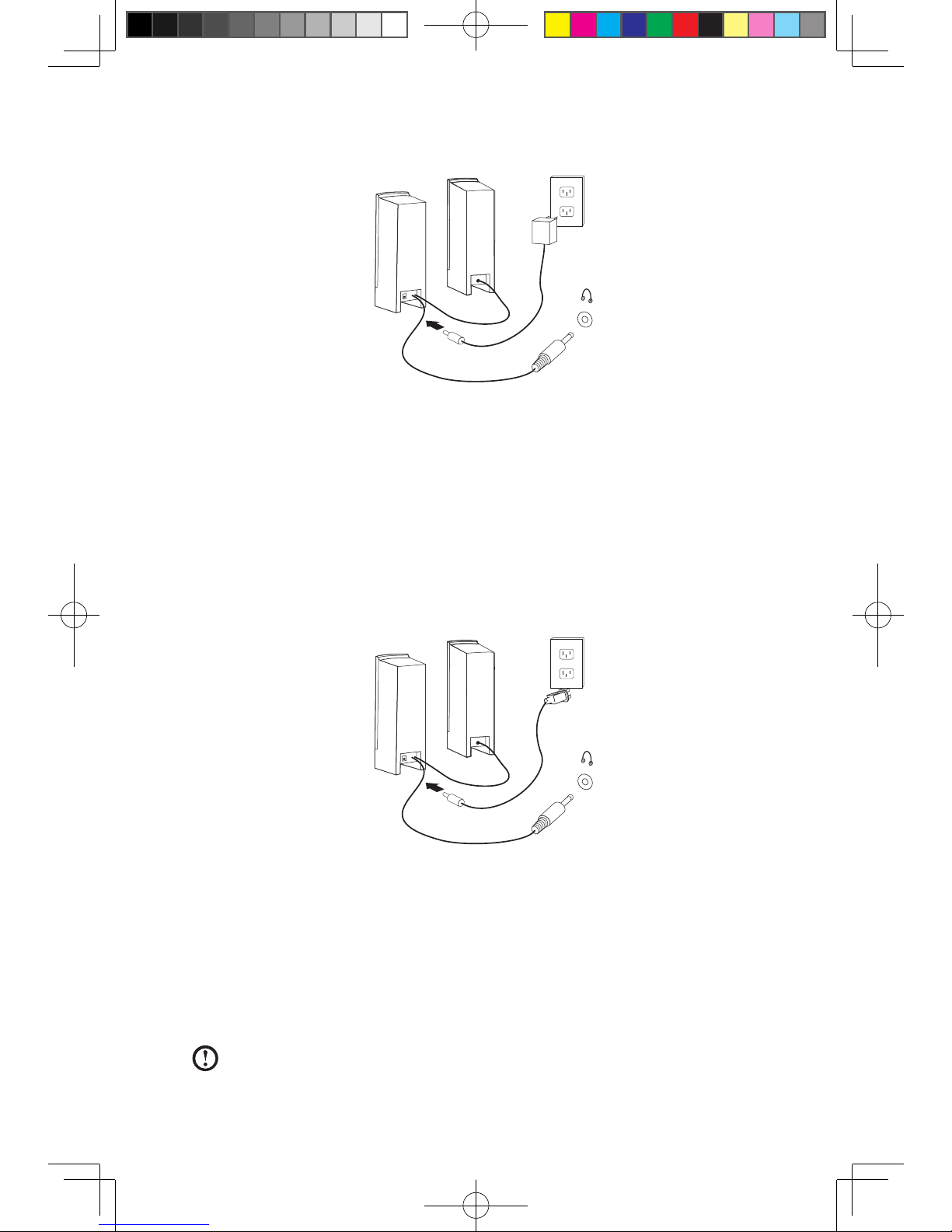

1.5.5 If you have powered speakers with an adapter:
(This picture is only a sketch print, it does not show the actual figure of the speaker)
a. Connect the cable that runs between the speakers if necessary. On some
speakers, this cable is permanently attached.
b. Connect the adapter cable to the speaker if necessary. On some speakers, this
cable is permanently attached.
c. Connect the speakers to the Headphone port on the computer.
d. Connect the adapter to the power source.
1.5.6 If you have powered speakers without an adapter:
(This picture is only a sketch print, it does not show the actual figure of the speaker)
a. Connect the cable that runs between the speakers if necessary. On some
speakers, this cable is permanently attached.
b. Connect the cable to the speaker if necessary. On some speakers, this cable is
permanently attached.
c. Connect the speakers to the Headphone port on the computer.
d. Connect the plug to the power source.
Note: Some models are not equipped with external speakers.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 7 2010-7-19 14:34:53

8User Guide

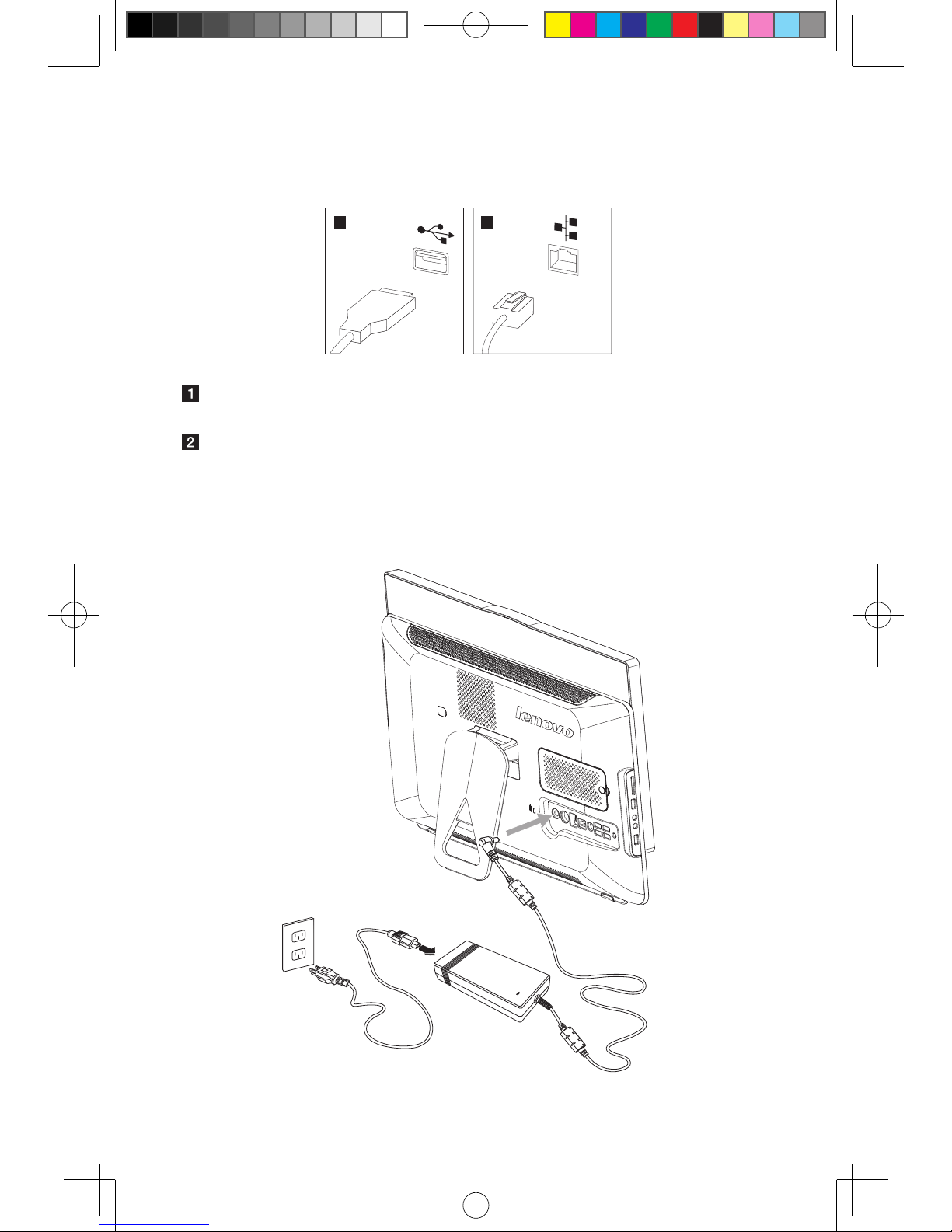

1.5.7 Connect any additional devices that you have. Your
computer might not have all connectors shown.
12
USB connector Use this connector to attach a device that requires a
USB connection.
Network adapter
connector
Use this connector to attach the computer to an
ethernet-type local area network.
1.5.8 Connect the power cords properly to grounded electrical
outlets.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 8 2010-7-19 14:34:56

9
User Guide
1.5.9 Your computer is equipped with a Memory Card Reader
Connector, it is able to read/write data from:
MS/MS Pro/MMC/SD/SDHC

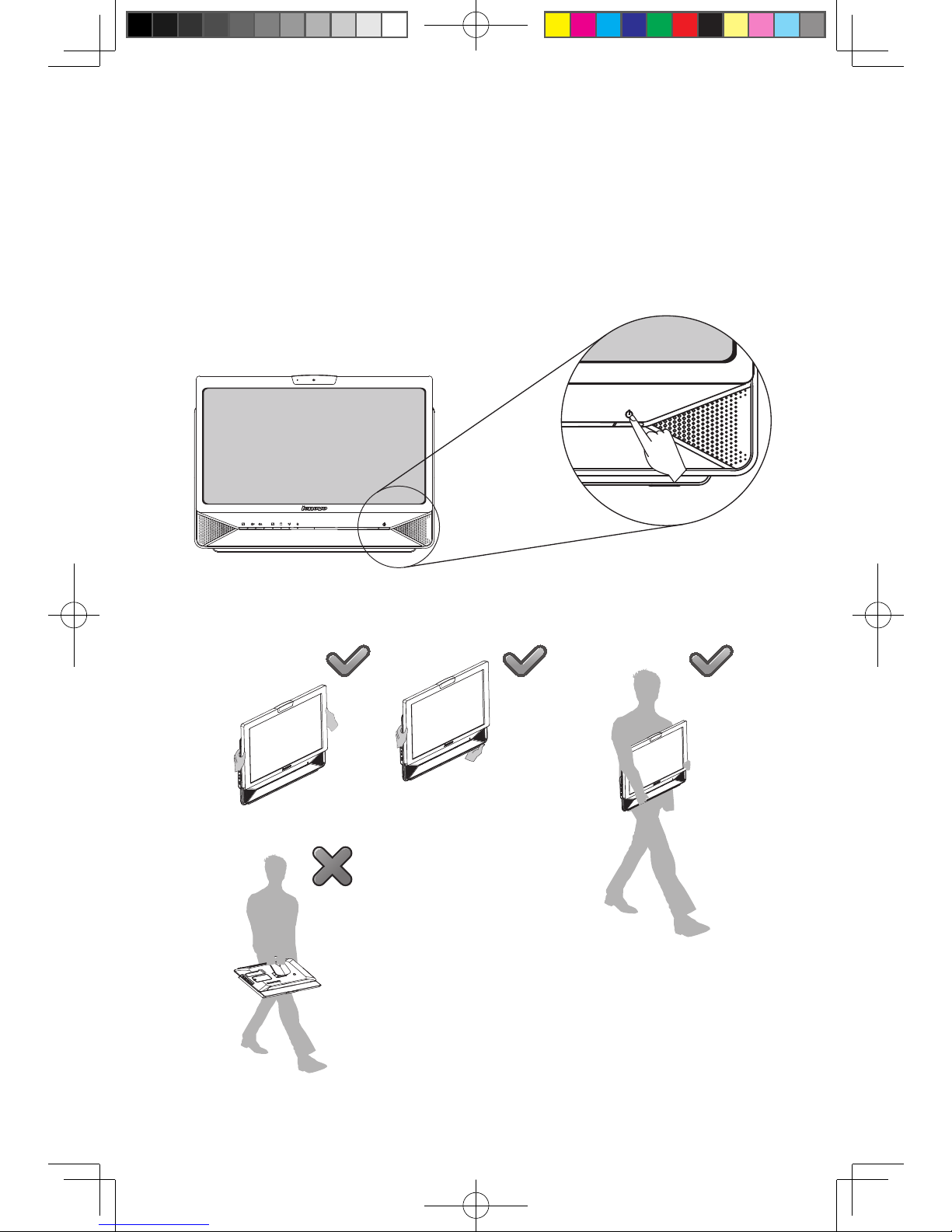

1.6 Important information about using the computer
Press the power button on the bottom right of the screen to turn on the computer.
Hold the computer tightly when you carry it.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 9 2010-7-19 14:34:57

10 User Guide

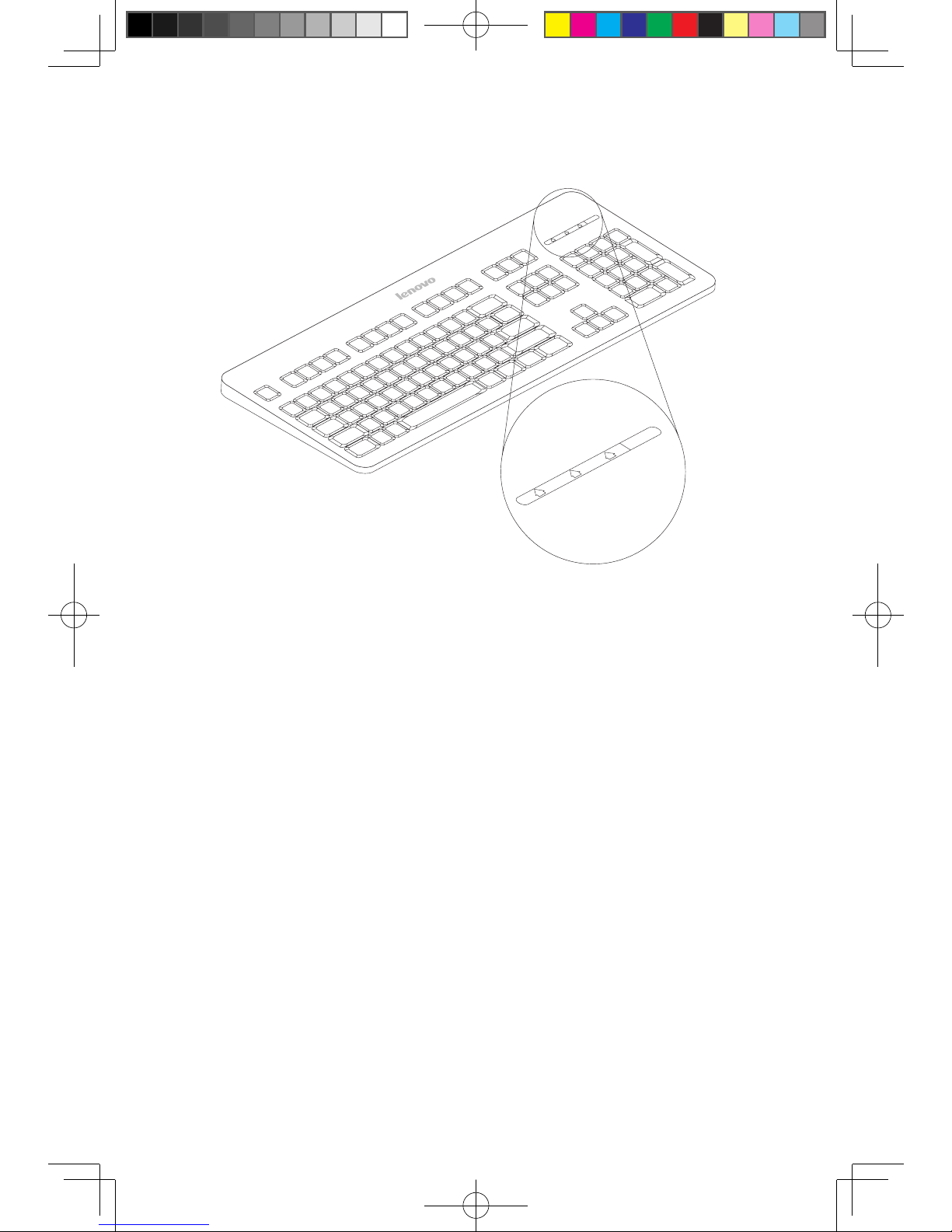

1.7 Keyboard
LVT
LVT
LVT —— After entering Windows, press this key to launch the LVT (Lenovo
Vantage Technology) program, Lenovo’s pre-loaded Home PC software.
In addition to its own functions, the LVT program will allow you to start
other Windows compatible software, specially configured to run on this
model of computer.
F2 —— Your computer has the Lenovo Rescue System installed. To learn more
about this program, turn on the computer, and when the Lenovo logo
appears, press the F2 key and the Lenovo Rescue System will open.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 10 2010-7-19 14:34:57

1
2
3
4
5
6
Chapter
Touch Screen Instructions
User Guide 11
This chapter contains the following
topics:
ØTouch Screen Calibration
ØUser Gesture Instructions for the Touch screen
ØAttentions when using the Touch Screen
Attention: Only some models are equipped
with touch screen.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 11 2010-7-19 14:34:58

12 User Guide
The monitor has touch capability due to a touch-sensitive screen installed. A touch
screen is an input device just like a mouse or a keyboard, and the user’s hand
transmits position information via the touch screen to the computer. With this
technology, you only need to touch the pictures or words on the computer display
lightly with your finger, and the computer will react.
2.1 Touch Screen Calibration
Prior to first use or whenever the touch screen reacts in a different place where you
are touching it, start the calibration program. The procedure is as follows:
1. In Windows 7, Select “Start” – “Control Panel”.
2. In Control Panel, select “Hardware and Sound”.
3. In “Hardware and Sound” window, select “Tablet PC Settings”.
4. In “Tablet PC Settings” dialogue, click “Calibrate” button.
5. Use your finger or the touch pen of 6-7mm diameter to touch each of the
calibration points that are shown in sequence, to finish the calibration.
2.2 User Gesture Instructions for the Touch screen

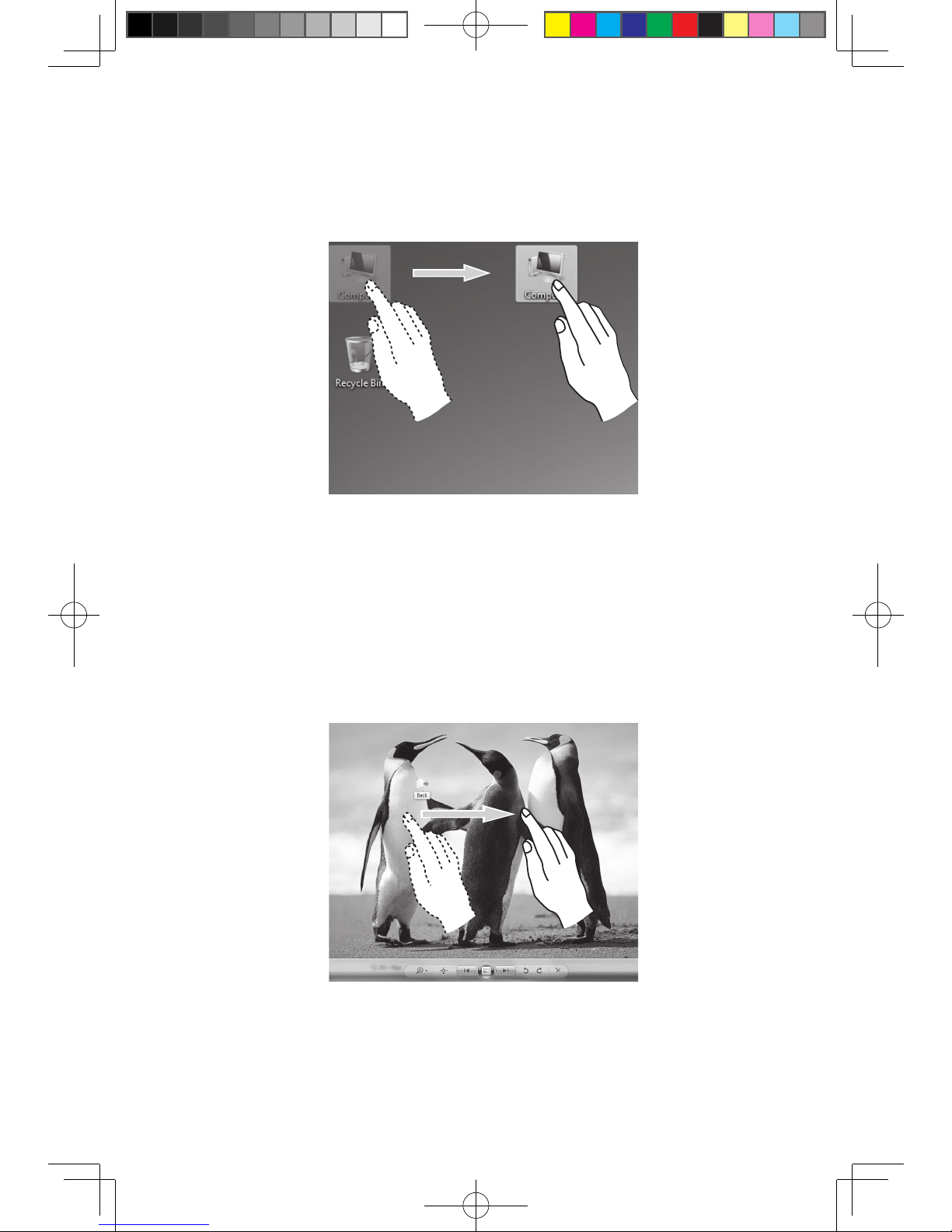

The Touch screen supports single touches and rotational movements, enlargement
and reduction multi-touch operations, and the user can transmit position
information to the computer via touch. The touch screen uses a very low pressure
movement recognition method, which only needs the finger to move lightly on the
computer display screen or make a simple hand gesture to be detected by the
main computer processor.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 12 2010-7-19 14:34:58

13
User Guide
2.2.1 Basic Hand Gestures

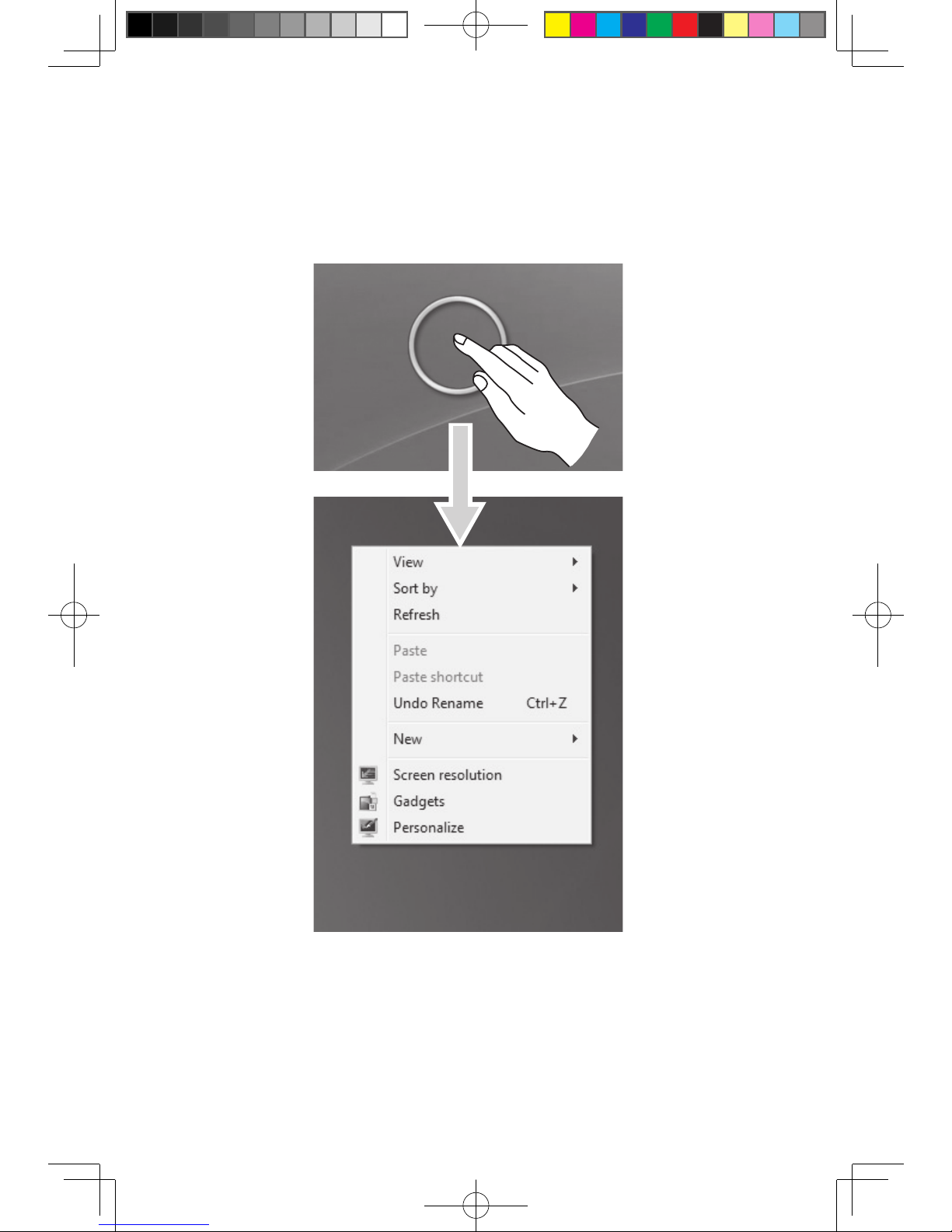

1. Single Click / Double Click
For the item selected on the touch screen, with one finger touch it very gently one
or two times, to perform a single click or double click operation. This is similar to
the action performed by clicking the left mouse button.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 13 2010-7-19 14:34:58

14 User Guide
2. Single Finger Right Click
For the item selected on the touch screen, press and hold your finger on the
screen until a circle appears. After lifting your finger from the touch screen, a menu
bar will pop up, completing the single finger right click operation. This is similar to
the action performed by clicking the right mouse button.
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 14 2010-7-19 14:34:58

15
User Guide
3. Dragging Movement
First touch your finger on the desired item on the screen and hold it there, then
make a dragging movement. This is similar to the click and drag movement you
can make with a mouse.
4. High Speed Slide
If you touch the screen with a single finger and slide it a short distance horizontally
(about 5 cm), then quickly lift it up again, this is called a High Speed Slide, and the
screen will show the “Forward” or “Back” icon.
In the default situation, a high speed horizontal sliding movement will execute a
forward or back operation. For example: Forward and Back operations for the
IE browser; or Previous and Next slide operations in Windows Photo Viewer
slideshow mode.
about 5 FP
31045682 IdeaCentre B3 UG V1.2 (EN)(R).indd 15 2010-7-19 14:34:59
