Robalec SW1000 User manual
IMPORTED BY
ROBAND AUSTRALIA PTY LTD
OPERATING INSTRUCTIONS
SOUP KETTLE
MODEL: SW1000
Page
2
Roband Australia is a wholly Australian owned company, which has
been manufacturing quality commercial catering equipment for the food
service industry for more than 55 years. Roband products are
engineered and manufactured to the highest standards to provide
functionality, reliability and durability, and our quality products are
exported world-wide.
Included in the comprehensive ROBAND® range are Toasters, Fryers,
Milkshake Mixers, Rotisseries, Food Display Cabinets and much more.
Roband Australia also manufactures Austheat® high performance
electric floor model Fryers.
Roband Australia acts as the Australian agents for Vitamix® Blenders,
NOAW® Meat Slicers and RYNO® commercial stainless steel
Benching.
In addition to a vast range of machines, Roband Australia has its own
line of commercial cookware and cutlery under the Robinox® and
Förje® brand names.
For a complete set of brochures please contact your nearest authorised
dealer or contact Roband directly at our head office.
ROBAND AUSTRALIA PTY LTD
1 Inman Road
CROMER
NSW 2099
Australia
Telephone: 61 – 2 – 9971 1788
Facsimile: 61 – 2 – 9971 1336
E-mail: [email protected]
Website: www.roband.com.au
© Copyright 2011 – Roband Australia Pty Ltd
All rights reserved. No part of this work may be reproduced or copied in any form or by any means,
electronic or mechanical, including photocopying or posting to a website, without the written permission of
the publisher. The material contained within this document is intended entirely for instructional purposes.
Page
3
CONTENTS
CONTENTS.............................................................................................. 3
INTRODUCTION...................................................................................... 4
GENERAL PRECAUTIONS..................................................................... 4
PACKAGING ........................................................................................... 5
COMPLIANCE......................................................................................... 5
INSTALLATION....................................................................................... 6
OPERATION............................................................................................ 7
GENERAL SAFETY................................................................................. 9
CLEANING, CARE & MAINTENANCE ................................................. 10
TROUBLESHOOTING........................................................................... 11
SPECIFICATIONS................................................................................. 12

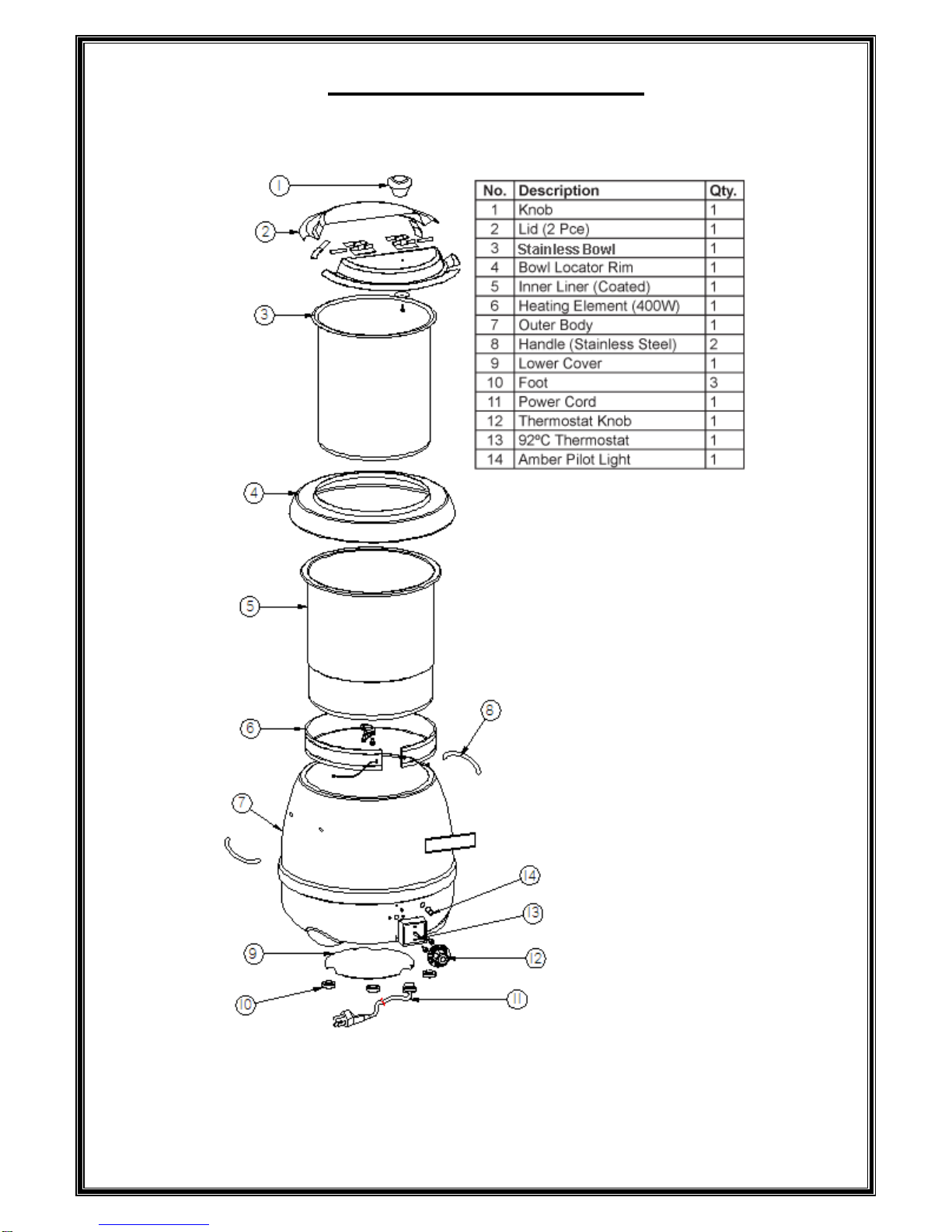

EXPLODED DIAGRAM ......................................................................... 13
EC Declaration of Conformity............................................................. 14
WARRANTY.......................................................................................... 15
Page
4
INTRODUCTION
Congratulations on your purchase of this quality Robalec™product.
With proper care and management your new purchase will give you
years of trouble free service.
By reading these instructions carefully you can ensure that this machine
is used and maintained properly, helping your new investment to
perform well for you now, and to continue performing in the many years
to come.
GENERAL PRECAUTIONS
This machine must only be operated by qualified person(s) who are fully
versed in the operating and safety instructions described in this manual.
Service persons should be instructed to familiarise themselves with any
and all safety instructions described in this manual prior to
commencement of maintenance.
In the case of new personnel, training is to be provided in advance. These
machines should not be operated by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience or
knowledge, unless they have been given supervision or instruction
concerning the safe use of the appliance by a person responsible for their
safety.
These machines are heating units, and as with any commercial heating unit
the surfaces will get hot. Always be careful when near an operating Soup
Kettle, and ensure that any risk to unwary customers or staff is minimised
with additional signage if necessary. Due to the obvious heat hazard
Roband recommends that these units be kept out of reach of children.
The performance of this unit cannot be guaranteed for operational use
outside its design parameters.
The machine should be disconnected from all power and allowed to
cool before cleaning.
Roband will accept no liability if;
♦ Non-authorised personnel have tampered with the machine.
♦ The instructions in this manual have not been followed correctly.
♦ Non-original spare parts are used.
♦ The machine is not cleaned correctly, with the right product.
♦ There is any damage to the unit.
Page
5
PACKAGING
All care is taken when packing and Roband ensures that every unit is
functional and undamaged at the time of packaging.
The Package of this Soup Kettle should include:
1) One Soup Kettle
2) One Lid
3) Magnetic Label Holder
4) This Manual
5) Packaging Materials
Any damage to the machine as a result of freight must be reported to the
Freight Company and to the agent responsible for the dispatch of said unit
within three (3) days of receipt. No claims will be accepted or entertained
after this period.
COMPLIANCE
Robalec™products have been designed and manufactured to comply with
any and all specifications set out by the Australian Communications
Authority (ACA) in regards to Electromagnetic Compatibility. As testament
to such compliance these units bear the C-Tick symbol.
For further information contact the Australian Communications Authority, PO
Box 13112, Law Courts, Melbourne VIC 8010.
Page
6
INSTALLATION
Remove all the packaging materials and tape.
Place the Soup Kettle on a firm, level surface in the required position.
Before connecting the Soup Kettle to the power supply, ensure that all the
controls are in the "OFF" position.
Plug the Soup Kettle into an unshared standard, single phase,
10 Amp power point.
National Standards exist outlining the positioning, spacing and ventilation
requirements when installing new appliances. These Standards should be
consulted and new equipment should be installed accordingly. In any
situation where specifications allow a distance of less than 100mm we
would still recommend that a well-ventilated air gap of not less than 100mm
be maintained. If the machine is near particularly heat-sensitive materials
common sense should be employed in determining sufficient distancing.
Page
7
OPERATION
The Soup Kettle is automatically controlled by a thermostat which
maintains the preset temperature. An Amber Pilot light beside the
thermostat control will be illuminated when the appliance is in heating
mode. After the soup reaches preset temperature, the Amber Light will turn
Off. To operate the Soup Kettle, follow the procedure below.
♦ Remove Stainless Bowl from Soup Kettle and insert 600ml of water
into the inner liner. Replace the Stainless Steel bowl. The water
should sit between the 2 bowls. Never overfill with water and under
no circumstances should the stainless steel bowl float up, even when
empty. Remove excess water immediately.
Warning: Regularly check the levels of the water in the inner liner. It is
likely that water will evaporate due to high temperature. If the level drops
below 600ml, immediately top up with additional water.
Note: The Soup Kettle has a protective coating over the inner liner to
prevent the aluminium from Pitting. If this Liner is damaged or worn away,
poor quality water will cause rapid pitting. In areas of hard water (especially
South Australia & Western Australia) demineralised water should be used.
♦ Insert cooked soup into the stainless steel bowl and position the lid
into place
♦ Preset desired temperature on control knob using the approximate
graduations illustrated.
Note: While the adjustable thermostat is good at maintaining preset
temperatures, different soup viscosity and the amount of stirring will affect
the accuracy of the temperatures listed on the control knob. Stirring
regularly will maintain the closest temperatures. The temperature
graduations on the knob should be used as a guide only! If precise
temperatures are required, we recommend using a separate probe
thermometer.
Tip: The Soup Kettle in its highest setting is capable of slow
cooking/simmering, however for faster preparation we recommend heating
up the soup in a separate pot on the stove first, then transfer the soup to
the stainless steel bowl. Prolonged use on high will produce condensation.
In such cases the unit may appear to be “leaking.”
Page
8
OPERATION (Continued)
♦ Plug the Soup Kettle into an unshared standard, single phase, 10 Amp
power point. Caution: Never plug in the power cord without inserting
the 600ml water and loaded Stainless Cooking Bowl inside the cooker.
♦ Always disconnect from electrical outlet when appliance is not in use.
♦ Always keep the removable hinged lid attached and in the closed
position when not serving.
♦ Never move or carry the Soup Kettle when it contains hot soup or
liquid.
♦ Spilled food should be removed immediately from all exterior
surfaces. The body exterior and top collar should be cleaned with a
damp cloth.
Warning: NEVER operate empty unit! Always operate with 600ml of water
Make sure the unit is unplugged while not in use, when filling with soup or
water and when being cleaned.
Page
9
aSAFETY a
GENERAL SAFETY
This machine contains no user-serviceable parts. Roband Australia, one of
our agents, or a similarly qualified person(s) should carry out any and all
repairs. Any repair person(s) should be instructed to read the Safety
warnings within this manual before commencing work on this unit.
Do not remove any cover panels that may be on the machine.
This unit can get very hot, ensure everyone is aware that the machine is
operating and take care to avoid contact with hot surfaces.
Always ensure the power cable is not in contact with hot parts of the
machine when in use.
Ensure that any damaged power cord is replaced before further use.
Keep out of reach of children.
Do not immerse the unit, cord or plug in any liquid.
Do not share the power point with another machine.
Do not operate unit if it malfunctions or suffers serious damage.
Page
10
CLEANING, CARE & MAINTENANCE
Attention to regular care and maintenance will ensure long and trouble free
operation of your Soup Kettle. Although scheduled servicing is not required
we do recommend you adopt a program of regular maintenance to ensure
that the Soup Kettle is clean and functional and to avoid inadvertently
damaging the unit.
Daily cleaning should be considered mandatory for all cooking equipment.
In order to ensure the proper cleaning and to avoid damage to the Soup
Kettle the instructions below should be followed.
♦ Ensure the power is off, the Soup Kettle is unplugged and cool before
attempting to clean any part of the machine.
♦ Do not immerse the Soup Kettle in water. Wipe the outside of the Soup
Kettle down using a damp sponge or cloth.
♦ To Clean the inner liner, gently wipe using a soft sponge or rag with a
soapy water solution. Do Not use abrasive cloth or course material as this
will damage the protective coating.
♦ To clean the cooking pot, soak it in hot soapy water and gently clean the
bottom of the cooking pot with a cloth.
♦ Wipe the Soup Kettle body, Inner Liner and Stainless Bowl dry before
storing or before using again.
♦ Do not clean this unit with the use of a water jet.
Page
11
TROUBLESHOOTING
The Amber light indicates when the Soup Kettle is cooking/warming. If this
does not light up when switched on and the water is not heating check the
following before calling for service.
√ That the machine is plugged in correctly and the power is switched on.
√ That the power point is not faulty.
√ Check for objects caught between the cook pot and the Inner Liner and
that there is 600ml water between the 2 bowls.
√ Check that thermostat has been set to desired temperature and is not in
the "OFF" position.
√ Wait and check that the thermostat is not in an "Off Cycle"
Only after all these points have been checked should you call for service.
Page
12
SPECIFICATIONS
Model SW1000
Power Source 220-240 Volts AC
Power Consumption 380-400 Watts
Nominal Dimensions (h) 400mm
Ø385mm
Diameter 400 mm
Height 385 mm
Capacity 10 Litres
Constant research and development may necessitate specification
changes at any time.
Page
13
EXPLODED DIAGRAM
Page
14
EC Declaration of Conformity
Manufacturer
Roband Australia
1 Inman Rd
Cromer
NSW, 2099
Australia
Model Type 10L Soup Warmer
Description 10L Soup Warmer
Date of first CE Marking 1st March 2009
Specific Models SW1000
Standards:
This machine is designed in compliance with
• Machinery Directive 2006/42/EC
• Low Voltage Directive 2006/95/EC
• EMC Directive 89/336/EEC including amendments to 93/68/EEC
• WEEE Directive 2002/96/EC (WEEE)
• Restriction of Hazardous Substances in Electrical and Electronic Equipment
2002/95/EC (RoHS)
• EN60335.1 Household and similar Electrical Appliances
• EN60335-2-15 Appliances for Heating Liquids
• EN55014.2: 1997 Electromagnetic compatibility. Requirements for household
appliances, electric tools and similar apparatus. Immunity.
Environmental:
This product is designed in order to contribute as little as possible to the quantity and noxious
nature of waste and risk of pollution or other environmental contamination.
Packaging materials used in this machine are designed to be recyclable.
Declaration
I hereby declare under our sole responsibility that the product mentioned above to which this declaration
relates complies with the above-mentioned standard(s).
Roband Australia has appointed Valera Ltd as our EU Authorised Representative of :
5-7 The Glade Business Centre, Eastern Ave, West Thurrock, Essex, RM203FH , UK.
Signature of Authorised Person: Date: 15th January 2010
Print Name: Mal Johnston Position: Director of Engineering
Page
15
WARRANTY
Every care is taken to ensure that no defective equipment leaves our factory and all
goods manufactured by us are guaranteed against faulty workmanship and materials for
a period of 12 months from the date of purchase. Glass and lamps are not included in
this warranty. Generally, all goods claimed under this warranty must be returned to the
factory or an authorised service agent, freight prepaid, for inspection. Any part deemed
to be defective will be replaced, however, no claims will be entertained for parts
damaged in transport, misused or modified in any way without our approval. For
machines that are not considered to be portable (e.g. food bars, rotisseries, large
hotplates and some bain maries), on site warranty service will be provided in capital city
metropolitan areas only. In all other locations, the customer is responsible for all
travelling time/service call costs and payment for this will be required prior to the
commencement of the repair. The labour costs to actually repair the fault will be met by
this company.
This company reserves the right to reject a claim for warranty if it is not completely
satisfied with the circumstances under which it occurred and any costs incurred for false
claims or faults due to incorrect usage etc. are the responsibility of the claimant. Under
no circumstances shall Roband Australia Pty Ltd or any subsidiary company or Agent
be liable for loss of profit or damage to other equipment and property.
Generally, authorised service agents are located in all areas which have authorised
distribution dealers. For the name of your nearest Australian authorised service agent
please contact:
ROBAND AUSTRALIA PTY LTD
Warranty Number: 1800 268 848
Phone: (02) 9971 1788 Fax: (02) 9971 1336
All other countries please contact your selling agent.
Please complete the following details and keep this card in a safe place.
NAME: ________________________________________________________________________
ADDRESS:_____________________________________________________________________
MODEL No.:_____________ SERIAL No.: _____________ DATE PURCHASED:__________
NAME OF DEALER:______________________________________________________________
PLEASE RETAIN THIS SECTION FOR YOUR RECORDS
DO NOT POST
ROBAND AUSTRALIA PTY LTD
Page
16
ALSO AVAILABLE AT YOUR ROBAND
DISTRIBUTOR
ECO-RAY AUTOMATIC ROBINOX & FÖRJE
NOAW SLICERS TOASTERS AND GRILLERS KITCHEN &TABLEWARE
HIGH SPEED CONTACT ROBATHERM AUTOFILL VERTICAL TOASTER
GRILL BOILING WATER UNITS
VITA-MIX FRYERS GRIDDLE HOTPLATES/TOASTERS
BLENDERS
Manufactured/Imported in Australia by
ROBAND AUSTRALIA PTY LTD
Authorised Distributor/Agent
Table of contents
