Robe Anolis Calumma XL MC User manual

V
ersion
1.0
QR code for user manual

Calumma XL
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 4
3. Installation .................................................................................................................................................................. 5
3.1 Mounting the fixture ............................................................................................................................................ 5
3.2 Connection to mains ............................................................................................................................................. 5
3.3 Top hat installlation .............................................................................................................................................. 7
3.4 Half top hat installlation ....................................................................................................................................... 8
4. Control and connection options ................................................................................................................................. 9
4.1 DMX or DALI.......................................................................................................................................................... 9
4.2 Wireless DMX...................................................................................................................................................... 10
4.3 Wireless DMX to wire DMX ................................................................................................................................ 11
4.4 Power On/Off ...................................................................................................................................................... 11
4.5 DMX or Ethernet via E-box ................................................................................................................................. 12
4.5.1 Booster box .................................................................................................................................. 18
4.5.2 Booster box installation ............................................................................................................... 20
5. Software update ....................................................................................................................................................... 22
6. Technical specifications ............................................................................................................................................ 25
7. Cleaning and maintenance ....................................................................................................................................... 31
7.1 Disposing of the product .................................................................................................................................... 31
8. ChangeLog ................................................................................................................................................................ 31

Calumma XL
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR CALUMMA!
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Unauthorized modification will void warranty.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before servicing or cleaning.
Make sure the power/data cable is not damaged by sharp edges.
Do not install the unit near an open flame.
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with
a protective earthing connection.
Do not connect this fixture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam from a short distance without suitable protective
eyewear. Do not look at LEDs with magnifiers or similar optical instruments that may concentrate the light
output.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials when the fixture is under operation.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or
maintenance.

Calumma XL
4
Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons
not qualified to operate the fixture. Most damages are the result of unprofessional operation!
Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard
EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and
entertainment lighting control apparatus for professional use. Part 2: Immunity.
The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m.
The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by
this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock etc.

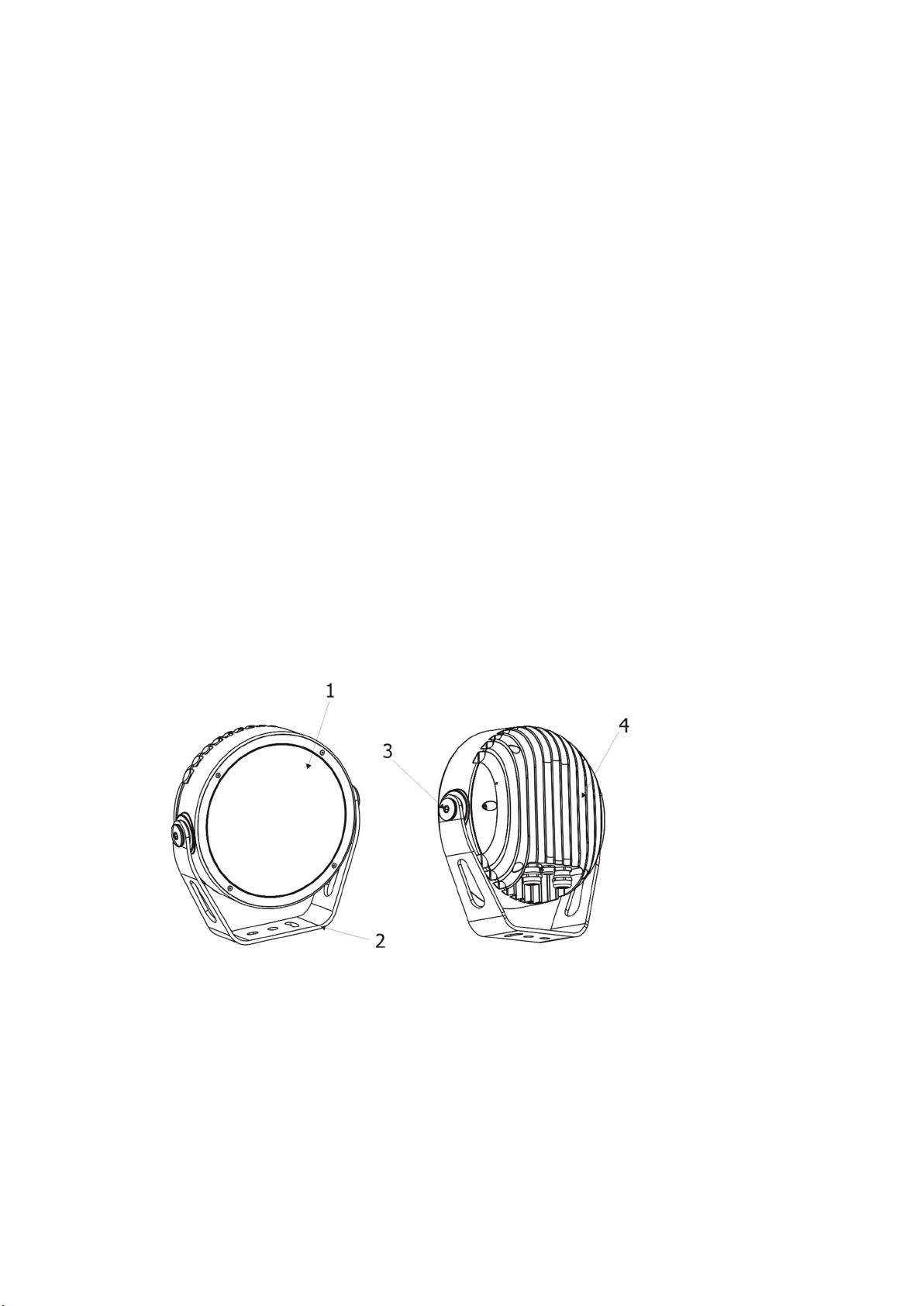

2. Fixture exterior view
1. Transparent glass cover
2. Mounting yoke
3. Tilt adjusting lock
4. LED module with heat sink

Calumma XL
5
3. Installation

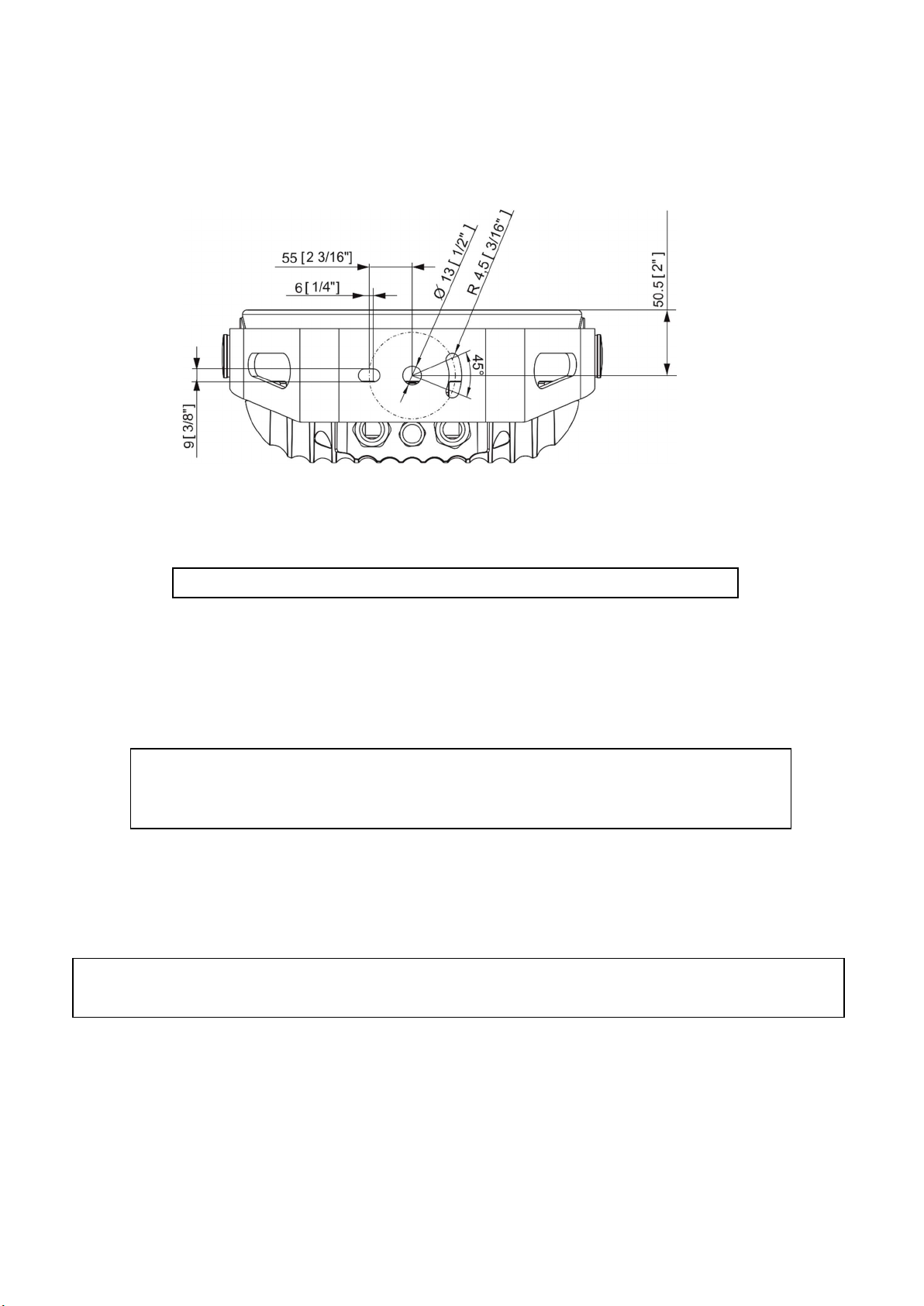

3.1 Mounting the fixture
The Calumma can be fastened in any orientation on a flat, non-flammable surface by means of mounting yoke (2).
The LED module (4) can be tilted +180°/-180°. Use an Allen key 2.5 for adjusting a LED module position.
Ensure that the structure to which you are attaching the fixture is secure.
3.2 Connection to mains
The unit must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulations.
This device falls under class one and must be grounded!
The Calumma is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power
source from 120-277 Volts.

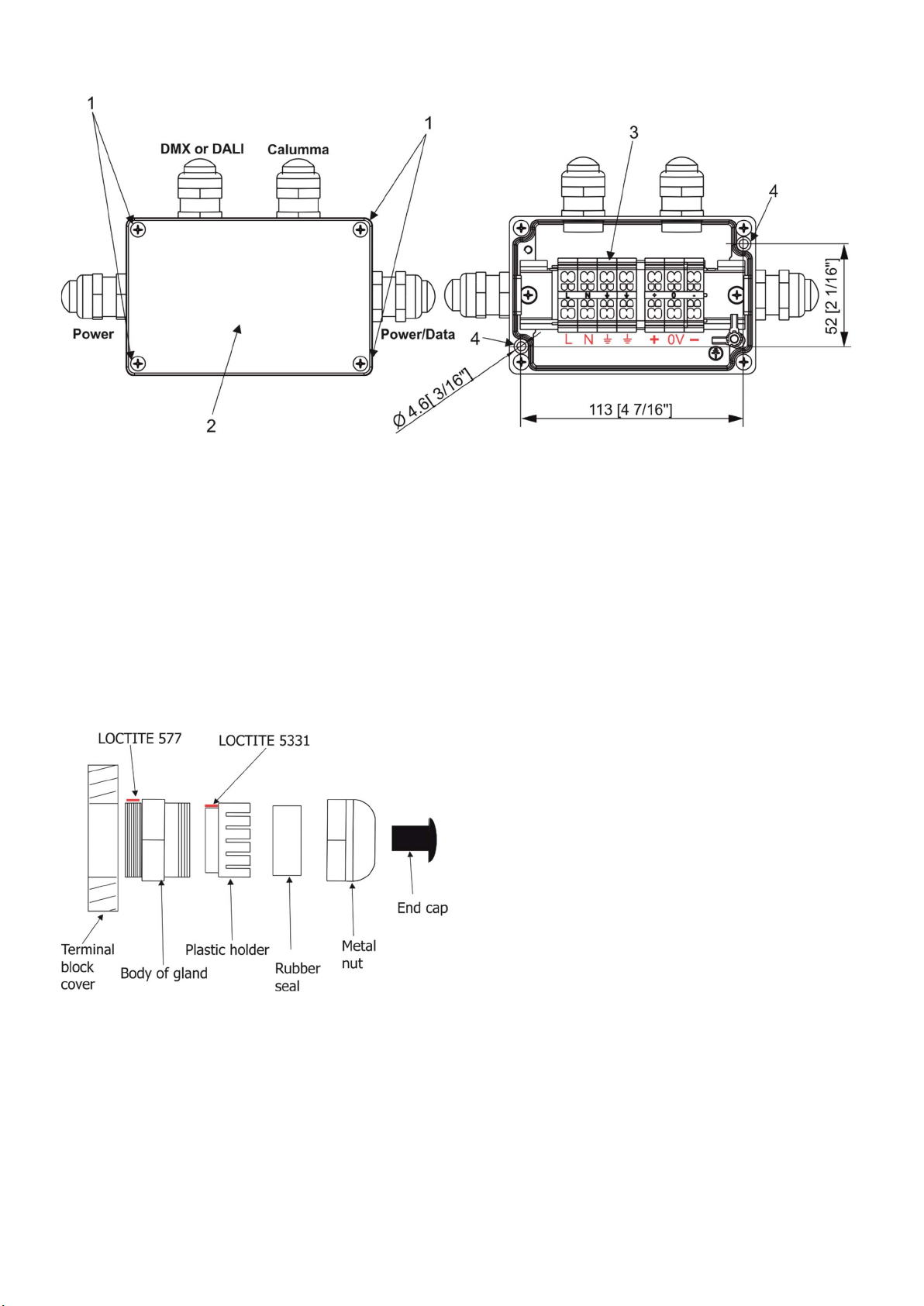

3.2.1 Junction box installation
The junction box box falls under protection class I . Therefore, every junction box
has to be connected to a mains socket outlet with a protective earthing connection.
1.Unscrew the four screws (1) from the cover (2) on the junction box to get access to the terminal block (3) and
two mounting holes of diameter of 4.6 mm (4).
2. Screw the junction box on a non-flammable flat surface.

Calumma XL
6
3. Connect cables.
The cable gland M20 x 1.5 with a standard seal serves for a cable of diameter of 7-13mm, for smaller diameter of
cable (4-8mm) you have to remove the original seal from the cable gland M20x1.5 and use enclosed reducing seal
instead of it. The reducing seal for diameter of cable 4-8mm (P/N 13051388) is enclosed in the Junction box.
Remove the end cap from the cable gland before passing the cable.
We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland
before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on the thread of the
gland body.
Cable gland M20x1.5:
4. Screw the cover (2) back on the junction box.

Calumma XL
7

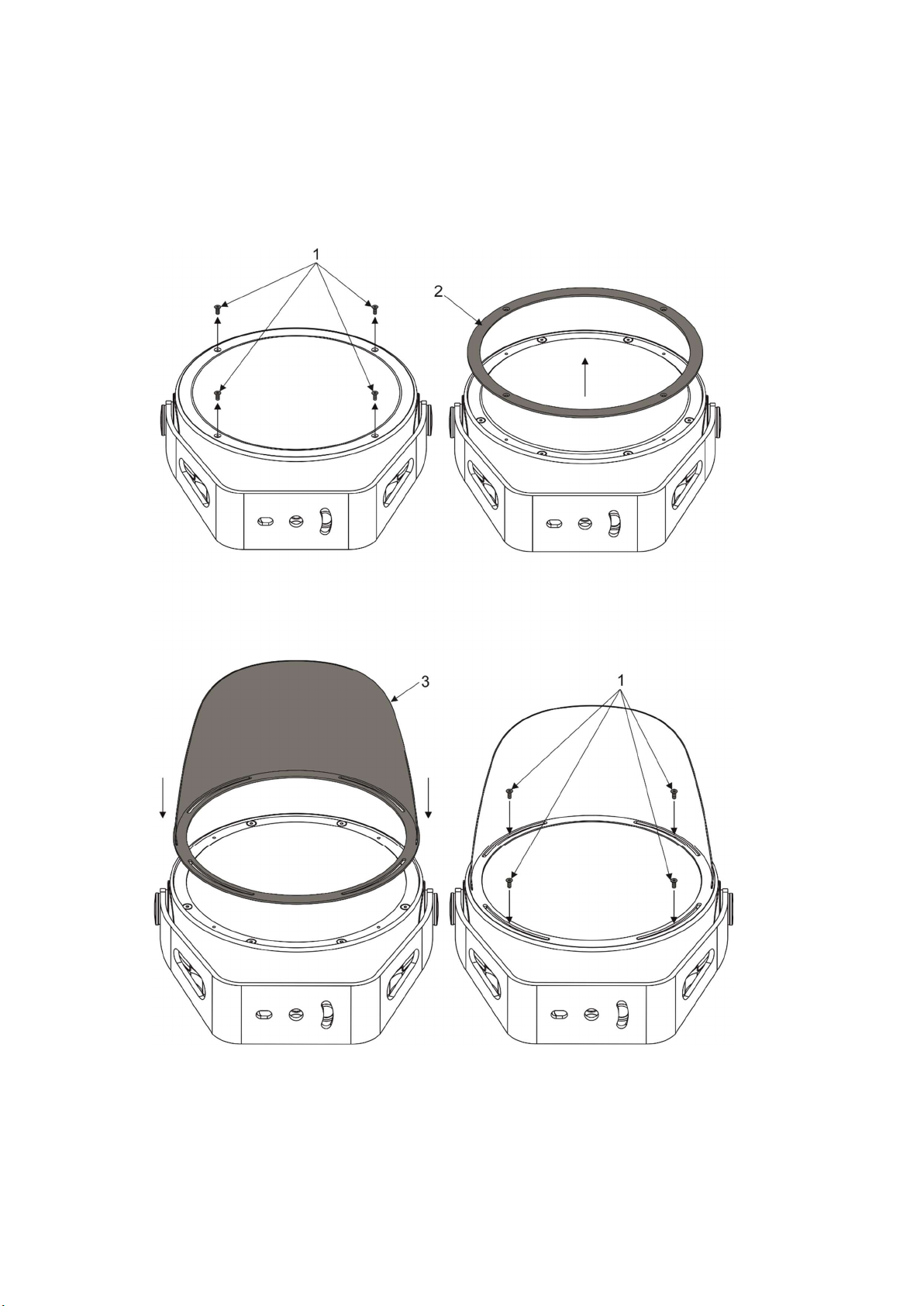

3.3 Top hat installlation
1. Unscrew the four flat-head screws M3x8 (1) from the front of the Calumma and remove the flange (2).
2. Place the top hat (3) on the Calumma and screw it by means of the four flat-head screws M3x8 (1).

Calumma XL
8

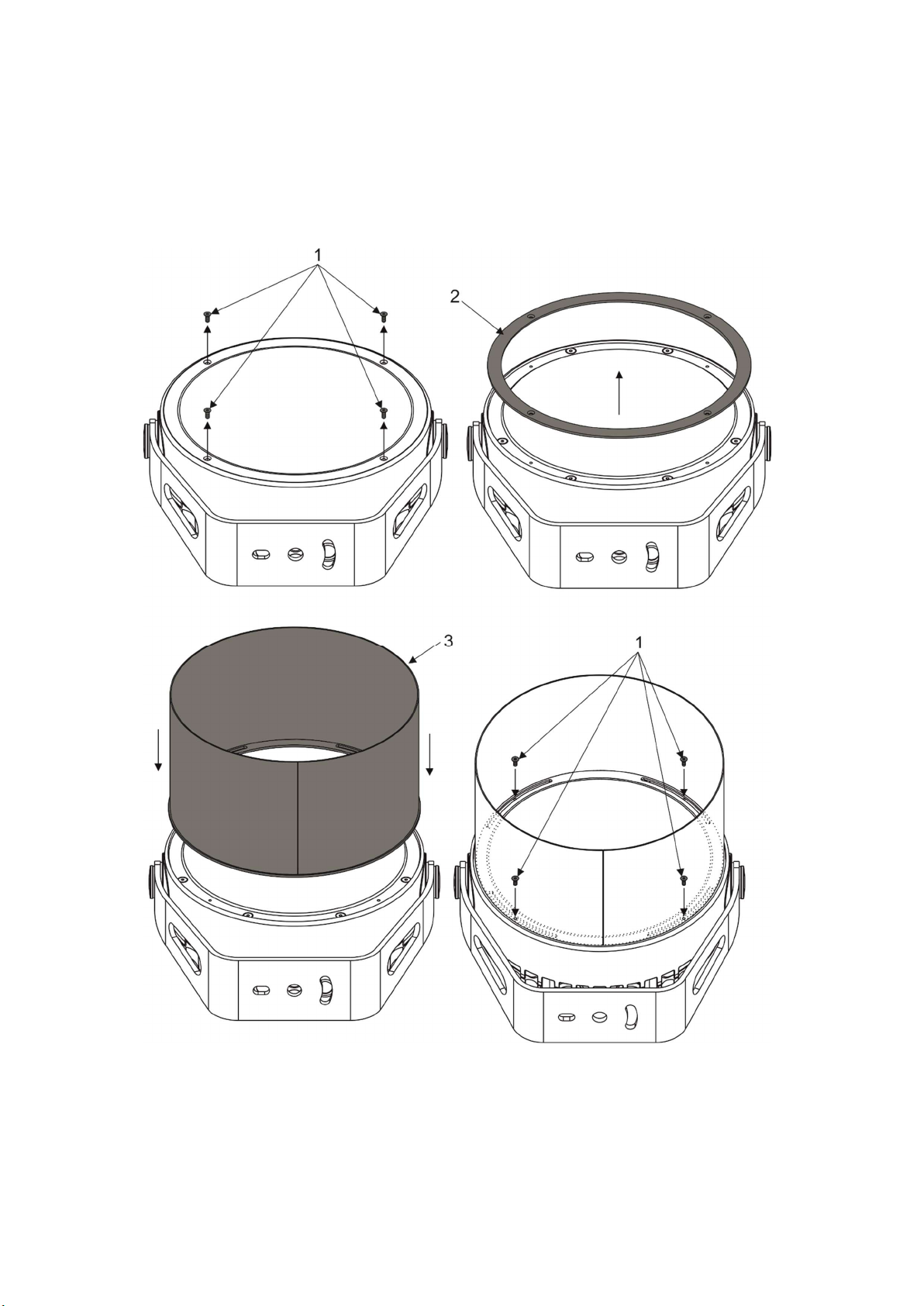

3.4 Half top hat installlation
1. Unscrew the four flat-head screws M3x8 (1) from the front of the Calumma and remove the flange (2).
2. Place the half top hat (3) on the Calumma and screw it by means of the four flat-head screws M3x8 (1).

Calumma XL
9
4. Control and connection options
4.1 DMX or DALI
Example
DMX connection (CE)
IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection and
connection among junction boxes:
Core
Connection
Core
Connection
Black
Live
(L)
Red
Data + (+)
Blue
Neutral
(N)
White
Data
–
(
-
)
Yellow/Green
GND
Shielding
Data ground (0V)
Up to 32 Calummas can be connected in DMX chain.
DALI connection
IF the 5-cored cable SJTW 5x 14AWG (P/N 1305 3336) is used for Calumma connection and connection among
junction boxes:
Core
Connection
Core
Connection
Black
Live
(L)
Red
Data
White
Neutral
(N)
Orange
Data
Yellow/Green
GND
Up to 64 Calummas can be connected in DALI network.

Calumma XL
10
4.2 Wireless DMX
Example
Note: This type of connection is available for M, L, XL versions.
DMX connection (CE)
IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection:
Core
Connection
Core
Connection
Black
Live
(L)
Red
Data + (+)
Blue
Neutral
(N)
White
Data
–
(
-
)
Yellow/Green
GND
Shielding
Data ground (0V)
DMX connection (US)
IF the 6-cored cable SJTW 6x 14AWG, (P/N 1305 3480) is used for Calumma connection:
Core
Connection
Core
Connection
Black
Live (L)
Red
Data + (+)
White
Neutral (N)
Orange
Data
–
(
-
)
Yellow/Green
GND
Blue
Data ground (0V)

Calumma XL
11

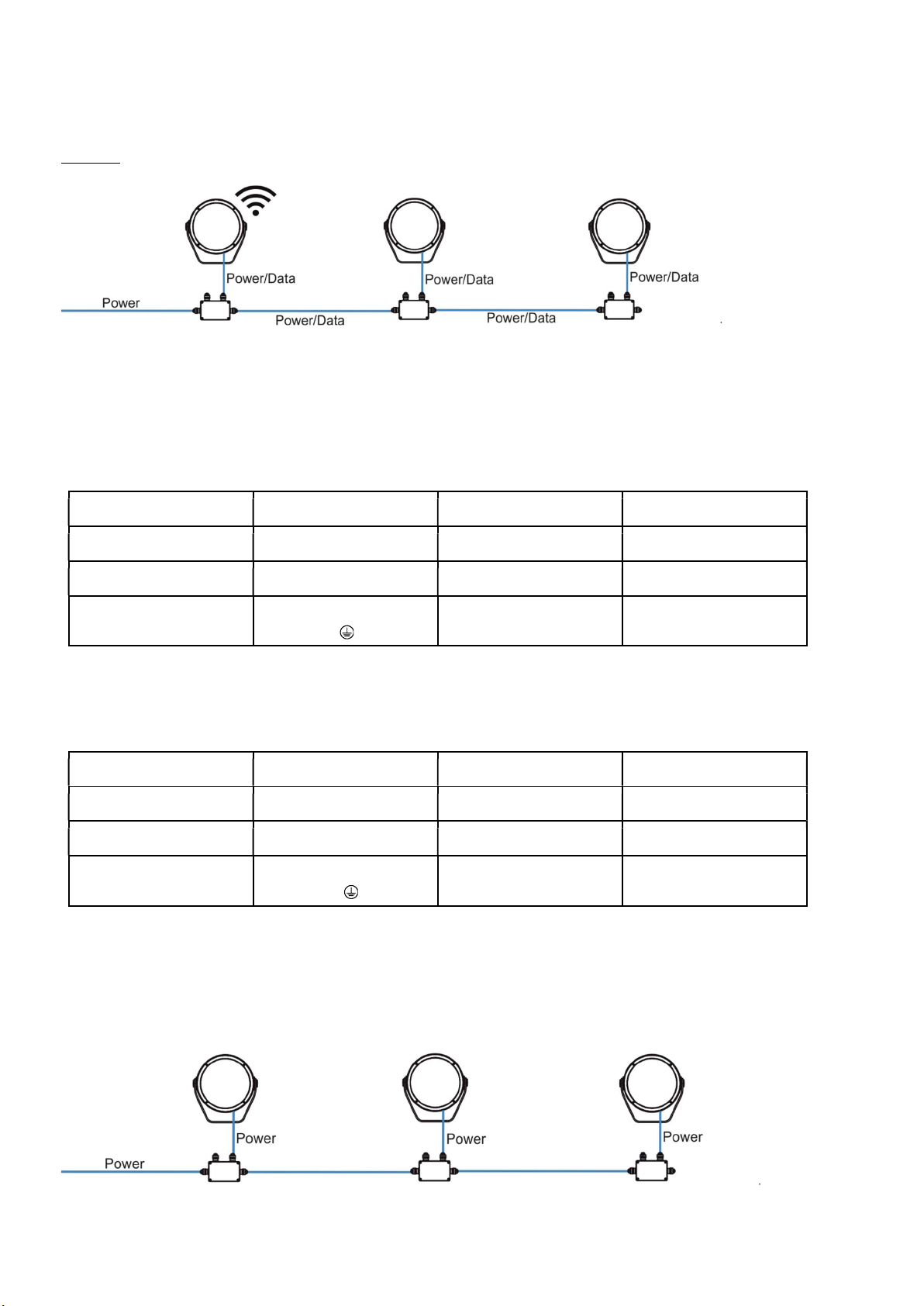

4.3 Wireless DMX to wire DMX
Example
Note: This type of connection must have M, L or XL versions as the first luminaire. Next luminaires in a row could
be chosen from S, M, L or XL versions.
DMX connection (CE)
IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection and
connection among junction boxes:
Core
Connection
Core
Connection
Black
Live
(L)
Red
Data + (+)
Blue
Neutral
(N)
White
Data
–
(
-
)
Yellow/Green
GND
Shielding
Data
ground (0V)
Up to 32 Calummas can be connected in DMX chain.
DMX connection (US)
IF the 6-cored cable SJTW 6x 14AWG, (P/N 1305 3480) is used for Calumma connection and connection among
junction boxes:
Core
Connection
Core
Connection
Black
Live (L)
Red
Data + (+)
White
Neutral (N)
Orange
Data
–
(
-
)
Yellow/Green
GND
Blue
Data ground (0V)
4.4 Power On/Off
Note: This type of connection is available for Pure White version only. Non dimmable.

Calumma XL
12
4.5 DMX or Ethernet via E-box
The E-box menu allows you to switch connected Calummas to the two modes:
Standard - LED modules are switched to an internal serial connection. DMX addressing of connected LED
modules is made automatically (default DMX address = 1), changes can be done by the E-box menu or by RDM.
Pass-Thr - (Pass through). LED modules are switched to an internal parallel connection. DMX addressing of
connected LED modules has to be done manually by means of the Robe Universal and the software RDM Manager.

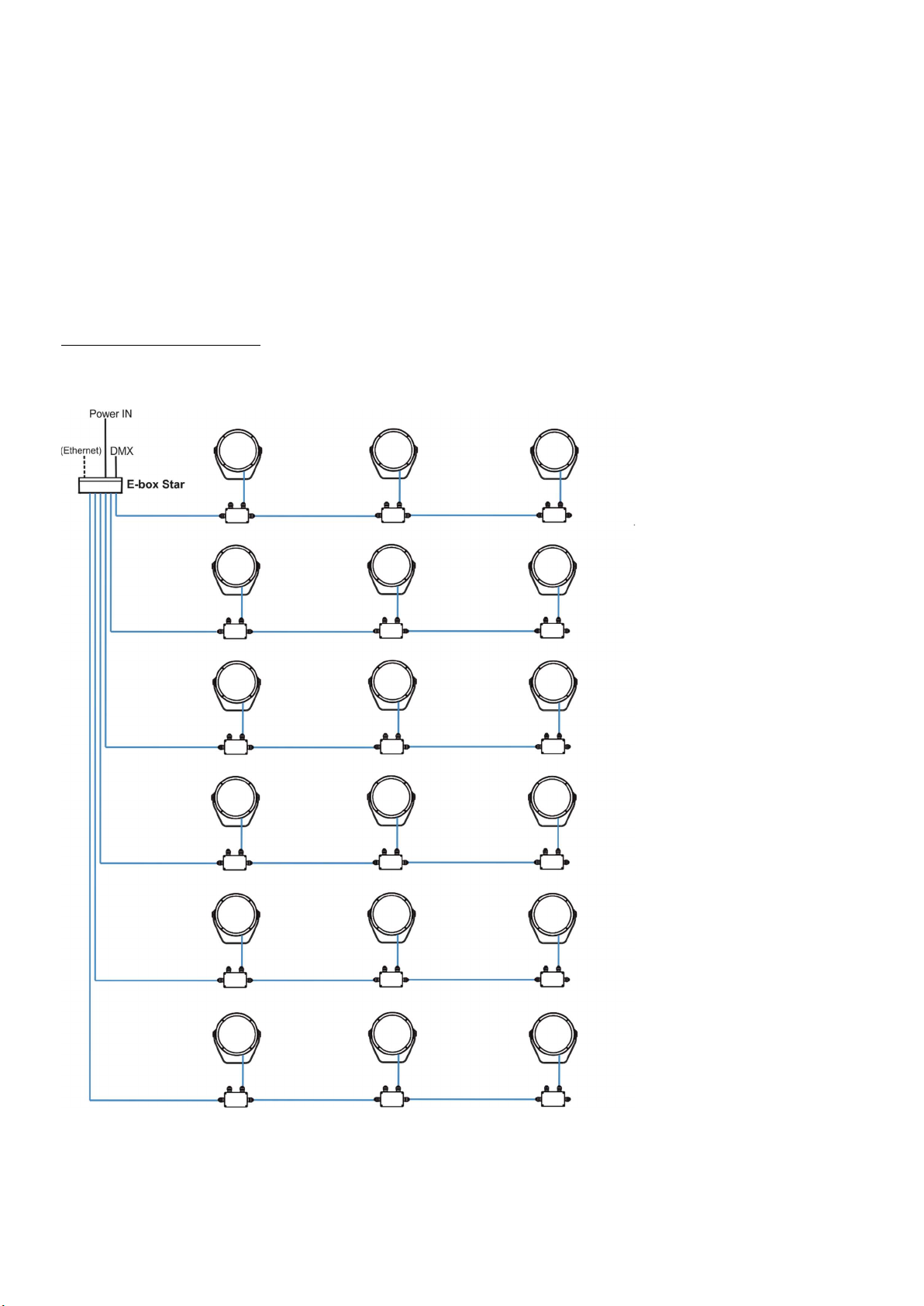

Example with junction boxes
Pass Through mode is intended for this connection. Max. 32 fixtures can be connected to one LED output of the E-
Box (Star, Daisy, Lite) in this mode.

Calumma XL
13
CE version
IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection and
connection among junction boxes:
Core
Connection
Core
Connection
Black
Live
(L)
Red
Data + (+)
Blue
Neutral
(N)
White
Data
–
(
-
)
Yellow/Green
GND
Shielding
Data
ground (0V)
US version
IF the 6-cored cable SJTW 6x 14AWG, (P/N 1305 3480) is used for Calumma connection and connection among
junction boxes:
Core
Connection
Core
Connection
Black
Live (L)
Red
Data + (+)
White
Neutral (N)
Orange
Data
–
(
-
)
Yellow/Green
GND
Blue
Data ground (0V)
Number of connected Calummas to one E-box output depends on a cable length, power voltage, type of Calumma
and E-box operation mode.
The tables below state max. theoretical number of Calummas connected to the one LED output of the E-box.
The tables apply for the Pass-Through mode of E-boxes.
Calumma
XL
MC
Voltage
Cable length *
120V
190V
230V
277V
10 m
10
17
20
24
20 m
10
17
20
24
30 m
7
17
20
24
50 m
4
11
16
23
70 m
3
8
12
17
100 m
2
6
8
12
200 m
1
3
4
6
500 m
0
1
2
2
Calumma
X
L
SC
Voltage
Cable length *
120V
190V
230V
277V
10 m
10
16
19
23
20 m
10
16
19
23
30 m
7
16
19
23

Calumma XL
14
50 m
4
10
15
22
70 m
3
7
11
16
100 m
2
5
8
11
200 m
1
3
4
6
500 m
0
1
2
2

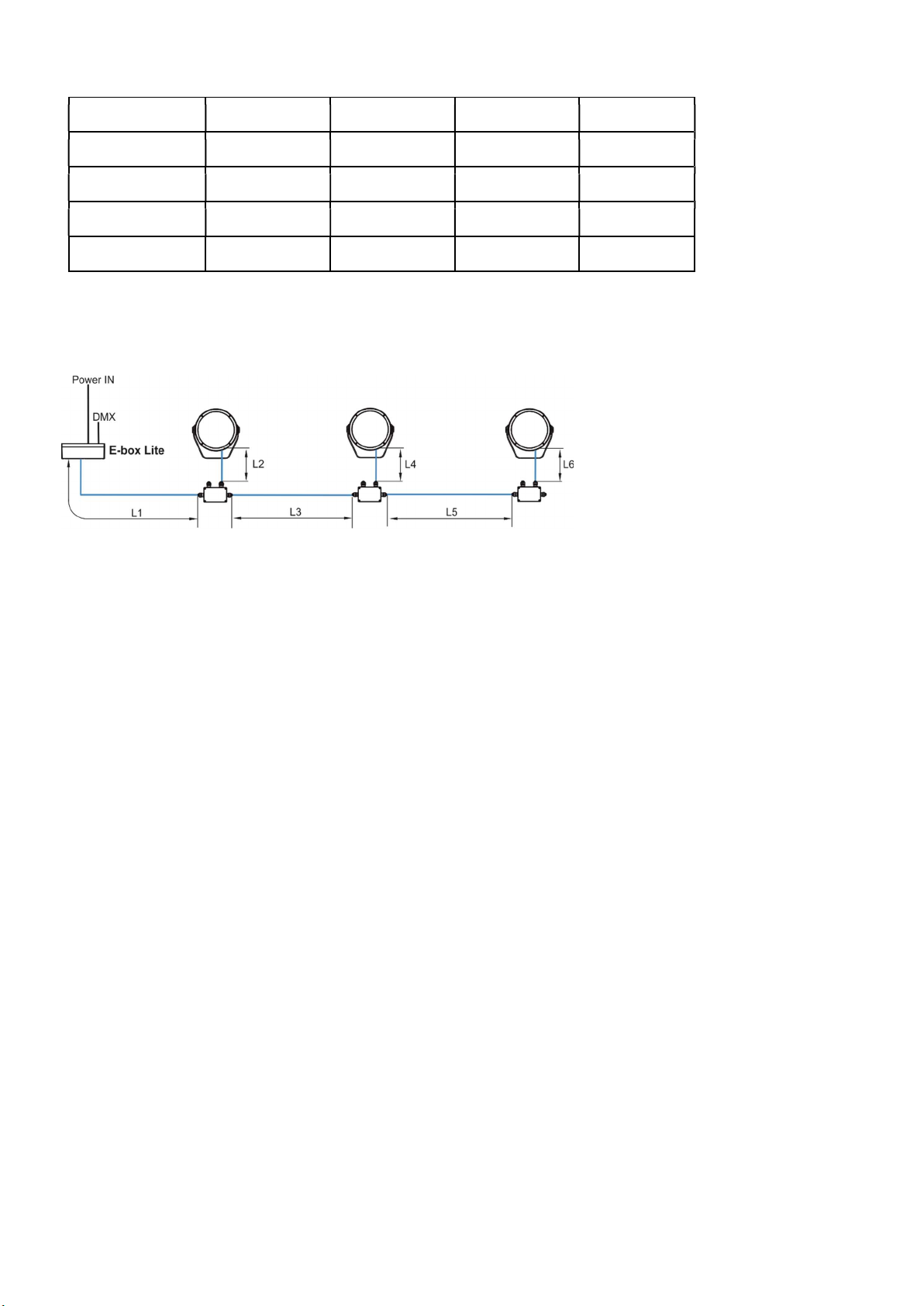

* Cable length is a total cable length between power supply (e.g. E-box) and last connected Calumma.
Example: Total cable length=L1+L2+L3+L4+L5+L6

Calumma XL
15

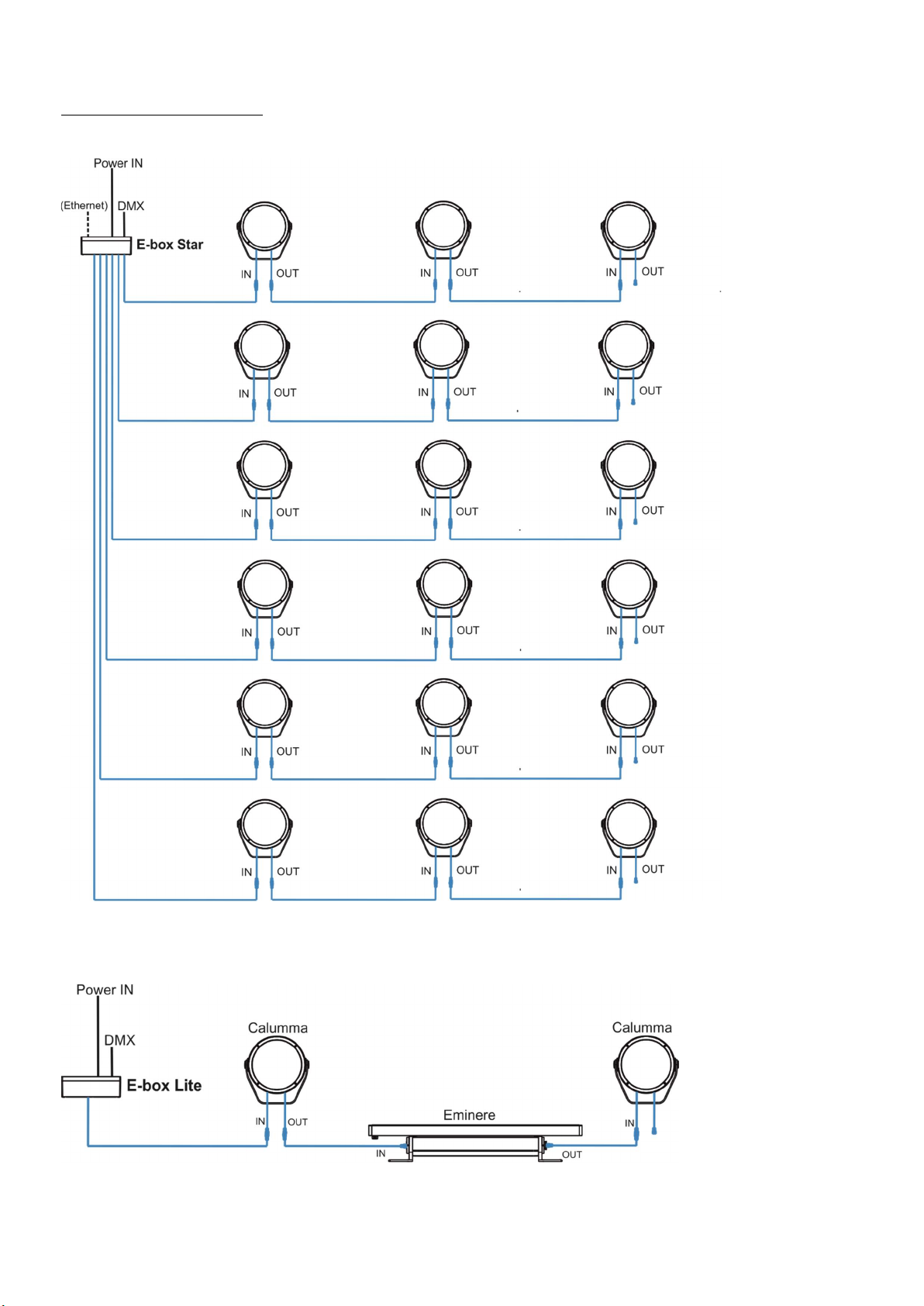

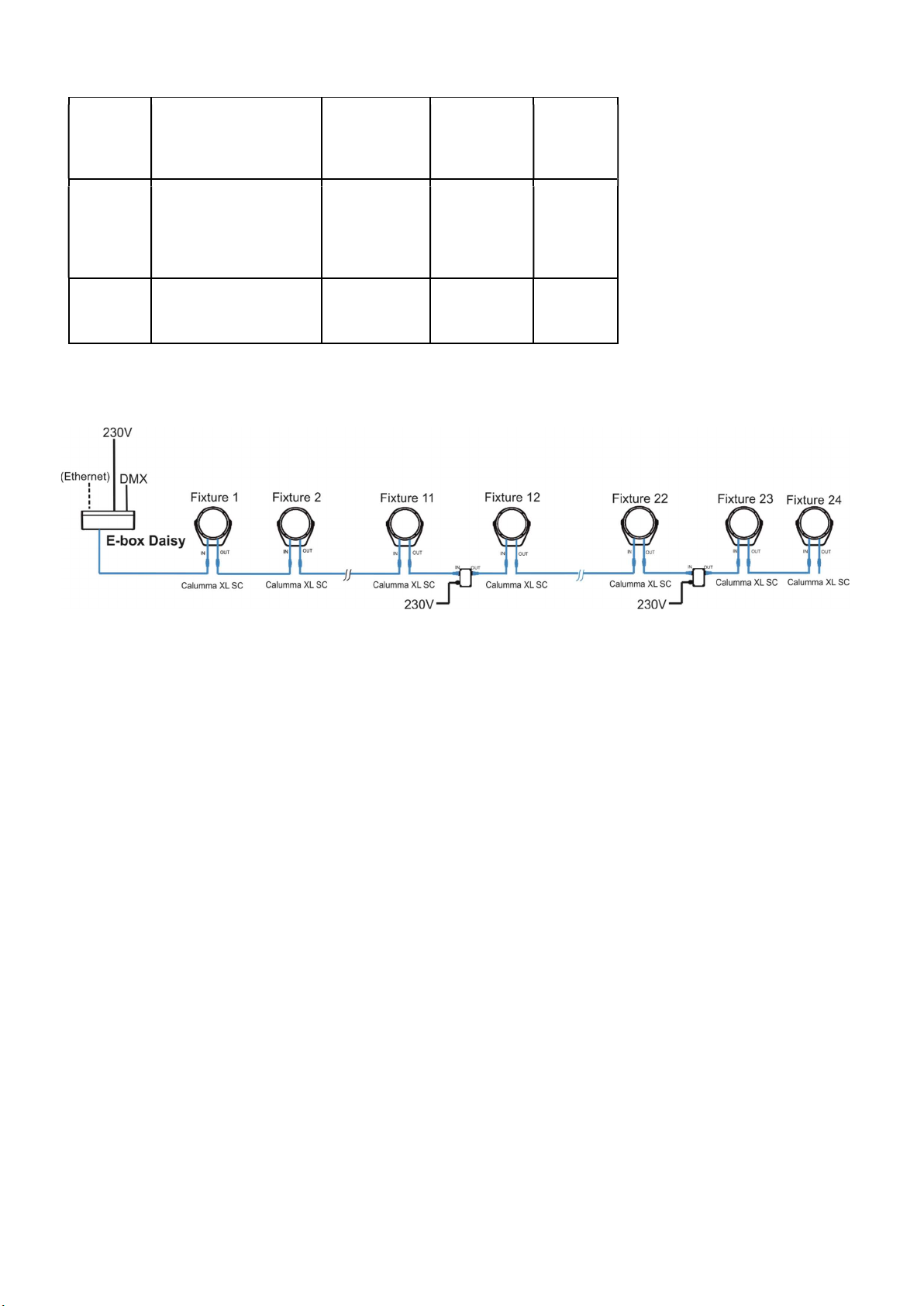

Example with IN/OUT cables
Standard mode is intended for this connection.
Note. Combination of Calummas and Emineres is also possible

Calumma XL
16
Connection of leader cables
Input connector Output connector
(front view) (front view)
Leader Cable (CE):
Wire Power Connection Wire Data Connection
Brown Live Orange Data -
Blue Neutral Purple Data +
Yellow/Green Ground (Earth) Shielding Data ground (0V)
Fixture´s Amphenol connectors are dust and water protected according to IP 67 by mating with related Amphenol
connectors. They cannot stay disconnected outdoor.
The output connector at last fixture in the Calumma chain has to always be covered with the water-tight cap to
keep declared IP rating.
The Calumma modules with IN/OUT cables should be connected to the E-box which allows power supply of the
Calumma modules and their control.
Do not connect (disconnect) Calummas to the E-box or Booster box and each other when they are under voltage!
When you change any setting of the E-box, disconnect the E-box from power and connect it to power again
to activate changes which you have made.
Number of connected Calummas to one E-box output depends on a cable length, power voltage,
type of Calumma and E-box operation mode.

Calumma XL
17
The tables below state max. theoretical number of Calummas connected to the one LED output of the E-box without
Booster boxes. The following table applies for the Standard mode of E-boxes.
Calumma
XL
MC
Voltage
Cable length *
120V
190V
230V
277V
10 m
10 17 20 24
20 m
10 17 20 24
30 m
7
17
20
24
50 m
4
11
16
23
70 m
3
8
12
17
100 m
2
6
8
12
200 m
1
3
4
6
500 m
0
1
2
2
Calumma
X
L
SC
Voltage
Cable length *
120V
190V
230V
277V
10 m
10
16
19
23
20 m
10
16
19
23
30 m
7
16
19
23
50 m
4
10
15
22
70 m
3
7
11
16
100 m
2
5
8
11
200 m
1
3
4
6
500 m
0
1
2
2
* Cable length is a total cable length between power supply (e.g. E-box) and last connected Calumma.
Example: Total cable length=L1+L2+L3
Notice for the E-box Star: The tables above state max. total number of Calummas connected to 6 LED outputs
of the E-box Star (or max. number of Calummas connected to one output if the rest of outputs is not connected).

Calumma XL
18
4.5.1 Booster box
To compensate a voltage drop in large installation, the Booster boxes have to be connected in the chain of
Calummas (connected IN/OUT method) at every LED output of the E-box.
The following tables give theoretical numbers of Calummas after which the Booster box has to be installed in the
chain of Calummas (at one LED output of the E-box). The following table applies for the Standard mode of E-boxes.
Calumma
XL MC
Max. number of Calummas XL MC=191
Voltage
Cable
length
120V 190V 230V 277V
10 m 10,20 17 20 24
20 m 10,20,30 17,34 20,40 24,48
30 m 7,14,21,28,35,42,49,56… 17,34,51,68 20,40,60,80 24,48,72
50 m 4,8,12,16,20,24,28,3236,40
,44,48,52,56….
11,22,33,44,55,6
6,77,88,99,110…
16,32,48,64,80,
96,112,
23,46,69,92,
115
70 m 3,6,9,12,15,18,21,24,27,30,
33,36,39,42,45,48,51,54,57
,60,63,66,69,72…
8,16,24,32,40,48
,56,64,72,80,88..
.
12,24,36,48,56,
68,80,92,104…
17,34,51,68,
85,102,119
…
100 m 2,4,6,8,10,12,14,16,18,20… 6,12,18,24,30,36
…
8,16,24,32,40,4
8,56…
12,24,36,48,
56,68,80….
200 m 1,2,3,4,5,6,7,8,9,10,11…. 3,6,9,12,15,18,2
1,24,27,30,33,36
,39,42,45,48,51,
54,57,60,63,66,6
9,72……
4,8,12,16,20,24
,28,32,36,40,44
,48,52,56,60,64
,68,72,76,80,84
….
6,12,18,24,3
0,36,42…
500 m - 1,2,3,4,5,6,7,8,9,
10,11….
2,4,6,8,10,12,1
4,16,18,20…
2,4,6,8,10,1
2,14,16,18,2
0…
Calumma
XL SC
Max. number of Calummas XL SC=191
Voltage
Cable
length
120V 190V 230V 277V
10 m 10,20 16 19 23
20 m 10,20,30,40,50 16,32,48 19,38 23,46
30 m 7,14,21,28,35,42,49,56,64… 16,32,48,64 19,38,57,76 23,46.69
50 m 4,8,12,16,20,24,28,32,36,4
0,44,48,52,56,60,64,68,72,
76,80,84….
10,20,30,40,50,6
0,70,80,90,100…
15,30,45,60,75,
90,105..
22,44,66,88,
110…
70 m 3,6,9,12,15,18,21,24,27,30,
33,36,39,42,45,48,51,54,57
,60,63,66,69,72,75,78,81…
7,14,21,28,35,42
,49,56,63,70,77,
84,91,98…
11,22,33,44,55,
66,77,88,99,11
0,121…
16,32,48,64
80,96,112…

Calumma XL
19
100 m 2,4,6,8,10,12,14,16,18,20… 5,10,15,20,25,30
,35,40,45…
8,16,24,32,40,4
8,56,64,72,80,8
8,96…
11,22,33,44,
55,66,77,88,
99,110,121
…
200 m 1,2,3,4,5,6,7,8,9,10,11…. 3,6,9,12,15,18,2
1,24,27,30,33,36
,39,42,45,48,51,
54,57,60,63,66,6
9,72,75,78,81…
4,8,12,16,20,24
,28,3236,40,44,
48,52,56,60,64,
68,72,76,80,84.
….
6,12,18,24,3
0,36…
500 m - 1,2,3,4,5,6,7,8,9,
10,11….
2,4,6,8,10,12,1
4,16,18,20…
2,4,6,8,10,1
2,14,16,18,2
0…
Example: E-box Daisy, Power supply= 230V, Cable length=70m, fixture=Calumma XL SC.
The Booster box has to be connected after every 11th Calumma XL SC (fixture 11 and fixture 22) from 24 fixtures.

Calumma XL
20
4.5.2 Booster box installation
ALWAYS DISCONNECT THE CALUMMAS FROM MAINS BEFORE
CONNECTING/DISCONNECTING THE BOOSTER BOX.
The Booster box falls under protection class I. Therefore, every Booster box
has to be connected to a mains socket outlet with a protective earthing connection.
1.Unscrew the four screws (1) from the cover (2) on the Booster box to get access to the terminal block (3) and
two mounting holes of diameter of 4.6 mm (4).
2. Screw the Booster box on a non-flammable flat surface and connect cables.
3. Connect power cable.
Remove the end cap from the cable gland before passing the power cable.
The cable gland M20 x 1.5 (5) with a standard seal serves for a cable of diameter of 7-13mm, for smaller diameter
of cable (4-8mm) you have to remove the original seal from the cable gland M20 x 1.5 and use the enclosed
reducing seal instead of it. The reducing seal for diameter of cable 4-8mm (P/N 13051388) is enclosed in the
Booster box.
Power connection
L
N
(earth)
Core (CE) Braun Blue Green/yellow
We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland
before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on the thread of the
gland body.
