Robin Onan P4300ie Instruction Manual

Model
P4300ie
ISSUE EMD-GP6414
ISSUE DATE
2007.4
for ONAN
Spec. No. (Engine.)
RAS43023550 (EX270DS2080)

EX27 2790100211

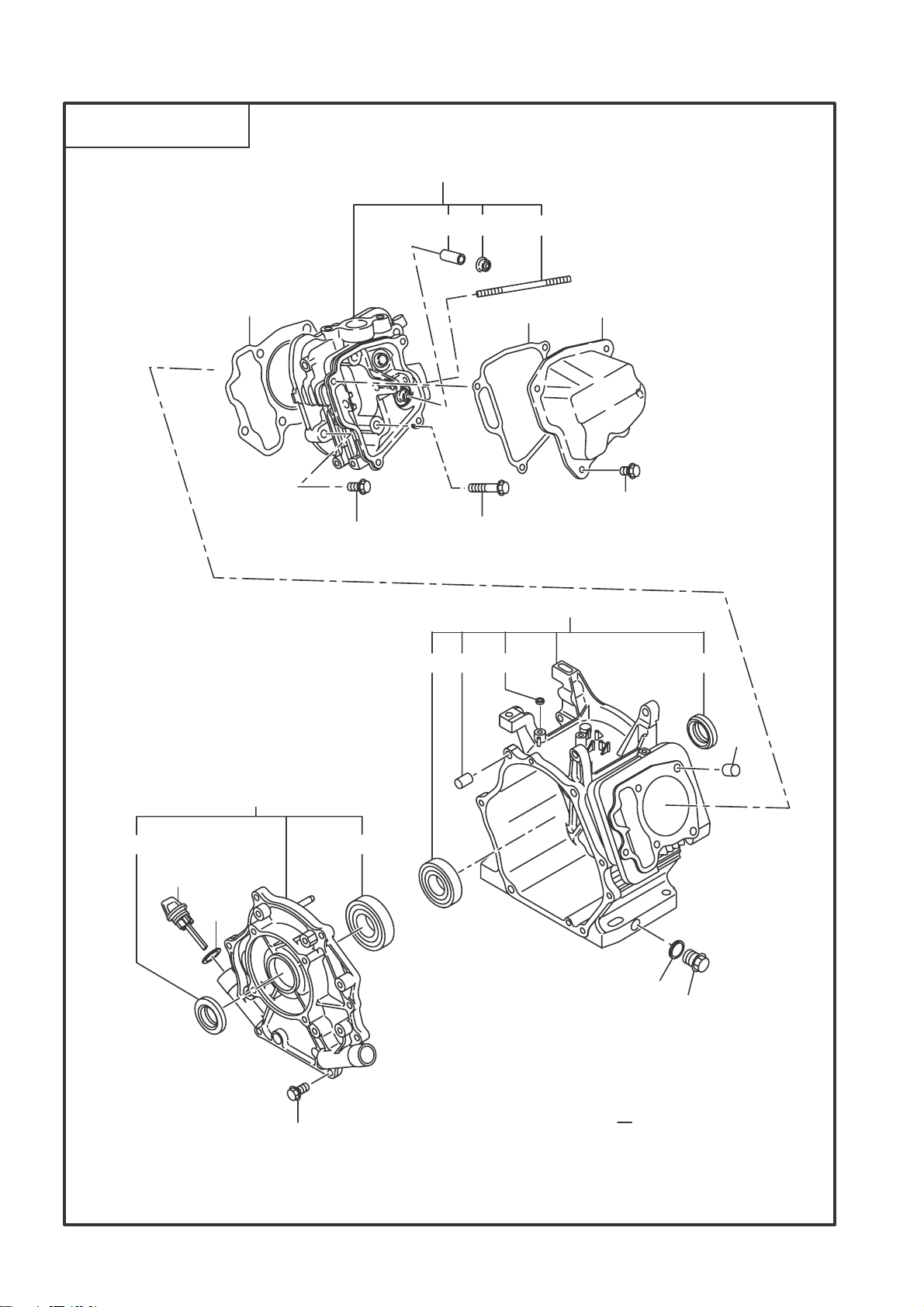

FIG. 100
90 80
GASKET SET
960
220
210
230
40 30
50 75
10
270
280
300
700
630
620 690 680
710
631
70
20 26
610

1CRANKCASE
REF. PARTNUMBER PARTNAME QTY REMARKS CODENO. INTERCHANGEP/NO. UNITP FIG.
10 279‑10102‑91 CRANKCASECP 1 W/OILSENSOR 6951‑ 100
279‑10102‑81 CRANKCASECP 1 W/OILSENSOR 6819‑6950 279‑10102‑91 100
279‑10102‑71 CRANKCASECP 1 W/OILSENSOR 6713‑6818 279‑10102‑81 100
279‑10102‑51 CRANKCASECP 1 W/OILSENSOR ‑6712 279‑10102‑71 100
20 237‑14202‑03 VALVEGUIDE 2 5.5DX9.5DX27L ‑ 100
26 277‑16010‑01 STEMSEAL 1 5.5DX9.5DX15DX7.8B ‑ 100
30 044‑03001‑60 OILSEAL 1 30DX45DX7B ‑ 100
40 060‑03003‑41 BALLBEARING 1 30DX62DX16B ‑ 100
50 277‑15011‑03 PIPEKNOCK 2 10.3DX8.5DX14L ‑ 100
70 010‑50604‑10 STUD 2 M6X1.0X107L ‑ 100
75 044‑00600‑20 OILSEAL 1 6DX10DX2.5B ‑ 100
80 040‑11400‑30 PLUG 2 M14X1.5X20DX12L ‑ 100
90 021‑11400‑20 GASKET 2 14.1DX19DX2.3T ‑ 100
210 279‑11001‑21 MAINBEARINGCOVERC 1 ‑ 100
220 044‑03001‑60 OILSEAL 1 30DX45DX7B ‑ 100
230 060‑03003‑70 BALLBEARING 1 30DX62DX16B ‑ 100
270 279‑63601‑23 OILGAUGE 2 M22X1.5L=67.5+18 7110‑ 100
279‑63601‑13 OILGAUGE 2 M22X1.5L=67.5+18 ‑7109 279‑63601‑23 100
280 021‑32000‑50 GASKET 2 20DX27DX1.5TRUBBER ‑ 100
300 001‑04083‑50 FLANGEBOLT 7 M8X1.25X16DX35L ‑ 100
610 279‑13005‑11 CYLINDERHEADCP 1 6635‑ 100
279‑13005‑01 CYLINDERHEADCP 1 ‑6634 279‑13005‑11 100
620 279‑15001‑33 GASKET(HEAD) 1 T=0.2 6241‑ 100
279‑15001‑23 GASKET(HEAD) 1 T=0.2 ‑6240 279‑15001‑33 100
630 011‑00802‑40 FLANGEBOLT 4 M8X1.25X16DX68L ‑ 100
631 011‑00803‑10 FLANGEBOLT 1 M8X1.25X16DX33L 6179‑ 100
001‑04083‑50 FLANGEBOLT 1 M8X1.25X16DX35L ‑6178 100
680 277‑15503‑01 ROCKERCOVERCP 1 6666‑ 100
277‑15501‑01 ROCKERCOVERCP 1 ‑6665 277‑15503‑01 100
690 277‑16001‑13 GASKET(ROCKERCOVER) 1 T=0.5 6241‑ 100
277‑16001‑03 GASKET(ROCKERCOVER) 1 T=0.7 ‑6240 277‑16001‑13 100
700 277‑15011‑03 PIPEKNOCK 2 10.3DX8.5DX14L ‑ 100
710 011‑00600‑20 FLANGEBOLT 4 M6X1.0X14DX12L ‑ 100
960 279‑99001‑27 GASKETSET 1 ‑ 100

EX27 2790200211
FIG. 200
10
70
310
320
380
350
360
361
362
370
371
372
50

2CRANKSHAFT,PISTON
REF. PARTNUMBER PARTNAME QTY REMARKS CODENO. INTERCHANGEP/NO. UNITP FIG.
10 279‑20701‑41 CRANKSHAFTCP 1 L=28026DX1/10TAPER ‑ 200
50 018‑01800‑10 FLANGENUT 1 M18X1.5X31DX14H ‑ 200
70 032‑30300‑10 WOODRUFFKEY 1 3BX6HX16D ‑ 200
310 279‑22501‑30 CONNECTINGRODAY 1 104.5CDX26B34.5D‑18 7275‑ 200
279‑22501‑20 CONNECTINGRODAY 1 104.5CDX26B34.5D‑18 ‑7274 279‑22501‑30 200
320 279‑23001‑03 CONNECTINGRODBOLT 2 M7X1.0X13.8DX40L ‑ 200
350 279‑23301‑13 PISTONPIN 1 18DX13DX53L 6666‑ 200
279‑23301‑03 PISTONPIN 1 18DX13DX53L ‑6665 279‑23301‑13 200
360 279‑23401‑H3 PISTON 1 STD(75DX43H) 6484‑ 200
279‑23401‑03 PISTON 1 STD(75DX43H) ‑6483 279‑23401‑H3 200
361 279‑23403‑H3 PISTON 1 0.25O.S.(75DX43H) 6484‑ 200
279‑23403‑03 PISTON 1 0.25O.S.(75DX43H) ‑6483 279‑23403‑H3 200
362 279‑23404‑H3 PISTON 1 0.50O.S.(75DX43H) 6484‑ 200
279‑23404‑03 PISTON 1 0.50O.S.(75DX43H) ‑6483 279‑23404‑H3 200
370 279‑23511‑17 PISTONRINGSET 1 STD(75D)OILEXPAND ‑ 200
371 279‑23512‑17 PISTONRINGSET 1 0.25O.S.OILEXPAND ‑ 200
372 279‑23513‑17 PISTONRINGSET 1 0.50O.S.OILEXPAND ‑ 200
380 056‑51800‑10 CLIP 2 18.9DX1.6D ‑ 200

2790300221EX27
166
163
160
27
25
10
150
37 34 3835
170
80
90
290
60 70 95
240 230
220
241 231
225
200
202

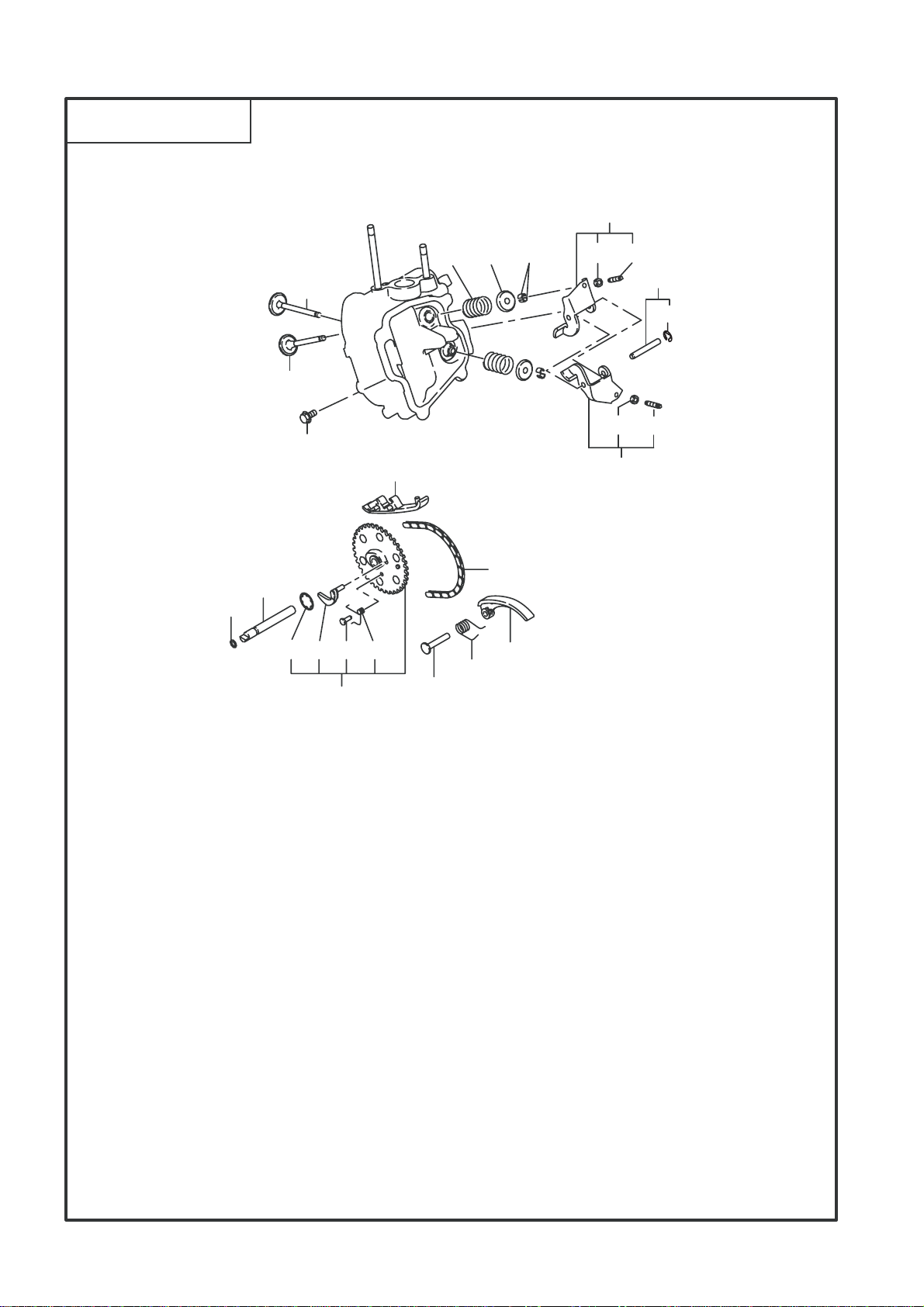

FIG. 300

3INTAKE,EXHAUST
REF. PARTNUMBER PARTNAME QTY REMARKS CODENO. INTERCHANGEP/NO. UNITP FIG.
10 279‑31602‑11 CAMSHAFTCP 1 93DX2.9BN=44 ‑ 300
25 277‑35101‑03 PIN(CAMSHAFT) 1 9DX78.5L ‑ 300
27 024‑00600‑10 ORING 1 5.8DX9.6D ‑ 300
34 277‑38601‑03 PIN(SPRING) 1 4DX8DX9L ‑ 300
35 279‑36401‑03 RELEASELEVER 1 ‑ 300
37 277‑36501‑03 CLIP 1 13.8DX20.3DX0.4T ‑ 300
38 279‑38701‑13 RETURNSPRING 1 5.3DX0.6DX5.5LN=5.7 ‑ 300
60 279‑33601‑03 VALVESPRING 2 19.2DX2.3DX27.4L ‑ 300
70 269‑33701‑03 SPRINGRETAINER 2 ‑ 300
80 279‑33401‑H3 INTAKEVALVE 1 28.5DX5.5DX67.8L 6509‑ 300
279‑33401‑13 INTAKEVALVE 1 28.5DX5.5DX67.8L ‑6508 279‑33401‑H3 300
90 279‑33501‑H3 EXHAUSTVALVE 1 26.5DX5.5DX67.8L 6509‑ 300
279‑33501‑13 EXHAUSTVALVE 1 26.5DX5.5DX67.8L ‑6508 279‑33501‑H3 300
95 132‑10KA0‑31 COLLET‑VALVE 4 ‑ 300
150 279‑35601‑11 TIMINGCHAINCP 1 100LINK ‑ 300
160 277‑36911‑03 TENTIONER 1 ‑ 300
163 277‑37101‑03 SPRING(TENTIONER) 1 10DX1.8DX14LN=4.5 ‑ 300
166 277‑36902‑03 PIN(TENTIONER) 1 6DX13DX34L ‑ 300
170 277‑36913‑13 CHAINGUIDE 1 ‑ 300
200 277‑35002‑01 PIN(ROCKER)CP 1 6DX46L ‑ 300
202 003‑13050‑00 CLIP 1 5DX11DX0.6T ‑ 300
220 277‑36201‑00 ROCKERARM(IN)AY 1 ‑ 300
225 277‑36202‑00 ROCKERARM(EX)AY 1 ‑ 300
230 014‑90500‑20 ADJUSTSCREW 1 M5X0.5X23L ‑ 300
231 014‑90500‑20 ADJUSTSCREW 1 M5X0.5X23L ‑ 300
240 017‑00500‑30 NUT 1 M5X0.5X4.1H ‑ 300
241 017‑00500‑30 NUT 1 M5X0.5X4.1H ‑ 300
290 011‑00600‑20 FLANGEBOLT 1 M6X1.0X14DX12L ‑ 300

EX27 2790400201
FIG. 400
20
50

4GOVERNOROPERATION
REF. PARTNUMBER PARTNAME QTY REMARKS CODENO. INTERCHANGEP/NO. UNITP FIG.
20 277‑48601‑03 PIN(BLIND) 1 6DX44L ‑ 400
50 003‑13050‑00 CLIP 1 5DX11DX0.6T ‑ 400

EX27 2790700211
FIG. 700
100
110
11
50
30
20
10

7ELECTRICDEVICE
REF. PARTNUMBER PARTNAME QTY REMARKS CODENO. INTERCHANGEP/NO. UNITP FIG.
10 279‑79261‑21 FLYWHEELCP 1 7273‑ 700
279‑79261‑11 FLYWHEELCP 1 6118‑7272 700
279‑79261‑01 FLYWHEELCP 1 ‑6117 279‑79261‑11 700
11 279‑79431‑01 IGNITIONCOILCP 1 MARKAC ‑ 700
20 267‑71002‑03 RINGGEAR 1 D180DX217DX7BN=85 ‑ 700
30 001‑14062‑50 BOLTANDWASHERAY 2 M6X1.0X25LW/W,SW ‑ 700
50 279‑73105‑H1 WIRE5CP 1 L=510BLACK ‑ 700
100 065‑01401‑50 SPARKPLUG 1 NGKBR6HS ‑ 700
110 065‑50002‑70 SPARKPLUGCAP 1 ‑ 700

EX27 2790720211
FIG. 720
130
150
125
135
135

7ELECTRICDEVICE
REF. PARTNUMBER PARTNAME QTY REMARKS CODENO. INTERCHANGEP/NO. UNITP FIG.
125 279‑76511‑11 BRACKET(SEL)CP 1 ‑ 720
130 214‑79007‑01 BOLTCP,STARTER 2 M8X1.25X30L ‑ 720
135 011‑00600‑20 FLANGEBOLT 3 M6X1.0X14DX12L ‑ 720
150 003‑10080‑00 WASHER 2 8.5DX16DX1.2T ‑ 720

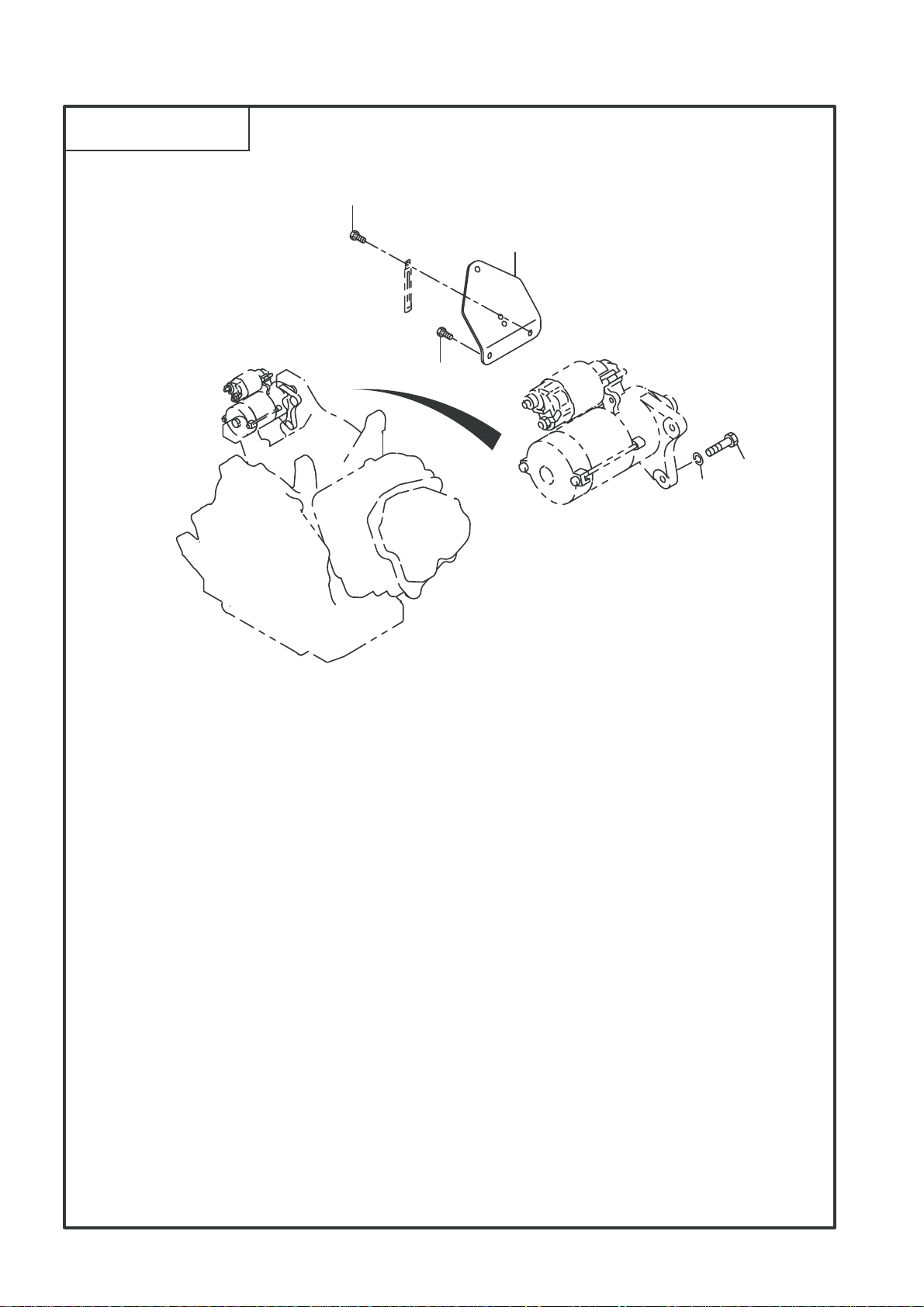

EX27 2790730211
FIG. 730
-22
-11
-12
-17
-18
-29
-9
-21
-15
-5
-3
-4
-14
-1
-2 -16
-7
-19
-6
-8
120

7ELECTRICDEVICE
REF. PARTNUMBER PARTNAME QTY REMARKS CODENO. INTERCHANGEP/NO. UNITP FIG.
120 279‑70502‑00 STARTINGMOTORAY 1 ‑ 730
‑1 209‑70550‑08 YOKECP 1 ‑ 730
‑2 209‑70551‑08 BRUSH 4 ‑ 730
‑3 209‑70545‑08 BRUSHSPRING 4 ‑ 730
‑4 209‑70530‑08 BRUSHHOLDER 1 ‑ 730
‑5 209‑70552‑08 INSULATOR 1 ‑ 730
‑6 209‑70554‑08 ARMATUREAY 1 ‑ 730
‑7 209‑70521‑08 OVERRUNNINGCLUTCP 1 ‑ 730
‑8 234‑70555‑08 PINIONSTOPPER 1 ‑ 730
‑9 279‑70550‑08 HOUSINGCP 1 ‑ 730
‑11 209‑70505‑18 FRAMECP 1 ‑ 730
‑12 209‑70510‑08 BUSH 1 ‑ 730
‑14 209‑70525‑08 LEVER 1 ‑ 730
‑15 279‑70515‑18 MAGNETSWITCHCP 1 ‑ 730
‑16 209‑70557‑18 SNAPRING 1 ‑ 730
‑17 209‑70558‑08 THROUGHBOLT 2 ‑ 730
‑18 949‑29970‑02 NUT 2 ‑ 730
‑19 209‑70560‑08 NUT 1 ‑ 730
‑21 107‑70652‑08 SPRINGWASHER 1 ‑ 730
‑22 211‑70584‑08 NUT 1 ‑ 730
‑29 209‑70511‑08 BUSH 1 ‑ 730

EX27 2790770211
FIG. 770
770
775
700
740
741

7ELECTRICDEVICE
REF. PARTNUMBER PARTNAME QTY REMARKS CODENO. INTERCHANGEP/NO. UNITP FIG.
700 279‑76301‑41 OILSENSORCP 1 6683‑ 770
279‑76301‑31 OILSENSORCP 1 ‑6682 279‑76301‑41 770
740 001‑14061‑60 BOLTANDWASHERAY 1 M6X1.0X16LW/W,SW ‑ 770
741 013‑00602‑60 BOLTANDWASHERAY 1 M6X1.0X16LW/SW ‑ 770
770 279‑75501‑13 WIRECLAMP 1 6627‑ 770
279‑75501‑03 WIRECLAMP 1 ‑6626 770
775 015‑20600‑50 TAPPINGBOLT 1 M6X13DX10L ‑ 770

RAS43 34J2110211
FIG.2110
180
182
110111
183
185
187
