User’s Manual
SP8000 AVR
BH-05

1
IMPORTANT SAFETY INSTRUCTIONS
●
When replacing the batteries, use the same number and the same type of batteries.
●
Do not dispose of batteries in a fire; the battery may explode.
●
Do not open or mutilate the battery or batteries, released electrolyte is harmful to the skin and
eyes.
●
A battery can present a risk of electric shock and high short circuit current. The following
precaution should be observed when working on batteries.
* Remove watches, rings or other metal objects.
* Use tools with insulated handles.
●
To prevent an overbalance of this unit, with the installation the additional stabilizer are to mount at
the bottom side.
●
This unit should be installed by service personnel.
●
The equipment can be operated by any individuals with no previous experience.
●
“The socket-outlet shall be installed near the equipment and easily accessible.”
●
“With the installation of this equipment it should be prevented, that the sum of the leakage current
of the inverter at the connected consumer does not exceed 3.5mA.”
●
Attention: hazardous through electric shock. Also, with disconnection of this unit from the main,
hazardous voltage still may be accessible through supply of battery.
●
The battery supply should be therefore disconnected in the plus and minus pole through or from
the outer enclosure accessible battery fuses when maintenance or service work inside the inverter
is considered.
●
The lead acid battery may cause chemical hazard.
●
The battery presents a risk of electric shock and energy hazard.
●
Batteries will be disposed by the manufacturer or importer. Customers need to send them back
with no charge for disposal.
SAVE THESE INSTRUCTION. This manual is important instructions that you should follow
during installation and maintenance of the Inverter and batteries. Please read all instructions
before operating the equipment and save this manual for future reference.

2
CAUTION:
● The inverter connection instructions and operation described in the manual must be followed in the
indicated order.
● The inverter must be connected to a near by wall outlet that is easily accessible. The inverter can
be disconnected from the AC-power source by removing the power cord.
● Check that the indications on the rating plate correspond to yourAC-power system and to the actual
electrical consumption of all the equipment to be connected to the inverter.
● Never install the inverter near liquids or in an excessively damp environment.
● Never let a foreign body penetrate inside the inverter.
● Never block the ventilation grates of the inverter.
● Never expose the inverter to direct sunlight or source of heat.
● If the inverter must be stored prior to installation, storage must be in a dry place.
● The admissible storage temperature range is -15℃to +55℃.
● All handling operations will require at least two people (unpacking, installation in rack systems).
● Once installed and connected to the AC power source for the first time, the battery will start to
charge. Full charging to obtain the rated battery backup time requires at least 8 hours.
● Before and after the installation, in case of any doubt, do Not hesitate to contact our service
department.

3
Special Symbols
The following are examples of symbols used on the unit to alert you the important information.
RISK OF ELECTRIC SHOCK -
Indicates that a risk of electric shock is present and the associated warning
should be observed
CAUTION; REFER TO OPERATOR’S MANUAL -
Refer to your operator’s manual for additional information, such as important
operating and maintenance.
SAFETY EARTHING TERMINAL -
Indicates the primary safety ground.
RJ-45 RECEPTACLE -
For 230V units only, this receptacle provides network interface connections.
Do not plug telephone or telecommunications equipment into this receptacle.
This symbol indicates that you should not discard the inverter or the inverter
batteries in the trash. The inverter & the sealed, lead-acid batteries must
be recycled.

4
TABLE of CONTENTS
1.
Over view and Features
----------------------------------------------------------
Page 5
2. Presentation --------------------------------------------------------------------------
Page 6
2.1 LCD display models
2.2 Rear Panels ---------------------------------------------------------------------------
Page 7
3. Installation ----------------------------------------------------------------------------
Page 8
4. Operation ------------------------------------------------------------------------------
Page 10
5. Indication and Control ------------------------------------------------------------
Page 15
5.1 LCD Display
5.2 Audible alarm ------------------------------------------------------------------------- Page 17
5.3 Auto self-test Function
5.4 Remote Control -----------------------------------------------------------------------
Page 18
5.5 Reset the Inverter
5.6 DIP Switch Setting
5.7 DB9 Dry Contact
5.8 Battery Thermal Sensor
6. Communication interface -------------------------------------------------------
Page 22
7. Trouble shooting -------------------------------------------------------------------
Page 23
8. Specifications -----------------------------------------------------------------------
Page 24

5
1. OVER VIEW AND FEATURES
The series Inverter is advanced & friendly designed with pure sine-wave output to your equipment;
besides a big charging capacity, the inverter, unlike the traditional one, also provides a very short
transference when blackouts happen; thus, you may apply it as an UPS, too. Further, it is also
made with Wide Range AVR, output ±10% with input range as large as 140V ~ 310V in the rated
230V. With the wide AVR, you won't need to use the valuable battery energy when in a brownout.
The series provides efficiency over 97% under normal power condition, and 86% under inverter
mode. Two charge modes, quick and trickle charge, are applied in the big charger, and so as to
maintain the batteries in the best condition.
With outstanding performance & reliability, the unique benefits of the inverter include the following:
＊ Pure sine wave output.
＊ Microprocessor based design with true Line-Interactive structure, DC/AC Isolation.
＊ Remaining Estimated Backup Time indication (EBT system on LCD version).
＊ Wide input range 140V~310V.
＊ Adjustable charging voltage & voltage-transfer points.
＊ Smart battery management with intelligent double stages of charging control.
＊ Adjustable charging current by DIP switch for different battery.
＊ Real time auto-detection for battery condition.
＊ Automatic restart of load after Inverter shutdown.
＊ Smart AVR function (Two buck / boost modes).
＊ Generator compatible & Cold-start capable.
＊ “Green Power” design with auto on/off function & adjustable level.
＊ Network manageable (SNMP optional).
＊ RS-232 interface for communication, compatible with all major O.S., including Windows, Linux,
SCO UNIX, & DOS.
＊ Protection for overload, short circuit, & over heat; also with thermal control cooling fan.
＊ Built-in MPPT solar charger (optional)

6
2. PRESENTATION
2.1 LCD display models

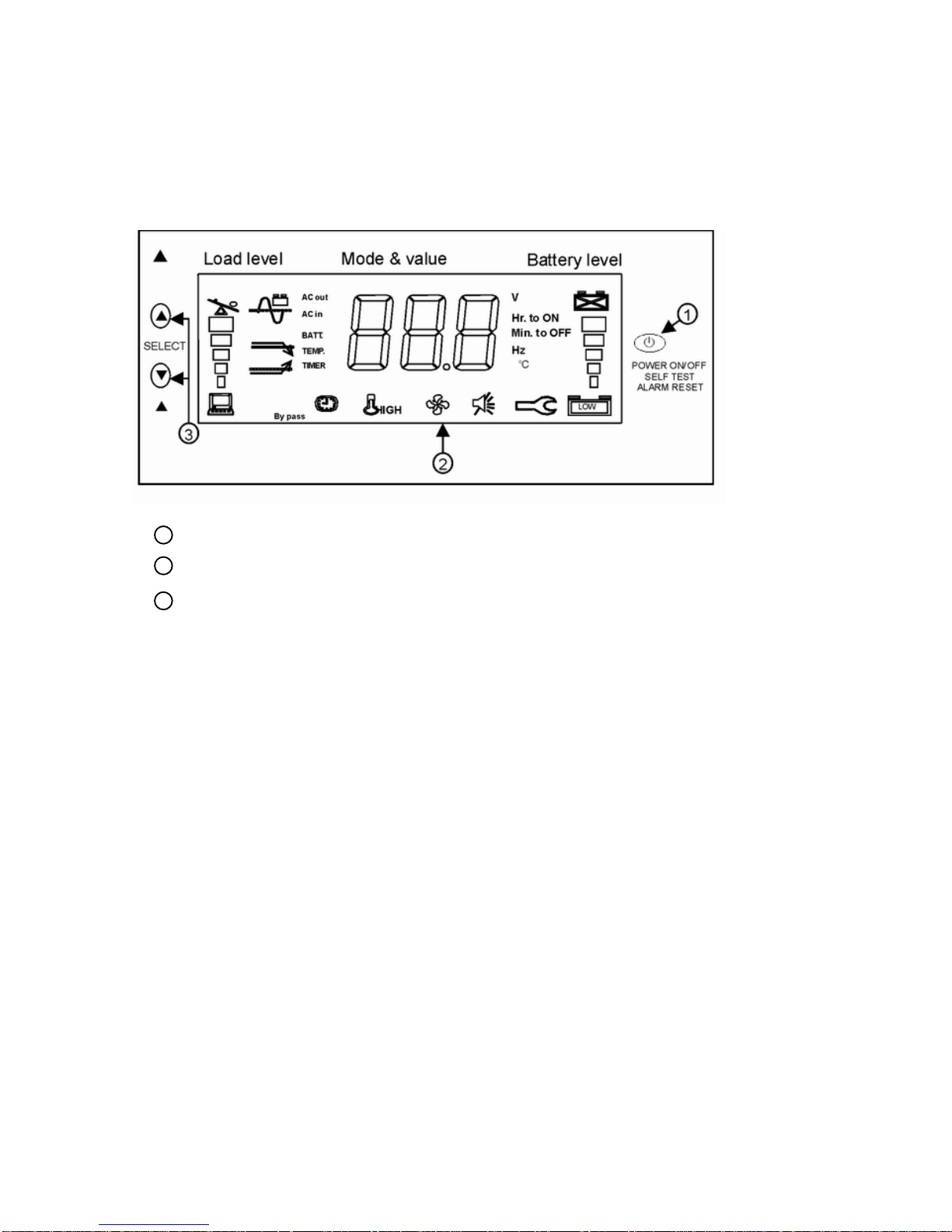

The following is one example of LCD display; the location of control buttons could be different for
some models; however, the functions of buttons are the same.
Main control button.
LCD screen.
Selection button for mode & value.
1
2
3

7
2.2 Rear Panels

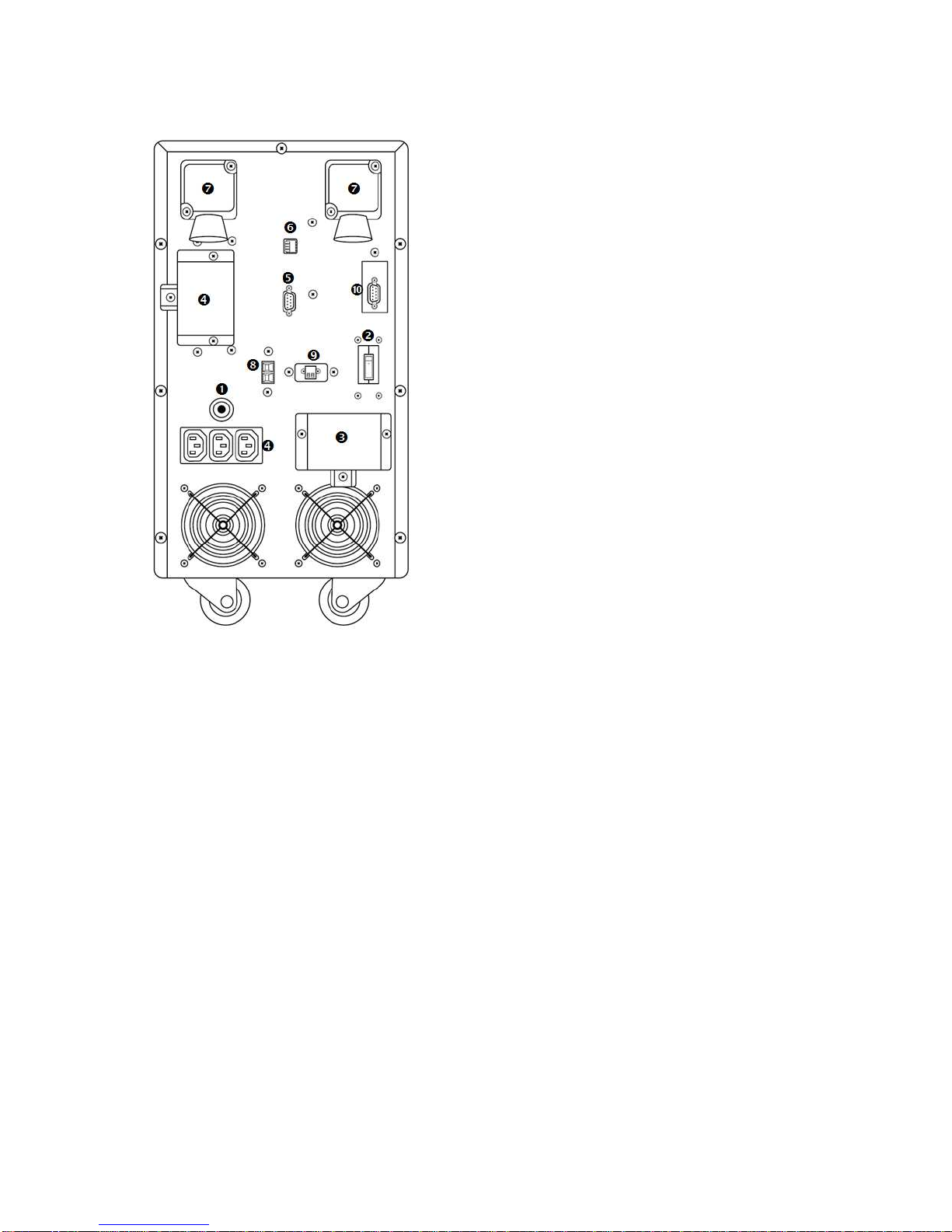

Description of Rear panel in Tower
1. Circuit Breaker for Input.
2. AC Input Switch
3. Input Terminal.
4. Output Terminal and / or Outlet(s) (NEMA or IEC).
5. RS-232 Interface port (for application with optional
Monitoring software)
6. DIP Switch.
7. Battery connector.
8. Solar Input
9. Battery Thermal Sensor
10. DB9 Dry contact Port

8
3. INSTALLATION
3.1 Inspecting the packing carton for damage that may have occurred while in transit. Immediately
notify the carrier and place of purchase if any damage is found. Retain the package for future use.
3.2 Connect the AC power only to a grounded shockproof wiring system to avoid electric shocks
resulted from current leakage. Keep wire length as short as possible to minimize voltage loss.
The installation must be performed by qualified personnel.
Recommended AC wire size:
Capacity \ Input voltage 220/230/240Vac
SP8000 AVR AWG10
3.3 Connecting the DC input power cord with the correct battery voltage and correct polarity, the
inverter must be as close as possible to the battery to avoid the voltage drop on the power cord.
WARNING: Incorrect polarity may blow fuse and cause internal damage of inverter.
Recommended Battery wire size:
Capacity Max Current/DC Voltage Wire Size
SP8000 AVR 150A / 48Vdc AWG 6 * 2pcs
3.4 Connecting your equipment to the Inverter. To ensure your home appliances to be powered &
protected during a utility failure, it is important to make sure that the maximum power needed by the
equipment is not over the rated capacity of the Inverter. the “Over load” symbol will show up, and
alarm will beep if the load is over the rated value (the default setting is 100%), and wait for one
minute to shutdown when load remains between 100% ~150%. Meantime, if the overload is severe
(the default setting is 150%), the Inverter will shut down in two seconds for protecting itself.

9
3.5 Connecting Solar input: Make sure the open circuit voltage of the PV array is less than the DC
maximum input voltage of the built-in solar charger. The suggested PV voltage ranges are shown
below:
SP8000 AVR：48 ~ 90Vdc (the range is also for VOC of the solar panel)

10
4. OPERATION
4.1 Once it’s connected with normal city power, the inverter will charge the battery automatically,
when inverter is off, the battery symbol and battery level will blink every second during charging.
If AC auto turn-on function is enabled, the inverter will turn on automatically when city power is
normal. If auto turn-on is disabled, please push the button for about one second on the front
panel; then the inverter will give power to the outlets after a short-time of beeping.
4.2 Pushing the button 4 seconds for ‘OFF mode’, the CPU will turn off the power from the AVR
or inverter. But, the output relay will transfer to bypass mode automatically. To cut off the
auto-bypass power from utility, please turn off the auto-bypass switch. In off mode, inverter will
keep charging if city power is normal.
4.3 DC Start: During a blackout, push the button one second for entering “OFF” mode (showing
“OFF”); then push again for one second, and the inverter will be turned on and enter into backup
mode. To turn off the power from SP8000 AVR; please push the button for 4 seconds; then LCD
display will show “OFF”; then, wait for 10 seconds, and SP8000 AVR will turn off the power
automatically.

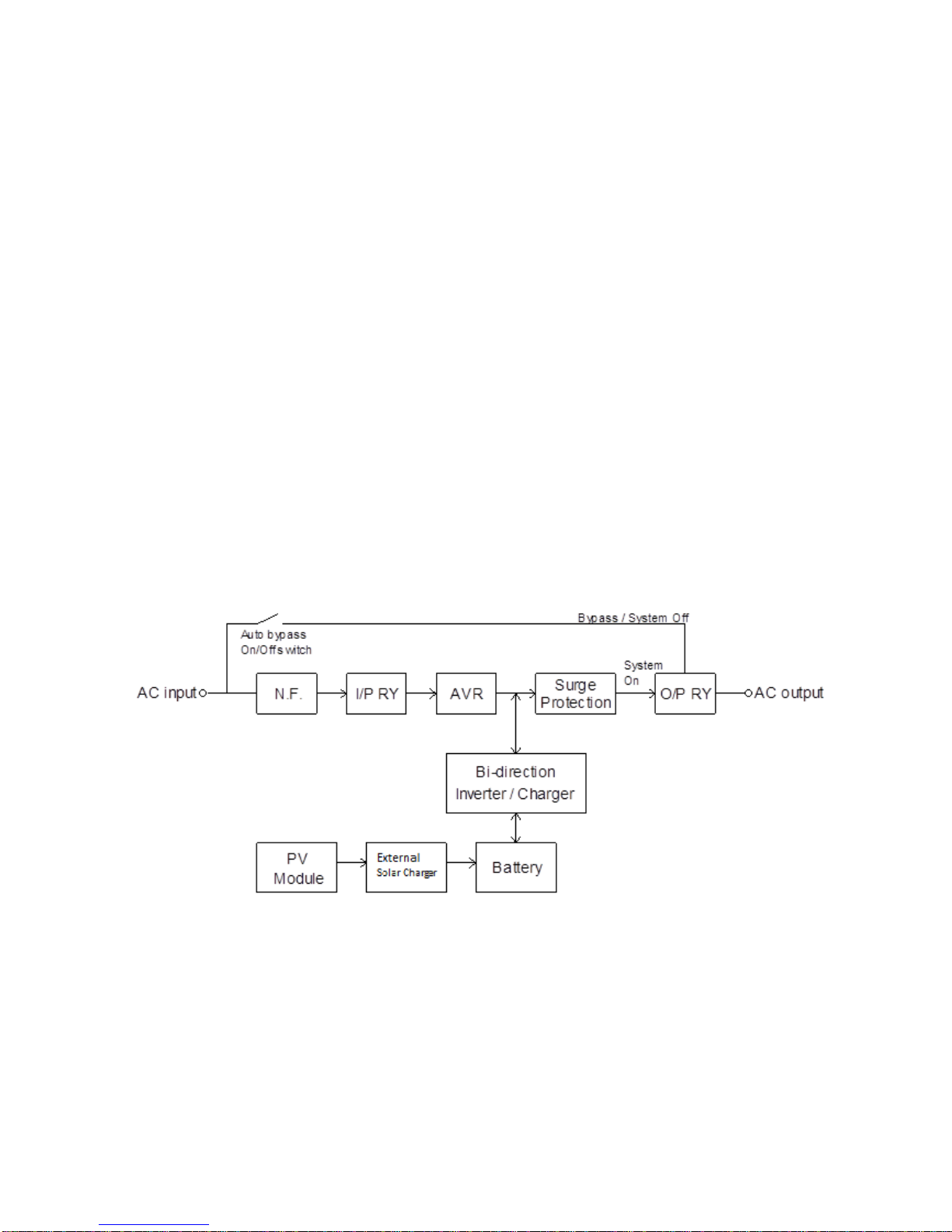

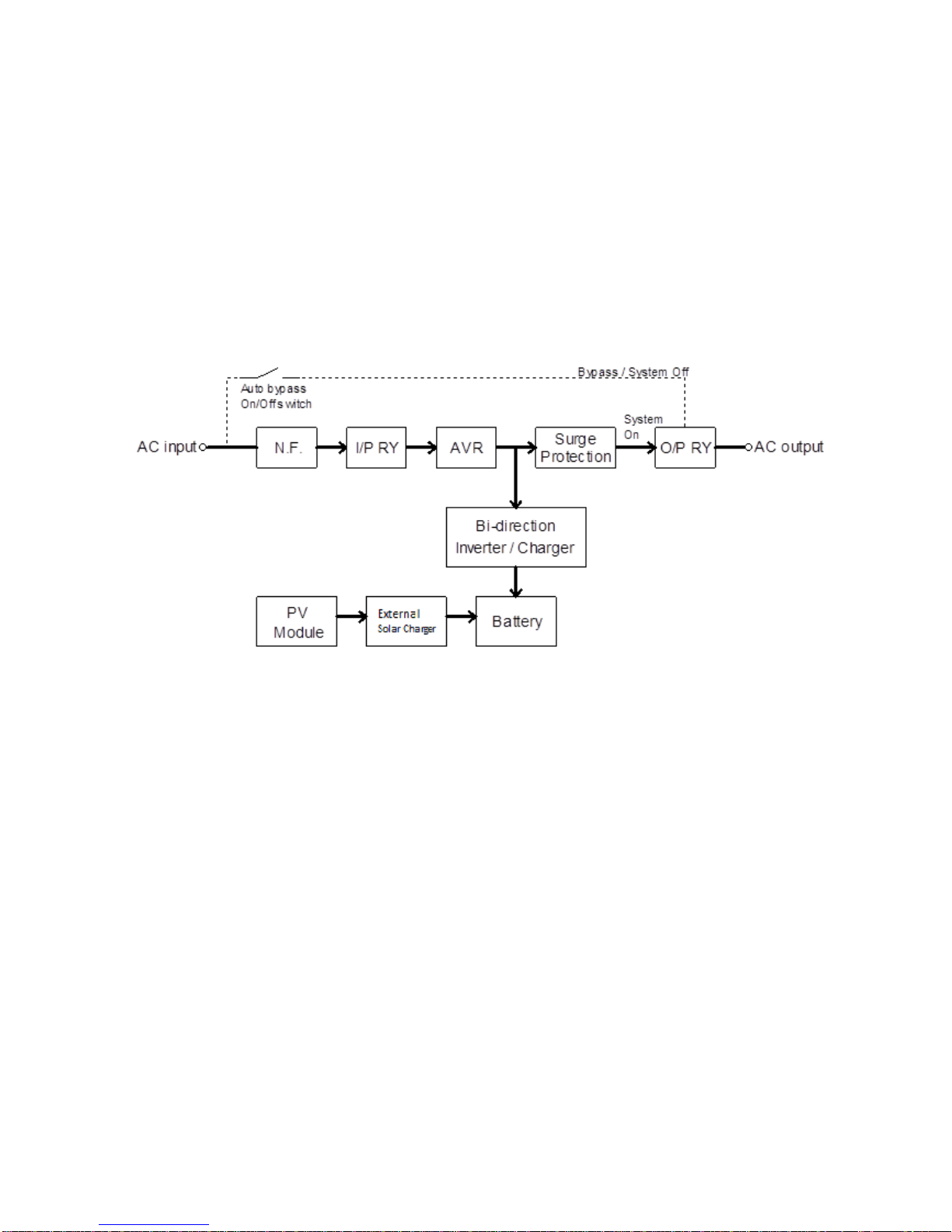

4.4 Operation block diagram is shown blow. The auto-bypass switch is available.
4.5 DC Priority Mode/Inverter Mode: There are 2 main operation modes when AC utility is normal,
the DC priority mode and theAC priority mode. To set DIPSW3 up will enable DC priority mode. In this
mode, DC power will be priority and system will draw power from battery when battery voltage is
normal. System will automatically switch toAC mode and keep the battery at basic charging level (48V)
when battery voltage is low. In the DC priority mode, solar charger or fan generator will be the main
charger power. The system will not transfer to inverter mode until battery voltage is charged to 13V for
each 12V battery.

11
4.6 DC Priority Mode/Green Mode: When load level is low (under 35W), the inverter efficiency is very
low. To save the battery energy, user can enable the green mode (set DIP SW4 up). The system will
transfer O/P relay to bypass mode at low load level. Please turn on the auto-bypass switch at rear
panel under green mode, or the output voltage will become zero when system transfers to bypass
mode.

12

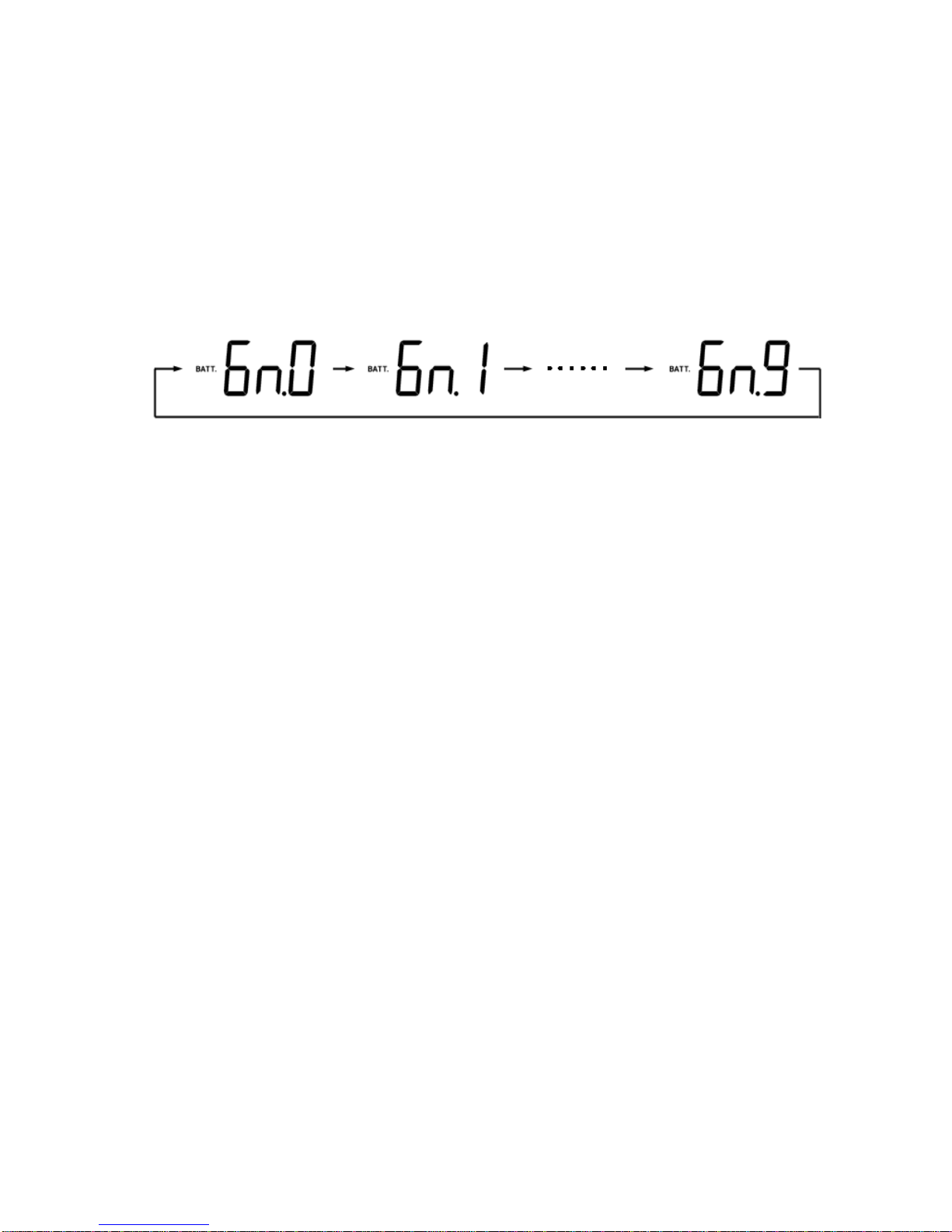

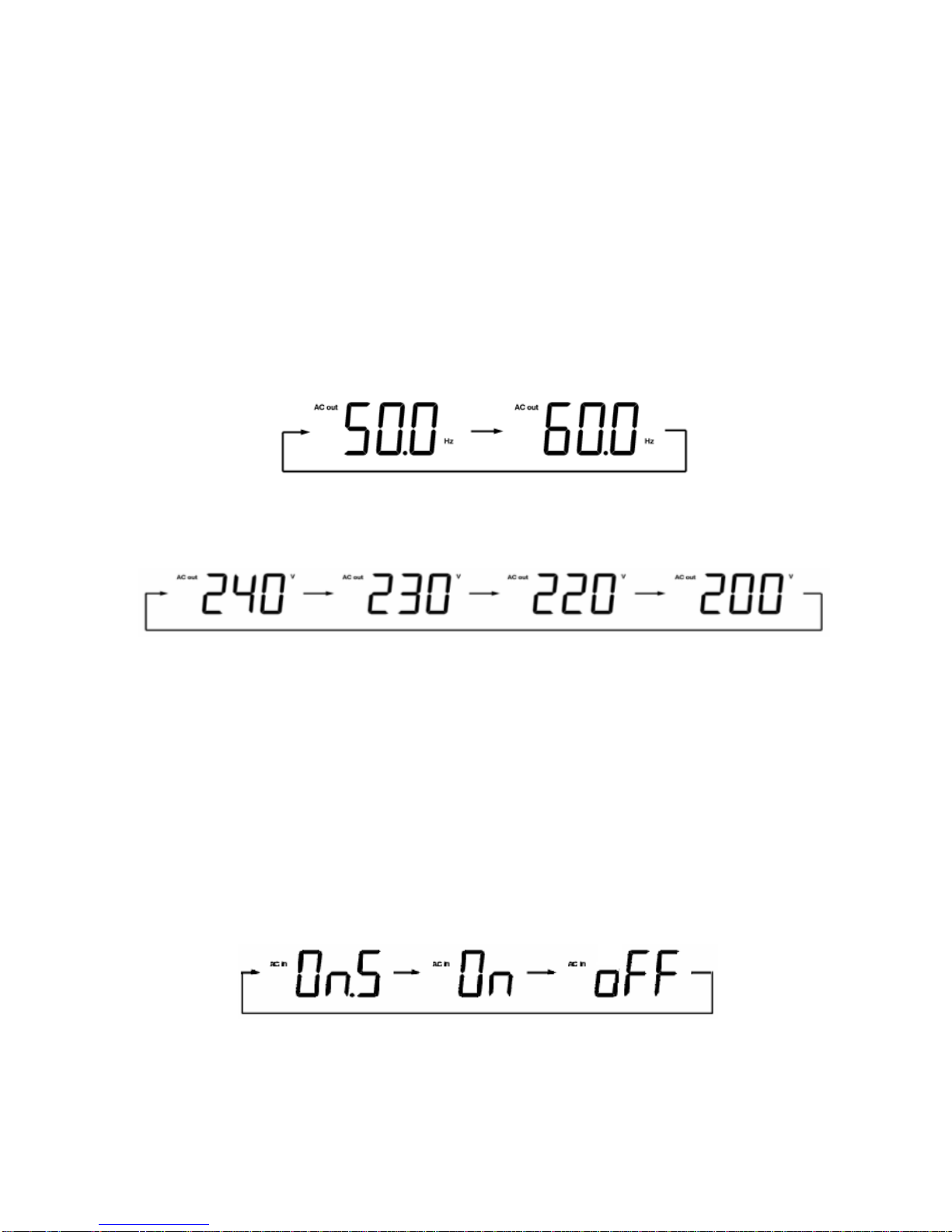

4.7 Green mode level setting (by the set-up software, UPS wizard; or through LCD display):
When green mode function is enabled, the inverter will turn off the power within 60 seconds in the
battery mode with the power consumption lower than the pre-set level (adjustable by using the
UPS wizard software). The default value of green mode setting is zero (disabled).
4.8 AC Priority Mode/AC Mode: AC Priority Mode/AC Mode: To set DIP SW3 down will enable
AC priority mode. In this mode, the AC O/P power is mainly from AC utility input with AVR
(auto-voltage-regulation). The battery charging voltage comes from AC input and converted by
the bi-direction inverter to support battery charging power. If the solar charger or fan generator is
sufficient, the solar charger will also provide charging power to battery.
4.9 Battery charging mode(From AC): The inverter provides two charging modes for the battery,
quick charging and trickle charging. The quick charging provides higher charging current when
battery is empty and reduces the charging current when battery voltage increases. Trickle charging
will begin automatically after battery is 90% fully charged.
4.10 When a blackout happens, the buzzer will emit two beeps every 8 seconds for alarm during
the first minute of blackout. You can disable the alarm by a short push at the main control button,
and to push it again will enable the alarm, the setting can be shown on LCD display. When battery
voltage is too low or too high, the inverter will emit alarm, if the under voltage or over voltage is too
much, the inverter will turn off itself automatically.
Note: The main control button provides test function at normal mode, but will become with alarm-reset
function at battery mode.

13
4.11 There are two ways to change the setting of inverter. The 1
st
way is to use the UPS Wizard
software, please contact your service people for detailed information. The 2
nd
way is to make it
through the LCD display, by the following procedures:
4.11.1 To push the two selection buttons, △and ▽, at the same time for 3 seconds until the LCD
display begins to blink.
4.11.2 To change the inverter O/P frequency at DC start
When the frequency value is blinking, push any selection button, △or ▽, for 1 second to change
the frequency setting! The setting will keep changing every 2 seconds if you keep pushing the
button. Push two selection buttons at the same time for next setting, or leave the LCD blinking
without pushing any button for 30 seconds to end the setting.
4.11.3 To change the inverter rated voltage
When the voltage value is blinking, push any selection button for 1 second to change the rated
voltage. Keep pushing the button until the required voltage blinking. Then, push two selection
buttons at the same time for next setting; or leave the LCD blinking for 30 seconds to end the
setting.
4.11.4 To change the Auto-turn-on setting at the recovery of utility power
The method of changing the setting is similar to that of voltage setting. If you don’t need
Auto-turn-on function, please select “oFF”. To select “On” is for immediate auto turning on at the
recovery of utility power. While the “On.S” means auto turning on with safety mode. Sometimes,
when battery is empty after blackout, the auto turn-on function will have very short backup time if
blackout happened again following with a short time recovery. To select “On.S” will provide
Auto-turn-on only when the battery is charged for, at least, 30% of its capacity.

14
4.11.5 To change the green mode level at battery mode
When the “Gn.0” is blinking, it means the green mode level if off. The inverter will not turn off the
power automatically if there’s no any load connected to inverter. When the “Gn.1” is blinking, it
means that the green mode level is 1% of full load. The inverter will turn off power automatically
if blackout happened when load level is less than 1% of full load.
Push the selection button “△“ for 2 seconds at least, to increase the green mode level or push
“▽“ to decrease the level. Push two selection buttons at the same time to end the setting .

15
5. INDICATION AND CONTROL
5.1 LCD Display
5.1.1 Main control button: Please refer to point 4 & 5 (4.1~4.7 & 5.3~5.4).

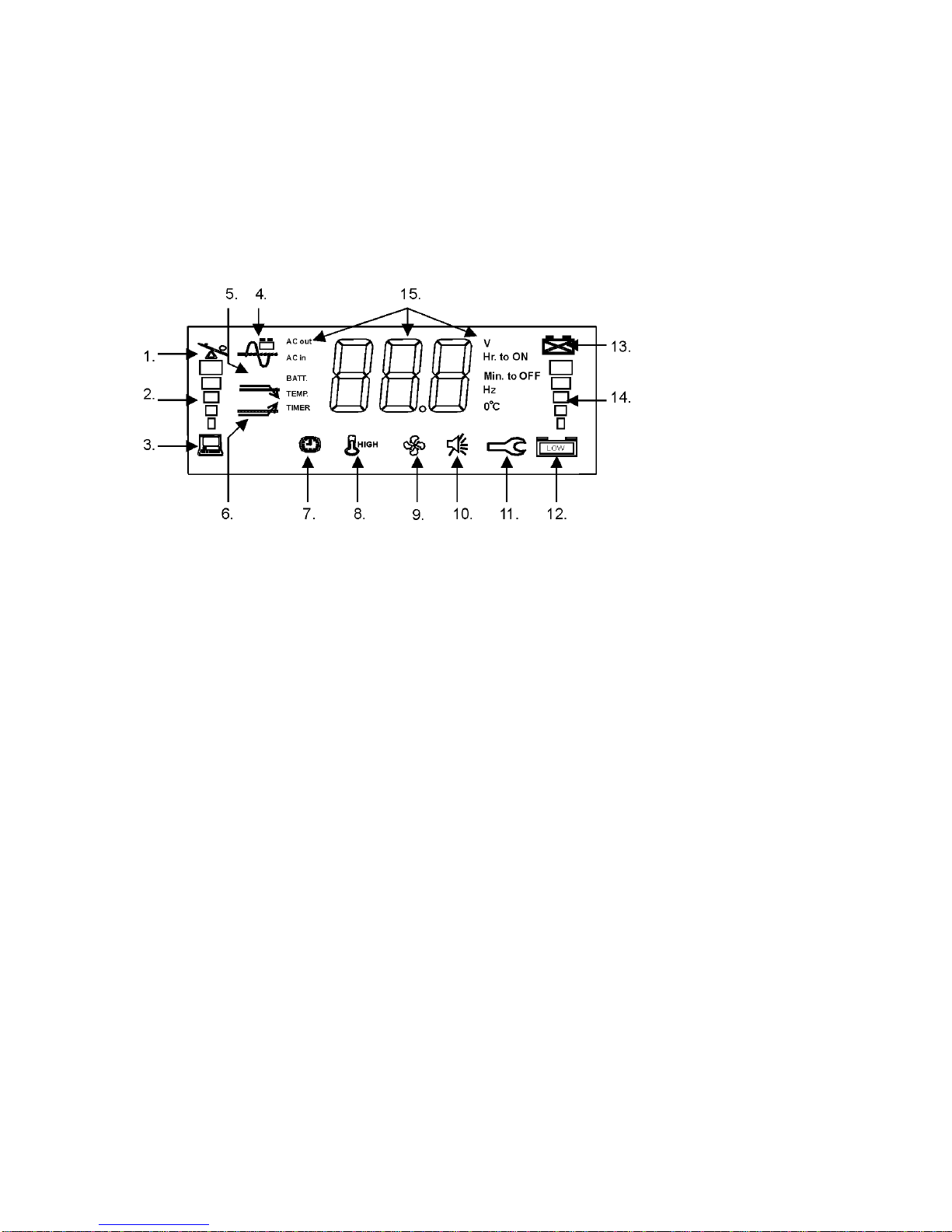

5.1.2 LCD screen

16
No.
Symbol Indication Description
1.
Over load
The loading exceeds the rating of Inverter .
2.
Loadlevel The higher the loading, the more bars will illuminate.
3. Inverteris loaded
When “Green Mode” is enabled, this symbol will display if the loading is
over preset level (adjustable, default = 0W / disabled), and disappears when
it’s under preset level. Please refer to User’s Manual 4.9. If “Green Mode”
is disabled, the symbol will always display.
4.
Normalmode 1) The sine wave symbol will display steadily without battery symbol when
Inverter is in the normal mode.
Battery mode 2) The sine wave symbol and battery symbol will blink when the Inverter is
in back-up (inverter) mode.
Test mode 3) The sine wave symbol will display steadily with blinking battery symbol
when the Inverter is in testing mode.
5. Buckmode The AVR (Auto Voltage Regulator) is reducing the output voltage of the
Inverter (when the input voltage is too high), and the sine wave symbol, as
mentioned in item 4, will also display steadily to indicate that the output is in
the normal mode.
6. Boost mode The AVR is increasing the output voltage of the Inverter (when the input
voltage is too low), and the sine wave symbol, as mentioned in item 4, will
display to indicate it’s in the normal mode
7. Timerisenabled This symbol will show up in the following situations:
1) A turn-on / turn-off schedule has been set using the monitoring
software. Refer to User’s Manual 5.5 and the “Readme” file or “Help”
function of the monitoring software.
2) The Green Mode is enabled and the loading is under preset level
(adjustable, default = 0W / disabled). The Inverter will turn itself off
automatically in 60 seconds. Refer to 4.9 of User’s Manual.
8. Thermal alarm Temperature inside the transformer is over 90 . If the user does not reduce℃
the load, the temperature will continue to rise and the inverter will shut down
automatically at 95 .℃
9.
Fan is in “High
speed”
The symbol will display whenever the cooling fan is running (or high speed),
and will disappear when it is off (or low speed).
10.
Silence mode
The audible alarm has been silenced. To reset the alarm in Back-up
mode, push the control button (not available during low battery level or
abnormal condition).
11.
Inverterfault The Inverter has failed and must be repaired. Contact a qualified service
person.
12.
Battery normal
1) In normal operation, this symbol indicates a charged battery.
Battery low 2) When the battery charge level is low, the word “LOW” will be added to
the symbol.
13.
Battery
replacement
The battery has failed and must be replaced. The battery is checked each
time the Test Function is executed.
14.
Battery voltage
level
1) The higher the battery voltage, the more bars will illuminate.
2) When the Inverter is charging the battery, the battery symbol and the
level indicator will blink together.
HIGH

17
15.
Mode Value Description
AC out V AC output voltage.
AC in V AC input voltage.
AC out Hz AC output frequency.
BATT. V DC battery voltage.
TEMP.
℃
Inverter internal temperature.
TIMER Min. to off The Inverter will turn off when the displayed value reaches zero. For
example, if the timer shows 0.5 Min to off, the Inverter will shut down in 30
seconds.
TIMER Hr. to on The Inverter will turn on when the displayed value reaches zero. For
example, if the timer shows 48 Hr to on, the Inverter will turn on in 2 days.
BATT. Min. to off The estimated remaining run time in Back-up mode. The accuracy of the
value is influenced by the loading type, ambient temperature and battery
condition (old or new).
Selection Button for mode & value
All the operation data will be displayed on LCD screen. By selecting the required mode (upward
or downward), the related value will be displayed.
5.2 Audible alarm
During a utility failure or fault operation, the Inverter emits beep for warning. In back-up mode, the
alarm can be silenced by pushing the button. However, the warning of low battery will still sound for
urging user to leave computer without any data loss.
STATUS ALARM
Idle mode
Utility Good No Beep
Utility outage No Beep
Timer on,
(refer to Item 5.5) No Beep
Normal /
Back-up
mode
Normal
(Utility good) No Beep
Back-up (No load)
Back-up (Loaded) One beep every 4 sec. (alarm can be silenced).
2 beeps every 8 sec. (during 1
st
minute of blackout).
Battery Low 4 beeps per sec. (alarm can Not be silenced).
Abnormal
Condition
Over load Continuous alarm (alarm can Not be silenced).
Inverterfault Every other 2 sec., 32 beeps in 2 sec (alarm can Not be silenced).
Thermal alarm Every other 2 sec., 32 beeps in 2 sec (alarm can Not be silenced).
5.3 Auto Self-test Function
In normal mode of SP8000 AVR, turn on your computer and push the button on the front panel for
self-test. The SP8000 AVR will simulate a power outage and transfer to battery mode. If low
battery warning sounds during the test, it means that the battery set is weak and requires extended
recharge.

18
5.4 Remote Control
The SP8000 AVR can be set for daily shutdown/wake up. This command must be set through the
RS-232 interface. When this function is set, the timer inside the Inverter will begin to run, and the
load will be turned off by the shutdown / wake-up schedule. The time period to next turn-on will be
shown on LCD panel by hour (Ref. item 15 of LCD description).
For the application of timer, the monitoring software, UPSilon, and the green cable are both required.
5.5 Reset the Inverter
If any abnormal condition occurs, and the item 4.1 ~ 4.7 can not be executed, please unplug the
line cord and push the button for at least 15 sec., which will reset the Inverter.
5.6 DIP Switch Settings
OFF / Up ON / Down
DIP 1 High Sensitivity for Blackout Low Sensitivity for Blackout
DIP 2 5 AVR 8 AVR
DIP 3 2-stage Charging CV Charging
DIP 4 Green mode Enabled Green mode Disabled
5.7 DB9 Dry Contact
Blackout Low Battery Alarm (42.4Vdc)
PIN 2 - NC
PIN 3 NC -
PIN 6 - N
PIN 7 - NO
PIN 8 N -
PIN 9 NO -

19
5.8 Battery Thermal Sensor
SP8000 AVR provides thermal compensation for battery charging voltage. To enable this function,
please connect the following temperature sensing wire at the rear panel of the UPS.

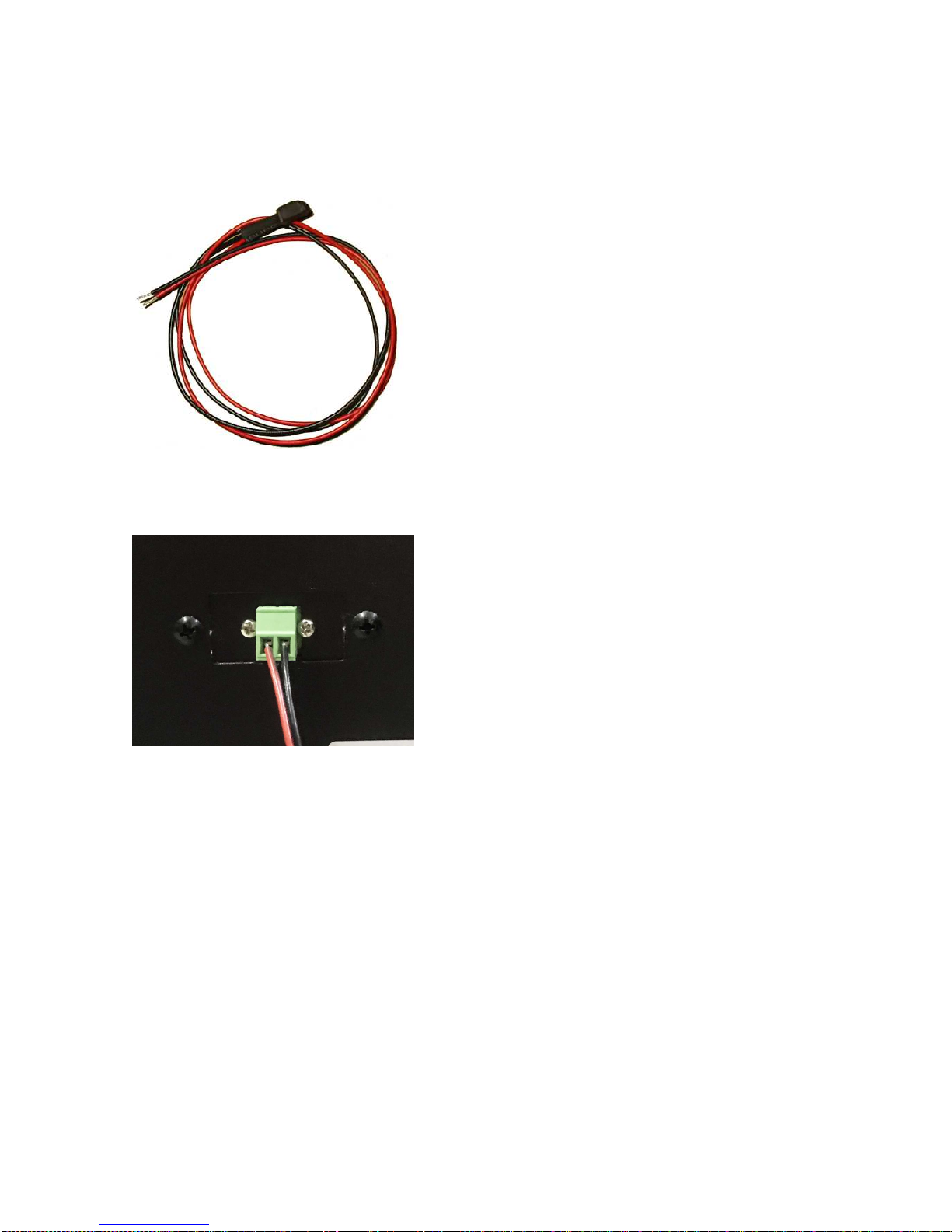

Battery temperature sensing wire.
Connector for temperature sensing
The sensing wire head needs to put close or next to the battery pack so that the UPS CPU can
detect the battery temperature.
The relation ship of the floating charging voltage and the battery temperature is designed as the
following graph.
