ROBINHOOD SE390 Owner's manual

1
Issue: B
Description: ROBINHOOD WASTE DISPOSAL- SCRAPEATER
Model Number: SE390, SE390Q, SE390QA, SE520Q & SE520QA
Model may vary slightly from image pictured

2
Overview
Contents of packaging:
1. Plug with brush
(spare gasket supplied in bag)
2. Sink Flange
3. Rubber gasket
4. Fibre gasket
5. Mounting ring
6. Hinged clamp
7. Splash baffle
8. Rubber gasket
9. Waste pipe (2 x screws)
10.Wrench
11.Main body
Air Switch option not shown.
Air switch and plastic tubing not shown.
Pre-installation
Important:
Before you start to install your Robinhood Waste disposal please read through the entire instruction manual
thoroughly. The set of instructions provided is general: local building codes take precedence over the instructions
in this guide and your installation must conform to the building codes in your area. Be sure to retain this set of
instructions for future reference.
Typical equipment required:
1. Philips and flat blade screwdrivers
2. Hammer
3. Channel lock pliers, slip joint
4. Screwdriver
5. Adjustable pipe wrench
Materials & Accessories
1. Petroleum jelly, liquid soap or cooking oil
2. Hose clamp (optional)
3. Dishwasher drain connector (optional)

3

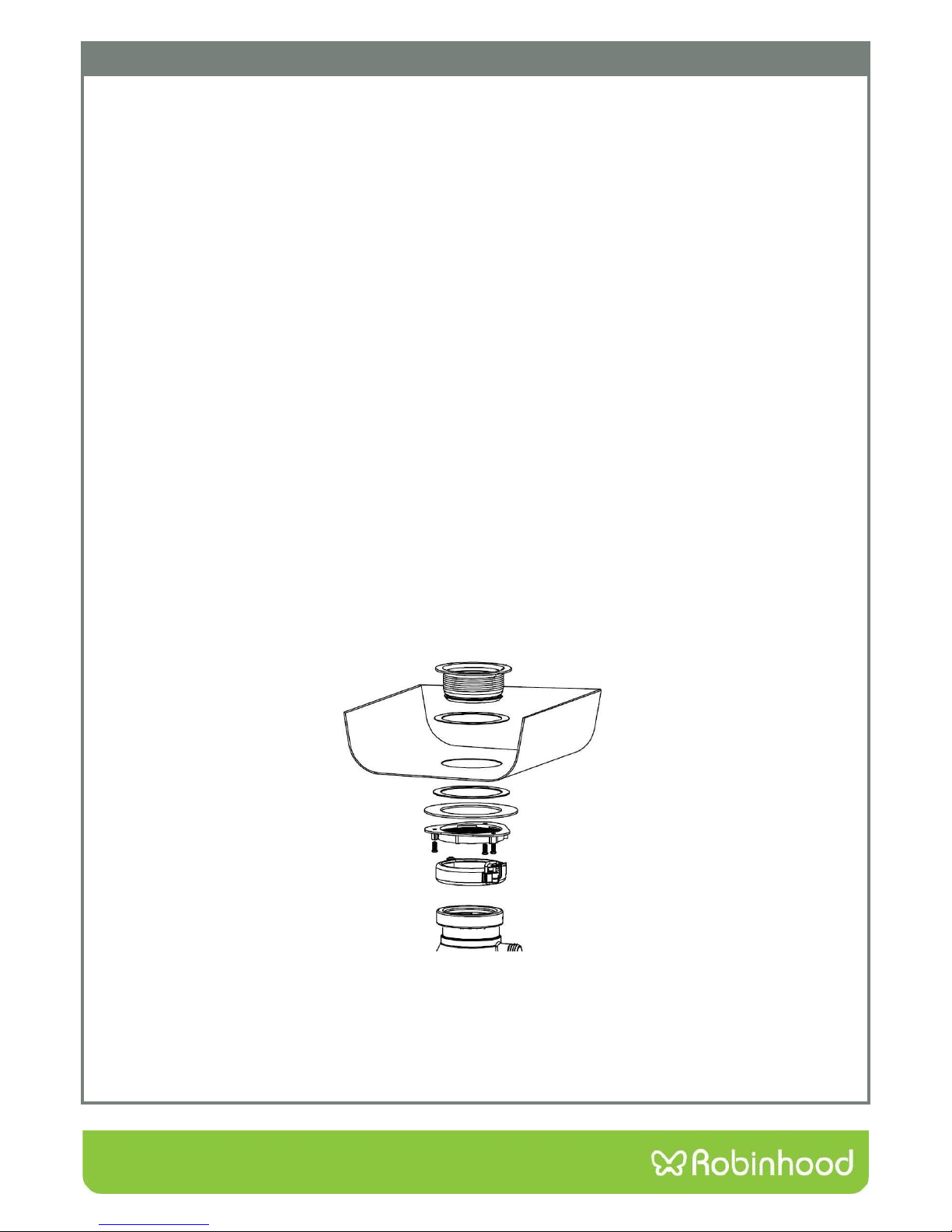

Securing the Sink flange
Before installing your waste disposal makes sure you have all the components necessary, by checking through
the component list above. Disassemble all the components and separate the sink flange assembly, excluding the
splash baffle, from the main waste disposal body.
1. First, unhook the hinged clamp that holds the sink flange and the main body together.
2. Once the clamp is unhooked pull on the flange to detach it from the main body.
3. Then unscrew the mounting ring from the sink flange. Upon doing this the two gaskets should fall out as
well.
To ease the installation process, make sure to leave the rubber splash baffle attached onto the main body.
1. When installing the unit, place the rubber gasket over the sink flange’s threaded ring. Insert the flange
and rubber gasket into the sink drain opening from the top side of the sink. (It is not necessary to use
plumber’s putty when installing the sink flange).
2. Insert the fibre gasket from the underside of the sink.
3. Attach the mounting ring and tighten with one hand while using the other hand to press down on the
sink flange. Hand tighten as tight as possible. Do not try to tighten with a wrench or hammer. Now
tighten the screws in the mounting ring to lock it in place.

4

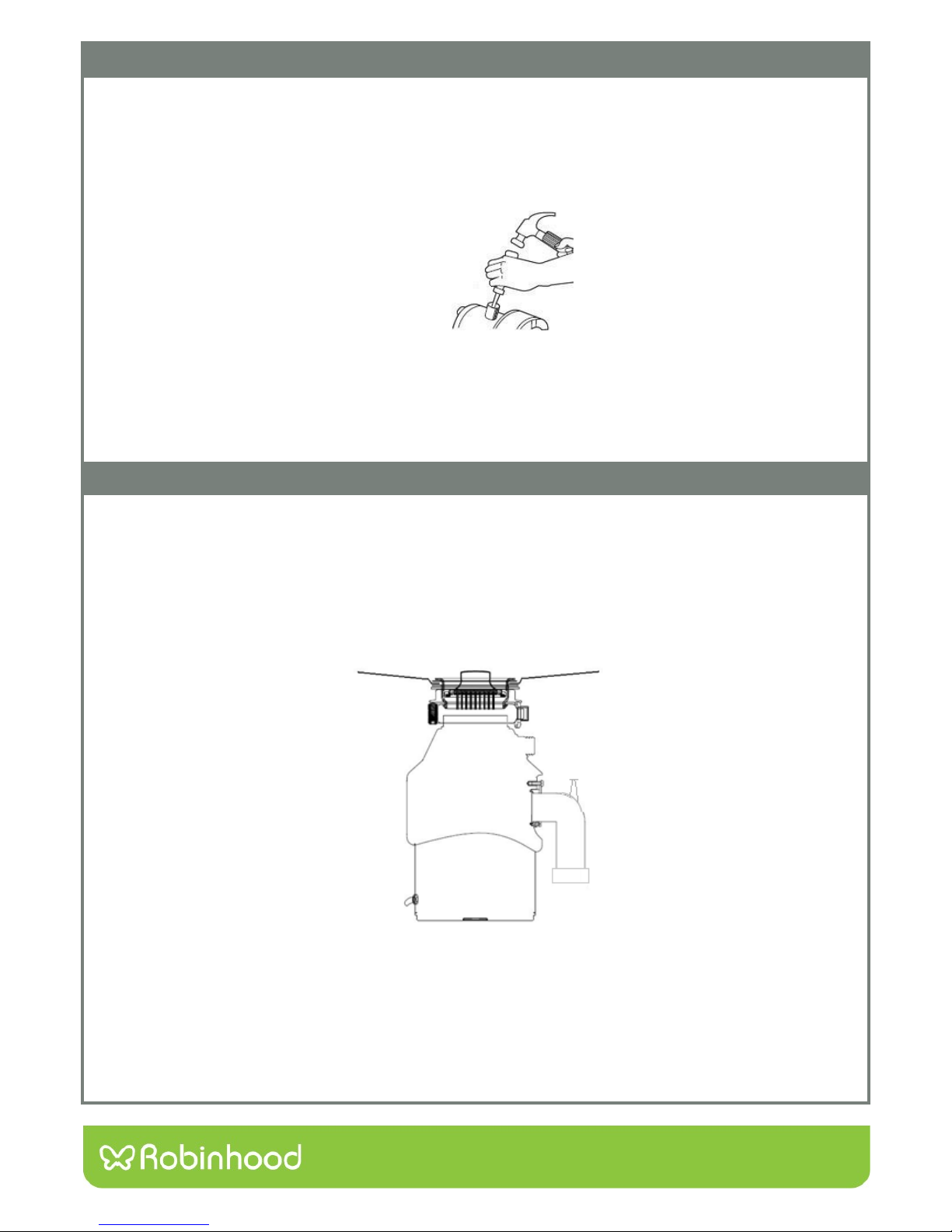

Dishwasher Connection (Optional)
If you plan on connecting your dishwasher drain pipe to your waste disposal, remove the plug in the
dishwasher drain connection opening with the help of a screwdriver and a rubber mallet. Remove the plastic
plug from the inside of the disposer by holding the disposer upside down and allowing the plastic plug to fall
out. Ensure all parts are removed.
The dishwasher drain outlet on your Robinhood waste disposal will accept a 22mm drain hose. Fasten the
connection tube in place with a hose clamp.
Mounting the Disposer
1. The rubber splash baffle should be attached to the main body of the waste disposal and not the sink
flange. Using two hands push the main body upwards so that the inner groove of the splash baffle locks
onto the sink flange. If necessary use cooking oil or similar products to lubricate the inner rim on the
exposed side of the splash baffle. Once engaged the disposer will hang freely by itself.
2. Align unit so the waste outlet is able to be connected to the house plumbing.
3. Place the hinged clamp around the splash baffle and lock in place.
4. The appliance must be installed so that the reset button located under the unit is readily accessible.

5

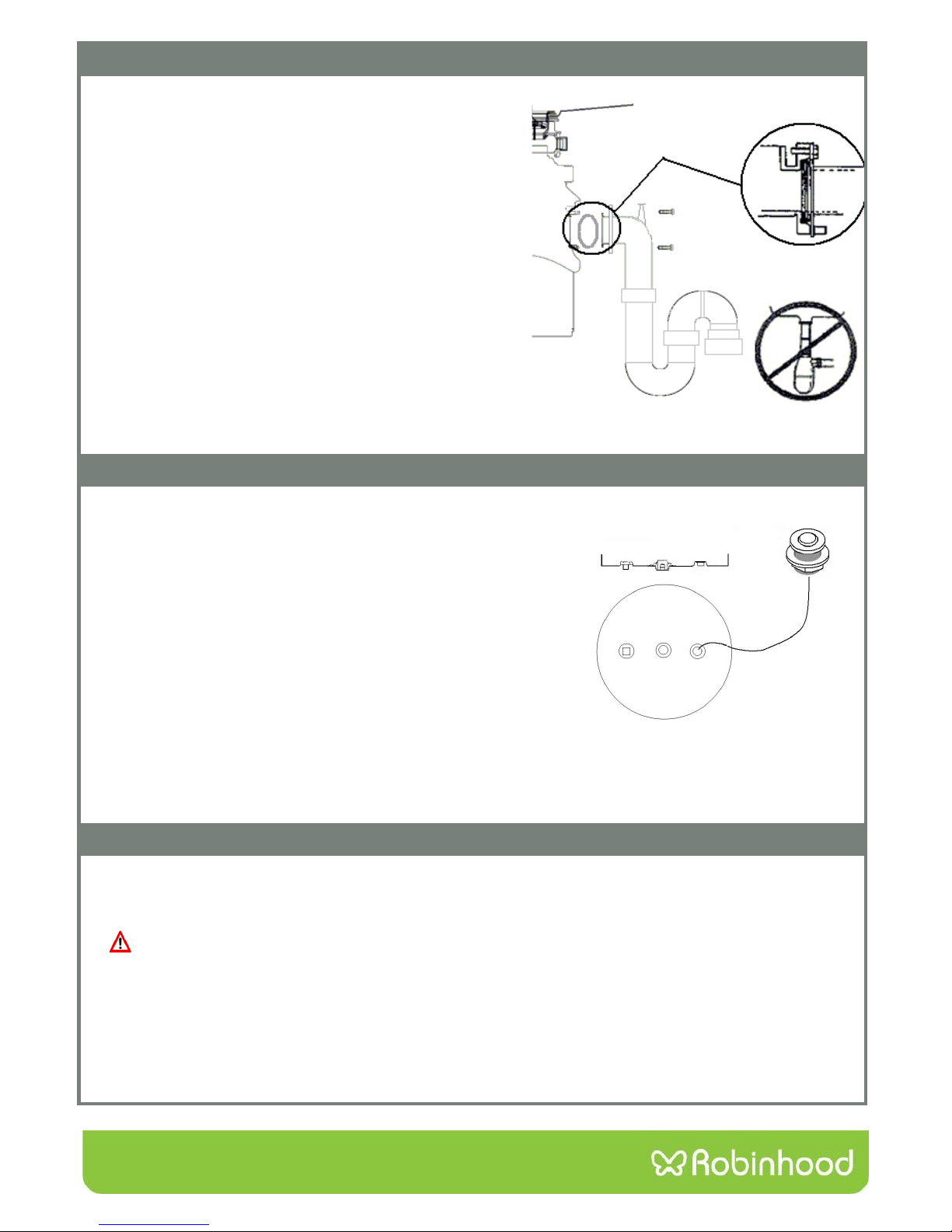

Plumbing Connection
1. Check inside the disposer to make sure that no foreign
objects are inside the grinding hopper.
2. Attach the rubber gasket to the waste pipe so that the
thin lip is facing the disposer.
3. Insert the non-notched end of the waste pipe flange
into the slot below the waste outlet on the disposer.
4. Use the screws to tighten the waste pipe to the disposer.
(NB: Do not over tighten).
5. Connect the pipe to the waste drain line.
(NB: U-trap or P-trap should be used, rather than a ball
ball trap).
6. If fitted to a double sink, the use of separate traps for the
disposer and the sink is recommended.
7. Make sure the hinged clamp is locked firmly in place.
Air Switch Option (SE390QA & SE520QA models only)
1. To install the push button switch proceed as follows:
2. Drill a 35 mm wide hole in the kitchen work top or corner of the
sink at the most convenient point for use.
3. Unscrew the mounting ring of the switch. Remove fibre washer.
Insert the switch through the hole.
4. Position fibre washer on the thread of the switch, then tighten
the locking ring until the washer is held firmly against underside
of the worktop or sink.
5. Unscrew the black hexagen adapter on the underside of the
switch
6. Insert one end of clear tube through the adapter and then over
the male connector of the switch and tighten the two together.
7. Insert the other end of clear tube through the adapter and then
over the male connector on the underside of the waste disposal and tighten the two together.
8. Push button to test waste disposal.
Your food waste disposal unit is now ready to use.
Testing
Once you have successfully connected your waste disposal, it is ready for use. However, it is still necessary to
ensure all your connections are secure.
A test run must be carried out to identify any immediate faulty connections or leaks.
1. First, turn on the cold water to a medium-high flow, allowing the water to flow through the waste disposer.
2. Check to see if there are leaks in the plumbing connections or waste disposer.
3. Now, turn on the waste disposer and recheck all connections for leaks or loose joints.
4. If at this point you see no leaks or loose joints, your waste disposer is safe for use.
5. Turn off your waste disposer first and then the water supply.

6
Operating instructions
1. Remove the sink drain plug.
2. Turn on the cold water to a medium-high flow, allowing the water to flow into the waste disposer.
3. Turn on the waste disposer (Air switch if provided).
4. Put all the food waste into the disposer while the disposer is operating and the water is running. Use the
extrusion attached to the drain plug to push the food down the disposer. Do not put your hand into the
disposer.
5. Cut or break up large bones, rinds and cobs in order to speed up the waste disposal process. The
disposer may slow down while grinding in order to increase torque (grinding power) which is part of
normal operating conditions.
6. Let the disposer continue to run for about half a minute after the grinding has stopped.
7. Turn off your disposer (Air switch if provided).
8. Turn off the water once the impellers have stopped spinning.
Safety features:
Your disposer is equipped with an overload protector which prevents the disposer from running should
it overload. Overload generally occurs when a foreign object has fallen into the disposer and jammed
the impellers, thus preventing the motor from turning. Overload may also occur if you have put too much
food waste into the disposer at a time. If overload occurs, turn off the disposer and remove the foreign
matter or food waste from the disposer. Insert the 8mm hex wrench supplied, into the opening at the
bottom of the motor shaft and rotate the tool clockwise. Wait five minutes before pushing the red reset button
on the bottom of the disposer. Then run water through the unit, switch it on and check for normal operation.
Cleaning and Maintenance
With normal usage your disposal should not require any special care.
1. The motor is permanently lubricated and should not require oiling under normal usage conditions.
2. If used according to the operating instructions above, your disposer should not require cleaning.
However, should it start to smell, grinding a tray of ice cubes in the disposer will help clean all the inner
components. Grinding a lemon, cut into quarters, will also give your disposer a fresh, clean smell.
3. Mineral deposits resulting from stagnant water droplets may cause the appearance of rust on your
stainless steel turntable. However, the turntable is made of non corrosive material and will NOT rust.
4. Spare plug seal is including in the packaging, this is not required until the unit starts to leak water
through the rubber seal. (In most situations this will not need replacing).

7
Safety
Warning:
When using electrical appliances, basic precautions should always be followed, including the
following:
Do not disassemble, refit or repair the waste disposal by yourself.
The appliance must be installed so that reset buttons and reversing switches are readily accessible.
To reduce risk of injury. Close supervision is necessary when the appliance is used near children.
Do not put fingers or hands into the waste disposal unit.
Switch off or unplug the appliance before attempting to free a jammed rotor with an
implement.
Turn the power switch to the off position before attempting to clear a jam or remove an object
from the disposer.
When attempting to loosen a jam in the waste disposal use the hexagonal wrench
provided. See operating instructions for further details.
When attempting to remove objects from the waste disposal use long handed tongs or pliers.
When the waste disposal is not in use, leave the sink drain plug in place to reduce the risk of
Objects falling into the disposer.
The appliance must be installed so that the reset button is readily accessible.
Do not use hot water when grinding food waste. Cold water helps in solidifying the waste,
allowing the disposer to effectively grind the waste.
This appliance is not intended for use by young children or infirm persons unless they have
been adequately supervised by a responsible person to ensure that they can use the
appliance safely.
Young children should be supervised to ensure that they do not play with the product.
Your Robinhood Waste Disposal is designed for grinding food waste only. Do not attempt to
grind the following:
o Metal: Silverware, nails, tacks wire, bread bad ties, staples.
o Glass: Jars, bottles, pieces of pottery or crockery.
o Dye or drain cleaning chemicals.
o Excessive quantities of fat or grease.
With proper use and care your Robinhood Waste Disposal will provide you with many years of trouble free
service.
Product Approvals and Ratings
Product approval
number
Spectrum Test report Number 4320
Product rating
390W (1.49A) Max at 240V 50Hz
520W (2.16A) Max at 240V 50Hz
/Electric approval
AS/NZS
AS/NZS 60335.2.16:2006
EMC AS/NZS
CISPR14:2003
