ROBINHOOD RHWM9W User manual

1
Description: ROBINHOOD WASHING MACHINE AND DRYER STACKING KIT
Model Numbers: RHWDSTACKKIT
FOR RHWM9W/RHFL75W & RHHPD7W/RHCD7W
Issue: 2
RHWDSTACKKIT
Models may vary slightly from images pictured

2
Safety Warnings
Please follow the installation manual to ensure you correctly install the stacking kit correct. This stacking
kit should only be installed by persons competent in such matters.
Two or more people are needed when installing the dryer on top of the washing machine.
Please ensure that the Washing Machine and Clothes Dryer are not connected to the power supplies
prior to installing the stacking kit.
This stacking kit can only be used to stack the nominated Robinhood Clothes Dryers onto the
nominated Robinhood Washing Machines. Use on any other models/makes could result in an
electrical/safety hazard. Check the Robinhood website or Service Department if unsure before
commencing installation.
Do not tilt either appliance more than 30° when installing the kit.
The drawer built into the stacking kit is only suitable for placing clothes. The maximum weight on
the drawer should be no more than 16kg. Please do not place objects greater than 16kg, small
children or babies on the drawer of the stacking kit.
This kit is supplied with the screws necessary for installation. Do not use different screws than
supplied, as this may cause an electrical/safety hazard.
The stacking kit is suitable for installing on front loading Washing Machines with a cabinet depth of
440mm, 510mm or 540mm.
No responsibility will be taken by Robinhood for damage to appliances or injury caused by incorrect
installation of this kit.

3

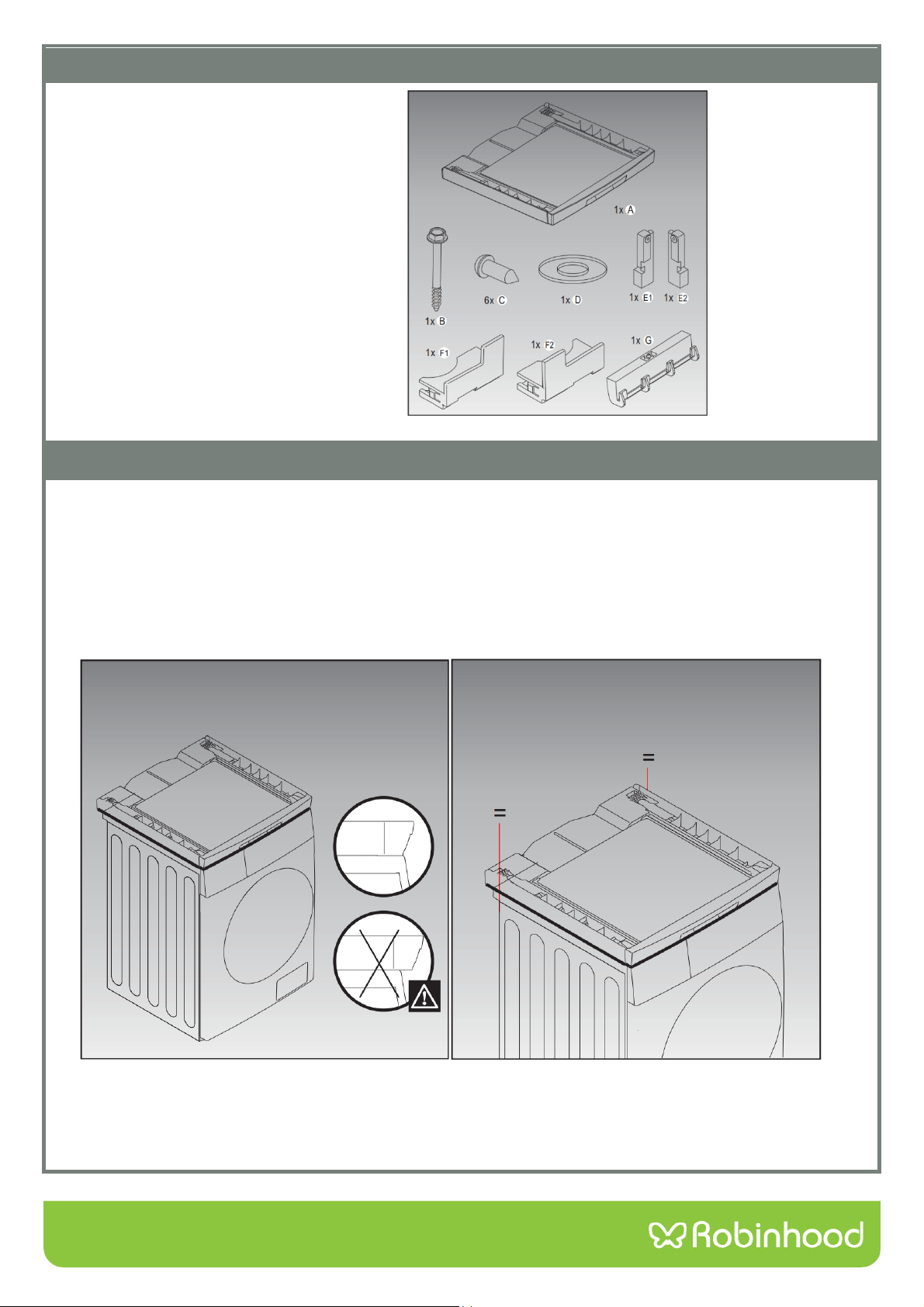

Parts List
A- Stacking kit（1）
B- Screw M6（1）
C- Screw M4（6）
D- Gasket（1）
E1-Rear fixing block (Right 1）
E2- Rear fixing block (Left 1）
F1- Front fixing block (Right 1）
F2- Front fixing block (Left 1）
G- Top panel fixing block（1）
NOTE: Parts E1& E2 are not used in
this stacking kit.
Installation
Step 1: Ensure the installation of the Robinhood front loading washing machine is completed
according to the appliance’s installation manual, and adjust the balance of the washing machine.
Step 2: Check that all parts listed in the parts list are present.
Step 3: Place the stacking kit on the top panel of the washing machine with the handle of the
stacking kit to the front. As shown below, align the stacking kit on top of the washing machine so that
it is even on both sides.

4
Installation
Step 4: Mark the positions of the six installation screw holes in the stacking kit on the top of the
washing machine. Carefully drill through the six pilot holes in the top of the washing machine (take
care that the drill it is only as long as the screws supplied). Place the stacking kit back on the washing
machine and screw into place using the six screws provided (C). Do not over tighten. Screw in by
hand or use a torque less than 10nm).
Step 5: Install the top panel fixing block (G). Place the top panel fixing block onto the top panel of the
washing machine. Align the mounting hole of the block with the mounting hole of the stacking kit, and
fix into place using the supplied M6 screw (B) and gasket (D). Do not over tighten.

5
Installation

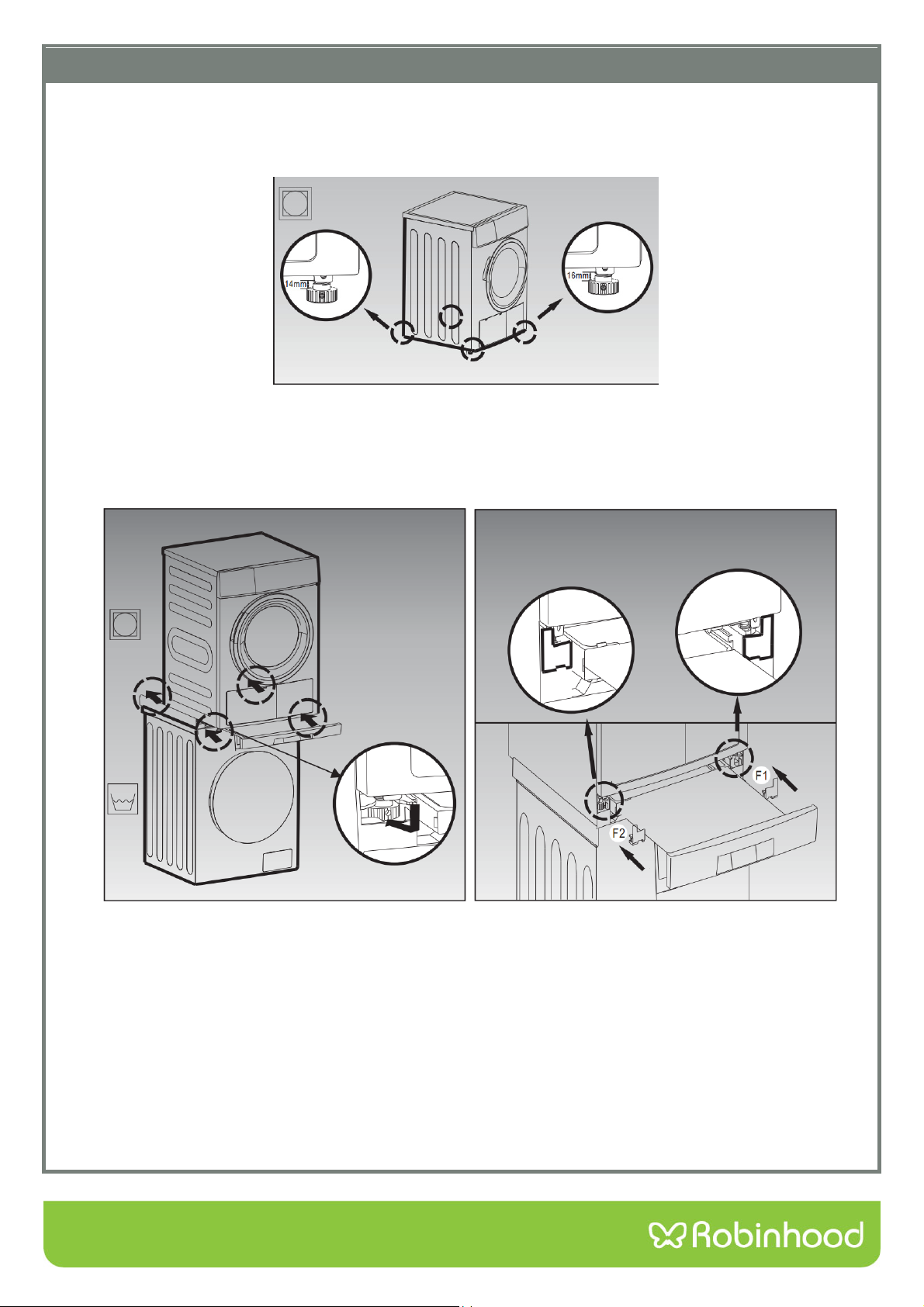

Step 6: Adjust the feet of the clothes dryer. For clothes dryers with four adjustable feet screw the
front feet out by 16mm and the rear feet by 12mm. Check that the clothes dryer sits stable on a flat
surface.
Step 7: Pull the drawer handle out, and place the clothes dryer in the frame of the stacking kit. Note:
Place the front feet on the outside of the card slot first, then push the dryer backwards, so that the
feet of the dryer slip into the slots. Fit the two front fixing blocks (F1 & F2) into the slots at the front
of the stacking kit. Take note of the orientation of the two parts.

6
Installation
Step 8: Check that the clothes dryer is not loose inside the stacking kit. Pull out the drawer & check
that there is no interference. If this is all good, the installation is complete. Reconnect all power and
water sources. When using either appliance for the first time, check that the clothes dryer does not
move within the stacking kit. Check that the connections are all still in place periodically.
The stacking kit is suitable
for use with the following
appliances:
RHHPD7W/RHCD7W
RHWM9W/RHFL75W

7
