ROBINHOOD WMFLA75W User manual

Installation and Operating Instructions
Issue 1
DESCRIPTION : ROBINHOOD FRONT LOAD WASHING MACHINE 7.5KG WHITE
MODEL NUMBER :WMFLA75W
*Actual unit may vary from above model picture

Contents
Congratulations!
Thank you for choosing one of our appliances. Before you use the appliance, we strongly recommend that you read
through the whole user manual which provides important safety instructions and description of the product and the
proper use of its functions.
To avoid the ever‐present risks involved with using an electrical appliance it is vital that the oven is installed correctly
and that you read the safety instructions carefully to avoid misuse and hazards. It is important that you retain these
instructions and your proof of purchase along with any other important documents about this product for future
reference.
Due to continual product development, Shriro reserves the right to alter specifications or appearances without notice.
Important Safety Instructions ..............................................................................................................................1
Technical Specifications........................................................................................................................................4
Installation Instructions........................................................................................................................................5
Operating Instructions..........................................................................................................................................9
Cleaning and Maintenance................................................................................................................................ 23
Troubleshooting ................................................................................................................................................ 26
Warranty Certificate (New Zealand).................................................................................................................. 28
Warranty Certificate (Australia) ........................................................................................................................ 29
DISPOSAL INFORMATION
•Most of the packing materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them in appropriate collection containers.
•If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.
Icon
Type
Meaning
WARNING
Serious injury or death risk
RISK OF ELECTRIC SHOCK
Dangerous voltage risk
FIRE
Warning; Risk of fire / flammable
materials
CAUTION
Injury or property damage risk
IMPORTANT / NOTE
Operating the system correctly

1
Important Safety Instructions
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing
the contents of this carton.
Operating voltage / frequency
220-240V,50Hz
Total current (A)
10
Water pressure (Mpa)
Maximum 1 Mpa / Minimum 0.1Mpa
Total power (W)
2200
Maximum washing capacity (dry laundry) (kg)
7.5
•Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
•The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
•Children of less than 3 years should be kept away unless continuously supervised.
•Call the nearest authorized service centre for a replacement if the power cord malfunctions.
•Use only the new water inlet hose coming with your machine when making water inlet connections to your machine. Never
use old, used or damaged water inlet hoses.
•Children should not play with the appliance. Cleaning and user maintenance should not be made by children without
supervision.
NOTE: For a softcopy of this user manual, please contact the following address: “[email protected]”. In
your e-mail, please provide the model’s name and serial number (20 digits) which you can find on the appliance door.
•To ensure your safety and the safety of others, please read the following safety precautions before using or installing your
Washing Machine.
•Your machine is for domestic use only. Using it for commercial purposes will void your warranty.
•This manual has been prepared for more than one model therefore your appliance may not have some of the features
described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating
manual.
GENERAL SAFETY WARNINGS
•Before setting up your Washing Machine, remove the four transit bolts and the rubber washers from the rear of the
machine.
•Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage.
•Retain this user manual for future use and pass it on to the next user.
•The necessary ambient temperature for operation of your Washer Dryer is 15-25 °C.
•Where the temperature is below 0 °C, hoses may split or the electronic card may not operate correctly.
•Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters
and coins.
•It is recommended that for your first wash, you select the 90˚ Cotton program without laundry and half fill compartment II
of the detergent drawer with a suitable detergent.
•Residue may build up on detergent and softeners exposed to air for a long period of time. Only put softener or detergent
in the drawer at the beginning of each wash.

2
Important Safety Instructions
•Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time. We
also recommend that you leave the door open to prevent buildup of humidity inside the Washing Machine.
•Some water may be left in your Washer Dryer as a result of quality checks during production. This will not affect the
operation of your Washing Machine.
•Keep the document bag that was supplied inside your Washing Machine and contained this user manual out of the reach
of children and babies to prevent the risk of suffocation.
•The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small
parts from the Washing Machine.
•Only use pre-wash programs for very dirty laundry.
•Never open the detergent drawer while the machine is running.
•Do not exceed the maximum load for the washing or drying program you have chosen.
•In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to
carry out any repairs. Always contact an authorized service agent.
•Never force the door open when your Washing Machine is running.
•Please follow the manufacturers’ instructions on the use of fabric conditioner or any similar products that you intend to
use in your Washing Machine.
•Washing laundry containing flour may damage your machine.
•Make sure that the door of your Washing Machine is not restricted and can be opened fully.
•Install your Washer Dryer in a location that can be ventilated and has constant air circulation.
•RISK OF BURNS: Do not touch the door, drain hose or any discharged water while your Washing Machine in running.
The high temperatures involved pose a burn risk.
•ELECTROCUTION RISK: Do not connect your Washing Machine to the mains electricity supply using an extension
lead.
•A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should
only be done by qualified personnel.
•Never remove the plug from the socket by pulling the cord. Always hold the plug.
•Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
•Do not touch your Washing Machine if your hands or feet are wet.
•Call the nearest authorized service company for assistance if the power cord malfunctions. Explosion Risk
•RISK OF FLOODING: Check the speed of water flow before placing the drain hose in a sink.
•Take necessary measures to prevent the hose from slipping.
•Water flow may dislodge the hose if it is not properly secured. Make sure the plug in your sink does not block the plug hole.
•FIRE RISK: Do not keep flammable or explosive liquids near your machine.
•The Sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine Do not
use a detergent ball/device if you have selected a washing and drying program as this may cause a fire hazard.
•Never use products that contain solvents in your machine.
•Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters
and coins.
•FALL AND INJURY RISK: Do not climb on your Washing Machine.
•Make sure hoses and cables do not cause a trip hazard.
•Do not turn your Washing Machine upside down or on its side.
•Do not lift your Washing Machine using the door or detergent drawer.
•Make sure hoses and cables do not cause a trip hazard.

3
Important Safety Instructions
•To avoid risk of injury, please take care when moving your Washing Machine. It is heavy and we recommend that a
minimum of two people move your Washing Machine.
CHILD SAFETY
•Do not allow children to play with the machine.
•Do not leave children unattended near the machine. They might lock themselves in the machine.
•The door glass and machine surface can become extremely hot during operation. Do not allow children to touch the
machine; it may damage their skin.
•The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small
parts from the Washing Machine.
•Poisoning and irritation may occur if detergent or other washing aids are consumed or come into contact with skin or eyes.
Keep cleaning materials out of reach of children.
DURING USE
•Do not allow pets near the machine.
•Please ensure that you have removed all of the packaging materials and protective tape from the outside of your Washing
Machine, inside the drum and inside the detergent drawer before using. Check for any external visible damage. Do not
install or use your Washing Machine if it is damaged.
•This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without supervision.
•Only use your machine for laundry that is labelled as suitable for washing by the manufacturer.
•Before operating the Washing Machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the
bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and cause the guarantee to
be void.
•Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage.
•Please do not throw away this user manual; keep it for future reference and pass it onto the next owner.
•Specifications for the machine may vary depending on the product purchased.
SAVINGS INFORMATION
Some important information to get the most efficient use out of your machine:
•Do not exceed the maximum load for the washing program you have chosen. This will allow your machine to run in energy
saving mode.
•Do not use the pre-wash feature for lightly soiled laundry. This will help you save on the amount of electricity and water
consumed.

4
Technical Specifications
1) Electronic Display
6) Pump Filter Cover
2) Programme Dial
7) Water Inlet Valve
3) Upper Tray
8) Power Cable
4) Detergent Drawer
9) Discharging Hose
5) Drum
10) Transit Bolts
Maximum washing capacity (dry laundry) (kg)
7.5
Spin speed (rpm)
1400
Number of programmes
15
Operation voltage / Frequency (v/hz)
220-240 / 50
Water pressure (mpa)
Maximum: 1
Minimum: 0.1
Dimensions (HxWxD) (mm)
845x596x557
Total Current (A)
10
Total Power (W)
2200

5
Installation Instructions
Your machine must only be installed by an authorized service company.

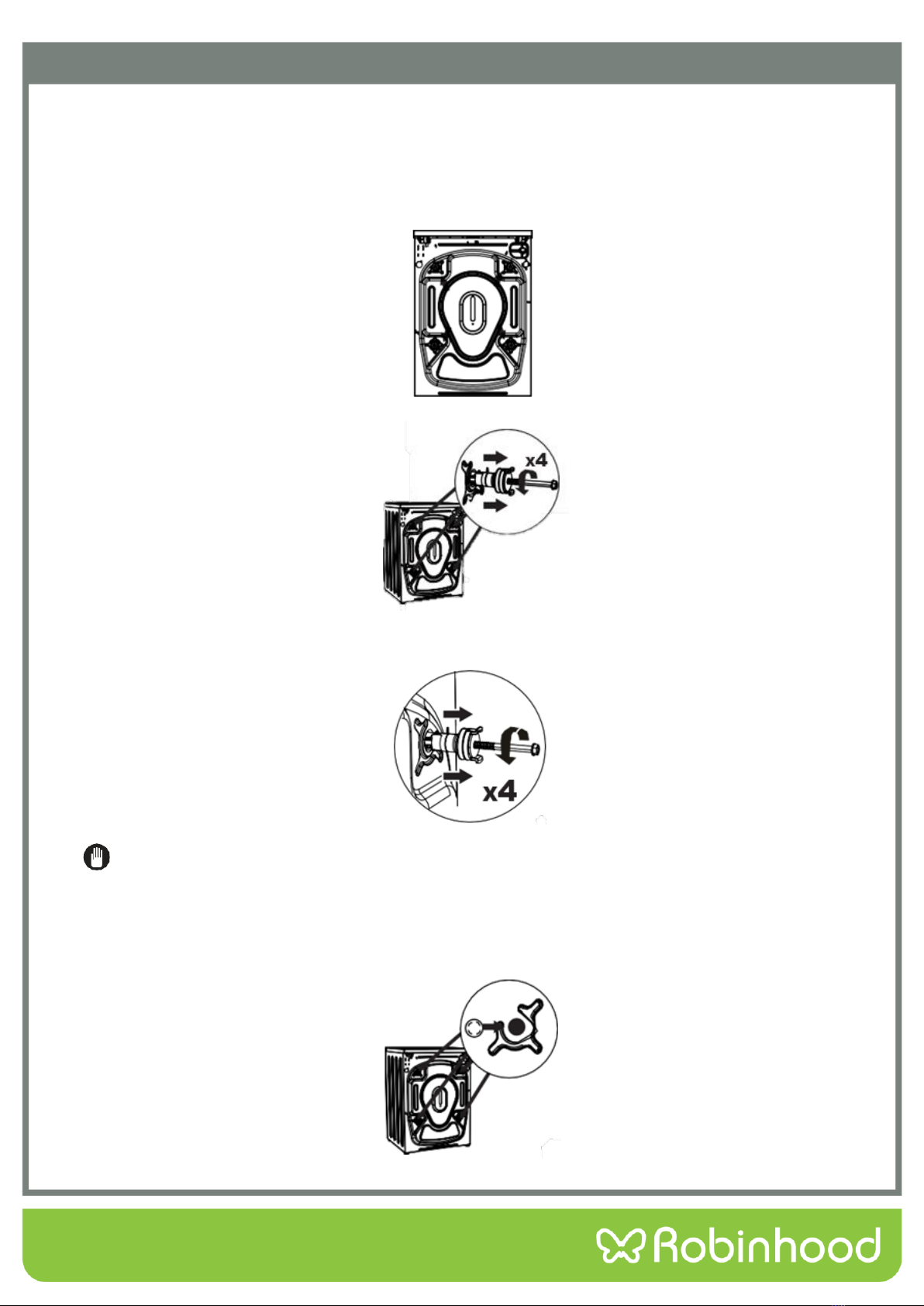

REMOVE THE TRANSIT SCREWS
1. Before operating your machine, you must remove the transit screws from the rear of the machine.
2. Loosen the transit screws by rotating anti-clockwise with an appropriate spanner.
3. The transit screws can then be removed with a straight pull. The removed transit screws should be stored in case you
need to transport your Washing Machine in the future.
NOTE: You must remove the transit screws from your machine before first use. Faults occurring in machines
operated with transit screws still fitted are outside the scope of the warranty. Fit the plastic blanking caps supplied in
the accessories bag into the gaps left by the removal of the transport screws. The transport screws should be stored for
future use.
4. Insert the plastic blanking caps from the accessories bag into the gaps left by the transit screws.

6
Installation Instructions
PLACING THE MACHINE AND ADJUSTING THE FEET
1. Do not install your machine on a carpet or surface that will block ventilation at the base.
•To ensure silent and vibration-free operation of your machine, install it on a firm surface.
•You can level your machine using the adjustable feet.
•Loosen the plastic locking nut.
2. To increase the height of the machine, turn the feet clockwise. To decrease the height of the machine, turn the feet
anticlockwise.
•Once the machine is level, tighten the locking nuts by turning them clockwise.
3. Never insert cardboard, wood or other similar materials under the machine to level it.
•When cleaning the ground on which the machine is located, take care not to disturb the level of the machine.
Electrical Connection
•Your Washer Dryer requires a 220- 240V, 50Hz mains supply.
•The mains cord of your machine is fitted with a grounded plug.
•The plug should always be inserted to a grounded socket of 10 amperes. The fuse rating of the plug should also
be 10 amperes.
•If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a
qualified electrician.
•We do not take responsibility for damage that occurs due to the use of ungrounded equipment.
NOTE: Operating your machinewith low voltage will cause the life cycle of your machine to be reduced and its
performance to be restricted.

7
Installation Instructions
Water Inlet Connection
1- Your machine may have either a single water inlet connection (cold) or double water inlet connection (hot and cold)
depending on the machine specifications. The white capped hose should be connected to cold water inlet and red
capped hose to the hot water inlet (if applicable).
•To prevent water leaks at the joints, either 1 or 2 nuts (depending on your machine’s specifications) are supplied in
the packaging with the hose. Fit these nuts to the end(s) of the water inlet hose that connect to the water supply.
2- Connect new water inlet hoses to a ¾ ,threaded tap.
•Connect the white capped end of the water inlet hose to the white-water inlet valve on the rear side of the
machine and the red capped end of the hose to the red water inlet valve (if applicable).
•Hand tightens the connections. If in any doubt, consult a qualified plumber.
•Water flow with pressure of 0. 1-1 Mpa will allow your machine to operate at optimum efficiency (pressure of 0. 1
Mpa means that more than 8 liters of water per minute will flow through a fully opened tap).
3- Once you have made all of the connections, carefully turn the water supply on and check for leaks.
4- Ensure that the new water inlet hoses are not trapped, kinked, twisted, folded or crushed.
•If your machine has a hot water inlet connection, the temperature of the hot water supply should not be higher
than 70°C.
NOTE: Only use the water inlet hose supplied with your machine when making connections. Never use old, used or
damaged water inlet hoses.

8
Installation Instructions
Water Draining Connection
•Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional
equipment.
•
•Never attempt to extend the water drain hose.
•Do not put the water drain hose from your machine into a container, bucket or bathtub.
•Make sure that the water drain hose is not bent, buckled, crushed or extended.
•The water drain hose must be installed at a maximum height of 100 cm from the ground.
