ROBOfiber RB-GES401-POE User manual

4 www.robofiber.com
RB-GES401-POE Gigabit Ethernet Switch
Installation
•Please use Cat5e or Cat6 TP cables not exceeding 100m in length to
connect to network PD devices
•Connect power adapter to mains and to back power jack
•Power the RB-GES401-POE switch and check LED status for proper
operation
Gigabit Ethernet PoE Port Up-link Ethernet Port
Troubleshooting
•Make sure all cables are following the EIA/TIA568A or 568B
specifications
•If one end is following EIA/TIA 568A or 568B, the other end of
same cable must be same identical type
•Check PD devices for power consumption, no single port should
exceed 30W load
•Check that all PoE PD devices do not exceed 60W total consumption
Gigabit PoE Ethernet
Switch
RB-GES401-POE
User Manual
Uplink
PoE
PWR
5-
Port Ethernet Switch with 4 PoE

2 3
RB-GES401-POE Gigabit Ethernet Switch
RB-GES401-POE Gigabit Ethernet Switch
Gigabit Power-over-Ethernet Ethernet Switch
Order Information
RB-GES401-POE Gigabit 5 port switch with 4 PoE ports (60W total PoE power)
Description
The RB-GES401-POE is a simple but reliable Gigabit Ethernet switch. Switch has a total
PoE output of 60 watts.
With the RB-GES401-POE switch, PDs (such as IP Security Cameras, wireless access
points) can be installed at powered through the unit itself. Four ports on the switch can
provide a total of 60W of PoE power (15W per port) and a fifth port is available for
10/100/1000Base-Tx connectivity.
Switch has its own AC power adapter providing DC 48V @ 1.3A. RB-GES401-POE offers
five Gigabit Ethernet ports with automatic link speed, duplex and auto direct/crossover
negotiation and connectivity. This small switch is ideal for unmanaged data network
hubs.
Features
•5 x 10/100/1000Base-Tx ports switch
•Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3af, IEEE802.3at
•4 port PoE enabled ports, 65W power adapter
•Gigabit full-rate network throughput with 10G bandwidth backplane
•IEEE802.3x flow control
•FCC, CE compliant
For best performance and reach, please use only Cat5e and Cat6 rated cables.
Lower grade cables will prevent proper operation of the Ethernet switch.
Contents of package
•RB-GES401-POE switch
•AC 90-240V to DC48V power adapter
•User manual
Technical Specifications
Power
AC 90-240V IN, DC48V OUT external power supply,
65W max power. Switch in standby (no PoE PD
devices connected needs only 8W of power)
Interfaces
5 x RJ45 10/100/1000 Mbps half/full duplex auto,
max. reach 328ft (100meters)
Ethernet Standards
IEEE 802.3/802.3u/802.3ab/802.3af/802.3at
PoE Output
Pin Assignment and Polarity: 1/2 (+), 3/6 (-), Output
Power: up to 30W/port, orange LEDs, not exceeding
60W total PoE output
Connectors
Shielded RJ-45, EIA 568A and 568B
Switch characteristics
10G backplane capacity, max transfer rate 148,800
pps for 1000Mbps, 4K MAC address table
Dimensions
119mm x 85mm x 28mm, metal casing
Mounting
Desktop
Environmental Conditions
Operating Ambient Temperature: 0 to 40℃
Operating Humidity: Maximum 85%, Non-
condensing
Storage Temperature: -30 to 70℃
Storage Humidity: Maximum 95%, Non-condensing

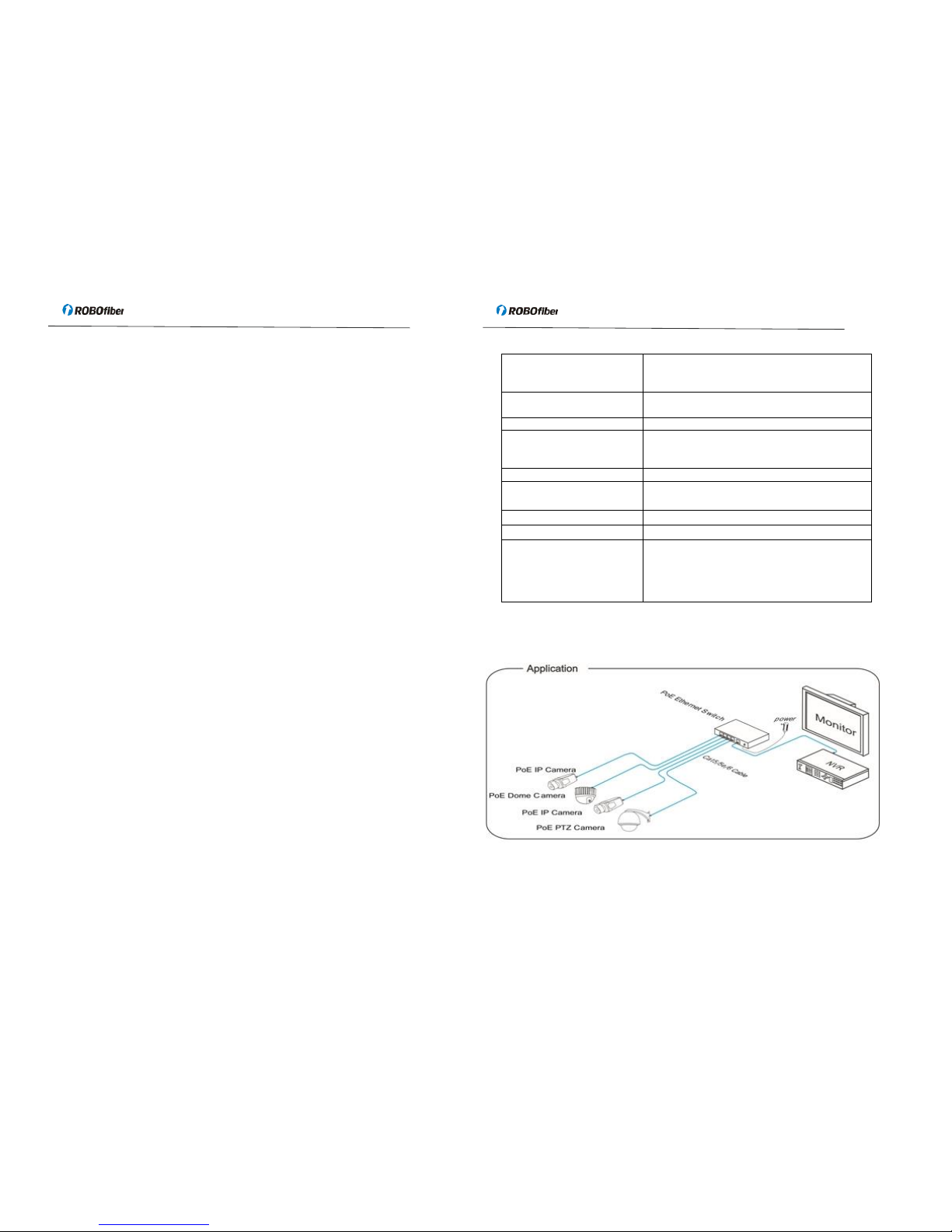

Application Diagram
