Rock The Bike Fender Blender Pro Standard User manual

standard
user manual
you pedal,
something
amazing happens

Look for the screen icon around this manual for
video tech tips on our website.

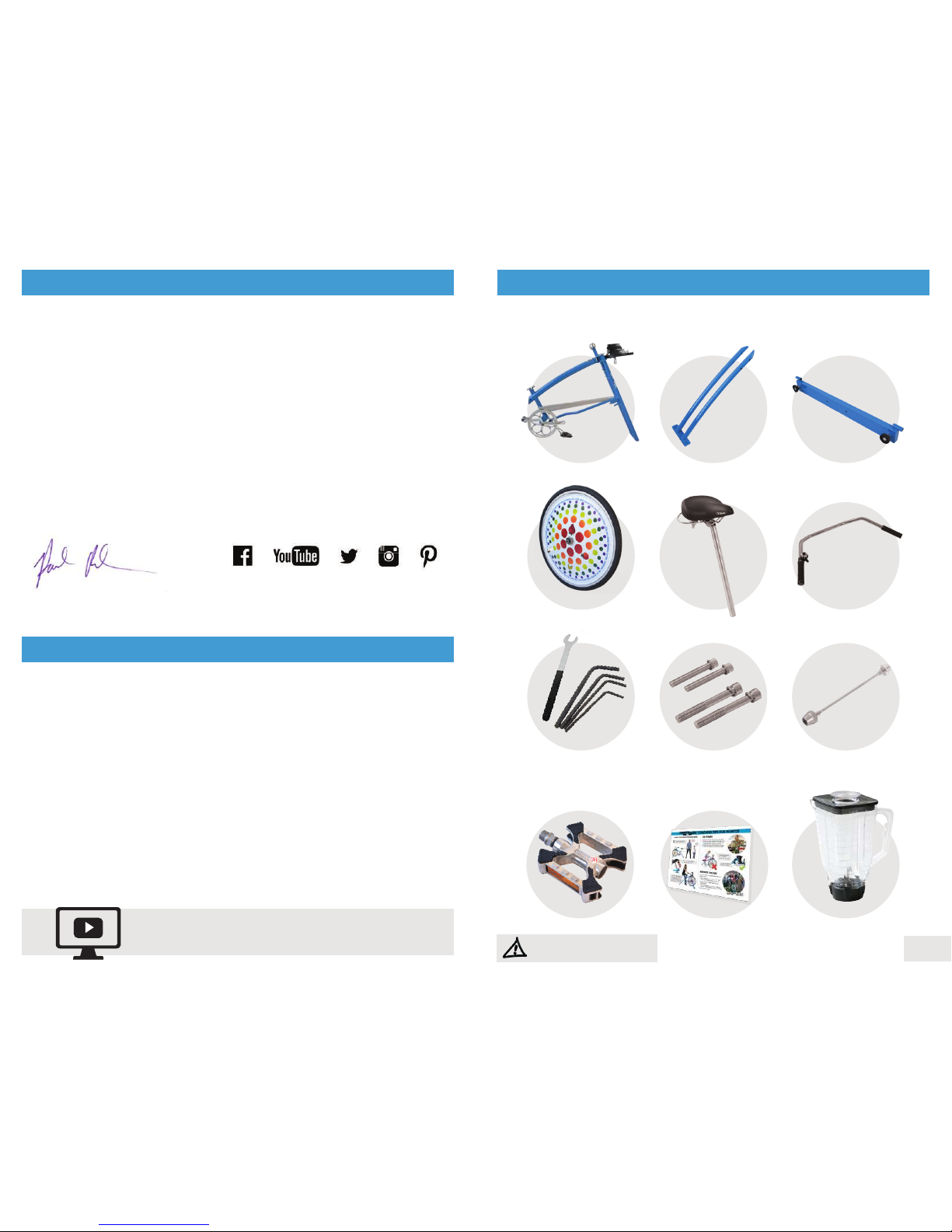

what you will need for assembly
In our humble beginnings we ran a bike-powered smoothie booth
at Northern California music festivals called “The Juice Pedaler”.
We saw the smiles and excitement as people jumped on our bike
blender and poured their heart into a thick tangy smoothie. Now
we’re excited to have you joining our quest to spread the spirit
of pedaling.
Pedaling a smoothie may seem like a small act, but for many
people it’ll be their first time giving energy back, which can
open the door to many other personal choices that benefit their
health and fitness and our environment. So thank you! And
please keep us posted on your progress as you Rock The Bike!
Yours,
Paul Freedman,
Founder
Contents ................................................................... 3
Anatomy and Components .......................................... 4
Assembly .................................................................. 6
Usage Tips .............................................................. 12
General Information .................................................. 15
TOOLS: 15mm Wrench, 8mm, 6mm, 5mm & 4mm Hex Keys
TIME: Allow up to 45 minutes
TEAM: 1-2 people
find rock the bike on
3
THANK YOU!
TABLE OF CONTENTS
frame
wheel
tools
rear legs
seat & post
bolts & washers
front
crossbeam
handlebars
wheel skewer
15mm wrench
8, 6, 5 & 4mm hex keys
x2 Rear Leg Bolts
x2 Crossbar Bolts
right pedal coaching
card
standard
pitcher
In most cases, the LEFT pedal
is already installed on the frame.
Fender Blender Pro box includes these parts:
3
contents

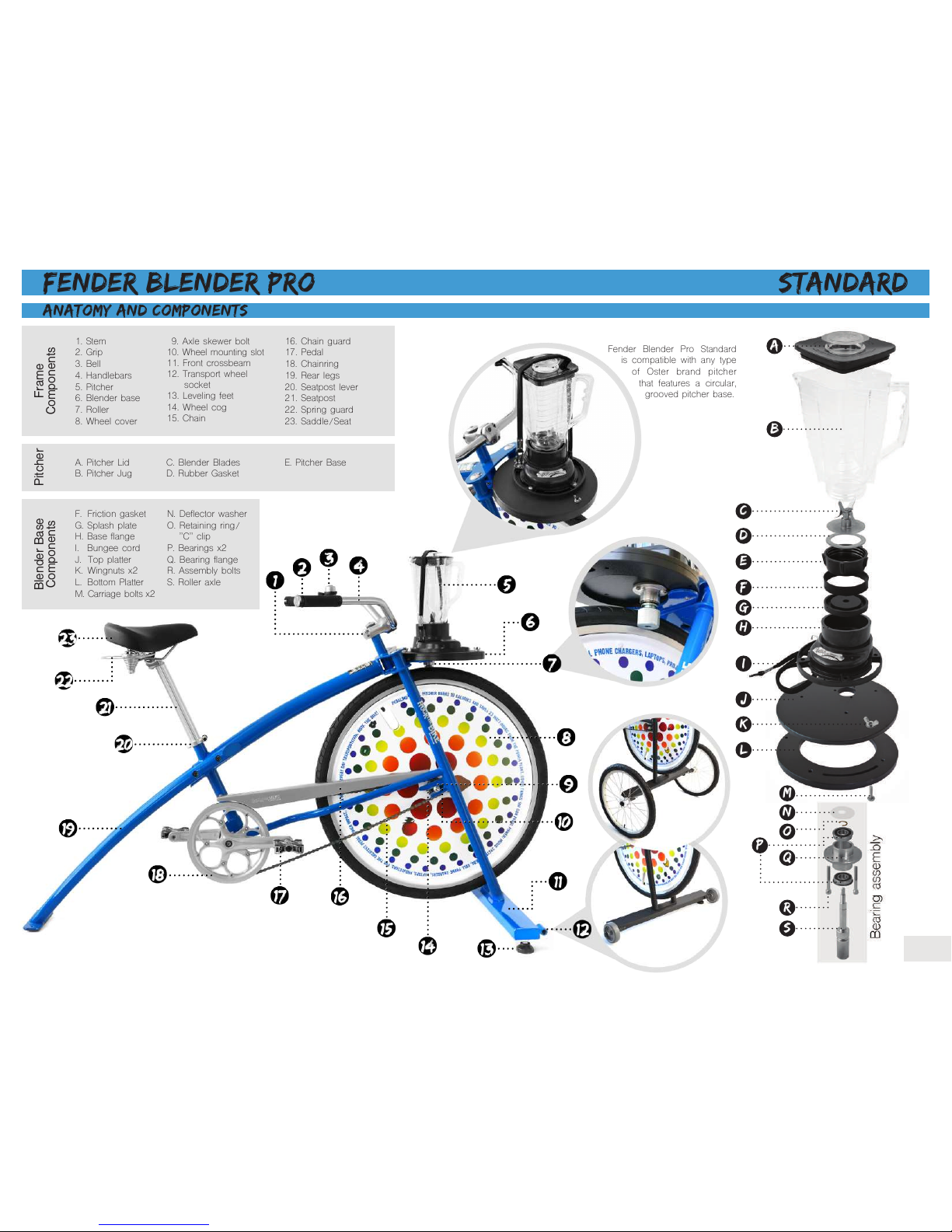

ANATOMY AND COMPONENTS
FENDER BLENDER PRO STANDARD
A
B
C
J
I
D
K
E
L
F
G
H
P
M
N
O
Q
S
R
1. Stem
2. Grip
3. Bell
4. Handlebars
5. Pitcher
6. Blender base
7. Roller
8. Wheel cover
A. Pitcher Lid
B. Pitcher Jug
C. Blender Blades
D. Rubber Gasket
E. Pitcher Base
9. Axle skewer bolt
10. Wheel mounting slot
11. Front crossbeam
12. Transport wheel
socket
13. Leveling feet
14. Wheel cog
15. Chain
16. Chain guard
17. Pedal
18. Chainring
19. Rear legs
20. Seatpost lever
21. Seatpost
22. Spring guard
23. Saddle/Seat
Frame
Components
Pitcher
F. Friction gasket
G. Splash plate
H. Base flange
I. Bungee cord
J. Top platter
K. Wingnuts x2
L. Bottom Platter
M. Carriage bolts x2
N. Deflector washer
O. Retaining ring/
”C” clip
P. Bearings x2
Q. Bearing flange
R. Assembly bolts
S. Roller axle
Blender Base
Components
Fender Blender Pro Standard
is compatible with any type
of Oster brand pitcher
that features a circular,
grooved pitcher base.
55

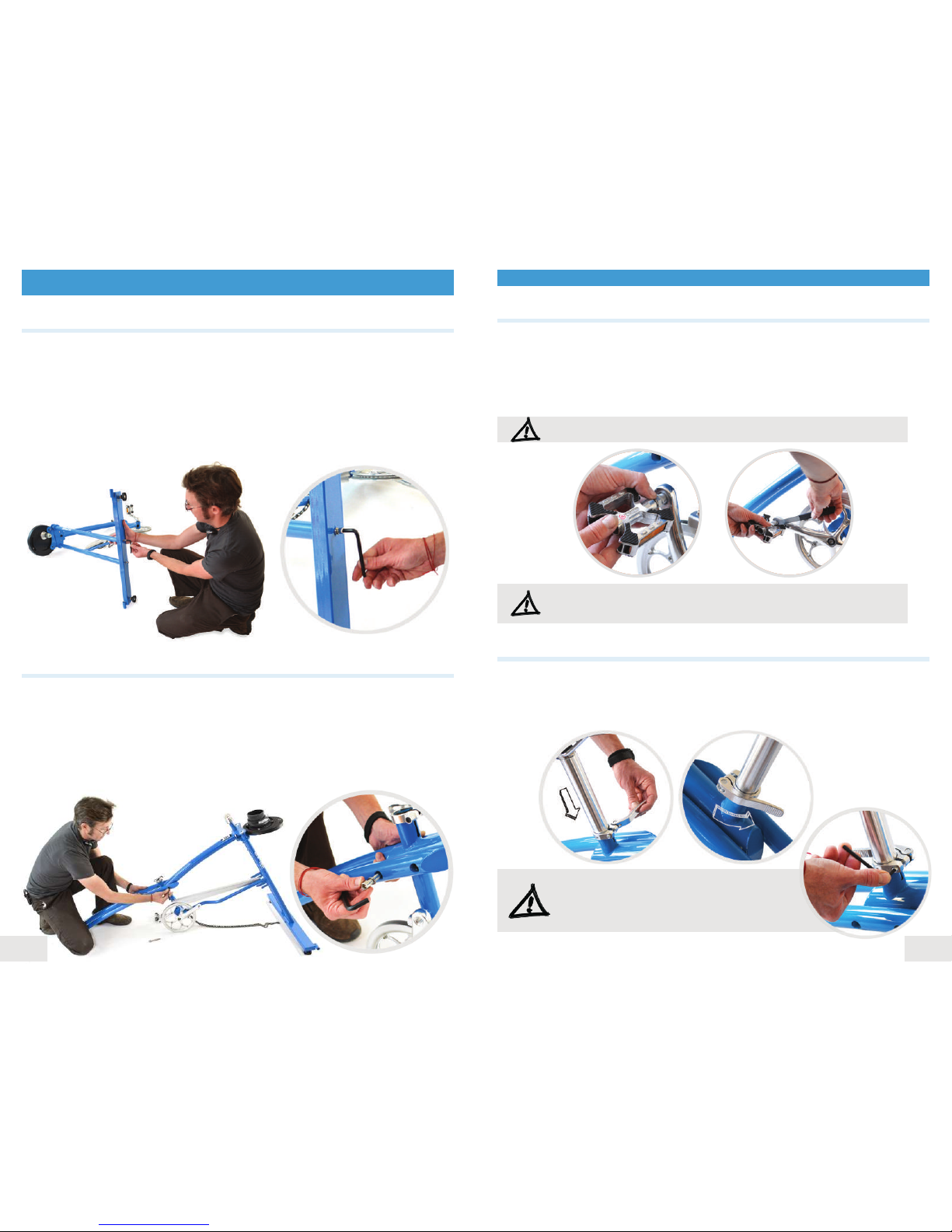

1. Place the frame on its side on a soft surface such as carpet
or cardboard.
2. Using the smaller bolts and washers, connect the crossbeam
to the frame, make sure the feet are facing down and the
wheel sockets facing forward.
3. Tighten the bolts securely using the 6mm hex key.
1. Turn frame back over on to crossbeam.
2. Align the holes in the rear legs with the holes through the frame.
3. Insert the larger set of bolts, tighten each four turns to make
sure the threads are in place.
4. Tighten the bolts securely with the 8mm hex key.
6
safety check If the seatpost moves
or slides adjust the collar by tightening
the bolt with the 4mm hex key.
1. Open the seatpost lever.
2. Insert the seatpost, noting the minimum insertion safety line, then
close the lever.
see included coaching card for seat adjustment tips 7
SEATPOST
Damage can occur if not tight.
The left pedal is already installed. If removing it, the threads
go reverse of the right pedal.
1. Identify the right side pedal by it’s sticker or stamp, then install
it into the right crank arm using the 15mm wrench.
2. Once the pedal is fully threaded into the crank arm, give it a
good, hard turn to secure.
PEDALS
assembly
CROSSBEAM
REAR LEGS
ASSEMBLY

safety check If the seatpost moves
or slides adjust the collar by tightening
the bolt with the 4mm hex key.
1. Open the seatpost lever.
2. Insert the seatpost, noting the minimum insertion safety line, then
close the lever.
1. Using the 6mm hex key
loosen the two side bolts of
the stem and turn it so it’s
aimed forward.
see included coaching card for seat HEIGHT tips
89

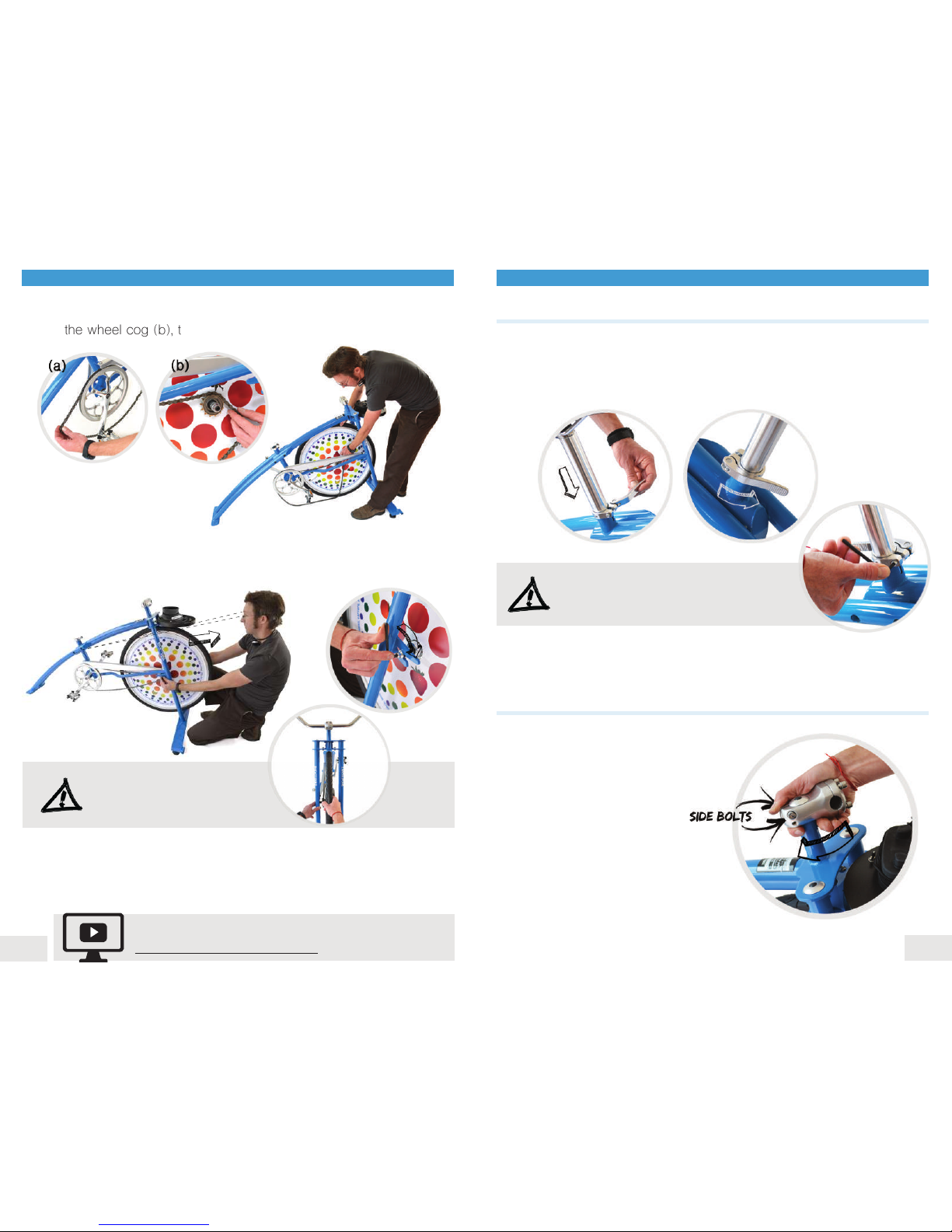

3. Loop the chain over the chainring (a), and over the teeth of
the wheel cog (b), then insert the wheel through the front fork.
5. Check chain tension by rotating the pedals backwards a few
turns. If there is a tight spot in the rotation, loosen the skewer
and move the wheel backwards so that chain is taught as
possible without causing a tight spot in the rotation.
SEATPOST
HANDLEBARS
assembly assembly
For better alignment results,
look past the wheel to see
equal distance on both sides.
For more help and details about wheel install, watch videos at:
rockthebike.com/troubleshooting-tips
4. While keeping the wheel straight, in line with the frame, pull the
wheel towards you in the wheel mounting slots and tighten the
axle skewer with the 5mm hex key.

For more help and details about blender adjustment, watch
videos at: rockthebike.com/troubleshooting-tips
Don’t tighten the screws
all the way yet.
Test your handlebars by to trying to move them up/down and
left/right. If they move, realign and tighten them.
1. Unscrew and keep all four
screws in stem plate then place
the handlebars in the round hole
of the stem.
2. With the bars centered start by
tightening each bolt two turns
using the 6mm hex key.
3. Once the bolts are tight
enough to hold the handle-
bars, set the angle to be
parallel to the ground.
4. Finish by tightening all six
bolts (two stem side bolts and
four stem plate bolts) to avoid
possible injury from movement.
10
HANDLEBARS AND STEM BLENDER BASE
1. Loosen the two wingnuts on the upper platter by one or two
turns, and turn the platter counter-clockwise so the roller is
slightly touching the tire.
4. Turn the platter until the roller is firmly against the tire, then
lock the wingnuts while keeping pressure on the roller.
assembly assembly
2. Check your alignment to
make sure the roller is
directly over the axle.
3. If the roller is not aligned,
adjust it using the hex keys.
11
SAFETY CHECK
Look for an equal gap
on the top and bottom
part of stem. If the gap
is not equal on both
sides go back to step 2.
platter
wingnut
roller
4MM
HEX KEY
5MM
HEX KEY

12
Prior to your event:
• Pump the tire to 60-70 PSI using its schrader valve, common to many bicycles
and automobiles.
• Check the traction between the tire and roller axle, and adjust per Page 11.
How to clean the Pro frame and blender base:
1. Wipe the frame and blender base with a sponge or cloth using soap and
water, or a non-toxic all-purpose cleaner. Dry with a clean rag immediately
after washing to avoid rust.
2. The entire blender base can be taken apart and cleaned. See how here:
www.rockthebike.com/fender-blender-disassembly
How to clean the pitcher after each use:
1. Add 1 cup (240ml) of hot water and a drop of liquid dish soap to the blender jar.
2. Place the lid tightly on the jar.
3. Place the jar on the blender base and secure with the Bungee Cord.
4. “Pulse” for 1-2 minutes on the bike.
5. Rinse well.
How to sanitize the pitcher long-term:
1. Fill the blender jar with hot water.
2. Add 1-2 teaspoons (5-10ml) of liquid chlorine bleach to the jar.
3. Stir for 10 seconds. Let mixture stand in jar for 5 minutes.
4. Empty water/bleach mixture. Turn jar upside down on dish rack until dry.
Cleaning tips and cautions:
• Do not use stiff-bristled brushes or abrasive cloths or pads to clean the jar.
This will dull or scratch the surface.
• Avoid submerging blender jars for longer than 5 minutes as it may reduce
jar life and result in water penetrating the lower jar seals. After cleaning, store
the jar upright.
• BLENDER JAR IS DISHWASHER SAFE – TOP RACK ONLY!
• Do not expose your jar to temperatures over 140°F (60°C). Ingredient
temperatures should not exceed 115°F (46°C). Please note that boiling
water is too hot for the jar and should never be used.
CARE & CLEANING
USAGE TIPS
SAFETY
• Use the Fender Blender Pro on a level surface.
• We do not recommend using this product in the rain, snow, or other wet
conditions that could cause damage to you or your Rock the Bike product.
• Children should be supervised when using this product.
• Avoid contact with moving parts on the Fender Blender Pro’s frame. This
includes, but is not limited to: fingers, hands, toes, feet, hair, clothing, and shoes.
• Never operate the Fender Blender Pro if the frame, wheel, blender
base, or any other parts appear to be damaged. Call Tech Support at
1-888-354-2453 for assistance. 13
Essentials:
• Fender Blender Pro, fully assembled.
• Multiple pitchers, ideally one for each flavor on the menu, plus a vegan/
dairy-free one. Fewer pitchers than flavors means washing between blending.
• Space measuring at least 6x8 feet to set up the booth.
• Food preparation table, plus a second surface for cleaning and handwashing.
• Kitchen knife, ideally with a sheath, and cutting board or flexible cutting sheets.
• Cooler for frozen and refrigerated items.
• Compostable cups for serving smoothies.
• Trash receptacles labeled Recycle, Landfill, and Compost.
• Team of at least two people to run the booth: one to prepare smoothies, and
a second to work exclusively on the bike, adjusting seat height for riders and
coaching their blending.
Health Department requirements:
• Cleaning bins labelled Wash, Rinse, and Bleach, plus sponges and enough
dish soap and bleach to meet your county’s food permit requirements. Make
sure the bins are deep enough to completely submerge a pitcher.
• Hand washing station that includes a dispenser with soap, water, a catchment
container, and towels. Set up a five-gallon water dispenser on a table with
soap and towels, and a plastic bin underneath to catch the gray water.
• Tent measuring at least 10x10 feet, and has walls. Many health departments
require that food preparation areas be clear of any debris or animals.
• Food service gloves, for simple, sanitary preparation.
Driving profits:
• Signage increases a booth’s visibility and provides product information.
• Menu with prices listed speeds up the line, by answering customers’ questions
and helping them decide as they wait.
• Keep the cash box locked and in a secure location. Ideally, assign a third
team member to handle money and place orders.
RUNNING YOUR SMOOTHIE BOOTH
USage tips

Transit accessories are available for purchase on our website:
rockthebike.com/store/27-transit-accessories
• Bike is not blending:
• Tire air pressure: Fill tire 60 to 70 PSI using the tire’s Schrader valve
(common valve for bicycles and cars).
• Roller axle traction: Test for good traction by squeezing the roller axle
between your thumb and forefinger, then slowly turning the tire with your
other hand. Good traction is present when it is very difficult or impossible to
cause the roller to slip while squeezing. See Page 11 to adjust the roller axle.
• Chain falls off chainring: Chain should be taught along its lower section, or it
could slip off under heavy pedaling. See page 8 to adjust chain tension.
• Seat angle slips out of adjustment: Seat should be level when viewed from
the side, and have no play in the under-seat-clamp. If it needs adjustment,
open the seatpost lever, slide the post up to a high position for better
access, and close the lever. Using a 6mm hex key, loosen the upwards
facing bolt in the under-seat-clamp, adjust the seat to level and very firmly
re-tighten the bolt.
• Pitcher does not fit properly: Splash Plate (Part G) should face grooved-side
up (flip it over if not), with the Friction Gasket (Part F) above it. If either of
these parts are missing you can order replacements from our website:
www.rockthebike.com/store/replacement-parts/113-fender-blender-parts.html
• Blender leaking: A leaky pitcher is the result from a missing Rubber Gasket
(Part D). If this part is missing you can order them from our website:
www.rockthebike.com/store/replacement-parts/113-fender-blender-parts.html
• If you’re having problems, call Tech Support at 1-888-354-2453
(10am-5pm PST M-F)
Rock the Bike products come with a 2-year warranty against manufacturing
defects. This warranty does not cover damage due to wear and tear, loss,
overloading, misuse, abuse, incorrect assembly, incorrect use, or anything else
beyond Rock the Bike’s direct control.
The warranty is valid for the original owner, for purchases from an approved
distributor or dealer.
The use of an unauthorized attachments may cause injury or damage and will
void the warranty.
Store in a cool, dry place, away from direct sunlight.
TROUBLESHOOTING
Assembled Dimensions: 56” long, 39” tall, 31” wide
Assembled Weight: 60 lbs
Max. Rider Weight: 220 lbs
Min. Rider Leg Length: 23” inseam (roughly 7 years old)
Capacity: 32 oz
Blades: Laser-cut stainless steel, measuring 2” in diameter
Use: Household, Educational or Commercial
Manufacturer: Rock the Bike - Oakland, CA USA
SPECS
WARRANTY
STORAGE
14
TRANSPORTATION
Whether you’re going to a classroom down the hall or a trade show across the
country, Rock the Bike has a helpful accessory or tip:
• Walkable: Easy Rolling Transport Wheels clip into your wheel socket to
help you roll the bike around effortlessly. Best used on even ground.
• Bikeable: The Pro Trailer Kit slides into your wheel sockets to allow towing
behind your bicycle; the truest and most impressive way to express your
passion for human power.
• Drivable: You can load your bike into a vehicle or mount it onto the rear
of your vehicle with a bike rack. For pictures and details see:
rockthebike.com/transport-vehicle
• Longer Distances: You can repack and ship your Fender Blender Pro in the
same box you received it. Our Pro Shipping Sleeves’ padding will protect
your frame during shipping, and has dedicated pockets for small parts like
bolts and screws. We recommend shipping assembled Fender Blender Pros
on a pallet with a freight carrier. 15
usage tips general INFORMATION

TM
Rock the Bike
6323 San Pablo Ave.
Oakland, CA 94608
www.rockthebike.com
888-354-BIKE (2453)
510-338-3326
fax [phone]
[email protected]
