Life Span Workplace DT-3 User manual

DT3
Console
Owner’s Manual
C3-DT
Desk Bike
Owner’s Manual

3
Welcome
Neither LifeSpan Fitness nor its representatives can accept responsibility for any damages or
injury incurred as a result of information presented in this manual except under the terms
of the product warranty.
Congratulations on choosing the LifeSpan Workplace™ line of products. These
products give you the opportunity to remain productive while taking care of
yourself as you integrate movement with normally sedentary tasks.
The average American now spends eleven hours, ve days a week, sitting, and
burns one-hundred fewer calories each day than they did a few decades ago.
Sitting for long periods slows your metabolism, reduces calories burned, and
increases your risk for heart disease and diabetes.
Whether you plan on placing this product in a TV room, replace your desk at
home or are adding another workspace in the oce, LifeSpan Workplace™
products are a great way to add movement to an otherwise sedentary activity.
Before you assemble or operate your product, please read this manual
thoroughly. Important information, including safety precautions, ongoing
product maintenance, assembly instructions, and information on proper
operation are included.
If you need to contact LifeSpan customer service, visit our website at
www.LifeSpanFitness.com and select customer service. Complete the
information requested and we will respond to your inquiry within one
business day. In the United States and Canada you can also call
[phone] and choose option 4.

5
Table of Contents
Welcome
Getting Started
Warranty
Registration
Specications
Safety
Assembling Your C3-DT Desk Bike
Exploded View & Hardware
Assembly Instructions
General Maintenance
Moving
Troubleshooting
Assembly Instructions
Connecting your C3 Desk Bike
to the DT3 console
Desk Bike Operations
Console Overview
Starting the Desk Bike
Innovative Features
Troubleshooting
Personal Settings
Display Details
6
11
22
23

6
Warranty
Warranty
This LifeSpan desk bike comes with the following limited warranty valid in North
America and the United Kingdom. If you are outside of these areas contact your
local distributor for warranty information or visit
www.LifeSpanFitness.com.
LifeSpan warrants that the equipment it manufactures is free from defects in
materials and workmanship under normal use and services. The periods above
are based on the date of purchase. During these periods, LifeSpan will repair
or replace any defective part. Free labor is included on all parts that are not
normally assembled or replaced by the customer within the labor period.
If within the time frames specied above, any part fails to operate properly,
login to our website at www.LifeSpanFitness.com, click on“Customer Service”
and complete the form to request assistance or call 877.654.3837 option 4 for a
Customer Service Agent (please note that certain kinds of service should only
be performed by a qualied service technician).
LifeSpan reserves the right to make changes and improvements to our products
without incurring any obligations to similarly alter any product purchased.
In order to insure our product warranty and to ensure the safe and ecient
operation of your LifeSpan product, only authorized parts can be used. The
warranty is void if any parts other than those provided by LifeSpan are used.
Exclusions and Limitations:
• This warranty does not apply to any defects caused by negligence, misuse,
improper assembly, or maintenance, accident, or“act of God.”
• This warranty does not apply to discoloration of paints or plastics.
• LifeSpan shall not be responsible for incidental or consequential damages.
• This warranty is non-transferable from the original owner.
Registration
Should you need to process a warranty claim make sure you retain your
purchase receipt to verify the date of purchase and register your LifeSpan
product online. To complete the registration go to www.LifeSpanFitness.com
and select “Product Registration”.
C3-DT Desk Bike
Frame
Parts
Labor
DT3
Parts
6 Hr/Day
Lifetime
2 Years
1 Year
2 Years

7
Specications
C3-DT Desk Bike
Mechanical and Performance
Seat Molded, contoured seat
Seat Adjustment Height - 19 positions
Resistance System Magnetic - Eddy Current
Pedals Self balancing
Flywheel Weight 18 lbs (8.1 kg)
Max. User Weight 400 lbs (181.4 kg)
Dimensions 22” W x 28” L (55cm W x 71cm L)
Transport Wheels Rear Mounted
DT3 Console
Mechanical and Performance
Resistance 16 Levels
Dimensions 12.5”W x 3”D x 2”H
32cm W x 7.6cm D x 5.1cm H

8
When using active workstations, basic precautions should always be followed,
including:
• Never drop or insert any object into any opening. If an object falls into
an opening, turn the power o and unplug the power cord from the
outlet. Remove the object or call customer service at 877.654.3837
option 4.
• Never operate this desk bike if it has been damaged or partially
submersed in water.
• To reduce the risk of electric shock, unplug the desk bike from the wall
outlet when not in use, before performing any maintenance, or before
moving the desk bike.
• Do not use outdoors or in areas of high humidity or extreme
temperature changes.
• Do not operate where aerosol spray products are being used or where
oxygen is being administered.
• Never place the power cord under carpeting or place any object on top
of the cord, this may pinch or damage the cord causing re damage or
personal injury.
• Use this product for its intended use as described in this Owner’s
Manual. Do not use attachments that are not recommended by
LifeSpan.
Children and Pets
• Keep children from playing on your desk bike at all times.
• When in use children and pets should be kept at least 10 feet (3m) away.
• This desk bike can be used by children ages 12 years and above
and persons with reduced physical, sensory or lack of experience
and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved.
• Cleaning and user maintenance shall not be made by children without
supervision.
Safety First

11
Bike Assembly

12
Assembling Your C3-DT Desk Bike
1
2
3
4
5
6
7
Exploded View
Prior to starting the assembly
process take all of the parts out
of the box. Remove plastic bags
and lay them out on the oor
to become familiar with the
components.
Since your desk bike is a
heavy piece of equipment it is
recommended you use two people
during assembly and follow these
assembly instructions to reduce
any problems that could occur.

13
Assembling Your C3-DT Desk Bike
Hardware Included
Item# Part Description
1 Main Frame
2 Front Support
3 Rear Support
4 Seat Post
5Seat
6 Right Pedal
7 Left Pedal
Hardware Bag Contents
Item# Qty. Part Description
8 2 M8 x 70L Bolt
9 2 M8 Curved Washer
13 1
Multi-Wrench - 10,
13, 14, 15, 17, 22 mm
14 1 Allen Wrench - 5mm
Pre-installed Hardware
Hardware will need to be removed and re-installed during the installation process.
Item# Qty. Part Description
10 8 M8 x 16L Bolt
11 6 M8 Washer
9 2 M8 Curved Washer
M8 x 70L Bolt
(x2)
M8 Curved
Washer (x2)
M8 Curved
Washer (x2)
M8 x 16L Bolt
(x8)
M8 Washer
(x6)
Allen Wrench - 5mm
Multi-Wrench -
10, 13, 14, 15, 17, 22 mm

14
Step 1: Remove Components from Box
A. Remove plastic bags and lay all parts out on the oor.
B. Locate the hardware bag.
Step 2: Rear Support Assembly
A. Place the Main Frame Assembly (1) on a solid level surface. It may be
necessary to prop the back of the frame up slightly to give clearance for
step B.
B. Align the Rear Support Assembly (3) with the Main Frame Rear Bracket (A).
C. Install two long M8x70L Bolts (8) and Curve Washers (9), found in the
hardware bag, through the Rear Support Assembly (3) and into the Main
Frame Rear Bracket (A). Do not tighten bolts yet.
D. Insert two short M8 Boltsx16L (10) and Curved Washers (9) through
the top of the Main Frame Rear Bracket (A) and into the Rear Support
Assembly (3). Do not tighten bolts yet.
E. Securely tighten the two long M8x70L Bolts (8) rst, then tighten the two
short M8x16L Bolts (10).
Assembling Your C3-DT Desk Bike
1
A
3
10
9
9
8

15
Assembling Your C3-DT Desk Bike
M
4
L
5
12
N
O
Step 3: Seat Assembly
A. Pull on the Seat Post
Adjustment Knob (M) to release
the locking pin and slide the
Seat Post (4) down into the
Seat Post Tube (L).
B. When the desired height is
reached, release the Seat Post
Adjustment Knob (M) to allow
the locking pin to engage.
Step 4: Seat Assembly
A. Place the Seat (5) over the
Seat Mount Post (N).
B. Align the Seat (5) so the front
of the seat is centered and
parallel to the oor.
C. Securely tighten the pre-
installed Nut (12) on each side
of the Seat Mounting Bracket
(O) under the Seat (5).
NOTE: In order to complete Step
5 and 6, the seat post needs to
be set to the highest level. Pull
the Seat Post up until the lock pin
clicks in the last hole in the Seat
Post.

16
Assembling Your C3-DT Desk Bike
Step 5: Front Support Assembly
A. Adjust the Seat Post so it is at the highest setting.
B. Tilt the bike back until it is resting on the Seat and the Rear Support
Assembly (as shown below.)
C. Align the Front Support Assembly (2) with the Front Main Frame
Bracket (B).
D. Install two short M8x16L Bolts (10) and Washers (11) through the top
holes of the Front Main Frame Bracket (B) and into the Front Support
Assembly (2). Do not tighten bolts yet.
E. Install two short M8x16L Bolts (10) and Washers (11) through the
middle holes of the Front Main Frame Bracket (B) and into the Front
Support Assembly (2). Do not tighten bolts yet.
F. Install two short M8x16L bolts (10) and Washers (11) through the
bottom holes of the Front Main Frame Bracket (B) and into the Front
Support Assembly (2). Do not tighten bolts yet.
G. Securely tighten the two M8 Middle Bolts (10) rst, then securely
tighten the two M8 Top Bolts and two M8 Bottom Bolts.
2
10
11
11
10
B
10
11

17
7Q
6
R

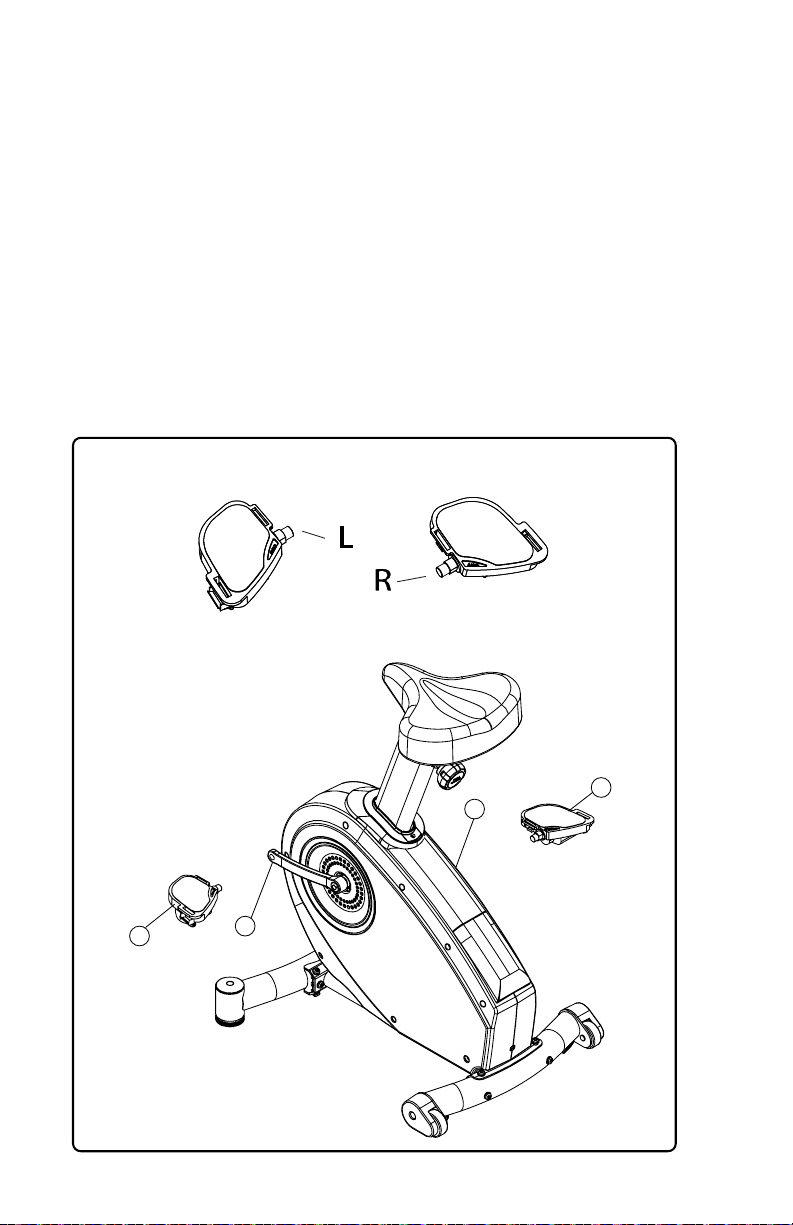

Step 6: Right and Left Pedal Assembly
A. Identify which pedal goes on the right side and which goes on the left
side by locating the “R” on the top of the Right Pedal (6) and the “L” on
the top of the Left Pedal (7).
B. Hand tighten the Right Pedal into the Right Crank Arm (R) by turning
clockwise.
C. Hand tighten the left pedal into the left crank arm (Q) by turning
counter clockwise. Be careful not to cross thread the threads.
D. Tighten both pedals with the provided 15mm Wrench (13).
Assembling Your C3-DT Desk Bike

18
Leveling
Your C3-DT bike comes with two Leveling
Feet (P) in the front and two Stationary Feet
(Q) in the rear. Gently rock the bike back
and forth to see if any of the feet are not
sitting on the oor. Adjust the Front Feet (P)
until all 4 feet are sitting on the oor.
Assembling Your C3-DT Desk Bike
PQ
HINT
If the Left Rear Foot is not
solid on the oor, turn the
Right Front Foot counter-
clockwise to tilt the Left
Rear Foot down to the oor.

19
Assembling Your C3-DT Desk Bike

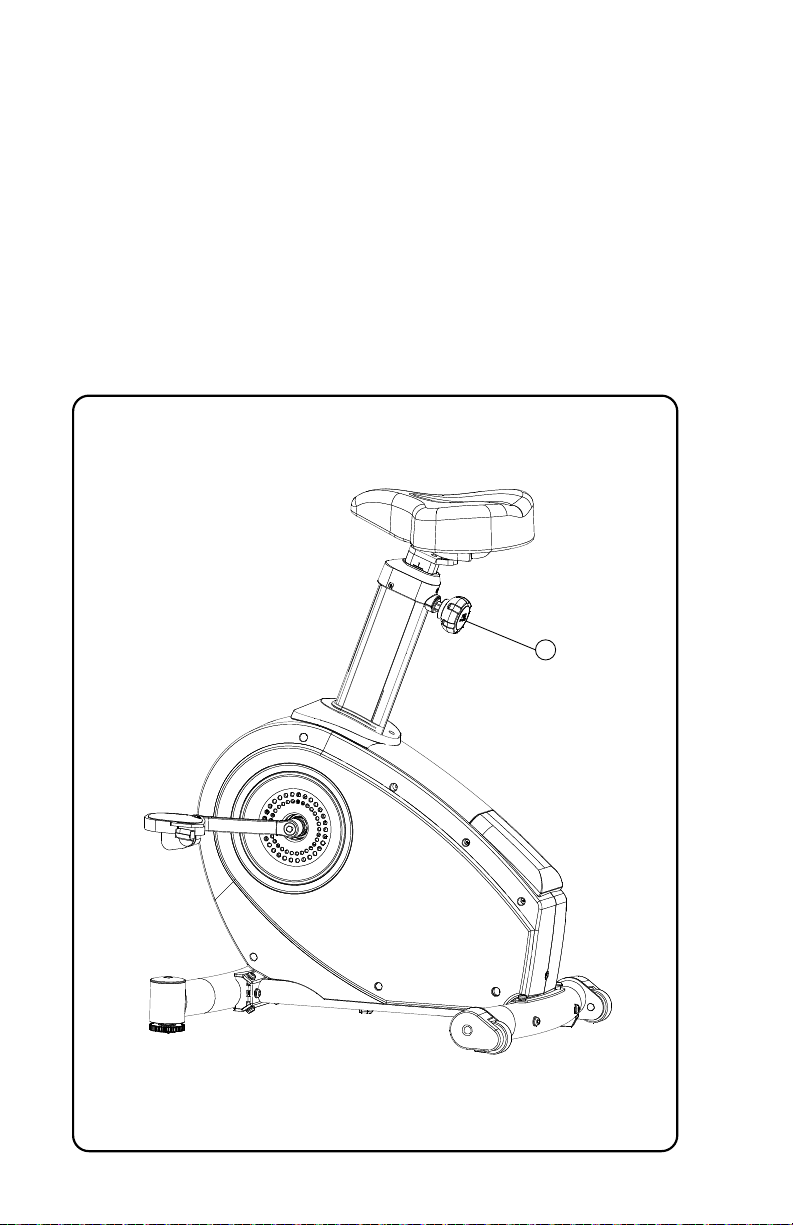

Seat Height Adjustments
Your C3-DT bike allows for 19 positions of height adjustment. To adjust
the seat, pull the Seat Post Adjustment Knob (M) out and adjust the seat
height to the desired position. Once the desired position is reached,
release the Seat Post Adjustment Knob.
M

20
Maintenance and TIps
General Maintenance
1. Keep the desk bike clean and dry. It is a good idea to wipe the desk bike
down after each workout.
2. If the unit is not going to be used for any extended period of time it is a
good idea to unplug the unit and store in a clean environment.
3. Clean only with mild soap and a slightly damp cloth. Never use solvents
when cleaning.
Moving the C3-DT Desk Bike
Your C3-DT desk bike is equipped with two Transport Wheels (R) located on the
rear support. Move the wire that is coming from the bottom of the frame to
the console so it will not get pinched when moving the bike. Carefully tilt the
front of the bike up until the Transport Wheels in the back make contact with
the oor and roll the bike to the desired location. It may be dicult to roll the
bike in plush carpeting.
CAUTION: When lifting, use proper safety precautions and lifting
techniques. Bend your knees and elbows, keep your back straight
and pull up evenly with both arms.
R
!!

21
Troubleshooting
Troubleshooting
Problem: Unit is unstable or rocks while in use.
Solution: Make sure unit is on a solid, level surface. Adjust the front adjust-
ment feet until all 4 feet are sitting solid on the oor.
Problem: No power at console.
Solution: Try using another outlet or testing somethig else at the outlet being
used to make sure there is power at the outlet. Also check the console wire
harness tomake sure it has not come loose. If still a probel, contact LifeSpan
Customer Service.
Problem:Rough feeling in pedals when in use.
Solution: If everything is tight, contact LifSpan Customer Service for
replacment pedals.
General Maintenance
1. Keep the unit clean and dry. It is a good idea to wipe the unit down after
each workout to keep it clean.
2. If the unit is not going to be used for any extended period of time it is a
good idea to unplug the unit and store in a clean environment.

22
Assembly Instructions
After assembling the bike, roll it to the desired location. Plug the console
connector into the connector coming from the bottom of the bike. Be sure to
screw the two connectors together with the attached thumb screws.
Safety Key
When using the DT-3 with a bike
please use Safety Key (E).
NOTE:
Do not plug the power cord into the equipment until the
console is connected.
NOTE:
All desk and DT-3 connectors plug into the bike D-connector
the same way.
E

23
Desk Bike
Operations

24
Console Power Buttons
1. On/Start: If the console is in sleep mode, press and hold this button for
three seconds to turn the console on. Once the console is turned on,
press to start the console function.
2. Stop: Stops the bike, pausing your use. If pressed for one second, resets
the console (all data readouts are reset to zero).
3. Preset: When the bike is operating, changes the resistance to Level 1,
or to a custom resistance that is set in Settings. See separate section on
Preset, as well as the section on Settings.
4. : Increases or decreases resistance.
5. Enter/Mode: Changes the data readout between Time (the default), Pedal
Revolutions, Calories, Distance and Speed. Press and hold for one second
to automatically cycle through readouts every ve seconds; press again
to stop this automatic change.
Desk Bike Console Overview
13
4
5
2
Starting the Desk Bike
1. Press the On/Start key to turn on the console.
2. The current user weight will be ashing on the display panel. Adjust your
weight to obtain accurate calorie calculations.
3. Press Start, and start pedaling. The console will start counting up from
0:00.
4. Press the Up/Down buttons to adjust resistance, or use the Preset key to
go directly to your preferred level. See the separate section on Preset, as
well as the section on Settings, for more details.
