Welcome to Rockford Fosgate! This manual is designed to provide
information for the owner, salesperson and installer. For those of you
who want quick information on how to install this product, please turn
to the Installation Section of this manual or refer to the icons listed
below.OtherinformationcanbelocatedbyusingtheTableofContents.
We, at Rockford Fosgate, have worked very hard to make sure all the
information in this manual is current. But, as we are constantly finding
newways to improve ourproduct,thisinformation is subject tochange
without notice.
G ETTING S TARTED
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n

INTRODUCTION
The Punch 360.6, is a 360 watt, 6 channel amplifier with integrated
features for accommodating “single amplifier” system designs. Built
into the amplifier are four internal XCards and a Signal Switching
Network. These features simplify signal processing and enable
customsignaldistributionforeachsetofchannels. Alsointegratedis
a Phase Switch and Bass EQ circuit designed to improve system
tuning. The engineering effort applied to the Punch 360.6amplifier
represents how an impressive 3-way system can be easily installed
while keeping the components used to a minimum.
– 1 –
ACCESSORY PACK
Installation & Operation Manual
Punch Verification Certificate
(4) Amplifier mounting screws (#8 x 3/4" Phillips)
(16) Speaker & power connector screws (3/32" Allen)
(4) End cap mounting screws (9/64" Allen)
(1) Allen Wrench 9/64"
(1) Allen Wrench 3/32"
(1) AGU Fuseholder
(1) AGU 50 Amp Fuse

TECHNICAL DESIGN FEATURES
– 2 –
◆TRANS•ANA
(TRANSconductance Active Nodal Amplifier)
The TRANS•ANA (TRANSconductance Active Nodal Amplifier) is a
circuitthatallowstheaudiosignaltopassthroughtheamplifierat low
voltage . The signal is directly level-shifted to the fixed high voltage
rails via a pair of driver transistors. Signal linearity is assured by an
active node formed by the drive transistors at ultrasonic frequencies.
This allows amplifier performance similar to trans• nova which is
highly stable and linear while utilizing the advantages of a non-
floating power supply.
THERESULT:Anextendedfrequencybandwidthaccuratelysupplied
to the output stages of the amplifier.
◆TOPAZ (Tracking Operation Pre-Amplifier Zone)
The TOPAZ (TrackingOperationPre-AmplifierZone)circuitry solves
groundloopnoiseproblemscommontoautomotiveamplifierdesign.
Thisinnovativenewdevelopmentallowsvastlyimprovedisolationof
the input signal grounds from the power supply ground of the
amplifier.Thisisaccomplishedbyallowingthe sourceunitto control
the potential “environment” of the entire input structure or “zone” of
the amplifier. This process improves the noise rejection of the ampli-
fier by 30-40dB – an astounding 30-100 times better than amplifiers
without TOPAZ.
THERESULT:Eliminationoftroublesomegroundloopnoisebetween
source and amplifier.
◆Bass EQ
TheBassEQhelps correct for acoustical deficiencies in the listening
environment. A unique potentiometer that controls bass compen-
sates for the lack of low frequencies present in most car environ-
ments. Unlike a conventional tone control, the Bass EQ corrects the
specific problem of poor low bass response.
THE RESULT: Provides better low bass response.

◆DSM (Discrete Surface Mount) Technology
The DSM (Discrete Surface Mount) manufacturingprocesscombines
the advantages of both discrete components and integrated circuitry.
RockfordFosgateistheonlyAmericanamplifiermanufacturertohave
invested millions into this process. DSM components differ from
conventional discrete components in different ways. They are more
compact, more rugged, and they efficiently dissipate generated heat.
Using them wherever appropriate allows the advantages associated
with discrete circuitry to be retained while also providing room for
both highly advanced processing features and generous PC board
copper paths where needed. Their short lead-out structures allow
maximumaudioperformanceandhighestsignal-to-noiseratios tobe
obtained in amplifiers of desirable package size without resorting to
“amplifier-on-a-chip” shortcuts. These advantages are shown below
in Figure 1.

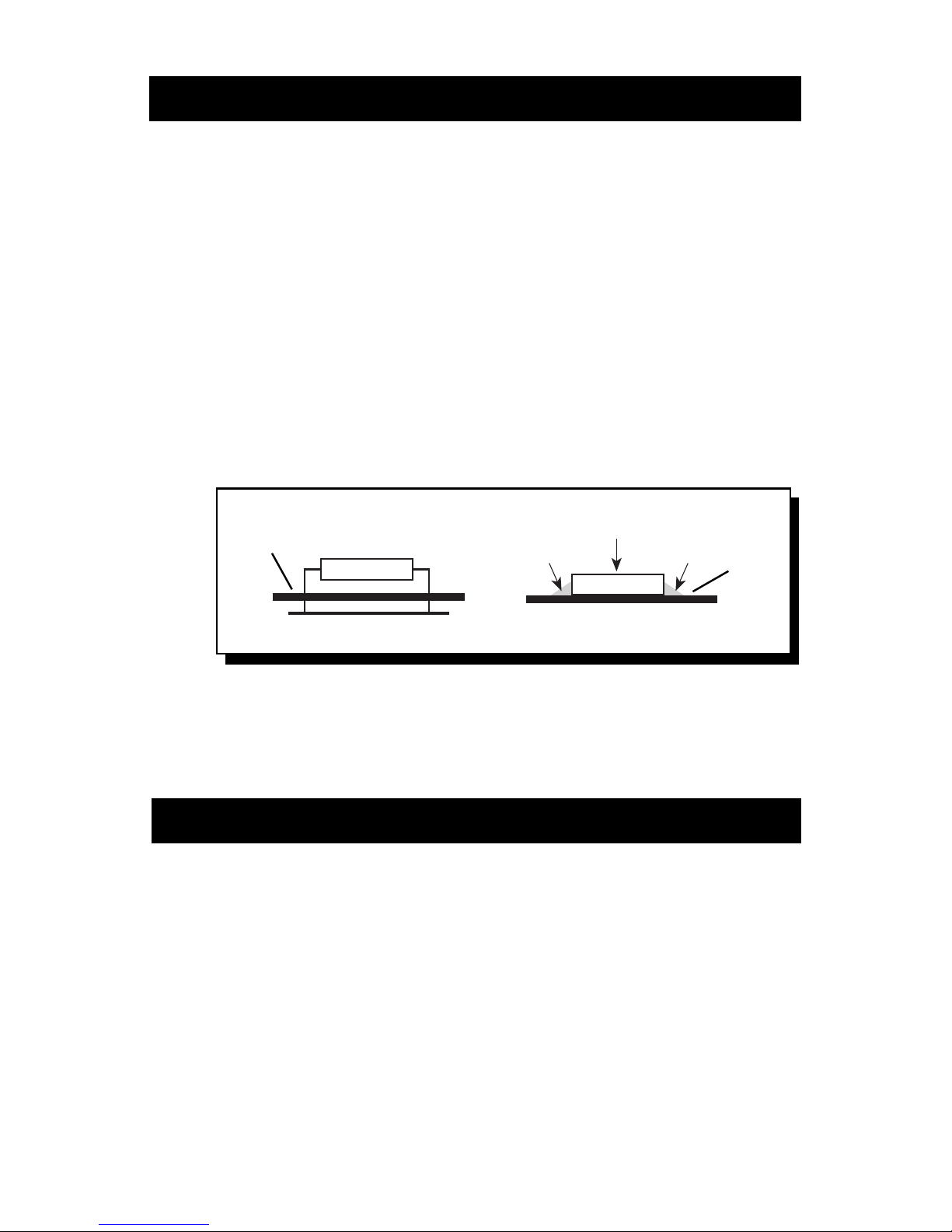

Figure 1
THE RESULT: Fewer connections, improved reliability, shorter signal
paths,superiorsignal-to-noiseratioandawesomesonicperformance.
◆XCard (Internal Crossover)
The Punch amplifiers utilize internal active crossovers. These cross-
overs have many performance advantages such as using discrete
componentsforexactfrequencyadjustmentswhicharefarsuperiorto
potentiometers. Additionally, the XCard can be configured for high-
pass, low-pass and full range operation. With slight modifications,
manycrossoverfrequenciesandslopeconfigurationscanbeachieved.
THE RESULT: Increased system design flexibility with a precise
electronic crossover without the limitations of conventional potenti-
ometer designs.
– 3 –
Solder Solder
Component
Thru-Hole Surface Mount
PC
Board PC
Board

◆MOSFET Devices
Rockford Fosgate is one of the few manufacturers in the sound
community to utilize MOSFET devices in both the power supply and
the output stages . MOSFET (MetalOxideSemiconductorFieldEffect
Transistor) devices offer several important inherent advantages over
the 30 year old technology of bi-polar design. These advantages
include: thermal stability, switching speed, ultra low output imped-
ance and wider bandwidth linearity. In addition, MOSFETs operate
verysimilarly tovacuumtubes inwhichthey are morelinear than bi-
polartransistors.However,MOSFETscandeliverthemidrangeclarity
without the limitations of transient response and high frequency
phase shifting normally associated with tube operation.
THE RESULT: Operational characteristics similar to vacuum tubes
without the performance limitations of tube design.
◆NOMAD (NOn-Multiplying Advanced Decision)
The Punch amplifiers use an analog computer process to maximize
safe output power under all operating conditions. The innovative
NOMAD (NOn-Multiplying Advanced Decision) system is the most
sophisticatedversionofthistechniqueeverused,bringingpreviously
unavailable levels of accuracy, stability, temperature immunity and
reliability to this critical process. NOMAD makes advanced deci-
sions based on device voltages to precisely control the awesome
levelsofcurrentavailableintheoutputMOSFETstosafevalues–but
only when absolutely needed.
THE RESULT: Extremely fast protection system that always protects
the amplifier and never degrades the sound.
– 4 –
◆Signal Switching Network
The Signal Switching Network allows the RCA input signals to be
distributed to the amplifier channels in multiple configurations.
Amongthemanypossibleconfigurations,asetting called E-Zbridge
uses a single RCA (L mono) and gain (L) control to feed a pair of
channels, thus simplifying the bridging process.
THE RESULT: Allows input signals to be distributed to amplifier
channels in many different configurations.

360.6DESIGN FEATURES
1. Cast Aluminum Heatsink – The cast aluminum heatsink of the Punch
amplifier dissipates heat generated by the amplifier's circuitry. The
inherentadvantageofcastingprovidesa30%improvementofcooling
over conventional extrusion heatsink designs.
2. End Caps – The unique end caps conceal the wiring and input
cables, giving the amplifier a clean “stealth” look.
3. SpeakerTerminals–Theheavyduty,gold-platedterminalblock
connectors (+ and –) will accept wire sizes from 8 AWG to 18
AWG. These gold-plated connectors are immune to corrosion
that can cause signal deterioration.
4. Power Terminals – The power and ground connectors on the
Punchamplifieraregold-platedandwillaccommodateupto8AWG
wire maximizing the input current capability of the amplifier.
5. REM Terminal – This gold-plated spade terminal is used for the
auto power/remote turn on of the Punch amplifier.
6. RCAInputJacks–TheindustrystandardRCAjacksprovide easy
connections for signal level input. They are gold-plated to resist
the signal degradation caused by corrosion.
7. SignalInputSwitches–Theseswitchesallowtheinputsignalsto
be distributed to the outputs in many different configurations.
– 5 –

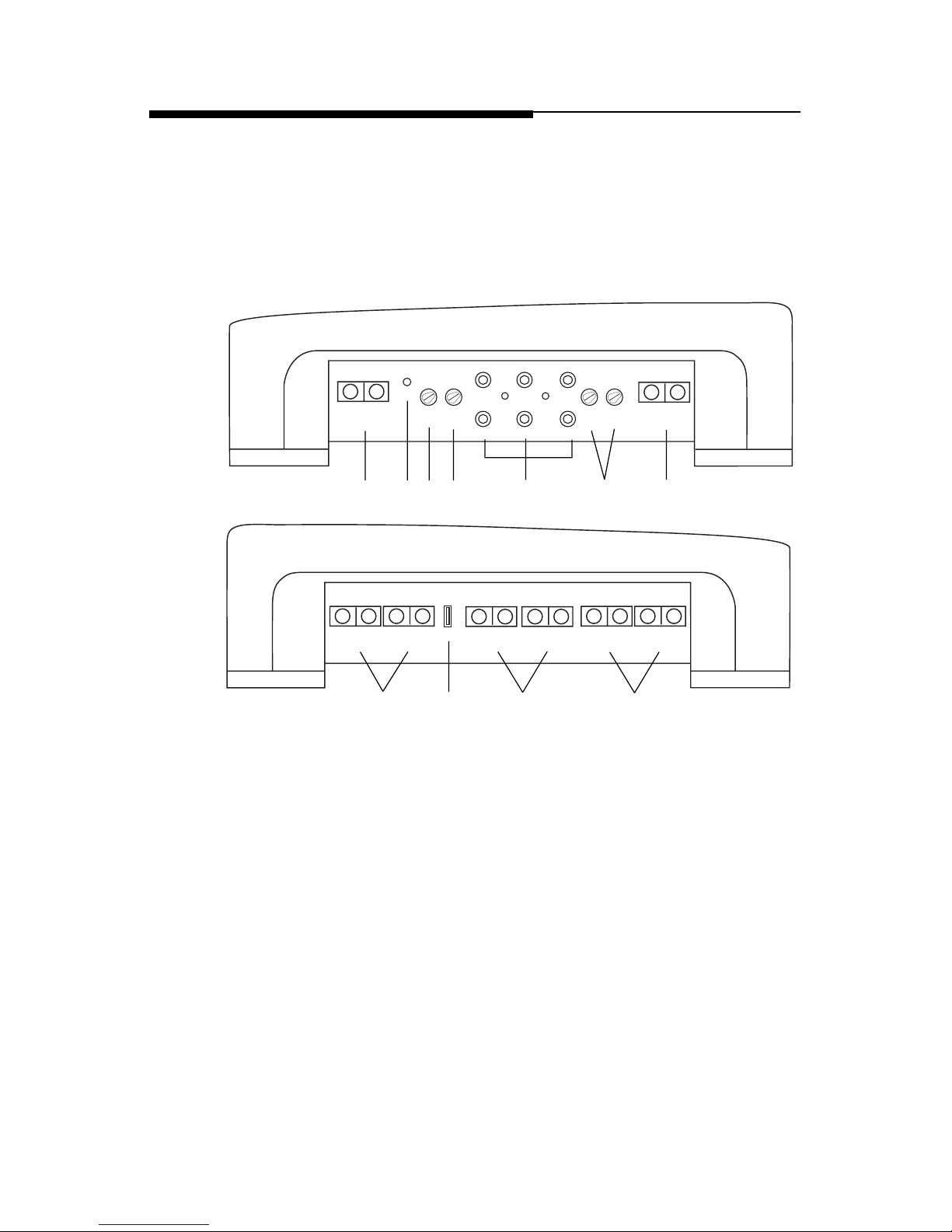

Ch. A + R –+ L –
Ch. A
LED
Ch. C
Bass EQ Ch. C Gain
Ch. C Ch. B Ch. A
Ch. B
Gain Ch. A Gain
L
R
L
R
L
R
+ L –
Ch. C
+ R –
Ch. C
Ch. B REM Dual GNDDual B+– R +– L +
Ch. B
312 98 6 8 3
335 4

8. Input Sensitivity Controls – The input level controls are preset
tomatchtheoutputofmostsourceunits.Theycanbeadjusted
to match output levels from a variety of source units.
9. BassEQControl–TheBassEQallowsanarrowbandadjustment
of up to +18dB centered at 45Hz. The bass boost can be
bypassedbyturningthecontroltoitsminimumorcounterclock-
wise position. The Bass EQ is dedicated for “Channel C” only.
10. Internal Crossovers – These built-in crossover cards are
configurable for a multitude of operating frequencies. The
orientation of the card in its socket determines the function of
high-pass, low-pass, or full range operation.
11. Channel C Phase Switch – This switch enables you to easily
invert the phase of “Channel C” (0°/180°) without having to
disconnect the speaker wires.
12. LED Power Indicator – The LED illuminates when the unit is
turned on.
– 6 –
*Please refer to Owner's
Manual for signal input
switch configurations.
Phase
Switch
*Signal
Input
Switches
–180°0°
Ch. C
XCard Ch. A XCards
XCard C
XCard B
XCard B
XCard A
Ch. B
Dual Filter
XCards
XCard C
XCard B
XCard B
XCard A
–180°0°
10 11 7

INSTALLATION CONSIDERATIONS
The following is a list of tools you will need for installing the Punch
amplifier:
Allen wrenches 9/64" & 3/32" (included) Voltmeter
Wire strippers Battery post wrench
Electric hand drill w/assorted bits Wire cutters
Wire crimpers Assorted connectors
– 7 –
This section focuses on some of the vehicle considerations for
installing your new Punch amplifier. Checking your battery and
presentsoundsystem,aswellaspre-planningyoursystemlayoutand
best wiring routes will save installation time. When deciding how to
lay out your new system, be sure that each component will be easily
accessible for making adjustments.
Beforebeginninganyinstallation,besuretofollowthesesimplerules:
1. Be sure to carefully read and understand the instructions before
attempting to install the amplifier.
2. For safety, disconnect the negative lead from the battery prior to
beginning the installation.
3. For easier assembly, we suggest you run all wires prior to
mounting your amplifier in place.
4. RoutealloftheRCAcablesclosetogetherandawayfromanyhigh
current wires.
5. Use high quality connectors for a reliable installation and to
minimize signal or power loss.
6. Thinkbeforeyoudrill! Becarefulnottocutordrillintogastanks,
fuel lines, brake or hydraulic lines, vacuum lines or electrical
wiring when working on any vehicle.
7. Neverrunwiresunderneaththevehicle. Runningthewiresinside
the vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or
plastic grommets to protect any wires routed through metal,
especially the firewall.
9. ALWAYS protect the battery and electrical system from damage
with proper fusing. Install a fuseholder and appropriate fuse on
the+12Vpowerwirewithin18”(45.7cm)ofthebatteryterminal.
10. When grounding to the chassis of the vehicle, scrape all paint
from the metal to ensure a good, clean ground connection.
Groundingconnectionsshouldbeasshortaspossibleandalways
beconnectedtometalthatisweldedtothemainbody,orchassis,
of the vehicle.

MOUNTING LOCATION
The mounting location and position of your amplifier will have a
greateffectonitsabilitytodissipatetheheatgeneratedduringnormal
operation.The design ofourcast aluminum heatsink servestoeasily
dissipate the heat generated over a wide range of operating condi-
tions.However,tomaximizetheperformanceofyouramplifier,care
should be taken to ensure adequate ventilation.
Trunk Mounting
Mounting the amplifier vertically on a surface with the fin grooves
running up and down will provide the best cooling of the amplifier.
Mounting the amplifier on the floor of the trunk will work but
provides less cooling capability than vertical mounting.
Mountingtheamplifierupsidedowntothereardeckofthetrunkwill
not provide proper cooling and will severely affect the performance
of the amplifier and is strongly not recommended.
Passenger Compartment Mounting
Mounting the amplifier in the passenger compartment will work as
longasyouprovideasufficientamountofairfortheamplifiertocool
itself. If you are going to mount the amplifier under the seat of the
vehicle, you must have at least 1" (2.54cm) of air gap around the
amplifier's heatsink.
Mounting the amplifier with less than 1" (2.54cm) of air gap around
the amplifier's heatsink in the passenger compartment will not
provide proper cooling and will severely affect the performance of
the amplifier and is strongly not recommended.
Engine Compartment Mounting
Rockford Fosgate amplifiers should never be mounted in the engine
compartment.Notonlywillthisvoidyourwarranty butcouldcreate
an embarrassing situation caused by the ridicule from your friends.
– 8 –

BATTERY AND CHARGING
– 9 –
Amplifiers will put an increased load on the vehicle's battery and
charging system. We recommend checking your alternator and
battery condition to ensure that the electrical system has enough
capacity to handle the increased load of your stereo system. Stock
electrical systems which are in good condition should be able to
handle the extra load of any Rockford amplifier without problems,
although battery and alternator life can be reduced slightly. To
maximize the performance of your Rockford Fosgate amplifier, we
suggest the use of a heavy duty battery and an energy storage
capacitor.
WIRING THE SYSTEM
CAUTION: Avoid running power wires near the low level input
cables,antenna,powerleads,sensitiveequipmentorharnesses.The
power wires carry substantial current and could induce noise into
the audio system.
• For safety, disconnect the negative lead from the battery prior to
beginning the installation.
1. Configure the internal XCard crossover and Signal Switching
Network prior to installation. Refer to pages 12 & 13 for further
information.
2. Plan the wire routing. Take care when running signal level RCA
cablestokeepthemclosetogetherbutisolatedfromtheamplifier's
power cables and any high power auto accessories, especially
electric motors. This is done to prevent coupling the noise from
radiated electrical fields into the audio signal. When feeding the
wires through the firewall or any metal barrier, protect them with
plastic or rubber grommets to prevent short circuits. Leave the
wires long at this point to adjust for a precise fit at a later time.

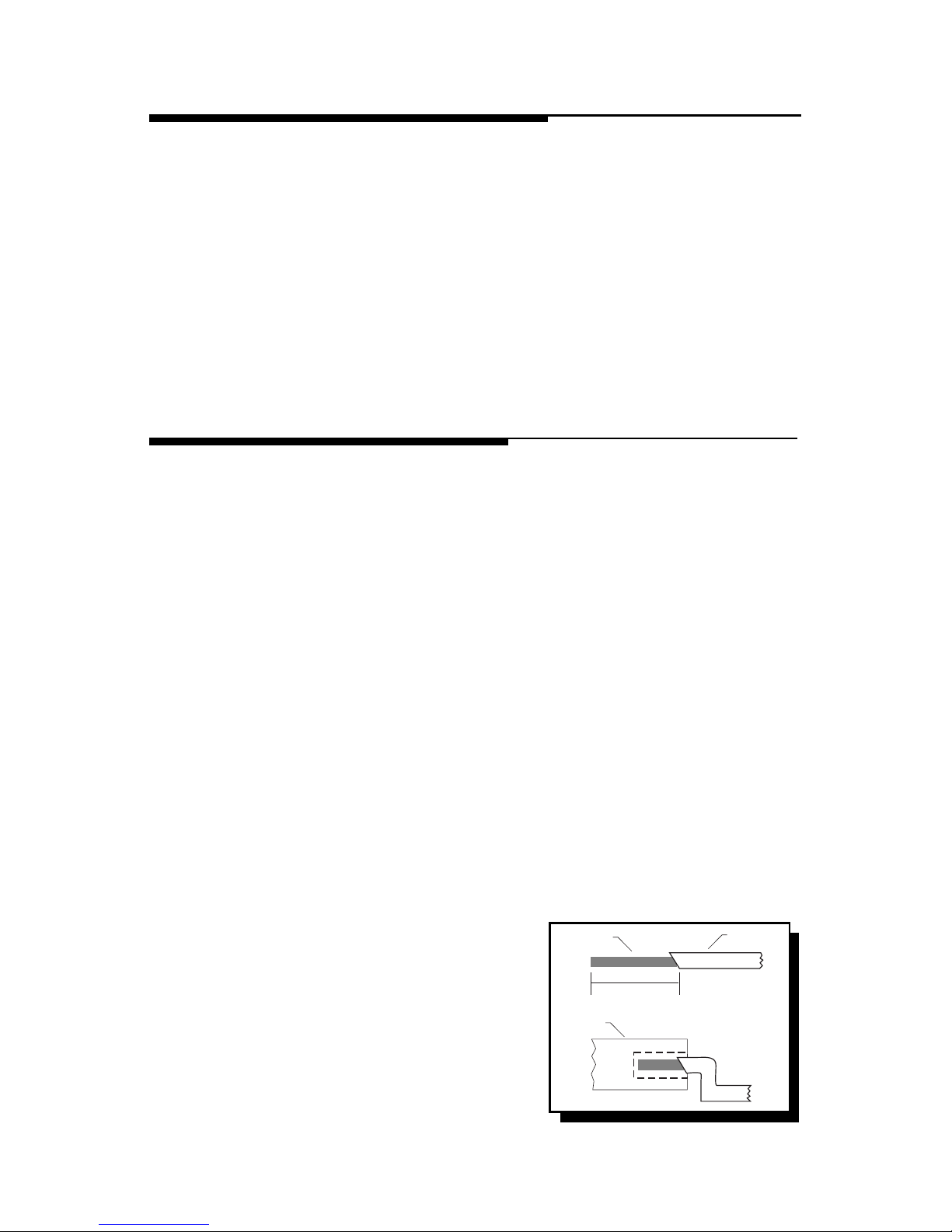

3. Prepare the Power cable for at-
tachmenttotheamplifierbystrip-
ping 5/8" of insulation from the
end of the wire. To prevent the
wirefromfraying,striptheinsula-
tionata45°angle.Insertthebared
wireinto theB+terminal withthe
long side of the insulation on the
top.Bendthecabledownata90°
angle. Tighten the set screw to secure the cable in place.
><
5/8"
INSULATION
STRIP WIRE
>
>
AMP
>

– 10 –
Mount the fuseholder within 18" of the battery using two (2) #8
screws. Disassemble the fuseholder. You should have 2 black
plastic end caps, 2 gold-plated fuse clips, a plastic spacer and the
fuseholder body. Trim the amplifier power cable to reach the
fuseholder and strip the wire 3/8". Slide one of the end caps over
the wire (narrow end first) and insert the wire into one of the fuse
clips. Tighten the set screw. Screw the black end cap to the
fuseholder body to secure the cable. Use the section of cable that
was trimmed earlier and connect it to the other end of the
fuseholder. Install the plastic spacer in the fuseholder and attach
the cable to the fuseholder body.
NOTE: TheB+cableMUSTbefused18"orlessfromthevehicle's
battery. Install the fuseholder under the hood and prepare the
cable ends as stated above. Connections should be water tight.
4. Strip3/8"fromthebatteryendofthepowercableandcrimpalarge
ring terminal to the cable. Use the ring terminal to connect to the
battery positive terminal. Do not install the fuse at this time.
5. PreparealengthofcabletobeusedfortheGNDconnection.Strip
5/8"ofinsulationfromtheendofthecableasdescribedpreviously
and connect to the appropriate terminal of the amplifier. Prepare
the chassis ground by scraping any paint from the metal surface
andthoroughlycleantheareaof alldirtand grease.Striptheother
endofthewireandattacharingconnector.Fastenthecabletothe
chassis using a non-anodized screw and a star washer.
6. Prepare the REM turn-on wire for connection to the amplifier by
stripping 1/4" of insulation from the wire end and crimping an
insulated spade connector in place. Slide the connector over the
REMterminalontheamplifier.ConnecttheotherendoftheREM
wiretoa switched 12 volt positive source. The switched signalis
usuallytakenfromthesourceunit'sautoantennaortheaccessory
lead.Ifthe source unit does not have these outputs available,the
recommendedsolutionistowireamechanicalswitchinlinewith
a 12 volt source to activate the amplifier.
7. Securely mount the amplifier (with supplied screws) to the
vehicle or amp rack. Be careful not to mount the amplifier on
cardboard or plastic panels. Doing so may enable the screws to
pull out from the panel due to road vibration or sudden vehicle
stops.

8. Connect the source signal to the amplifier by plugging the RCA
cables into the input jacks at the amplifier.
9. Connectthespeakers.Stripthespeakerwires5/8".Insertthebared
wire into the speaker terminal and tighten the set screw to secure
intoplace. Besuretomaintainproperspeakerpolarity. DONOT
chassis ground any of the speaker leads as unstable operation
may result.
10. Perform a final check of the completed system wiring to ensure
that all connections are accurate. Check all power and ground
connections for frayed wires and loose connections which could
cause problems.
11. After the final inspection is complete, install the power fuse and
enjoy listening. During the initial listening period, you may need
to“finetune”anyphasingandlevelsettingswithinyourparticular
vehicle. To aid in this procedure, play a track with high musical
content and cruise around your neighborhood. After fully evalu-
ating the transient response of your system and making any final
adjustments,allyourneighborswithina1mileradiuswillassume
thatyouhavejustsuccessfullycompletedanotherupgradetoyour
audio system for which they will probably spill thumbtacks on
your driveway.
– 11 –

– 12 –
3386
fo= R (in kΩ) for .047µf cap
= R (in kΩ) for .022µf cap
7234
fo
Where: R = Ω
fo= desired crossover frequency
c = capacitor in farads
ex: .047 x 10-6 for .047mf cap
Crossover Card
High Pass
Low Pass
Full Range
R1 R2 R1 R2
FULL
The crossover point can be altered by changing all 4 resistor values.
Use the following formula to select the appropriate resistor value to
be placed on the XCard.

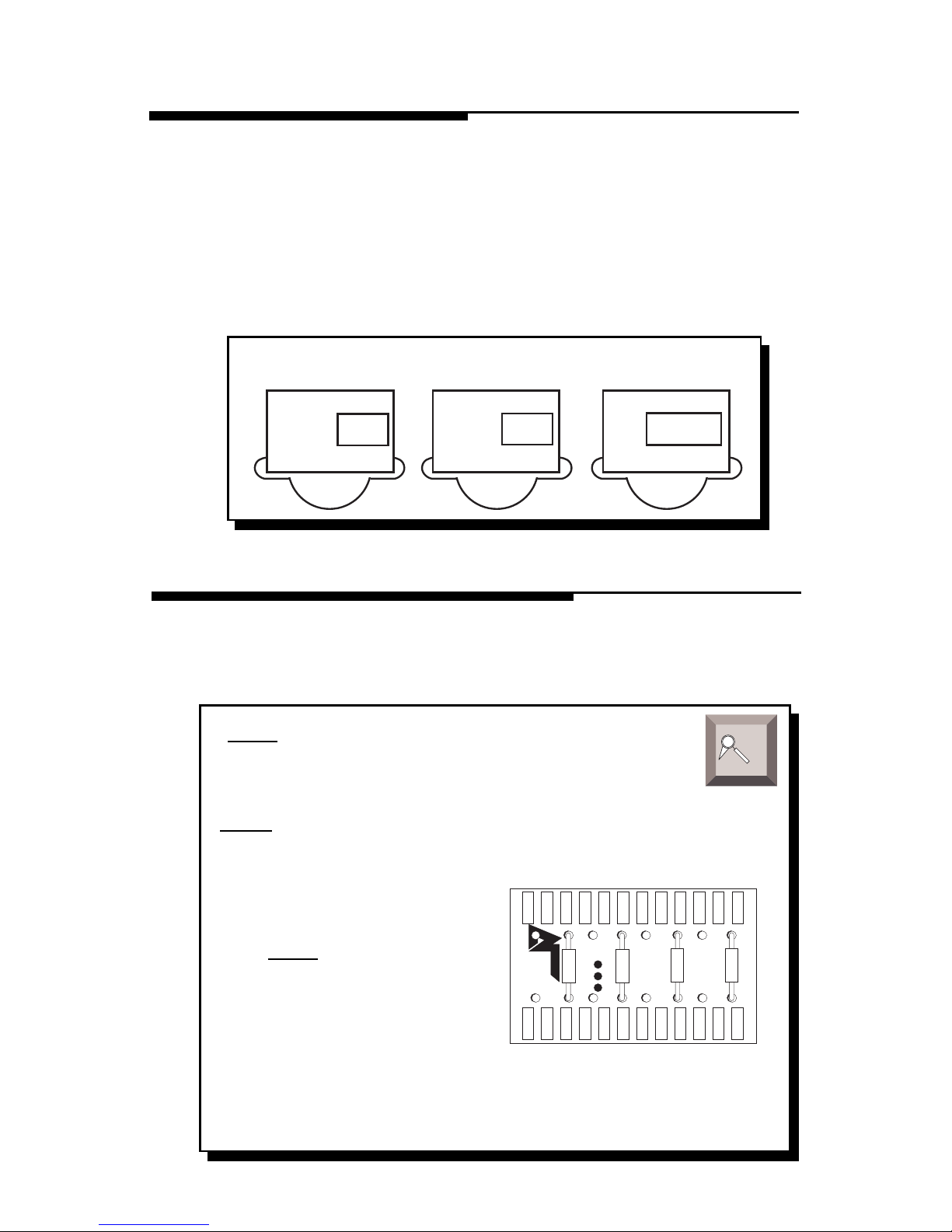

USING THE XCARD
1
2πfoc
The actual formula is:
R =
The crossover functions are controlled through the use of an XCard
and can be set for high-pass, low-pass or full range operation. The
XCard installed in your amplifier is set for Full Range. Each crossover
cardhastwofaces:onefaceoperatesFull Range,theotherhasarrows
to indicate the edge for selecting HP (high-pass) or LP (low-pass)
operation. Orient the card with the desired operating edge, indicated
bythearrow,towardthesocketterminals insidetheamplifier. Firmly,
but carefully, plug the card into the socket.
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n
CUSTOMIZING THE XCARD
Low-Pass Full RangeHigh-Pass
FULL
↕
HP
➝
➝
LP
HP
➝
➝
LP

RESISTOR CHART
Frequency R1 R2
20Hz 169kΩ169kΩ
25Hz 133kΩ133kΩ
30Hz 110kΩ110kΩ
35Hz 95.3kΩ95.3kΩ
40Hz 84.5kΩ84.5kΩ
45Hz 75kΩ75kΩ
50Hz 68.1kΩ68.1kΩ
55Hz 61.9kΩ61.9kΩ
60Hz 56.2kΩ56.2kΩ
65Hz 52.3kΩ52.3kΩ
70Hz 48.7kΩ48.7kΩ
75Hz 45.3kΩ45.3kΩ
80Hz 42.2kΩ42.2kΩ
85Hz 40.2kΩ40.2kΩ
90Hz 37.4kΩ37.4kΩ
200Hz 16.9kΩ16.9kΩ
300Hz 11.3kΩ11.3kΩ
400Hz 8.45kΩ8.45kΩ
500Hz 6.65kΩ6.65kΩ
600Hz 5.62kΩ5.62kΩ
700Hz 4.75kΩ4.75kΩ
800Hz 4.22kΩ4.22kΩ
900Hz 3.74kΩ3.74kΩ
1kHz 3.40kΩ3.40kΩ
1.2kHz 2.80kΩ2.80kΩ
2kHz 1.69kΩ1.69kΩ
3kHz 1.10kΩ1.10kΩ
4kHz 845Ω845Ω
5kHz 665Ω665Ω
6kHz 562Ω562Ω
7kHz 487Ω487Ω
8kHz 422Ω422Ω
Butterworth Alignment Q = .707
1% resistors used with 0.047µF caps Butterworth Alignment Q = .707 1% resistors used with 0.022µF caps
Ourtestshaveshownthatusing0.047µfcapacitorsforfrequenciesbelow100Hz,and
0.022µf capacitors for frequencies above 100Hz, result in more linear crossover
control. Refer to the Specifications page to determine the capacitor value of each
supplied XCard.
Frequency R1 R2
20Hz 357kΩ357kΩ
25Hz 287kΩ287kΩ
30Hz 237kΩ237kΩ
35Hz 205kΩ205kΩ
40Hz 178kΩ178kΩ
45Hz 162kΩ162kΩ
50Hz 143kΩ143kΩ
55Hz 130kΩ130kΩ
60Hz 121kΩ121kΩ
65Hz 110kΩ110kΩ
70Hz 102kΩ102kΩ
75Hz 95.3kΩ95.3kΩ
80Hz 90.9kΩ90.9kΩ
85Hz 84.5kΩ84.5kΩ
90Hz 80.6kΩ80.6kΩ
200Hz 35.7kΩ35.7kΩ
300Hz 23.7kΩ23.7kΩ
400Hz 17.8kΩ17.8kΩ
500Hz 14.3kΩ14.3kΩ
600Hz 12.1kΩ12.1kΩ
700Hz 10.2kΩ10.2kΩ
800Hz 9.9kΩ9.9kΩ
900Hz 8.6kΩ8.6kΩ
1.0kHz 7.15kΩ7.15kΩ
1.2kHz 6.04kΩ6.04kΩ
2.0kHz 3.57kΩ3.57kΩ
3.0kHz 2.37kΩ2.37kΩ
4.0kHz 1.76kΩ1.76kΩ
5.0kHz 1.43kΩ1.43kΩ
6.0kHz 1.21kΩ1.21kΩ
7.0kHz 1.02kΩ1.02kΩ
8.0kHz 909Ω909Ω
– 13 –

– 14 –

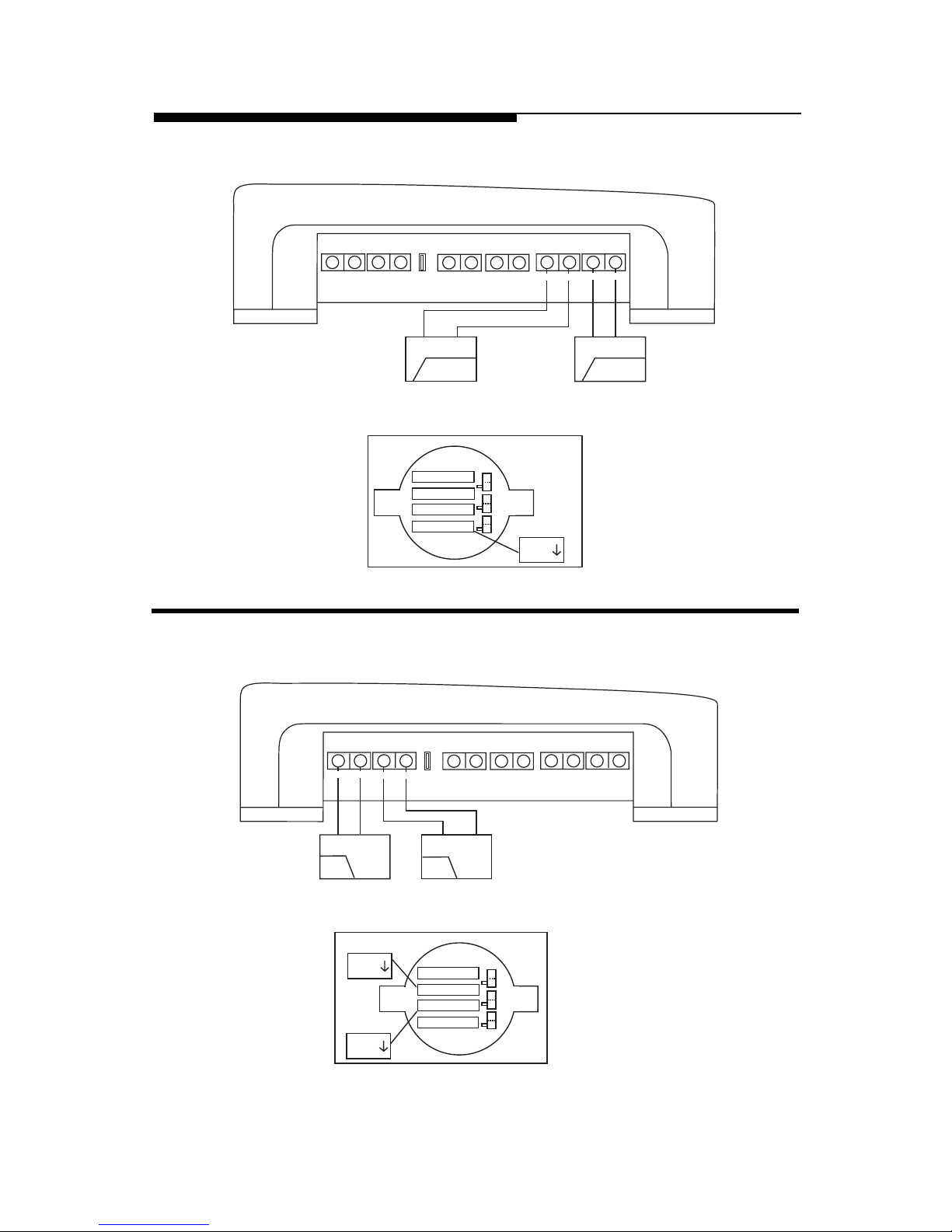

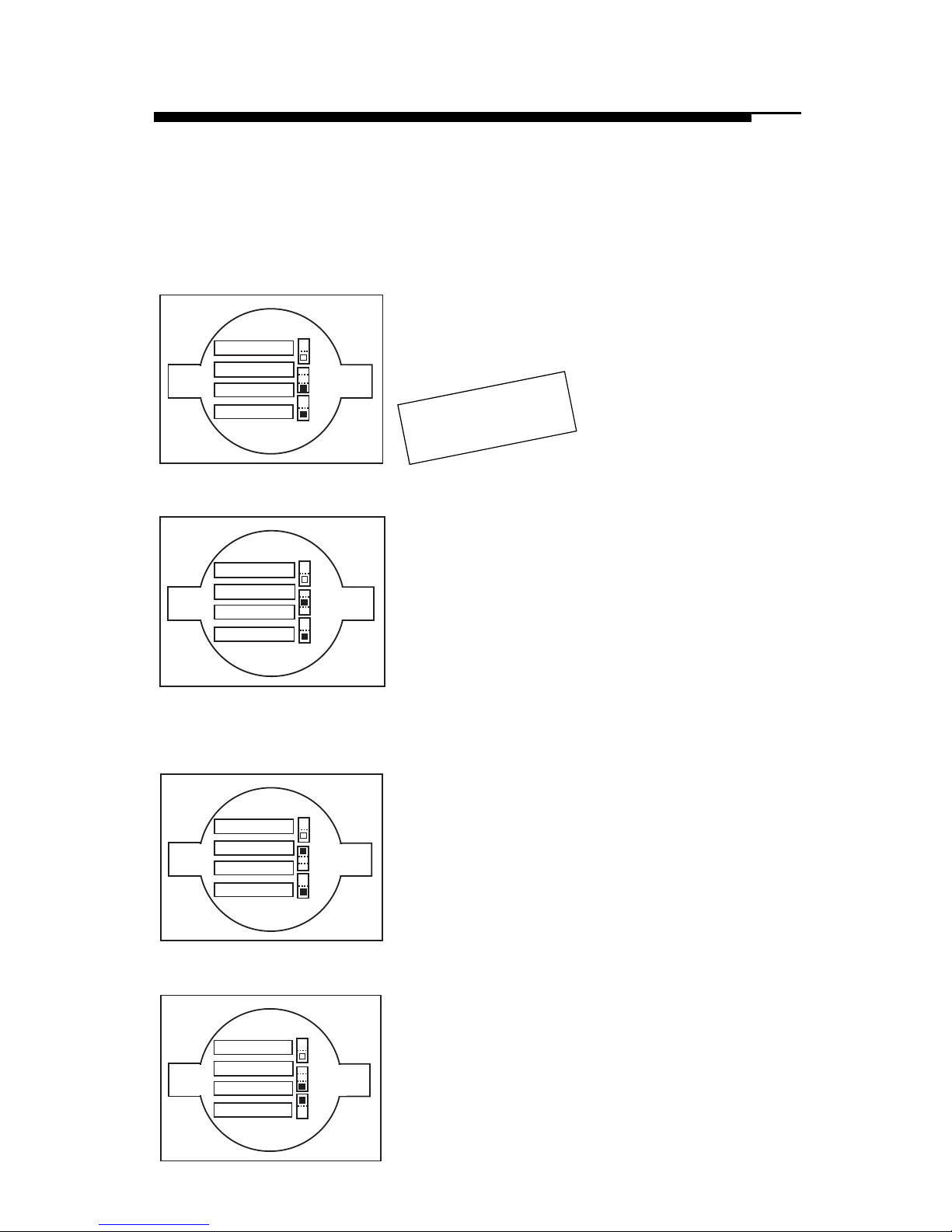

XCARD CONFIGURATIONS
Configure a 12dB/octave filter for Channel A
• XCard A set to High-Pass or Low-Pass
Configure a 12dB/octave filter for Channel B
• XCard B1 set to High-Pass or Low-Pass
• XCard B2 set to Full Range
Ch. A Ch. A Ch. B REM Dual GNDDual B+– R +– L +
Ch. B
HP
XCard A
80Hz-20kHz
12dB/octave HP 80Hz-20kHz
12dB/octave HP
+ L – + R –
0°180°
XCard C
XCard B
XCard B
XCard A
Ch. A Ch. A Ch. B REM Dual GNDDual B+
Ch. B
LP
XCard B1
20Hz-80Hz
12dB/octave LP
20Hz-80Hz
12dB/octave LP
+ L – + R –– L + – R +
Full
Range
XCard B2
0°180°
XCard C
XCard B
XCard B
XCard A

Configure a 24dB/octave filter for Channel B
• XCard B1 & B2 set identically to High-Pass or Low-Pass
Configure a 12dB/octave Bandpass filter for Channel B
• XCard B1 inserted as High-Pass
• XCard B2 inserted as Low-Pass
Ch. A Ch. A Ch. B REM Dual GNDDual B+
Ch. B
20Hz-80Hz
24dB/octave LP
20Hz-80Hz
24dB/octave LP
+ L – + R –– L + – R +
LP
XCard B1
LP
XCard B2
0°180°
XCard C
XCard B
XCard B
XCard A
Ch. A Ch. A Ch. B REM Dual GNDDual B+
Ch. B
80Hz-4kHz
12dB/octave BP
80Hz-4kHz
12dB/octave BP
+ L – + R –– L + – R +
HP
XCard B1
LP
XCard B2
0°180°
XCard C
XCard B
XCard B
XCard A
*
*Note: Both XCards must be customized to the same frequency for proper
24dB/octave operation. Refer to “Using the XCard” on page 12 for
altering the cutoff frequency.
– 15 –

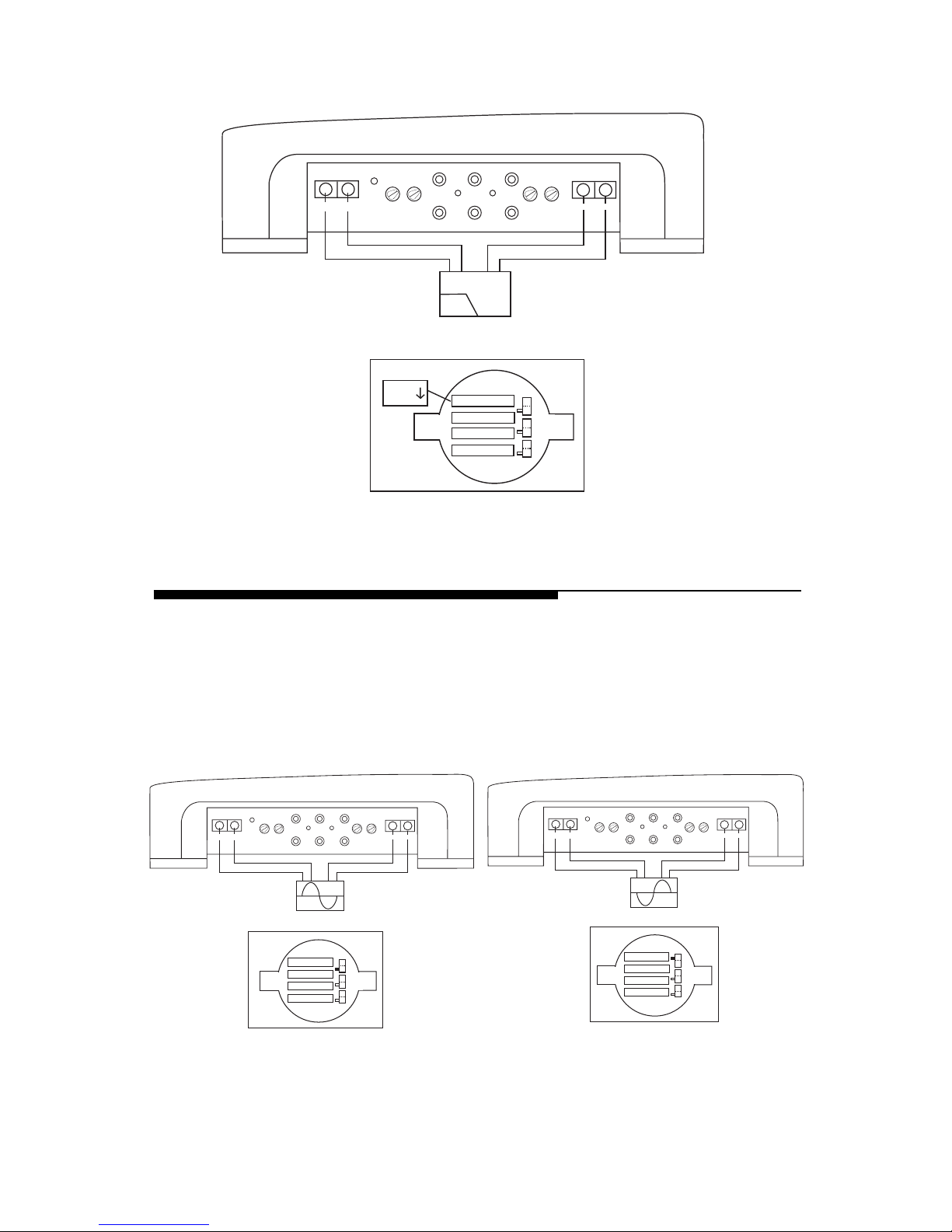

USING THE PHASE SWITCH
Vehicle interiors can cause acoustical irregularities with the system's
bass response. The Punch amplifier has a 0°/–180°phase switch that
allows both Channel C outputs to be inverted simultaneously. Since
woofers will typically be connected to Channel C, the system's bass
response can be improved by experimenting with the phase switch.
• Phase Switch set to 0°• Phase Switch set to –180°
Configure a 12dB/octave Low-Pass filter for Channel C
• XCard C set to High-Pass or Low-Pass
20Hz-80Hz
12dB/octave LP
LP
XCard C
LED
Ch. C
Bass EQ Ch. C Gain
Ch. C Ch. B Ch. A
Ch. B
Gain Ch. A Gain
L
R
L
R
L
R
Ch. C
Ch. C
+ R –
+ L –
0°180°
XCard C
XCard B
XCard B
XCard A
0°Phase
LED
Ch. C
Bass EQ Ch. C Gain
Ch. C Ch. B Ch. A
Ch. B
Gain Ch. A Gain
L
R
L
R
L
R
Ch. C
Ch. C
+ R –
+ L –
0°–180°
XCard C
XCard B
XCard B
XCard A
180°Phase
LED
Ch. C
Bass EQ Ch. C Gain
Ch. C Ch. B Ch. A
Ch. B
Gain Ch. A Gain
L
R
L
R
L
R
Ch. C
Ch. C
+ R –
+ L –
0°–180°
XCard C
XCard B
XCard B
XCard A
– 16 –

USING THE SIGNAL SWITCHING NETWORK
The Signal Switching Network allows the RCA input signals to be
distributed to the outputs in many different configurations. The
orientation of both switches configure the distribution pattern. The
switches can be oriented in the following configurations:
Configuration #1 Ch. Ainputs => Ch. Aoutputs
Ch. Binputs => Ch. Boutputs
Ch. A& B inputs summed => Ch. Coutputs
Configuration #2 Ch. Ainputs => Ch. Aoutputs
Ch. Binputs => Ch. Boutputs
Ch. C inputs => Ch. Coutputs
Configuration #3
(E-Z bridge Ch. C) Ch. Ainputs => Ch. Aoutputs
Ch. Binputs => Ch. Boutputs
Ch. C (L mono) input => Ch. Coutputs
Configuration #4 Ch. Ainputs => Ch. A, B, & C outputs
XCard C
XCard B
XCard B
XCard A
–180°
0°
XCard C
XCard B
XCard B
XCard A
–180°
0°
XCard C
XCard B
XCard B
XCard A
–180°
0°
XCard C
XCard B
XCard B
XCard A
–180°
0°
– 17 –
Factory Default
Setting
