Rockford Fosgate Punch HX2 DVC RFD1208 Guide

INSTALLATION & OPERATION
RFP2208
RFP2210
RFP2212
RFP2215
RFR2210
RFR2212
RFR2215
RFD1208
RFD1210
RFD1212
RFD1215
RFD1218
¤
POWER
DVC
®
® ®
car audio
fanatics
for
®

– 2 –
PUNCH HE2 DVC PUNCH HX2 DVC POWER DVC
MODEL RFP2208 RFP2210 RFP2212 RFP2215 RFD1208 RFD1210 RFD1212 RFD1215 RFD1218 RFR1210 RFR1212 RFR1215 FEATURES Cone SPP SPP SPP SPP SPP SPP SPP SPP SPP SPP SPP SPP Surround Foam Foam Foam Foam
Santoprene Santoprene Santoprene Santoprene Santoprene
Rubber Rubber Rubber
Basket
LX Stamped LX Stamped LX Stamped LX Stamped
LX Cast LX Cast LX Cast LX Cast LX Cast Cast Cast Cast
Voice Coil Diameter 2.0 2.5 2.5 2.5 2.5 3.0 3.0 3.0 4.0 3" 4" 4" Aluminum Voice Coil XXXXXXXXXXXX Hyper-Extended Pole Piece XXXXXXXXXXXX Vented Pole Piece XXXXXXXXXXXX Aero-Vent Back Plate XXXXXXXXXXXX Magnet Bumper XXXXXXXXXXXX ENCLOSURE VOLUME Sealed (ft
3
) 0.30 0.75 1.25 2.5 0.30 0.75 1.25 2.5 4.0 0.75 1.25 2.5
Sealed (liters) 8.50 21.24 35.40 70.79 8.50 21.24 35.40 70.79 113.28 21.24 35.40 70.79 Vented (ft
3
) 0.625 1.0 2.0 2.5 0.625 1.0 2.0 2.5 4.0 1.0 2.0 2.5
Vented (liters) 17.70 28.32 56.63 70.79 17.70 28.32 56.63 70.79 113.28 28.32 56.63 70.79
SPECIFICATIONS

–3 –
PUNCH HE2 DVC PUNCH HX2 DVC POWER DVC
MODEL RFP2208 RFP2210 RFP2212 RFP2215 RFD1208 RFD1210 RFD1212 RFD1215 RFD1218 RFR1210 RFR1212 RFR1215 SPECIFICATIONS Nominal Impedance 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 4Ωx 2 Fs 35 30 28 22 40 30 26 24 22 28Hz 24Hz 20Hz Qts .37 .49 .51 .51 .50 .40 .39 .48 .48 0.34 0.38 0.35 Vas (ft
3
) .460 1.483 3.178 9.182 1.060 3.108 4.238 7.063 14.126 1.060 3.29 9.182
Vas (liters) 13 42 90 260 30 88 120 200 400 30 93 260 Xmax (in.) .43 .51 .51 .51 .55 .55 .55 .55 .75 0.48 0.53 0.53 Xmax (mm) 11.0 13.0 13.0 13.0 14.0 14.0 14.0 14.0 19.0 12.3 13.5 13.5 Sensitivity (dB @1w/1m) 84 85 87 89 83 85 88 89 90 85 87 89 Power Handling (RMS/Peak)
250/500 400/800 400/800 500/1000 400/800 500/1000 500/1000 600/1200 600/1200 500/1000 1000/2000 1000/2000
Speaker Displacement (ft
3
) .035 .06 .085 .135 .05 .12 .21 .25 .30 .12 .21 0.25
Mounting Diameter (in.) 7-1/16 9-1/2 11-1/8 13-7/8 6-7/8 9-3/16 10-13/16 13-13/16 16-5/16 9-5/32 11 13-7/8 Mounting Diameter (mm) 179 241 283 252 175 233 275 351 414 233 279 352 Mounting Depth (in.) 4-11/16 5-7/8 6-5/16 7-11/16 4-13/16 5-7/16 5-13/16 6-15/16 8-11/16 5-5/16 6-1/32 7-1/4 Mounting Depth (mm) 119 149 160 195 122 138 148 176 221 135 153 184

–4 –
Dear Customer,
Congratulations on your purchase of the world's finest brand of car audio
speakers. At Rockford Fosgate we are fanatics about musical reproduction at
its best, and we are pleased you chose our product. Through years of engineer-
ing expertise, hand craftsmanship and critical testing procedures, we have
created a wide range of products that reproduce music with all the clarity and
richness you deserve.
For maximum performance we recommend you have your new Rockford
Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we
provide specialized training through Rockford Technical Training Institute
(RTTI). Please read your warranty and retain your receipt and original carton
for possible future use.
Great product and competent installations are only a piece of the puzzle
when it comes to your system. Make sure that your installer is using 100%
authentic installation accessories from Connecting Punch in your installa-
tion. Connecting Punch has everything from RCA cables and speaker wire to
Power line and battery connectors. Insist on it! After all, your new system
deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order your
Rockford wearables, which include everything from T-shirts and jackets to
hats and sunglasses.
To get a free brochure on Rockford Fosgate products and Rockford wearables,
in the U.S. call 480-967-3565 or FAX [phone]. For all other countries,
call +001-480-967-3565 or FAX [phone].
If, after reading your manual, you still have questions regarding this product,
we recommend that you see your Rockford Fosgate dealer. If you need further
assistance, you can call us direct at 1-800-669-9899. Be sure to have your seri-
al number, model number and date of purchase available when you call.
The serial number can be found on the outside of the box. Please record it in
the space provided below as your permanent record. This will serve as verifi-
cation of your factory warranty and may become useful in recovering your
speaker if it is ever stolen.
Serial Number:__________________________________
Model Number: ________________________________
PRACTICE SAFE SOUND™
CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS
OVER 100dB MAY CAUSE PERMANENT HEARING LOSS.
HIGH POWERED AUTOSOUND SYSTEMS MAY PRODUCE
SOUND PRESSURE LEVELS WELL OVER 130dB. USE
COMMON SENSE AND PRACTICE SAFE SOUND.

–5 –
TABLE OF CONTENTS
Specifications............................................................................................2
Dear Customer..........................................................................................4
Introduction ..............................................................................................5
Power DVC Woofer Contents....................................................................5
Recommended Enclosures ........................................................................6
Wiring Configurations ..............................................................................8
Building An Enclosure ..............................................................................9
Calculating Volume ..................................................................................9
Subwoofer Crossovers ..............................................................................9
Warranty Information..............................................................................10
International Information ........................................................................11
INTRODUCTION
The Punch HE2 DVC, Punch HX2 DVC, Power DVC are high performance,
low frequency drivers with dual 4 ohm voice coils. These woofers were
designed for use primarily in small sealed & small ported enclosures. By uti-
lizing the latest materials and construction techniques, we are able to offer
a speaker with high output at low frequencies while requiring a minimum
of operating space.
CONTENTS
Punch HX2 DVC
Power HE2 DVC Woofer
Installation & Operation Manual
4 foam gasket segments
Punch HX2 DVC
Power HX2 DVC Woofer
Installation & Operation Manual
4 foam gasket segments
Power DVC
Power DVC Woofer
Installation & Operation Manual
4 foam gasket segments

–6 –

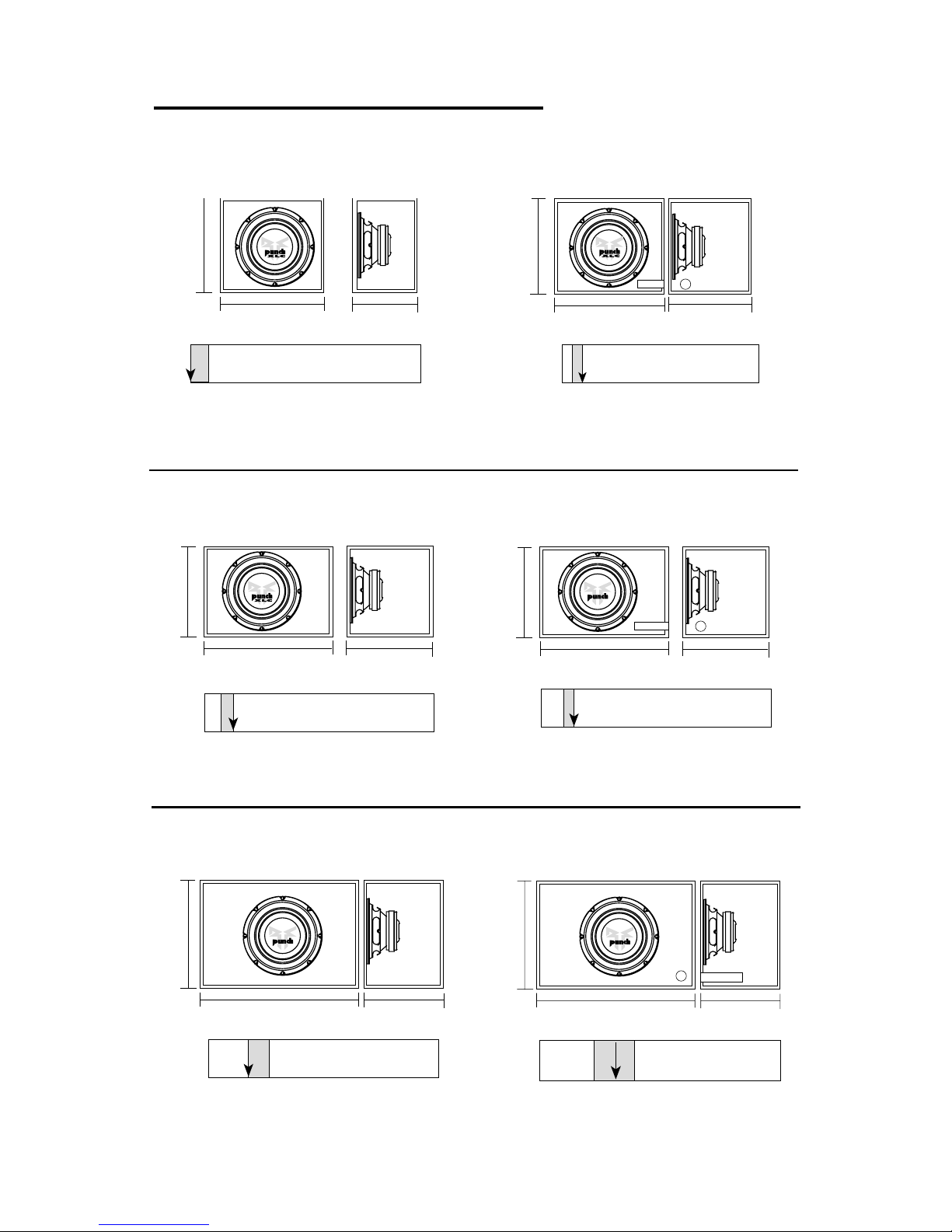

RECOMMENDED ENCLOSURES
Punch HE2 10” - Punch HX2 10” - Power DVC 10"
Recommended Sealed 0.75ft
3
(21.24L)
Punch HE2 12”- Punch HX2 12”- Power DVC 12"
Recommended Sealed 1.25ft
3
(35.40L)
Recommended Vented 1.0 ft
3
(28.32L)
Recommended Vented 2.0 ft
3
(56.63L)
D = 13.5"
(34.29cm)
H = 13"
(33.02cm)
W = 15"
(38.1cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
.75
D = 12"
(30.48cm)
H = 14"
(35.56cm)
W = 19-3/4"
(50.17cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
1.25
1.75
D = 14"
(35.56cm)
H = 18"
(45.72cm)
W = 20.5"
(52.07cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
1.50
2.50
D = 10"
(25.40cm)
H = 14"
(35.56cm)
W = 15"
(38.10cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
.625
1.50
.75
*Fb = 35 Hz Pd = 3" (7.62cm)
Pl = 13.25" (33.65cm)
*Fb=35 Hz Pd=4" (10.16cm)
Pl=10.75" (27.30cm)
Punch HE2 8”- Punch HX2 8”
Recommended Sealed 0.30ft
3
(8.50L) Recommended Vented 0.625 ft
3
(17.70L)
D = 8"
(20.32cm)
H = 11"
(27.94cm)
W = 19.75"
(50.16cm)
Range in Cubic Feet
1 2 3 4 5 6
.50
.625
0.3
D = 8"
(20.32cm)
H = 11"
(27.94cm)
W = 11"
(27.94cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
.50
1.50
*Fb = 40 Hz Pd = 2.5" (6.35cm)
Pl = 11.25" (28.57cm)

–7 –
Punch HE2 15”- Punch HX2 15”- Power DVC 15"
Recommended Vented 2.5ft
3
(70.79L)
D = 12"
(30.48cm)
H = 20"
(50.80cm)
W = 25"
(63.50cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
2.50 3.50
D = 12"
(30.48cm)
H = 20"
(50.80cm)
W = 25"
(63.50cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
2.50 2.25
Recommended Sealed 2.5ft
3
(70.79L)
*Fb = 35 Hz Pd = 4" (10.16cm)
Pl = 8" (20.32cm)
Punch HX2 18”
Recommended Vented 4.0ft
3
(113.27L)
D = 14"
(35.56cm)
H = 20.5"
(52.0cm)
W = 32.5"
(82.55cm)
Range in Cubic Feet
1 2 3 4 5 6
0
.3
50
D = 14"
(35.56cm)
H = 20.5"
(52.0cm)
W = 32.5"
(82.55cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
Recommended Sealed 4.0ft
3
(113.27L)
Fb = Tuning Frequency
Pd = Port Diameter
Pl = Port Length
*Fb = 30 Hz Pd = 2x4" (2x10.16cm)
Pl = 14.5" (36.83cm)

–8 –

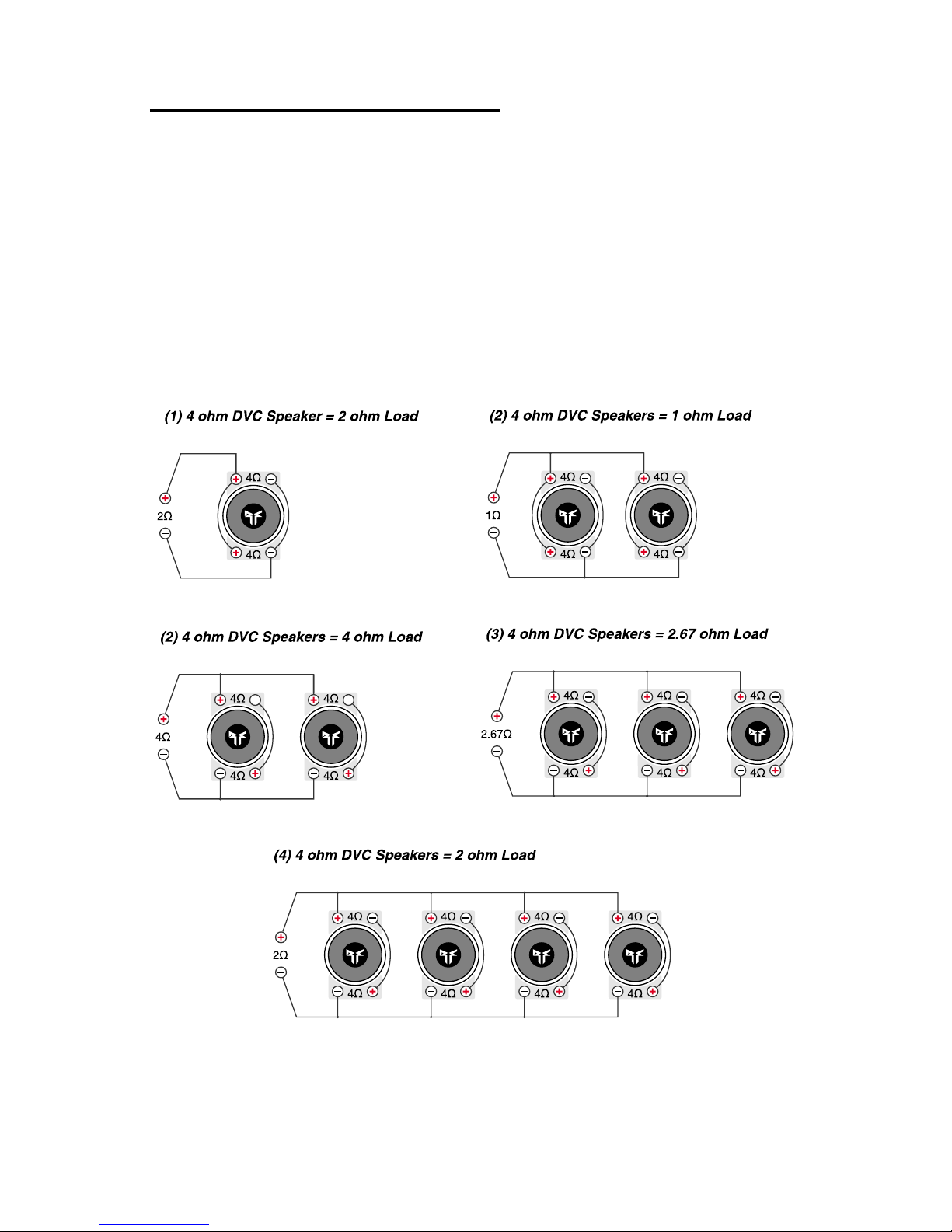

WIRING CONFIGURATIONS
By varying the wiring configuration of your speakers you can create an
impedance load to match your system. Since each voice coil of a DVC
speaker carries its own impedance, altering the wiring configurations give
a range of options for impedance load. Series, Parallel, or Series-Parallel
wiring configurations are different techniques for wiring speakers that pro-
vide different loads. Series configuration is a string method where speakers
are wired end to end. Parallel configuration uses two or more speakers
wired across common terminals. Series-Parallel configuration combines
both techniques. Choose the wiring diagram below that corresponds the
number of woofers and the impedance of your amplifier.

–9 –
BUILDING AN ENCLOSURE
To work properly, the walls of the enclosure must be rigid and not flex when
subjected to the high pressures generated by the speaker's operation. For
optimum performance, we recommend using 3/4" MDF (Medium Density
Fiberboard) and internal bracing. The enclosure should be glued together
and secured with nails or screws. MDF is porous; therefore, it is suggested
to also seal the outside walls with polyurethane.
CALCULATING VOLUME
Calculating volume is merely a matter of measuring the dimensions in inch-
es and using the formula:
If two facing sides are of uneven length, add them together and divide by
two to take the average. Using this number will give you the volume with-
out the necessity of calculating the box in sections and adding the sections
together. The thickness of the baffle material reduces the internal volume so
this must be subtracted from the outside dimensions to determine the inter-
nal volume. The speaker itself also reduces the internal volume. The
amount of air displaced by each model is listed on the specification sheet
and should also be subtracted from the gross volume calculation.
Height" x Width" x Depth"
1728 cu. in.
Box Volume =
(cubic feet)
SUBWOOFER CROSSOVERS
There are two operational types of crossovers, passive and active. Passive
crossovers (coils or inductors) are placed on the speaker leads between the
amplifier and speaker. An active crossover is an electronic filter which sep-
arates the audio signal fed to different amplifiers. For optimum subwoofer
performance, we recommend using an active 80-100Hz low-pass crossover
at 12dB/octave.

–10 –
LIMITED WARRANTY INFORMATION
Rockford Corporation offers a limited warranty on Rockford Fosgate products on
the following terms:
• Length of Warranty
1 year on speakers 90 days on speaker B-stock (receipt required)
3 years on electronics 90 days on electronic B-stock (receipt required)
1 years on source units
•What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by
Authorized Rockford Fosgate Dealers in the United States of America or its pos-
sessions. Product purchased by consumers from an Authorized Rockford Fosgate
Dealer in another country are covered only by that country’s Distributor and not
by Rockford Corporation.
•Who is Covered
This warranty covers only the original purchaser of Rockford product purchased
from an Authorized Rockford Fosgate Dealer in the United States. In order to
receive service, the purchaser must provide Rockford with a copy of the receipt
stating the customer name, dealer name, product purchased and date of purchase.
•Products found to be defective during the warranty period will be repaired or
replaced (with a product deemed to be equivalent) at Rockford's discretion.
•What is Not Covered
1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford
Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer
•Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantabil-
ity are limited in duration to the period of the express warranty set forth above.
Some states do not allow limitations on the length of an implied warranty, so this
limitation may not apply. No person is authorized to assume for Rockford Fosgate
any other liability in connection with the sale of the product.
•How to Obtain Service
Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an
RA# (Return Authorization number) to return any product to Rockford Fosgate.
You are responsible for shipment of product to Rockford.
Ship to: Electronics
Rockford Corporation
Warranty Repair Department
2055 E. 5th Street
Tempe, AZ 85281
RA#:_________________
Ship to: Speakers
Rockford Acoustic Design
(Receiving-speakers)
609 Myrtle N.W.
Grand Rapids, MI 49504
RA#:_________________
