Rockford Fosgate P1L-1X10 Guide

puNc
P1 L - P2L - P3L - LOADED ENCLOSURES
SVC • SINGLE VOICE COIL SUBWOOFERS DVC • DUAL VOICE COIL SUBWOOFERS
Serial Number: _
P1L
Single
Dual
10"
P1L-1X10
P1 L-2X10
12"
P1 L-1X12
P1L-2X12
P2L
10" 12"
Single P2L-1X10 P2L-1X12
Dual P2L-2X10 P2L-2X12
P3L 10" 12""
Single P3L-1X10 P3L-1X12
Dual P3L-2X10 P3L-2X12
Installation & Operation
Date of Purchase:

INSTALLATION - ENGLISH
&.. CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.
Run
the speaker cable from the amp. When routing the speaker cable from the amplifier, avoid running it close to any sources of high current
(wiring
harnesses). The positive (+) speaker output from the amp connects to the red terminal of the enclosure, and the negative (-) connects to the
black terminal.
INSTALLATION - FRANCAIS
&.. MISE EN GARDE: avant d'entamer I'installation, deconnectez la broche negative (-) de la batterie pour eviter tout risque de
•blessures, d'incendie
ou de dommages aI'appareil.
Branchement du dible du haut-parleur de I'amplificateur. En pla~nt Ie cable du haut-parleur de I'ampli, eviter de I'approcher d'une source
de courant important. La sortie positive de I'ampli se branche sur Ie terminal rouge du caisson, et Ie negatif se branche sur Ie terminal noir.
INSTALACION - ESPANOL
&.. PRECAUCION: Antes de la instalaci6n, desconecte el terminal negativo de la bateria (-) para prevenir dano a la unidad, incendio
•ylo posibles lesiones.
Recorrido del Cable de Altavoz Desde el Amplificador. AI lIevar el cable de altavoz desde el amplificador, evite que pase cerca de cualquier
fuente
de alto corriente (cables de alimentacion). EI terminal positive (+) de las salida de rojo. y el terminal negativo (-) al terminal negro.
EINBAU -DEUTSCH
&.. VORSICHT: Entfernen Sie vor dem Einbau den negative Batteriepol, um Schaden am Gerat, Feuer bzw. moglicheVerletzungen zu
•vermeiden.
AnschluB des Lautsprecherkabels. Beim AnschluB des Lautsprecherkables sollten Sie darauf achten, daB das Kabel keine Fahrzeugstromkabel
kreuzt,
um Einsteuungen zu verhindern. Die Plus-Leitung des Lautsprecherkabels kommt in die rote Klemme des Terminals, die Negativ-Leitung in die
schwarze Klemme des Terminals.
INSTALLAZIONE - ITALIANO
&.. ATTENZIONE: Prima dell'installazione, scoliegate il terminale negativo (-) della batteria per evitare danni all'unici,
•
pericoli d'incendio e/o potenziali lesioni personali.
Far correre il cavo dell'altoparlante all'amplificatore. Quando fate correre il cavo dell'altoparlante all'amplificatore non
fatelo
passare vicino a qualsiasi cavo dell'impianto elettrico di serie dell'auto. II segnale positivo dell'altoparlante (+) in uscita dall'amplificatore acol-
legato
al terminale rosso del diffusore. e il negativo (-) al terminale nero.
Black
Negro
Noir
Schwarz
Nero
Amplifier 40 Mono
Amplificador 40 Mono
Amplificateur de 40 Mono
Amplifier 40 Mono
Amplificatore 40 Mono
From
Amplifier
CB
')
i!
\
Ii
t._, __ ~ ... ~ __ .~ .. _,,_.~_,,_~.~_A
16AWG
-to-
12AWG
Red
Rojo
Rouge
Rot
Rosso
FEATURES
Vented Enclosure Features
Proprietary High-Flow, Low·Noise Ports
High Current Binding Posts
Constructed with 5/8" MDF
Covered with High Density Carpet
Wired Exclusively with Rockford Accessories

FEATURES
Speaker Features - P1 L - SVC (Single Voice Coil)
•High modulus closed conical polypropylene cone.
•Tear &fatigue resistant poly-cotton spider.
•High density compressed half-roll sealed poly.foam
sUlTOund.
•High temp voice coil with spun-laced Nomex ™insulating
re-inforcment collar.
•Optimized
motor magnetics with extended pole and bumped backplate.
•Sturdy
16 guage compound bend frame geometry.
•Proprietary spiderventing/cooling technique.
Speaker Features -P2L &P3L -DVC (Dual Voice Coil)
•Venturi-effect center pole dispersion venting/cooling system.
•High modulus closed conical polypropylene
cone andABSlAcrylic dustcap
assembly geometry.
•Tear &fatigue resistant poly-cotton spider.
•High density compressed half·roll sealed poly.foam
sUlTOund.
•High temp voice coil with spun-laced Nomex ™insulating
re-inforcment collar.
•
Optimized motor magnetics with extended pole and bumped backplate.
•Double
stack ferrite magnet structure.
•P2 -
Sturdy 16 guage compound bend frame geometry.
•P3 -Rigid die-cast aluminium frame.
•
Proprietary spiderventing/cooling technique.
•Diamond
cut cast aluminum motor coverfor improved heat dissipation.
P1L-1X10
Nominal Impedance (Ohms)
Replacement Model
Power Handling (Watts)
Overall Dimensions
(HxWxD)
P1L-2X10
Nominal Impedance (Ohms)
Replacement Model
Power Handling
(Watts)
Overall Dimensions (HxWxD)
P1L-1X12
Nominal Impedance (Ohms)
Replacement Model
Power Handling (Watts)
Overall Dimensions
(HxWxD)
P1L-2X12
Nominal Impedance (Ohms)
Replacement Model
Power Handling (Watts)
Overall Dimensions
(HxWxD)
SPECIFICATIONS
Single 10" SVC
40
PIS410
150
RMS /300 Max
13.125" x17.0" x15.75"
(33.3cm x43.2cm x40.0cm)
Dual 10" SVC
40
PI S81 0(wired internally)
300
RMS /600 Max
13.125" x31.125" x15.75"
(33.3cm x79.1
cm x40.0cm)
Single 12" SVC
40
PIS412
I50
RMS /300 Max
15.125" x19.125" x16.375"
(38.4cm x48.6cm x41.6cm)
Dual 12" SVC
40
PI 5812 (wired internally)
300
RMS /600 Max
15.125" x33.875" x16.375"
(38.4cm x86.0cm x41.6cm)
P2L-1X10 Single 10" DVC P3L-1X10 Single 10" DVC
Nominal Impedance (Ohms) 40
Nominal Impedance (Ohms) 40
Replacement Woofer
P2D210 (wired internally) Replacement Model P3D210 (wired internally)
Power Handling
(Watts)
250 RMS / 500 Max Power Handling (Watts)
400 RMS /800 Max
Overall Dimensions
(HxWxD)
13.125" x17.0" x15.75" Overall Dimensions
(HxWxD) 13.125" x17.0" x15.75"
(33.3cm x43.2cm x40.0cm) (33.3cm x43.2cm x40.0cm)
P2L-2X10 Dual 10" DVC P3L-2X10 Dual
10" DVC
Nominal Impedance (Ohms) 40
Nominal Impedance (Ohms)
40
Replacement Woofer P2D410 (wired internally) Replacement Model P3D410 (wired internally)
Power Handling
(Watts) 500 RMS /1000 Max
Power Handling (Watts)
800 RMS /1600 Max
Overall Dimensions
(HxWxD)
13.125" x31.125" x15.75" Overall Dimensions
(HxWxD) 13.125" x31.125" x15.75"
(33.3cm x
79.1 cm x40.0cm) (33.3cm x79.1 cm x40.0cm)
P2L-1X12 Single 12" DVC P3L-1X12 Single 12" DVC
Nominal Impedance (Ohms) 40
Nominal Impedance (Ohms)
40
Replacement Model P2D212 (wired internally) Replacement Model P3D212 (wired internally)
Power Handling
(Watts) 250 RMS /500 Max Power Handling
(Watts)
500 RMS /1000 Max
Overall Dimensions
(HxWxD)
15.125" x19.125" x16.375" Overall Dimensions
(HxWxD) 15.125" x19.125" x16.375"
(38.4cm x48.6cm x41.6cm) (38.4cm x48.6cm x41.6cm)
P2L-2X12 Dual 12" DVC P3L-2X12 Dual 12" DVC
Nominal Impedance (Ohms)
40
Nominal Impedance (Ohms) 40
Replacement Model P2D412 (wired internally) Replacement Model P3D412 (wired internally)
Power Handling (Watts) 500
RMS /1000 Max Power Handling (Watts) 1000
RMS /2000 Max
Overall Dimensions (HxWxD) 15.125" x33.875" x16.375" Overall Dimensions
(HxWxD) 15.125" x33.875" x16.375"
(38.4cm x86.0cm x41.6cm) (38.4cm x86.0cm x41.6cm)
Specifications subjct to change without notice

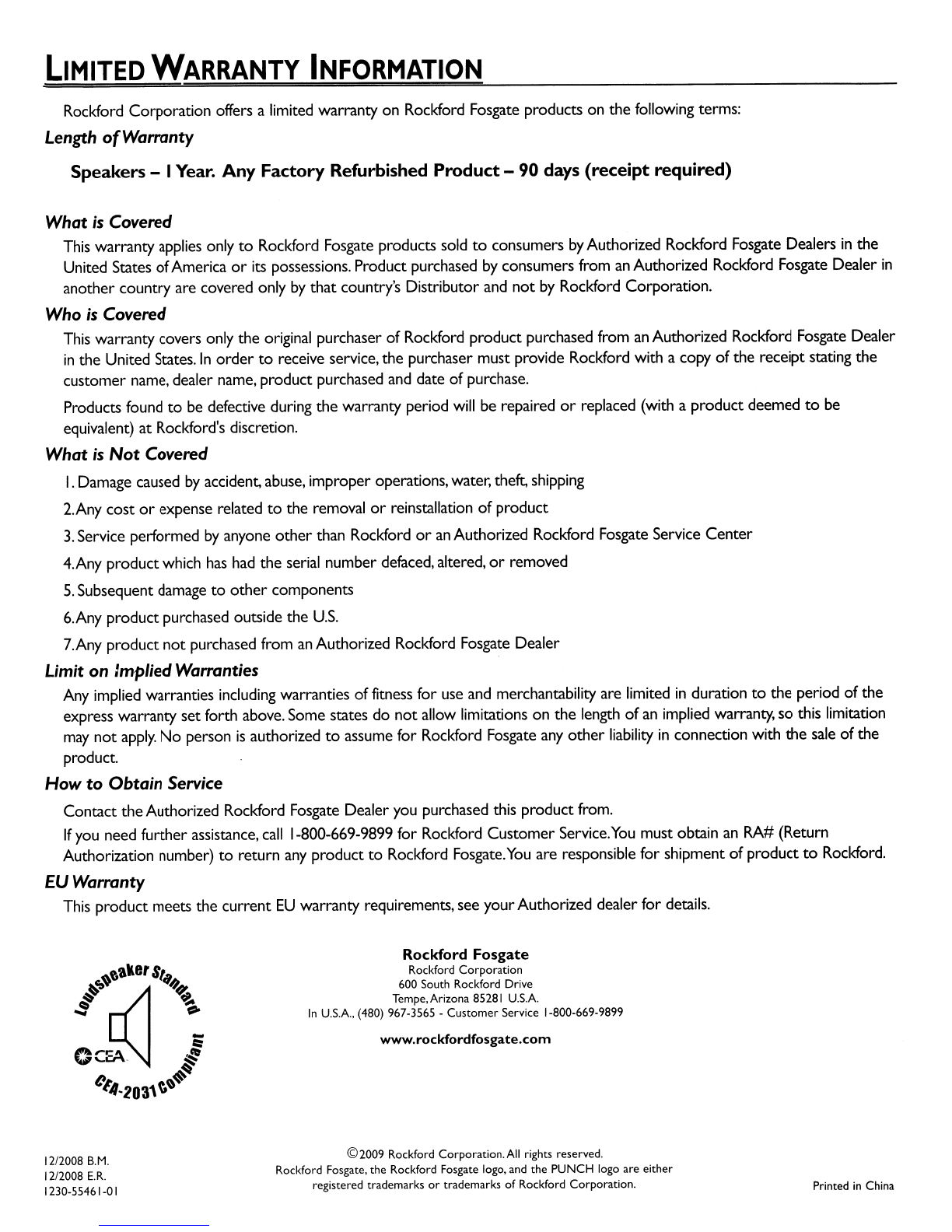

LIMITED WARRANTY INFORMATION
Rockford Corporation offers alimited warranty on Rockford Fosgate products on the following terms:
Length of Warranty
Speakers - IYear. Any Factory Refurbished Product -90 days (receipt required)
What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the
United States ofAmerica
or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in
another country are covered only by that country's Distributor and not by Rockford Corporation.
Who is Covered
This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer
in the United States. In order to receive service, the purchaser must provide Rockford with acopy of the receipt stating the
customer name, dealer name, product purchased and date of purchase.
Products found
to be defective during the warranty period will be repaired or replaced (with aproduct deemed to be
equivalent)
at Rockford's discretion.
What is Not Covered
I. Damage caused by accident, abuse, improper operations, water, theft, shipping
2.Any cost
or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4.Any product which has had the serial number defaced, altered, or removed
S. Subsequent damage to other components
6.Any product purchased outside the
U.S.
7.Any product not purchased from an Authorized Rockford Fosgate Dealer
Limit on :mpliedWarranties
Any implied warranties including warranties offitness for use and merchantability are limited in duration to the period ofthe
express warranty
set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation
may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the
product.
How to Obtain Service
Contact the Authorized Rockford Fosgate Dealer you purchased this product from.
If you need further assistance, call 1-800-669-9899 for Rockford Customer Service.You must obtain an RA# (Return
Authorization number)
to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
fUWarranty
This product meets the current EU warranty requirements, see yourAuthorized dealer for details.
f~~~~ake, S/Q.~
.... C'o
-
c:
CCEA. $
~~
e'4-2031 t,~
1212008 B.M.
12/2008 E.R.
1230-55461-0 I
Rockford Fosgate
Rockford Corporation
600 South Rockford Drive
Tempe,Arizona 85281
U.S.A.
In U.S.A.. [phone] - Customer Service 1-800-669-9899
www.rockfordfosgate.com
©2009 Rockford Corporation. All rights reserved.
Rockford Fosgate, the Rockford Fosgate logo, and the PUNCH logo are either
registered trademarks
or trademarks of Rockford Corporation. Printed
in China
