RockJam Electric Guitar User manual
Electric Guitar
Simple Assembly Instructions - Please keep for future reference
IMPORTANT
1. Read these instructions carefully and
familiarise yourself with the procedure before
assembling the unit.
2. Check that you have all the component
parts following the list on the back cover and
familiarise yourself with each part before
proceeding.
5. To avoid scratching, it is recommended
that you assemble the unit on a soft level
surface.
4. Ensure you have enough space to lay out
all the parts before assembly.
3. Take all the ttings out of the plastic bag
and separate them into their groups.
Guitare électrique/ Elektrische Gitarre/ Chitarra elettrica/
Gitara elektryczna/ Guitarra eléctrica
Guide de montage facile - Veuillez le conserver pour référence ultérieure.
Einfache Montageanweisungen- Bewahren Siediese fur einekunftige Bezugnahme auf.
Istruzioni di montaggio semplici-Si prega di conservare per riferimento future.
Instrukcja montażu - zachowaj do wykorzystania w przyszłości
Instrucciones de montaje simples - Por favor, mantenga para futuras referencias.

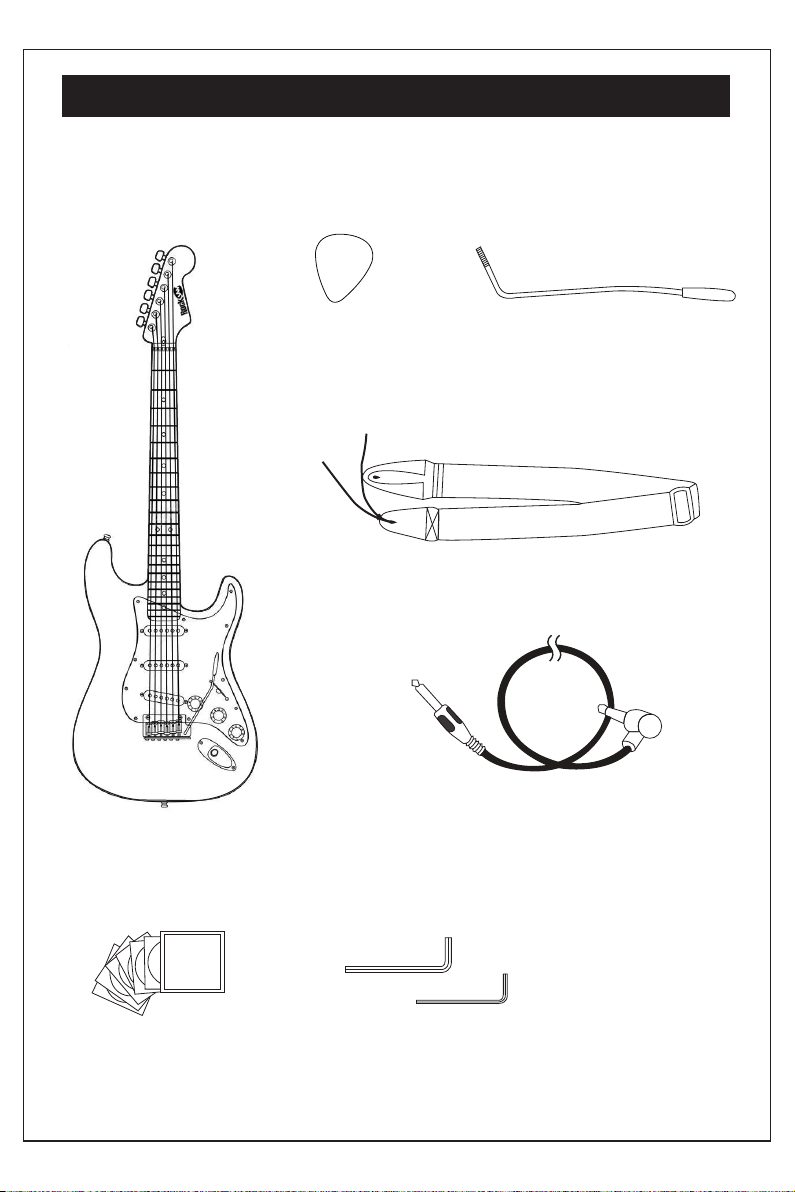

A 1x Electric Guitar
Components
B 1x Pick
C 1x Tremolo Arm
D 1x Strap
E 1x Cable
1x Spare Strings 2x Allen Key
2
Assembly Instructions
Stage 1- Fitting the Electric Guitar
String Replacement
Screw the threaded end of the tremolo arm into
the corresponding threaded hole in the bridge
saddle. Fully wind in and then unwind one turn
so that the arm can be lifted into the operating
position when required.
1.
Fix the strap D onto the electric guitar A.
See Fig.1.
2.
Insert the cable E into the electric guitar A.
See Fig. 2.
3.
Insert the cable E into an amplier.
See Fig.2.
4.
Ensure the volume is set to low. Now switch on
the amplier.
5.
Amp not included
Tremolo
Arm Socket
Bridge
Saddle
Volume
Control
String Guide
Roller
Head Stock
Fig.1
Fig. 2
5-Way
Switch
Tone
Controls
E
DA
NOTE: Do not plug in an amplier until after
assembly.
NOTE: Always connect the cable to the guitar
before connecting to an amplier.
Pass the string through the back plate at the rear of
the guitar.
Pull the string through and pass over the bridge
saddle.
Connect the end of the string to the machine head
at the headstock and wind anti-clockwise to adjust
tension.
Ensure the string passes under the string guide
and around the roller at least 2-3 times when
taking up the slack.
3
Fig. 3
Fig. 4
Head Stock
Middle “C”
Assembly Instructions
Stage 2- Tuning The Guitar
A variety of dierent tuning methods are available.
You can easily tune each string to each note by
turning the tuning pegs, using an electronic tuner,
pitch pipes or a piano etc.
The most common method, known as“standard
tuning”is as follows:
Sixth(lowest)string: E (a minor thirteenth below
middle C-82.4HZ)
Fifth string : A (a minor tenth below middle
C-110HZ)
Fourth string: D (a minor seventh below middle
C-146.8Hz)
Third string: G (a perfect fourth below middle
C-196.0Hz)
Second string: B (a minor second below middle
C-246.92Hz)
First (highest) string: E (a major third above middle
C-329.6Hz)
Sometimes you need to do a quick check and may
not have time to use reference note from a tuner or
pitch pipe. It’s usually quite easy to tell if your rst
or “high E” string is in tune by listening to other
instruments such as piano.
See g.3
See g.4
6th string- E
5th string- A
4th string- D
3rd string- G
2nd string- B
1st string- E
6
E
5
A
4
D
2
B
1
E
3
G
4
To avoid risk of electrical shock, do not splash or use near water.1.
Always connect the cable to the guitar before connecting to the amplier. Connecting to the
amplier rst may cause damage to speaker.
2.
Do not leave your guitar unattended with the volume turned up.3.
Stage 2- Tuning The Guitar
Caution
Stage 3- Care of the Guitar
In order to keep the quality of your valuable instrument, please take care of it during storage or
when in use.
Hold the guitar at the neck when picking it up, and when playing allow yourself plenty of room.
After you nish playing, please put it down safely to avoid any damage to it.
After playing, the guitar should be cleaned carefully using a soft cloth. Clean the strings with a
cloth (top and underneath). This will maintain the quality of the strings and increase their life of
use.
During storage, the guitar should be kept in a safe and dry place.
Avoid direct sunlight, overheating or high humidity environments.
Don’t apply unnecessary force, for example, leaning against a wall.
IMPORTANT:
NEVER ADJUST THE GUITAR STRINGS WITH EXCESSIVE TENSION!
Physical injury can occur when a string is broken or the bridge is wrenched from the guitar. The
instrument will also be damaged.
Every time you play the instrument, please re-tune again, as the strings may stretch gradually
within a couple of days.
One set of spare strings is included in the pack to replace strings that may break during usage.
Individual replacement guitar strings can also be purchased from any musical instrument shop.
5
Product disposal instructions
FCC Class B Part 15
CAUTION:
This device complies with Part 15 of the Federal Communications Commission (FCC)
Rules. Operation is subject to the following two conditions:
The symbol shown here and on the product means that the product is classed as
Electrical or Electronic Equipment and should not be disposed with other household or
commercial waste at the end of its working life.
The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EC) has been put in
place to encourage the recycling of products using best available recovery and recycling
techniques to minimise the impact on the environment, treat any hazardous substances and
avoid the increase of landll.
When you have no further use for this product, please dispose of it using your local authority’s
recycling processes. For more information please contact your local authority or the retailer
where the product was purchased.
Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
manufacturer’s instructions, may cause interference harmful to radio communications.
There is no guarantee, however, that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
RockJam is a registered trademark of:
PDT Ltd.
Unit 4B, Greengate Industrial Estate, White Moss View, Middleton, Manchester, M24 1UN, UK
This device may not cause harmful interference.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio or TV technician for help.
This device must accept any interference received, including interference that may cause
undesired operation.
FCC Compliance Statement
6
