Rocktron EN55013 User manual
Reaction Chromatic Tuner
Instruction Manual
Your Reaction Chromatic Tuner™pedal has been tested and complies with the following
Standards and Directives as set forth by the European Union:
Council Directive(s): 89/336/EEC Electromagnetic
Compatibility
Standard(s): EN55013, EN50082-1
This means that this product has been designed to meet stringent guidelines on how much
RF energy it can emit, and that it should be immune from other sources of interference when
properly used. Improper use of this equipment could result in increased RF emissions, which
may or may not interfere with other electronic products.
To insure against this possibility, always use good shielded cables for all audio input and
output connections. This will help insure compliance with the Directive(s).
For more information about other Rocktron products, please see your local dealer or one of
our importers closest to you (listed on the Rocktron website
(www.rocktron.com).
Read all instructions contained in this manual.
Keep these instructions
Heed all warnings
Follow all instructions.
Do not use this apparatus near water.
Clean with dry cloth
Copyright © 2011 GHS Corporation
All Rights Reserved.
Compliance
Do not block any ventilation openings (if applicable). Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves or other ap-
paratus (including ampliers) that produce heat.
This product is not equipped with a plug or cable. This pedal runs on a 9 Volt Battery, if a
9Volt DC adapter is the used please follow adapter manufacturer’s operation instructions.
Only used attachments/accessories specied by the manufacturer.
Do not use this product with any case, stand tripod, bracket or table that is not specied by
the manufacturer. Insure that the case, stand, tripod, bracket etc. is properly adjusted and
setup (follow all instructions). Extra care and caution should be taken to avoid tip over
and injury.
Unplug this apparatus during lightening storms or when unused during long periods of time.
Refer all service to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain
or moisture, does not operate normally or has been dropped.
DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. QUALIFIED PERSONNEL
SHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKE ANY INTERNAL
ADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENT AT ANY TIME OR TAMPER
WITH INTERNAL ELECTRONIC COMPONENTS AT ANY TIME. FAILURE TO FOL-
LOW THESE INSTRUCTIONS MAY VOID THE WARRANTY OF THIS EQUIPMENT
AS WELL AS CAUSING A SHOCK HAZARD.
OPERATING TEMPERATURE
Do not expose this unit to excessive heat. This unit is designed to operate between 32 F and
104 F (0 C and 40 C). This unit may not function properly under extreme temperatures.
Precautions
Introduction
Thank you for purchasing the Rocktron Reaction
Chromatic Tuner. Simple to use, the Reaction Tuner
makes things easy with a large segment note display
that offers easy viewing. Flashing FLAT and SHARP
LEDs also make it easy to see just where your tuning
is and how close you are to getting into tune. A bright
blue LED shows you precisely when you, in fact, are
in tune.
When turned on, the Reaction Tuner output is muted,
thus allowing for silent tuning. The Reaction Tuner
offers a calibration button that allows you to adjust the
tuner in order to tune to instruments that are “out of
tune”, such as an old piano.
Rocktron’s Reaction Series pedals are built into a rug-
ged metal slim form factor chassis, taking up as little
space as possible on your pedalboard. The Reaction
Tuner is a TRUE BYPASS pedal: when you turn it
off…it is out of your signal path!
The footswitch on the Reaction Tuner controls On/
Off status as shown by the LED indicator. Reaction
stomp boxes run on a 9V Alkaline battery, or may
also be powered by Rocktron’s DC OnTap Universal
Power Supply adaptor.
Descriptions
Descriptions continued.........
NOTE Display - The note being played will show
on this display. If the note is “sharp” the “sharp”
(#) symbol will “light.”
FLAT Indicator LED - this ashing LED will
light if the note being played is at. The more
“at” the note is, the faster the LED will ash.
IN TUNE LED - when the note being played is
“in tune” this LED will light.
9VDC Input - This input jack (negative tip)
provides 9VDC power to the pedal from the
Rocktron DC OnTap 9V power supply (sold
separately).
SHARP Indicator LED - this ashing LED will
light if the note being played is sharp. The more
“sharp” the note is, the faster the LED will ash.
CALIBRATE Button - this button is used to
calibrate the tuner to match the pitch of any
instrument or audio source (like an old piano or
tape player). For details on this function - see
section titled “Calibration.”
1
2
3
4
5
6
Descriptions continued.........
ON/OFF LEDs - These LEDs shows if the pedal
is on or off. When the LEDs are lit the pedal is
on. When the LEDs are not lit the pedal is off.
BATTERY COMPARTMENT and COVER - The
9V battery can be found in this compartment.
INPUT Jack - Using a standard 1/4” guitar cable,
plug your guitar into this jack.
THUMB SCREWS for Battery Compartment.
Unscrew these thumb screws to access the battery
compartment.
FOOTSWITCH - Use this switch to turn on or
off the pedal. The On/Off LEDs will show you
if the pedal is on or off. When the pedal is “ON”
the output to the other pedals or amplier is
“MUTED”.
OUTPUT Jack - Using a standard 1/4” guitar
cable you can plug in another pedal from this jack
or plug directly into your amplier.
7
8
9
10
11
12

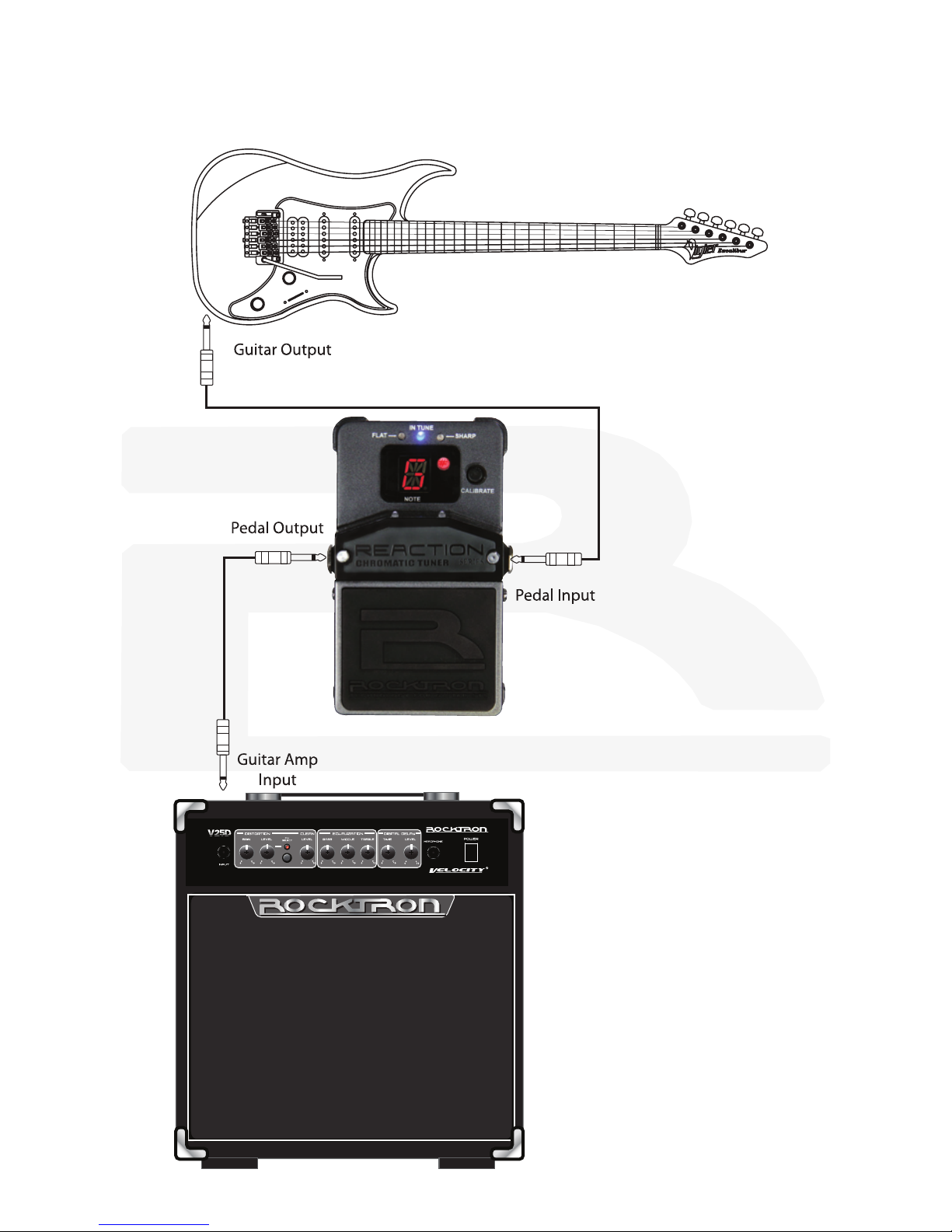

Typical Connection
Tuning Instructions:
Step 1 - plug the guitar/bass into the tuner - see “connec-
tions” section.
Step 2 - play a note on your guitar. Pluck your E string,
if needed, adjust your tuning machine on your instrument
until the letter “E” appears in the NOTE Display window.
Step 3 - if your note is at - the “FLAT” LED will light
and ash. The speed of the ash will show you by how
much your string is at. If the Flat LED is ashing
rapidly, tune your string up. During this process the LED
will begin ashing slower.
Step 4 - if your note is sharp - the “SHARP” LED will
light and ash. The speed of the ash will show you by
how much your string is sharp. If the Sharp LED is
ashing rapidly, tune your string down. During this
process the LED will begin ashing slower.
Step 5 - Continue with step 3 or step 4 until the at or
sharp LED stops ashing and the blue “IN TUNE” LED
lights. At this point the string is in tune.
Step 6 - Continue steps 2-5 but using your other strings
on your guitar or bass.
Calibration:
To match the pitch of any instrument or audio source
(like an old piano or tape player) press the “Calibrate”
button while simultaneously playing the note on the
instrument. (Note: you might have to rst tune one
string on the guitar or bass by ear to match the actual
note if the piano is out of standard tuning or if the
tape player you are playing along with runs slower
or faster than normal). Once you have one note on
the guitar tuned to the source - simply play that note
on the guitar - while the note is “ringing” press the
Calibrate button. The tuning pitch of the tuner will
automatically be shifted to match the pitch of the au-
dio source. Release the button and tune the remaining
strings as normal with the tuner The tuner at this
point has automatically adjusted the tuning range to
match that pitch. To reset the tuner to standard 440Hz
pitch turn off the tuner and then back on again with
the footswitch (see controls - point 6).
Hints and Tips:
The Reaction Tuner is sensitive, so it is not necessary
to strike your string very hard, standard string attack
will work. Additionally, if you are in a loud environ-
ment try using harmonics to tune your instrument.
Lightly touch the string over the 12th fret
of your instrument and pick the string with normal
pick attack. This will create a harmonic. It will work
on all strings. The MUTED Output is ideal for tuning
in live situations. This allows you to tune without
everyone in the audience hearing you tune. Addition-
ally, this will mute the signal going to your amplier
which will help you keep down noise generated if you
are using a high gain amplier.
As with all stomp boxes, when you are not using it,
unplug all cables to prolong battery life.
Specications
Maximum Input
Maximum Output
Input Impedance
Output Impedance
Current Consumption
Power Requirements
Dimensions
Weight
+8dBu
+6Bu
1MΩ
1kΩ
20mA
9V Alkaline Battery or
Rocktron DC OnTap
Universal Power Supply
(sold separately). Nega-
tive Tip.
125mm x 78mm 61mm
5” x 3.25” x 2.5”
0.7kg
1.5lbs
How to change the battery:
To change the battery, remove the thumb screws on
the top of the pedal and remove the battery compart-
ment cover. Remove the old battery and replace it
with a new 9V Alkaline battery. Replace battery in
the same area as the old battery was located. Place the
battery compartment cover on the pedal and re-insert
the thumb screws.
Save yourself tons of money in batteries by using
the Rocktron DC OnTap Universal Power Supply
to power this pedal (sold separately). The Rocktron
DC OnTap provides a constant ow of power to the
pedal, unlike a battery that will degrade over time.
The Rocktron DC OnTap Universal Power Supply can
also power up to 20 pedals and can be used with both
110V and 220V power sources.
Check, www.rocktron.com for more information on
the DC OnTap and where to purchase.
Rocktron - A Division of GHS Corporation
2813 Wilber Ave
Battle Creek MI 49037
USA
www.rocktron.com
tel: 1-269-968-3351
rev. 5-19-11
2011.1
