Rockville RCS80-1 User manual

OWNER’S MANUAL
19˝ RACK MOUNTABLE 60-WATT COMMERCIAL
70-VOLT AMPLIFIER/RECEIVER
RCS80-1

RCS80-1
Thank you for purchasing this Rockville product. Please read this installation guide
carefully for proper use of your Rockville RCS80-1 Rack Mountable Commercial Ampli-
er/Receiver. Should you need technical assistance please call our technical help line at
1-646-758-0144, Monday through Friday, 9am to 5pm EST.
IMPORTANT SAFETY INSTRUCTIONS
TO REDUCE THE RISK OF ELECTRICAL SHOCK, NEVER OPEN THE UNIT. NO
USER SERVICEABLE PARTS INSIDE. WE RECOMMEND TAKING THE UNIT TO A
QUALIFIED SERVICE TECHNICIAN FOR ANY REPAIRS.
• Amplier
• Remote control
• FM radio antenna
• Owner’s manual
• Warranty card
INCLUDES:
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to break o or remove the ground prong. This prong is used to reduce
the risk of electrical shock and re in case of an internal short.
• Do not operate this unit if it is damaged.
• This unit is intended for indoor use only.
• During long periods of non-use, disconnect the unit from power source.
• Always mount this unit in a safe and stable manner.
• Power supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to the point
of exit from the unit.
• To avoid unnecessary wear and to improve the unit’s lifespan, unplug the unit when not
in use for extended periods of time.

Introduction
Rockville is proud to introduce the rst commercial amplier in our new RCS series of
products. The RCS80-1 is a 60-watt, single zone, rack mountable digital hybrid amplier/
receiver. This amplier is capable of 70-volt, 100-volt, 16-ohm, 8-ohm, and 4-ohm appli-
cations. This makes it perfect for use in a restaurant/bar/café/lounge/school/conference
room or any other setting where multiple speakers are needed. With the dual mic inputs
you can use this amplier for announcements, speeches, or even for Karaoke night! The
RCS80-1 features Bluetooth audio streaming, so you can play your favorite music or
access a playlist right from your phone! This amp also features both USB and SD inputs,
allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line
inputs that allow you to plug in another audio device such as an MP3 player, CD player,
TV, etc. Individual volume knobs for two microphones, MP3, and line inputs allow for full
and autonomous control of this amplier. The built-in cooling system in this amplier will
keep the components cool, making the amplier durable and reliable.
Our goal with the RCS series was to make it possible for anyone to install 70-volt sys-
tems on their own without spending thousands of dollars on a contractor. This model
makes it a breeze to connect many speakers and multiple external sources. We inten-
tionally use common plugs like RCA and ¼˝ on our model to make this more universal
and user friendly. With our unique design you can feel condent in your DIY ability when
installing our commercial system!

RCS80-1
What is 70 Volt?
70-volt systems are the number one choice for any application where you want to install
multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One
of the main advantages is the simplicity of the wiring as well as how easy it is to match
up speakers with the amplier. For example, with this 60-watt /70-volt amplier, you can
install speakers that total close to 50 watts. It does not matter if it is 10 speakers that are
5 watts each or 20 speakers that are tapped at 2.5 watts each. You always want your 70-volt
amp to have at least 15 or 20% more power than the combined watts your speakers
are tapped at. When we say the word tap, what we are referring to are the selectors
that many speakers in 70 volt have on them. For example, some speakers might have
selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-
in transformer on the speaker will allow the speaker to get from the amplier. What this
allows for is full customization of your sound for your space. In a restaurant, for example,
you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10
watts, the ones in the hallway at 3 watts, and the speakers in the bathrooms at 1.5 watts.
Another great feature with 70 volt is you can mix and match any 70-volt speakers wheth-
er they are ceiling speakers, wall mounted speakers, subwoofers, etc.
70-volt systems allow you to run very long lines of speaker wire without signal loss. This
makes it ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers to the positive
70-volt terminals of the amplier. The negative terminals on the speaker simply get wired
to the negative terminals on the amp. You do not have to worry about impedance. The
power is constant.

Functions
1 3 5 9 11 13 14127 8
10642
1. Power switch
2. LCD display
3. SD card input slot (32GB max)
4. Mode button: Switch between SD, USB, Bluetooth, and FM radio
5. USB input port (32GB max)
6. Playback controls: Vol-/Previous - Long press to decrease volume. Short press
for previous track (USB/SD/BT mode) or previous
preset station (FM mode).
Play/Pause - Press once to play/pause music. In FM mode, short
press to innitiate auto scan. All available stations will
be stored to presets.
Vol+/Next - Long press to increase volume. Short press for next
track (USB/SD/BT mode) or next preset station (FM mode).
7. Repeat button: Press once to repeat a single track. Press twice to repeat all tracks.
Press three times to repeat all files within a folder (USB/SD only). Press four times to enter
random mode.
8. Equalizer with 5 presets
9. Mic 1 ¼˝ input
10. Output spectrum display
11. Mic 1/Mic 2 volume controls
12. MP3 module volume control (SD/USB/Bluetooth/FM Radio)
13. Line input volume controls
14. 2 Band EQ: Adjust the bass and treble levels of all output.

RCS80-1

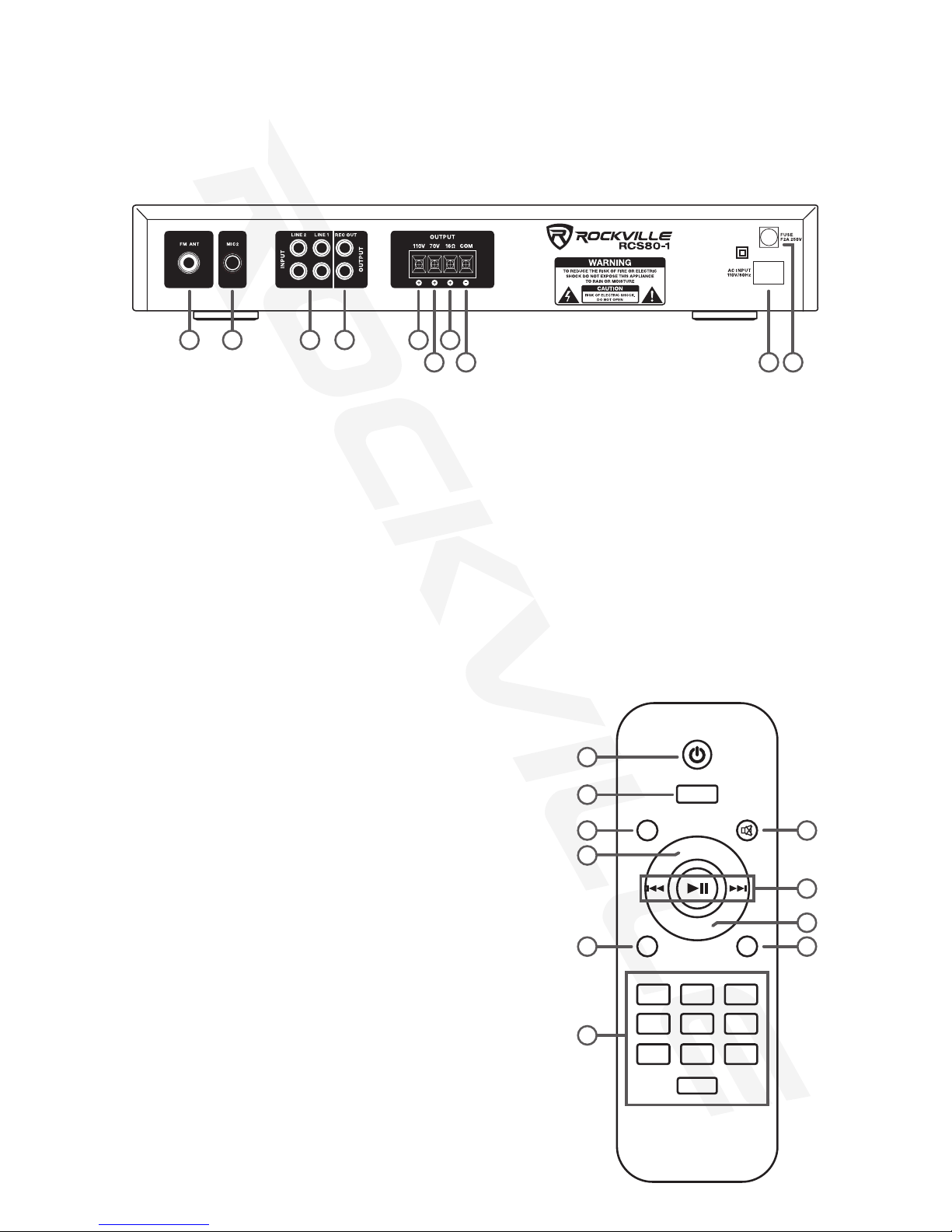

15. FM antenna port
16. ¼˝ Mic 2 input
17. RCA line inputs
18. RCA line output
19. 110V speaker output terminal
20. 70V speaker output terminal
21. 4 to 16-ohm speaker output terminal
22. COM terminal: Speaker common or negative connection
23. AC 110V/60Hz power input
24. User serviceable fuse compartment: 2A-250V
1. Power
2. Mode: USB/SD/BT/FM
3. Preset EQ
4. Mute
5. Volume +
6. Play/pause, Previous track, Next track
7. Volume -
8. Repeat
9. USB/SD scan
10. Numeric key pad
15 16 17 18 19 21
20 22 23 24
MODE
REP
U/SD
EQ
VOL +
VOL
-
1 2 3
4 5 6
7 8
0
9
1
2
3 4
6
7
9
5
8
10

Selecting Output Wire and Connectors
It is recommended you use high quality 16 AWG, 2 or 4 conductor, heavy gauge, CL2 or
CL3 rated, 100% Oxygen-Free Copper (OFC) speaker wire. CL2 and CL3 ratings refer to
the cable jacket’s re resistance and the voltage capacity of the wire. While both cables
have the same ame resistance capability, the CL2 cable can handle voltage spikes of up
to 150 volts while the CL3 can handle up to 300 volts. When using the 70V/100V speaker
zone output screw connectors, use terminal forks up to 10 AWG (recommended) or bare
wire. Below is a chart to help you select the appropriate size wire based on the amp to
speaker distance.
The RCS80-1 features one RCA line output. We recommend you use high quality RCA
cables such as the Rockville RNRTR10, RNRMR, or RCDR series.
Selecting Input cables
There are two ¼˝ balanced TRS mic inputs and two RCA inputs on the RCS80-1. We
recommend you use high quality ¼˝ TRS cables such as Rockville’s RCXMB, RCXFB, or
RCTR series. For recommended RCA cables see the Selecting Output Wire and Connec-
tors section above.
Rack Mounting
This unit should be on the bottom of the rack or above any equipment that does not
produce heat. Be sure to provide at least 1 RU (Rack Unit, 1.75˝) of space above and
below. Preferably, the side wall should be at least 2˝ from the sides of the amplifier and
the back of the rack should be open. This will ensure a source of cool air to all sides of
the amplier.
Setup

RCS80-1
Multi-Speaker 100V Connection
Multi-Speaker 70V Connection
Connections
The RCS80-1’s 70V and 100V connections can be set up in a variety of ways. Please note
that utilizing 70/100-volt connections and 4 to 16-ohm connections simultaneously is not
recommended and will cause damage to the amplier and the speakers.
70V/100V Speaker Output
You may connect any number of speakers to the 70 or 100-<!-- Generator: Adobe Illustra-
tor 23.0.1, SVG Export Plug-In -->
<svg version=”1.1” xmlns=”http://www.w3.org/2000/svg” xmlns:xlink=”http://www.
w3.org/1999/xlink” x=”0px” y=”0px”

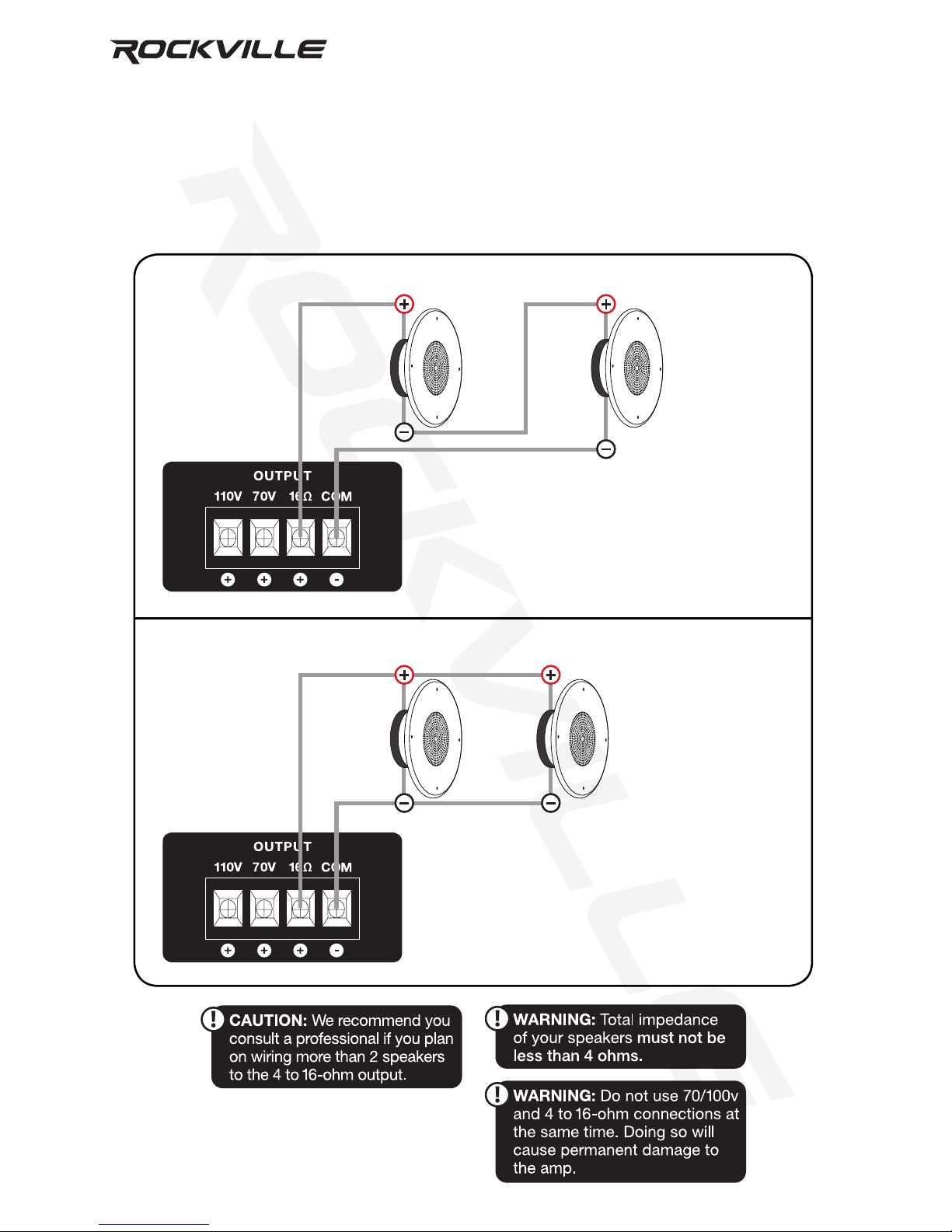

4 to 16-Ohm Speaker Output
You can connect two speakers to this terminal as long as the nal impedance does not
fall below 4 ohms. Although it is possible to connect more than two speakers to these
terminals, it is not recommended. Please consult a professional if you intend to do so as
incorrect installation could lead to irreparable damage to your amp and speakers.
4-Ohm Speaker Connection (wired in series)
8-Ohm Speaker Connection (wired in parallel)
4 ohm
8 ohm
8 ohms at terminal
4 ohms at terminal
4 ohm
8 ohm

RCS80-1

Operation
Bluetooth Pairing
To connect your iPod, iPhone, MP3 player, Android phone, or any other Bluetooth-capable
device, follow the steps listed below.
1. Make sure the RCS80-1 unit’s power switch is in the ON position.
2. Turn on the Bluetooth feature on your device and ensure that it is in “discoverable”
mode.
3. Push the Mode button on the unit until you are in Bluetooth mode (LCD screen will
display the word “bLUE”).
4. Once in Bluetooth mode, the unit should automatically pair with your device. If not,
look for “RCS80-1” on your device and select it.
5. If pairing is successful, you will hear a tone.
Please note, the unit will remember the last paired device.
Bluetooth Playback
You can control playback from your device or from the MP3 control panel on the RCS80-1:
1. Play/Pause: press once to play current track, press again to pause.
Vol-/Previous: Long press to decrease volume. Short press for previous track.
Vol+/Next: Long press to increase volume. Short press for next track.
MP3 Volume knob: controls Bluetooth input volume.
2. Playback may also be controlled from your Bluetooth device.
USB/SD
1. Inserting a USB ash drive or an SD card into the corresponding port/slot will set the
RCS80-1 to USB/SD mode and will automatically begin to play music.
2. Play/Pause: press once to play current track, press again to pause.
Vol-/Previous: Long press to decrease volume. Short press for previous track.
Vol+/Next: Long press to increase volume. Short press for next track.
MP3 Volume knob: controls USB/SD input volume.
Please note, inserting a USB drive or an SD card will override FM radio mode and
Bluetooth mode.
FM Radio
1. Press the Mode key until you enter FM radio mode.
2. Press the Play/Pause button on the unit to initiate auto scan. The unit will automati-
cally search and store stations.
3. Short press the Previous/Next buttons to navigate through preset stations.

RCS80-1
Features / Specifications
• Rockville RCS80-1 60-Watt 19˝ Rack Mountable Commercial Amplier/Receiver
(removable rack brackets)
• Capable of 70 volt, 100 volt, 16 ohm, 8 ohm, and 4 ohm
• 100-volt RMS Power: 75 Watts
• 70-volt RMS Power: 60 Watts
• 4-ohm RMS power: 80 Watts
• 8-ohm RMS power: 70 Watts
• 16-ohm RMS power: 11 Watts
• Built in Bluetooth audio streaming
• FM radio tuner
• USB input to play audio stored on a thumb drive (32GB max)
• SD card slot to play music stored on an SD Card (32GB max)
• Separate volume control for MIC 1, MIC 2, MP3, LINE 1, LINE 2 inputs
• Bass and Treble controller
• 5 segment signal level indicators
• 5 EQ presets: Rock, Popular, Classic, Jazz, Country
• Built-in cooling system keeps component cool at all times
• Distortion: <0.5% (1kHz)
• Signal to Noise Ratio: > 79dB
• Power Requirements: 120V / 50 – 60Hz
• A Weighted Signal to Noise (@ 1W) -79.0dBA
• A Weighted Signal to Noise (referenced to full 4-ohm power) -95.1dBA
• Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 8 Ohms <10Hz – 22.8kHz
• Frequency Response vs THD+N (worst case, across normal bandwidth 1W @ 8 ohms) 0.82%
• Weight: 10.03lbs
• Dimensions: 16.9˝x 9.45˝x 2.76˝inches

Troubleshooting
PROBLEM
No sound/low
sound/distorted
sound
No power
Mic feedback or
poor sound
Buzzing sound
1. Make sure the unit is plugged in and the power switch is in the
ON position.
2. Check that the power cable is properly plugged into the wall socket.
3. Check and replace the fuse if necessary.
4. If people or equipment tend to step on and roll over or stretch
your power cable it can get damaged. Check the power cable for
damage. If the cable is damaged, discontinue using the unit until
the cable can be repaired.
1. Point mics away from any nearby speakers.
2. Make sure the microphones are on and the volume controls are
properly set.
3. Make sure the microphone cables are properly connected and
that you are using good quality TRS mic-specic cables.
Make sure you are using the proper cable. Check the require-
ments of the connected gear and the inputs on the amplier and
make sure you are using the appropriate cable. This unit’s ¼˝ mic
outputs are TRS (balanced) so you will need a TRS mic cable. For
line inputs be sure to use high quality RCA cables.
1. Check that all appropriate cables and wires are plugged in correctly.
2. Check the Master Volume settings.
3. Check the Microphone, Line input, and MP3 volume settings.
4. Check the volume settings on your input devices.
5. If using wall volume controls, be sure the volume is set properly.
6. Make sure the proper input source is selected.
7. Make sure you are using the proper type of speakers.
9. Make sure speakers are wired correctly (plus to plus, minus to
minus; not plus to minus or vice versa).
10. Make sure the speakers are wired to the correct outputs (no
4 to16-ohm speakers should be wired to the 70/100-volt direct
outputs).
11. Make sure speaker transformer taps are set properly.
12. Make sure speakers’ power ratings match the amplier’s.
SOLUTION
Bluetooth pairing
fails
1. Check to see that both devices are turned on and that your
Bluetooth device is discoverable.
2. Turn both devices off and then on again.
3. Make sure you've selected the proper source.
4. Make sure that the Bluetooth device is within 5 feet of the unit.
5. Move both devices away from other Bluetooth devices.
6. Make sure that the unit is not paired to a previously paired device.
No SD or USB
playback
1. Make sure you've selected the proper source.
2. Make sure that the audio les are in the specied format:
MP3, WAV.
3. Make sure the USB drive’s/SD card’s capacity is not more than 32GB.

RCS80-1
Responsible party name: Rockville
Address: 600 Bayview Ave.
Entrance A
Inwood, NY 11096
Hereby declares that the product(s) RCS80-1 complies with FCC rules as mentioned in
the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

© 2018 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
RockvilleAudio.com
