Rockville RTB-A Series User manual

WIRING GUIDE
RTB-A Series
HIGH POWER VENTED TUBULAR ENCLOSURE

High Level inputs, also
referred to as speaker level
inputs, allow you to connect
your system when you do not
have an available RCA output
on your receiver such as with
most stock head units.
LPFCONTROL
40HZFULL
POWER
BASS 250HZ
GND REM+12V
HIGH LEVEL
RCA INPUT
MP3
INPU OLUME
-+
INPUTOUTPUT
HIGH POWER VENTED ENCLOSURE
RTB65A 300WATTS
L
T V
R
LPFCONTROL
40HZFULL
POWER
BASS 250HZ
GND REM+12V
HIGH LEVEL
RCA INPUT
MP3
INPU OLUME
-+
INPUTOUTPUT
HIGH POWER VENTED ENCLOSURE
RTB65A 300WATTS
L
T V
R
LPFCONTROL
40HZFULL
POWER
BASS 250HZ
GND REM+12V
HIGH LEVEL
RCA INPUT
MP3
INPU OLUME
-+
INPUTOUTPUT
HIGH POWER VENTED ENCLOSURE
RTB65A 300WATTS
L
T V
R
LPFCONTROL
40HZFULL
POWER
BASS 250HZ
GND REM+12V
HIGH LEVEL
RCA INPUT
MP3
INPU OLUME
-+
INPUTOUTPUT
HIGH POWER VENTED ENCLOSURE
RTB65A 300WATTS
RCA /MP3 INPUT
WIRING
RTB65A
FEATURES
HIGH LEVEL INPUT
From head unit
RCA output
From any device with
a 3.5mm output
1. Power connections. See wiring diagram
for proper set up.
2. High Level input / output.*
3. RCA inputs. Connect directly to your
head unit’s RCA ouputs.
4. 3.5mm Jack for MP3 input.
5. MP3 Volume control knob.
6. Low Pass Crossover control.
7. Full Range / Bass selector switch.
8. Power/Protect LED indicators.
*See High Level Input instructions at the back of the manual.
To Positive (+)
of battery
Ground
Remote from head unit
+–
16
2 3 4 5
78
Use either High Level
inputs, RCA input, or
3.5mm input.
NEVER USE ALL THREE.
L
T V
R
Signal from rear
speakers

RTB Series
High Level inputs, also
referred to as speaker level
inputs, allow you to connect
your system when you do not
have an available RCA output
on your receiver such as with
most stock head units.
LPFCONTROL
40HZFULL
POWER
BASS 250HZ
GND REM+12V
HIGH LEVEL
RCA INPUT
MP3
INPU OLUME
-+
INPUTOUTPUT
HIGH POWER VENTED ENCLOSURE
L
T V
R
RTB80A 400WATTS
LPFCONTROL
40HZFULL
POWER
BASS 250HZ
GND REM+12V
HIGH LEVEL
RCA INPUT
MP3
INPU OLUME
-+
INPUTOUTPUT
HIGH POWER VENTED ENCLOSURE
L
T V
R
RTB80A 400WATTS
LPFCONTROL
40HZFULL
POWER
BASS 250HZ
GND REM+12V
HIGH LEVEL
RCA INPUT
MP3
INPU OLUME
-+
INPUTOUTPUT
HIGH POWER VENTED ENCLOSURE
L
T V
R
RTB80A 400WATTS
LPFCONTROL
40HZFULL
POWER
BASS 250HZ
GND REM+12V
HIGH LEVEL
RCA INPUT
MP3
INPU OLUME
-+
INPUTOUTPUT
HIGH POWER VENTED ENCLOSURE
L
T V
R
RTB80A 400WATTS
RCA /MP3 INPUT
WIRING
RTB80A
FEATURES
HIGH LEVEL INPUT
From head unit
RCA output
From any device with
a 3.5mm output
1. Power connections. See wiring diagram
for proper set up.
2. High Level input / output.*
3. RCA inputs. Connect directly to your
head unit’s RCA ouputs.
4. 3.5mm Jack for MP3 input.
5. MP3 Volume control knob.
6. Low Pass Crossover control.
7. Full Range / Bass selector switch.
8. Power/Protect LED indicators.
*See High Level Input instructions at the back of the manual.
To Positive (+)
terminal of battery
Ground
Remote from head unit
+–
16
2 3 4 5
78
Use either High Level
inputs, RCA input, or
3.5mm input.
NEVER USE ALL THREE.
Signal from rear
speakers

RCA INPUT
WIRING

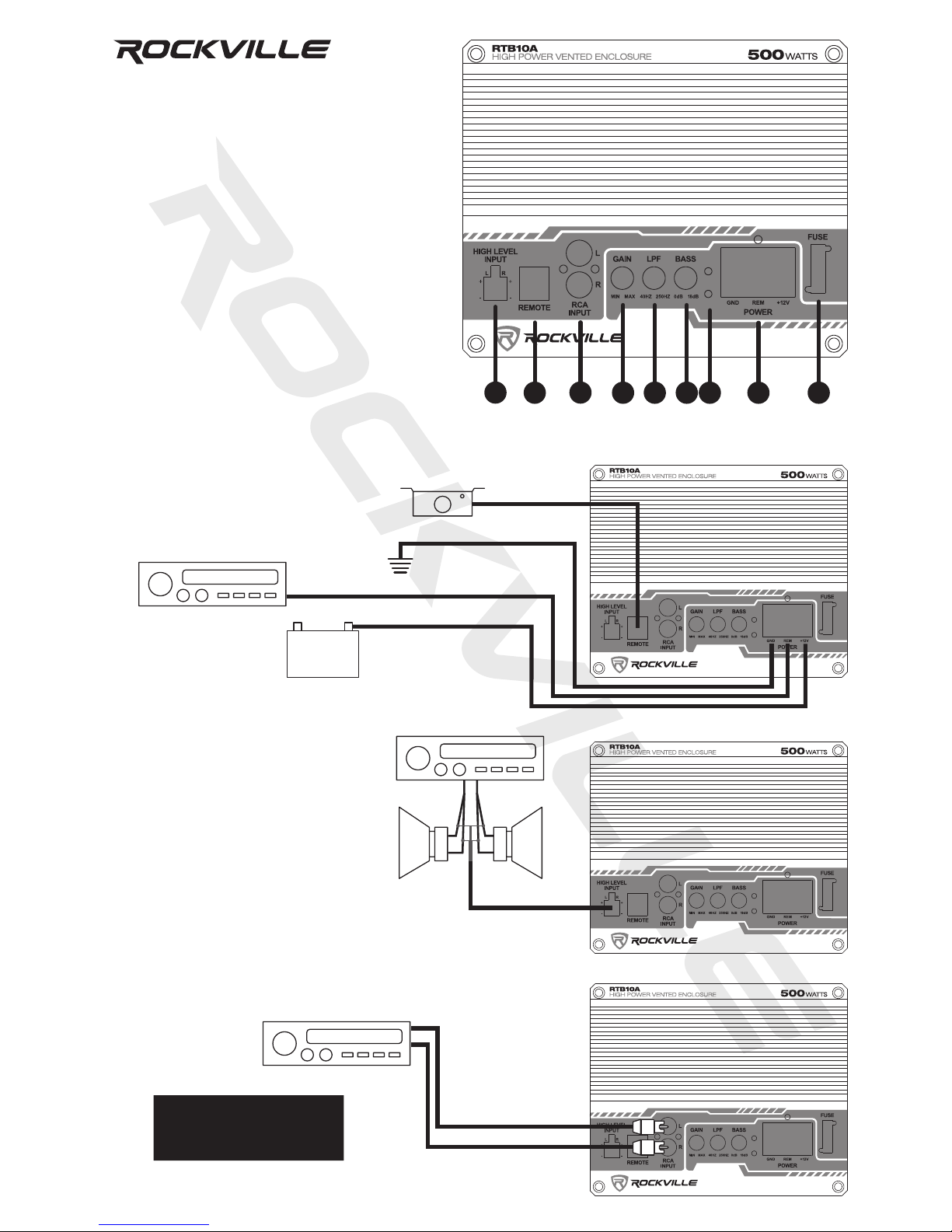

RTB10A
FEATURES
From head unit
RCA output
1. High Level input.*
2. Bass Remote. Connect dash mounted bass
remote (included) via RJ45 cable (included).
3. RCA inputs. Connect directly to your
head unit’s RCA ouputs.
4. Gain control. The gain control regulates the
volume input to the pre-amp stage.
5. Low Pass Crossover control.
6. Adjustable Bass control.
7. Power/Protect LED indicators.
8. Power connections. See wiring diagram
for proper set up.
9. Fuse.
*See High Level Input instructions at the back of the manual.
To Positive (+)
terminal of battery
Ground
Bass remote
+–
1234 5 6 7 8 9
Remote from head unit
Use either High Level
inputs or RCA input.
NEVER USE BOTH.
High Level inputs, also
referred to as speaker level
inputs, allow you to connect
your system when you do not
have an available RCA output
on your receiver such as with
most stock head units.
HIGH LEVEL INPUT
Signal from rear
speakers

RTB Series
RCA INPUT
WIRING
RTB12A
FEATURES
From head unit
RCA output
1. High Level input.*
2. Bass Remote. Connect dash mounted bass
remote (included) via RJ45 cable (included).
3. RCA inputs. Connect directly to your
head unit’s RCA ouputs.
4. Gain control. The gain control regulates the
volume input to the pre-amp stage.
5. Low Pass Crossover control.
6. Adjustable Bass control.
7. Power/Protect LED indicators.
8. Power connections. See wiring diagram
for proper set up.
9. Fuse.
*See High Level Input instructions at the back of the manual.
To Positive (+)
terminal of battery
Ground
Bass remote
+–
Remote from head unit
1 2 3 4 5 6 78 9
Use either High Level
inputs or RCA input.
NEVER USE BOTH.
High Level inputs, also
referred to as speaker level
inputs, allow you to connect
your system when you do not
have an available RCA output
on your receiver such as with
most stock head units.
HIGH LEVEL INPUT
Signal from rear
speakers

Features
RTB12A Specications
RTB10A Specications
RTB80A Specications
RTB65A Specications
• High Power Woofer in Vented Tubular Enclosure
• Rear Aero Vent Bass System
• Integrated, Built-in RMS CEA Rated Amplier
• Speaker Level and RCA Line-Level Input
• Adjustable Bass Crossover
• Adjustable Dashboard Bass Remote Control (RTB10A & RTB12A only)
• Molded Steel Woofer Grills
• Four Steel Mounting Brackets + Two Canvas Straps with Velcro Fasteners
• Durable Aviation Grade Tweed Carpet
• Custom Embroidery
• Power: 300 Watts RMS, 600 Watts Peak
• Frequency Response: 30Hz - 200Hz
• Sensitivity: 111dB
• Height: 12.75˝ (323.85mm), Length: 22.83˝ (529.84mm)
• Power: 250 Watts RMS, 500 Watts Peak
• Frequency Response: 30Hz - 200Hz
• Sensitivity: 108dB
• Height: 10.75˝ (273.5mm), Length: 20.86˝ (529.84mm)
• Power: 200 Watts RMS, 400 Watts Peak
• Frequency Response: 30Hz - 200Hz
• Sensitivity: 105dB
• Height: 8.75˝ (202.25mm), Length: 19˝ (482.6mm)
• Power: 150 Watts RMS, 300 Watts Peak
• Frequency Response: 30Hz - 200Hz
• Sensitivity: 102dB
• Diameter: 7.25˝ (184.15mm), Length: 15.75˝ (400.5mm)
A
m
p
l
i
f
i
e
r
P
o
w
e
r
S
t
a
n
d
a
r
d
C
E
A
-
2
0
0
6
C
o
m
p
l
i
a
n
t
TM
A
m
p
l
i
f
i
e
r
P
o
w
e
r
S
t
a
n
d
a
r
d
C
E
A
-
2
0
0
6
C
o
m
p
l
i
a
n
t
TM
A
m
p
l
i
f
i
e
r
P
o
w
e
r
S
t
a
n
d
a
r
d
C
E
A
-
2
0
0
6
C
o
m
p
l
i
a
n
t
TM
A
m
p
l
i
f
i
e
r
P
o
w
e
r
S
t
a
n
d
a
r
d
C
E
A
-
2
0
0
6
C
o
m
p
l
i
a
n
t
TM

RTB Series

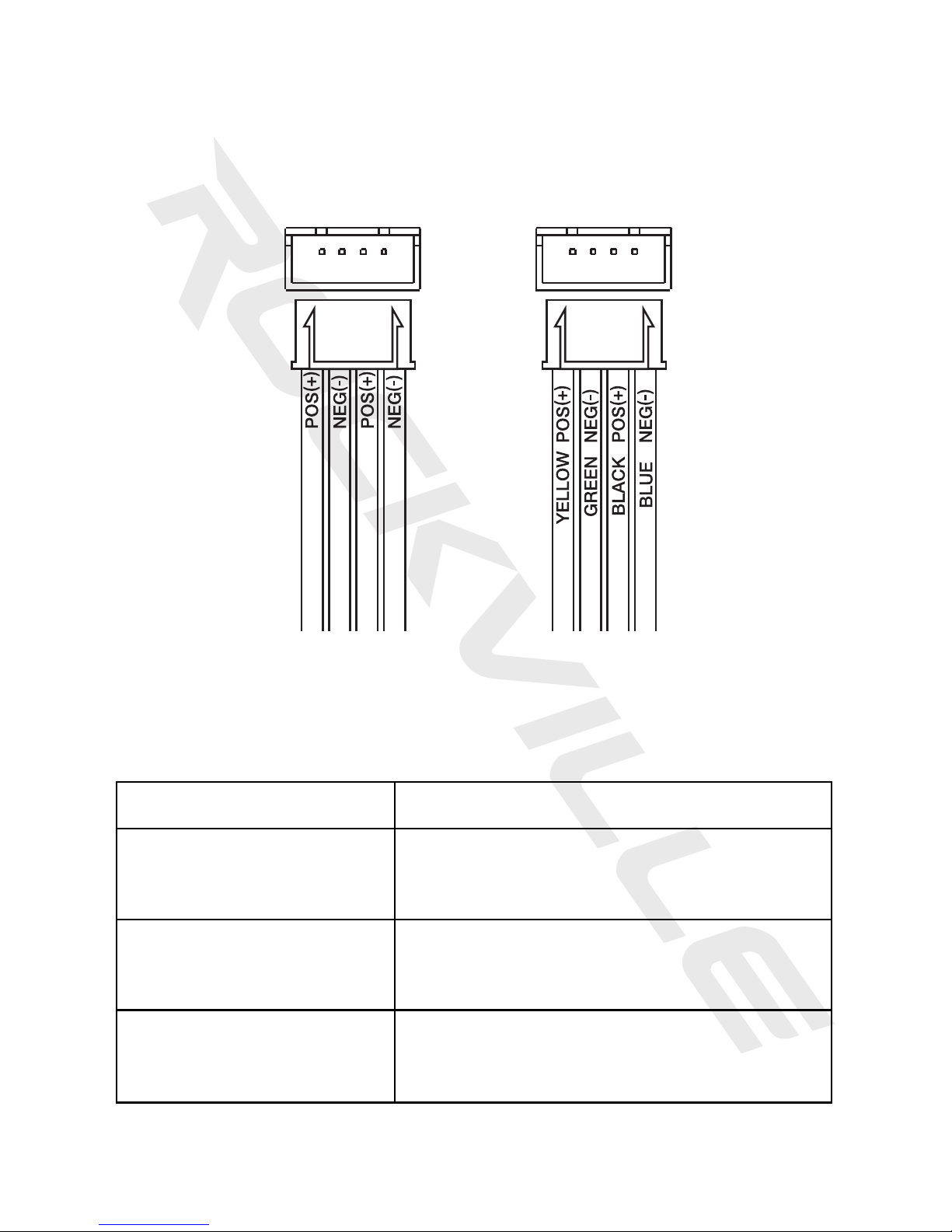

High Level Input / Output Connections RTB65A & RTB80A
