Rockville RPG12BT V2 User manual

OWNER’S MANUAL
RPG12BT V2/RPG15BT V2
Powered DJ/PA Speaker w/Wireless Stereo Linking

Thank you for purchasing this Rockville RPG BT V2 series Bluetooth®pro audio speaker.
Please read this installation guide carefully for proper use of your RPG BT V2 speaker.
Should you need technical assistance please call our technical help line at 1-646-758-
0144, Monday through Friday, 9am to 5pm EST.
Included
• (1) RPG BT V2 unit
• Wireless remote control
• Power cable
•Manual
• Warranty card
IMPORTANT SAFETY INSTRUCTIONS
•To reduce risk of electric shock, never open the unit. There are no user serviceable
parts. Refer service to an authorized Rockville service center.
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Make sure the unit is placed on a level and stable surface.

Your RPG BT V2 is set up to produce the full spectrum of sound from its woofer and
tweeter horn combination. The lower frequencies seek out the oor of the room they are
playing and travel along the oor and walls. The tweeter horn is more directional. Hence
when setting up your system its more important to make sure that the tweeter horns are
not blocked by any furniture and are located / aimed at ear level to the listening audience.
Woofer aiming is not as critical as explained previously due to the nature of the woofer
sounds able to travel through various paths even when blocked.
It is therefore recommended that when setting up your system you set up your speakers
on speaker stands, such as the Rockville model RVSS2 (not included) so that the tweeter
sounds will radiate above the listening crowd. This will guarantee optimum sound disper-
sion and achieve clear vocal sound reproduction.
The placement of your microphone is critical in avoiding feedback through your RPG BT
V2 speaker. Never set up your microphone in front of the speaker. Always set up your mi-
crophone behind the speaker. When approaching the speaker to make any adjustments,
we recommend approaching the speaker from the rear and not walking directly towards
the front of the speaker.
Your RPG BT V2 can be placed on the oor at an angle as a stage monitor. Unlike a PA
setup which face the crowd, stage monitors are set up to face the performer on stage and
to direct the sound towards them. This presents a particular problem as now feed back
may occur. To avoid stage monitor feedback the following precautions should be taken.
1. Choose a microphone with high directivity, i.e. cardioid or hyper-cardioid polar pattern.
2. Never point the microphone directly in front of the speaker. Holding the microphone in
a normal position will allow you to be closer to the stage monitor with out feedback.
Setting Up Your RPG BT V2 Professional Sound System
How To Avoid Irritating Feedback
Stage Monitor Setup

3. See illustration below as to position of microphones when mounted in stand.
Cardioid polar patter microphones should always be at a 90 degree angle to the axis of
the stage monitor. Hyper Cardioid polar pattern microphones should be positioned at
an acute angle to the sage monitor.
You may choose to add a feedback eliminating processor to your system for additional
exibility on stage.
There is really only one volume control on the RPG BT V2 unit, that is the knob marked MAS-
TER.
The Mic In level control is a matching device to match the preamp voltages of items such
as microphones and guitars or other musical instruments with your RPG BT V2 unit. Never
turn it up to maximum unless indicated by the instructions below. With a properly matched
signal your system will produce less distortion, be subject to less feedback, and will pro-
duce louder, cleaner and clearer sound. Use the Master control as your volume once all
inputs are matched properly. Your RPG BT V2 features a CLIP LED indicator to help you
set and match your components. Please be sure to read all set up instructions so your RPG
BT V2 sounds its best.
A Word About System Volume Controls and Gains.
Cardioid Polar Patter Hyper Cardioid Polar Patter

It is best practice to set your input level controls (gains) in this manner shown below.
1. Unplug all inputs except for the one you wish to set the
gain for. In this instance, the Line In ¼˝ input.
2. Set the volume of the external stereo
signal source (mixer, keyboard, electronic
drums, CD player, DVD music player, smart
phone, MP3 player, etc.) to 60%. If using a
device with RCA outputs, use an RCA to
¼˝ TRS cable.
3. Set the Master volume to 75%.
4. Slowly turn up the level on the selected
input (in this case, the Level controller). As
soon as the clip indicator LED goes on or
you hear any distortion – turn it down one or
two notches.
Please note: If you are using the RCA AUX
inputs, perform this step with the AUX/MP3
Volume controller.
Setting Level Controls
3
2
4
1
POWER
CLIP

Because mixers feature two volume controls (channel and master), when con-
necting one via the XLR line in port, the procedure is slightly different. The volume
should be set to 50% and the Line Volume control should be set to 50%. Set the
mixer master volume to 50% and make the adjustments in step 4 on the mixer
channel level control. If after making these adjustments the signal still isn’t strong
enough, you can additionally boost the signal by turning up the Line Volume con-
trol.
When adjusting the Mic Level control, you must speak into the microphone and
adjust the level control as needed. This is because adjustments to the mic input
are a matter of mic volume in relation to the music volume and not necessarily a
clipping issue.
After you set the levels on all input devices, you can readjust the RPG BT V2 levels as
necessary.
The RPG-BT series feature True Wireless Stereo (TWS) Bluetooth linking. This means you can
purchase 2 of these speakers and link them together to play in stereo wirelessly. Diagrams are
on the facing page. Speakers must be within 100 feet of each other for TWS connectivity.

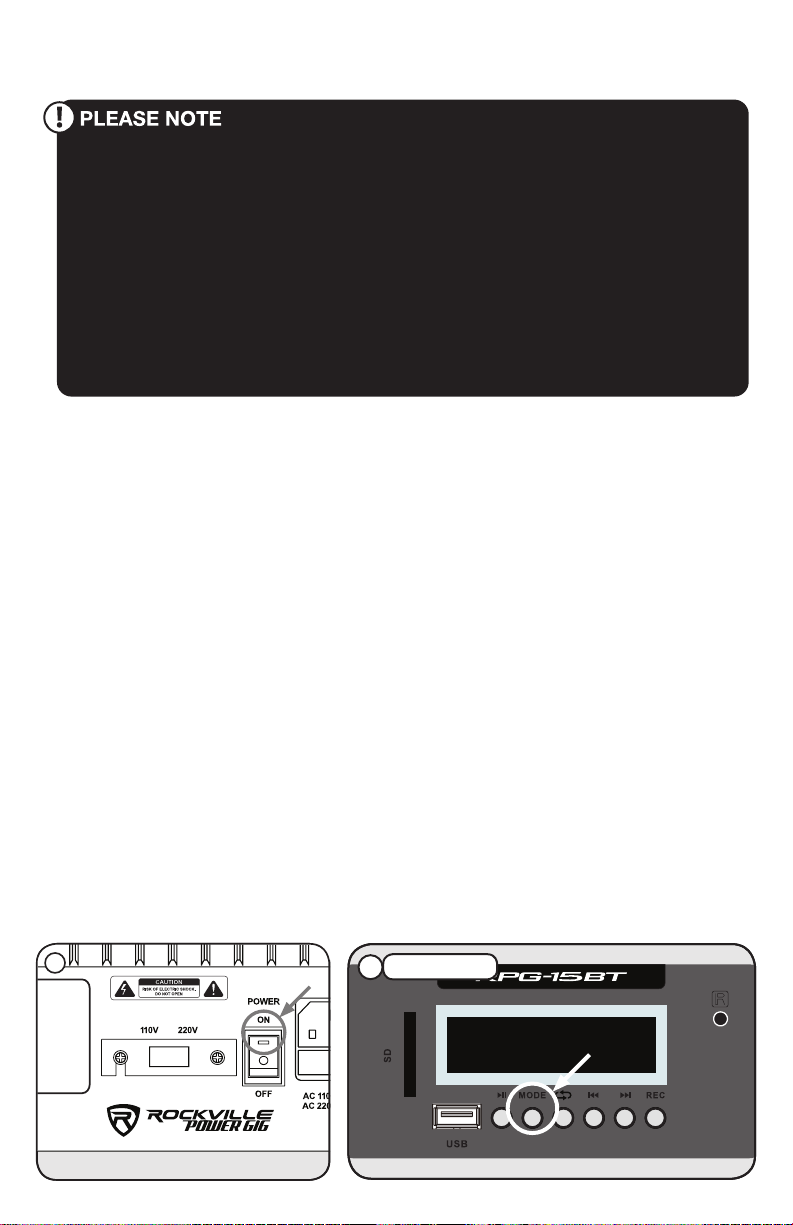

1. Make sure both RPG-BT unit’s power switches are in the ON position.
2. Press the Mode button on the rst (main) unit. The LCD screen should show that the
speaker is not connected to Bluetooth or another speaker.
3. Press the Mode button on the second unit. The LCD screen should show that the
speaker is not connected to Bluetooth or another speaker.
4. Press and hold the TWS button on the rst (main) unit for 3 seconds. The LCD screen
should show that the unit has been designated as the “Left” TWS speaker.
5. The LCD screen of the second unit should show that the unit has been designated as
the “Right” TWS speaker.
6. Turn-on your device’s Bluetooth mode and ensure that it is in “discoverable” mode.
Look for “ROCKVILLE” in the list of available devices and select it.
7. If connection is successful, the LCD on the master unit will indicate that there is a
Bluetooth connection established. You are now ready to enjoy true wireless stereo sound!
Wireless Speaker Linking
FOL TWS FOL- FOL+
BT :DisConnected
TWS:DisCOnnected
1FIRST UNIT2

APPLICATION USES
Microphone Presentations

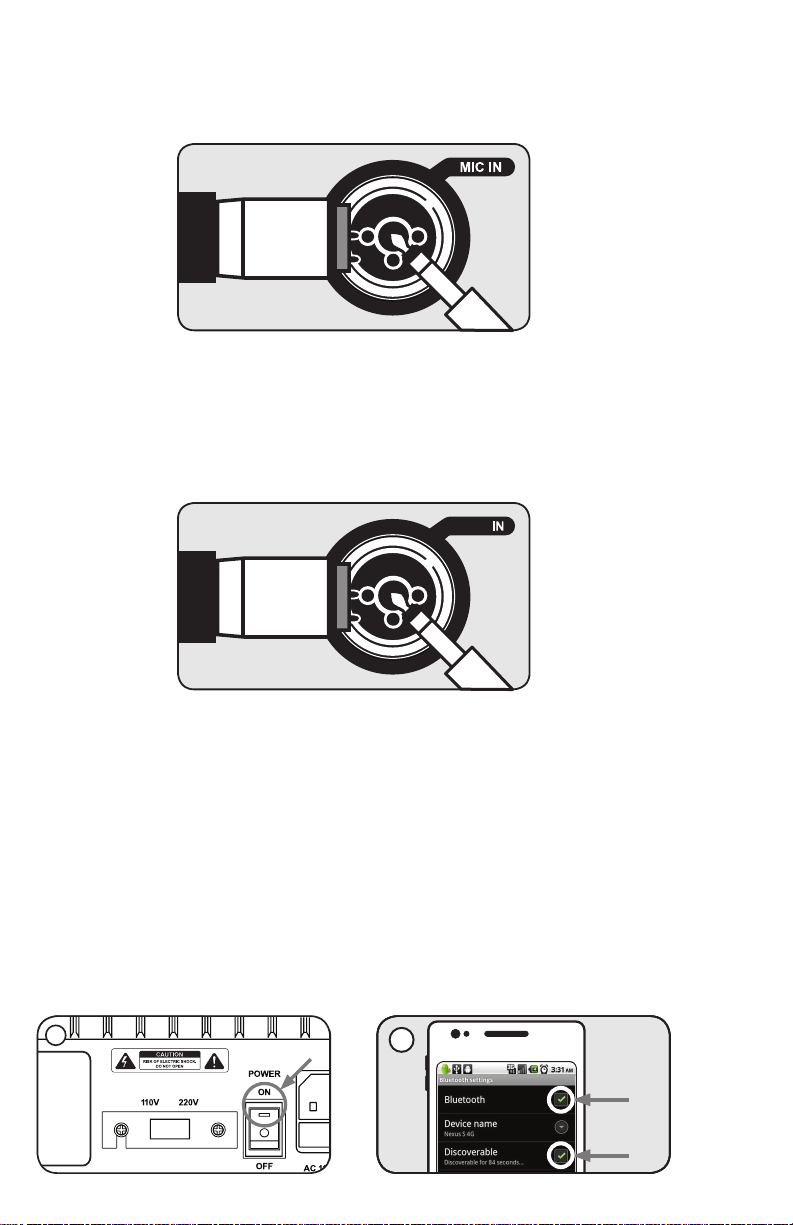

Your RPG BT V2 features an ultra-low noise mic input via a XLR / ¼˝ TRS combo jack.
1. Make sure the Power switch is in the OFF position.
2. Plug your microphone into either the XLR or ¼˝ jack input of the combo jack.
3. Switch on the RPG BT V2 unit.
4. Refer to the “Setting Level Controls” section of this manual for instructions on how to
properly adjust the input level controls (gains).
Always stand behind the speaker when making your microphone adjustments to avoid
feedback distortion.
FOL TWS FOL- FOL+
BT :DisConnected
TWS:Right
FOL TWS FOL- FOL+
BT :Connected
TWS:Left
FOL TWS FOL- FOL+
BT :DisConnected
TWS:DisCOnnected
FOL TWS FOL- FOL+
BT :DisConnected
TWS:Left
3 4
SECOND UNIT
SECOND UNIT
FIRST UNIT
5
7
6
FIRST UNIT
Wireless Speaker Linking (continued)

These models feature an ultra-low noise Line input via an XLR/¼˝ TRS combo jack.Use this in-
put when you wish to hook up an additional stereo signal source: mixers, keyboards, electronic
drums, CD players, DVD music players, MP3 players, etc.
1. Make sure the Power switch is in the OFF position.
2. Connect an external stereo signal source to the XLR input or the ¼˝ input. Never use
both at once.
3. Switch on the RPG BT V2 unit.
4. Refer to the “Setting Level Controls” section of this manual for instructions on how to
properly adjust the input level controls (gains).
Line Input
You can use the Aux input when you wish to hook up an additional stereo signal source
without the use of a mixer console. Smart phones, CD players, DVD music players, MP3
players etc. can be plugged directly in to the RCA jacks labeled AUX IN.
1. Make sure the RPG BT V2's power switch is in the OFF position.
2. Connect the music source unit to the RCA jacks marked AUX IN.
3. Use the push button (located next to RCA jacks) to select AUX input.
4. Switch ON your RPG BT V2.
5. Refer to the “Setting Level Controls” section of this manual for instructions on how to
properly adjust the input level controls (gains).
Aux Input

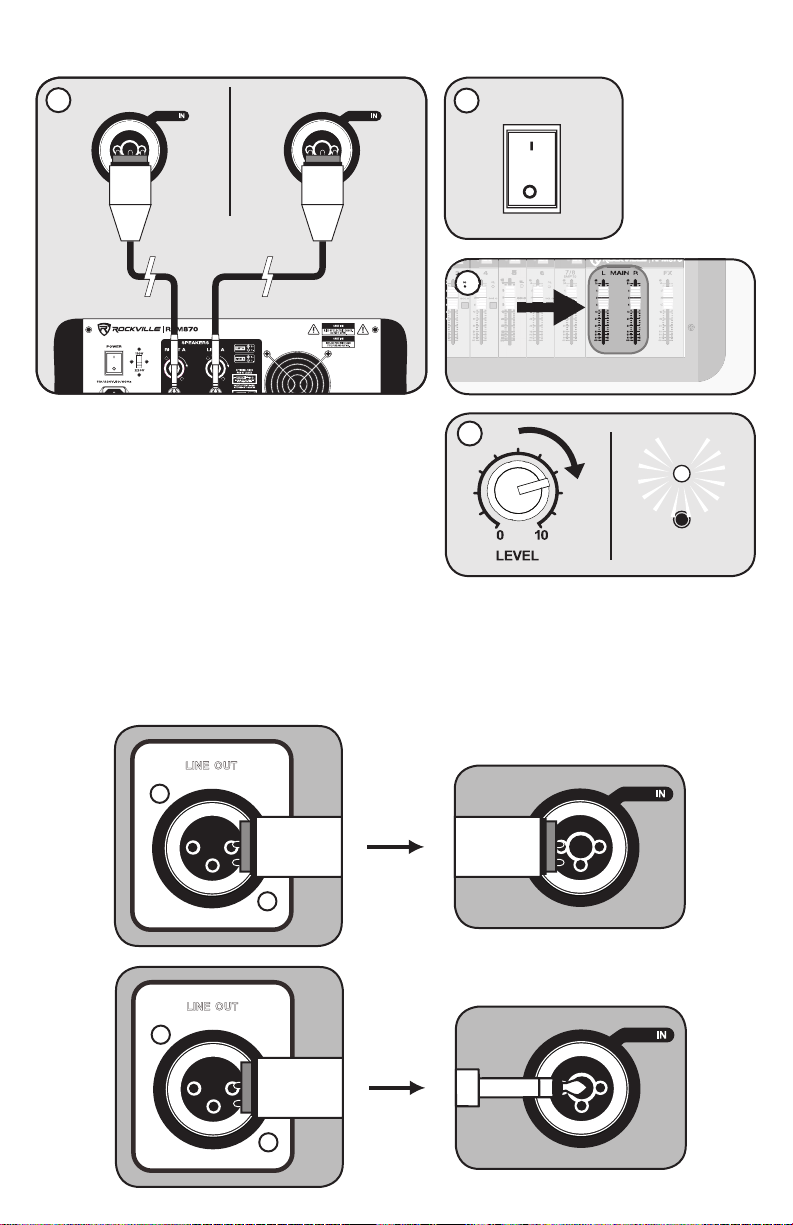

When setting up for larger venues, a mixing console becomes a critical piece of equipment
for appropriately mixing signals from multiple inputs such as singers, speakers, effects
devices, musicians and of course allows for multiple speaker utilization.
1. Make sure the RPG BT V2's power switch is in the OFF position.
2. Turn Master volume to 0 position.
3. Turn mic Level to 0 position.
4. Connect the LEFT SPEAKER OUTPUT of mixer to the Line In connection of your Left
RPG BT V2 unit Connect the RIGHT SPEAKER OUTPUT of mixer to the Line In
connection of your Right RPG BT V2 unit.
5. Switch ON your RPG BT V2 units.
6. Slowly raise the level of the mixer output to the 0dB level position.
7. Slowly turn the mic Level controls clock wise until the CLIP LED indicator begins
to blink, then turn it down slightly. This indicates the maximum input voltage gain is
matched and set properly.
8. Turn Master volume up to achieve proper volume.
Public Address/Concert Mixer
23
OFF
1POWER

Public Address/Concert Mixer (continued)
The output marked Line Out allows for daisy chaining of signals from one RPG BT V2 unit
to another. Simply attach an XLR to XLR (g. a) or XLR to ¼˝ TRS cable (g. b) between
the two units to share signals. The input into RPG BT V2 #2 should go to the Line In port.
Line Out Balanced Connection
LINE OUT
LINE
g. a
5
4LEFT UNIT RIGHT UNIT
ON
POWER
POWER
7
CLIP
6
LINE LINE
LINE OUT
LINE
g. b

The Mic In port is designed for balanced and unbalanced mic signals. When you use an
unbalanced ¼˝ TS plug, the line input automatically turns the ring into ground.
XLR/¼˝ Combo Mic In Jack
XLR
1/4˝
The Line In port accepts signals from a variety of sources such as keyboards, electronic
drums, mixers, etc. When you use an unbalanced ¼˝ TS plug, the line input automatically
turns the ring into ground. Please do not plug microphones into line input as it will have
poor sound quality. Use the Mic In port for microphones.
XLR/¼˝ Combo Line In Jack
XLR
1/4˝
LINE

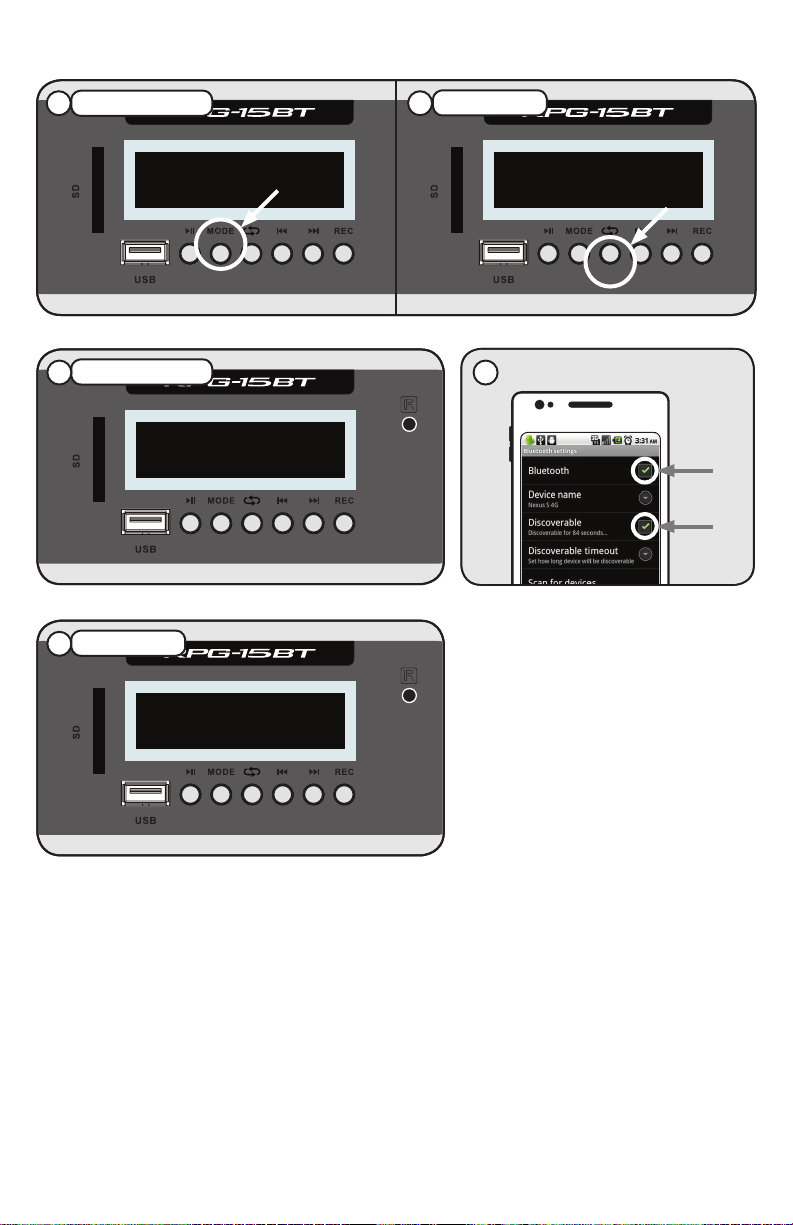

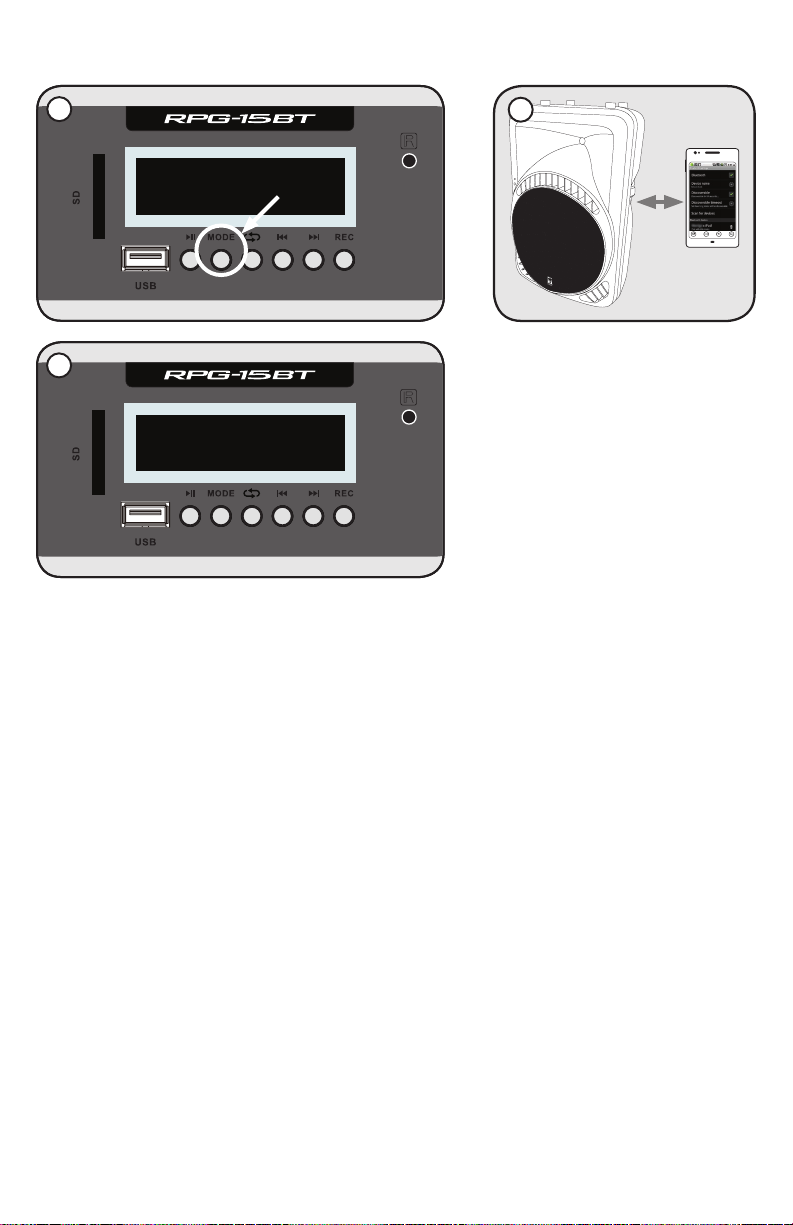

To connect your iPod, iPhone, MP3 player, Android phone or any other Bluetooth capable
device follow the steps listed below. Diagrams on the next page.
1. Make sure the RPG BT V2’s power switch is in the ON position.
2. Turn-on your device’s Bluetooth mode and ensure that it is in “discoverable” mode.
3. Push the Mode button on your RPG BT V2 until you are in Bluetooth mode.
4. Once in Bluetooth mode, look for "ROCKVILLE" on the list of available devices and
select it.
5. If pairing is successful, you will see the words BT: Connected on the display screen.
6. If you have problems pairing your device please check the troubleshooting guide.
Bluetooth Pairing
12

4
FOL TWS FOL- FOL+
BT :DisConnected
TWS:DisCOnnected
3
FOL TWS FOL- FOL+
BT :Connected
TWS:DisCOnnected
5
Bluetooth Pairing (continued)
These RPG-BT V2 speakers feature a record function which allows you to record the signal
from any of the inputs to a USB ash drive or a an SD card.
1. Make sure you have a USB ash drive or an SD card with sufcient space. Plug the
storage device to the corresponding port.
2. When you are ready to start, press the record button on the MP3 module or on the
remote control.
3. Press the record button again when you are ready to stop. If using the remote control,
you can also use the STOP button.
4. To listen to your recordings, use the playback controls on the MP3 module.
Record Function

EF F L EVEL
FOL TWS FOL- FOL+
8
10
12
11
15
16
18
7
9
2
1
4
5
13
14
6
19
17
3
RPG15BT V 2
RPG12BT V2/RPG15BT V2

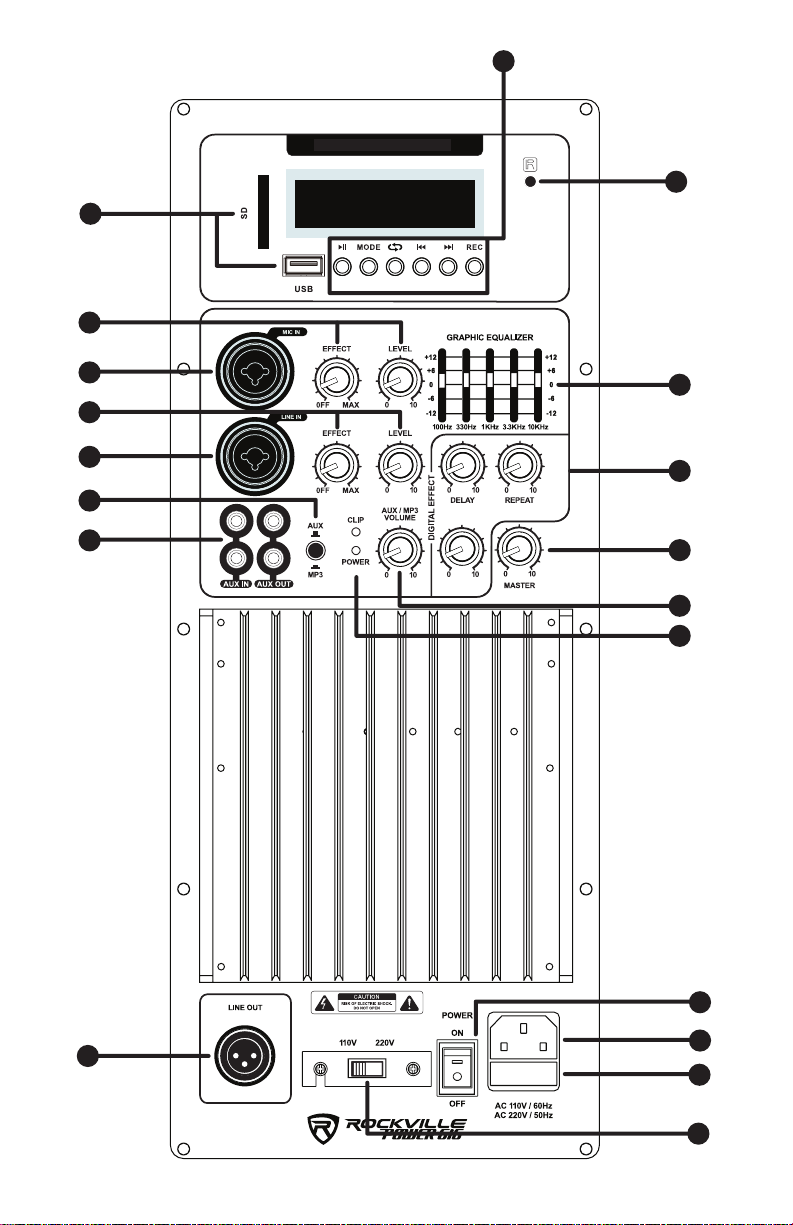

1. MP3 Player controls.
• Press Play button once to play track, press again to pause.
• Mode control switches between input modes: Bluetooth, USB, and SD/MMC
• Repeat button/TWS button: Press once to repeat single track, press again to repeat
all tracks, press once to turn off repeat mode. Press and hold for TWS mode.
• Previous/Next track buttons also serve to access folders on USB/SD input. For track
control quickly press buttons. For folder access press and hold buttons.
• Record button allows you to record input back to your USB drive or SD/MMC card.
2. IR remote sensor
3. USB and SD/MMC Card input
4. 5 band graphic equalizer. Adjust frequencies to +/-12dB
5. Digital delay effect (echo) control panel.
• The Repeat knob controls the rate of the delay.
• The Delay knob controls the time interval of the delay.
• The Level knob adjusts the mix level of the effect sound.
6. Master volume control knob.
7. Digital Effect and Level control knobs for Mic In port.
8. Combo XLR / ¼˝ Mic input port: The Mic In port is designed for balanced and unba-
lanced mic signals. When you use an unbalanced ¼˝ TS plug, the line input automati-
cally turns the ring into ground.
9. Digital Effect and Level control knobs for Line In port.
10. Combo XLR/ ¼˝ Line input port: The Line In port accepts signals from a variety of
sources such as keyboards, electronic drums, mixers, etc. When using an unbalanced
¼˝ TS plug, the line input automatically turns the ring into ground. Please do not plug
microphones into the line input as it will have poor sound quality. Use the Mic In port
for microphones. To use wireless mics connect them into the Line input of your mixer.
11. Auxiliary/MP3 input selector switch.
12. Pre-Amp RCA input/output jacks.
13. Auxiliary/MP3 input/output volume control.
14. Amplier Clip limit LED indicator and Power LED indicator.
15. Power switch
16. IEC AC power socket
17. XLR Line Out
18. Fuse compartment
19. Variable voltage selector switch (110v/220v)

Troubleshooting
PROBLEM
No sound/
distorted sound
No power
Poor Mic sound
Mic feedback
Buzzing sound
1. Make sure the unit is plugged in and the power switch is in the
ON position.
2. Check that the power cable is plugged in tightly to the unit.
3. Check and replace the fuse if necessary. See fuse replacement
diagram on the next page.
4. If people or equipment tend to step and roll over or stretch
your power cable it can get damaged. Always try a second cable
to test for shorts in original cable. Dispose of original damaged
power cables immediately.
1. Make sure you are using the Mic In ports.
2. If using wireless mics connect them into the Line input of your mixer.
Point the mics away from the speaker. Make sure the mics are in
back of the speaker, not in front of it.
Make sure you are using a proper cable. For ¼˝ cables, there are
3 types: instrument, TS (unbalanced), and TRS (balanced). The
RPG-BT V2 models accept both TS and TRS ¼˝ cables. Check
the requirements of the connected gear and make sure you are
using the appropriate cable.
1. Check that all appropriate cables are plugged in correctly.
2. Check the Volume/Levels settings. Refer to the "Setting Level
Controls" section of this manual for instructions on how to prop-
erly adjust the input level controls (gains).
3. Be sure your microphone is on and plugged into the correct input.
4. If using a mixing console make sure fader and balance are set
to center positions and levels are increased. Make sure the mixer
is plugged into the correct input.
6. If volume and Treble/Bass settings are maxed out, turn one of
them down as you may be over driving the unit.
7. Check volume and gain settings on all input sources.
SOLUTION
Bluetooth/TWS
pairing fails
1. Check to see that both devices are turned on and that your
Bluetooth device is discoverable.
2. Turn both devices off and then on again.
3. Make sure you've selected the proper source.
4. Make sure that the Bluetooth device is within 5 feet of the unit.
5. Move both devices away from other Bluetooth devices, micro-
waves, wireless routers, and other electronics.
6. Make sure that the unit is not paired to a previously paired
device or to another speaker.
No SD or USB
playback
1. Make sure you've selected the proper source.
2. Make sure that the SD card and USB drive do not exceed the
maximum capacity of 64GB.

Fuse Replacement
Use a screwdriver to release the fuse holder. Remove the fuse holder.
Replace the fuse. Re-insert the fuse holder.
Remove the fuse.
1
4 5
2 3

Features
RPG15BT V2/RPG12BT V2
• Power Ratings:
RPG15BT V2 - 1000 Watts Peak/500 Watts Program/250 Watts RMS
RPG12BT V2 - 800 Watts Peak/400 Watts Program/200 Watts RMS
• Frequency Response:
RPG15BT V2 - 35Hz – 20KHz
RPG12BT V2 - 40Hz – 20KHz
• Maximum SPL @1w/1m:
RPG15BT V2 - 128dB peak/125dB continuous
RPG12BT V2 - 125dB peak/122dB continuous
• Bluetooth (v5.0) signal input. Now you can input any audio signal from your Bluetooth
enabled music player or phone. No cables necessary!
• Built-in TWS wireless speaker to speaker linking (link two RPG units wirelessly for
stereo playback)
• USB/SD digital MP3 music player. Input audio signals, special effects, any
pre programmed audio le and amplify it through your system.
• Digital MP3 recorder. Now you can actually record back to your USB or SD memory
card all audio that passes through your RPG BT V2. Do a show and record it live!
• Wireless remote control. Enjoy the added convenience of being able to adjust any of
the MP3 player functions, including volume, from the included wireless remote.
• Digital signal processor for “Delay / Echo” effect. Now you can time align your digital
echo effect and control the echo delay, repeat interval and level. No external signal
processing unit necessary, the digital effect is built in with lots of control capabilities.
• LCD screen displays MP3 functions including BT connectivity.
• High-power 2-way pro sound reinforcement speaker system for live sound and
playback applications.
• Compact and light weight system delivers distortion free sound even at extreme SPL.
• Linear Class AB amplier technology: high power, transparent sonic performance.
• Internal switch-mode power supply for low distortion audio with superior transient
response.
• 5-Band Graphic Equalizer allows you to custom tailor your sound to your venue by
boosting and cutting specic frequencies to improve sound quality and clarity.
• State-of-the-art 1.75˝ Japanese made pure titanium-diaphragm compression driver
for crystal clear high-frequency reproduction.
• Ultra-wide dispersion, 40° large-format horizontal wave guide horn molded directly
into cabinet.
• Ultra-low noise separate Mic and Line inputs via combo XLR & ¼˝ ports with indepen-
dent level and effect controls.
• Both combo jacks accept balanced and unbalanced ¼˝ signals.
• XLR line out port.
• Line RCA input with separate Volume adjustment.
• Additional RCA line output for linking of additional components.
• Versatile trapezoidal enclosure design allows different positioning.
• Stand mounting with 35mm pole socket.

• Tilts on its side for use as a oor monitor.
• Ergonomically shaped side handle for easy carrying and setup.
• Built-in wheels and retractable top handle for increased portability and transport convenience.
• High-quality components and exceptionally rugged high impact ABS construction.
• Amplier clip limit LED indicator & power LED cabinet rear.
• Front display power meter Blue LED.
• 110/220 Volt switchable power supply with external user serviceable fusing.

Responsible party name: Rockville
Address: 600 Bayview Ave.
Entrance A
Inwood, NY 11096
Hereby declares that the product(s) RPG BT V2 Bluetooth pro audio speakers comply with
FCC rules as mentioned in the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

© 2019 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
RockvilleAudio.com
