OWNER’S MANUAL
RAM12.BT / RAM15.BT

Thank you for purchasing this Rockville RAM Bluetooth pro audio speaker.
We are very proud to bring you what we consider to be the absolute best value line pro
audio speakers. This project has been a culmination of years of development involving
a team of dreamers, engineers, designers and marketing gurus. Proudly conceived and
developed in the USA, Rockville pro audio speakers are designed and engineered by a
team of music enthusiasts, DJ’s and musicians.
We have spared no expense in manufacturing these speakers to meet the highest quality
standards. With proper care and installation this unit will provide you with the highest
levels of sound quality. We hope that this unit will bring you years of performance and
reliability.
Our goal to you and to your audience is to hear “live performance sound” the way it was
meant to be experienced.
Please read this installation guide carefully for proper use of your RAM Bluetooth pro au-
dio speaker. Should you need technical assistance during or after your installation please
call our technical help line at 1-646-758-0144, Monday through Friday, 9am to 5pm EST.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
•To reduce risk of electric shock, never open the unit. There are no user serviceable
parts, refer service to an authorized Rockville service center.
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Make sure the unit is placed on a level and stable surface.

Features
RAM12.BT / RAM15.BT
• Bluetooth signal input. Now you can input any audio signal from your Bluetooth
enabled music player or phone. No cables necessary!
• USB/SD digital MP3 / FM radio music player. Input audio signals, special eects, or any
pre programmed audio le and amplify it through your system.
• Wireless remote control. Enjoy the added convenience of being able to adjust any of
the MP3 player functions, including volume, from the included wireless remote.
• Wireless VHF Mic Capability (2 wireless mics included) with independent volume control.
• Digital signal processor for “Delay / Echo” eect. Now you can control the echo delay.
No external signal processing unit necessary, the digital eect is built in.
• LCD screen displays MP3 functions including BT connectivity.
• Unit features one XLR mic input and one TRS input for added input versatility.
• High-power 2-way pro sound reinforcement speaker system for live sound and
playback applications.
• Compact and light weight system delivers distortion free sound even at extreme SPL.
• Linear Class AB amplier technology: high power, transparent sonic performance.
• Internal switch-mode power supply for low distortion audio with superior transient
response.
• 5-Band Graphic Equalizer allows you to custom tailor your sound to your venue by
boosting and cutting specic frequencies to improve sound quality and clarity.
• State-of-the-art 1.75’’ Japanese made pure titanium-diaphragm compression driver
for crystal clear high-frequency reproduction.
• Ultra-wide dispersion, 40° large-format horizontal wave guide horn molded directly
into cabinet.
• Ultra-low noise Mic input via XLR & 1/4-inch TRS stereo jack with
volume control.
• Line RCA input with separate Volume adjustment.
• Additional balanced RCA line output for linking of additional speaker systems.
• Stand mounting with 35mm pole socket.
• Built-in wheels and retractable top handle for increased portability and transport convenience.
• High-quality components and exceptionally rugged high impact ABS construction.
• Amplier clip limit LED indicator & power LED cabinet rear.
• Built in 12V / 7A battery with optional external battery connection for extended battery
life. Internal battery will charge when unit is plugged in.

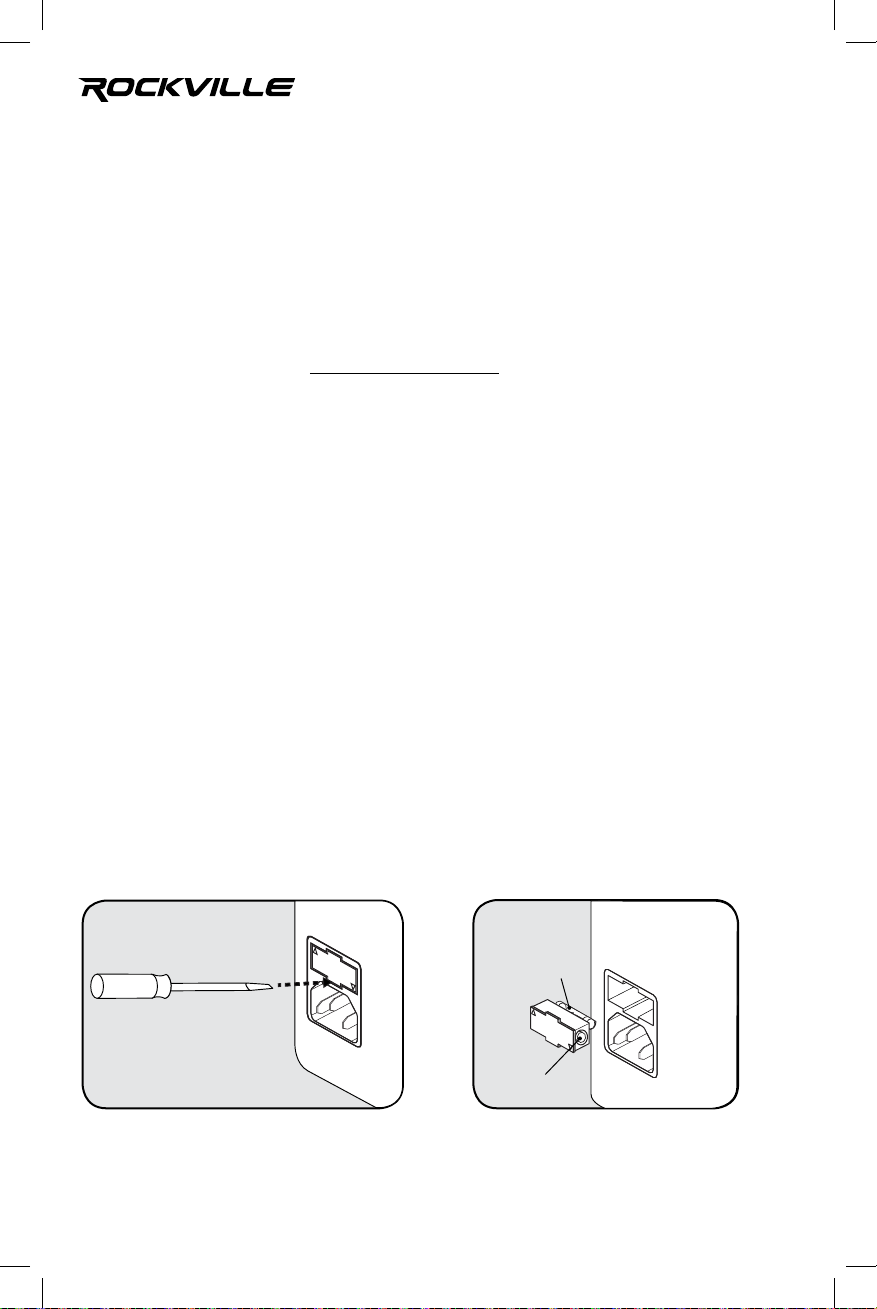

• External user serviceable fusing.

Your RAM BT unit is set up to produce the full spectrum of sound from its woofer and
tweeter horn combination. The lower frequencies seek out the oor of the room they are
playing and travel along the oor and walls. The tweeter horn is more directional. Hence
when setting up your system its more important to make sure that the tweeter horns are
not blocked by any furniture and are located / aimed at ear level to the listening audience.
Woofer aiming is not as critical as explained previously due to the nature of the woofer
sounds able to travel through various paths even when blocked.
It is therefore recommended that when setting up your system you set up your speak-
ers on speaker stands, such as the Rockville model RVSS-2 (not included) so that the
tweeter sounds will radiate above the listening crowd. This will guarantee optimum sound
dispersion and achieve clear vocal sound reproduction.
The placement of your microphone is critical in avoiding feedback through your RAM BT
unit. Never set up your microphone in front of the speaker. Always set up your micro-
phone behind the speaker. When approaching the speaker to make any adjustments, we
recommend approaching the speaker from the rear and not walking directly towards the
front of the speaker.
Unlike a PA setup which face the crowd, stage monitors are set up to face the performer
on stage and to direct the sound towards them. This presents a particular problem as
now feed back may occur. To avoid stage monitor feedback the following precautions
should be taken.
Setting Up Your RAM BT Professional Sound System
How To Avoid Irritating Feedback
Stage Monitor Setup

1. Choose a microphone with high directivity, i.e. cardioid or hyper-cardioid polar
pattern.
2. Never point the microphone directly down in front of the speaker. Holding the micro
phone in normal position will allow you to be closer to the stage monitor with out feed
back.

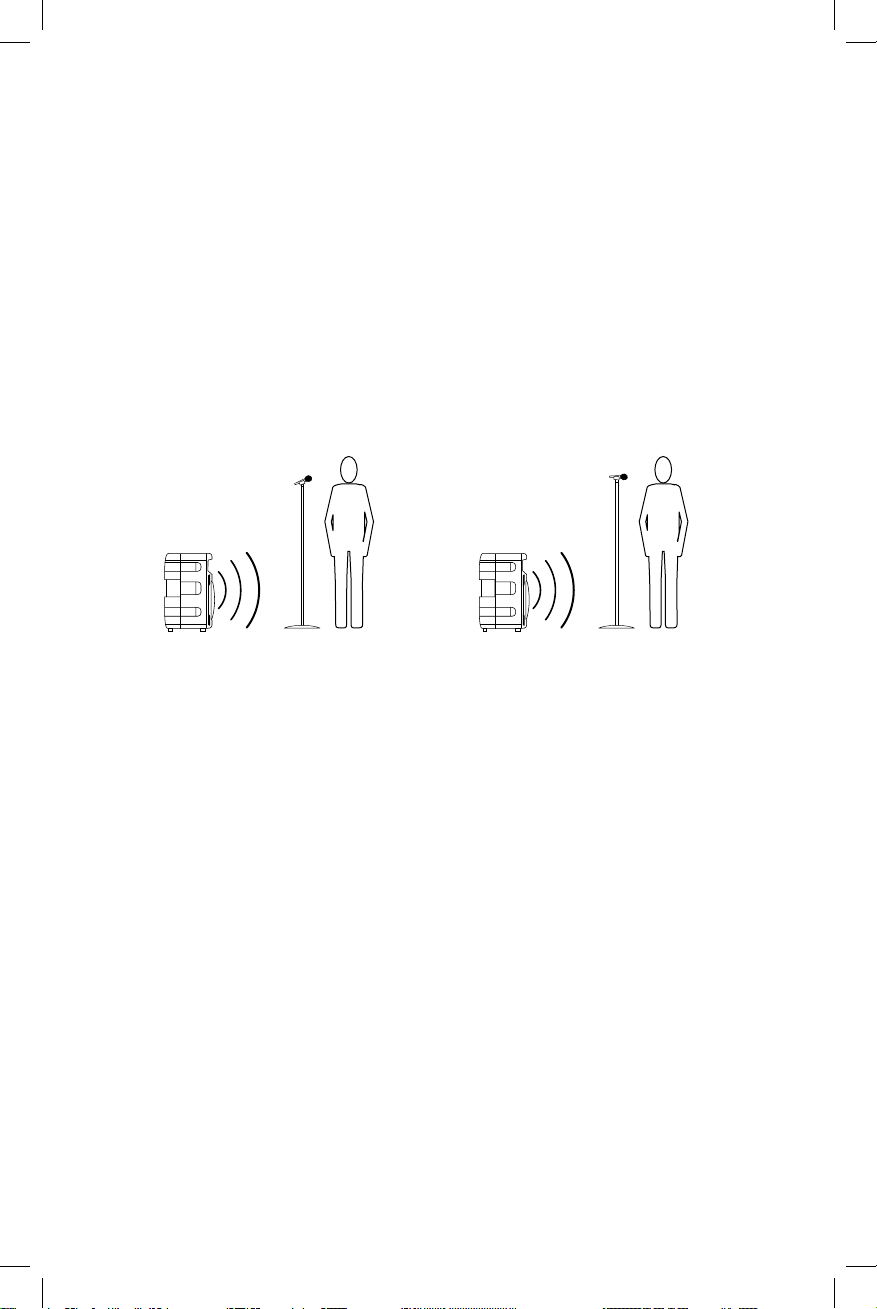

3. See illustration below as to position of microphones when mounted in stand.
Cardioid polar patter microphones should always be at a 90 degree angle to the axis of
the stage monitor. Hyper Cardioid polar pattern microphones should be positioned at
an acute angle to the sage monitor.
You may choose to add a feedback eliminating processor to your system for additional
exibility on stage.
There is really only one volume control on the RAM BT unit, that is the knob marked
MASTER.
The Mic In Balanced volume controls as well as the wireless mic volume controls are
matching devices to match the preamp voltages of the microphones with your RAM BT
unit. Never turn these up to maximum unless indicated by the instructions below. With a
properly matched signal your system will produce less distortion, be subject to less feed-
back, and will produce louder, cleaner and clearer sound. Use the Master control as your
volume once all inputs are matched properly.
A Word About System Volume Controls
Cardioid Polar Patter Hyper Cardioid Polar Patter

Your RAM BT features two ultra-low noise Mic/Line inputs via XLR & 1/4 inch
TRS stereo jacks.
1. Make sure the RAM BT unit power switch is in OFF position.
2. Plug in your microphone.
3. Keep Master Volume at Min position.
4. Turn Mic Volume to Min position.
5. Switch on the RAM BT unit.
6. Slowly turn Mic Volume clockwise until you achieve appropriate volume setting. Proper
function is achieved when you hear audible distortion. The above adjustment matched the
microphone preamp to the input volume of the RAM BT unit.
7. Now turn up the Master Volume to necessary volume by rotating clockwise.
Always stand behind the RAM BT unit when making your microphone adjustments to
avoid feedback distortion.
Set up microphone #1 as instructed above. Using same set up instructions, insert micro-
phone #2 into ultra-low noise 1/4in TRS input which features its own separate Volume
control. Use this Volume control to increase the microphone level and balance the inputs
between the two microphones before attempting to adjust the Master Volume.
Multi-Microphone Hook Up
4
2 3
7
1
56
OFF
ON
POWER
POWER
Microphone Presentations

Your RAM BT unit comes with two wireless microphones. To connect the microphones to
the unit follow these steps:
1. Make sure the RAM BT unit power switch is in ON position.
2. Keep Master Volume at Min position.
3. Keep both Channel A and Channel B wireless Mic Volume at Min postion.
4. Press the VHF power on button (red indicator LED should be on).
5. Switch on one microphone. It should automaticlaly connect to the corresponding
channel and the LED for that channel should light up.
6. Repeat steps 1 through 5 for the second microphone.
7. Use the Channel A / Channel B volume controls to adjust each microphone’s volume.
8. Now turn up the Master Volume to necessary volume by rotating clockwise.
Wireless Microphone Set-Up
3
7
2
8
1
4
ON
POWER
ON
OFF
5

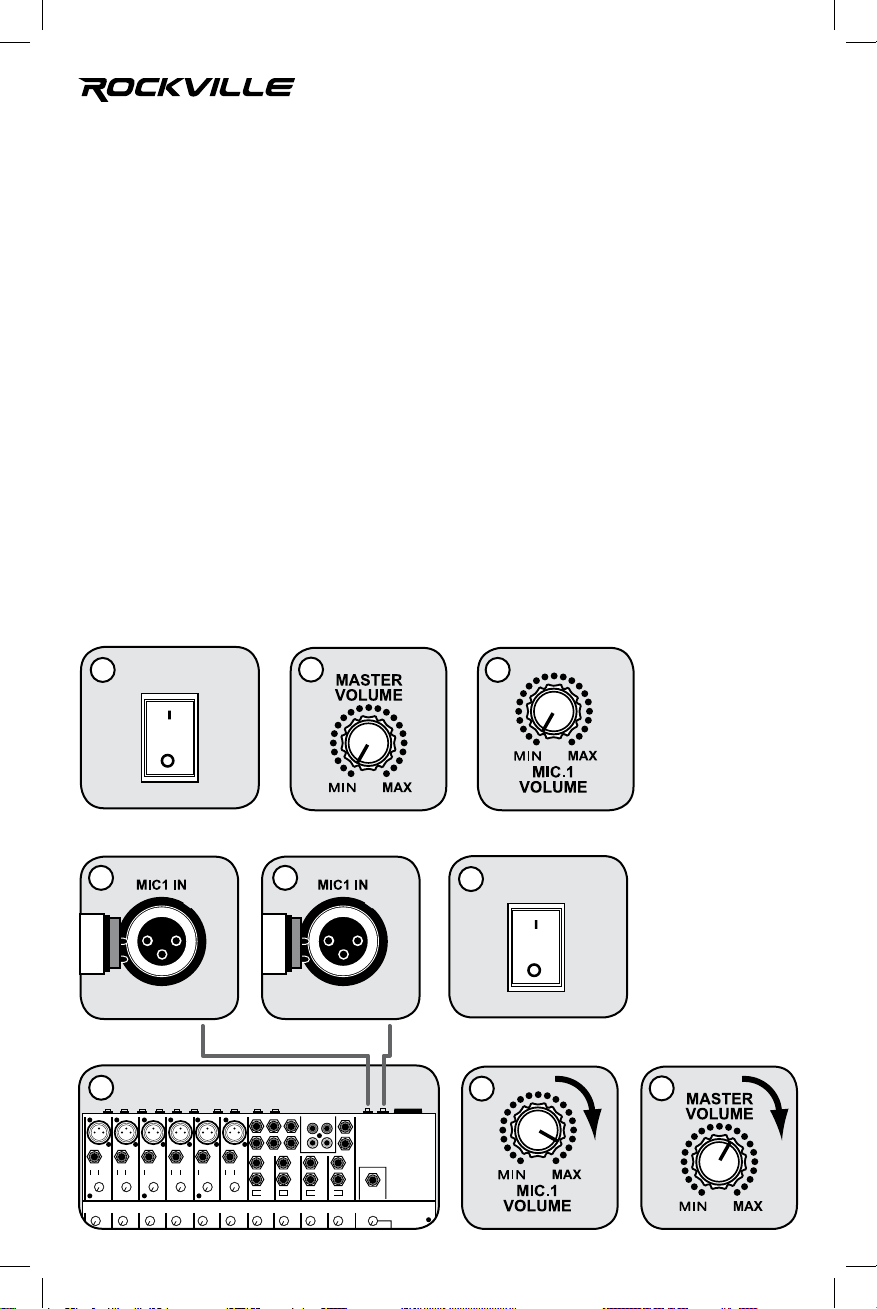

When setting up for larger venues, a mixing console becomes a critical piece of equip-
ment for appropriately mixing signals from multiple inputs such as singers, speakers,
eects devices, musicians and of course allows for multiple speaker utilization.
To connect a mixing console begin by.
1. Make sure the RAM BT unit’s power switches are in the OFF position.
2. Turn Master Volume to 0 position (both units).
3. Turn Mic Volume to 0 position (both units).
4. Connect the LEFT OUTPUT of mixer to the Mic In connection of your Left
RAM BT unit.
5. Connect the RIGHT OUTPUT of mixer to the Mic In connection of your Right
RAM BT unit.
6. Switch ON your RAM BT units.
7. Slowly raise the level of the mixer output to the 0dB level position.
8. Slowly turn Mic Volume clockwise until you achieve appropriate volume setting. Proper
function is achieved when you hear audible distortion. The above adjustment matched the
mixer preamp to the input volume of the RAM BT units.
9. Turn Master Volume up to achieve proper volume (both units).
Public Address / Concert Mixer Setup
OFF
1POWER
6
4 5
LEFT UNIT RIGHT UNIT
7
ON
POWER
3
8
2
9

You can use the Line Input function when you wish to hook up an additional stereo signal
source: Mixers, Keyboards, CD players, DVD music players, MP3 players etc. can be
plugged directly in to the RCA jacks labeled LINE INPUT.
To connect a mixer, keyboard, CD, DVD music player or MP3 player.
1. Make sure the RAM BT unit’s power switches are in the OFF position.
2. Turn Master Volume to 0 position.
3. Turn Line/MP3 Volume control to 0 position.
4. Connect the music source unit to the RCA jacks marked Line In.
5. Use the push button (located next to RCA jacks) to select between Line input
or MP3 input.
6. Switch ON your Power Gig unit.
7. Slowly turn the Line/MP3 Volume control clockwise until you hear audible distortion,
then turn it down slightly. This indicates the maximum input voltage gain is
matched and set properly.
8. Turn Master Volume up to achieve proper volume.
Line Input Feature
OFF
1POWER 2 3
6 75 8
4
ON
POWER

While guitarists and bassists have their own ampliers to ensure that the volume pro-
duced by their instrument matches that of the other sound sources on stage, keyboards
and synthesizers are a dierent story. They usually have no built-in speakers which
means they need an external sound source. The RAM BT unit allows for the connection
and mixing of one keyboards.
Be sure to have your RAM BT units installed by a qualied installation professional.
Ensure that the unit is properly grounded during and after installation. Not doing so may
result in electrostatic discharge which may cause damage your equipment.
A. Mic input port accepts XLR type connectors and is designed to suit a wide range of
balanced and unbalanced signals. We recommend using professional balanced dynamic,
condenser or ribbon mics as they are least likely to be aected by interference. Low cost,
high impedance mics can be used, however the level of background noise is higher since
an unbalanced circuit is far more susceptible to interference.
B. Line input port accepts balanced and unbalanced 1/4in TRS plugs.
Keyboard Amplication
Installation
XLR / 1/4in TRS Inputs
A. XLR B. 1/4in TRS
Balanced/Unbalanced
Balanced/Unbalanced

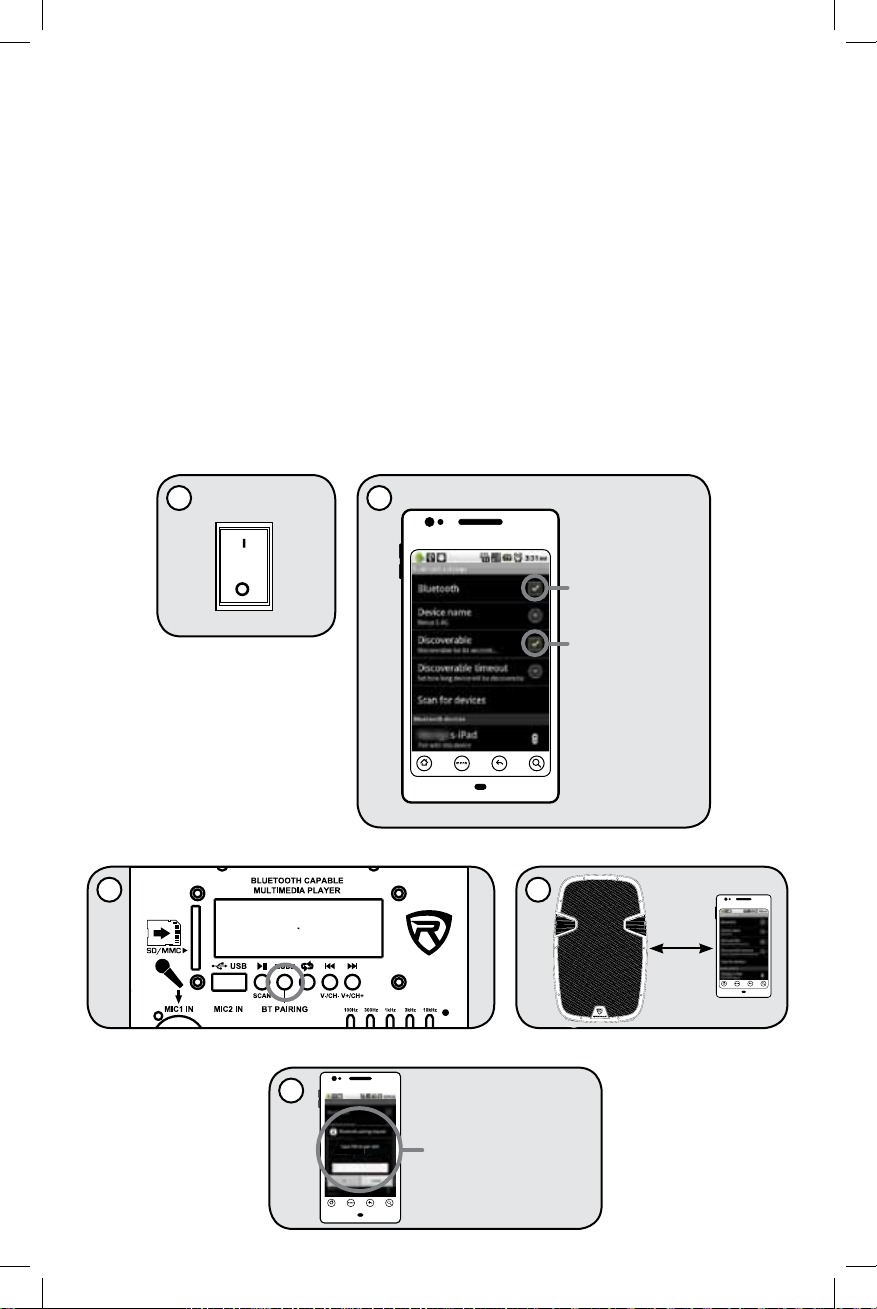

To connect your iPod, iPhone, MP3 player, Android phone or any other Bluetooth capable
device follow the steps listed below.
1. Make sure the RAM BT unit’s power switch is in the ON position.
2. Turn on the Bluetooth feature on your device and ensure that it is in “discoverable”
mode.
3. Push the Mode button on your RAM BT unit until you are in Bluetooth mode.
4. Once in Bluetooth, the unit should automatically pair with your device.
5. If you are using an older device with Bluetooth 2.0 and below, your phone may prompt
you to enter a PIN number in order to pair with the RAM BT unit. Please use the
following pin: 0000.
Bluetooth Pairing
1
3 4
5
2
ON
BLUETOOTH ON
DEVICE
DISCOVERABLE
POWER
RAM BT ENTER PIN# 0000

BUILT IN 12V 7A
BATTERY
2
4
5
7
8
9
17
18
16
6
1
3
10
11
12
13
15
19
14

1. . MP3 Player controls.
• Press Play button once to play track, press again to pause. Press and hold
scan stations when in FM mode.
• Mode control switches between input modes: Bluetooth, USB, SD / MMC,
and Radio.
• Rewind Button.
• Previous / Next track buttons also serve as volume.
controls. For track control quickly press button. For volume control press and
hold button.
2. USB and SD/MMC Card input.
3. 5 band equalization control panel.
• Adjust the low frequencies to +/-12dB
• Adjust the mid frequencies to +/-12dB
• Adjust high frequencies to +/-12dB
4. Mic 2 input port accepts balanced and unbalanced 1/4in TRS plugs. Its main
purpose is for microphone input but can accept signals from a variety of sources
such as keyboards, electronic drums, tape recorders, mixers, etc. When you use
an unbalanced 1/4in TRS plug, the line input automatically turns the ring into-
ground.
5. Mic 2 input port accepts XLR type connectors and is designed to suit a wide
range of balanced and unbalanced signals. We recommend using professional
balanced dynamic, condenser or ribbon mics as they are least likely to be
affected by interference. Low cost, high impedance mics can be used, however
the level of background noise is higher since an unbalanced circuit is far more
susceptible to interference. It can accept signals from a variety of sources such
as keyboards, electronic drums, tape recorders, mixers, etc.
6. Mic 1 and 2 volume controls.
7. MP3 / Line RCA input.
8. MP3 / Line RCA output.
9. MP3 / Line input selector switch.
10. MP3 / Line volume control.
11. Master volume control.
12. Mic Echo effect control.
13. Wireless Microphone VHS transmitter power control.
14. Channel A and B connection indicator LEDs and Volume controls.
15. Built in 12V / 7A battery with optional external battery connection.
16. Wireless microphone antennas.
17. Fuse compartment.
18. IEC AC power socket.
19. Power switch.

3. Pull the compartment out.
4. Remove the old fuse and replace with the
spare fuse (located in the fuse compartment).
5. Always be sure to replace old fuse with the
same type of fuse.
1. Unplug your RAM BT unit.
2. Using a small at head screw driver,
carefully remove the fuse compartment.
UNIT FAILS TO POWER UP.
1. Make sure unit is plugged in properly to wall outlet.
2. Check that power cable is plugged in tightly to unit.
3. If people or equipment tend to step and roll over or stretch your power cable it can
get damaged. Always try a second cable to test for shorts in original cable. Dispose of
original damaged power cables immediately.
4. If system still fails to light, UNPLUG FROM WALL. There is a small door above the
plug input on the RAM BT unit, pop o this door and remove the fuse with needle nose
pliers and replace with same rated fuse. Please make sure unit is unplugged from wall
before attempting to change the fuse!
UNIT TURNS ON, BUT NO SOUND.
1. Check that Master Volume is turned up.
2. Be sure your microphone is turned on.
3. All appropriate cables should be plugged in correctly.
4. If using a mixing console make sure fader and balance are set to center positions and
level increased.
5. Be sure Volume of appropriate channels are set above 0 level and matched correctly
as indicated above.
Fuse replacement Diagram
Trouble Shooting
OLD FUSE
SPARE FUSE

Responsible party name: Rockville
Address: 333 Pearsal Ave.
Inwood, NY 11096
Hereby declares that the product(s) RAM BT pro audio speakers comply with FCC rules
as mentioned in the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

© 2013 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
