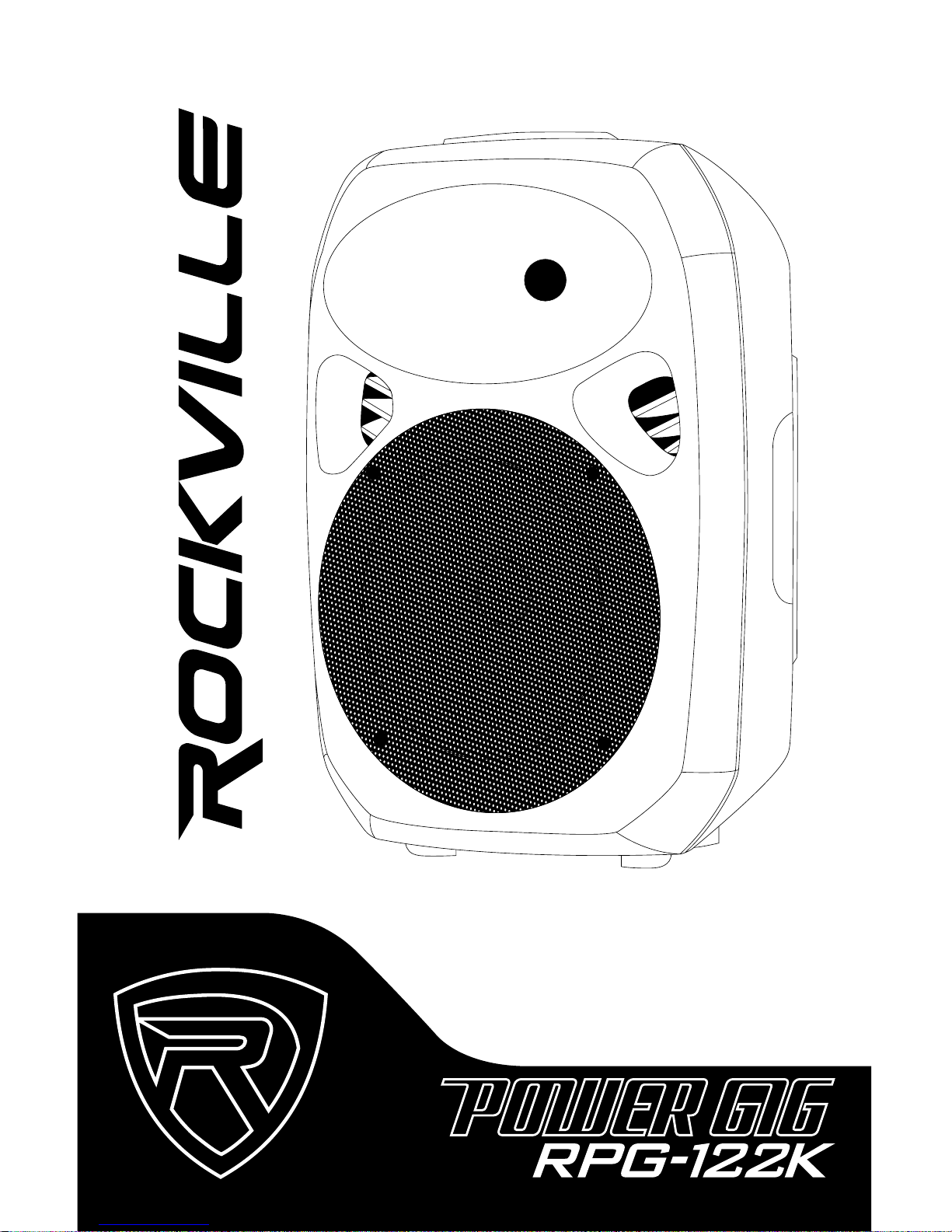

Rockville Power Gig RPG122K User manual

OWNER’S MANUAL

Thank you for purchasing this Rockville Power Gig RPG122K Bluetooth pro
audio speaker system.
We are very proud to bring you what we consider to be the absolute best value line pro
audio speakers. This project has been a culmination of years of development involving
a team of dreamers, engineers, designers and marketing gurus. Proudly conceived and
developed in the USA, Rockville pro audio speakers are designed and engineered by a
team of music enthusiasts, DJ’s and musicians.
We have spared no expense in manufacturing these speakers to meet the highest quality
standards. With proper care and installation this unit will provide you with the highest
levels of sound quality. We hope that this unit will bring you years of performance and
reliability.
Our goal to you and to your audience is to hear “live performance sound” the way it was
meant to be experienced.
Please read this installation guide carefully for proper use of your Power Gig RPG122K
Bluetooth pro audio speaker. Should you need technical assistance during or after your
installation please call our technical help line at 1-646-758-0144, Monday through Friday,
9am to 5pm EST.

Features
RPG122K
• Mic 1 Input XLR + 1/4”
• Mic 2 Input XLR + 1/4”
• Mic 1 Level
• Mic 2 Level
• RCA Line In
• RCA Line out
• Master Volume
• Master Treble
• Master Bass
• Power LED
• Clip LED
• MP3/Line Input Selector Switch
• USB/SD Input
• FM radio Built-In
• Record Function to USB
• Bluetooth Connectivity
• Wireless remote Control
• LCD Display Screen For MP3 Player Functionality
• Output to Second Passive Unit with included Cable
• Includes one wired microphone
• Includes 1 Pair of speaker stands
• 115/230 Volt Switchable
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
•To reduce risk of electric shock, never open the unit. There are no user serviceable
parts, refer service to an authorized Rockville service center.
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Make sure the unit is placed on a level and stable surface.

Your Power Gig is set up to produce the full spectrum of sound from its woofer and
tweeter horn combination. The lower frequencies seek out the oor of the room that they
are playing in and travel along the oor and walls. The tweeter horn is more directional.
Hence when setting up your system its more important to make sure that the tweeter
horns are not blocked by any furniture and are located / aimed at ear level to the listening
audience. Woofer aiming is not as critical as explained previously due to the nature of the
woofer sounds able to travel through various paths even when blocked.
It is therefore recommended that when setting up your system you set up your speakers
on provided stands so that the tweeter sounds will radiate above the listening crowd. This
will guarantee optimum sound dispersion and achieve clear vocal sound reproduction.
The placement of your microphone is critical in avoiding feedback through your Power
Gig system. Never set up your microphone in front of the speaker. Always set up your mi-
crophone behind the speaker. When approaching the speaker to make any adjustments,
we recommend approaching the speaker from the rear and not walking directly towards
the front of the speaker.
Your Power Gig speaker comes standard with two brackets which snap in to the cabinet
sides allowing it to be placed on the oor at an angle as a stage monitor. Unlike a PA set-
up which face the crowd, stage monitors are set up to face the performer on stage and to
direct the sound towards them. This presents a particular problem as now feedback may
occur. To avoid stage monitor feedback the following precautions should be taken.
Setting Up Your Power Gig Professional Sound System
How To Avoid Irritating Feedback
Stage Monitor Setup

1. Choose a microphone with high directivity, i.e. cardioid or hyper-cardioid polar
pattern.
2. Never point the microphone directly down in front of the speaker. Holding the micro-
phone in normal position will allow you to be closer to the stage monitor with out
feedback.
3. See illustration below as to position of microphones when mounted in stand.
Cardioid polar patter microphones should always be at a 90 degree angle to the axis of
the stage monitor. Hyper Cardioid polar pattern microphones should be positioned at
an acute angle to the sage monitor.
You may choose to add a feedback eliminating processor to your system for additional
exibility on stage.
There is really only one volume control on the Power Gig unit, that is the knob marked
VOLUME.
The Mic 1/Mic 2 in Level controls is a matching device to match the preamp voltages of
items such as microphones and guitars or other musical instruments with your Power Gig
unit. Never turn these up to maximum unless indicated by the instructions below. With a
properly matched signal your system will produce less distortion, be subject to less feed-
back, and will produce louder, cleaner and clearer sound. Use the Volume control once all
inputs are matched properly. Your Power Gig features a CLIP LED indicator to help you
set and match your components. Please be sure to read all set up instructions so your
Power Gig sounds its best.
Your Power Gig features two ultra-low noise Mic/Line inputs via XLR & 1/4˝ TRS
stereo jacks.

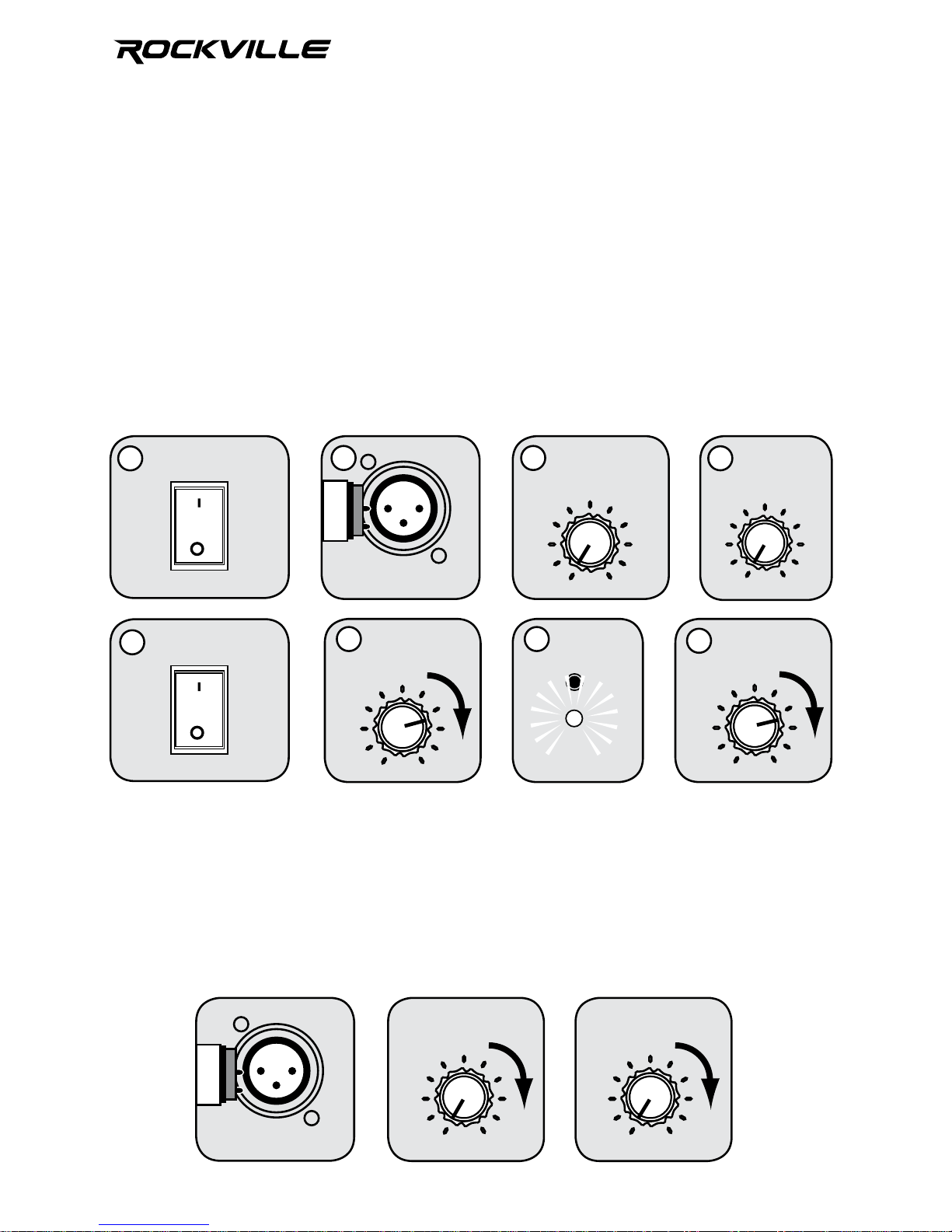

1. Make sure the Power Gig is in OFF position.
2. Plug in your microphone.
A Word About System Volume Controls and Gains.
Cardioid Polar Patter Hyper Cardioid Polar Patter
APPLICATION USES
Microphone Presentations

3. Keep Volume at 0 position.
4. Turn Mic Level to 0 position.
5. Switch on the Power Gig unit.
6. Slowly turn Mic Level clockwise until you achieve appropriate volume setting. This
is determined by the CLIP LED indicator light. Proper function is achieved when the
CLIP indicator lights up at peak levels, it should never be in constant on position.
7. The above adjustment matched the microphone preamp to the input volume of the
Power Gig unit.
8. Now turn up the Volume to necessary loudness by rotating clockwise.
Always stand behind the Power Gig when making your microphone adjustments to avoid
feedback distortion.
You can choose to hook up two microphones to your Power Gig in the following manner.
Set up microphone #1 as instructed above. Using same set up instructions, insert mi-
crophone #2 into second ultra-low noise Mic/Line input which features its own separate
Level control. Use this Level control to increase the microphone level and balance the
inputs between the two microphones before attempting to adjust the Volume.
Multi-Microphone Hook Up
4
2
PWR
3
8
1
56 6
CLIP
OFF
ON
POWER
POWER
MIC2 LEVEL VOLUME
VOLUME
VOLUME
MIC 1
10 10
10
10
0 0
0
0
1 1
1
1
2 2
2
2
3 3
3
3
4 4
4
4
6 6
6
6
5 5
5
5
7 7
7
7
8 8
8
8
9
MIC1 LEVEL
MIC1 LEVEL
10
10
0
0
1
1
2
2
3
3
4
4
6
6
5
5
7
7
8
8
9
9
9
9
9
MIC 2

You can use the Line Input function when you wish to hook up an additional stereo signal
source without the use of a mixer console. CD players, DVD music players, MP3 players
etc can be plugged directly in to the RCA jacks labeled LINE INPUT.
To connect a CD, DVD music player or MP3 player.
1. Turning your Power Gig unit to OFF position.
2. Turn Master Volume to 0 position.
3. Turn Level control to 0 position.
4. Connect the music source unit to the RCA jacks marked Line In.
5. Use the push button (located above to RCA jacks) to select between Line input
or MP3 input.
6. Switch ON your Power Gig unit.
7. Slowly turn the Level Volume control clockwise until the CLIP LED indicator begins
to blink, then turn it down slightly. This indicates the maximum input voltage gain is
matched and set properly.
8. Turn Master Volume up to achieve proper volume.
Line Input Feature
OFF
1POWER 2 3
6 75
8
4
ON
POWER 7
VOLUME
100
1
2
3
4 6
5
7
8
9
VOLUME
100
1
2
3
4 6
5
7
8
9
LEVEL
100
1
2
3
4 6
5
7
8
9
LEVEL
100
1
2
3
4 6
5
7
8
9
LINE IN
LINE OUT
L R
MP3
LINE
PWR
CLIP

While guitarists and bassists have their own ampliers to ensure that the volume pro-
duced by their instrument matches that of the other sound sources on stage, keyboards
and synthesizers are a dierent story. They usually have no built-in speakers which
means they need an external sound source. The Power Gig unit allows for the connec-
tion and mixing of two keyboards. More than two keyboards can be connected using a
sub mixer to mix down the signals and send them to the Power Gig unit via the sub mixer
output connectors.
Be sure to have your Power Gig units installed by a qualied installation professional.
Ensure that the unit is properly grounded during and after installation. Not doing so may
result in electrostatic discharge which may cause damage your equipment.
Keyboard Amplication
Installation
The 1/4˝ TRS output marked Speaker Output is for connecting the active unit to the
passive unit. Passive speaker impedance must always be 8 ohm.
Speaker Output Connection.
SPEAKER OUTPUT

To connect your iPod, iPhone, MP3 player, Android phone or any other Bluetooth capable
device follow the steps listed below.
1. Make sure the Power Gig unit’s power switch is in the ON position.
2. Turn on the Bluetooth feature on your device and ensure that it is in “discoverable”
mode.
3. Push the Mode button on your Power Gig unit until you are in Bluetooth mode.
4. Once in Bluetooth mode, the unit should show up on your device as “MEGA STAR”.
Select it from your list of available devices and you are ready to go.
Bluetooth Pairing
1
3 4
2
ON
BLUETOOTH ON
DEVICE
DISCOVERABLE
POWER
USB
SD
MODE EQ
SCAN VOL–VOL+

2
3
1
10
11
5
13
14
15
16
17
18
4
6
7
8
12
9

1. Display screen.
2. USB and SD Card input.
3. MP3 Player controls. Previous / Next track buttons also serve as volume
controls. For track control quickly press button. For volume control press an
hold button. Press Play button once to play track, press again to pause. When
in FM radio mode press and hold to scan through.
4. Mode control switches between input modes: FM Radio, Bluetooth, USB,
and SD/MMC.
5. EQ control cycles through different preset equalization settings.
6. Master volume
7. Power LED indicator and amplier clip limit LED indicator.
8. 2 band equalization control panel.
• Bass adjust the low frequencies to +/-6dB.
• Treble adjust high frequencies to +/-6dB
9. This knob controls the Mic 1 / Mic 2 Level adjustment knob.
10. Mic input port accepts XLR type connectors and is designed to suit a wide
range of balanced and unbalanced signals. We recommend using profesional
balanced dynamic, condenser or ribbon mics as they are least likely to be
affected by interference. Low cost, high impedance mics can be used,
however the level of background noise is higher since an unbalanced circuit is
far more susceptible to interference.
11. Mic 1 / Mic 2 line input port accepts balanced and unbalanced 1/4˝ TRS
plugs. When you use an unbalanced 1/4˝ TRS plug, the line input automatically
turns the ring into ground.
12. Line / MP3 input selector button.
13. Pre-Amp RCA input / output jacks.
14. Output to passive speaker.
15. Voltage selector switch.
16. IEC AC power socket.
17. User serviceable fuse.
18. Power switch.

UNIT FAILS TO POWER UP.
1. Make sure unit is plugged in properly to wall outlet.
2. Check that power cable is plugged in tightly to unit.
3. If people or equipment tend to step and roll over or stretch your power cable it can
get damaged. Always try a second cable to test for shorts in original cable. Dispose of
original damaged power cables immediately.

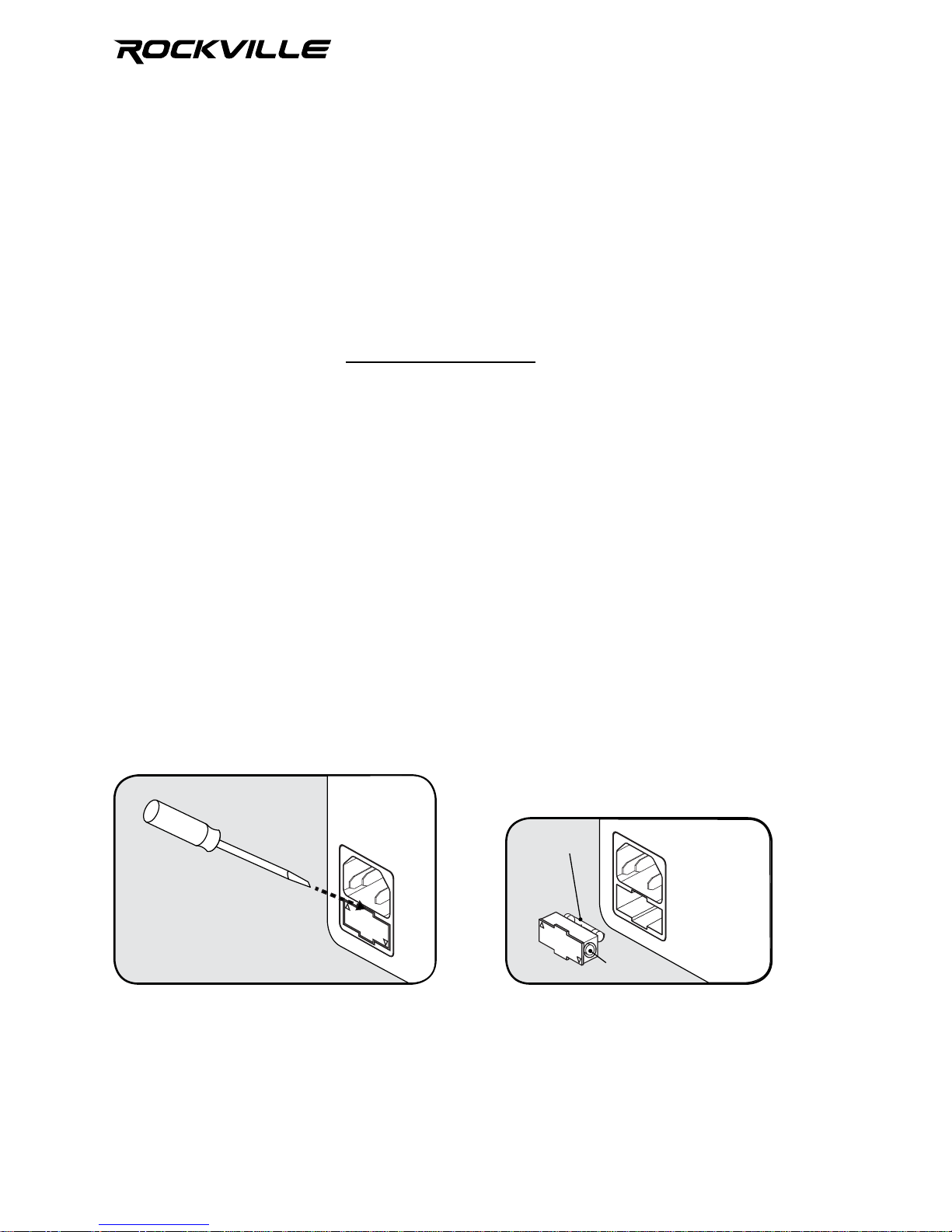

4. If system still fails to light, UNPLUG FROM WALL. There is a small door below the
plug input on the Power Gig unit, pop o this door and remove the fuse with a needle
nose pliers and replace with same rated fuse. Please make sure unit is unplugged from
wall before attempting to change the fuse!
UNIT TURNS ON, BUT NO SOUND.
1. Check that Volume is turned up.
2. Be sure your microphone is turned on.
3. All appropriate cables should be plugged in correctly.
5. Be sure Level of appropriate channels are set above 0 and matched correctly
as indicated above.
Fuse replacement Diagram
Troublesßhooting
OLD FUSE
SPARE FUSE

Responsible party name: Rockville
Address: 333 Pearsall Ave.
Cedarhurst, NY 11096
Hereby declares that the product(s) Power Gig RPG122K pro audio speakers comply with
FCC rules as mentioned in the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

© 2014 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
Rockvilleaudio.com
