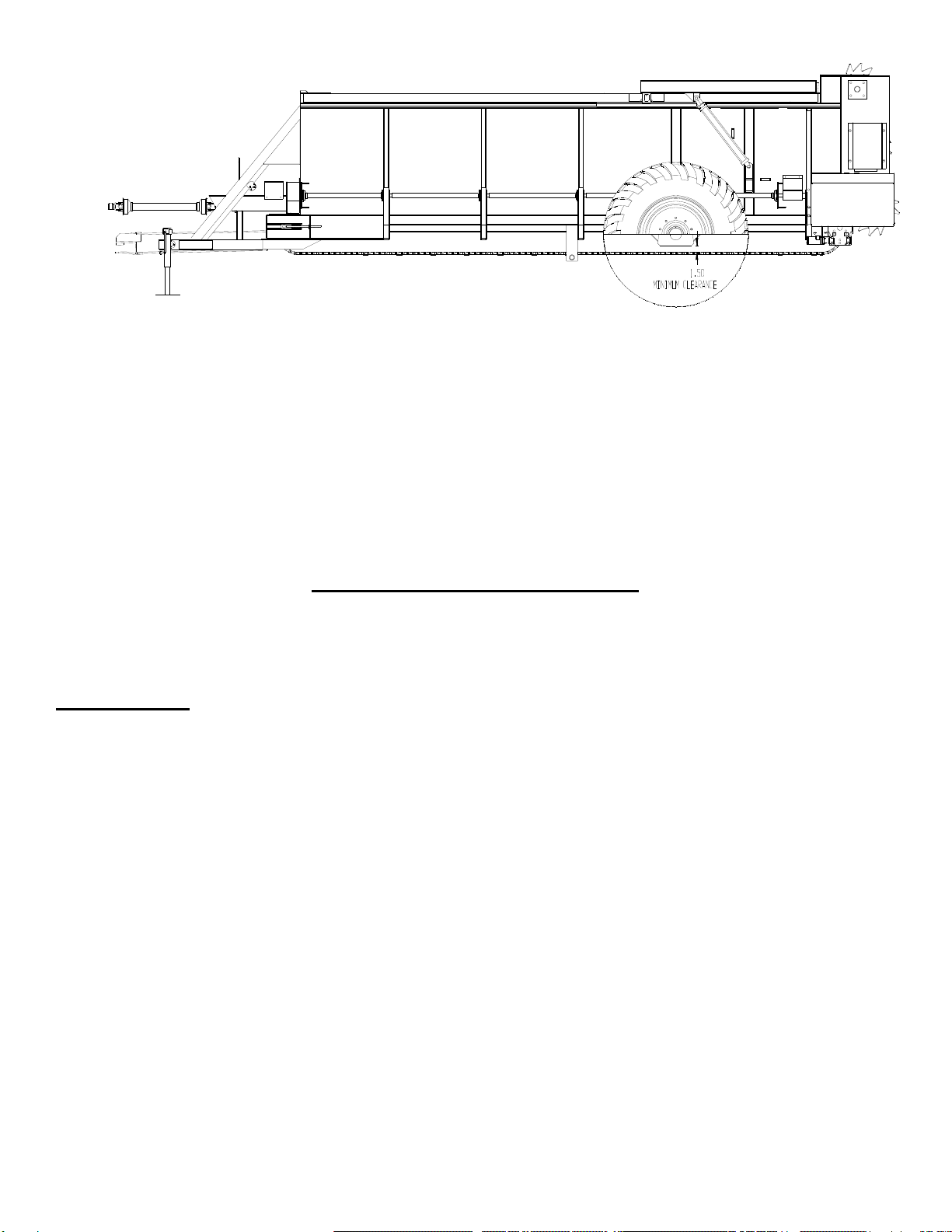

Roda 810 User manual

810 BUSHEL
MANURE SPREADER 2009
2009 Model Year2006-2008 Model Years
RODA MANUFACTURING
338 MAIN ST.
HULL, IA. 51239
712-439-2366
WWW.RODAMFG.COM

2

3
INTRODUCTION
Thank you for purchasing a Roda Spreader. We appreciate your business. Here at Roda, we do our best to
provide you with a rugged and durable unit, which is easy to maintain. If you have any suggestions for any of
our products, please let us know.
Roda Manufacturing Inc.
USING THIS MANUAL
This manual should be considered a permanent part of your machine, and should remain with the machine when
you sell it.
This manual has been designed to help you become familiar with your unit. Before you operate your unit, be
sure you understand and follow all the operation, safety, and lubrication instructions on the following pages in
this manual. These have been written for your safety and convenience, and to help keep your unit running
trouble-free for many years.
ADDITIONAL OPERATORS MANUALS, SERVICE PARTS LISTINGS and safety decals may be
obtained through your dealer, or Roda Manufacturing.
TABLE OF CONTENTS
Introduction 3
Safety 4-6
Safety Decals & Location 6-8
Manure Spreader Safety 9-10
Pre-Operation 11
Lubrication 12
Inspection & Adjustments 13-14
Spreader Operation 14-15
Frame and Shields Breakdown 16-17
Apron Drive Breakdown 18-19

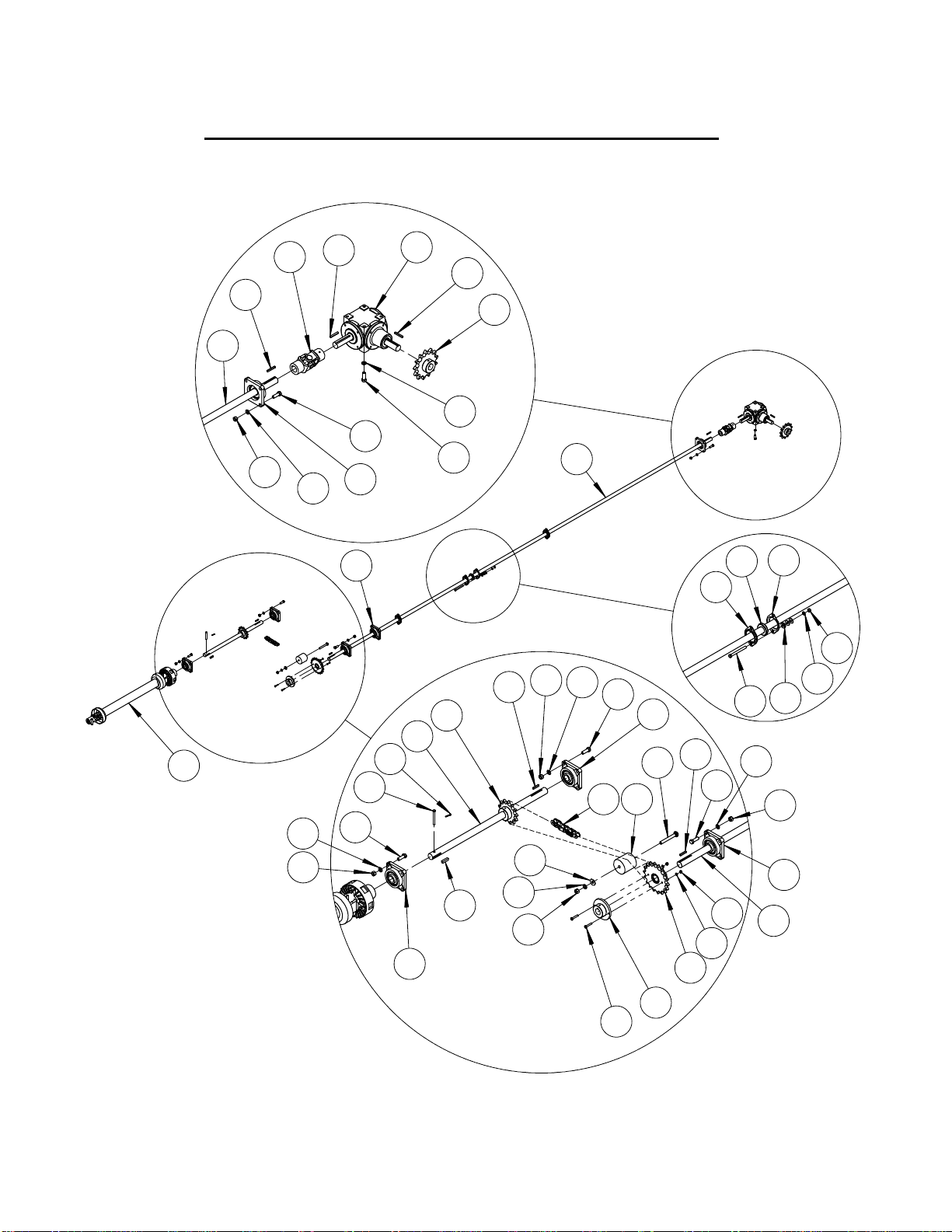

Front and Side Driveline Breakdown 20-21
Beater Panel Breakdown 22-23
Slop Gate Breakdown 24
Hub City Gearbox Breakdown 25
Wheel and Hub Breakdown 26-27
Worm Gear Breakdown 28-29
Apron Hydraulics Breakdown 30
Slop Gate Hydraulics Breakdown 31
LimitedWarranty 33
Warranty Registration 35

SAFETY
UNDERSTAND SAFETY WORDS AND SYMBOLS
THIS SAFETY ALERT SYMBOL is used in this manual whenever personal safety is involved
and means ATTENTION! BECOME ALERT! It stresses an attitude of “HEADS UP” for safety.
Read and understand all pages in this manual that bear this safety symbol and…TAKE TIME TO BE
CAREFUL!
The Signal Word or Message areas of all safety decals are color coded to indicate the level of hazard.
CAUTION:Is used to direct attention to unsafe practices, and uses the color yellow.
WARNING:Denotes a specific potential hazard, and uses the color yellow or orange.
DANGER:Denotes a most serious specific potential hazard, and uses the color red.
READ THE OPERATORS MANUAL
Any person who will be operating or maintaining this manure spreader should first read and understand this
manual and all safety warnings on the unit.
This instruction manual should always be available to those responsible for the operation and maintenance of
this manure spreader. It is the owner’s responsibility to provide this safety information to his operators and
employees.
Any person who does not understand the safety and operation instructions contained in this manual should not
be considered qualified to operate this manure spreader.
FOLLOW SAFETY INSTRUCTIONS
Specialized procedures and instructions are required and must be adhered to when working on this equipment.
Failure to follow the instructions contained in this manual could result in severe personal injury, death, and/or
product or property damage. Personnel when operating or maintaining this equipment must use all applicable
safety procedures such as OSHA requirements, regional and local safety codes and requirements, safe working
practices, and good judgment.
4

SAFETY
OPERATING SAFETY PRECAUTIONS
WHEN THE SPREADER IS IN OPERATION, IT HAS MANY MOVING PARTS,
WHICH COULD CAUSE SEVERE INJURY OR DEATH TO PERSONS COMING IN
CONTACT WITH THESE PARTS. TO HELP AVOID SERIOUS ACCIDENTS, THE
FOLLOWING GUIDELINES MUST BE FOLLOWED.
•BE SURE ALL SAFETY SHIELDS are in place before operating, including any truck and driveline
shields. Exposed machinery, due to missing shielding, can cause severe injury or death. Repair or replace
any damaged or missing shielding.
•NEVER PUT ARMS OR FEET INSIDE UNIT, or near discharge areas, nor climb on or in the spreader
while it is running. NEVER allow anyone to position themselves over or near the top, or near the discharge
area of the spreader while it is running. Rotating beaters, shafting, belts, pulleys, and sprockets can grab
clothing or create pinch points, which can cause severe injury or death to the operator or bystanders.
Always stop engine and remove ignition key so that the spreader cannot be accidentally turned on while
inspection, servicing, repairing, or cleaning the spreader.
•NEVER ATTEMPT TO RELEASE JAMMED MATERIALS OR CLEAN MATERIALS from any
area of the spreader of discharge without turning the spreader off first. Materials can hide moving parts and
stopped parts can start unexpectedly, causing severe injury. Always stop engine and remove ignition key
before attempting to remove jammed material or clean the spreader.
•DO NOT ALLOW OPERATION OF THIS UNIT BY AN INEXPERIENCED OR UNQUALIFIED
PERSON. Keep all unqualified people away from spreader during operation. Operators of this unit must
be alert and use good judgment at all times and must have fully read and understand this manual.
•DO NOT WEAR LOOSE OR FLOPPY CLOTHING while operating this unit. Loose clothing may
become entangled in moving machinery.
•BE SURE THE INSIDE OF SPREADER IS CLEAR of any obstructions before loading.
•SHOULD A PROBLEM OCCUR DURING THE OPERATION OF SPREADER, always turn off
engine and remove ignition key before investigating problem. If power source has not been turned off,
the spreader may start unexpectedly, causing severe injury or death.
5

SAFETY
TRANSPORTING SAFETY PRECAUTIONS
WHEN TRANSPORTING A LOADED SPREADER, USE REDUCED SPEED AND BE
SURE THE VEHICLE HAS ADEQUATE BRAKES TO STOP.
•DO NOT ALLOW ANYONE TO RIDE ON OR INSIDE THE SPREADER.
•REDUCE SPEED WHEN TRAVELING loaded and/or over rough, soft, or wet terrain. Exercise caution
on side slopes and when turning corners.
•AVOID OPERATING THE SPREADER CROSSING GULLIES OR DITCHES.
•WHEN WORKING ON SLOPES or inclines, travel uphill or downhill. Keep the transmission in gear
when going downhill.
•AVOID DRIVING ON loose fill, rocks, inclines, ditches, and holes.
•ALWAYS PARK the spreader on level ground and block the tires.
•IF UNIT IS FOR HIGHWAY TRANSIT the end user is responsible for federal, state and local vehicle
safety regulation compliance (example: under ride requirements, lighting and weight limitations).
SAFETY DECALS
SAFETY DECALS ARE PLACED ON THIS UNIT FOR THE PROTECTION OF THE
OPERATOR OR ANY PERSON NEAR THE UNIT.
•BE SURE EVERYONE WHO OPERATES THE SPREADER UNDERSTANDS ALL THE
INFORMATION, WARNING, CAUTION AND DANGER DECALS.
•KEEP THE DECALS CLEAN so they are readable. This applies to all caution, warning, and danger
decals.
•It is the OWNER’S RESPONSIBILITY to provide information for safe operation of this machine.
•REPLACE ANY DAMAGED OR WORN DECAL. Once any part of a decal becomes non-readable, it
should be replaced. Replacement decals may be ordered through your dealer or Roda Manufacturing.
•WHEN REPLACING DECALS, be sure the surface area is clean and dry, peel the backing off the decal,
and apply to the unit. Be sure to wipe with a clean cloth to rub out all air bubbles to assure a good seal. For
best adhesion decals should be applied in temperatures of 50°(f) or warmer.
6

SAFETY
SAFETY DECALS
1.) 2.) 3.)
4.) 5.) 6.)
7.) 8.) 9.)
10.) 11.)
7

SAFETY
SAFETY DECAL LOCATION
MODEL AND SERIAL NUMBER INFORMATION is located in the upper center area of the front panel.
This is the number to give service personnel for parts and service questions.
8

MANURE SPREADER SAFETY
THERE ARE INHERENT HAZARDS ASSOCIATED WITH THE OPERATION OF A
MANURE SPREADER. FOR YOUR SAFETY:
•ONLY PROPERLY INSTRUCTED PEOPLE SHOULD OPERATE THE SPREADER. Do not allow
children or inexperienced persons to operate spreader.
•KEEP ALL GUARDS AND SHEILDS IN PLACE. Moving parts can crush and dismember.
•CLEAR THE AREA before equipment start up.
•KEEP HANDS, FEET, AND LOOSE CLOTHING AWAY FROM ANY MOVING PARTS.
•DO NOT GO NEAR THE SPREADER WHILE THE MACHINE IS OPERATING.
•MAKE SURE THE PTO IS SECURELY LOCKED to both the tractor and spreader before operating this
unit.
•DO NOT OPERATE PTO AT SPEEDS HIGHER than manufacturer’s recommendations.
•HIGHWAY TRAFFIC IS NOT TO EXCEED 10 MPH. The tires supplied are for farm use only and are
not designed for use above this speed.
•USE ADEQUATE SAFETY CHAINS when towing the spreader.
•USE OF A SLOW MOVING VEHICLE SIGN IS REQUIRED on all public roads. Obey all applicable
highway safety laws and rules.
•ALWAYS USE A TRACTOR LARGE ENOUGH TO PROVIDE SUFFICIENT BRAKING assistance
when towing a loaded spreader.
•USE CAUTION WHEN TRAVELING over uneven terrain and when approaching stops.
•DO NOT LOAD THE SPREADER unless it is hitched to the tractor.
•DO NOT UNHITCH A LOADED SPREADER from the tractor. Leaving it supported by only the jack.
•PARK THE SPREADER ON LEVEL GROUND and place blocks ahead of and behind the wheels before
unhooking from tractor to avoid unexpected rolling when separated from vehicle
•DO NOT ALLOW RIDERS ON THE SPREADER.
FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH
9

THERE ARE ADDITIONAL HAZARDS ASSOCIATED WITH THE SERVICE AND MAINTENENCE
OF YOUR SPREADER.
FOR YOUR SAFETY:
•INSPECT when first delivered and regularly thereafter; that all connections and bolts are tight and secure
before operating.
•RETIGHTEN ALL WHEEL BOLTS after the first hour of towing. Check periodically thereafter.
•MAINTAIN PROPER TIRE AIR PRESSURE at all times.
•ALWAYS WEAR EYE PROTECTION when operating or servicing spreader.
•BE SURE ALL MOVEMENT HAS STOPPED and that the PTO is disconnected and the tractor is shut
off before servicing the spreader or components.
•ESCAPING HYDRAULIC FLUID UNDER PRESSURE can penetrate skin and cause serious injury.
Relieve all pressure from the hydraulic system before connecting of disconnecting the lines or making
repairs. Check all hoses and fittings before start-up and periodically during operation.
•NEVER MAKE ANY ALTERATIONS or modifications to this equipment.
FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH
10

11
PRE-OPERATION
IMPORTANT: READ BEFORE OPERATING SPREADER.
IT IS THE RESPONSIBILITY OF THE OWNER TO MAKE SURE THE SPREADER IS SET
UP PROPERLY. THE FOLLOWING
RECOMMENDATIONS SHOULD BE HELPFUL.
•CHECK FOR PROPER ASSEMBLY, adjustment and lubrication. Check to be sure all bolts and
setscrews are tight. Check to be sure that all chains and chain tighteners are properly adjusted. Review
Operating Safety Precautions and Lubrication instructions for more information.
•BE SURE ALL SHIELDS are properly in place, including any drive-line shields
•CHECK FOR AND REMOVE ANY FOREIGN OBJECTS in the spreader box and discharge area.
•BE SURE NO ONE IS NEAR THE SPREADER.
•TEST RUN THE SPREADER.
•WITH THE SPREADER EMPTY, start the apron and beaters.
•RUN FOR AT LEAST 5 MINUTES.
•CHECK THE SPREADER DRIVE COMPONENTS TO BE SURE THEY ARE NOT
ABNORMALLY HOT.
If any of these items are not running as indicated, immediately repair or contact your service representative.
Always refer to Operating Safety Precautions before operating or servicing the spreader.

LUBRICATION
ALWAYS STOP THE MANURE SPREADER AND DISCONNECT POWER BEFORE SERVICING,
REPAIRING, OR CLEANING. USE SAFE SHOP PROCEDURE AND EXERCISE CAUTION WHEN
WORKING ON THIS MACHINE!
It is extremely important to properly lubricate your new RODA machine before it is used for the first time. If
the mechanical drive components of your unit are not protected from shock and frictional abrasion, the wear
rate of these components will be vastly accelerated and their life span will be drastically reduced. For proper
care and maintenance, your machine should be serviced with engine oil, multipurpose grease, and fluids
specified below.
It is extremely important that the lubrication guide be followed. For lubricating bearings, use good quality
multipurpose grease. Pump the grease in slowly. Roller chains should be lubricated with engine oil, or a spray-
on chain lubricant and then the spreader operated under a no-load condition. This will allow the roller chains to
be thoroughly lubricated and thus minimize heat-up during operation.
DESCRIPTION INTERVAL LUBRICANT
ROLLER CHAINS 15-20 HOURS OIL
APRON BEARINGS 15-20 HOURS GREASE
APRON GEAR CASE ANNUALLY EP90 GEAR LUBE
APRON CHAIN WHEN PARKED 30WT OIL
RIGHT ANGLE GEAR CASE ANNUALLY EP90 GEAR LUBE
GEARBOX KNUCKLE 15-20 GREASE
AXLE HUBS BI-ANNUALLY GREASE
PTO SHAFT 15-20 GREASE
SLIP CLUTCH BI-ANNUALLY GREASE
CAST FLANGE BEARINGS 15-20 HOURS GREASE
PILLOW BLOCK BEARING 15-20 HOURS GREASE
SLOP GATE PIVOT POINT 15-20 HOURS GREASE
ALWAYS REPLACE ALL SHIELDS AFTER MAINTENANCE AND LUBRICATION IS COMPLETE
12

13
INSPECTION & ADJUSTMENTS
ALWAYS STOP SPREADER, SHUT OFF VEHICLE ENGINE AND REMOVE IGNITION
KEY BEFOR SERVICING, REPAIRING, OR CLEANING, USE SAFE SHOP PROCEDURES
AND EXERCISE CAUTION WHEN WORKING ON THIS SPREADER!
•SHIELDING to be sure all shielding is in place and functioning properly. Replace all damaged or
missing shielding immediately-Contact your nearest dealer or the Roda parts/service dept. for more
information. Check bolts and Set Screws after a few hours of use and each month thereafter, and tighten
if necessary.
•AFTER A FEW HOURS OF INITIAL OPERATION, check all bolts and set screws to be sure they
are tight and secure.
•ROLLER CHAIN TIGHTENERS to apply sufficient tension to keep roller chains running smoothly.
The chain will form grooves in the tightener blocks. These grooves help to keep the chains in proper
alignment, and the blocks should not be turned unless the roller portion of the chain has worn into the
block
•ROLLER CHAINS FOR WEAR, proper alignment and tension, and adjust or replace if necessary.
Roller chain connector links which pall over tightener blocks must have the legs of the cotter pins facing
the trailing end.
•SAFETY DECALS FOR READABILITY. If any safety decals are removed, obstructed, or otherwise
not understandable, they should be replaced immediately. Keep all decals clean!
•IMPORTANT: IF YOU WELD ON THIS UNIT: Do Not allow the currents to flow through the
bearings. Ground directly to the item being welded.
•PERIODICALLY CHECK all set screws and bolts and retighten if necessary.
•APRON CHAINS for wear, proper alignment and tension, according to the adjustment guidelines as
shown.
•BE SURE TO KEEP PROPER TENSION ON APRON CHAINS. The (4) apron tightener bolts are
located at the front of the unit at each end of the apron shaft. They should be adjusted evenly for their
respective assembly as shown below:

If apron is loose, remove one link from each side of that apron chain assembly and readjust to tension as
shown. CAUTION: Over tightening can cause premature failure of the drive components.
SPREADER OPERATION
ALWAYS REFER TO THE OPERATING SAFETY PRECAUTIONS AND SAFETY DECAL
SECTIONS OF THIS MANUAL BEFORE OPERATING THIS SPREADER
LOADING
•BEFORE LOADING THE SPREADER, be sure there are no obstructions in the beaters or discharge
opening. Inspect the spreader to see that it is in good mechanical condition and that all shields are in
place and functional.
•NEVER CHECK THE SPREADER WHILE IT IS OPERATING
•IN FREEZING WEATHER, make sure the apron is not frozen with manure. If this appears likely,
turn off vehicle engine, remove ignition keys, loosen the frozen area and operate before loading.
•AVOID LOADING ROCKS AND OTHER SOLID OBJECTS INTO THE SPREADER
•NEVER COVER BEATERS when loading, beaters should spin freely before engaging.
14

15
OPERATION
•BEFORE OPERATING, BE SURE NO ONE IS NEAR THE SPREADER AND THAT THE
DISCHARGE AREA IS CLEAR OF ALL OBJECTS OR PERSONS THAT COULD BE
HARMED IF MATERIAL WAS DISCHARGED!
•WITH THE VEHICLE STOPPED and the engine throttled down, engage the apron and beater levers.
•START VEHICLE IN MOTION.
•THE SPREAD RATE IS CONTROLLED BY THE VEHICLE GROUND SPEED. The type of
material being spread affects the rate at which material is discharged from the spreader. Semi-liquid
materials will discharge faster then the more solid type materials.
•WHEN THE SPREADER IS EMPTY DURING FREEZING TEMPERATURES, be sure that the
spreader is cleaned out to prevent the apron from freezing down.
•IF THE BEATER QUITS TURNING, stop the vehicle, turn off the motor, remove the ignition key,
and check driveline of the spreader, starting in the front with the PTO and working towards the rear of
the spreader.
•NEVER LOAD THE SPREADER SO THE LOAD IS ON THE BEATERS.
*If a problem should occur while unloading the spreader, or if you want to clean off the spreader after it
is empty, NEVER leave the VEHICLE without first turning off the engine and removing ignition key.

FRAME AND SHIELDS BREAKDOWN
22 24 25
9
10
11
24
7
28
23
18
2
3
1
26
27
29 20
21
19
8
7
15 16
17
3
2
20
21
19
5
6
4
12
24
13
14
16

FRAME AND SHIELDS PARTS LIST
ITEM NO. PART NUMBER DESCRIPTION F&S/QTY.
1 810001 810 MAIN FRAME 1
2 810021 FRONT SIDE BOARD 2
3 810022 BACK SIDE BOARD 2
4 810038 810 PTO SHAFT SHIELD 1
5 610006 FLOW CONTROL VALVE COVER 1
6 610081 HYDRAULIC HOSE HOLDER 1
7 810011 810 GEARBOX CHAIN SHIELD 1
8 610011-A SHIELD EXTENSION 1
9 810007 FRONT SIDE SHAFT SHIELD 1
10 810008 MIDDLE SIDE SHAFT SHIELD 2
11 810009 REAR SIDE SHAFT SHIELD 1
12 HX-31-1 5/16" HEX HEAD BOLT, 1" 2
13 LW-31 5/16" LOCK WASHER 2
14 HN-31 5/16" HEX HEAD NUT 2
15 HN-38 3/8" HEX HEAD NUT 16
16 LW-38 3/8" LOCKWASHER 16
17 FW-38 3/8" FLAT WASHER 16
18 HX-38-4.5 3/8" x 4.5" HEX HEAD BOLT 16
19 HX-25-0.75 1/4" HEX HEAD BOLT, .75" 4
20 HN-25 1/4" HEX HEAD NUT 4
21 LW-25 1/4" LOCK WASHER 4
22 198250 BULLDOG SIDEWINDER JACK 1
23 410091 TWINE SHIELD 4
24 LP-25-1.75 1/4" LYNCH PIN 11
25 610004 PTO CHAIN SHIELD 1
26 810044 LEFT BEATER PANEL 1
27 8100047 RIGHT BEATER PANEL 1
28 810045 TOP BEATER BEARING SHIELD 1
29 810049 MIDDLE SIDE SHAFT SHIELD 1
17

APRON DRIVE BREAKDOWN
8
8
34
12
31
2
1
427
20
19
3
4
26
20
19
7
11
32
16
15 35
5
33
14
13
10
29 36
28
29
9
36
18
19
20
21
32
16
22
23
15
5
17
35 24
30
6

APRON DRIVE PARTS LIST
ITEM NO. PART NUMBER DESCRIPTION APRON
BREAKDOWN/QTY.
1 610027 FRONT RUBBER SEAL 1
2 610028 APRON PIPE 1
3 610073 SHAFT COVER 2
4 610074 STRAP FOR FRONT RUBBER SEAL 2
5 610078 WORM GEAR MOUNT 2
6 610079 HYDRAULIC MOTOR BRACE 1
7 810014 1" WEB TIGHTENER SHAFT, 38" 2
8 810017 2" WEB DRIVE SHAFT, 45.06" 2
9 810023 OUTER APRON TIGHTENER 2
10 810024 INNER APRON TIGHTENER 2
11 810027 HYDRAULIC MOTOR BRACE 1
12 810030 FLOOR PLASTIC 1
13 810031 APRON CHAIN 2
14 810031-02 APRON FLIGHT 1
15 W25SDA008030 GEAR BOX, WORM DRIVE 25:1 2
16 W00101-02 COUPLER, 1" 2
17 Z85-11-0620 BOLT, SOCKET HEAD CAP, 3/8" X 1-1/4" 8
18 Z82-03-0528 BOLT, HEX, 5/16" X 1-3/4" Z5 2
19 Z82-66-0505 WASHER, LOCK SPLIT, 5/16 Z5 14
20 Z82-40-0505 NUT, HEX, 5/16"-18 Z5 14
21 Z82-03-1024 BOLT, HEX, 5/8" X 1-1/2" Z5 8
22 Z82-40-1010 NUT, HEX, 5/8" Z5 8
23 Z82-66-1010 WASHER, LOCK SPLIT, 5/8 Z5 8
24 Z82-03-0824 BOLT, HEX, 1/2" X 1-1/2" Z5 8
26 Z82-19-0516 BOLT, TRUSS HEAD, 5/16" X 1" 6
27 Z82-03-0520 BOLT, HEX, 5/16" X 1-1/4" Z5 6
28 Z82-71-0436 PIN, COTTER, 1/4" X 2-1/2" 2
29 Z82-40-1212 NUT, HEX, 3/4" Z5 8
30 Z82-66-0808 WASHER, LOCK SPLIT, 1/2" Z5 8
31 Z82-71-0440 PIN, COTTER, 1/4" X 3" Z5 2
32 C47-00-3124 MOTOR, HYD EATON H-SERIES 14.1 CU IN 4 BOLT 1" KEYED 2
33 M08-56-3077 8 TOOTH, 2" BORE, DRIVE SPRKT 4
34 FAB K5050-2.75 KEY, .50 X .50 X 2.75 4
35 FAB K3838-2 KEY, .38 X .38 X 2.0 2
36 FAB XL-R42 SPROCKET, 6T IDLER 4

FRONT & SIDE DRIVELINES BREAKDOWN
21 6
7
19 1
23
9
10
15
15 23
22
83
10
9
30
17
9
10
16
27
2
31
15
23
10
9
30
18
20
29
526
29
28
29
15
10
15
23
10
9
1
12
25
24 25
11
13
14
4
23
1
