Operator’s Manual

RC5625, RC5620, RC5615 & RC5610

Needle scaler

WARNING

To reduce risk of injury, everyone using, installing, repairing, maintaining,

changing accessories on, or working near this tool must read and

understand these instructions, as well as separately provided safety

instructions part number 8956000272, before performing any such task. 8956001100 Rev 02

05/06/2017

OIL

MN2-14

MD2-12

MN3-14

MD3-12

852100 (1l)

850001 (R1/4"AG)

850002 (R3/8"AG)

850003 (R1/2"AG)

850014 (Ø6)

850015 (Ø9)

850016 (Ø13)

850020 (R1/4" x Ø6)

850021 (R1/4" x Ø9)

850022 (R3/8" x Ø9)

850023 (R3/8" x Ø13)

850024 (R1/2" x Ø13)

850025 (R1/2" x Ø9)

850004 (R1/4"IG)

850005 (R3/8"IG)

850006 (R1/2"IG)

851011 (Ø9)

851012 (Ø13)

851001 (Ø8 x 3m)

851002 (Ø8 x 6m)

851003 (Ø8 x 7.5m)

851005 (Ø8 x 5m with couplings)

851008 (Ø8 x 8m with couplings)

851010 (Ø8 x 10m with couplings)

850027 (R1/4"AG/Stahl)

850028 (R1/4"AG)

850029 (R3/8"AG)

850030 (R1/2"AG)

START

AIR-OIL

852100

AIR-OIL

10 h

3 ccm

852100

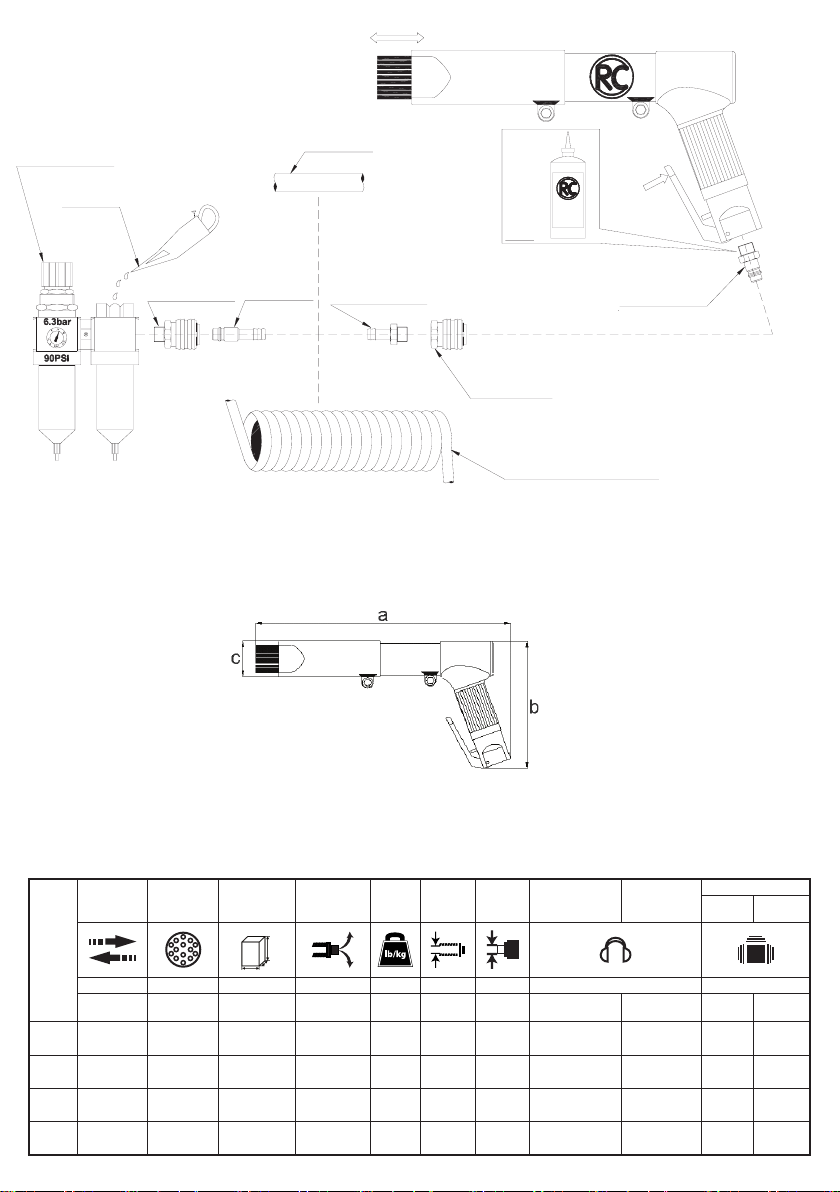

Fig. 1

Fig. 2

Model

Blows

per minute

Needles

Capacity

Dimension

a x b x c / a x c

Air cons.

Average Weight Inner

Hose Dia. Air Inlet SoundPressure

LpA

SoundPower

LwA

Vibrations

ahd k

3 2 3 4 5 6 7 8 9

[min-1] (Qty x Ø) [inch]

[mm]

[Nl/s]

[cfm]

[lb]

[kg] [mm] [inch] [dB(A)] [dB(A)] [m/s²] [m/s²]

RC5625 3000 29 x 2

19 x 3 320 x 175 x 47 2

4.2

6.0

2.7 8 1/4” 94 105 17.7 3

RC5620 4500 28 x 3

14 x 4 345 x 180 x61 3.3

7.9

3.6 13 3/8” 97.6 107.6 13.7 1.9

RC5615 4000 12 x 3 290 x 35 2

4.2

2.8

1.30 8 1/4” 88.1 98.1 11.4 1.6

RC5610 4000 19 x 3 468 x 44 3.3

5.62

2.55 8 1/4” 89.5 99.5 16.8 2.2

1.Technical Data

Model

Blows per minute capacity Dimension

Air Consumption

Average Weight Inner Hose Dia. Air Inlet Sound pressure

LpA

Sound power

LwA

Vibrations

ahd K

1 2 3 4 5 6 7 8 9

min-1 (Qty x Ø) [inch]

[mm]

[Nl/s]

[SCFM]

[kg]

[lb]

[inch]

[mm] [inch] [dB(A)] [dB(A)] [m/s²] [m/s²]

max. pressure 6.3bar(90psi)

ah:Vibration level, kUncertainty ; LpA Sound pressure dB(A), KpA = KWA = 3 dB Uncertainty.

Declaration of noise and vibration statement (ISO 15744 and ISO 28927-9)

All values are current as of the date of this publication. For the latest information please visit www.rodcraft.com.

These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared

values of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured

in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way

the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user. We, RODCRAFT PNEUMATIC

TOOLS , cannot be held liable for the consequences of using the declared values, instead of values re󰘱ecting the actual exposure, in an individual risk

assessment in a work place situation over which we have no control. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

An EU guide to managing hand-arm vibration can be found at www. pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf. We

recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management procedures can

be modi󰘰ed to help prevent future impairment.

2. Machine type(s)

• This product is designed for removing material using a chisel or suitable needles. No other use permitted. For professional use only.

• Please read the instructions carefully before starting the machine.

3. Operation

• Fix the accessories properly to the tool.

• Connect device as shown in Fig. 01.

• To start the machine, pull the trigger (A). Machine speed is increase by increasing pressure on the trigger. Release the trigger to stop.

• Remember that it is always the tool that must do the work. There is no need for the operator to apply extra pressure on the tool when it is working. Maintain

the contact with the work surface by applying enough pressure to stop the tool from bouncing.

4. Lubrication

• Use an air line lubricator with SAE #10 oil, adjusted to two drops per minute. If an air line lubricator cannot be used, add air motor oil to the inlet once a day.

5. Maintenance instruction

• Follow local country environmental regulations for safe handling and disposal of all components.

• Maintenance and repair work must be carried out by qualified personnel using only original spare parts. Contact the manufacturer or your nearest authorised

dealer for advice on technical service or if you require spare parts.

• Always ensure that the machine is disconnected from energy source to avoid accidental operation.

• Disassemble and inspect the tool every three 3 months if the tool is used every day. Replace damaged or worn parts.

• High wear parts are underlined in the parts list.

6. Disposal

• The disposal of this equipment must follow the legislation of the respective country.

• All damaged, badly worn or improperly functioning devices MUST BE TAKEN OUT OF OPERATION.

• Repair only by technical maintenance staff.

7. EU Declaration of conformity

We : Rodcraft Customer Center Langemarckstr.35 bis 45141 Essen- Germany

Machine type(s): Needle Scaler

Declare that the product(s): RC5610, RC5615, RC5620 & RC5625 Serial Number: 001 - 999

Origin of the product : Taiwan

is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : to “Machinery“ 2006/42/EC (17/05/2006)

applicable harmonised standard(s) : EN ISO 11148-4:2012

Name and position of issuer : Pascal Roussy (R&D Manager)

Place & Date : Saint-Herblain, 05/06/2017

Technical le available from EU headquarter. Pascal Roussy R&D manager CP Technocenter 38, rue Bobby Sands - BP10273 44800 Saint Herblain - France
