rohaus Perfect Temp RI910B User manual

1
Perfect Temp
Steam Iron
RI910B
Instruction
rohaus.com
COTTON
Steam Iron RI910B _UK_AW.indd 1 27/06/2014 14:49

2 3
Contents Introduction
Congratulations on the purchase of
your Rohaus Perfect Temp Steam Iron.
Combining Dutch technology, European
engineering, 21st century design and
professional product specification, for us,
an outstanding appliance is not just a delight
to use, it should inspire pride in ownership.
Working in harmony with you, a natural
expression of your style and skills, tough and
powerful and yet with a balanced precision,
every appliance we put our name to amplifies
technique and enhances life.
We call this: Living Engineering.
The Rohaus Perfect Temp Steam Iron is
designed with Premium durable scratch
resistant Rodilium soleplate that together
with Digital thermostat guarantees precise
temperature control for eortless and
quick ironing.
Introduction 3
Rohaus Safety Precautions 4
Features of your Rohaus Perfect Temp Steam Iron 6
Using your Steam Iron 8
Auto shut-o feature 10
Care and Cleaning 11
Troubleshooting guide 12
Ironing Tips and Tricks 13
Ironing chart 14
Please read these instructions and retain for further reference.
Steam Iron RI910B _UK_AW.indd 2-3 27/06/2014 14:49

4 5
Rohaus Safety Precautions
•Do not leave a hot iron within reach of
children. If they come into contact with
a hot iron it could lead to serious burns.
•Iron only on an ironing board.
•An iron takes approximately 30 minutes
to cool down. Allow the iron to cool
completely before storing.
•Do not wind the cord around the
soleplate while the iron is still hot.
•Do not leave the iron unattended while
it is plugged into the power outlet.
•Always unplug the iron from the power
•Do not leave a hot iron within reach
of outlet before filling or emptying the
water tank
•The iron must be used and rested on
a stable surface.
•Iron only on an ironing board.
•The iron is not to be used if it has been
dropped if there are visible signs of
damage or if it is leaking.
•This iron features an “auto-o” function,
which is an additional safety feature
designed to disconnect power to the
heating element if the iron has not been
used for a certain period of time.
Rohaus is very safety conscious when
designing and manufacturing consumer
products, but it is essential that the
product user also exercise care when
using an electrical appliance. Listed below
are precautions which are essential for the
safe use of an electrical appliance:
•Read carefully and save all the
instructions provided with an appliance.
•Always turn the power o at the power
outlet before you insert or remove a plug.
Remove by grasping the plug - do not
pull on the cord.
•Turn the power o and remove the plug
when the appliance is not in use and
before cleaning.
•Do not use your appliance with an
extension cord unless this cord has
been checked and tested by a qualified
technician or service person.
•Always use your appliance from a power
outlet of the voltage (A.C. only) marked
on the appliance.
•This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the appliance by a person responsible
for their safety.
•Children should be supervised to ensure
that they do not play with the appliance.
•The temperature of accessible
surfaces may be high when the
appliance is operating.
•Never leave an appliance unattended
while in use.
•Do not use an appliance for any purpose
other than its intended use.
•Do not place an appliance on or near
a hot gas flame, electric element or
on a heated oven.
•Do not place on top of any other appliance.
•Do not let the power cord of an appliance
•hang over the edge of a table or bench
top or touch any hot surface.
•Do not operate any electrical appliance
with a damaged cord or after the
appliance has been damaged in any
manner. If damage is suspected,
return the appliance to the nearest
Rohaus Appointed Service Centre for
examination, repair or adjustment.
•For additional protection, Rohaus
recommend the use of a residual current
device (RCD) with a tripping current not
exceeding 30mA in the electrical circuit
supplying power to your appliances.
•Do not immerse the appliance in water
or any other liquid unless recommended.
•Appliances are not intended to be
operated by means of an external timer
or separate remote control system.
•This appliance is intended to be used in
household and similar applications such
as: sta kitchen areas in shops, oces
and other working environments; farm
houses; by clients in hotels, motels and
other residential type environments; bed
and breakfast type environments.
If you have any concerns regarding the
performance and use of your appliance,
please visit www.rohaus.com or contact
the Rohaus Consumer Service Line.
Ensure the above safety precautions
are understood.
Steam Iron RI910B _UK_AW.indd 4-5 27/06/2014 14:49

6 7
COTTON
Features Of Your Rohaus Perfect
Temp Steam Iron
Extreme shot of steam
Squeezing the shot of steam trigger instantly
produces a concentrated, high-pressure shot
of steam to remove stubborn wrinkles.
Vertical shot of steam
Squeezing the shot of steam trigger with the iron
in an upright position produces a vertical shot of
steam, which is ideal for steaming curtains and suits,
and removing creases from delicate fabrics.
Fine spray mist
Pressing the spray button provides a fine mist spray
to dampen hard-to-iron fabrics.
Water tank with easy-fill water inlet
Holds 300ml of water for continual high steam
performance without having to refill the tank regularly.
Drip-stop steam system
The drip-stop steam system automatically stops
water flowing to the steam chamber should the
temperature fall too low to generate steam. This
prevents dripping, even at low temperatures.
Full length button groove
For ironing around buttons.
2400 watts for fast heat up
Provides faster initial heat up and rapid heat
recovery during ironing. The 2400W element
helps to maintain your selected temperature,
and provides superior shot of steam output.
Rodilium non-scratch soleplate
Rodilium is a durable, scratch resistant surface that
provides a superior glide and prevents rucking.
Exclusive to Rohaus, this premium soleplate features
172 steam holes to maximise steam distribution.
Digital thermostat
The digital thermostat provides precise
temperature control, allowing you to select
the exact temperature recommended for each
garment. It eliminates temperature overshoot
and minimises temperature fluctuations. This
ensures consistently superior results and
prevents scorching.
Temperature alert
The light located on the iron handle indicates
when the iron soleplate has reached the
selected temperature.
Green = ready to iron
Orange = heating up
Red = too hot, cooling down
Temperature control
Use the + and - buttons to select the desired
temperature setting for each garment, as
displayed on the LCD.
LCD screen
The illuminated LCD displays the selected
fabric setting.

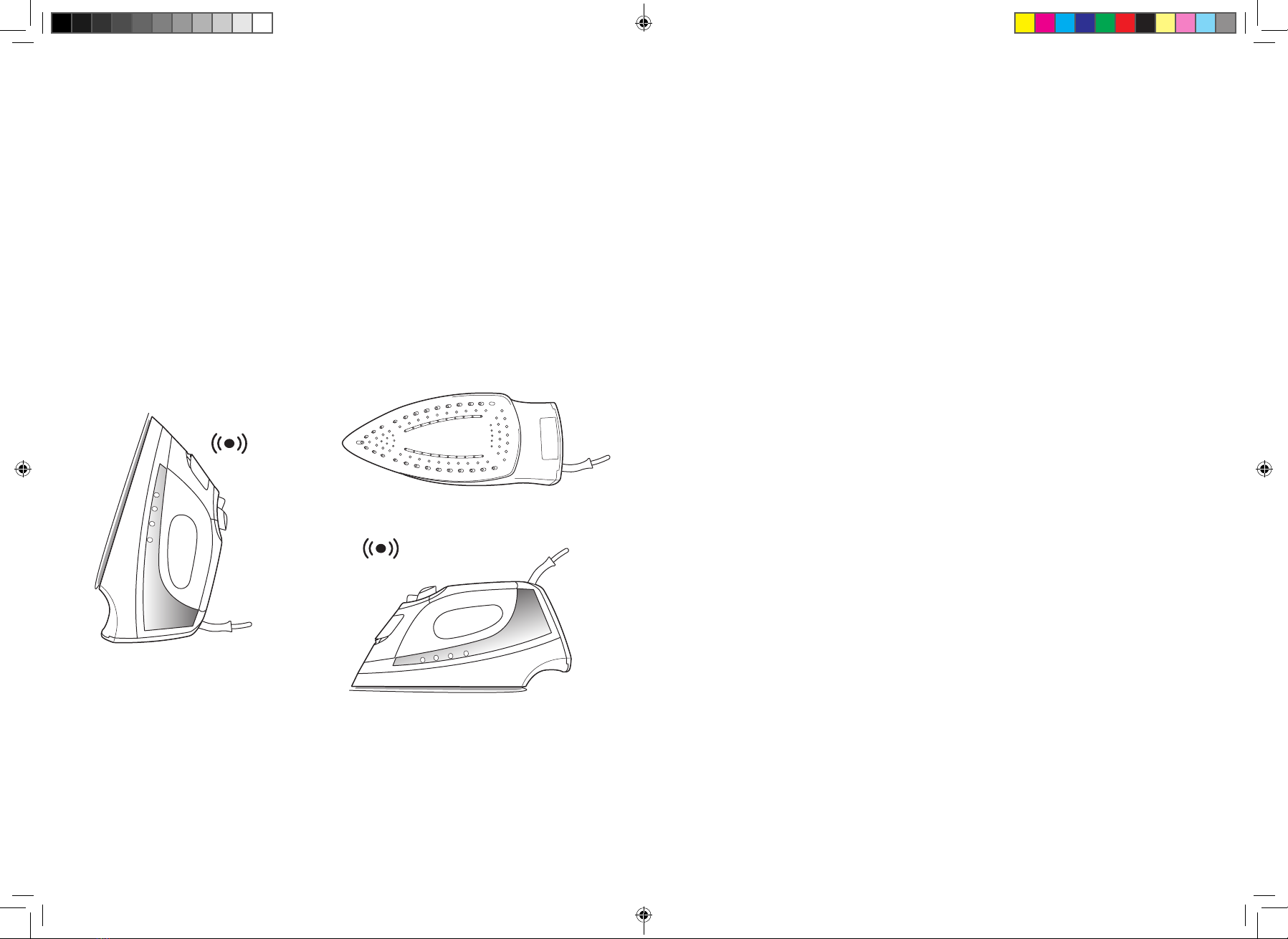

Safety auto-o
The iron automatically switches itself o if left in
the ironing position (horizontal) for 30 seconds,
or in the heel rest position (vertical) for
15 minutes. (For more information on the
safety auto o feature see page 7).
Variable steam dial
Allows you to select the desired steam output
for each garment. Alternatively, select the DRY
setting to iron without steam.
Anti-calc
The built-in anti-calc cartridge removes minerals
from tap water to prevent scale build up inside
the soleplate and steam chamber, prolonging
the life of your iron.
Steam Iron RI910B _UK_AW.indd 6-7 27/06/2014 14:49

8 9
Using the shot of steam
The shot of steam can be used when dry or
steam ironing, when the temperature is set
abovethetwodot(••)setting.
1. Ensure the tank is at least 1/4 full of water.
2. Select the desired temperature and
wait until the temperature alert light
illuminates green.
3. Squeeze the shot of steam trigger
several times with the iron on the soleplate
to prime the pump.
Note: If the tank has run dry, it may be necessary to
re-prime the pump after filling the iron with water.
Using the spray mist
The spray mist can be used whether dry
or steam ironing to pre-dampen hard to
iron fabrics.
1. Ensure the tank is at least 1/4 full of water.
2. Press the spray button during ironing to
release a fine mist from the spray nozzle.
Before first use
Remove any adhesive stickers, plastic
covers or cardboard sleeves from the
soleplate. Ensure that all adhesive is
removed by rubbing the soleplate with
a cloth dampened with methylated spirits.
Fill the water tank and empty the water.
This will rinse out any foreign particles
remaining in the water tank from the
manufacturing process.
NOTE: When turned on for the first time, your
new iron may give o vapours for up to 10
minutes. This is due to the initial heating of the
materials used. It is safe, not detrimental to the
performance of the iron, and will not reoccur.
Filling the iron with water
Before filling the iron with water ensure
the power is turned o and the plug is
removed from the power outlet. The iron
can be filled with water while it is hot.
Place the iron on its heel and open the
water inlet cover.
Slowly pour water into the water inlet
until the maximum water level is reached.
Do not exceed the maximum water level
indicator. Push the water inlet cover firmly
to close.
NOTE: The anti-calc cartridge and special
soleplate design allows you to use tap water
with your Steam iron without aecting the steam
performance. However in very hard water areas,
Rohaus recommends the use of distilled water,
or water which has been demineralised.
Do not fill the iron with fabric conditioner,
starches or any other solution as these will
damage the steam mechanism. Do not use
contaminated water.
Using your iron
1. Insert the plug into a 220-240 volt
power outlet and turn the power on. The
LCD screen and the orange temperature
alert light (located on top of the handle)
will illuminate to indicate that the iron is
switched on and heating.
2. Use the temperature +/- buttons to
select the desired temperature. The bars
on the LCD will flash as the iron heats
up to the selected temperature setting.
As each incremental temperature is
reached the bars will display solidly. When
the temperature alert light changes to
green, the iron has reached the selected
temperature and is ready to use.
NOTE: When the temperature is changed from a
high setting to a lower temperature setting during
ironing, the temperature alert light will change
to red. This indicates that the iron is cooling to
the selected temperature. To ensure that the iron
has reached the selected temperature and is
not too hot, wait until the temperature alert light
illuminates green before ironing.
Dry ironing
Follow steps 1 and 2 above.
3.Select DRY on the steam dial. This will cut
o the steam flow if there is water in the tank.
Steam ironing
Follow steps 1 and 2 above.
NOTE: When steam ironing, ensure that the
temperature is set to the silk setting or above,
and that the tank is at least 1/4 full of water.
3. Turn the steam dial to the desired
steam setting.
Using Your Rohaus Steam Iron
Steam Iron RI910B _UK_AW.indd 8-9 27/06/2014 14:49

10 11
Care And CleaningThe 3-Way Safety Auto-O Feature
The safety auto-o mechanism automatically
turns the iron o if you forget.
The iron will automatically shut o if left
on the heel rest (vertical) for 15 minutes
without being moved, or in the ironing
position (horizontal) for 30 seconds, or if
it is knocked onto its side (See figure 2).
Should you leave the iron unattended,
the LCD screen and the red temperature
alert light will flash, and a warning beep
will sound to let you know that the auto-o
function has been activated.
Power to the iron’s heating element will be
cut and the iron will start to cool. After 30
seconds the frequency of the beep alarm
will decrease.
Once the iron is moved the power will
reconnect. Allow the iron to heat until the
temperature alert light illuminates green,
and continue ironing as normal.
After each use
1. Turn the power o and remove the plug
from the power outlet.
2. Allow the iron to cool before winding the
cord around the built-in cord wrap.
Storage
Always store the iron on its heel rest.
Do not store the iron with the soleplate
facing down, or in the carton.
Cleaning
To clean the exterior of your iron, wipe over
with a damp soft cloth and wipe dry.
Caution: Do not use harsh abrasives,
chemical cleaners or solvents to clean the
exterior of your iron as these will damage
the surface.
Cleaning the steam holes
To remove build up from the steam holes
which may aect steam performance, use a
cotton wool tip moistened in methylated spirits.
Cleaning the Rodilium soleplate
Wipe with a soft damp cloth and wipe dry.
Caution: Do not use scouring pads,
abrasives or harsh cleaners to clean your
Rodilium, soleplate, as these will scratch
and damage the surface.
15 Minutes
30 Seconds
Steam Iron RI910B _UK_AW.indd 10-11 27/06/2014 14:49

12 13
If the following conditions occur
simultaneously, it indicates a possible fault
within the thermistor. These conditions will
persist until the soleplate thermistor
is working correctly.
•The temperature alert light flashes red
continuously, and
•The LCD backlight remains lit, and
•The temperature cannot be changed
from the MAX setting, and the circular
graphic flashes and counts up to the
MAX segment continuously.
To reset the iron, simply switch it o at
the power outlet, switch it back on again
and wait 15 seconds. The iron should
now operate normally. If the fault occurs
regularly return the iron, along with your
purchase receipt, to the place of purchase
for a replacement or refund.
Note: the fault conditions described above are
dierent to what occurs when the safety auto-
o feature is activated. When the iron is in the
auto-o mode the LCD backlight will flash, the
temperature alert light on the handle will flash
red, and a warning beep will sound.
Tip # 1 - Iron shirts like a pro
Start with the collar, working from the outer
edges into the middle. Iron the shoulder
next, followed by the cus and sleeves.
Place the collar at the narrow end of the
board so that one front panel of the shirt
is extended flat. Iron the front panel from
shoulder to shirt tail. Rotate to iron the
back of the shirt. Rotate and complete the
remaining front panel.
Tip # 2 - Tips for T-shirts
Straighten seams on t-shirts before
hanging out to dry. To avoid damage to
printed graphics and logos turn the t-shirt
inside out and iron the reverse side of the
print. Never iron areas of your t-shirt where
perspiration marks are visible as the heat of
the iron will permanently fix the stain.
Tip # 3 - Hung out to dry
When washing is complete, remove shirts
from the machine immediately, shake them
out and hang them on coat hangers to air
dry – this will keep wrinkles to a minimum.
Tip # 4 - Selecting the right temperature
If you are unsure of the correct setting for
a particular garment, test a small area such
as a seam or inside hem before ironing a
visible area. Start with a low temperature
and slowly increase the heat to find the
best setting.
Tip # 5 - Don’t be afraid to iron silk
Don’t be afraid to iron silk. Although delicate
in appearance, silk is the strongest and most
resilient of all natural fibres. To achieve the
best results, set to a low cotton setting and
use regular shots of steam. Always use a
pressing cloth to avoid shine marks.
Tip # 6 - Ironing the seam
Always press seams in the same direction
they were made. When a garment is
produced, the fibres will naturally settle in
the direction they were initially pressed, so
it’s best not to iron against the grain.
Tip # 7 - Sort types of fabric
Sort articles to be ironed according to the
type of fabric. This will reduce the need
to adjust the temperature constantly. Start
with articles requiring lower temperatures
and work your way through to items
requiring higher settings.
Tip # 8 - Summer frocks and frills
Steam is the key when ironing delicate
summer fabrics such as muslin, cotton
and linen. Don’t press down with the iron,
simply hover above the garment and steam
it using a vertical shot of steam. Ruing,
netting, tulle or intricate hand detailing is
also best ironed using this method.
Tip # 9 - Pressing your winter woollies
Steam is crucial when pressing your winter
woollies. Woollen garments can be hung
and steamed using the vertical shot of
steam feature. After steaming, brush the
garment with your hand to plump up
woollen fibres. If ironing the garment flat
it is best to use a pressing cloth. Don’t be
afraid to apply pressure – steam and hold.
Tip # 10 - Table settings to impress
To avoid unwanted creases always iron
your table cloth after taking it out of the
cupboard. A dinner party is a special
occasion, so treat the table cloth as you
would your own outfit. For best results, lay
towels across your table and iron the table
cloth over the towels. This will save you
time and ensure a beautifully presented
table setting.
Troubleshooting Ironing Tips And Tricks
Steam Iron RI910B _UK_AW.indd 12-13 27/06/2014 14:49

14
Ironing Chart
Temperature
Setting
Fabric Ironing Recommendation
minimum Acrylic
Acetate
Nylon
Dry iron on wrong side.
Dry iron on wrong side while still damp or use
spray to dampen.
Iron on wrong side while still damp or use
spray to dampen.
synthetic Polyester & Rayon
Viscose
Iron on wrong side of fabric.
Mainly dry iron. Steam can be used under
manufacturer’s instructions.
silk Silk
Cotton Blends
Iron on wrong side. Use an ironing cloth
to prevent shine marks.
Check label and follow manufacturer’s
instructions.
wool Wool & Wool
Blends
Use setting for the fibre requiring the
lowest setting.
Steam iron on wrong side or use an
ironing cloth.
cotton Cotton
Corduroy
Dry iron while still damp or use spray to
dampen. Use steam medium to high.
Steam iron on wrong side or use an
ironing cloth.
linen Linen Iron on wrong side or use an ironing cloth to
prevent shine marks, especially with dark colours.
Dry iron while still damp or use spray to dampen.
Use steam medium to high.
maximum Denim Use maximum steam.
Steam Iron RI910B _UK_AW.indd 14 27/06/2014 14:49
