Rolladen-Schneider LS4-b Technical specifications

Flight Manual LS4-b (without fin tank) General
Issued: February 2019 Revision 5 TN 4049 Page 0-1
Log of Revisions
Any revision of the present manual, except actual weighing data, must be
recorded in the following table and in case of approved sections endorsed by the
responsible airworthiness authority.
The new or amended text in the revised page will be indicated by a black
vertical line in the right hand margin, and the revision No. and the date will be
shown on the bottom of the page.
Rev.
No.
Pages affected Date of
issue
Approval Date of
approval
Date of
insertion
Signature
1 0-1, 0-2, 4-12,
5-1, 7-5
May 17,
1995
LBA 23.05.1995
2 0-1, 0-2, 4-6,
4-12
Oct. 1999
(TB4043)
LBA 4.11.1999
3 0-1, 0-2, 2-4,
4-7, 4-8a, 4-9a
Dec. 2002
(TB 4046)
LBA 27.08.2003
4 0-1, 0-2, 2-4 May 2011
TNLS-S-01
EASA 2.09.2011
5 0-1, 0-2, 2-4,
9-1 – 9-6
Febr. 2019
TN4049
EASA 8.04.2019

Flight Manual LS4-b (without fin tank) General
Issued: February 2019 Revision 5 TN 4049 Page 0-2
Chapter Page Date Chapter Page Date
Title Mar. 18. 1992 5 5-1 Mar. 18. 1992
0 0-1
F
ebr. 2019 / TN4049
0-2
F
ebr. 2019 / TN4049 6-1 Mar. 18. 1992
0-3
Mar. 18. 1992 6-2 Mar. 18. 1992
1 1-1 Mar. 18. 1992 7-1 Mar. 18. 1992
1-2
Mar. 18. 1992 7-2 Mar. 18. 1992
7-3 Mar. 18. 1992
2 2-1 Mar. 18. 1992 7-4 Mar. 18. 1992
2-2
Mar. 18. 1992 7-5 Mar. 18. 1992
2-3
Mar. 18. 1992
2-4
Febr. 2019 / TN4049 8-2 Mar. 18. 1992
2-5
Mar. 18. 1992 8-3 Mar. 18. 1992
2-6
Mar. 18. 1992 8-4 Mar. 18. 1992
2-7
Mar. 18. 1992 8-5 Mar. 18. 1992
2-8
Mar. 18. 1992 8-6 Mar. 18. 1992

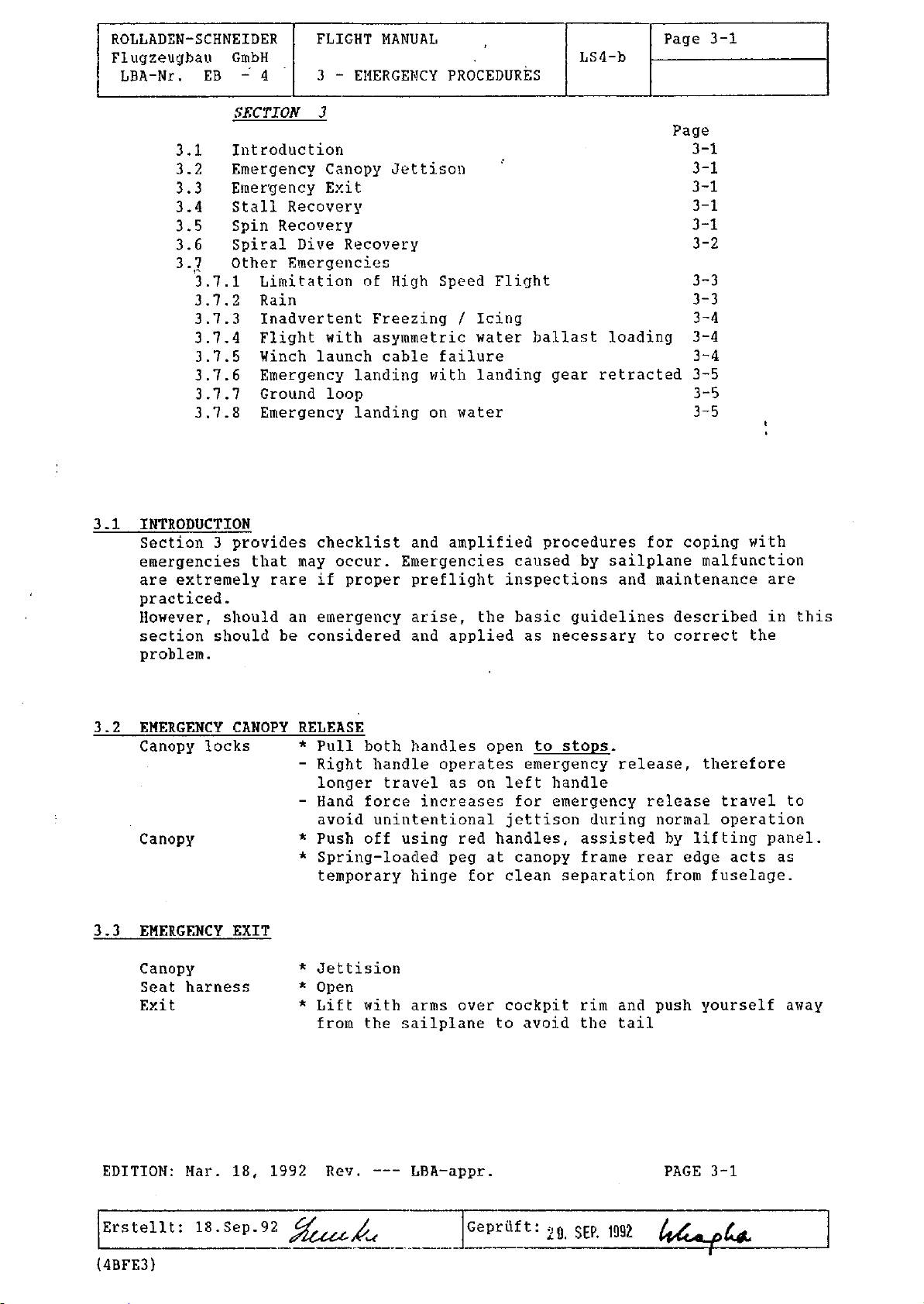

3 3-1 Mar. 18. 1992 9 9-1 Febr. 2019 / TN4049
3-2
Mar. 18. 1992 9-2 Febr. 2019 / TN4049
3-3
Mar. 18. 1992 9-3 Febr. 2019 / TN4049
3-4
Mar. 18. 1992 9-4 Febr. 2019 / TN4049
3-5
Mar. 18. 1992 9-5 Febr. 2019 / TN4049
9-6 Febr. 2019 / TN4049
4 4-1 Mar. 18. 1992
4-2
Mar. 18. 1992
4-3
Mar. 18. 1992
4-4
Mar. 18. 1992
4-5
Mar. 18. 1992
4-6
Oct. 1999 / TB4043
4-7
Dec. 2002 / TB4046
4-8
Mar. 18. 1992
4-8a
Dec. 2002 / TB4046
4-9
Mar. 18. 1992
4-9a
Dec. 2002 / TB4046
4-10
Mar. 18. 1992
4-11
Mar. 18. 1992
4-12
Oct. 1999 / TB4043
4-13
Mar. 18. 1992

Flight Manual LS4-b (without fin tank) Limitations
Issued: February 2019 Revision 5 TN 4049 appr. Page 2-4
2.4 Mass (weight:
Max. flight mass (with water ballast): 525 kg <1157 lbs.>
Max. flight mass without water ballast: Wmax= Wnlp + Wwings
Max. mass of non-lifting parts Wnlp: 230 kg <507 lbs.>
Wnlp with TN 4046/4047 executed (water bags removed or
water bags marked V112) : 250 <551 lbs.>
Note: If required, the max. mass of non-lifting parts may be increased according
to maintenance manual LS4 issued May 2011 section 2.2.1 item 2 and tables in
section 2.4. This is not valid if TN4049 neo-Winglets has been performed.
The term “non-lifting parts” includes the following:
 Fuselage with permanently installed instruments, canopy and
main pins
 Cockpit load
 Horizontal tail
Tail fin ballast does not count for “non-lifting parts”, but for max. all-
up mass.
Caution: With TN4045 (winglets) executed, the max. mass and the max. mass
of the non-lifting parts are reduced by 10 kg (22 lbs.). The max. amount of water
ballast is limited to 100 kg (220 lbs.)
Water ballast in the wings (depending on loading conditions and
ballast bag size): max. 100 kg <220 lbs.>
or max. 160 kg <353 lbs.>
Loading instructions see pages 4-7 up to 4-9a
Max. mass in baggage compartment: 5 kg <11 lbs.>
Loading instructions see page 4-6
Max. mass of all instruments panel installations: 6.7 kg <14.8
lbs.>
Warning: If C.G. weighing had been performed with a tail fin battery – see
entry on page 6-1/2 -, then the battery must always be carried in the vertical fin.
