Rollei Pissarro DPF 170 User manual

1
English
Cautions
Precautions and maintenance
For indoor use only
To avoid risk of fire or electric shock, do not expose the unit to moisture or
condensation.
To avoid overheating, do not block the ventilation holes on the back of the Digital Photo
Frame.
Keep the Digital Photo Frame out of direct sunlight.
Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are
no user-serviceable parts inside. Dismantling the Digital Photo Frame will void your
warranty.
Cleaning the LCD Screen
Treat the screen carefully. Because the screen of the Digital Photo Frame is made of
glass and it would easily be broken or scratched.
If fingerprints or dust accumulate on the LCD screen, we recommend using a soft,
non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.
WARNING:
To reduce the risk of fire or electric shock, do not expose this appliance to
rain or moisture
Note: This Device is for private use only and not designed for commercial
utilization.

2
Introduction:
Thank you for the purchase of the Digital Photo Frame. It is designed to allow quick and easy
view of photos taken from your digital camera, mobile phone, or from a memory storage
card. Please read this User Manual carefully to learn the correct way to use the Digital Photo
Frame.
Features:
1. Supported picture format: JPEG
2. Supported audio format: Mp3& WMA
3. Supported video format: MPEG-1, MPEG-2, MPEG-4 (Divx4.0,Divx5.0), Xvid, AVI and
M-JPEG
4. Supported Full HD MOVIES:720P/820P/1080P & RMVB& H.264
5. Supported memory card: SD/SDHC/MMC/MS
6. USB connection: Mini USB & USB 2.0
7. Build in Memory:4GB support PC connection and file storage
8. Auto file play when inserting Memory Card
9. Picture & Music: Slideshow with background music
10. Support viewing pictures in thumbnail mode
11. Schedule auto on/off.
12. Image-display mode: slideshow, preview, zoom, rotate function.
13. Adjustable slideshow speed
14. Copy files to Memory and delete files in the Cards & Memory
15. Built-in stereo speaker (2x2W) and earphone Jack
16. Wall mountable
17. OSD languages: German, English, French, Spanish, Portuguese, Italian, Greek, Czech,
Hungarian, Polish, Russian, Danish, Swedish, Norwegian, Finnish ,Dutch
Packaging Check List:
1. 17.3 inch digital photo frame
2. AC/DC adaptor
3. Remote control
4. User manual
5. Warranty card
6. Facebook card
7. Bracket
8. Long USB Cable
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece

3
CONTENTS
1. Product Diagram ....................................................................................................................4
1.1 Remote Control.............................................................................................................4
1.2 Back side Buttons..........................................................................................................5
1.3 Left side of the frame....................................................................................................5
2. Installing & Replacing the Battery..........................................................................................5
3. Getting Started.......................................................................................................................5
4. Operating Instruction.............................................................................................................6
4.1 Card and USB ................................................................................................................6
4.2 Picture Mode ................................................................................................................6
4.3 Music Mode ..................................................................................................................7
4.4 Video Mode ..................................................................................................................7
5. Calendar .................................................................................................................................7
6. File..........................................................................................................................................7
7. Setting ....................................................................................................................................8
8. Stand Instruction....................................................................................................................8
9. PC Connection........................................................................................................................9
10. Technical Specifications .......................................................................................................9
11. Troubleshooting Guide.........................................................................................................9
12. Conformity Declaration......................................................................................................10

4
1. Product Diagram

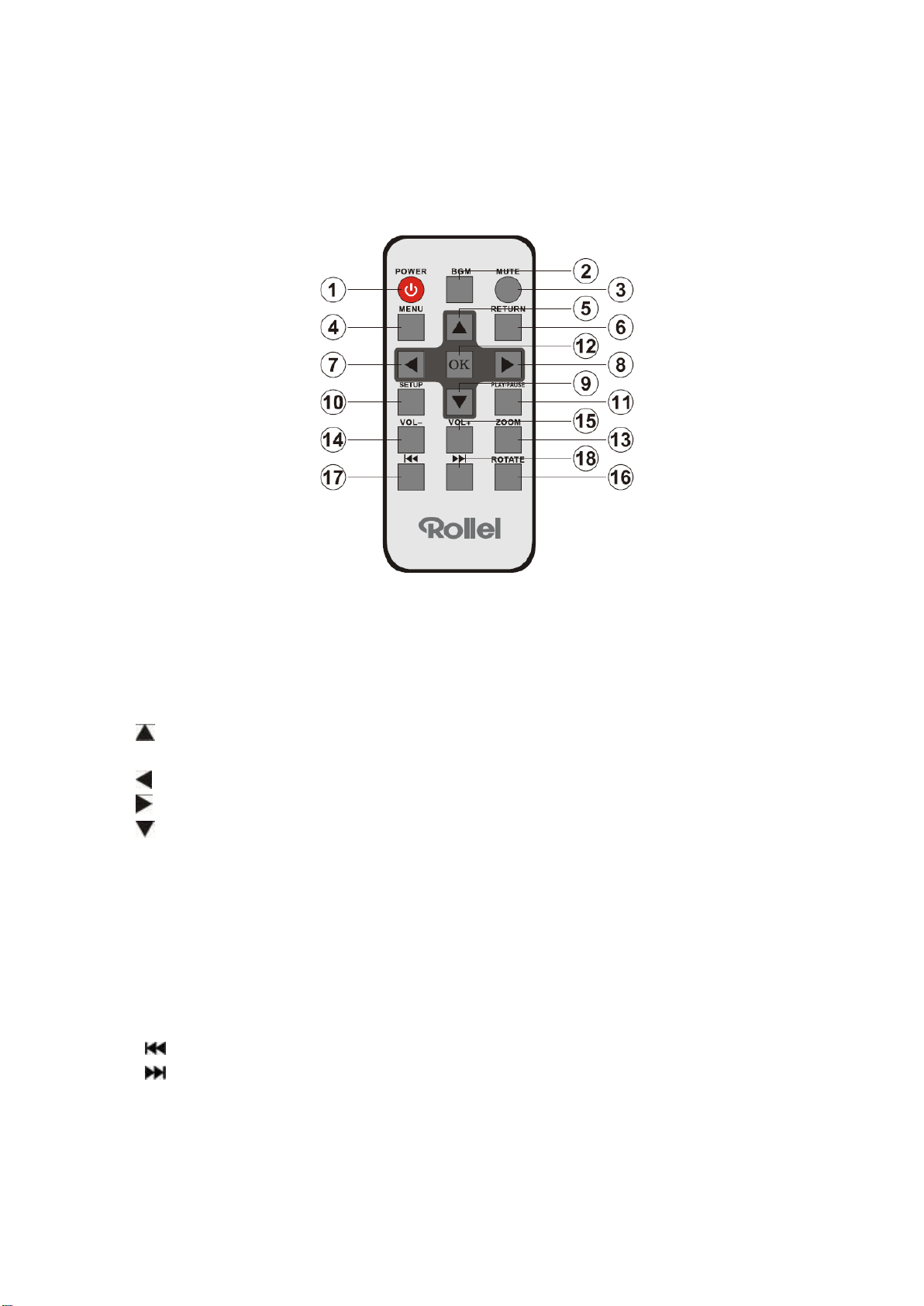

1.1 Remote Control
1) POWER ─ Switch On/Off
2) BGM ─ Press BGM button to play the background music in slideshow mode
3) MUTE ─ Press Mute button to switch of the sound temporarily.
4) MENU ─ Enter Main Menu interface.
5) ─ Functional selection button from the bottom to the top cursor.
6) RETURN ─ Return to previous page.
7) ─ Functional selection button from right to left cursor
8) ─ Functional selection button from left to right cursor
9) ─ Functional selection button from the top to the bottom cursor.
10) SETUP ─ Go directly to Setup mode
11) Play/Pause ─In the playing mode, press this button, it will pause; repress this button, it
will play again.
12) OK ─ Press to confirm.
13) ZOOM ─ In the pause state of single picture, Press ZOOM to magnify picture display size.
14 /15) VOL +/- ─Turn up/down the volume
16) ROTATE ─ In the pause state of single picture, Press this button to revolve the picture
90°in clockwise direction each time.
17) ─Move back to previous music or video file.
18) ─Move forward to next music or video file.

5

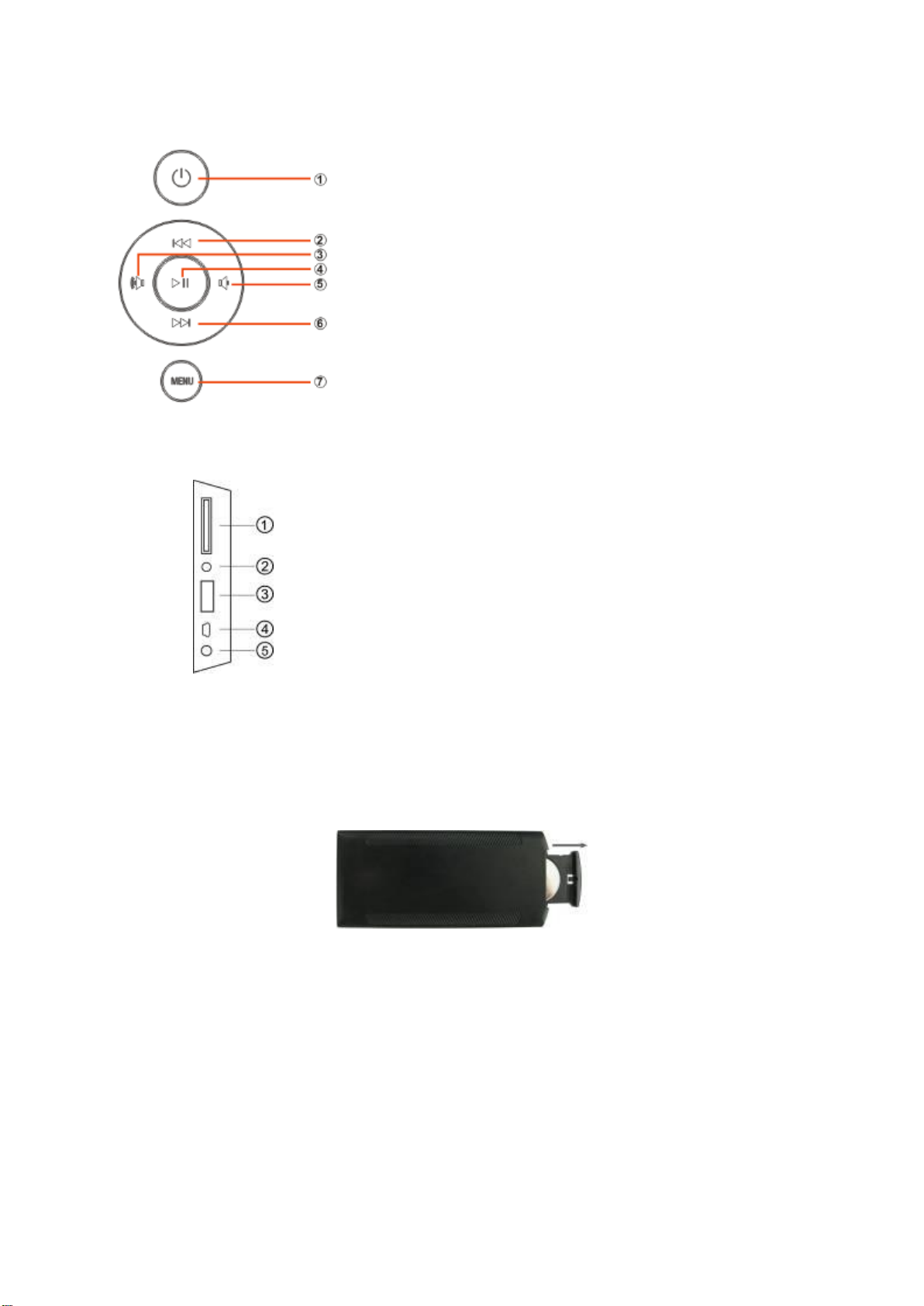

1.2 Back side Buttons
1.3 Left side of the frame
2. Installing & Replacing the Battery
Place the upside of the remote control down, press down on the ridged area of the battery
cover and pull towards you to remove the tray. Place one CR2025 lithium button-cell battery
on the tray with the positive “+” side facing you. Reinsert the tray.
3. Getting Started
3.1. Put the digital photo frame with installing bracket on a flat position steadily, then plug
one end of the AC adapter into a standard 110-240V AC electrical outlet and the other
end into the DC IN slot on the left side of the frame.
3.2. Slowly remove the protective film covering on the Screen.
3.3. Remove the plastic battery insulator from the battery compartment and make sure the
remote control has a battery inside. Please refer to “Installing & Replacing Battery” if
you need a new battery.
3.4. Press the power button on the backboard or press the Power Button on the Remote
Control to Switch On/Off.
1. Power on/off
2. Up
3. Vol +/Right
4. Play/Pause/OK
5. Vol -/ Left
6. Down
7. Menu
1. SD/MMC/MS Card
2. Earphone Jack
3. USB
4. Mini USB
5. DC in

6
4. Operating Instruction
Note: The 16-languages selection can be recalled after a reset to the default settings. Enter
the Setup interface and choose system setup for default.
4.1 Card and USB
The Frame supports SD/SDHC/MMC/MS Cards and USB 2.0. After inserting a card or USB
device, the frame plays automatically the file format you selected in the Auto start-Menu.
Press Return twice to access to Photo, Music, Video, Calendar, File and Setting. Press OK to
confirm.
Note:
1) Make sure there are supported Picture-, Music- or Video-files on the Card or USB device.
2) If there are supported picture and music files in the Card or USB Device, the frame will
start the playback automatically.
4.2 Picture Mode
Press OK to go the function toolbars and confirm your selection with OK.
Press Return to select the Storage Device. Press
OK to open the main menu, select Photo and
press OK to start slideshow. Press Return to
open the Preview Mode and use to
select the desired picture. Press OK to confirm
your selection. To play back the slideshow with
background Music, the Music must be stored in
the same memory device! You can use Vol+/Vol-
to turn up /down the volume, you can also use
to go to the previous/next background
music.

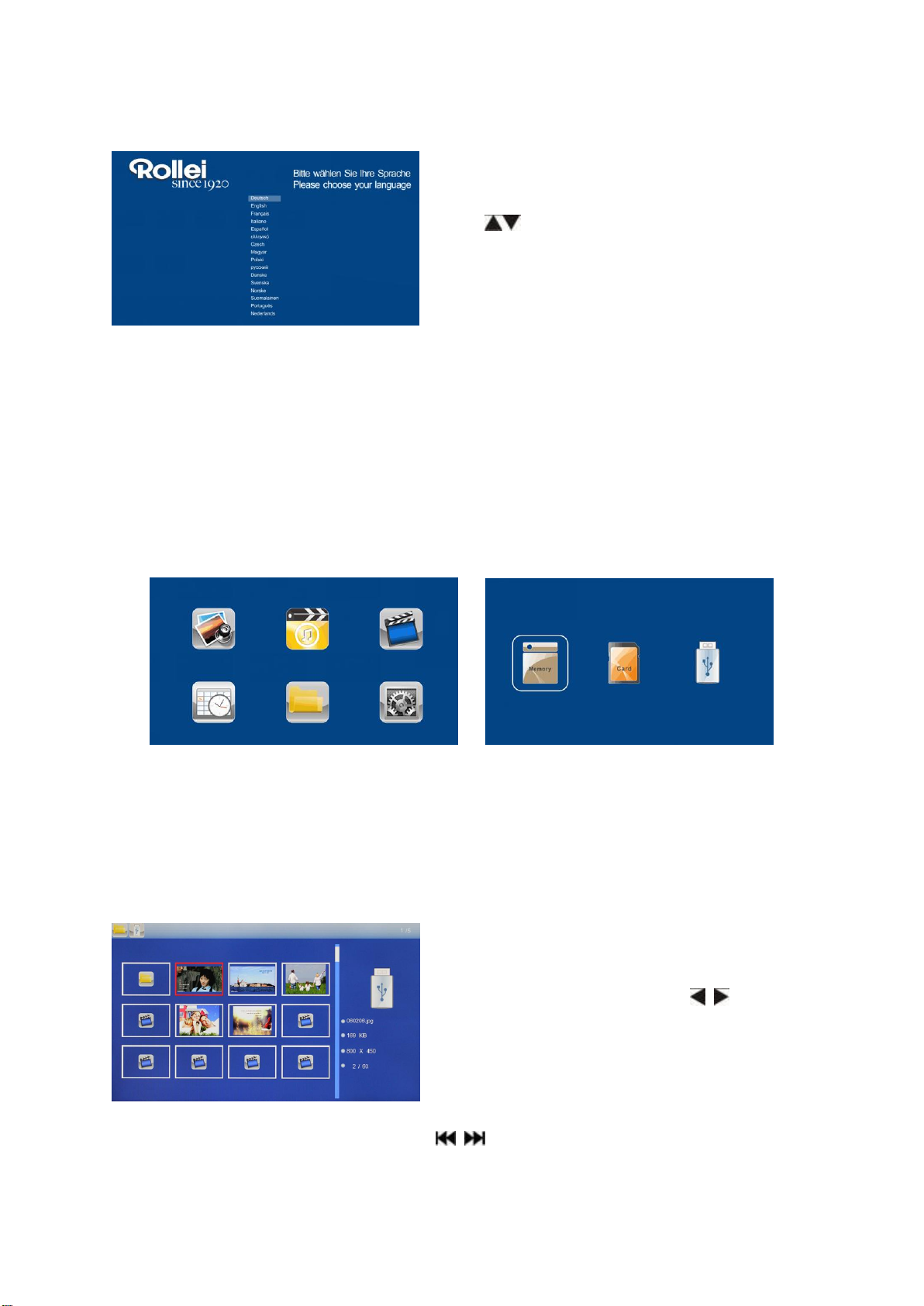

Power on the unit for the first time it will show
the startup logo first and a interface with a
16-languages selection appears on the screen.
Press to choose and press OK to select
the language. It will preferentially play the files
from the inserted storage device or the files
selected in the Auto start Mode.
You can set Auto start Mode in the
Setup-Menu.

7
4.3 Music Mode
4.4 Video Mode
Press OK to go the function toolbars and confirm your selection with OK.
5. Calendar
6. File
Press Return to select Memory Card in the main
menu. Select Music Icon and press OK to enter.
Press OK to Play/Pause. Press VOL+/- to turn
up/ down the volume. With you can
enter the previous or next music playing
directly.
Select Calendar in the Main Menu, press OK to
enter. The calendar will be shown.
Press Return to select the Storage Device. Press
OK to enter the main menu. Select the Movie
Icon and press OK to enter. Press Return to
Select the video from the playlist, then press OK
to Play. Press VOL+/- to turn up/ down the
volume.
Select File in the main menu and press OK to
enter. You can browse all files on your selected
storage device. Press to choose the file
and press OK to open the file or folder.

8
Copy and Delete function
7. Setting
Auto power on & off function Remarks:
1. In order to activate the auto power ON & OFF function, please check if the setting
frequency is set correct. If set to OFF, the function is not activated.
2. After the time setting for auto power on/off, you must return to the main menu or other
functions of the frame to activate the Auto Power ON & OFF.
3. A reminder for the Auto OFF appears 1 Minute before the frame switches off. Press any
key to cancel the Power OFF function.
4. If Power OFF is activated and frame switches off at the selected time, the frame goes into
Sleep-mode. To switch the frame on again, you need to press the “ON” Button on the
Remote or the rear side off the frame two times.
8. Stand Instruction
Insert the bracket into the slot of the digital photo frame and rotate the bracket clockwise.
Please make sure the stand is locked before you put it on the table steadily .Please refer to
the illustration showing below.
Select Setting in the main menu. Press OK to
enter the Setting interface and press to
highlight your selection. Press OK to enter the
sub-menu items. Press to set the Value.
You could select language, set time , choose
picture mode/music mode/video mode and so
on.
Press to select the desired files, then press
OK, a sub-menu for Copy/Delete Operation will
be shown on the screen. Confirm with OK.

9
9. PC Connection
You can connect the unit to the external equipment by using USB Cable for file copy &delete
or edit Operation.
A. Please turn on the digital photo frame, then connect it with the USB cable to your PC. The
Frame supports Windows 2000/XP/Vista/7/8.
B. The unit will be automatically detected and it will display "PC Connecting" on the screen.
You can copy, delete or edit files between the internal memory and other storage
devices. .You need to restart the digital photo frame after you finished the operation.
NOTE: Never disconnect the USB cable during any operational process. Doing so may
damage your DPF. Press Safely Remove Hardware Icon on the computer to disconnect the
PC-Connection.
10. Technical Specifications
Adapter: Input AC 100-240V 50/60HZ Output DC 9V/1.5A
Picture Format: JPEG
Audio Format: MP3& WMA
Video formats: MPEG-1 , MPEG-2, MPEG-4,M-JPEG and AVI&H.264
Supported Full HD MOVIES: 720P/820P/1080P & RMVB& H.264
Memory Cards: SD/SDHC/MMC/MS
USB: USB Host, Mini USB (connected with the long USB Cable)
Screen Parameter:
Screen Size: 17.3 inch TFT
Resolution : 1920*1080 Pixels
Contrast: 400-500:1
Aspect Ratio: 16:9
Brightness: 300-400cd/ m2
Response Time: 20ms
Viewing Angle: 60°(left/right/vertical), 40°(horizontal)
Working Temperature: 0 °C ~ 40 °C , Humidity: 10-85%
11. Troubleshooting Guide
If you are having problems with your player, please consult this manual. If you need further
assistance, please contact the Technical Support.

10
No power:
Please check whether the AC-Adaptor is inserted correctly.
Remote control has no function:
Please check whether the battery has power (the battery can be used for half a year in
normal conditions). Replace with a new battery if necessary.
Cannot read the Memory Card or USB-Device:
Please confirm there are supported files on your memory card or USB device.
Empty devices cannot be read.
Cannot play the file:
Please confirm if the file format is compatible with the player.
Display too bright or too dark:
Please adjust the brightness or contrast in the setup menu.
The color is light or no color:
Please adjust the color and contrast setup.
No sound:
Please check whether the volume is correct and the player is not in Mute mode.
12. Conformity Declaration
The Manufacturer hereby declares that the CE marking was applied to the
Rollei Pissarro DPF 170 in accordance with the basic requirements and other relevant
provisions of the following CE Directives:
2011/65/EC RoHs Directive
2004/108/EC Low Voltage Directive
1999/5/EG R&TTE Directive
2006/95/EEC LVD Directive
2009/125/EG EuP Directive
2002/96/EG WEEE Directive
The EC Declaration of Conformity can be requested from the address specified on the Warranty
card.
