Rolls RM68 User manual

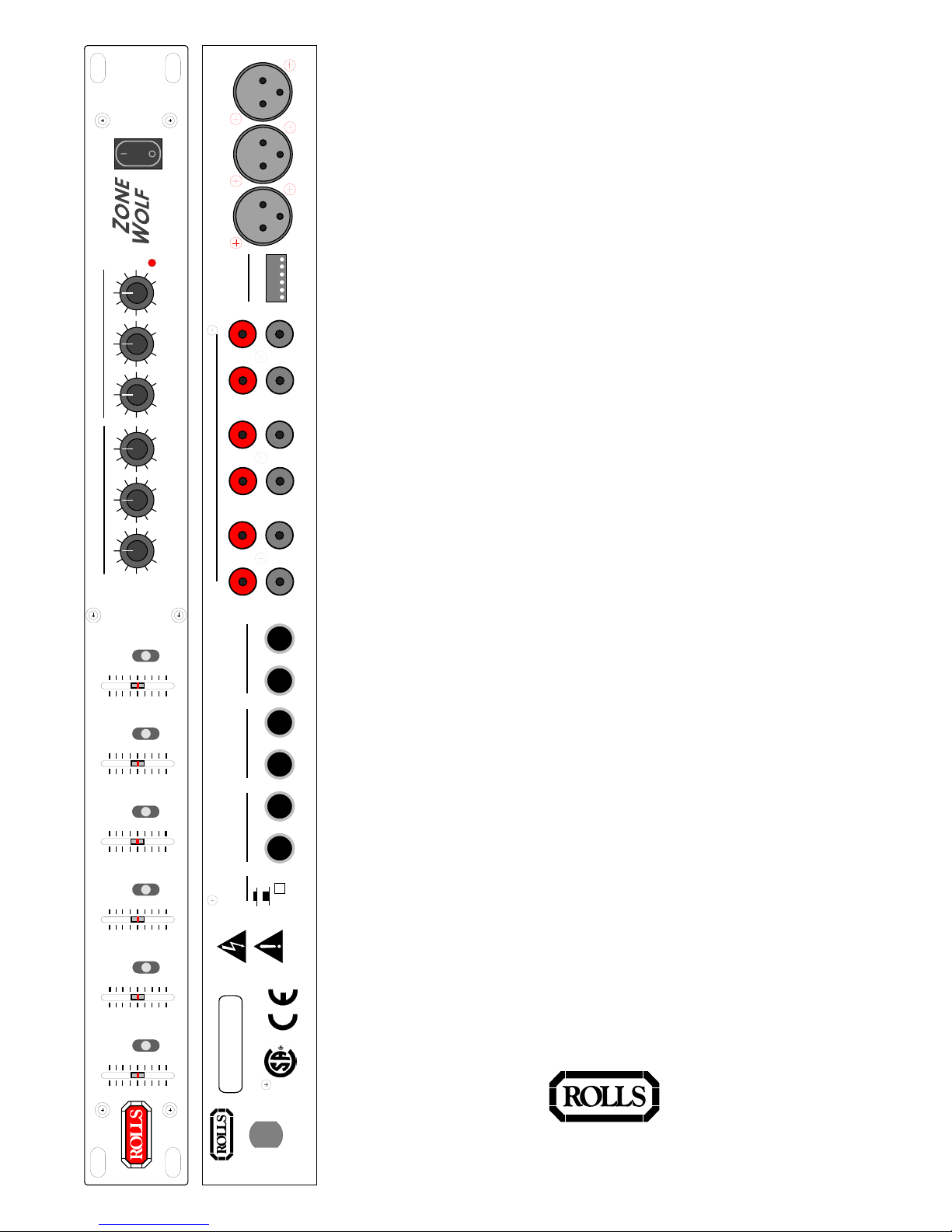

RM68 Zone Wolf
The RM68 is a three microphone, six stereo RCA source mixer that com-
bines the signals and routes them to either of two zones or both. Micro-
phone and Source inputs 1 through 3 share Volume sliders 1 through 3.
Microphone One features a talkover function, activated automatically when
signal is present at Mic One and the Talkover switch is engaged. +12 VDC
phantom power is available for each individual microphone input. Bass,
Treble and overall Volume controls are provided for each zone output.
Applications for the Zone Wolf include restaurants, hotels, schools,
churches or factories.
FEATURES:
 Two separate zones with six assignable inputs
 Three XLR balanced Mic inputs with phantom power
 Six stereo RCA inputs
 Bass and Treble controls for each zone
 Automatic talkover on Mic One to the assigned zone
 Master level for each zone
 RCA and 1/4" stereo outputs
 Rugged design and steel chassis for demanding road use, or installation
SPECIFICATIONS
Input Impedance: Mic: 600 ΩXLR balanced
Source: 22K ΩRCA unbalanced
Bus Input: 22K Ωunbalanced
Max Input Level: Mic: -14 dBV balanced
Source: +24 dBV
Input Connectors: 3: XLR, 6: stereo RCA, 2: 1/4" (Bus inputs)
Outputs: 1/4" balanced Main out, 1/4" unbalanced Prefade out
Max Gain: Mic: 60 dB
Line: 26 dB
Tone Control: 12 dB boost/cut
Phantom Power: +12 VDC
Output Level: +17 dBV max
Output Impedance: 51 Ω
Phase Shift: <10 degrees, 20Hz to 20 kHz
Max S/N ratio: 106 dB
THD: <.003%
CMRR: >52 dB (Mic)
Size: 19" x 1.75" x 6"
(48.3 x 4.5 x 15 cm)
Weight: 5 lbs. (2.3 kg)
ROLLS Coporation
5143 South Main Street, Salt Lake City, UT, 84107
(801) 263-9053 FAX (801) 263-9068
[email protected] • www.rolls.com
