Ronda 2600H User manual
User Manual
RONDA2600H
The Vacuum Cleaner for Factories and Warehouses
with Detachable Container 06-2022
IMPORTANT!
Please read the manual before you use the vacuum cleaner.
V. BRØNDUM A/S
Item No.: A0800103
USER MANUAL
RONDA2600H 2 V. BRØNDUM A/S
Siden er tom
USER MANUAL
RONDA2600H 3 V. BRØNDUM A/S
Table of Contents
Description of RONDA2600H .................................................................................................... 5
Technical data ..................................................................................................................... 5
Standard accessories .......................................................................................................... 6
Machine design and description .......................................................................................... 7
Motor top...................................................................................................................... 7
Adapter ring ................................................................................................................. 7
Collection container...................................................................................................... 8
Multi-tube filter.............................................................................................................. 8
Trolley frame ................................................................................................................ 8
Front nozzle ................................................................................................................. 8
Function of the Front Nozzle........................................................................................ 9
Scope of application....................................................................................................................... 9
Safety precautions ............................................................................................................. 10
Mode of operation.............................................................................................................. 11
Derivation of static electricity ............................................................................................. 11

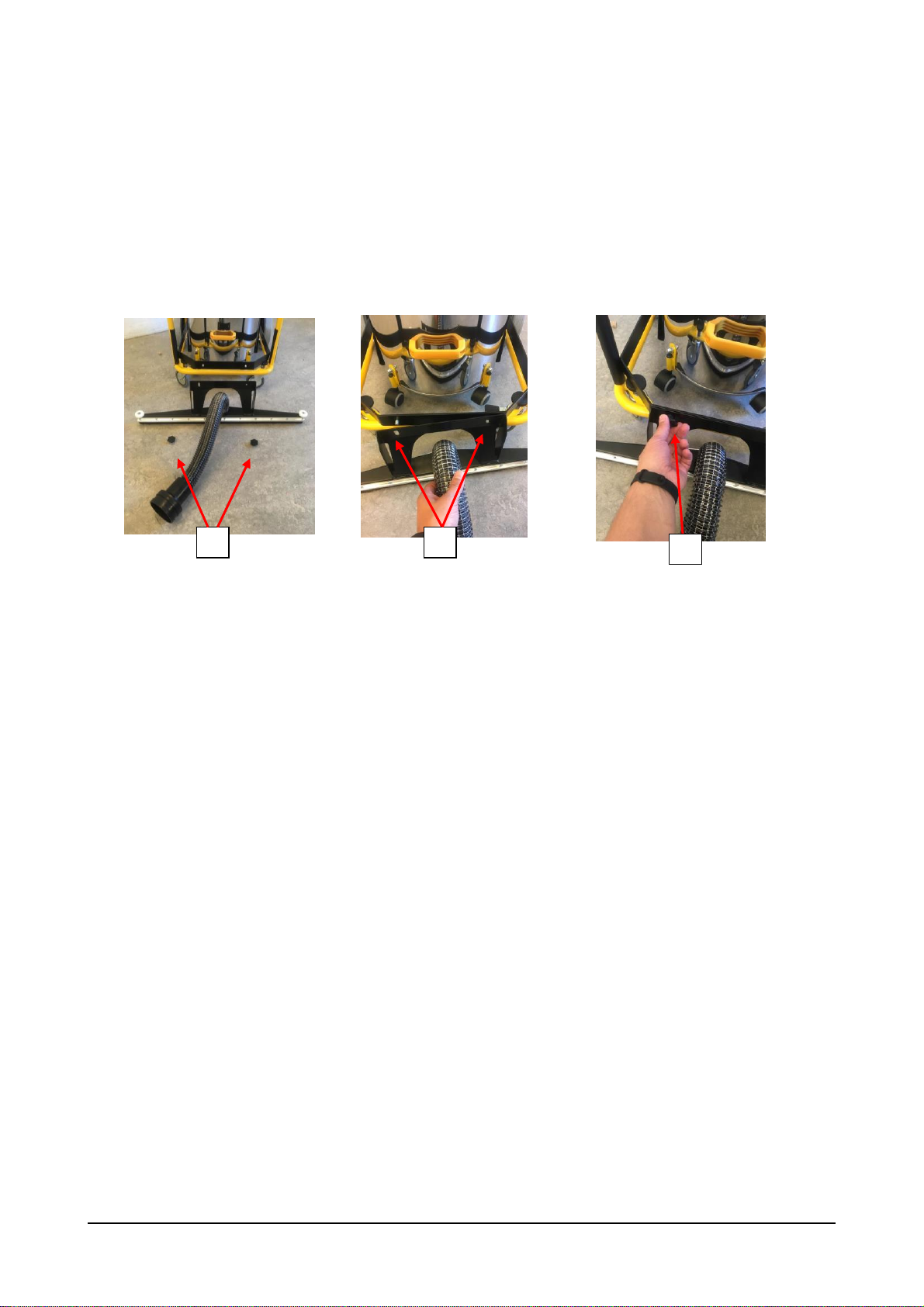

Use and mounting of the front nozzle ................................................................................ 12

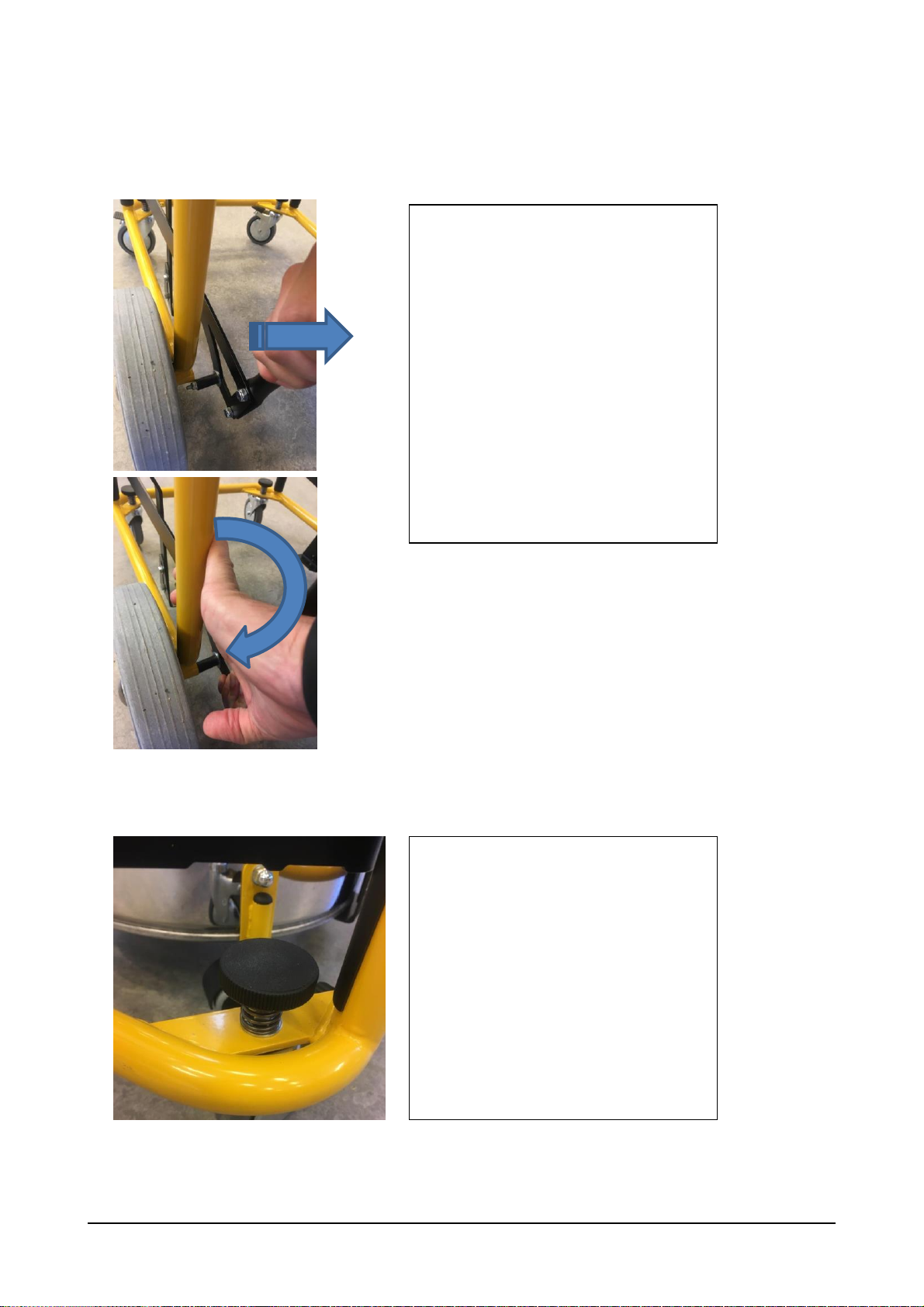

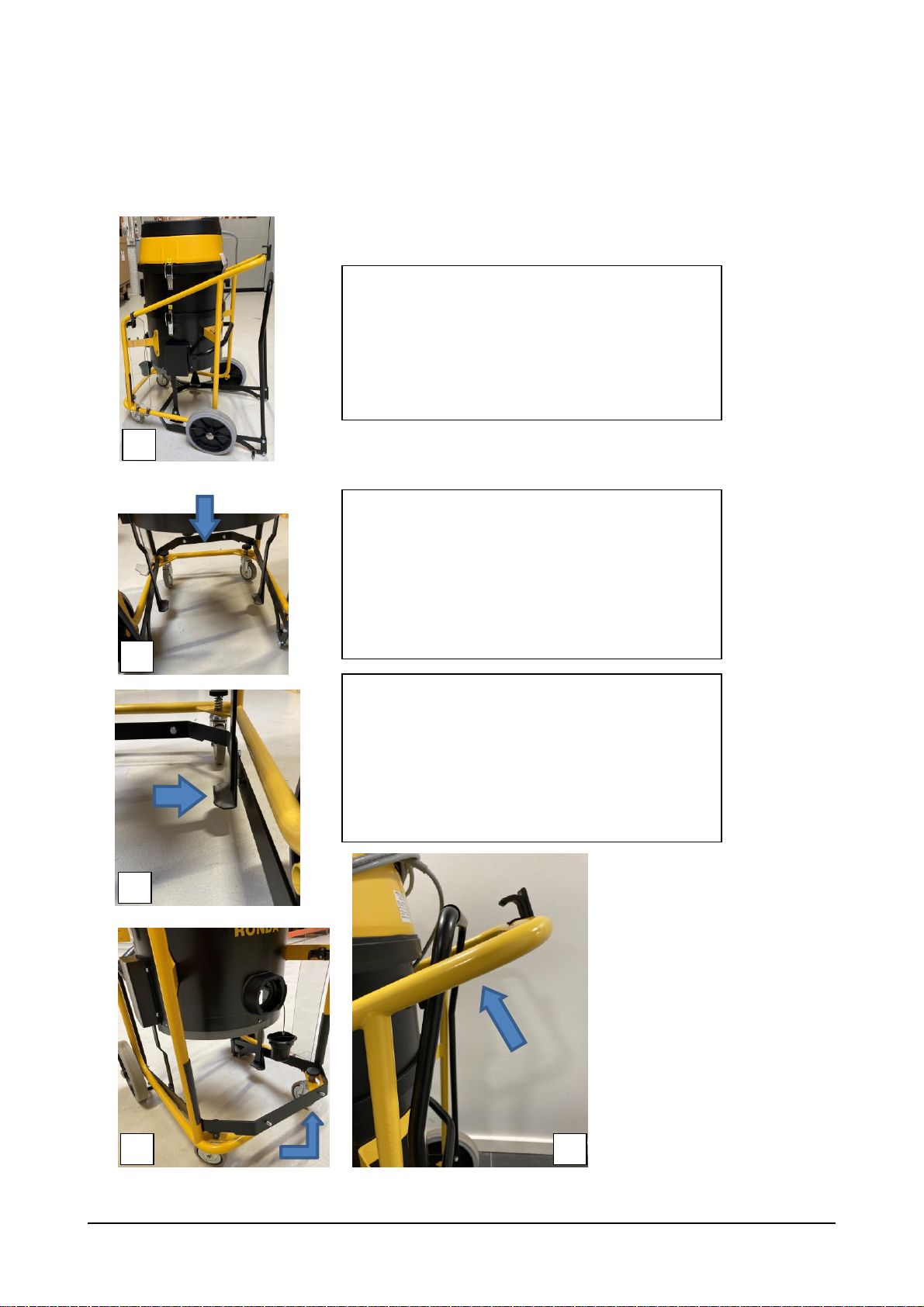

Mounting the Lifting Handle for the Front Nozzle............................................................... 15
Safety check before use .................................................................................................... 17
Start-up and collection of dry dust................................................................................................ 18
Vacuum indicator and filter cleaning during operation ....................................................... 18
Emptying ........................................................................................................................... 20
Cleaning and maintenance .......................................................................................................... 21
Maintenance of the motor top ............................................................................................ 21
Replacing the filters ........................................................................................................... 22
In general ................................................................................................................... 22
Check and replacement of the multi-tube filter........................................................... 22
Replacement of the HEPA-filter ................................................................................. 23
Disposal of filters........................................................................................................ 23
Trouble shooting .......................................................................................................................... 24
Declaration of conformity ............................................................................................................. 25
Service and repair........................................................................................................................ 26
USER MANUAL
RONDA2600H 4 V. BRØNDUM A/S
USER MANUAL
RONDA2600H 5 V. BRØNDUM A/S

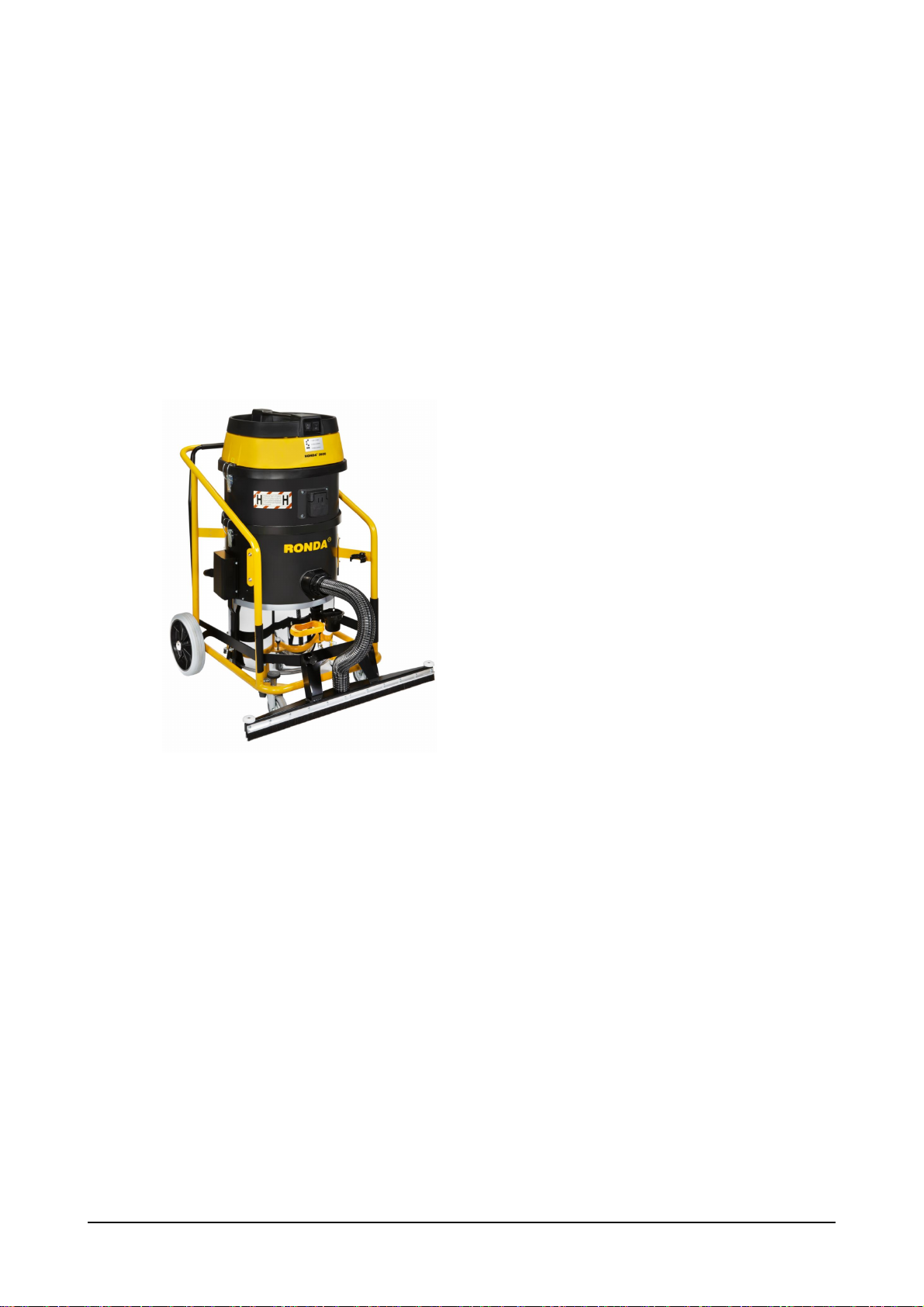

RONDA®2600H
The Vacuum Cleaner for Factories and Warehouses
RONDA2600H is a Danish developed high efficiency vacuum cleaner for the collection of dry dust in large
areas such as warehouses, factories, offices etc. with hard floors. RONDA2600H is equipped with a very
flexible and wide high-capacity front nozzle, which is suspended in such a way that there is close contact to the
floor all the time. Two (or three) powerful 1100 W suction motors ensure a high suction capacity, and the
derivation of static electricity guarantees a good working environment.
Large collection capacity
Emptying from the bottom
Teflon-coated multi-tube filter
Continuous filter cleaning during operation
Robust lightweight trolley frame
Smooth-running wheels
Low noise level
Derivation of static electricity
High-capacity front nozzle
Special suspended front nozzle with close
contact to the floor for optimized collection
External filter cleaning valve
HEPA-filtering
Technical Data
2200 W 3300 W
Suction motor, blow through 2x1100 Watt 3x1100 Watt
Suction motor, voltage 230 Volt 230 Volt
Suction capacity, max. (per motor) 2550 mmWc 2550 mmWc
Air flow, max. (per motor) 54 l/sec. 54 l/sec.
194 m3/h 194 m3/h
Air flow, max. (measured, machine) 230 m³/h 270 m3/h
Noise level <70 dB(A) <70 dB(A)
Collection capacity (bag/container) 25/35 l 25/35 l
Filter area, multi-tube filter 0,8 m² 0,8 m²
Filter area, HEPA 2,2 m² 2,2 m²
Height 1120 mm 1120 mm
Length 770 mm 770 mm
Width 670 mm 670 mm
Weight without accessories 39 kg 41 kg
Cable length 15 m 15 m
USER MANUAL
RONDA®2600H 6 V. BRØNDUM A/S

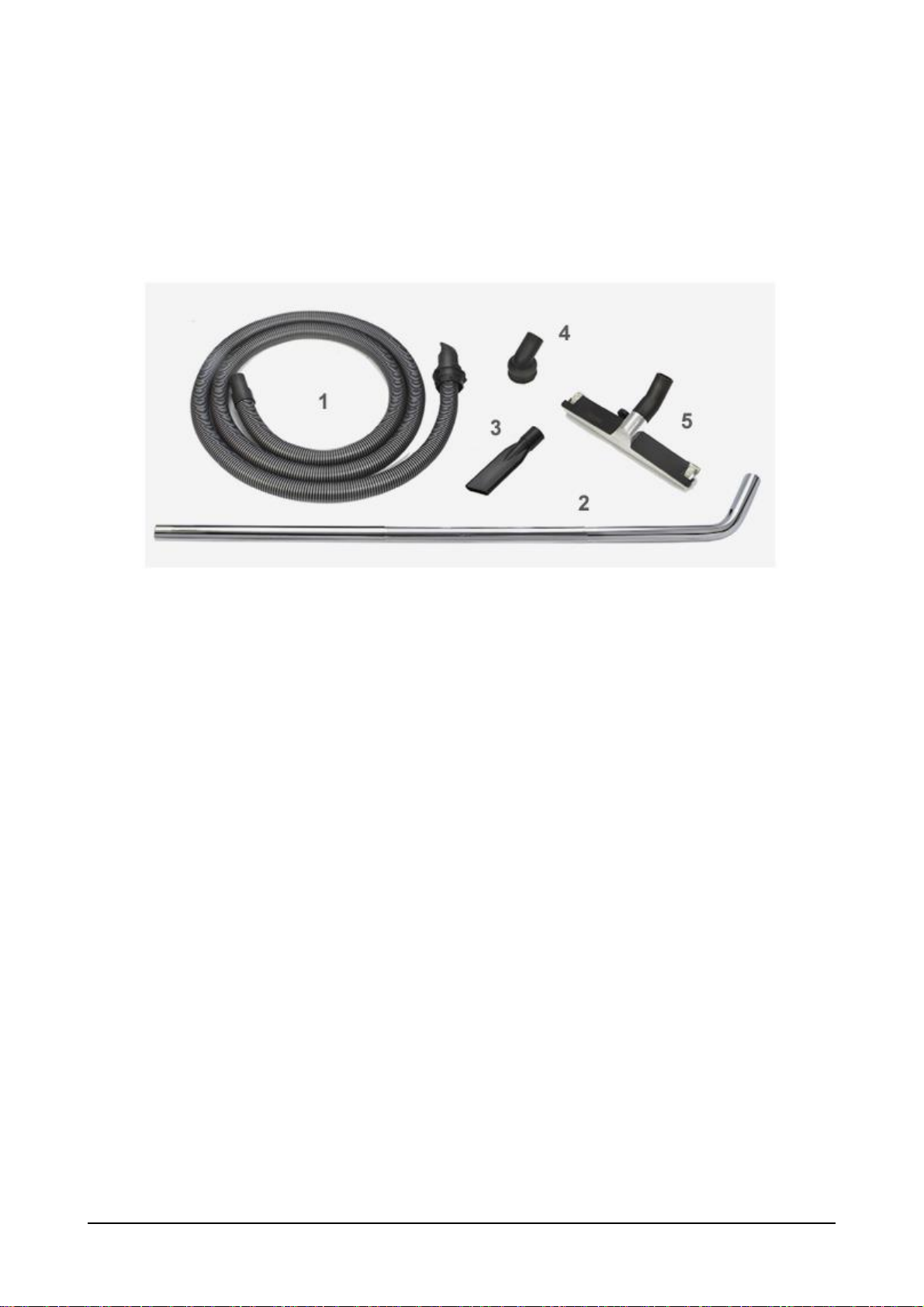

Standard Accessories
RONDA2600H is supplied with a complete set of accessories including tubes, hose and all necessary nozzles.
The accessories can be re-ordered when using the following article numbers:
40 mm professionals set (antistatic).............................................. 80.43.4025
1. Plastic hose, antistatic 4 m........................................................... 84.74.3806
2. Tube, consisting of two straight pcs. and one bent ...................... 80.52.2160
3. Crevice nozzle.............................................................................. 80.34.4000
4. Round brush................................................................................. 80.34.4001
5. Floor nozzle B-370 ....................................................................... 84.38.3620
USER MANUAL
RONDA®2600H 7 V. BRØNDUM A/S
Machine Design and Description
RONDA2600H consists of the following main parts:
1) Motor top
2) Adapter ring
3) Collection container
4) Intermediate ring with multi-tube filter
5) Trolley frame
6) Front nozzle
Motor Top
The two (or three) powerful suction motors of the motor top are
individually switched on with the two switches of the motor top.
The motor top is equipped with an integrated handle. Do not use this handle for carrying the whole vacuum
cleaner.
The motor top is equipped with a HEPA-filter (84.67.5037).
The HEPA-filter is attached to the underside of the motor top and filters out the very fine particles. The HEPA-
filter holds back 99.997% of all particles larger than 0.3 m.
Adapter Ring
The Motor top is mounted on an adapter ring holding the multi-tube filter in the intermediate ring.
The adapter ring is equipped with a vacuum indicator [1] and a filter cleaning valve [2].
The vacuum indicator indicates the negative pressure in the space above the multi-tube filter. This way, you can
read on the vacuum indicator whether the multi-tube filter is blocked and needs a cleaning. The cleaning is
carried out by means of the filter cleaning valve. Also see the section about filter cleaning during operation.
1
2
3
5
6
4
1
2
USER MANUAL
RONDA®2600H 8 V. BRØNDUM A/S

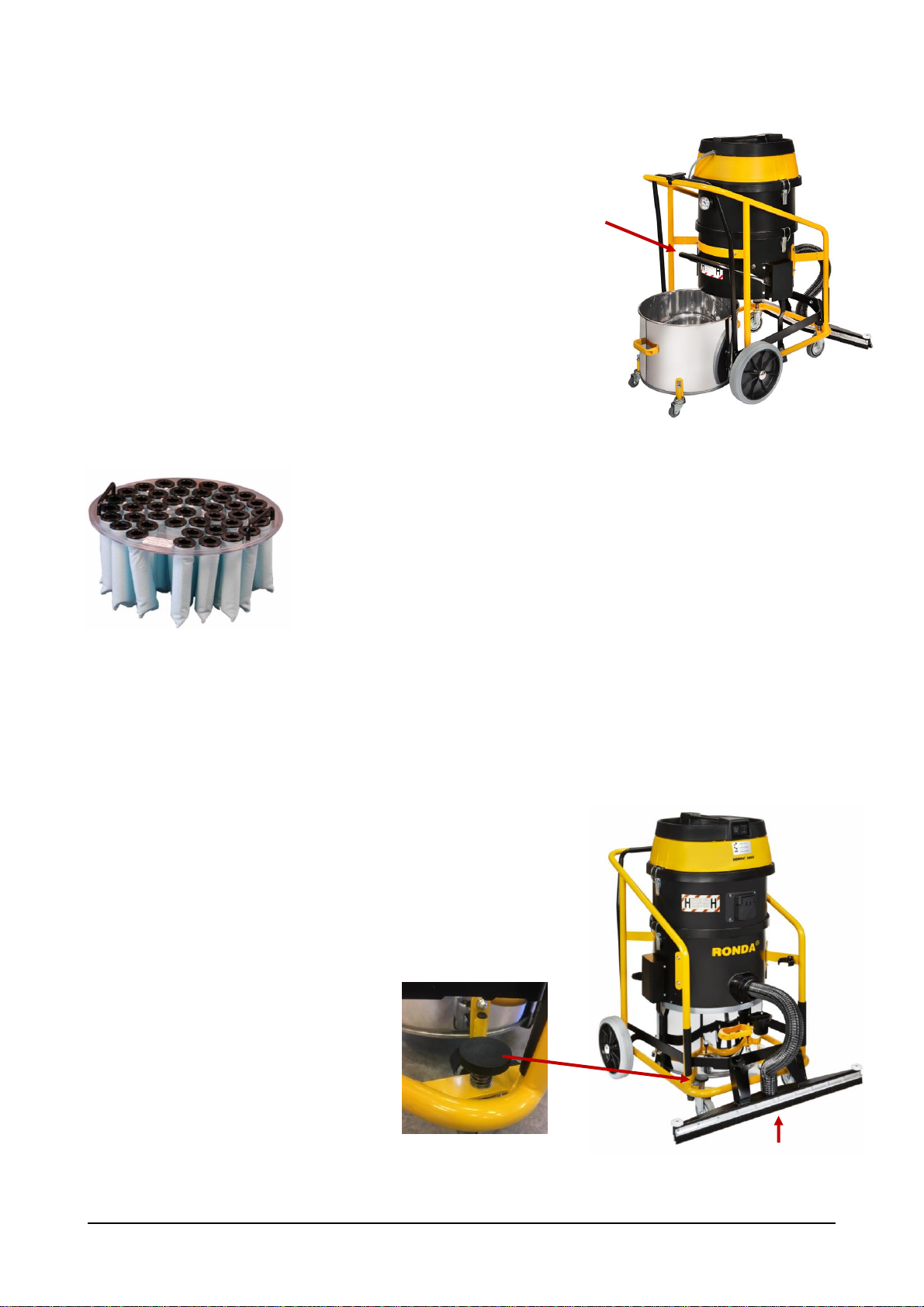

Collection Container
The collection container can easily be removed if you disengage the
container with the handle (emptying from the bottom).
The total collection capacity is 35 l (volume).
Multi-Tube Filter
The fine dust is held back in the collection container where a large Teflon-coated
multi-tube filter (84.67.1114) will clean the air.
The multi-tube filter is a “Dust Class M” filter and has been approved by the
German test institute BIA.
The multi-tube filter has a filter surface of 10,000 cm2and is mounted on springs,
which gives a self-cleaning effect during operation.
Trolley Frame
The collection container and intermediate ring are placed in a solid trolley frame with revolving front wheels and
large rear wheels. The machine is moved by means of the big push handle.
Front Nozzle
The wide front nozzle is suspended so that it can be adjusted. The
precise distance above the surface of the floor is adjusted by means of
the adjusting screws on top of the wheels of the front nozzle.
USER MANUAL
RONDA®2600H 9 V. BRØNDUM A/S
Function of the Front Nozzle
It is possible to lift the front nozzle from the floor by pulling the
black handle [A] near the steering grip.
This is practical, especially when passing over door steps or
vacuuming larger pieces of dirt, which would otherwise be
pushed in front of the nozzle.
By means of the clip holder [B], the handle can be fastened to
the steering grip in order to keep the front nozzle in lifted
position.
You can re-order the front nozzle on item number 80.31.0008.
Replacement brush strips: 85.46.2003 (2 pcs. = 1 pair).
Scope of Application
RONDA2600H is a vacuum cleaner according to DS/EN 60335-2-2 and CEI/IEC 60335-2-69 and may only be
used as such.
RONDA2600H must not be used for collecting fluids or moist dust.
RONDA2600H is not approved and must not be used to collect flammable, explosive, poisonous or other dust,
fluids or gasses hazardous to health.
RONDA2600H may be used in dry environments only and must not be used or stored under moist or wet
conditions outside or inside.
NB:
The user manual is to ensure a secure operation of the vacuum cleaner, and to ensure that the user is in no way
uncertain as to the use. The manual must be stored near the vacuum cleaner.
Does any uncertainty arise as to the use of the vacuum cleaner or the material collected, the work should be
stopped until all questions have been cleared.
Pictures and drawings are for illustrative purpose and will make the understanding of the manual easier. The
pictures shown may therefore be different from the actual product.
A
B
USER MANUAL
RONDA®2600H 10 V. BRØNDUM A/S
Safety Precautions
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The machine is NOT approved for collection of flammable, explosive, poisonous or extremely health
hazardous dust, fluids or gasses.
DO NOT USE THE VACUUM CLEANER WITHOUT A PROPER GROUND CONNECTION.
This vacuum cleaner is designed to be used with a ground connection, in an installation with HFI or HPFI
relay. The user is responsible for ensuring that the wall outlet is grounded. The ground connection of the
plug must NOT be removed.
The appliance must be emptied after use.
The user must ensure that the appliance is adjusted to the task and that regulatory requirements are met.
When collecting dust hazardous to health you must use a filter bag, and disposal must comply with the legal
requirements for material (closed container, plastic bag etc.).
Avoid damaging the supply cord. When replacing the supply cord, only use an original supply cord (see the
spare parts list). V. BRØNDUM A/S, an authorized V. BRØNDUM A/S dealer or an equally qualified person
must carry out the replacement in order to avoid danger. Regularly check the mains connection for damage,
such as fissures or ageing, and if damage is found, the supply cord must be replaced before further use.
Before any repair or maintenance operations on the appliance –also cleaning –the plug must be removed
from the power supply.
The mains socket of the appliance is to be used only for the purposes specified in the user manual.
This appliance is intended for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices and
rental businesses.
Before use, operators should be provided with information, instruction and training for the use of the
appliance and the substances for which it is to be used, including the safe method of removal and disposal
of the material collected.
For user servicing, the appliance must be dismantled, cleaned and serviced, as far as is reasonably
practicable, without causing risk to the maintenance staff and others. Suitable precautions include
decontamination before dismantling, provision for local filtered exhaust ventilation where the appliance is
dismantled, cleaning of the maintenance area and suitable personal protection.
The manufacturer, or an instructed person, shall perform a technical inspection at least annually, consisting
of, for example, inspection of filters for damage, air tightness of the appliance and proper function of the
control mechanism. On class H appliances the appliance filtration efficiency should be tested at least
annually, or more often, according to national requirements. The test method that may be used for the
verification of the appliance filtration efficiency is given in AA.22.201.2. If the test will not be passed, it must
be repeated with a new main filter.
When carrying out service or repair operations, all contaminated items, which cannot be satisfactorily
cleaned, are to be disposed of. Such items shall be disposed of in impervious bags in accordance with any
current regulation of the disposal of such waste.
The upper part of the motor top is a non-dust proof compartment, and when cleaning, the covers of this
compartment are removed by loosening the screws fixing the covers.
USER MANUAL
RONDA®2600H 11 V. BRØNDUM A/S
IMPORTANT! The vacuum cleaner must not be started when the covers are removed.
IMPORTANT! The motor top must not be covered when the appliance is in use.
Guidelines in Connection with Disposal of the Machine
Does the safe use or maintenance of the appliance raise any questions; do not hesitate to contact either your
dealer or V. BRØNDUM A/S.
General Safety Instructions
1. Keep the working area clean. Slippery and greasy surfaces increase the risk of accidents.
2. Be aware of the surroundings. Do not expose the vacuum cleaner to rain. Do not use the vacuum
cleaner in moist or wet surroundings. Do not use the vacuum cleaner near flammable gasses or
liquids.
3. Protect against electrical shock.
Avoid bodily contact with earthed building parts, such as radiator, water pipes and the like and
also electrical appliances with their own earth connection.
4. Keep children and unauthorized persons away from the work place.
Do not let unauthorized persons touch the vacuum cleaner or the supply cord. All unauthorized
persons should be kept at a distance.
5. Put the vacuum cleaner away, or make it ready for transport after use.
Keep the vacuum cleaner in a dry place and inaccessible to children.
6. Do not use force.
Do not use force when operating the vacuum cleaner. Do not step on the hose, or the electrical
cord.
The product you have purchased is subject to Directive 2002/96/EC of the European
Parliament and the Council of the European Union on waste electrical and electronic
equipment (WEEE) and should not be disposed of as unsorted municipal waste. Please
utilize your local WEEE collection facilities in the disposition of this product and otherwise
observe all applicable national requirements.
When using electrical equipment the necessary safety precautions must be
taken in order to avoid the risk of fire, electrical shock and damage to persons.
The below safety instructions are to be read and followed when the vacuum
cleaner is being used.
USER MANUAL
RONDA®2600H 12 V. BRØNDUM A/S
7. Choose the correct tool, accessories for the task.
Do not use badly proportioned or light tools for heavy tasks. Do not use tools for anything they are
not intended for.
8. Choose suitable working clothes.
9. Personal protective equipment.
Put on eye and/or ear protection, if necessary. Put on respirator in dusty environments.
10. Protect the electrical cord.
Never carry the vacuum cleaner by the electrical cord. Do not remove the plug from the socket by
pulling the electrical cord. Keep the electrical cord away from heating sources, oil and sharp
edges.
11. Choose a safe working position so that there will be no risk of falling in the hose and cord.
12. Keep the machine and equipment in good repair.
Keep the vacuum cleaner clean and dry and follow the instructions of the chapter about
maintenance.
13. Cut off the electricity supply when the vacuum cleaner is not in use.
Remove the plug from the socket before maintenance, repair and when the NPU is not in use.
14. If extension cords are used out of doors, they must be approved for this.
If extension cords are used, the following guidelines must be observed.
15. Show attention and be rested.
The vacuum cleaner must not be used, if the user is tired, sleepy or sick or under the influence of
alcohol or drugs / medicine.
16. Check for damage.
Check the vacuum cleaner for damage. Check that the shields etc. have been properly fastened.
Check the electrical switches, and have an authorized service mechanic replace them, if they are
damaged. Do not use the vacuum cleaner, if it cannot be started and/or stopped at the switch.
Length of cord in
metres
Cross section
<16A
<25A
Up to 20 m
Ø1.5mm²
Ø2.5mm²
20-50 m
Ø2.5mm²
Ø4.0mm²
USER MANUAL
RONDA®2600H 13 V. BRØNDUM A/S

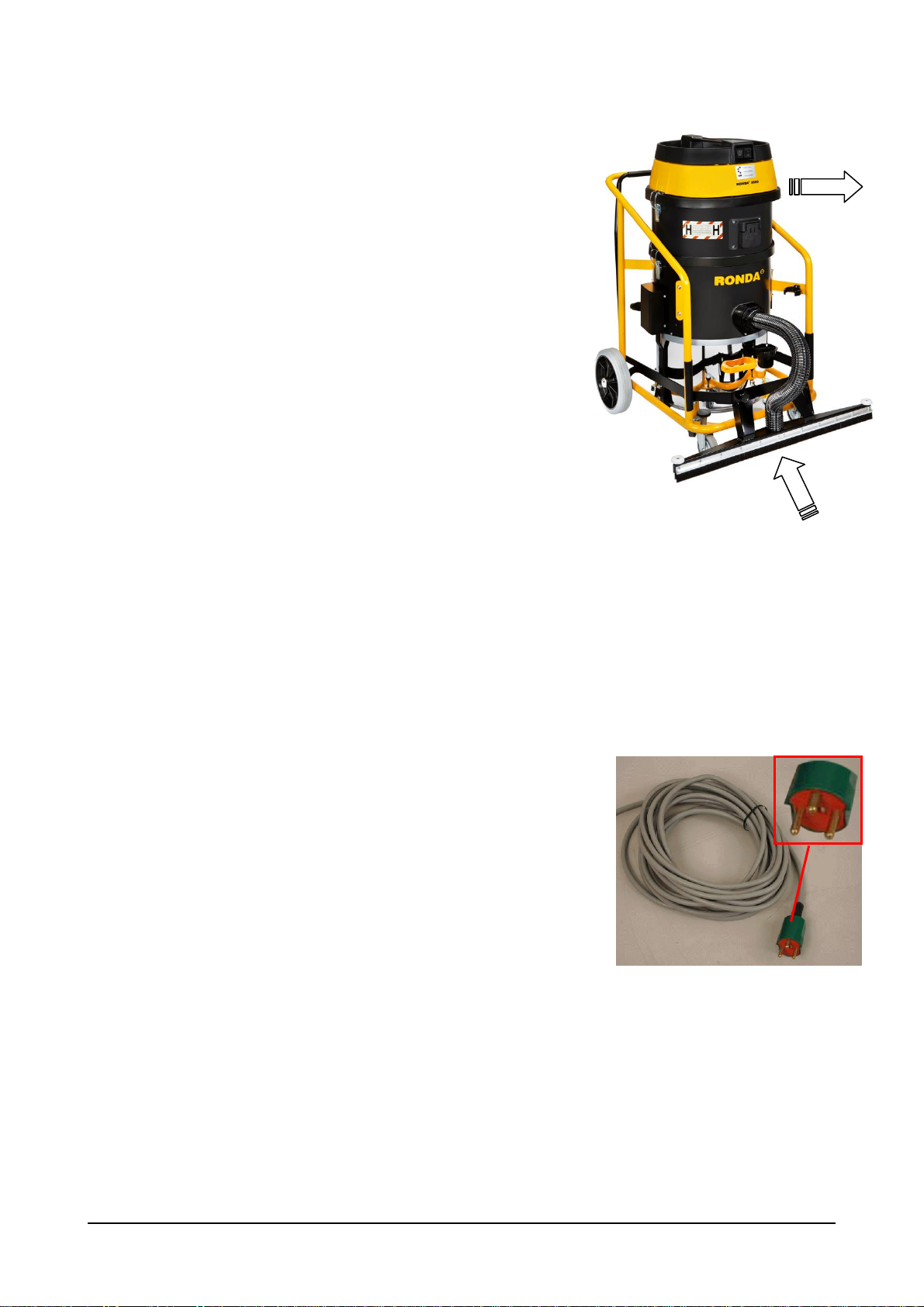

Mode of operation
When the suction motors are turned on, the air is drawn through the
appliance collecting the dust particles near the front nozzle.
The dust particles are drawn through the front nozzle by means of the
high airflow and are transported through the suction hose to the
collection container.
In the collection container the air is led towards the bottom of the
container where the heavy particles will settle.
The very light particles are led by the airflow towards the multi-tube
filter mounted in the intermediate ring. The air is drawn through the
filter, which will hold back the dust particles.
The airflow is drawn through the HEPA-filter, which will hold back the very fine dust particles.
Finally the exhaust air is filtered by the noise reduction foam of the motor top, after which the purified air will
leave the machine through the crevice under the yellow motor top.
IMPORTANT: Do not cover the motor top, when the machine is operating.
Derivation of Static Electricity
When collecting dry materials and dust, static electricity may be generated
in for instance the suction hoses and tubes.
RONDA2600H is earthed through the earth connection of the cabling.
Therefore, it is very important that the appliance is connected to a power
supply with reliable connection to earth (Active protection against indirect
touch).
USER MANUAL
RONDA®2600H 14 V. BRØNDUM A/S
Use and Mounting of the Front Nozzle
Unpack the RONDA2600H and check that all the parts ordered are present.
Mount the front nozzle onto the lifting handle:
The front nozzle is mounted with the two enclosed screws [1]
The fitting of the nozzle has two oblong holes for adjusting the angle and height of the nozzle [2]
Tighten the screws when the correct angle and height is found [3].
In order to ensure an optimum suction it is important that the brushes or the rubber lips of the front nozzle are
adjusted so that they just touch the surface of the floor. The fine adjustment of the height of the front nozzle
above the surface of the floor is made by means of the adjusting screws of the wheels of the front nozzle.
Fasten the suction hose to the front nozzle.
Place the hose coupling in the container coupling at the front of the machine.
1
2
3
USER MANUAL
RONDA®2600H 15 V. BRØNDUM A/S
Mounting the Lifting Handle for the Front Nozzle (if not already mounted from the factory)
1) Remove the container
2) Push the lifting handle in place from the
back of the machine [1]
3) The front of the lifting handle must be
placed above the trolley frame [2].
NB:
Make sure that the front of the lifting handle is
placed above the trolley frame [2] and on the
outside of the container bearing [3].
Push the lifting handle forward.
The upper part of the lifting handle must be on the
inside of the steering grip [4].
The front of the lifting handle, where the nozzle is to
be mounted, must be placed at the top side of the
trolley frame and the wheel assembly [2] [5].
1
2
3
4
5
USER MANUAL
RONDA®2600H 16 V. BRØNDUM A/S
Pull the lifting handel at the steering grip -
- and place the bushings into the tube of
the wheel assembly.
IF NOT ALREADY MOUNTED
Screw, socket, disc, and compression
spring are mounted on the thread of the
front wheel.
This is used for adjusting the height of
the brush above the floor.
USER MANUAL
RONDA®2600H 17 V. BRØNDUM A/S
Safety Check before Use
Before connecting to the power supply it must be checked that the plug and the cord are undamaged. If the
cord or the plug is damaged, a professional must make the replacement.
Make sure that the voltage and current of the power supply correspond with the data on the data plate of the
appliance.
The plug must be removed from the power supply before any repair or maintenance operation –also
cleaning.
Before you start the vacuuming you must make sure that the machine is equipped with the right filters for the
task in question. If any doubt, please contact the dealer.
The machine is connected to the power supply with a reliable earth connection.
If there are any questions as to the use, safety or construction of the appliance, do not hesitate to contact
your dealer or V. BRØNDUM A/S.
REMEMBER: Always get information about the disposal of waste and about the rules in
force for the materials in question.
RONDA2600H is now ready for operation.
The collection and the use are described in details on the following pages.
USER MANUAL
RONDA®2600H 18 V. BRØNDUM A/S
NOTICE:
The vacuum indicator of the RONDA2600H is calibrated for correct indication,
when the appliance is used with its standard accessories (40 mm). Using hoses
or other accessories with a smaller dimension, the vacuum indicator will indicate
too high a value. If you want guarantee for sufficient air velocity in the tubes and
hoses, it is recommended to clean the filter, and if necessary to empty the
appliance, if the pointer of the vacuum indicator enters the red section.
Start-up and Collection of Dry Dust
When the appliance has been correctly assembled and connected, you
can start it by pressing the switches on the motor top. The two (or three)
powerful suction motors have separate switches.
You can move the vacuum cleaner during operation on the large wheels.
The revolving front wheels facilitate the manoeuvring of the machine.
The accessory set with hose, tubes and nozzles can be used for cleaning
the inaccessible places that the front nozzle cannot reach.
The hose is attached to the container coupling on the front of the
appliance and assembled with the tubes and the nozzle chosen.
The floor nozzle is suitable for the collection of dust and materials from
large even surfaces. The nozzle is equipped with brushes and wheels,
which make sure that the nozzle is conveyed over the even surface in an
optimal way.
Eventually, the brushes will be worn, which will consequently reduce the efficiency of the nozzle.
Adjust the wheel height by using the knob of the nozzle to ensure that the brushes only just touch the floor.
Vacuum Indicator and Filter Cleaning during Operation
The vacuum indicator placed on the adaptor ring of the motor top measures the air pressure inside the appliance
during operation. The vacuum indicator is placed on the back of the appliance so that it is visible to the operator
during operation.
If the multi-tube filter is blocked by fine particles, the air pressure inside the appliance will drop. This can be read
on the vacuum indicator.
If the pointer of the vacuum indicator goes into the red section, it
is an indication of a too low air velocity in the hose and the tube,
and the multi-tube filter should therefore be cleaned. The multi-
tube filter can be cleaned during operation, see next page.
USER MANUAL
RONDA®2600H 19 V. BRØNDUM A/S
The multi-tube filter can be cleaned during operation by means of the
cleaning valve, which creates a “chock effect”. The cleaning process is
described below:
Remove the hose from the front nozzle or the equipment
connected.
Block the suction by means of the plug.
Vacuum will now be formed inside the appliance.
By this, the springs of the multi-tube filter will contract a little.
Pull the ”lid” of the cleaning valve. (A regular pull; not a tug).
When the spring power overcomes the vacuum, the valve will
open with a ”puff”.
In order to equalize the pressure difference in the vacuum cleaner and
the pressure outside the vacuum cleaner, air will flush backwards through
the multi-tube filter and reject possible accumulations (“back flush”).
In this way the multi-tube filter will be efficiently cleaned and the air flow
re-established. The effect of the cleaning can be seen on the vacuum
indicator –if not, the HEPA-filter may be blocked.
Repeat the process if necessary. (2-3 times should remove even the
most stubborn dirt.)
USER MANUAL
RONDA®2600H 20 V. BRØNDUM A/S
Emptying
RONDA2600H collects the material directly in the
collection container.
It is advisable to clean the filters before emptying the
container (see the section about filter cleaning).
If the appliance has been used immediately before, it
is recommended to wait a few minutes with the
emptying, so that the fine dust can fall to the bottom of
the collection container.
Lift up the black handle at the bottom of the appliance
in order to remove the container.
The collection container is released from the packing
and will be lowered to the floor.
Now the container can be rolled out.
To mount the container it is rolled under the machine until it is caught
by the edge at the front of the appliance.
The handle is pressed down, and the grippers will catch the container
and lift it up to the correct position.
RONDA2600H comes with a fiberboard container insert which is used if you
want to collect into a plastic bag.
Item numbers for re-ordering:
Container insert incl. 2 pcs. plastic bags 84.64.9987
Plastic bag 600x1000x0,1 mm (25 pcs.) 84.64.9990
Other Ronda Vacuum Cleaner manuals
