ROOMS TO GO Alamo DFP-FP20502 Quick reference guide

7 7
WARNING: This product can expose you to chemicals including (Lead and
Lead Compounds,
,
Lead Acetate
,
Lead
,
Phosphate
,
Lead Subacetate
,
Nickel
,
Antimony
,
Chromium, and Cobalt), which are known to the state of california to
cause cancer and birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
1
Propane Gas Fire Table Use and Care Instructions
79720504 DFP-FP20502 Alamo Heights 27" RD Fire Table
If you have any problems with this product. DO NOT RETURN IT TO THE STORE.
PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
Monday – Friday 7:00AM – 4:00PM Pacific at 1.888.264.1017
Email: [email protected]
Manufactured and distributed by American Fire Glass® INC
570 Third Street, Lake Elsinore, CA 92530 1-833-334-3473 duraflamefireglass.com
DFG-INST-RTG2_REVA_0920
「路

WARNING: FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately.
4. After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could
cause property damage, personal injury, or death.
WARNING:
Do not store or use gasoline or other flammable liquids or vapors in the vicinity
of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or
any other fire appliance.
WARNING: USE PROPANE GAS ONLY.
For use with tanks marked PROPANE only.
DO NOT connect to a remote gas supply.
WARNING: FOR OUTDOOR USE ONLY.
Installation and service must be performed by a qualified installer, service agency,
or the gas supplier.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space may cause death.
Never use this appliance in an enclosed space such as camper, tent,
car or home.
DANGER
WARNING:
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury, or loss of life.
2
WARNING:
CHOKING HAZARD. SMALL PARTS.
FIRE GLASS IS NOT INTENDED FOR USE BY CHILDREN.
THIS ITEM IS NOT A TOY. KEEP OUT OF REACH OF BABIES AND SMALL
CHILDREN.

Read and follow all instructions and warnings in this Owner’s Manual
thoroughly before installing, operating, or servicing this Fire Table.
Improper installation, use, maintenance, adjustment or storage can cause fire or
explosion, resulting in serious injury or property damage.
Prepare for use: .HHSDZD\IURP&RPEXVWLEOH)ODPPDEOH,WHPV
'RQRWSXWDQ\RWKHUILUHSODFHFRYHURUDQ\WKLQJIODPPDEOHRQRUEHQHDWKfire table
 &RPEXVWLEOHPDWHULDOVVKRXOGQHYHUEHZLWKLQPIWRIWKHWRSPIWRIEDFNRUVLGHVRIfire table
)RUXVHRQQRQFRPEXVWLEOHIORRUPDWHULDORQO\
 .HHSfire table DUHDFOHDUDQGIUHHIURPFRPEXVWLEOHPDWHULDOVJDVROLQHDQGRWKHUIODPPDEOHYDSRUVDQGOLTXLGV
,QVSHFWIRUOHDNVZHDUDQGGDPDJH
 2SHQ'RRUDQGFKHFNIRUJDVOHDNVEHIRUHXVH6HHSDJH6WHSIRULQVWUXFWLRQVRQKRZWRFKHFNIRUJDVOHDNV
,QVSHFWEXUQHUDQGKRVHEHIRUHXVH5HSODFHLIWKHUHLVHYLGHQFHRIH[FHVVLYHDEUDVLRQZHDURUGDPDJH
 ,QVSHFWKRVHEHIRUHHDFKXVH+RVHDVVHPEO\PXVWEHUHSODFHGSULRUWRXVHLIWKHUHLVHYLGHQFHRIH[FHVVLYHDEUDVLRQRU
ZHDURULIKRVHLVGDPDJHG8VHDPDQXIDFWXUHUVSHFLILHGUHSODFHPHQWKRVHRQO\
3UHSDUHDUHDHQVXUHSURSHUXVHRIfire tablecRYHU
• 0DNHVXUHYHQWLODWLRQRSHQLQJVRQVLGHVRI)LUH3LW%2'<DUHRSHQDQGFOHDURIGHEULV
•If you have a nylon Fire Table cover, Do not lay cover over fire table for at least 4 hours after it is turned OFF and has completely cooled
down
• 'RQRWXVH)LUH3LWLIDQ\SDUWKDVEHHQXQGHUZDWHU,PPHGLDWHO\FDOODTXDOLILHGVHUYLFHWHFKQLFLDQWRLQVSHFW)LUH3LW
DQGWRUHSODFHDQ\SDUWRIWKHFRQWUROV\VWHPDQGDQ\JDVFRQWUROWKDWKDVEHHQXQGHUZDWHU
• 5HPRYH1\ORQ)LUH3LW&RYHUIURP)LUH3LWEHIRUHRSHUDWLQJ
When in use: 'R¶V
• 8VHSURSDQHF\OLQGHUVZLWKWKHIROORZLQJUHTXLUHGPHDVXUHPHQWVRQO\FPLQGLDPHWHU[FPLQWDOO
ZLWKFDSDFLW\NJOEV
•,IIODPHJRHVRXWZKLOHRSHUDWLQJWXUQJDVYDOYH2)):DLWILYHPLQXWHVEHIRUHDWWHPSWLQJWRUHOLJKW
• 'XHWRKLJKVXUIDFHWHPSHUDWXUHVDOZD\VNHHSDVDIHGLVWDQFHWRDYRLGEXUQLQJRUFORWKHVFDWFKLQJILUH
• .HHSIXHOVXSSO\KRVHDZD\IURPDQ\KHDWHGVXUIDFHV
'RQ¶W¶V
• 1HYHUOHDQRYHUWKHRSHQ)LUH3LWRUSODFHKDQGVRUILQJHUVRQWKHXSSHUSRUWLRQZKLOHLQXVH
• 'RQRWXVH)LUH3LWIRUFRRNLQJ
• 'RQRWEXUQDQ\RWKHUPDWHULDOVRWKHUWKDQZKDWLVVXSSOLHGZLWKDQGLQWHQGHGIRUXVHLQ)LUH3LW
•6ROLGIXHOVVKDOOQRWEHEXUQHGLQWKLV)LUH3LW
• 'RQRWSRXUZDWHULQWR)LUH3LW
• 'RQRWPRYH)LUH3LWZKLOHLQRSHUDWLRQ
• )LUH3LWVKRXOGQHYHUEHRSHUDWHGE\FKLOGUHQ&KLOGUHQPXVWEHVXSHUYLVHGZKHQWKH\DUHDQ\ZKHUHQHDU)LUH3LW
•'RQRWUHVWIHHWRQ)LUH3LW
• 'RQRWXVH)LUH3LWRQYHKLFOHVRUERDWV$OZD\VRSHUDWH)LUH3LWRQIODWJURXQGRXWGRRUV
When not in use:
• 5HPRYH%DWWHU\IURP,JQLWRUZKHQQRWXVLQJ)LUH3LWIRUDQH[WHQGHGOHQJWKRIWLPH
• &OHDQEDWWHU\FRQWDFWVDQGDOVRWKRVHRIWKHGHYLFHSULRUWREDWWHU\LQVWDOODWLRQ
WARNING:
1SPQBOF5BOLTTPMETFQBSBUFMZ
When fire table is not in use— disconnect Propane Tank.
If fire table is stored indoors—remove Propane Tank.
WARNING: This fire table must be attended at all times while in use!
WARNING:
3

4
%"/(&34"/%8"3/*/(4
THIS PRODUCT USES PROPANE ONLY
t Use propane cylinders with the following required measurements only: 30.5 cm/12 in (diameter) x 45.7 cm/18 in
(tall) with capacity 9 kg/19.84 lbs.)
t Max gas supply 28cm/11 in w.c. (2.74kpa)
t Only cylinder marked "propane” may be used.
t OI\RXVHHVPHOORUKHDUWKHKLVVRIHVFDSLQJJDVIURPWKHSURSDQHWDQN
1. Turn off gas supply and get away from gas cylinder and Fire Table at once.
2. Do not attempt to correct the problem yourself.
3. Call your gas supplier and / or the fire department for help.
t A dented or rusty propane cylinder may be hazardous and should be cleared by your gas supplier prior to use.
t Do not attempt to disconncet gas regulator or any gas fitting while Fire Table is in operation.
t The gas pressure regulator provided with Fire Table must be used.
t Do not use a propane cylinder with a damaged valve and any other worn out parts.
t Transport and store empty propanecylinders carefully and properly.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothes catching fire.
t Young children should be carefully supervised when they are in the area of Fire Table.
t Clothing or other flammable materials should not be hung from Fire Table, or placed on or near Fire Table.
Propane-gas supply cylinder to be used must be:
t Constructed and marked in accordance with the U.S. Department of transportation (NOT) Specifications for LP-
Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation fo Dangerous Goods and
Commission, CAN/CSA-B339, asapplicable;
t Provided with a listed overfilling prevention device; and with a cylinder connection device compatible with the
connection for the appliance
WKHQVWRULQJ)LUH3LW
Storage of Fire Table indoors is permissible only if the cylinder is disconnected and removed from Fire Table.
Cylinders must be stored outdoors
in a well-ventilated area out of reach of children. Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage or any other enclosed area.
Turn OFF control knob and close propane cylinder valve. Turn coupling nut counterclockwise by hand
only—do not use
tools to disconnect. Loosen cylinder screw beneath bottom shelf, then lift propane cylinder up and out of shelf.
Place dust cap on cylinder valve outlet whenever the cylinder is not in use.
WARNING:,PSURSHULQVWDOODWLRQDGMXVWPHQWDOWHUDWLRQVHUYLFHRUPDLQWHQDQFHFDQFDXVHLQMXU\RUSURSHUW\
GDPDJH 5HIHUWRWKHRZQHUVLQIRUPDWLRQPDQXDOSURYLGHGZLWKWKLVDSSOLDQFH)RUDVVLVWDQFHRUDGGLWLRQDO
LQIRUPDWLRQ FRQVXOWDTXDOLILHGLQVWDOOHUVHUYLFH DJHQF\RUWKHJDVVXSSOLHU
The Propane-gas supply cylinder must be disconnected when this appliance is not in use.
Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating the
appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use
and at least annually
by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control
compartment, burners, and circulating air passageways of the appliance are kept clean.

5
13&1"3"5*0/'03"44&.#-:
1"$,"(&$0/5&/54"/%$0.10/&/54
%HIRUHEHJLQQLQJDVVHPEO\RI)LUH3LWPDNHVXUHDOOSDUWVDUHSUHVHQW&RPSDUHSDUWVZLWKSDFNDJHFRQWHQWVOLVW,IDQ\SDUWLV
PLVVLQJRUGDPDJHGGRQRWDWWHPSWWRDVVHPEOHfire table
Estimated Assembly Time: 10 minutes
127(
<RXPXVWIROORZDOOVWHSVWRSURSHUO\DVVHPEOHfire table
0DNHVXUHWKHJDVYDOYHLVWXUQHG2))EHIRUHDVVHPEOLQJ
'RQRWDWWHPSWWRDVVHPEOHZLWKRXWSURSHUWRROV

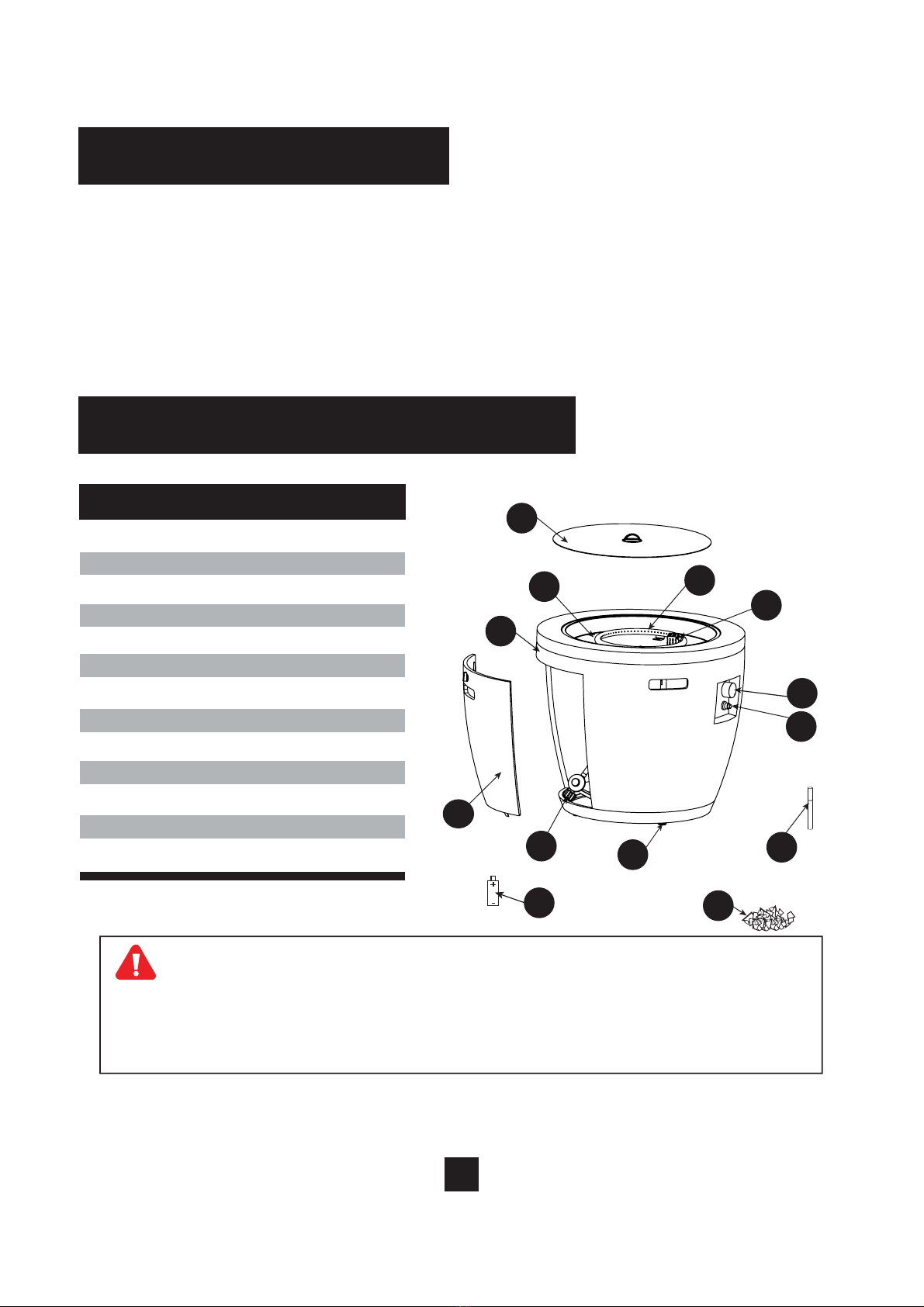

1"35 %&4$3*15*0/ 25:
A 1
B 1
C 1
D 1
E 1
F 2 Boxes
H 1
I
Fire Bowl
Body
Door
Burner (preassembled)
Guard(preassembled)
Fire Glass
AAA Battery
Adjustable feet (preassembled) 4
J Control Knob (preassembled) 1
K Igniter (preassembled) 1
L 1
Regulator(preassembled)
HF
A
C
/
B
D
J
K
I
E
M Touch-Up Kit 1
0
N
N Lid 1
WARNING:
Failure to psoition the parts in accordance with these diagrams or failure to use
only with parts specifically approved with this appliance may result in property
damage or personalinjury.

1
2

6
ASSEMBLY INSTRUCTIONS
0DNHVXUHWKHJDVVXSSO\V\VWHPLVWXUQHGWR³2))´
1
WARNING
This Fire Table requires air flow
under the unit. Do not place on
uneven surface or on grass, turf or
carpet.
Questions? Please call us at
(888)-334-3473 for assistance.
33ODFHSURSDQHWDQNQRWLQFOXGHGLQWKHPHWDOVWDQGLQVLGH%RG\%DQGPDNHVXUHWKHJDVWDQNVLWVRQWKHPHWDOVWDQG
FRPSOHWHO\7XUQWKHZLQJVFUHZRQWKHRXWHUSDUWRIPHWDOVWDQGFORFNZLVHWRVHFXUHWKHJDVWDQNWLJKWO\
Turn door knob, 5HPRYHGRRU&and Lid (N).
2
OFF
C

a
b
H
Hardware Used
AAA Battery x 1
K
H

K
H

7
ASSEMBLY INSTRUCTIONS

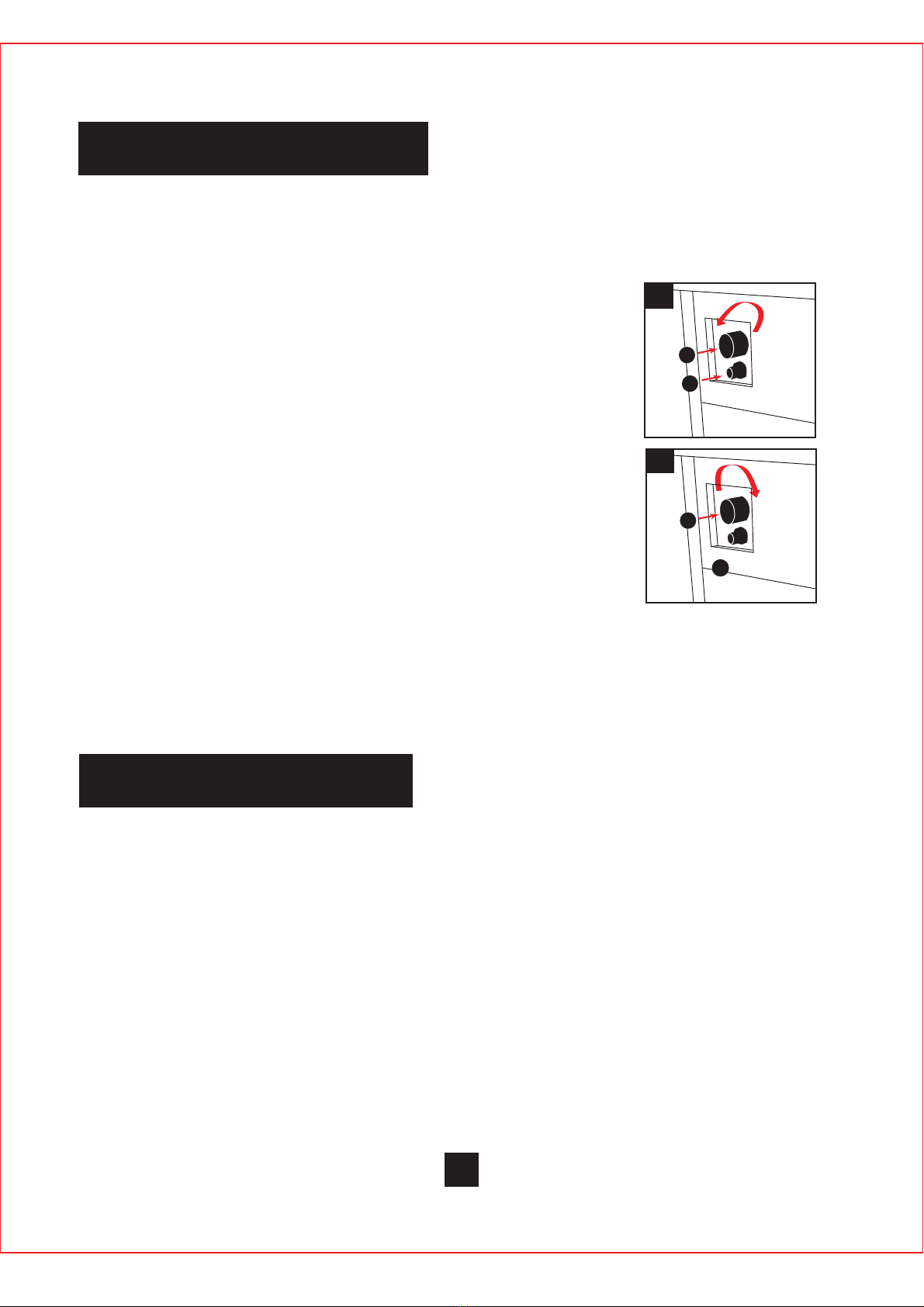

4D 7XUQ&\OLQGHU9DOYHRQWKHWRSRI
3URSDQH7DQNFORFNZLVHWRFORVH
RIIJDVVXSSO\6HH)LJXUHD
E 6FUHZ5HJXODWRU&RXSOLQJ
FORFNZLVHE\KDQGRQO\0DNHVXUH
LWLVIDVWHQHG6HH)LJXUHE
5 5HSODFH'RRU&RQWR%RG\% and turn door knob to secure
67RLQVWDOO%DWWHU\+XQVFUHZUXEEHUFDSRI(OHFWULF,JQLWHU.DQGSODFH%DWWHU\+LQWRWKH%DWWHU\&DVH
0DNHVXUHWKHSRVLWLYHSROHIDFHVRXWWRZDUGV&DS6FUHZ&DSEDFNWR%DWWHU\&DVHWLJKWO\
$ZMJOEFS7BMWF
3FHVMBUPS
$PVQMJOH

8
"44&.#-:*/4536$5*0/4
8

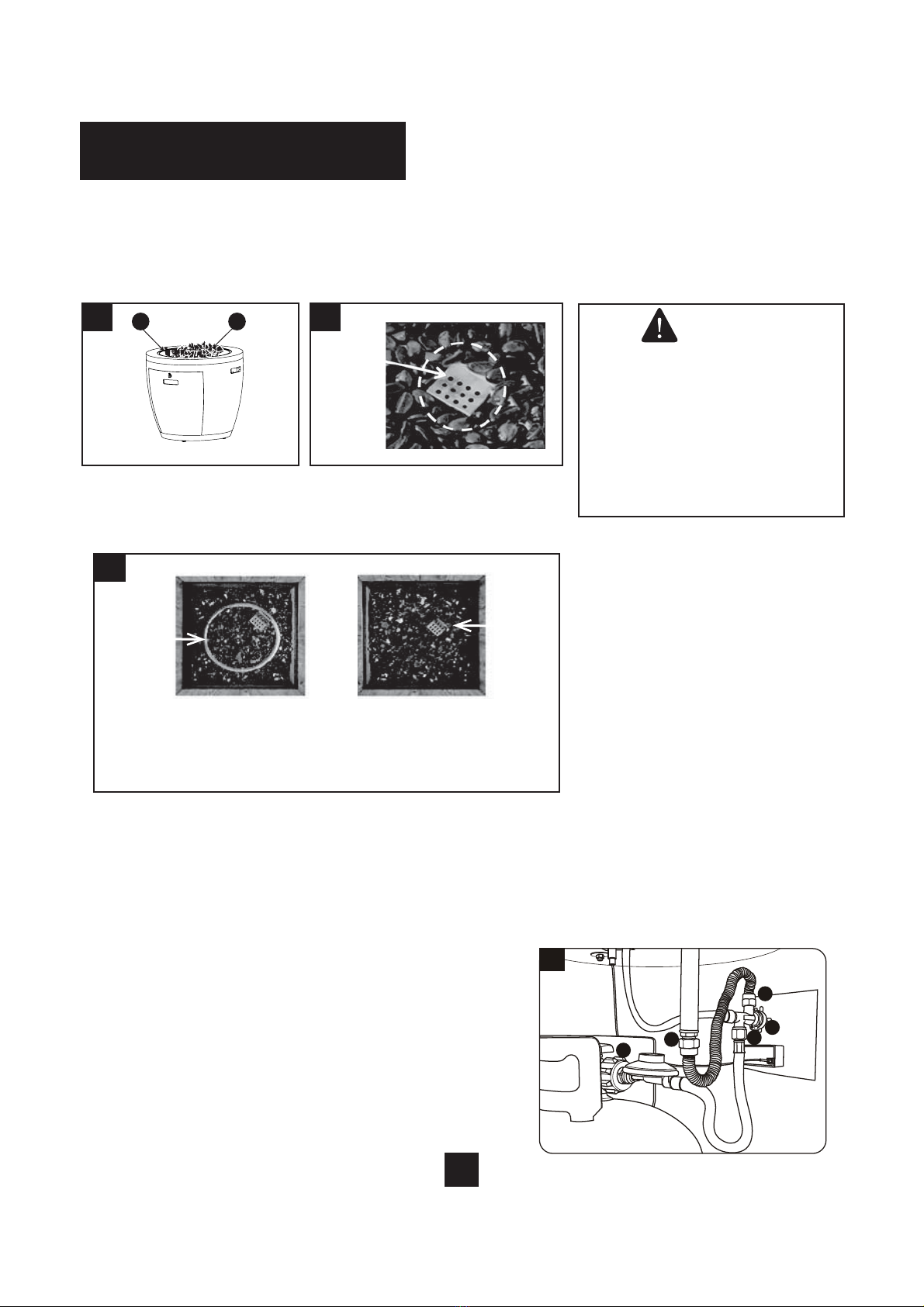

7D3ODFHFire Glass)HYHQO\LQ)LUH%RZO$8VHFDXWLRQZKHQKDQGOLQJFire Glass DVLWLVVKDUS6HH)LJXUHD
%HIRUHXVLQJfire tableFKHFNIRUJDVOHDNV
3HUIRUPOHDNWHVWLQDZHOOYHQWLODWHGDUHDRXWVLGHDQGZKHUHQRVRXUFHRIVSDUNFDQRFFXU
D $IWHURSHQLQJGRRUIRUDFFHVVRSHQ7DQN9DOYHIXOO\FRXQWHUFORFNZLVH
E 7XUQ&RQWURO.QREWRWKH2))SRVLWLRQ
F $SSO\VRDS\ZDWHUVROXWLRQGURSVGLVKGHWHUJHQWSOXVR]ZDWHUWRFKHFNDOOFRQQHFWLRQVIRUOHDNVEHIRUHDWWHPSWLQJWROLJKWfire table
G &RDWVRDS\ZDWHURQWRDOOFRQQHFWLRQVVKRZQLQILJXUHDWULJKW6HH)LJXUH
H 7XUQ&RQWURO.QREWRWKH21SRVLWLRQ,IWKHUHDUHDQ\OHDNVVRDS\ZDWHU
ZLOOEXEEOHZKHUHOHDNLVRFFXUULQJ
Burner
Ring
CORRECT
%XUQHU5LQJLVFRPSOHWHO\
FRYHUHGH[FHSWIRU
6FUHHQ
INCORRECT
1RWHWKDWWKH%XUQHU
5LQJLVYLVLEOH
Screen
a
F
4DSFFO
b WARNING
Keep Fire Glass and other objects
off of screen (shown at left).
Holes in the Screen must be
exposed in order to allow gas to
escape.
%ORFNHGVFUHHQFDQFDXVHJDVWREXLOG
LQVLGHfire tableDQGXOWLPDWHO\FDXVHDQ
H[SORVLRQDQGULVNRIVHULRXVLQMXU\
E'RQRWSODFHDQ\Fire Glass RYHUWKH6FUHHQ6HHILJXUHE
F&RPSOHWHO\FRYHUWKHHQWLUH%XUQHU5LQJZLWKFire Glass6HHILJXUHF
)DLOXUHWRFRPSOHWHO\FRYHUWKH%XUQHU5LQJZLWKWKHFire Glass ZLOOFDXVHIODPHWRH[WLQJXLVKRFFDVLRQDOO\



If a leak is found, turn Tank Valve off and do
not use fire table until repairs are made.
A F

9
OPERATING INSTRUCTIONS
DPUHVVDQGKROG(OHFWULF,JQLWHUEXWWRQD
EAWWKHVDPHWLPHSXVKLQDQGWXUQ&RQWURO.QREEFRXQWHUFORFNZLVHWR/2:SRVLWLRQ
F.HHSWKH&RQWURO.QREESXVKHGLQWROLJKWWKHEXUQHUULQJ
WARNING! If ignition does NOT immediately occur
• 5HOHDVH(OHFWULF,JQLWHU%XWWRQDDQGWXUQ&RQWURO.QREWR2))FORFNZLVH
• WAIT 5 MINUTESWRFOHDURXWWKHJDV
• RHSHDWOLJKWLQJLQVWUXWLRQVLQ6WHS
 $IWHULJQLWLRQUHOHDVH(OHFWULF,JQLWHU%XWWRQD
CARE AND MAINTENANCE
 6WRUHWKHILUHtableLQDFRROGr\SODFHDZD\IURPGLUHFWVXQOLJKW
7KHSURSDQHWDQNPXVWEHGLVFRQQHFWHGDQGUHPRYHGIURPWKHILUHSLWEHIRUHWKHILUHtableFDQEHVWRUHGLQGRRUV
0DNHVXUHERWKWKHJDVDQGWKHILUHtableDUHWXUQHGRIIEHIRUHFKDQJLQJWKHEDWWHU\3OHDVHUHIHUWRWKHSURFHVVRILQVWDOOLQJWKH
EDWWHU\6WHS
8VHPDQXIDFWXUHUDSSURYHGRUVXSSOLHGUHSODFHPHQWSDUWVDQGDFFHVVRULHVRQO\8VHRIXQDXWKRUL]HGUHSODFHPHQWSDUWVPD\
YRLGWKHZDUUDQW\
 3OHDVHFRQWDFW$PHULFDQ)LUH*ODVV,1&DW88IRULQIRUPDWLRQRQUHSODFHPHQWKRVHVLJQLWRUVODYDURFNRUILUHJODVV
DQGUHJXODWRU
.HHSILUHtableIUHHDQGFOHDUIURPFRPEXVWLEOHPDWHULDOV
 9LVXDOO\LQVSHFWEXUQHUULQJIRUEORFNDJHVVSLGHUZHEVGLUWHWF.HHSILUHtableDQGFOHDUIURPGHEULV
$IWHUEXUQHUULQJDQGfire glassDUHFRPSOHWHO\FRROHGGRZQXVHDVRIWEUXVKWRJHWULGRIPLOGVWDLQVORRVHGLUtDQGVRLO:LSH
ZLWKDVRIWFORWK
&RQWLQXHWRSXVKDQGKROGWKH&RQWURO.QREIRUVHFRQGV
1RWH)ODPHVKRXOGEH\HOORZEOXHFRORU


D
E
E
D
%HIRUHHDFKXVHRSHQWKHGRRUWRLQVSHFWKRVH5HSODFHKRVHLIWKHUHDUHDQ\VLJQVRIFXWWLQJZHDURUDEUDVLRQ
Caution: Only use pressure regulator and hose assembly supplied with Fire Table.
Replacement pressure regulator and hose assemblies must be specified or supplied
by manufacturer.
To Light
 7XUQ&\OLQGHU9DOYHRQWRSRI3URSDQH7DQNFRXQWHUFORFNZLVHWRRSHQJDVVXSSO\
 &ORVH'RRURQERG\RIfire table
 7RLJQLWHEXUQHUULQJ6HHILJXUH
To Extinguish 6HHILJXUH
3XVKDQGWXUQ&RQWURO.QREFORFNZLVHWR2))SRVLWLRQ
7XUQF\OLQGHUYDOYHRQJDVWDQNWRFORVHJDVVXSSO\LIQRWLQXVHIRUDORQJWLPH
WARNING: Do not place lid or nylon fire table cover on top of fire table for at least 4 hours after use and until fire table has cooled.

5306#-&4)005*/(
10
No battery or bad battery. Replace battery(AAA).
Battery installed incorrectly. Correctly install Battery.
Igniter broken or cracked Call customer service for replacement part.
Ignition wire loose or damaged. Connect ignition wire correctly.
Voltage drop or short in ignition wire
or position of electrode is incorrect.
Reposition electrode near burner port. If defective
call customer service for replacement part.
Gas not turned on at tank. Turn on gas at cylinder.
Regulator is loose or
disconnected at tank.
Regulator not connected properly at
tank. Check and re-connect the regulator at tank.
No or low gas in tank. Re-Fill tank.
Gas turned on at tank while system
was still charged with gas.
Turn control knob to "OFF", turn off the valve at
tank and disconnect regulator from tank. Turn
control knob on Fire Table to "LOW", Wait for
30 seconds then turn knob to "OFF",
Reconnect regulator to tank and resume
proper operation.
Obvious gas leak in system could cause
excess flow safety valve to activate.
Check gas system for gas leaks, if yes, Call
customer service.
Bends or kinks in hose. Bends or kinks can cause low gas
flow. Un-bend and straighten hoses.
No or low gas tank. See"No or Short of gas" above
High or gusting winds.Flame blown out by high or gustion
winds
Remove the appliance to the place without
high or gusting winds
Loose connection at
thermocouple.Call the customer service for help
Media fell inside screen area and
blocked oxygen flow.
Media blocking flame to thermocouple.
Ignition screen covered by
media.
Ignition screen covered causes
improper flame.
Clear media away from ignition screen per
instruction on page 8.
Build up of carbon deposit
inside ignition screen.
Carbon deposits occur due to
restricted flame under ignition screen. Open top of screen and clean carbon deposits.
Excess flow safety valve
has been activated.
No gas or
low gas
flow.
No spark
between
electeode
and burner
port while
pushing
ignitor button
Ignition screen block
by media.
Open and cleaned area of media.
Loss of
flame at
burner.
No power in igniter
No spark to ingitor electode.
