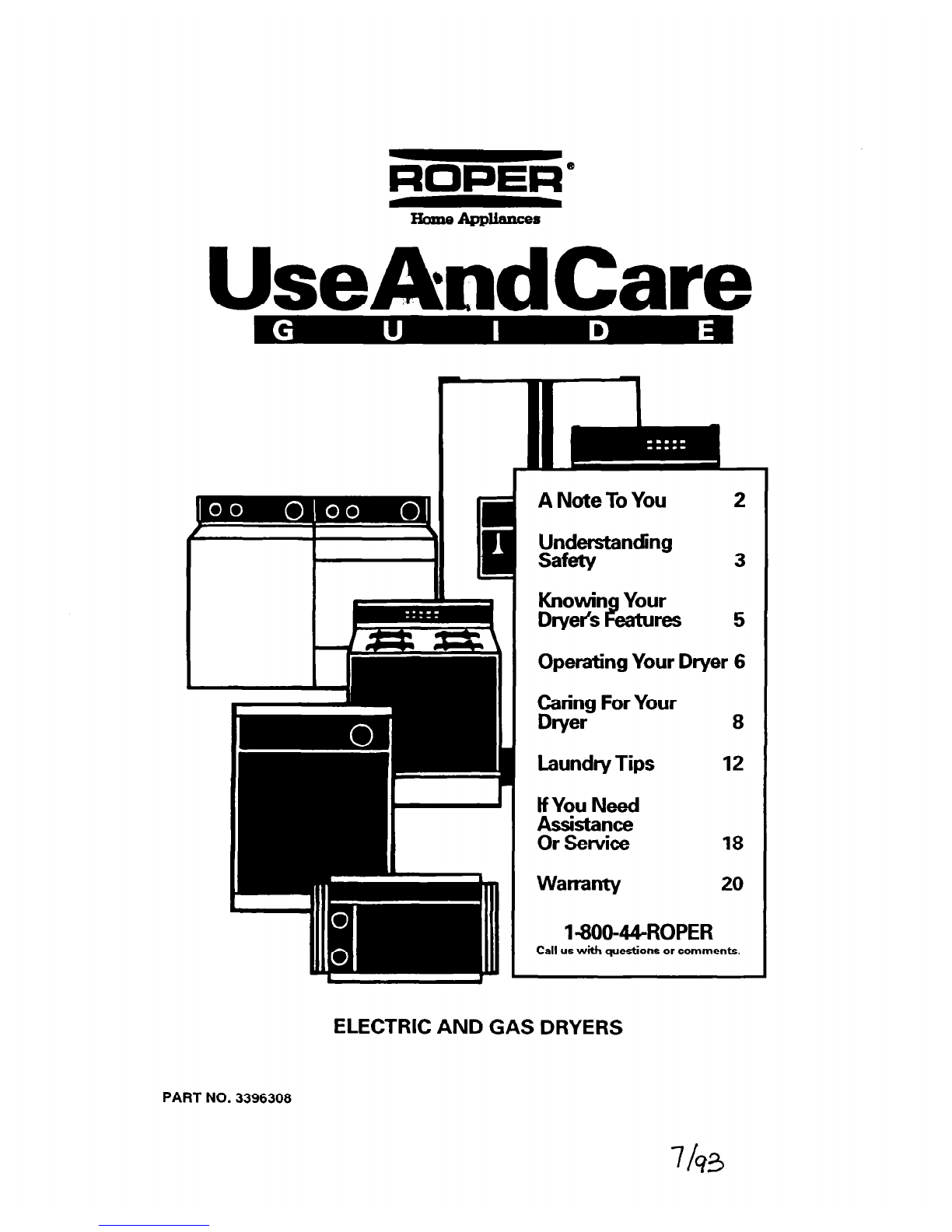

Roper ELECTRIC AND GAS DRYERS User manual

A Note To You 2
Understanding
Safety 3
Knowin Your
Dryek t!?atu res 5
Operating Your Dryer 6
Caairg For Your 8

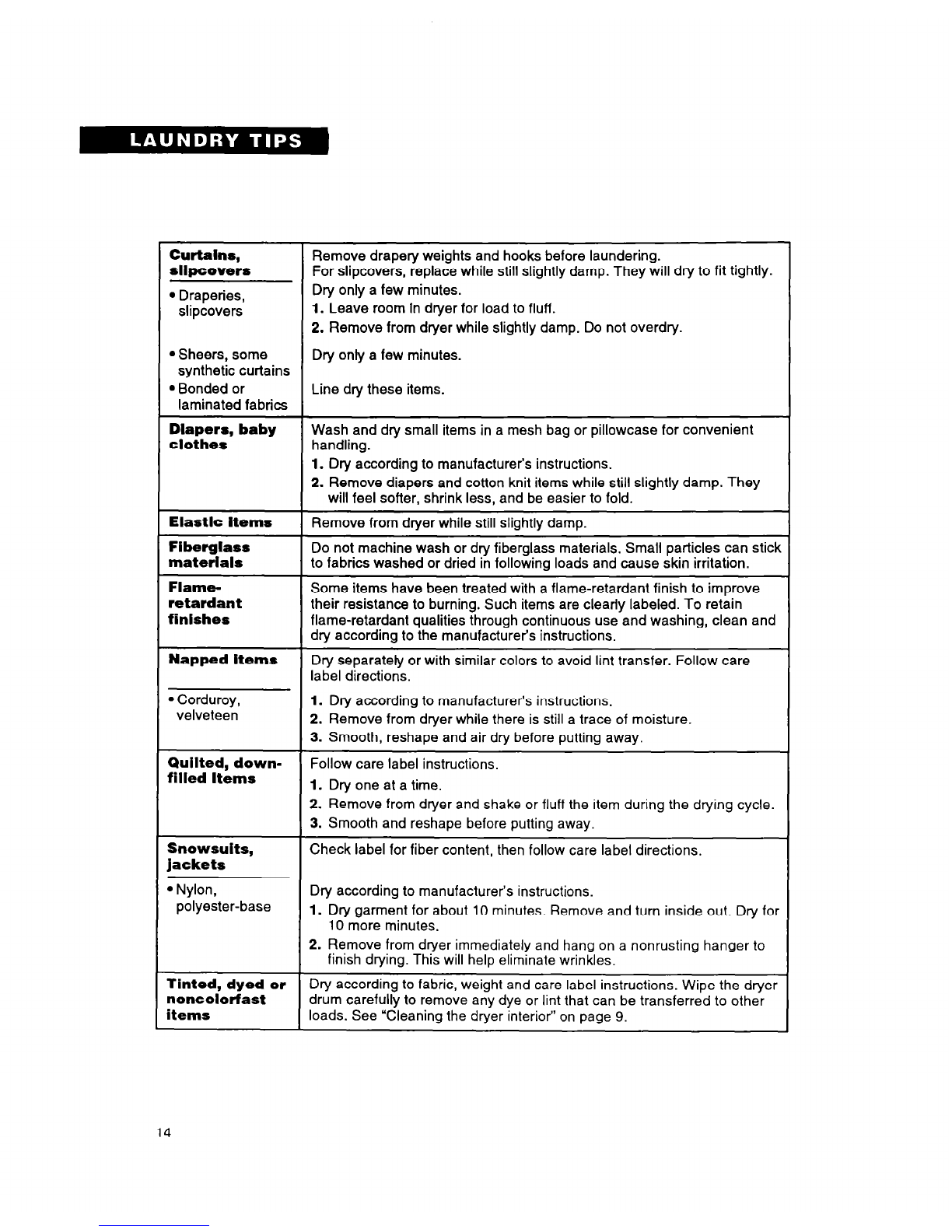

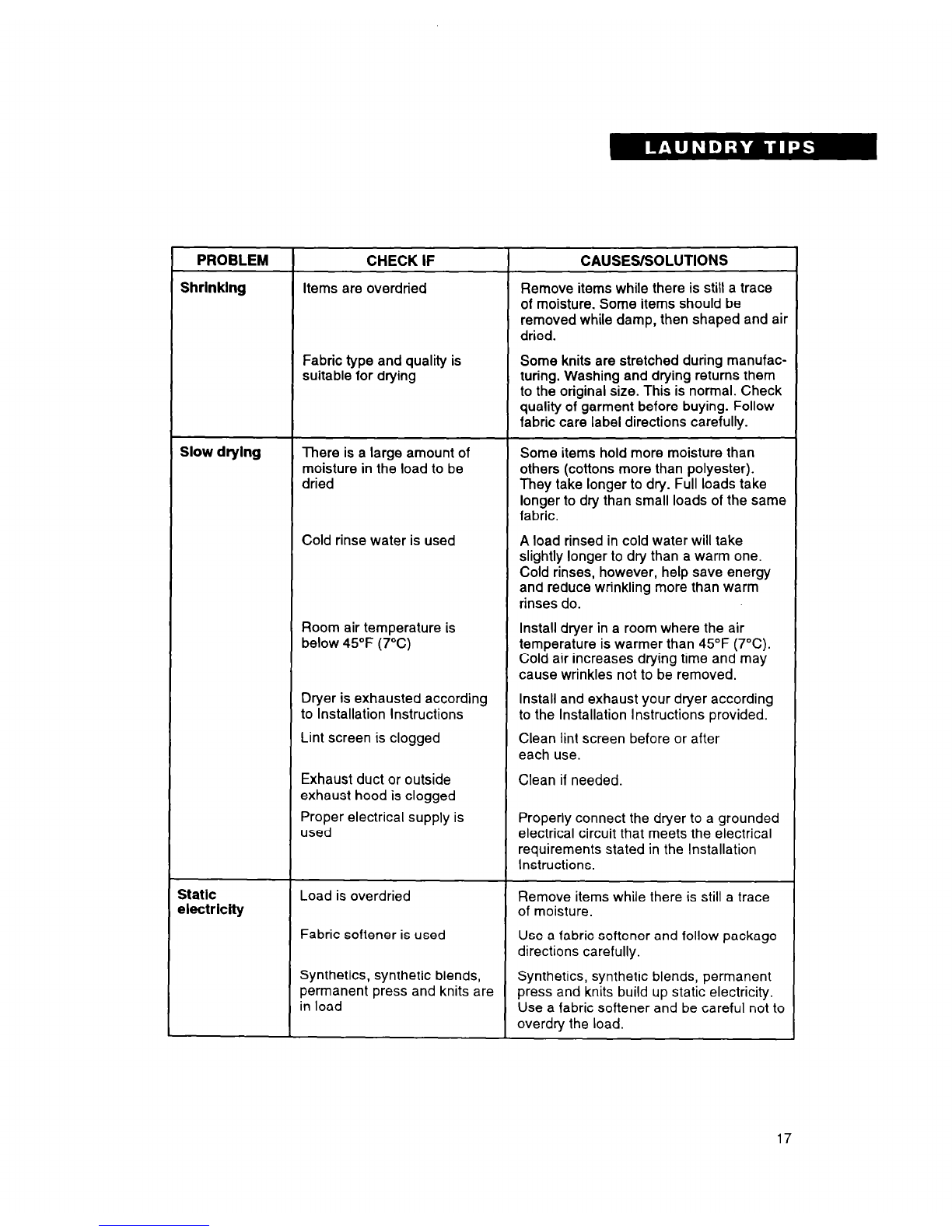

Laundw Tips 12
HYqu Need
tiFlszz 18

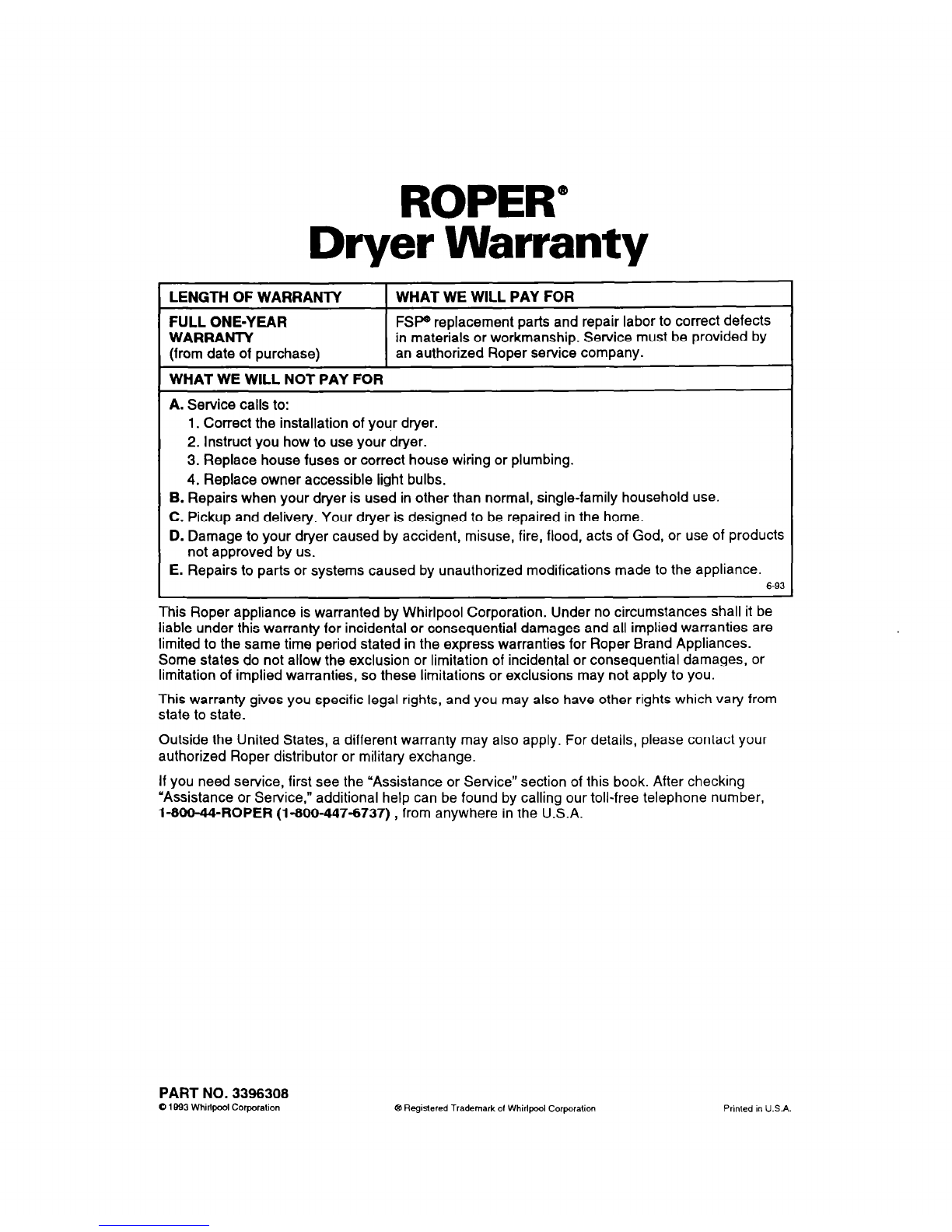

Warranty 20
MOO-@ROPER
Call us with questions or comments.
ELECTRIC AND GAS DRYERS
PART NO. 3396308
7r93

A Note To You
Thank you for buying a Ropep appliance.
You have purchased a quality, world-class home appliance. Years of engineering experience have
gone into its manufacturing. Use this Use and Care Guide to safely and efficiently operate and
maintain your appliance. Complete and mail the Ownership Registration Card provided with your
appliance. This will help us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these symbols
and follow any instructions given. Here is a brief explanation of the use of each symbol.
This symbol will help alert you to such This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to
your personal property.
Our toll-free number, l-80044-ROPER (l-800-447-67371,
is available 24 hours a day.
If you have a question concerning your appliance’s operation, or if you need service, first see

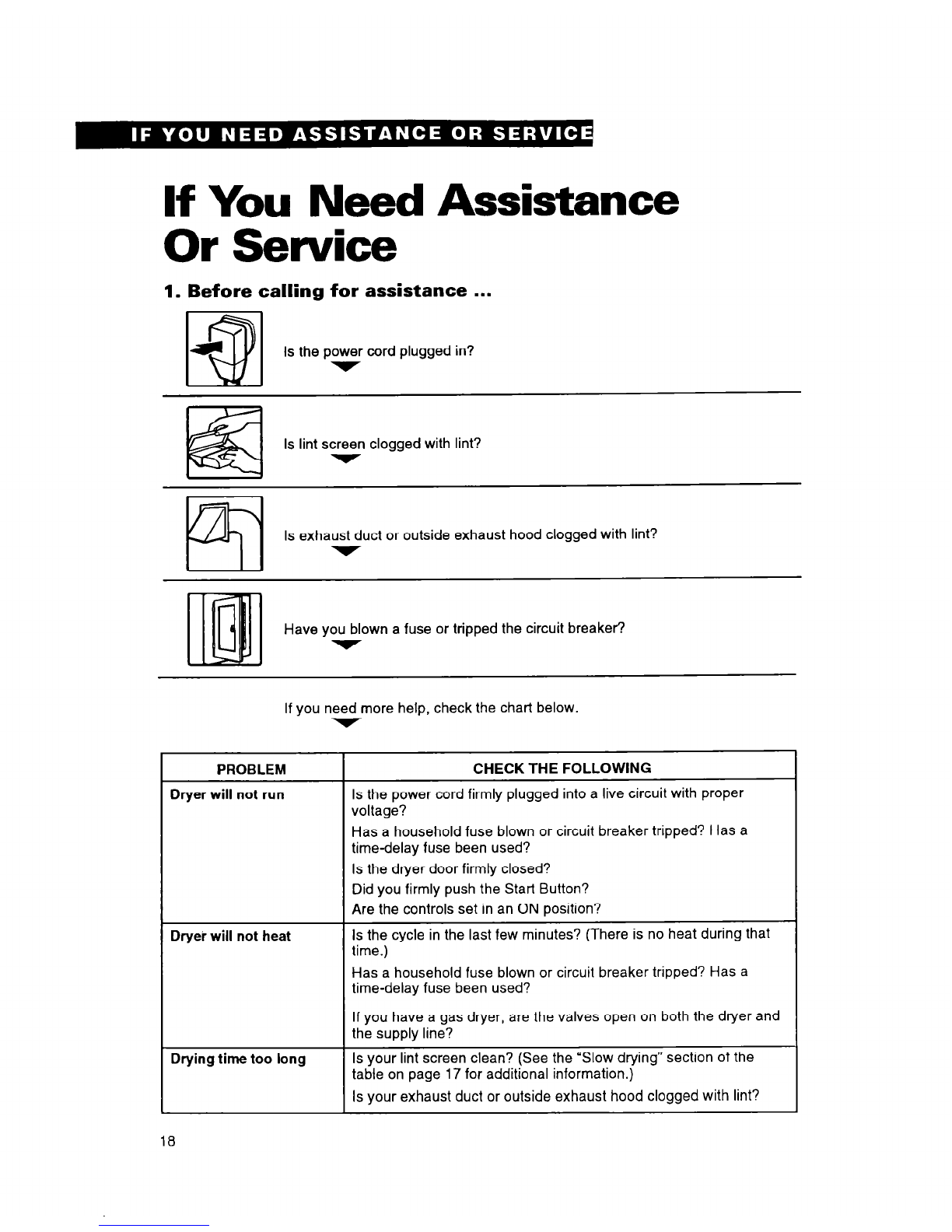

‘If You Need Assistance Or Service” on page 18. If you need further help, call us. When calling,
you will need to know your appliance’s complete model number and serial number. You can find
this information on the model and serial number label (see diagram on page 5). for your conve-
nience, we have included a handy place below for you to record these numbers, the purchase
date from the sales slip and your dealer’s name and telephone number. Keep this book and the
sales slip together in a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone
2

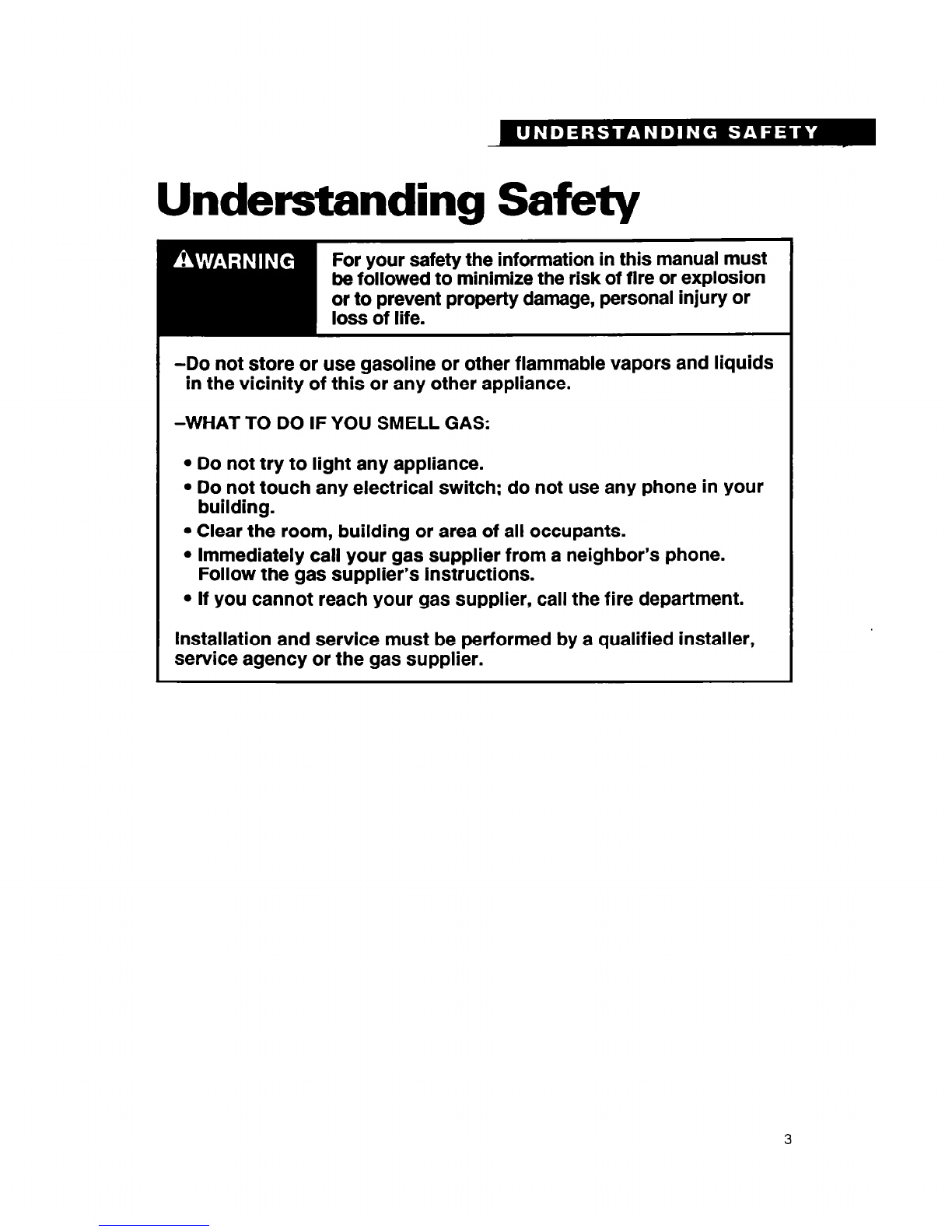

Understanding Safety
For your safety the information in this manual must
be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury or
-Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS:
l Do not try to light any appliance.
l Do not touch any electrical switch; do not use any phone in your
building.
l Clear the room, building or area of all occupants.
l Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s Instructions.
l If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.

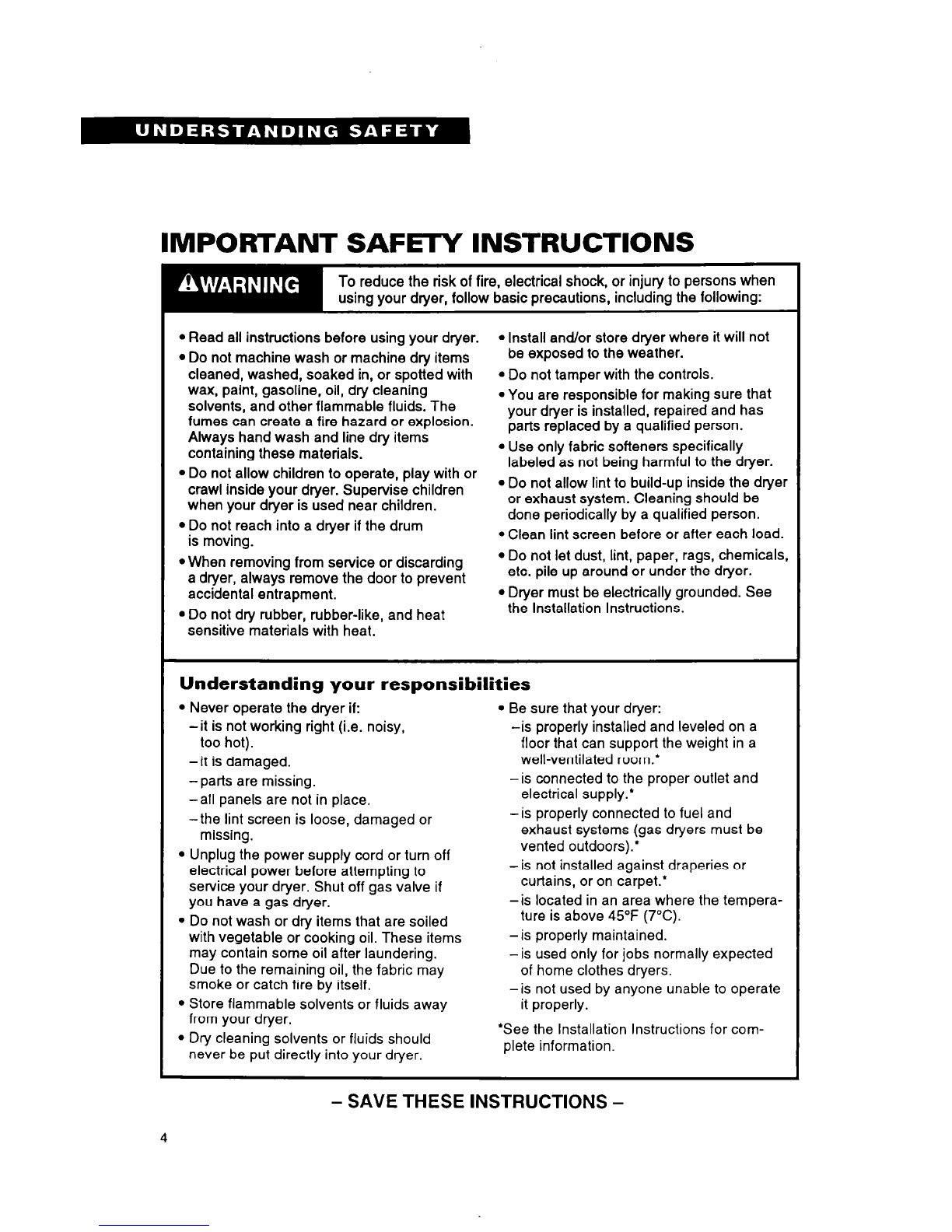

IMPORTANT SAFETY INSTRUCTIONS
ck, or injury to persons when
ns, including the following:
l Read all instructions before using your dryer.
l Install and/or store dryer where it will not
l Do not machine wash or machine dry items be exposed to the weather.
cleaned, washed, soaked in, or spotted with l Do not tamper with the controls.
wax, paint, gasoline, oil, dry cleaning
solvents, and other flammable fluids. The . You are responsible for making sure that
fumes can create a fire hazard or explosion. your dryer is installed, repaired and has
Always hand wash and line dry items parts replaced by a qualified person.
containing these materials.
l Use only fabric softeners specifically
l Do not allow children to operate, play with or labeled as not being harmful to the dryer.
crawl inside your dryer. Supervise children
l Do not allow lint to build-up inside the dryer
when your dryer is used near children. or exhaust system. Cleaning should be
l Do not reach into a dryer if the drum done periodically by a qualified person.
is moving.
l Clean lint screen before or after each load.
l When removing from service or discarding
l Do not let dust, lint, paper, rags, chemicals,
a dryer, always remove the door to prevent etc. pile up around or under the dryer.
accidental entrapment.
l Dryer must be electrically grounded. See
l Do not dry rubber, rubber-like, and heat the Installation Instructions.
sensitive materials with heat.
Understanding your responsibilities
l Never operate the dryer if:
l Be sure that your dryer:
-it is not working right (i.e. noisy, -is properly installed and leveled on a
too hot). floor that can support the weight in a
-it is damaged. well-ventilated room.*
-parts are missing. -is connected to the proper outlet and
-all panels are not in place. electrical supply.*
-the lint screen is loose, damaged or -is properly connected to fuel and
missing. exhaust systems (gas dryers must be
l Unplug the power supply cord or turn off vented outdoors).’
electrical power before attempting to -is not installed against draperies or
service your dryer. Shut off gas valve if curtains, or on carpet.*
you have a gas dryer. -is located in an area where the tempera-
* Do not wash or dry items that are soiled ture is above 45°F (7°C).
with vegetable or cooking oil. These items -is properly maintained.
may contain some oil after laundering. -is used only for jobs normally expected
Due to the remaining oil, the fabric may of home clothes dryers.
smoke or catch fire by itself. -is not used by anyone unable to operate
l Store flammable solvents or fluids away it properly.
from your dryer.
l Dry cleaning solvents or fluids should ‘See the Installation Instructions for com-
never be put directly into your dryer. plete information.
- SAVE THESE INSTRUCTIONS -
4

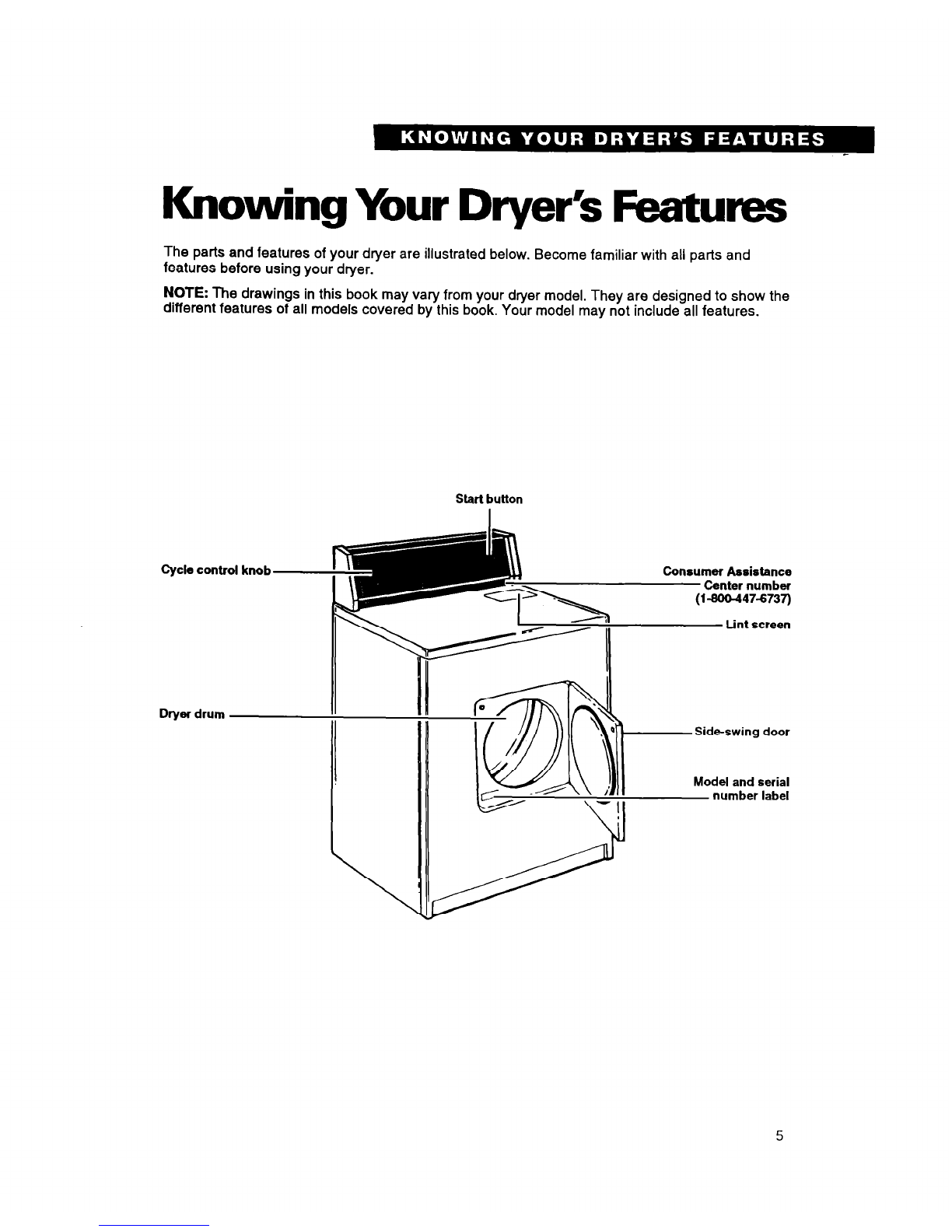

Knowina Your Dwer’s Features
w I -- - - ------- --
The parts and features of your dryer are illustrated below. Become familiar with all parts and
features before using your dryer.
NOTE: The drawings in this book may vary from your dryer model. They are designed to show the
different features of all models covered by this book. Your model may not include all features.
Start button
Cycle control knob-d
Dryer drum
Consumer Assistance
Center number
(I-800-447-6737)
Lint screen
Side-swing door
Model and serial
number label
5

Operating Your Dryer
I
In This Section
Page Page
I
Before starting your
dryer ................................. 6 Selecting a cycle .............................................. .6
Starting or stopping your dryer ...................... .6
Operating your dryer properly ensures the best drying results. This section gives you important
information to help you to select a cycle, time, and temperature.
Before starting your dryer
Refer to the information below, and “Laundry
NOTE: To remove dust from storing and
Kps” on page 12 for control setting, sorting, shipping, wipe out dryer drum with a damp
and loading information. cloth before using.
Starting or stopping your dryer
Starting your dryer
Close the door and select a cycle. Push the Start
Button. See pages 6-8 for additional setting
information. Your dryer automatically stops when
a cycle ends.
Stopping and restarting your
dryer
Open the dryer door or turn the Cycle Control
Knob to OFF. Close the door; make new selec-
tion (if necessary). Push the Start Button.
NOTE: The Cycle Control Knob should point to
an OFF area when the dryer is not in use. If the
dryer is stopped before the cycle is finished, turn
the Cycle Control Knob to an OFF area.
Selecting a cycle
Use your High Heat automatic cycle to dry
most loads. See “Using the High Heat auto-
matic cycle” and “Using the Timed (high heat)
cycle” for more information.
1. Select a cycle by turning the Cycle Control
Knob either way to a desired time or setting.
2. Stop when the indicator on the knob’s outer
ring points to the setting you want.
3. Push the Start Button.
Changing a selection:
1. Turn the Cycle Control Knob to point to a
new setting.
2. Push the Start Button, if necessary.
6

Loads tumble without heat during the last few
minutes of all heated cycles. This makes a
load easier to handle and helps keep wrinkles
from setting in.
NOTE:
l To help reduce wrinkling, remove the load
from the dryer as soon as tumbling stops.
This is important for permanent press, knits
and synthetic fabrics.
l Do not overdry. Overdrying can cause
shrinkage, static cling, and damage some
fabrics.
Fire Hazard
Do not dry heat sensitive fabrics, plastic,
rubber, or some stuffed items with heat.
Air/line dry these items on a line or rack.
Failure to do so ooukf result in fire or
damaged items.
Using the High Heat automatic
cycle
Your High Heat cycle automatically shuts off
when the selected dryness is reached. Use
this cycle to dry most loads.
1. Set the Cycle Control Knob to point to the
Energy Preferred Automatic Setting (*) in
your High Heat oyde.
2. Push the Start Button. The Cycle Control
Knob will not move until the load is almost
dry or the cool-down portion of the cycle
has been reached. After the cool down, the
Cycle Control Knob automatically moves to
an OFF area and tumbling stops.
The Energy Preferred Automatic Setting (+)
correctly dries most loads.
l If the items are drier than you like, select a
setting closer to LESS DRY the next time
you dry a similar load.
Energy ireferred wtornatic setting
l If items are not as dry as you like,
complete drying using the Timed (high heat)
cycle. Select a setting closer to VERY DRY
the next time you dry a similar load.
Using the Timed (high heat)
cycle
Use your Timed (high heat) cycle to complete
drying if some items are damp after automatic
drying. This cycle is also useful to dry delicate
items that require a short drying time.
1. Turn the Cycle Control to the number of
minutes you want in the Timed (high heat)
cycle.
2. Push the Start Button.
The last few minutes of this cycle are without
heat to help make the load easier to handle.
Timed (high heat) cycle

Using the Damp Dry cycle
Use this cycle to dry damp items that do not
require an entire drying cycle, or to dry items to
damp level. Two examples are heavy cottons,
such as jeans, which you do not want to
become stiff, or cotton clothes which are easier
to press when damp.
1. Set the Cycle Control Knob on DAMP DRY.
2. Push the Start Button.
The last few minutes of this cycle are without
heat to make the load easier to handle.
Caring For Your Dryer
In This Section
Page Page
Maintenance-every load .....................................8 Mainlenance-as needed ..................................9
Dryers require regular maintenance. Follow the suggestions below to maintain your dryer properly.
Maintenance-every load
Cleaning the lint screen
The lint screen is located under a lid on top of
the dryer. Clean It before each load. A screen
blocked by lint can increase drying time.
Product and Fabric Damage Hazard
Do not run the dryer with the lint screen
loose, damaged, blocked or missing.
Doing so can cause overheating and
damage to both the dryer and fabrics.
1. Open the lid and pull the lint screen straight
out.
2. Roll lint off the screen with your fingers. Do
not rinse or wash the screen to remove lint.
Wet lint is hard to remove.
3. Push the lint screen firmly back into place
and close the lid.

Maintenance-as needed
Use the following suggestions about cleaning
and lint removal to maintain your dryer and
keep it operating efficiently.
Cleaning a clogged lint screen
Laundry detergents and fabric softeners can
cause a residue build-up on the lint screen. A
clogged lint screen can extend drying times.
Clean the lint screen every six months or more
frequently if it becomes clogged due to a
residue build-up. Use the following method:
1. Wet both sides of lint screen with hot water.
2. Wet a nylon brush with hot water and liquid
detergent.
3. Scrub lint screen with the brush until all
residue build-up is removed.
4. Rinse with hot water.
5. Thoroughly dry lint screen with a clean
towel and replace in dryer.
Cleaning the dryer interior
Electrical Shock,
Personal InJury and Flre Hazard
l Turn off the electrical power before
cleaning the interior.
l Make sure the dryer is cool.
l Use nonflammable cleaner.
Failure to do so could result in electrical
shock or injury, fire or explosion.
Garments which contain unstable dyes, such
as denim blue jeans or brightly colored cotton
items, may discolor the dryer interior. If you
want to remove stains from dryer drum, use
powdered laundry detergent.
1. Make a paste with detergent and very warm
water.
2. Apply paste to a soft cloth and scrub area
until all excess dye is removed.
3. Wipe thoroughly with a damp cloth.
4. Tumble a load of rags to dry.
Cleaning the dryer exterior
Wipe with a soft, damp cloth.
9

Removing accumulated lint
Lint can gather inside the dryer and be a fuel
for fire. It is recommended that lint be removed
every 2 to 3 years, or more often, depending
on dryer usage. Cleaning should be done by a
qualified person. If you have any questions,
please call our toll-free number
l-800-447-6737.
Electrical Shock and
Personal Injury Hazard
l Unplug the power supply cord or turn off
the electrical power before removing
dryer panels.
l Make sure the dryer is cool.
l Dryer parts can have sharp edges. Use
care when handling.
l When replacing front panel after lint
removal, the wire clips holding the door
switch wires must be anchored to top of
front and side panels. Wires MUST NOT
touch rotating drum. (See page 11,
Step 7.)
Failure to do so could result in electrical
shock or personal injury.
For all electric dryers, or gas dryers which
have a lower front access panel
NOTE: See page 11 if your dryer is gas and
has a full front panel.
Thermostats Heat element
1. Unplug the power supply cord or turn off the
electrical power.
2. Remove back panel (electric) or lower front
access panel (gas). See the Installation
Instructions.
3. Remove lint from shaded area in illustration
with a soft brush or vacuum cleaner. Avoid
damaging wires, thermostats (electric),
funnel (gas) or ignitor (gas).
4. Replace panel; reconnect and level dryer
again, if necessary.
Electric dryer with back panel removed
Gas dryer with lower front access panel
removed
10

lf your dryer Is gas and has a full front
panel, remove front panel as follows
1. Unplug the power supply cord or turn off the
electrical power.
2. Open lint screen lid. Remove two screws
from lint screen area.
3. Open top by pulling forward and up at each
front comer (see View A). Rest raised top
against wall behind dryer (top is hinged
at rear).
4. Remove two internal screws from front
panel flanges (near top front corners). Lift
front panel slightly, lifting off lower clips (see
View B). Slowly pull front panel forward,
disengaging panel from drum. (Drum will
drop slightly.)
5. Move front panel aside and rest edge
against side of dryer. Avoid disconnecting
wire clips (see View C) or damaging wires.
6. Remove lint from area shown in “gas dryer”
illustration on page 10 with soft brush or
vacuum cleaner. Avoid damaging wires,
funnel or ignitor.
7. Reassemble in reverse order. Before
closing the top, check the following:
-Drum seal must be flared out (see View
D) and properly positioned against panel
at back of drum. Rotate drum counter-
clockwise one full turn to check drum seal.
-Belt should be centered and tight on
dryer drum.
-Wire clips which hold the door switch
wires must be anchored in slot in top of
front panel (see View C) and along top
edge of side panel. Door wires must not
touch drum when dryer is operating. See
Warnlng, page 10.
8. Replace top panel and lint screen screws.
Top and front panels must be securely in
place before operating dryer.
9. Reconnect power and level dryer again
(if necessary).
NOTE: Call our toll-free number 1-600-447-6737,
for assistance or more information.
Remove screws
before opening top
View A
Drum seal Side panel
Wire clip-holds
door switch wires
View B View C
11

Laundry Tips
Page
.................................................. 12
................................................... 13
Drying special-care items ................................ 13
................... ..- ..... 15
Page
Saving energy ................................................ 15
Vacation care .................................................. 15
Solving laundering problems ...................... .I6
This section reviews proper drying techniques, gives you additional drying information, and
discusses causes or solutions to common drying problems.
Before you dry
Before using your dryer, see pages 3 and 4 for
Important Safety Information.
Drying tips
l Close zippers, snaps, and hooks to avoid
snagging other items. Remove
pins, buckles, and other hard
objects to avoid scratching the
dryer drum. Remove heat-
sensitive trim that can be dam-
ing.
l Check garments to make sure all spots and
stains were removed during the wash. If
stains were not removed, do not tumble dry.
Heat may permanently set stain. Soiled items
can also leave stains on the dryer drum.
These stains can be picked up by other items
in the load.
. ckets. Sharp or heavy objects
can damage your washer or
dryer. Do not lay these objects
on your washer or dryer after
emptying pockets. Turn pockets
of heavy items inside out for
even drying.
l Tie strings and sashes so they will not
tangle.
l Turn lint takers and dark items inside out to
help prevent lint pickup.
l Place small items such as baby socks or
hankies in a mesh bag for easier removal.
l Articles to be ironed should be removed from
the dryer while still damp.
Sorting
l Separate dark from light colors; colorfast
from noncolorfast. Items
properly sorted for washing are
usually properly sorted for
drying. Separate heavy fabrics
(denim, towels) from light fabrics
(synthetics, permanent press).
l Separate lint givers (towels, chenille) from
lint takers (corduroy, synthetics, permanent
press). When possible, turn lint takers inside
out.
Load sizes
l Mix large items with smaller items. Load the
dryer by the amount of space
items take up, not by their
weight. Do not overload the
dryer. Overcrowding causes
uneven drying and wrinkling,
and can cause items to wear out faster
(because of pilling).
l You may need to rearrange large items
(sheets, blankets, tablecloths) during a cycle
to reduce balling or rolling up.
l Reduce wrinkling of permanent press and
synthetics by drying smaller loads and
removing items from the dryer as soon as
tumbling stops.
l For better tumbling action when drying only a
few small items, add one or two lint-free
towels. This also prevents small, lightweight
items from blocking airflow.
12

Air/line drying
The following are examples of items that
require drying without heat. These items can
be placed on a line or rack to air dry. Heat
sensitive items should not be dried in this
Fire Hazard
dryer. Do not dry heat sensitive fabrics, plastic,
rubber, or some stuffed items with heat.
Air/line dry these items on a line or rack.
Failure to do so could result in fire or
damaged items.
Heat-sensitive fabrics
Pillows, stuffed toys
Olefin, polypropylene, sheer nylon, bonded or laminated fabrics,
cotton and canvas shoes with foam or foam rubber materials
Feather, foam, polyester, etc.
1Plastic, rubber items
1 Shower curtains, tablecloths, baby panties I
1Scatter rugs
I Check label. Air/line drv if drvina with heat is not recommended.
I
Drying special-care items
Most garments and household textiles have care labels with laundering instructions. Always follow
label directions when they are available. General drying instructions for some special washables
are included in this section.
Blankets and Machine drying knitted woolens is not recommended. (Block to shape
woolens while wet and allow to air dry.)
Line dry blankets in shade on a breezy day over two lines. Pin edges
together and straighten them. When partly dry, turn the blanket over,
repin and restraighten. When dry, brush nap.
l Cotton, rayon, Dry as recommended for permanent press fabrics.
synthetic blankets
l Electric blankets, If manufacturer recommends machine drying:
electric sheets,
woolen blankets,
1. Place one or two dry towels in the dryer and preheat 3-5 minutes.
washable woolen (This will dry blankets faster and help avoid pilling.)
garments 2. Put blanket in dryer with warm towels. Set control for 20 minutes.
3. Check after 10 minutes. Remove when still damp. Overdrying and long
tumbling can cause shrinking and pilling.
4. Place blanket on flat surface or over two lines to finish drying. Gently
stretch to original size and shape.
5. When completely dry, brush gently to raise nap. Press binding with
cool iron if needed.
continued on next
page
13

Curtains,
slipcovers
l Draperies,
slipcovers
Remove drapery weights and hooks before laundering.
For slipcovers, replace while still slightly damp. They will dry to fit tightly.
Dry only a few minutes.
1. Leave room in dryer for load to fluH.
2. Remove from dryer while slightly damp. Do not overdry.
l Sheers, some Dry only a few minutes.
synthetic curtains
l Bonded or Line dry these items.
laminated fabrics
Dlapers, baby
clothes Wash and dry small items in a mesh bag or pillowcase for convenient
handling.
1. Dry according to manufacturer’s instructions.
2. Remove diapers and cotton knit items while still slightly damp. They
will feel softer, shrink less, and be easier to fold.
Elastic Items
Fiberglass
materlals
Flame-
retardant
finlshes
Napped Items
Remove from dryer while still slightly damp.
Do not machine wash or dry fiberglass materials. Small particles can stick
to fabrics washed or dried in following loads and cause skin irritation.
Some items have been treated with a flame-retardant finish to improve
their resistance to burning. Such items are clearly labeled. To retain
flame-retardant qualities through continuous use and washing, clean and
dry according to the manufacturers instructions.
Dry separately or with similar colors to avoid lint transfer. Follow care
label directions.
l Corduroy,
velveteen 1. Dry according to manufacturer’s instructions.
2. Remove from dryer while there is still a trace of moisture.
3. Smooth, reshape and air dry before putting away.
Quilted, down- Follow care label instructions.
filled Items 1. Dry one at a time.
2. Remove from dryer and shake or fluff the item during the drying cycle.
3. Smooth and reshape before putting away.
Snowsuits,
jackets
l Nylon,
polyester-base
Check label for fiber content, then follow care label directions.
Dry according to manufacturer’s instructions.
1. Dry garment for about 10 minutes. Remove and turn inside out. Dry for
10 more minutes.
2. Remove from dryer immediately and hang on a nonrusting hanger to
finish drying. This will help eliminate wrinkles.
Tinted, dyed or Dry according to fabric, weight and care label instructions. Wipe the dryer
noncolorfast drum carefully to remove any dye or lint that can be transferred to other
items loads. See “Cleaning the dryer interior” on page 9.
14

Towels Select cycle according to fabric type. Some towels, particularly those
made of a blend of synthetic fibers and natural fibers (polyester and
cotton blends), may shed more lint than other towels causing your dryers
lint screen to get full faster. Be sure to remove lint from the dryer lint
screen before and after drying new towels.
Washable knits Do not overdry knits. Overdrying can cause shrinking and static cling.
1. Select cycle according to fabric and construction.
2. Turn synthetics and blends inside out when drying to avoid pilling.
3. Remove cotton and rayon knits while still slightly damp. Stretch into
shape and lay flat to finish drying.
Using dryer fabric softeners
Dryer fabric softeners are recommended for
reducing static cling (static can also be re-
duced by not overdrying) and for softening
fabrics. Always follow package instructions
carefully.
l Put fabric softener sheet on top of the load
before starting the dryer. Do not add a
fabric softener sheet after the cycle has
started. Instant heat can cause the fabric
softener to spot fabrics.
l Clear, grease-like spots can result from the
fabric softener sheet becoming tangled in an
item during tumbling. If fabric softener
causes a stain, wet the stain and rub with
liquid detergent or bar soap, rewash.
l Some fabric softeners can clog the lint
screen and slow drying. Use fabric softeners
labeled as dryer safe.
Saving energy
l Use your High Heat automatic cycle for most
loads.
l Dry only full loads without overdrying.
l Avoid overloading dryer, adding wet items to
a partly dried load, or opening the door
unnecessarily.
l Plan your laundry to dry one load after
another. A warm dryer shortens drying time.
l Shorten drying times by exhausting dryer
properly and cleaning exhaust duct and
outside exhaust hood as needed.
-Keep the lint screen clean.
-Use your dryer in a room where room air
temperature is above 45°F (7°C).
-Sort loads by fabric weight and type.
Vacation care
1. Unplug power supply cord or turn off
electrical power supply.
2. Clean lint screen.
15

PROBLEM
Greasy
spots
Lint
CHECK IF
Dryer fabric softeners
were used
Undiluted washer fabric
softener was used
Enough detergent was used
Items were clean before they
were dried
Lint screen is clogged
Load is properly sorted
Static electricity is
attracting lint
Load is too big or heavy
Paper or tissue was in pocket
Enough detergent was used
Pilling is being mistaken for lint
CAUSES/SOLUTIONS
Follow manufacturer’s directions carefully.
Dilute fabric softener before adding to
the final rinse.
Use enough detergent to hold soil in the
wash water until it drains away. Undrained
soil can stick to outer tub of the washer and
cause greasy spots with next load.
Soiled items can stain other items in the
load. They can also leave stains on the
dryer drum that can be picked up by items
in later loads. Dryer heat may permanently
set these stains.
Solving laundering problems
Most laundering problems are easily solved. Check the following list for problems you may have
and possible causes. If you need additional help, check the “Assistance or Service” section of this
book.
Clean lint screen. (See page 8.)
Sort lint-givers (bath towels, etc.) from lint-
takers (synthetics, permanent press).
Use fabric softener in the washer’s final
rinse. Use correct dryer settings for fabric.
Overdrying synthetics can cause lint-
Dry smaller loads. When items can’t tumble
freely, air is unable to carry lint to lint
screen.
Empty pockets carefully. A small scrap of
paper can cause a lot of lint.
Use enough detergent to hold the lint in the
water until it drains away. Base detergent
amount on water hardness and soil in wash
load.
Pilling (surface fuzz) is caused by normal
wear and laundering. Pills do not break
away easily from the fabric and can often
collect lint. Synthetic fabrics are more likely
lo pill than others, especially at neckbands,
.
.

PROBLEM CHECK IF
Shrinklng Items are overdried
CAUSES/SOLUTIONS
Remove items while there is still a trace
of moisture. Some items should be
removed while damp, then shaped and air
dried.
Fabric type and quality is
suitable for drying Some knits are stretched during manufac- turing. Washing and drying returns them
to the original size. This is normal. Check
quality of garment before buying. Follow
fabric care label directions carefully.
Slow drying
There is a large amount of
moisture in the load to be
dried
Some items hold more moisture than
others (cottons more than polyester).
They take longer to dry. Full loads take
longer to dry than small loads of the same
fabric.
Cold rinse water is used A load rinsed in cold water will take
slightly longer to dry than a warm one.
Cold rinses, however, help save energy
and reduce wrinkling more than warm
rinses do.
Room air temperature is
below 45°F (7°C) Install dryer in a room where the air
temperature is warmer than 45°F (7°C).
Cold air increases drying time and may
cause wrinkles not to be removed.
Dryer is exhausted according
to Installation Instructions
Lint screen is clogged
Install and exhaust your dryer according
to the Installation Instructions provided.
Clean lint screen before or after
each use.
Exhaust duct or outside
exhaust hood is clogged
Proper electrical supply is
used
Clean if needed.
Properly connect the dryer to a grounded
electrical circuit that meets the electrical
requirements stated in the Installation
Instructions.
Static
electricity
Load is overdried
Fabric softener is used
Remove items while there is still a trace
of moisture.
Use a fabric softener and follow package
directions carefully.
Synthetics, synthetic blends, Synthetics, synthetic blends, permanent
permanent press and knits are press and knits build up static electricity.
in load Use a fabric softener and be careful not to
overdry the load.
17

If You Need Assistance
Or Service
1. Before calling for assistance ...
q -
Is the power cord plugged in?
Is lint screen clogged with lint?
q -
Is exhaust duct or outside exhaust hood clogged with lint?
Have you blown a fuse or tripped the circuit breaker’?
If you need more help, check the chart below.
PROBLEM
Dryer will not run
CHECK THE FOLLOWING
Is the power cord firmly plugged into a live circuit with proper
voltage?
Has a household fuse blown or circuit breaker tripped? Has a
time-delay fuse been used?
Is the dryer door firmly closed?
Did you firmly push the Stat-t Button?
Are the controls set in an ON position?
Dryei will not heat Is the cycle in the last few minutes? (There is no heat during that
time.)
Has a household fuse blown or circuit breaker tripped? Has a
time-delay fuse been used?
Drying time too long
If you have a gas dryer, are the valves open on both the dryer and
the supply line?
Is your lint screen clean? (See the “Slow drying” section of the
table on page 17 for additional information.)
Is your exhaust duct or outside exhaust hood clogged with lint?
18

2. If you need assistance* ...
Call our toll-free number. Dial toll-free from
anywhere In the U.S.A.:
1-800-44~ROPER
(1-800-4474737)
and talk with one of our trained consultants.
The consultant can instruct you in how to
obtain satisfactory operation from your appli-
ance or, if service is necessary, recommend a
qualified service company in your area.
If you prefer, write to:
Mr. William Clark
Consumer Assistance Representative
Roper Brand Appliances
2000 M-63
Benton Harbor, Ml 49022
Please include a daytime phone number in
your correspondence.
3. If you need service* ...
Contact the dealer from whom you purchased
the appliance or the authorized servicer in your
area. For help finding an authorized servicer in
your area, call our toll-free telephone number
in Step 2.
l When asking for help or service:
Please provide a detailed description of the
problem, your appliance’s complete model
and serial numbers and the purchase date.
(See page 2.) This information will help us
respond properly to your request.
4. If you need FSP@ replace-
ment parts ...
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your Roper@ appliance.
FSP replacement parts will fit right and work
right, because they are made to the same
exacting specifications used to build every new
Roper appliance.
To locate FSP replacement parts in your
area, refer to Step 3 above or call our toll-free
telephone number in Step 2.
5. If you are not satisfied with
how the problem was
solved ...
l Contact the Major Appliance Consumer
Action Panel (MACAP). MACAP is a group of
independent consumer experts that voices
consumer views at the highest levels of the
major appliance industry.
l Contact MACAP only when the dealer,
authorized servicer and Roper Brand
Appliance warrantor have failed to resolve
your problem.
Major Appliance Consumer Action Panel
20 North Wacker Drive
Chicago, IL 60606
l MACAP will in turn inform us of your action.
19

ROPER”
Dryer Warranty
LENGTH OF WARRANTY WHAT WE WILL PAY FOR
FULL ONE-YEAR
FSP@ replacement parts and repair labor to correct defects
WARRANTY
in materials or workmanship. Service must be provided by
(from date of purchase) an authorized Roper service company.
WHAT WE WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your dryer.
2. Instruct you how to use your dryer.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace owner accessible light bulbs.
8. Repairs when your dryer is used in other than normal, single-family household use.
C. Pickup and delivery. Your dryer is designed to be repaired in the home.
D. Damage to your dryer caused by accident, misuse, fire, flood, acts of God, or use of products
not approved by us.
E. Repairs to parts or systems caused by unauthorized modifications made to the appliance.
6-93
This Roper appliance is warranted by Whirlpool Corporation. Under no circumstances shall it be
liable under this warranty for incidental or consequential damages and all implied warranties are
limited to the same time period stated in the express warranties for Roper Brand Appliances.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitation of implied warranties, so these limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Outside the United States, a different warranty may also apply. For details, please contact your
authorized Roper distributor or military exchange.
If you need service, first see the “Assistance or Service” section of this book. After checking
“Assistance or Service,” additional help can be found by calling our toll-free telephone number,
l-800-44-ROPER (l-800-447-6737), from anywhere in the U.S.A.
PART NO. 3396308
0 1893 Whirlpool Corporalion Q Registered Trademark 01 Whirlpool Corporation Printed I” U.S.A.
