Roper RAB2121P User guide

AB
39"
(99 cm)
28"
(71 cm)
Automatic Washer
PRODUCT MODEL NUMBERS
DRAIN SYSTEM OPTIONS
RAB2121P
RAB6233P
RAS7133P
RAS8333P
RAX4232P
RAX4233P
Electrical: A 120-volt, 60-Hz., AC-only, 15- or
20-amp, fused electrical supply is required. A
time-delay fuse or circuit breaker is recommended.
It is recommended that a separate circuit serving
only this appliance be provided.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 3957165
02-10-05

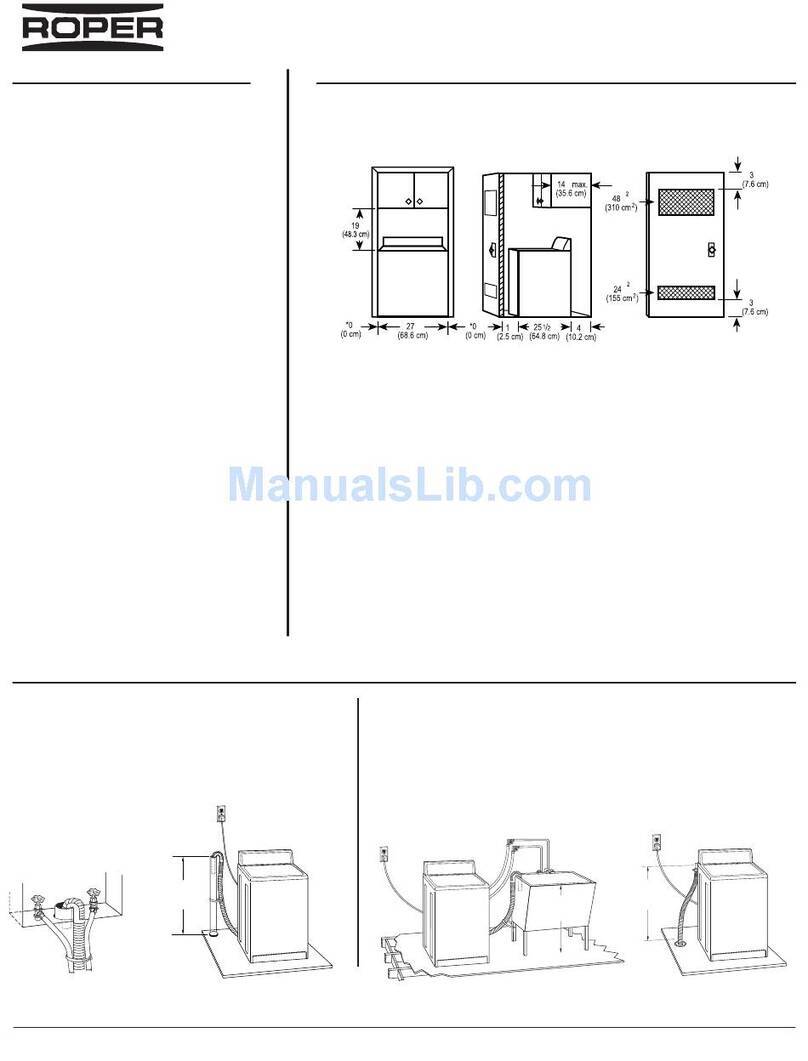

RECESSED AREA AND CLOSET INSTALLATION
The dimensions shown are for the recommended spacing allowed (A and B), except the
closet door ventilation openings. The dimensions shown for the closet door ventilation
openings (C) are the minimum required.
Standpipe drain system - wall or floor (views A & B)
The standpipe drain requires a minimum diameter standpipe of 2"
(5 cm). The minimum carry-away capacity can be no less than 17
gal. (64 L) per minute. A 2" (5 cm) diameter to 1" (2.5 cm)
diameter standpipe adapter kit is available.
The top of the standpipe must be at least 39" (99 cm) high and no
higher than 96" (244 cm) from the bottom of the washer.
Laundry tub drain system (view A)
The laundry tub needs a minimum
20 gal. (76 L) capacity. The top of the
laundry tub must be at least 39" (99 cm)
above the floor and no higher than 96"
(244 cm) from the bottom of the
washer.
Floor drain system (view B)
The floor drain system requires a siphon
break that may be purchased separately.
The siphon break must be a minimum of
28" (71 cm) from the bottom of the
washer. Additional hoses might be
needed.
A. Front view
B. Side view
C. Closet door with vents
ABC
19"
(48.3 cm)
0"
(0 cm)
0"
(0 cm)
27"
(68.6 cm)
1"
(2.5 cm)
25 "
(64.8 cm)
4"
(10.2 cm)
14" max.
(35.6 cm)
3"
(7.6 cm)
3"
(7.6 cm)
24 in.
(155 cm )
2
2
48 in.
(310 cm )
2
2
AB
39"
(99 cm)
®
