Roper TOP AND CABINET PARTS RAX7244EN1 User manual

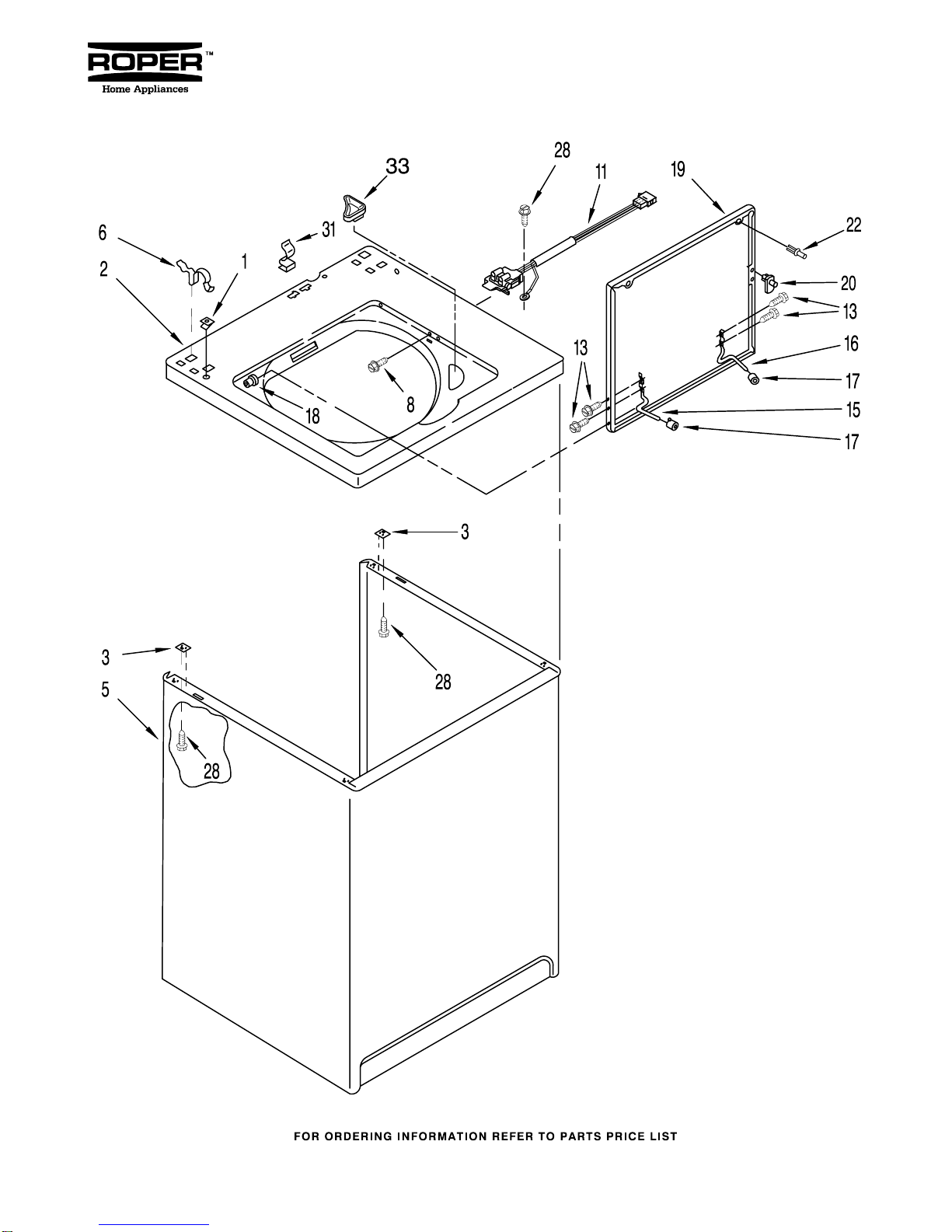

TOP AND CABINET PARTS
1
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
11−96 Litho in U.S.A. (mek) Part No. 881421
AUTOMATIC
WASHER

TOP AND CABINET PARTS
2
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
881421

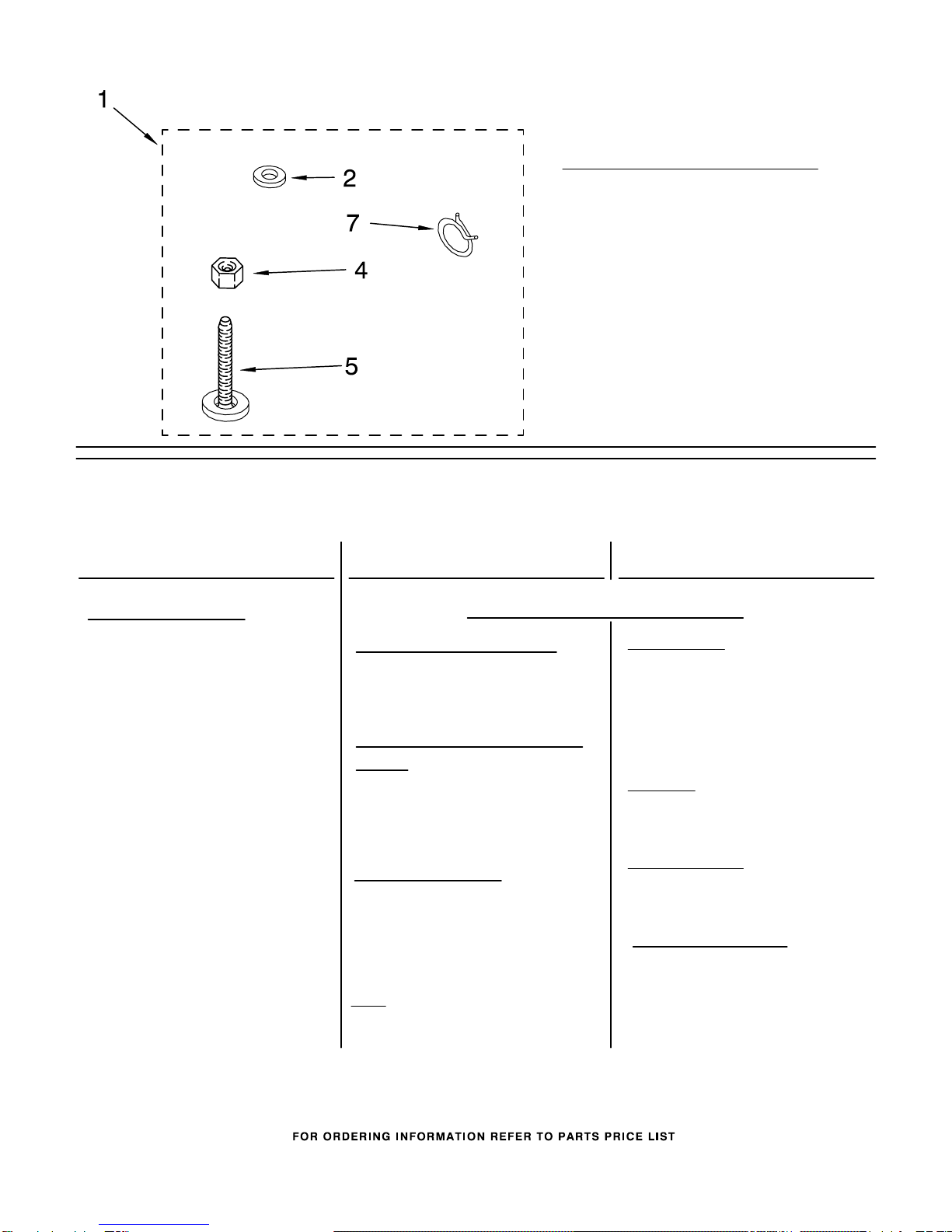

Illus. Part
No. No. DESCRIPTION
1 357213 Nut, Push−In (2)
2 Top
3949476 For White And
Designer White
Models.
3949477 For Almond Model
3 62750 Spacer, Cabinet To
Top (4)
5 Cabinet
63424 For White And
Designer White
Models
63425 For Almond Model
6 62780 Clip, Top & Cabinet
& Rear Panel (2)
8 3356311 Screw & Washer,
Lid Switch (2)
11 3949237 Switch, Lid
13 3351355 Screw, Lid Hinge
Mounting (4)
15 54584 Hinge, Lid (L.H.)
16 54583 Hinge, Lid (R.H.)
17 19119 Bumper, Lid Hinge
18 21258 Bearing, Lid
Hinge (2)
19 Lid
3351652 For White And
Designer White
Models
3351653 For Almond Model
20 358684 Strike, Lid Switch
22 93770 Bumper, Lid (2)
28 384435 Screw,
10−16 x 1/2 (5)
31 90016 Clip, Harness
33 3362952 Bezel, Bleach
Dispenser

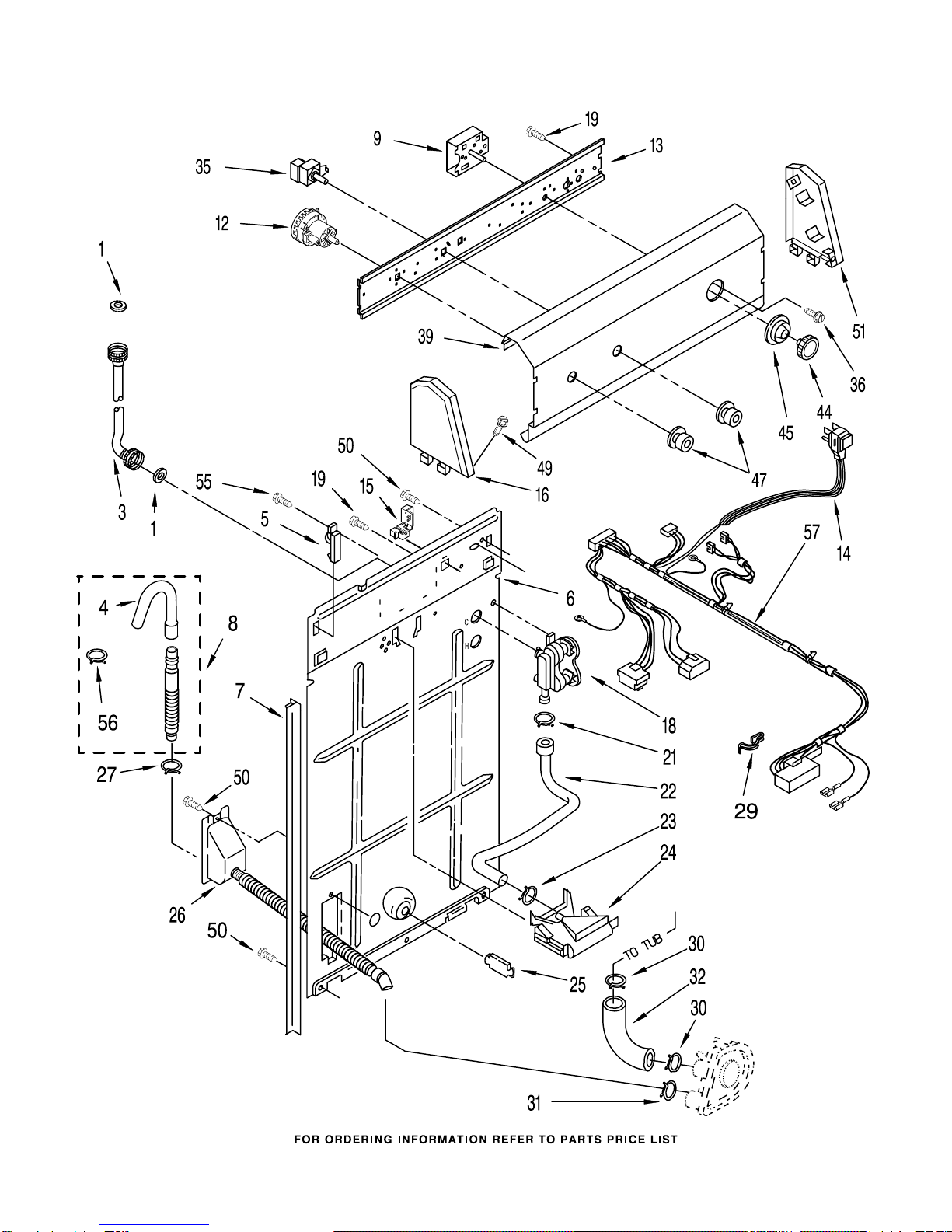

CONTROLS AND REAR PANEL PARTS
3
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
881421

CONTROLS AND REAR PANEL PARTS
4
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
881421
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 16123 Washer, Water
Inlet Hose (4)
(1−1/16 x 5/8)
3 Hose, Water
Inlet (2)
3949368 (Blue Coupler)
3949369 (Red Coupler)
4 3357027 Nozzle−Drain
Hose
5 387402 Hinge, Console (2)
6 3357978 Panel, Rear
7 62747 Pad, Rear Panel
8 3951609 Hose, Drain
(4 ft.)
661577 Hose, Drain
(9 ft.)
(Not Included.)
3357090 Extension,
Drain Hose
(21 Inches)
(Not Included)
9 3948357 Timer, Control
(60 Hz.)
(Motor Not A
Service Part)
12 3366847 Switch, Water Level
13 3948608 Bracket, Control
14 3949248 Cord, Power
(Power Cord Only
Without Harness)
15 3949468 Strain Relief,
Power Cord
16 Cap, End (L.H.)
3358013 For White And
Almond Models
3358015 For Designer
White Model
18 3360392 Valve, Water
Mixing
19 90864 Screw, Ground
10−24 x 3/8
21 370451 Clamp, Hose
22 3357328 Hose, Vacuum
Break
23 371503 Clamp, Hose
24 3347034 Break, Vacuum
25 63290 Support, Rear
Panel
26 3361805 Hose−Corrugated
Assy.
27 3366912 Clamp, Hose
29 3347812 Clip, Wiring
Harness
30 371502 Clamp, Hose
31 660628 Clamp, Hose
32 62731 Hose, Pump To Tub
35 3949184 Switch, Water
Temperature
36 96435 Screw, Timer
Mounting
(10−32 x 1) (2)
39 Panel, Console
3949715 For White And
Almond Models
3949721 For Designer
White Model
44 Knob, Timer
3362628 For White And
Almond Models
3362625 For Designer
White Model
45 Dial, Timer
3946479 For White And
Almond Models
3946477 For Designer
White Model
47 Knob, Water
Temperature
3398393 For White And
Almond Models
3398390 For Designer
White Model
49 388326 Screw, Console
(Panel to Top)
50 62863 Screw, 10−16 x 3/8
51 Cap, End (R.H.)
3357995 For White And
Almond Models
3357997 For Designer
White Model
55 3357011 Screw, Hinge
Mounting
(10−16 x 1/2)
56 3366913 Clamp, Drain Hose
57 3950997 Harness, Wiring
(Includes Power
Cord)
(For Detail See
Page 9 & 10)

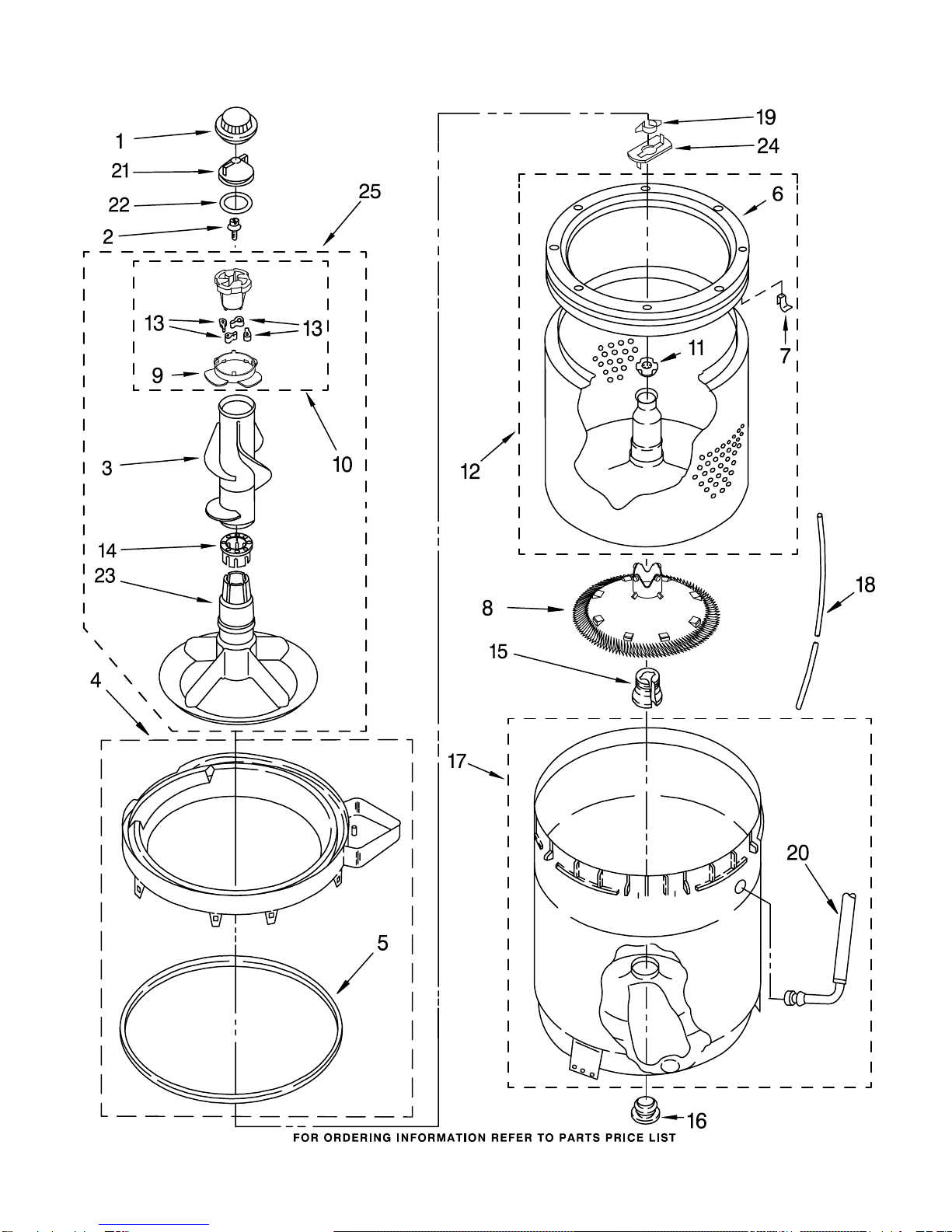

AGITATOR, BASKET AND TUB PARTS
5
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
881421

AGITATOR, BASKET AND TUB PARTS
6
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
881421
Illus. Part
No. No. DESCRIPTION
1 63580 Dispenser Asy.
2 358237 Screw & Washer
(5−16−24 x 1)
3 3349019 Mover, Agitator
4 3360611 Tub Ring & Gasket
5 3359586 Gasket, Tub Ring
6 387868 Balance Ring
7 387867 Clip, Balance
Ring (8)
8 3361948 Filter, Plate
9 3363661 Bearing−Driven
Cam
10 3363663 Cam Driven,
Short
11 21366 Nut, Spanner
12 387713 Basket & Balance
Ring
(Includes Illus. 6)
13 3366877 Dog, Agitator
Clutch
14 3350389 Spacer, Thrust
15 389140 Block, Basket
Drive
16 383727 Gasket, Centerpost
17 63039 Tub
18 3347780 Hose, Pressure
Switch
19 3354845 Clip−Agitator
20 3948705 Hose, Bleach
21 3347290 Cap, Barrier
22 3348855 Seal, Inner Cap
23 3350830 Agitator
24 3355921 Washer−Agitator
25 3350829 Agitator, Gull
Wing
(Complete Asy.)

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
7
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
881421
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 388951 Brake & Drive
Tube (Complete)
(Refer to Page 11
For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 Ring, Retainer
5 3946794 Clutch (Complete)
6 3946793 Band & Lining,
Clutch (Includes
Illus. 7 & 8)
7 62646 Cap, Clutch
Spring (2)
8 3363337 Spring, Clutch
9 3360630 Gearcase
(Complete)
(Refer to Page
12 For Further
Breakdown.)
10 3357334 Screw, Gearcase
To Base (3)
11 62611 Plate, Motor
Mount To
Gearcase
12 62691 Grommet, Motor (4)
13 3364003 Coupling, Motor
and Isolation
14 3387485 Screw (2)
#10−16 x 5/8
15 3946532 Shield, Motor
16 3357334 Screw
17 3349637 Retainer, Motor (2)
18 3362089 Shield, Tub
To Motor
19 661600 Motor, Main
Drive
20 62851 Switch, Main
Drive Motor
21 62700 Retainer, Pump (2)
22 3363394 Pump (Complete)
23 62863 Screw,
10−16 x 3/8
24 3355454 Clip, Anti−Rattle
25 661606 Capacitor, Start
26 357030 Clamp, Capacitor

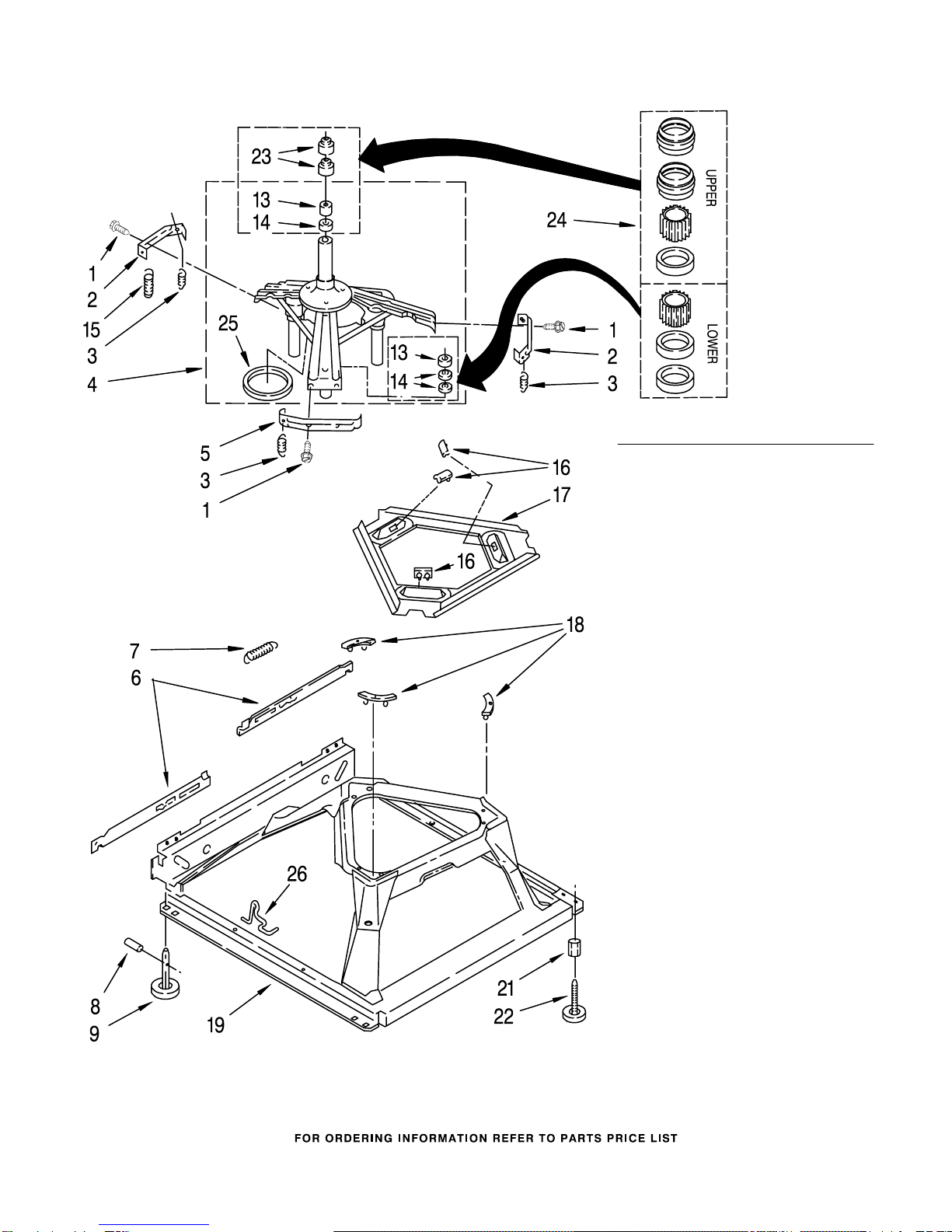

MACHINE BASE PARTS
8
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
881421
Illus. Part
No. No. DESCRIPTION
1 3387485 Screw, Bracket
Mounting
(10−16 x 5/8)
2 64067 Bracket, Spring
Outer (2)
3 63907 Spring,
Suspension (3)
4 3362087 Support & Brake,
Tub
5 64065 Bracket, Spring
Outer (L.F.)
6 3348727 Link, Leveling
Mechanism (2)
7 62597 Spring, Leveling
Mechanism
8 62837 Pin, Knurled
9 62596 Foot, Rear (2)
13 3347047 Bearing,
Centerpost (2)
14 357409 Seal, Centerpost (3)
15 388492 Spring,
Counterweight
16 62568 Pad, Plate
17 3946509 Plate, Suspension
(Includes Illus. 16)
18 3363660 Pad, Base
19 3946512 Base Assembly
(Includes Illus, 6,
7, 8, 9,16, 17
18 & 26)
21 3359452 Nut, Lock
(3/8−16) (2)
22 389102 Foot, Front (2)
23 356934 Seal, Centerpost (2)
24 285203 Centerpost
Bearing Kit
(Includes Illus.
13, 14 & 23)
25 63134 Ring, Sound
Deadening
26 63806 Retainer,
Suspension Spring

WIRING HARNESS PARTS
WH2F
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
9
881421

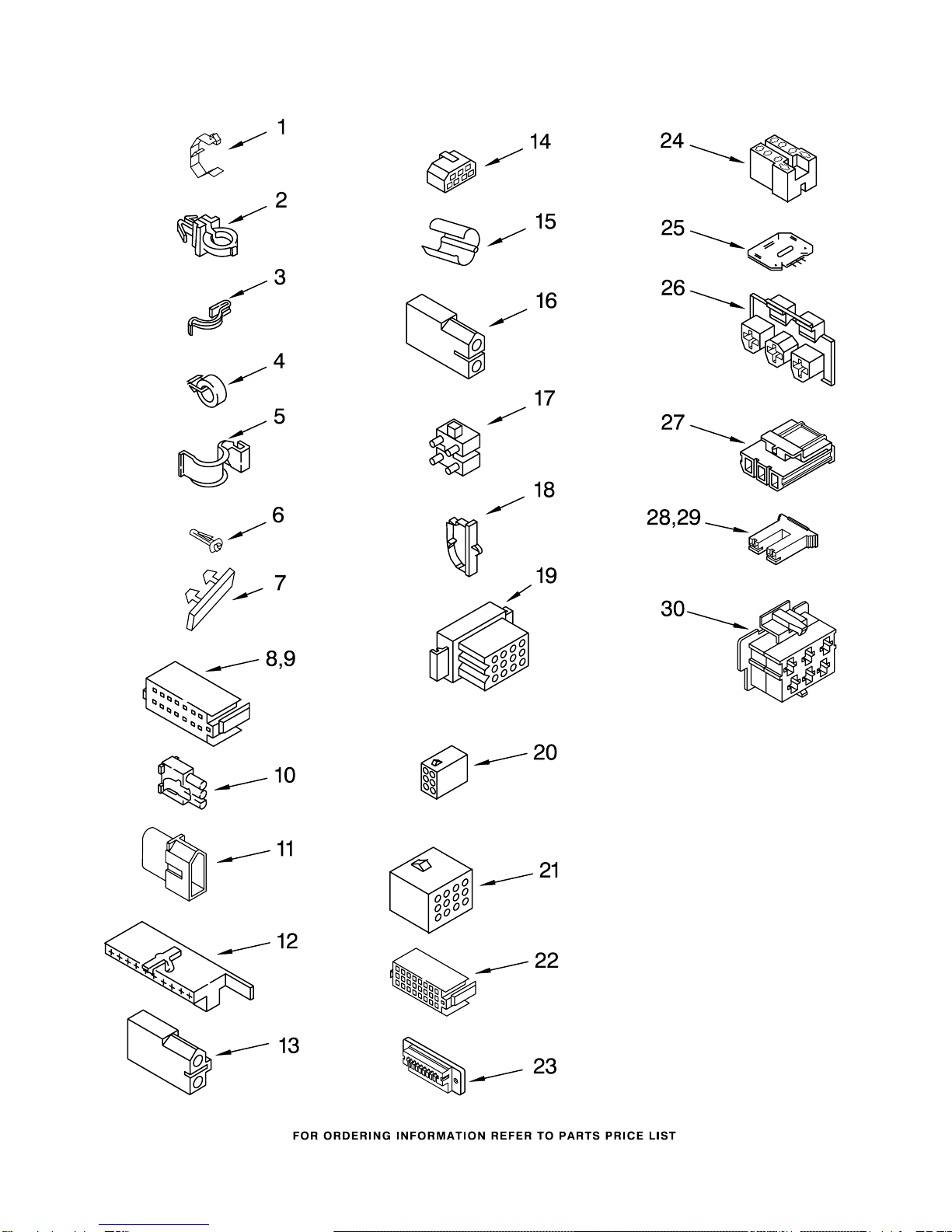

WIRING HARNESS PARTS
WH2F
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 3349557 Clip, Harness
2 388498 Clip, Harness
3 3347812 Clip, Harness
4 3352501 Clip, Harness
5 90016 Clip, Harness
6 3390496 Clip, Harness
7 389379 Retainer,
(Suds Models)
8 352090 Timer, Block
Disconnect
(White)
9 352089 Timer, Block
Disconnect
(Black)
10 62889 Receptacle,
Terminal
(3−Way)
(Lid Switch)
(Use Term.94613)
Or 94614.)
11 353424 Plug, Terminal
(3−Way)
(Power Cord)
(Use Term.94613)
12 62505 Block, Disconnect
(Motor 2 Speed)
(Use Term.352088)
13 3348075 Block, Disconnect
(Motor 3 Speed)
(Use Term. 94613
Or 94614.)
14 3347243 Block, Disconnect
(Use Term. 352088)
15 63523 Protector
16 717252 Connector
(2−Way)
(Use Term.94614)
17 387566 Plug, Terminal
(4−Way)
(Power Cord)
(Use M3 Screws)
18 3352944 Clip, Harness
19 3390423 Block, Disconnect
(12−Way)
(Timer)
(Use Term. 94613)
20 3347730 Receptacle
(6−Way)
(Use Term. 94613)
21 388818 Plug, Terminal
(12−Way)
(Use Term. 94613
Or 94614.)
22 3369366 Timer, Block
Disconnect
(Black) (Amp)
(Use Term.3369365)
23 3349494 Connector, Etc
24 60687 Connector, Relay
(Use Term.308569
Or 338664.)
25 3407125 E.T.C. Control
26 3948617 Connector (T.P.A.)
(3−Circuit)
(Lid Switch)
(Use Term. 3948619
OR 3948620.)
27 3360056 Connector (T.P.A)
(3−Circuit)
(Pressure Switch)
(Use Term.3948619
OR 3948620.)
28 3354925 Block, Connector
(Cold Valve)
(Use Term.693217)
29 3354926 Block, Connector
(Hot Valve)
(Use Term.693217)
30 3948615 Connector (T.P.A.)
(6−Circuit)
(Temp. Switch)
(Use Term.3948619
OR 3948620.)
FOR COMPLETE WIRING HARNESS REFER TO
CONTROL AND REAR PANEL PARTS PAGE
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
10 881421

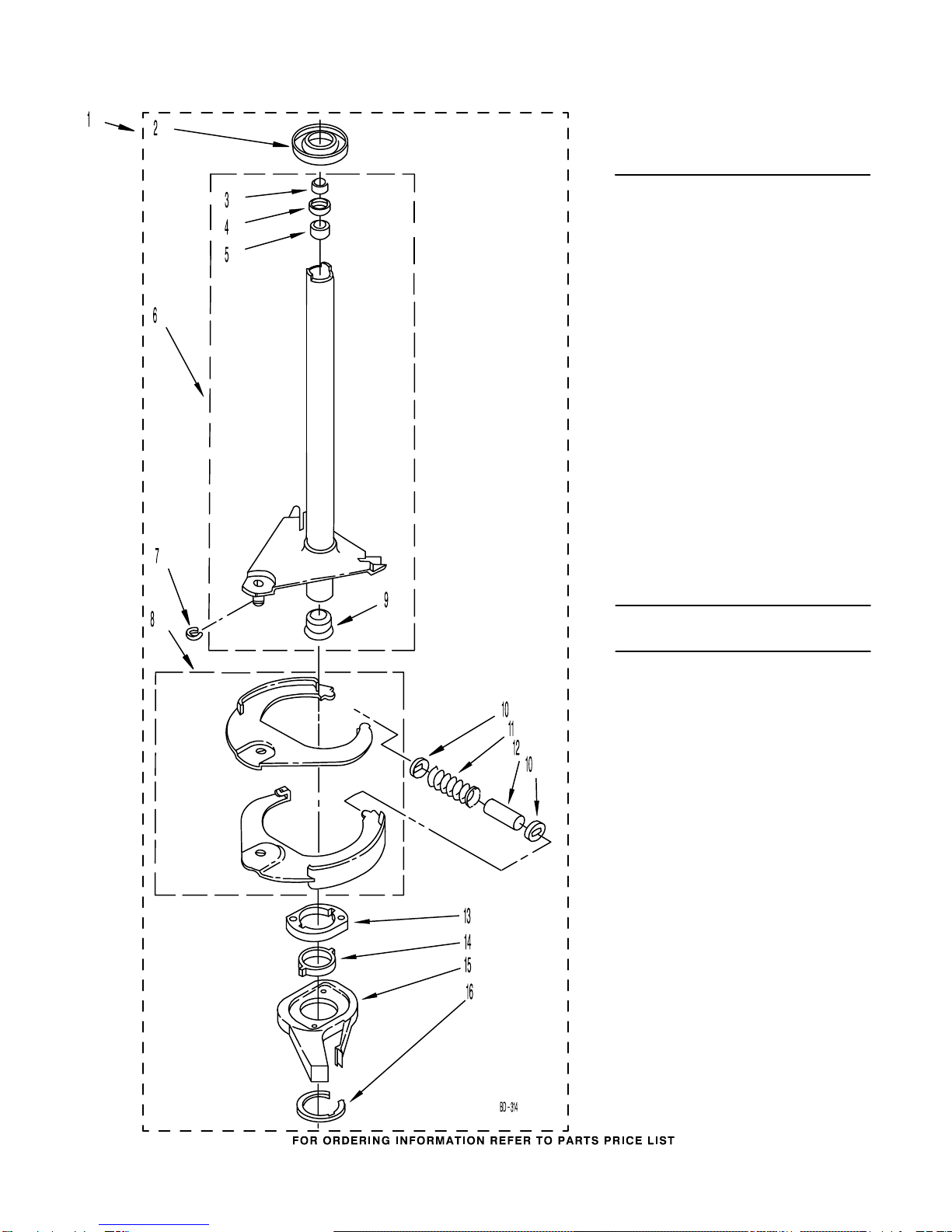

BRAKE AND DRIVE TUBE PARTS
1 388951 Brake And Drive
Tube (Complete)
2 62658 Ring, Thrust
3 91939 Seal, Oil
4 356427 Seal, Drive Tube
5 356937 Spacer, Drive
Tube
6 64027 Tube, Basket
Drive (Includes
Illus. 3, 4, 5 & 9)
7 64035 Ring, Retaining
8 64232 Brake Shoe
9 62703 ‘‘T’’ Bearing,
Spin Tube
10 62648 Cap, Brake
Spring (2)
11 62647 Spring, Brake
12 62909 Sleeve, Brake
Spring
13 63023 Cam, Brake
Release
14 63022 Sleeve, Cam
15 64194 Driver, Brake
Cam
16 90368 Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
Illus. Part
No. No. DESCRIPTION
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
11
881421

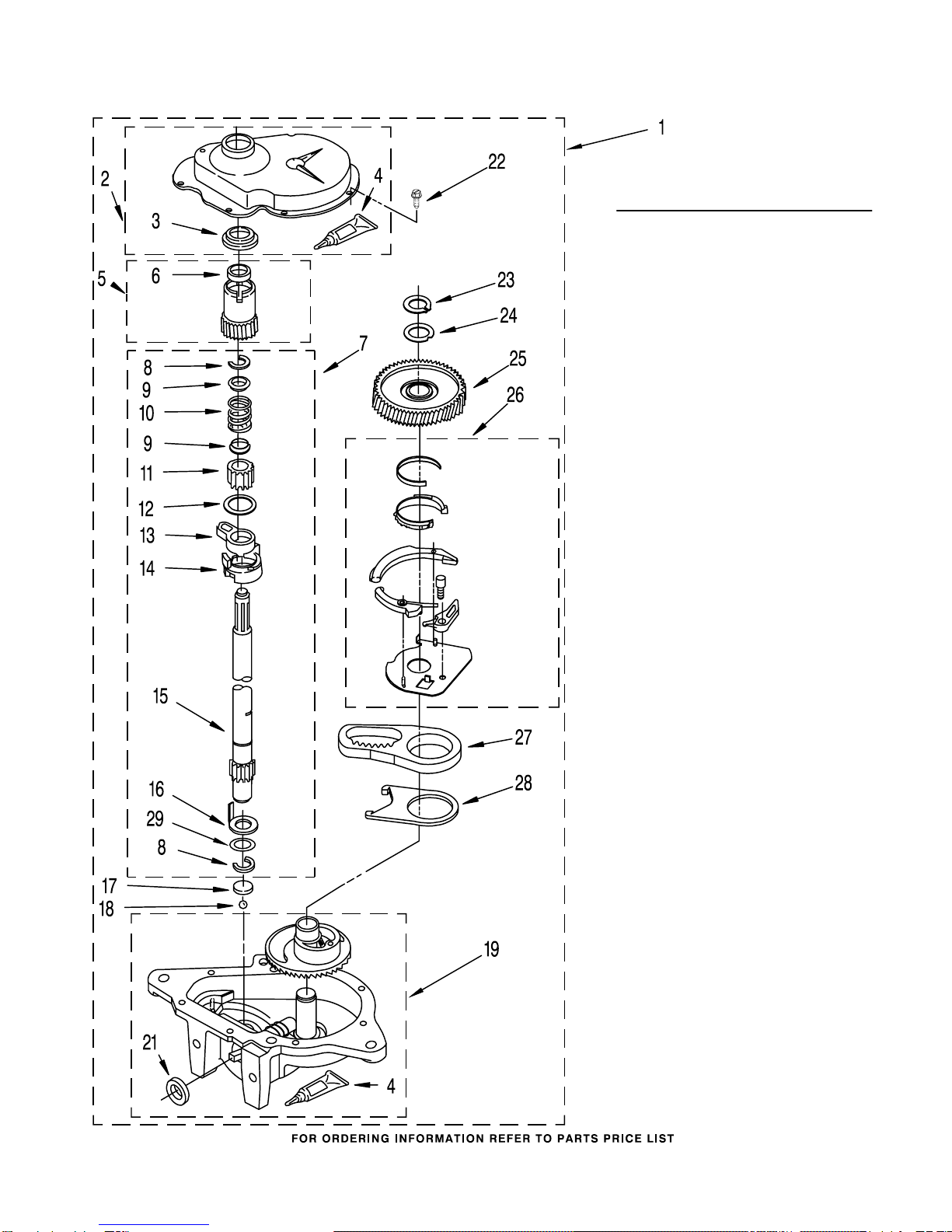

GEARCASE PARTS
Illus. Part
No. No. DESCRIPTION
GC−215C
1 3360630 Gearcase
(Complete)
2 285202 Cover, Gearcase
3 3349985 Seal, Gearcase
Cover
4 285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
5 63320 Pinion, Spin
(Includes Illus. 25)
6 356427 Seal, Spin
Pinion
7 389387 Shaft, Agitator
(Complete)
8 90369 Ring, Retaining (2)
9 62677 Retainer, Spring
10 62676 Spring, Agitate
11 63273 Gear, Agitate
(Includes 15 and 29)
12 62619 Washer, Agitate
Gear
13 62580 Cam Follower
(Includes 14)
14 62581 Cam, Agitate
(Includes 13)
15 285509 Shaft, Agitator
(Includes 11 and 29)
16 62618 Washer, Cam Thrust
17 16018 Bearing, Thrust
18 85529 Ball, Bearing
19 389230 Bottom and Pinion,
Gearcase
21 285352 Seal, Thrust Plug
22 3351614 Screw, Gearcase
Cover, Mounting (8)
(10−24 x 3/8)
23 3362552 Ring, Retaining
24 285735 Washer Kit,
Thrust
25 62570 Gear, Spin
26 388253 Neutral Assembly
27 3349296 Rack, Connecting
28 62621 Actuator, Shift
29 388815 Washer,
Intermediate
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
12 881421

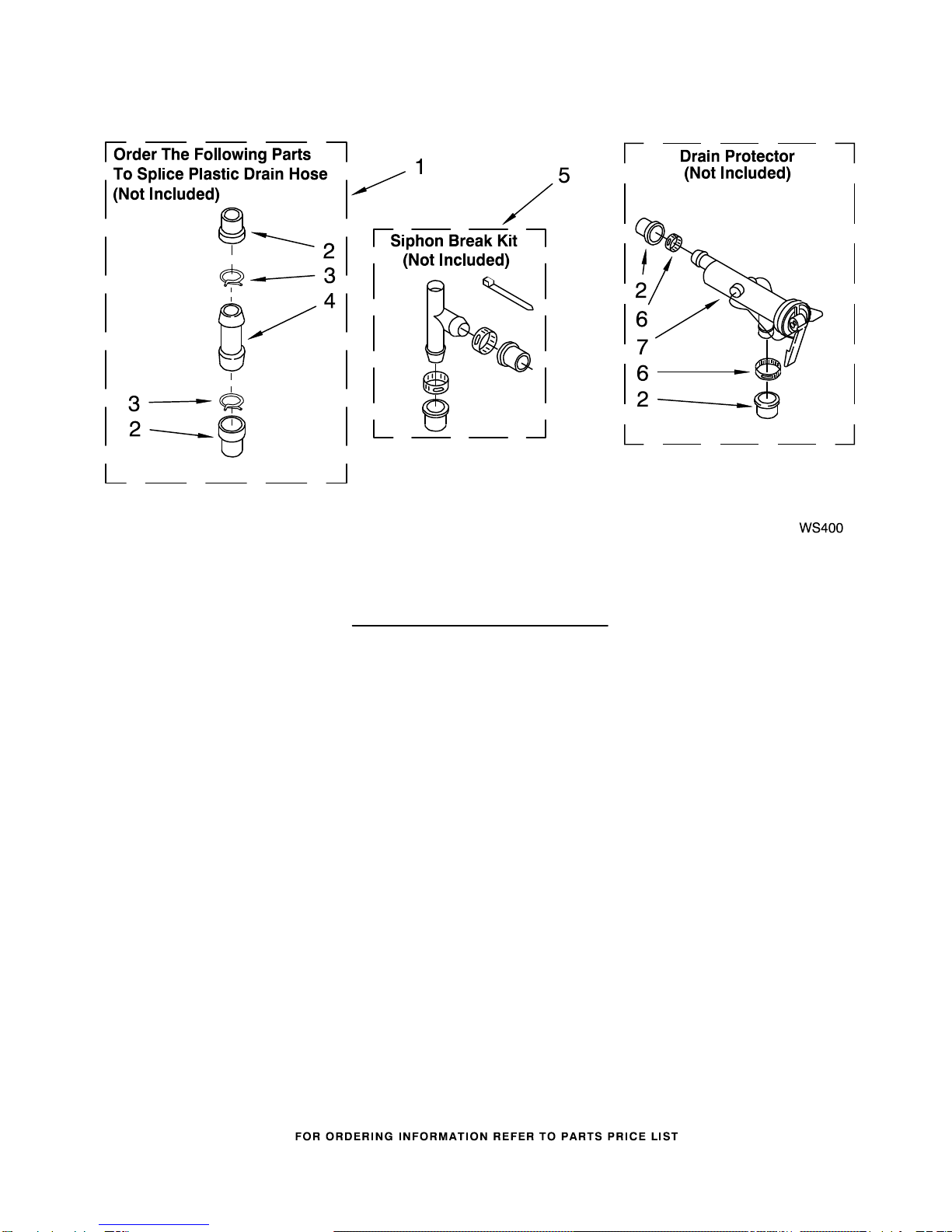

WATER SYSTEM PARTS
1 285442 Connector Kit,
Plastic Drain
Hose
2 285321 Sleeve Kit,
(Contains 2
Sleeves)
3 370447 Clamp, Hose
4 16272 Connector,
Straight
5 285320 Siphon Break
Kit
(Not Included)
6 65349 Clamp, Hose
7 367031 Drain Protector
(Not Included)
Illus. Part
No. No. DESCRIPTION
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
13
881421

MISCELLANEOUS PARTS
14
LITERATURE AND OPTIONAL PARTS
For Models: RAX7244EW1, RAX7244EQ1, RAX7244EN1
(White) (Designer White) (Almond)
881421
Illus. Part
No. No. DESCRIPTION
1 3976253 Miscellaneous
Parts Bag
2 16123 Washer, Inlet
Hose
(1−1/16 x 5/8) (4)
4 3359452 Nut, Lock (2)
(3/8−16)
5 389102 Foot, Front (2)
7 3366912 Clamp, Hose
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
LIT3950952 Sheet, Installation
Instructions
LIT3949065 Guide, Use and
Care
LIT3949012 Label, Energy
Guide
LIT3948359 Label, Wiring
Diagram
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
72110 Golden Harvest
PAINT, PRESSURIZED SPRAY
(13 oz.)
350938 Primer, Gray
350930 White
350956 Almond
261890 Golden Harvest
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
261891 Golden Harvest
(Uncut)
OIL
350572 Oil, Gearcase
(16 Oz.)
LUBRICANT
285208 Lubricant (Use
Only in Brake
Shoe Assembly
On Roller and
Pin)
SEALER
285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
SHIPPING KIT
3348675 Shipping Kit
ACCESSORY PARTS
3359794 Fabric Dispenser
367031 Drain Protector
89121 Stand−Pipe Kit
285320 Siphon Break Kit
