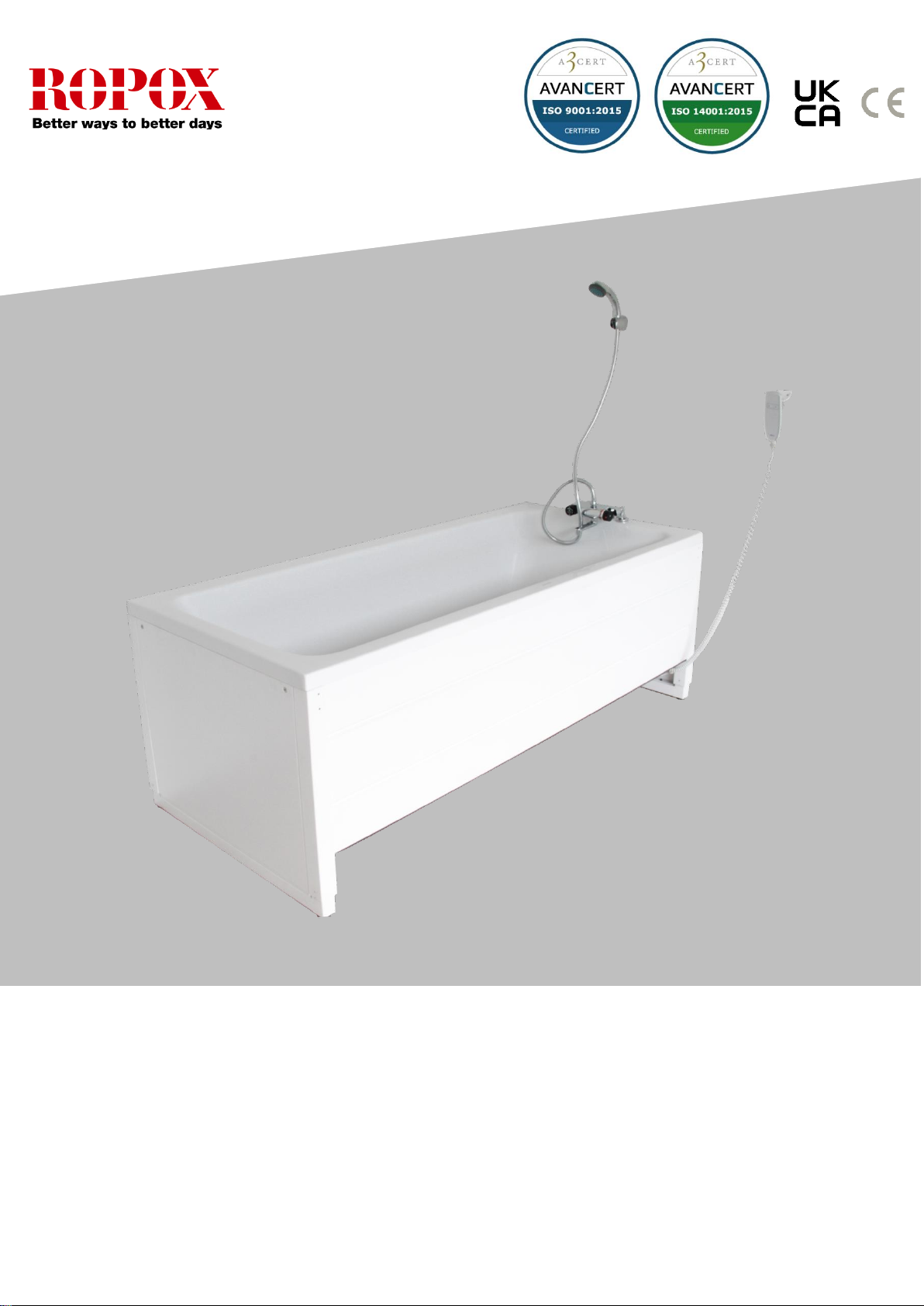

Ropox 40-14156-2 User manual

Ropox Bathtub
User manual
This manual should always be in close proximity of the
product.
TF 200.02.0012_eng / Dato 22-06-2022

2
TF 200.02.0012_eng
Table of content
1. Symbols used in this manual.................................................................................................................. 4
2. General safety........................................................................................................................................... 4
2.1 Product label.............................................................................................................................. 6
3. General information ................................................................................................................................. 7
3.1 Product information....................................................................................................................... 7
3.2 Product description ....................................................................................................................... 8
3.3 Intended use.................................................................................................................................. 8
3.4 Intended operator.......................................................................................................................... 9
3.5 Known contraindications ............................................................................................................... 9
3.6 Essential performance .................................................................................................................. 9
3.7 Dimension sketches...................................................................................................................... 9
4. Instructions for use................................................................................................................................ 10
4.1 Pre-installations information .................................................................................................... 10
4.1.1 Electric installations.............................................................................................................. 10
4.1.2 Water.................................................................................................................................... 11
4.2 Installation of product............................................................................................................... 12
4.3 Operating the product.............................................................................................................. 13
4.3.1 Actuation of the product........................................................................................................ 13
4.3.2 Ambient temperature............................................................................................................ 13
4.4 General recommendations for use .......................................................................................... 13
4.5 Wiring diagram......................................................................................................................... 14
5. Cleaning .................................................................................................................................................. 15
5.1 Plastic tub.................................................................................................................................... 15
5.2 Mixer tap, shower hose and hand shower .................................................................................. 15
5.3 Disinfection.................................................................................................................................. 15
6. Maintenance............................................................................................................................................ 16
6.1 Periodic maintenance .............................................................................................................. 16
6.2 Trouble shooting...................................................................................................................... 16
7. Environmental protection...................................................................................................................... 17
8. Spare parts.............................................................................................................................................. 17
9. Accessories ............................................................................................................................................ 18
9.1 Safety stop............................................................................................................................... 18
9.1.1 Mounting of safety stop ........................................................................................................ 19
9.2 Front cover............................................................................................................................... 20
9.2.1 Mounting of front cover......................................................................................................... 21
9.3 End cover................................................................................................................................. 21
9.3.1 Mounting of end cover.......................................................................................................... 22
9.4 Shower bed, folding up............................................................................................................ 22
9.4.1 Dimension sketches......................................................................................................... 22
9.4.2Mounting of shower bed .................................................................................................. 23
9.5 Folding bed guard.................................................................................................................... 24
9.5.1 Mounting of bed guard.......................................................................................................... 24

3
TF 200.02.0012_eng
9.6 Showerhead holder - mounted by Ropox................................................................................ 25
10. Electromagnetic compatibility .............................................................................................................. 25
10.1 Suitable Environments......................................................................................................... 25
10.2 Basic safety and Essential performance ............................................................................. 25
10.3 Adjacent and stacked use.................................................................................................... 25
10.4 Cables.................................................................................................................................. 25
10.5 RF portable equipment........................................................................................................ 25
10.6 Compliance levels for emissions and immunity................................................................... 26
11. Complaints.............................................................................................................................................. 27

4
TF 200.02.0012_eng
1. Symbols used in this manual
Warning Symbol
Indication of potentially hazardous situation. If not avoided, it can result in serious injury or
death.
Caution Symbol
Indication of potentially hazardous situation which may result in minor or moderate injury.
It may also be used to alert against unsafe practices.
Notification Symbol
This symbol is used to notify correct use and handling of the product.

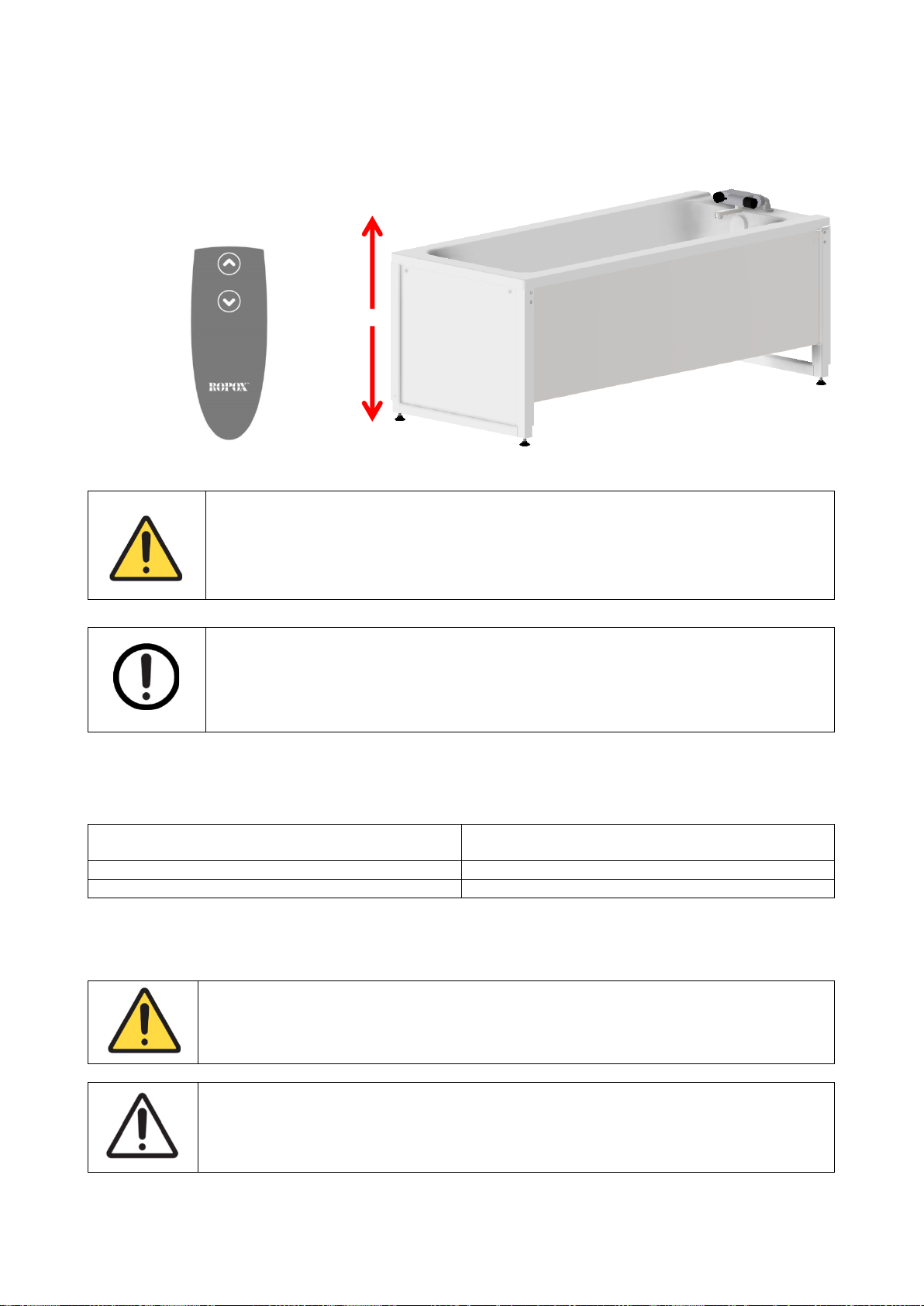

2. General safety
This manual must be read and understood before use.
Always keep this manual in close proximity of the product.
The use, installation and service of this product must be in
compliance with this manual to avoid accidents and serious
personal injury.
Never use or handle this product in other ways specified in
this manual as it can result in personal safety hazards and/or
cause damage to the product.
Persons installing and/or are using this product either as
operator or patient should have the necessary safety
information and access to this manual.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
designated persons in order to avoid a hazard.
Always inspect the mains cable before placing the product in
use.
No Child or animal may play around or underneath the
bathtub. Not complying may result in entrapment and
crushing of body parts.

5
TF 200.02.0012_eng
Always comply with instructions in this manual to avoid
damaging or destroying the product. Not doing so can cause
the safety of this product to be compromised.
Do not perform repairs, disassembly or assembly operations,
add-ons, re-adjustments or modification of the product
beyond what is described in this manual. These must be
carried out by Ropox or Ropox authorized personnel. Do not
perform service while in use with a patient.
Do not allow children to operate this product.
The product is not intended to play with.
Do not use the product if it has defects or have become
damaged before being repaired or replaced.
If the control box makes unusual noise or smells, switch off
the mains voltage immediately.
Ensure that the cables are not damaged.
Unplug the mains cable on mobile equipment before it is
moved.
The products must only be used in an environment that
corresponds to their IP protection.
The information in this manual is based on correct installation
in accordance with installation instructions for this product.
Ropox cannot be held liable if the product is used in any way
that differs from stated in this manual and/or installation
instruction.
Ropox reserve the right to amend this manual and reference
documents without prior notice.

6
TF 200.02.0012_eng
2.1Product label
This product is UKCA-marked in accordance with:
UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments
UK SI 2008 No. 1597 - The Supply of Machinery (Safety) Regulations 2008, and its amendments
This product is CE-marked in accordance with:
European Medical Device Regulation (EU)2017/745
Considering the Council Directive 2006/42/EC on machinery
Council Directive 2011/65/EU, RoHS
Manufacturer name and address
Date of production
Stock number
Serial number
Operating interval of electrically operated equipment. The use of electrical height
adjustable equipment can run at maximum 2 minutes, followed by an 18-minute
break.
Type BF applied part. The product complies with IEC 60601-1 requirements to
provide protection against electric shock.
Consult manual for important safety related information, warnings and safety
precautions.
Class II, double isolated electrical components.
Do not dispose as unsorted municipal waste. Product must be returned to a
designated recycling station.
Operating temperatures may not exceed 5 °C to 40 °C.
Consult the instructions for use
Ropox Bathtub 180x80 cm
Electrical height adjustment 61-91cm

7
TF 200.02.0012_eng
3. General information
3.1 Product information
Manufacturer
Ropox A/S
Ringstedgade 221, DK-4700 Naestved
[phone]
[email protected]
Product models
Part number
Model
Configuration
40-14156-2
40-14157-2
40-14158-2
40-14356-2
40-14357-2
40-14358-5
Bathtub 160x70 cm
Bathtub 170x75 cm
Bathtub 180x80 cm
Bathtub 160x70 cm
Bathtub 170x75 cm
Bathtub 180x80 cm
Incl. standard mixer tap
Incl. showerhead
Only cover 1 side + 1
end
MDR Class
2017/745
Class I
Applied part
classification
60601-1
Type BF applied part (Water supply/drain not considered)
Protection Class
Acc. to 60601-1
Class II
Height adjustment
61-91 cm
Speed of actuation
≈12 mm/s
Maximum user weight
according to DS/EN
17966:2016
250 kg including water weight
Power supply
100-240 V ~50/60Hz
I in
Max 2.0 A
Intermittence
2 min on / 18 min off
IP rating
IPX6
Ambient temperature
range
-10 °C to +50 °C Transport and storage
+5 °C to +40 °C Operation
Relative humidity
20% to 80% - non-condensing
Atmospheric pressure
700 hPa to 1060 hPa
Materials in contact
with patient
Tub
Frame
Covers
Shower bed
PMMA
Stainless steel 304
Steel 37 powder coated
Aluminium powder coated
Intended environments
This product is to be used only in:
- Professional healthcare facility
- Homecare healthcare environment
The device is not intended for HF surgical equipment.

8
TF 200.02.0012_eng
Accessories
Safety stop for one side
40-14206
40-14207
40-14208
Safety stop for two sides
40-14216
40-14217
40-14218
Safety stop for extra front
cover
40-14376
40-14377
40-14378
Front cover
40-14196
40-14197
40-14198
End cover
40-14192
40-14193
40-14194
Shower bed, folding up, right
40-14226
40-14227
40-14228
Shower bed, folding up, left
40-14236
40-14237
40-14238
Folding bed guard
40-14186
40-14187
40-14188
Showerhead holder [mounted
by Ropox]
40-14120
For model:
160x70 cm
170x75 cm
180x80 cm
160x70 cm
170x75 cm
180x80 cm
160x70 cm
170x75 cm
180x80 cm
160x70 cm
170x75 cm
180x80 cm
160x70 cm
170x75 cm
180x80 cm
160x70 cm
170x75 cm
180x80 cm
160x70 cm
170x75 cm
180x80 cm
160x70 cm
170x75 cm
180x80 cm
160x70 cm / 170x75 cm / 180x80 cm
3.2 Product description
Ropox bathtub is a daily living aid that can be adjusted in height to accommodate different caretaker needs.
The bathtub is driven by a control box and associated electrical actuators. Height is set by the use of the
handset, height can be set in the interval 61-91 cm.
In addition, the Bathtub can be mounted with a shower bed to be used in showering operations that do not
require submersion in water.
3.3 Intended use
The height adjustable and disability friendly bathtub makes it easier and more comfortable for the user to get
in and out of the bathtub. The bathtub also provides excellent working conditions with correct working
heights and a reduced number of heavy lifts for the caretakers. It is also possible to use a mobile lift without
any modifications to the bathtub. The height is infinitely adjustable from 61-91 cm. The bathtub is designed
for washing and bathing children and adults in a gentle and comfortable manner while securing optimum
working conditions for the carer. It is ideal for private homes, care centers and institutions that provide care
for people with limited functional capacity.

9
TF 200.02.0012_eng
3.4 Intended operator
Reading and understanding this manual will be sufficient training for an intended operator. Children or
patient are not considered intended operator.
3.5 Known contraindications
The bathtub is intended to contain large amounts of water and therefore there is risk of drowning. Patients
with disabilities that make them unable to maintain their head above water are not suited for use with the
bathtub
Other diseases like epilepsy where a sudden loss of body control can result in drowning are also not suited
for use of the bathtub
3.6 Essential performance
The device does not have essential performance. The patient is not fixated to the product and in case of loss
or degradation of performance the patient can still exit the product.
3.7 Dimension sketches
Model
Length
Width
40-14156
160 cm
70 cm
40-14157
170 cm
75 cm
40-14158
180 cm
80 cm
Model
Length
Width
40-14356
160 cm
70 cm
40-14357
170 cm
75 cm
40-14358
180 cm
80 cm
18-48cm
Length
Width
61 - 91cm
69 - 99cm
14 –44 cm

10
TF 200.02.0012_eng
4. Instructions for use
4.1 Pre-installations information
4.1.1 Electric installations
Reach of mains cable, full length 3.5 m
Warning!
Power supply points must be located in an easy to reach area. The power supply point
shall not be placed under the bathtub. Disconnection to mains supply must be accessible
at all times.
28 cm
280 cm
160x70: 220 cm
170x75: 215 cm
180x80: 210 cm

11
TF 200.02.0012_eng
4.1.2 Water
Applies to 160x70 cm and 170x75 cm bathtub:
The hatched area is the recommended area for location of drain.
Applies to 180x80 cm bathtub:
12 cm
15 cm
10 cm
50 cm
80 cm
6cm
14cm
Note:
Stop valves with 1/2” external thread
(not provided).
Turn downward as shown. Flexible
hoses (100 cm) from mixer tap will
reach 14 cm outside the frame.
Note:
Flexible drain hose (Ø40). Length
51-150 cm.
Drain in wall finished with an
Ø40x88° bend (not provided)
10 cm
15 cm
8 cm
80 cm
14cm
6cm
12 cm

12
TF 200.02.0012_eng
4.2 Installation of product
The bathtub is delivered as an assembled unit. Place the bathtub and adjust the four setscrews of the feet to
make sure that the bathtub is horizontal. Connecting the product to mains, as well as water supply and drain
hoses, makes it operational.
Warning!
Before use always make sure that mains cable and hand control cable will be able to
travel freely without the risk of squeezing or disconnecting the product as result of the
movement.
Caution!
When connected to the mains the product must be placed in a manner according to
power outlets so that the operator will be able to disconnect the product during use in
case of an emergency.
Caution!
Do not perform installation or transfer the product between locations of use while the
bathtub is filled with water.

13
TF 200.02.0012_eng
4.3 Operating the product
4.3.1 Actuation of the product
The product is operated with the spiral cord hand control. Arrow up will move the product upwards,
and arrow down will move the product downwards.
Warning!
The product should always be able to travel the full range of actuation without colliding
with objects. Failing to do so will compromise the product stability.
Special care should be taken in ensuring that no children or adults are sited under the
product as severe injury from entrapment may occur.
Note!
The movement of the bathtub stops as soon as you let go of the button. This is an
important safety factor.
4.3.2 Ambient temperature
Allow the product to reach operational temperature +5 °C to 40 °C when stored in temperatures outside this
interval.
Storage temperature
Time to reach operational temperature (+5 °C or
+40 °C) at 20 °C ambient temperature
-5 °C
3 Hours
+50 °C
3 Hours
4.4 General recommendations for use
Warning!
Never leave a patient on the shower bed or in the tub unattended.
Caution!
Be aware that using the bathtub and showerbed, there will naturally be water splashes on
the floor that can make the floor slippery and cause a fall risk.

14
TF 200.02.0012_eng
4.5 Wiring diagram
1. Controlbox
2. 230V cable
3. Motor, connected to ports 1 and 3
4. Handheld control switch
5. MJ box (only with safety stop)
6. Safety stop
1
2
3
5
4
6
Blind plugs
Blind plugs
2
1
4
3
Blind plugs
Without safety stop
With safety stop

15
TF 200.02.0012_eng
5. Cleaning
Simply use a soft cloth with soapy water of max 85°C. Always wash the bathtub after use to prevent dirt from
sticking to the surface.
Caution!
Do not perform cleaning, disinfection, or maintenance while the Bathtub is in use with a
patient.
Note!
Do not use cleaning agents containing abrasive e.g. scouring powder, steel wool, scouring
sponge.
This product is not designed to be sterilized, autoclaving and sterilization beyond normal
cleaning is may possibly change the product safety and function.
5.1 Plastic tub
Clean the surface with a soft cloth and soapy water. Do not use abrasive cleaning agents. Resistant spots
may be removed with hot water and a mild soap.
Spots of glue may be removed with vinegar and water. Wash with water.
Always clean the bathtub after use to prevent dirt from sticking to the surface.
Note!
The bathtub may be used for washing clothes with a normal detergent. Do not use the
bathtub for soaking over a longer period as some detergents may contain aggressive
substances.
5.2 Mixer tap, shower hose and hand shower
Clean at regular intervals with a soft cloth with water and a customary cleaning agent. Decalcify the mixer tap
and filter with vinegar and wash with water. Do not use strong cleaning agents for chrome surfaces.
5.3 Disinfection
Caution!
Disinfect the Bathtub between multiple patients’ uses to avoid cross contamination
Caution!
Do not disinfect the product when connected to mains and/or are in use with a patient

16
TF 200.02.0012_eng
6. Maintenance
Note!
Failing to comply with periodic maintenance may result of degrading of product function and
safety.
Notification!
Ropox will make parts list and circuit diagrams available for maintenance and repair beyond
what is described in this manual. Repair beyond what is described in this manual may only be
done by Ropox designated service personnel.
6.1 Periodic maintenance
Once a year:
Adjust the bathtub to top position and check that:
1. All bolts on the top and bottom of the actuator are securely tightened.
2. All connections (water supply and drain) are in order and undamaged.
3. Mixer tap, shower hose and shower head are in order and undamaged.
4. The frame and cover plates are undamaged.
5. Press the DOWN button, adjust the bathtub to bottom position and check that the movement is
smooth and even. See that the hose connections follow the movement of the bathtub without getting
jammed.
6. Now press the UP button, adjust the bathtub to top position, and check that the movement is smooth
and even. See that the hose connections follow the movement of the bathtub without getting
jammed.
7. If a safety strip has been mounted. Press the DOWN button, let the bathtub move 2-5 cm downward,
and activate the safety strip with a light pressure. The bathtub should now stop the downward
movement, move 1-2 cm upward and stop. If the safety strip does not function, please contact
Ropox or Ropox representative.
6.2 Trouble shooting
Problem
Remedy
The bathtub does not move up
or down when the hand-control
switch is pressed
Check whether:
1. 230V has been connected and the outlet is working.
2. The motors are connected with the control unit.
3. The handset has been connected with the control unit .
4. The motors are overloaded (note: 2 min. ON, 18 min
OFF)
Control switch defective
Check whether:
1. The bathtub works with another control switch
When pressing the UP and
DOWN buttons you only hear
“clicks” from the control unit,
bathtub does not move
1. The plugs may not have been inserted correctly.
Dismount all cables from the control unit and insert them
again.
Resetting may be required.
The bathtub is not horizontal /
level
”Reset”
Press and hold UP ( ) and DOWN ( ) buttons. Keep the
buttons depressed until the control unit has beeped approx. ten
times. After that, the bathtub may be adjusted to the bottom
position for resetting.

17
TF 200.02.0012_eng
7. Environmental protection
The product is not intended to be disposed as municipal waste. Proper disassembly, sorting
and disposal of components must be done by waste disposal professionals.
Part
Disposal recommendation
Bathtub
Hard plastic
Frame
Steel waste
Bed guards
Steel waste
Cover
Aluminum
Controlbox
Electronics
Actuator
Electronics
Handheld control switch
Electronics

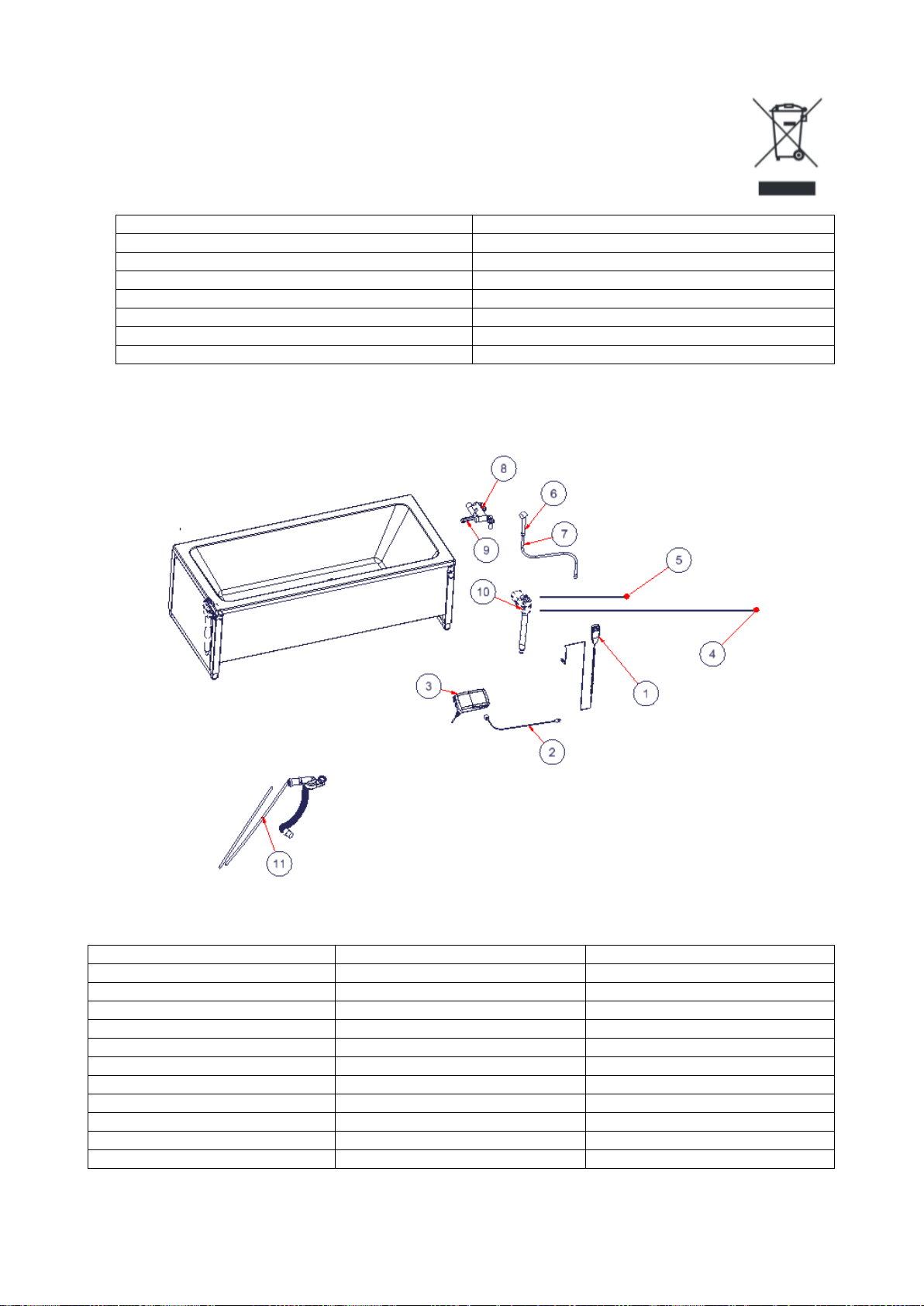

8. Spare parts
#
Name
Item number
1
Hand control
97001656
2
230V cable
97000858
3
Controlbox CO61
97001720
4
Motor cable L= 2500mm
97001739
5
Motor cable L=1000mm
97001740
6
Shower head, Alterna Primeo
97001623
7
Hose for hand shower 1,6m
97001371
8
Mixer tap Damixa for bathtub
97001318
9
Spout for mixer tap, Damixa
97001319
10
Actuator LA40
97001702
11
Plumbing kit bathtub
40-14359-1

18
TF 200.02.0012_eng
9. Accessories
A number of configuration options are available. Such options are generally ordered and delivered installed
on the product at first delivery.
Warning!
Only qualified personnel may perform aftermarket installation of accessories.
Caution!
Do not use accessories other than those specified for the product.
9.1 Safety stop
As an option, the bathtub can be ordered with safety stop strip for one or two sides. If the bathtub is placed in
a corner, a safety stop for one side will be sufficient. If the bathtub is freestanding, safety stop is
recommended on two sides.
Bathtub
160x70 cm
170x75 cm
180x80 cm
Safety stop for one side
40-14206
40-14207
40-14208
Safety stop for two sides
40-14216
40-14217
40-14218
Safety stop for extra front panel
40-14376
40-14377
40-14378
Safety stop for one side:
Warning!
Only qualified personnel may perform aftermarket installation of spare parts.
Caution!
Do not use spare parts other than those specified for the product.

19
TF 200.02.0012_eng
Safety stop for two sides:
Safety stop for extra front panel:

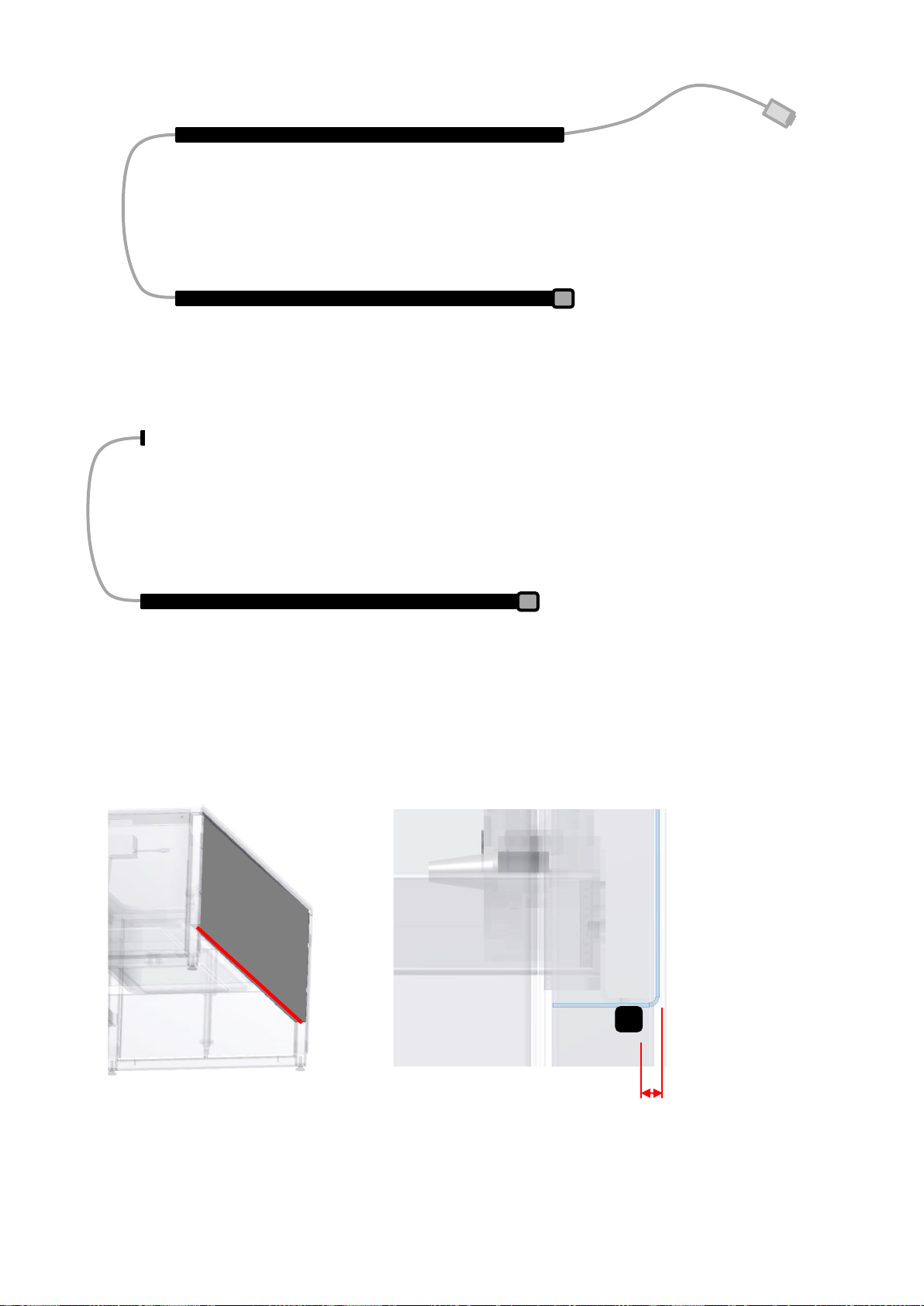

9.1.1 Mounting of safety stop
To ensure optimum safety, the safety stop strip should be located on the underside of the side coveras illustrated.
See page 14 for wire diagram.
4 mm from edge

20
TF 200.02.0012_eng
Warning!
Before using the product, check the function of the safety stop.
9.2 Front cover
If the bathtub is supplied with one side cover and one end cover, an extra end and front cover can be
ordered so that the bathtub is closed all the way around.
Bathtub
160x70 cm
170x75 cm
180x80 cm
Front cover
40-14196
40-14197
40-14198
End resistance
Additional safety stop strip
for two sides
Safety stop strip for one
side
