Rose electronics Orion XT OX2-CNV-01CC User manual

Orion
XT Cross Repeater
Modular CATx/Fiber Converter/Repeater
Installation
and
Operation Manual
10707 Stancliff Road
Houston,
Texas 77099
Phone: (281) 933-7673

LIMITED WARRANTY
Copyright Rose Electronics 2017. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and
recording, without the prior written permission of Rose Electronics.
manual-orion-cross-repeater-2017-01-20
Rose Electronics®warrants the Orion XT Cross Repeater to be in good working order for one year from the
date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working
order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the
Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced
parts become the property of Rose Electronics. This limited warranty does not include service to repair
damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including
static discharge and power surges.
Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose
Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,
you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the
warranty service location, and to use the original shipping container or its equivalent. You must call for a return
authorization number first. Under no circumstances will a unit be accepted without a return authorization
number. Contact an authorized repair center or Rose Electronics for further information.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A
PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS
OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE
REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE
ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST
SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR
THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER
PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH MAY VARY FROM STATE TO STATE.

DECLARATIONS OF CONFORMITY
This is to certify that, when installed and used according to the instructions in this manual, the Units listed
described here are shielded against the generation of radio interferences in accordance with the application of
Council Directives 2014/30/EU and 2014/30/EU, as well as these standards:
■EN 55022: 2010/AC:2011 (Class A)
■EN 55024:2010 + A1:2015
■EN 61000-3-2:2014
■EN 61000-3-3:2013
■EN 61000-6-2:2005
■EN 60950-1:2006/A2:2013
This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at their own expense.
The product safety of the devices is proven by their compliance with the following standards:
■IEC 60950-1A1:2010
■EN 60950-1/A12:2011/A1:2010/A11:2009
■UL 60950-1-2007
■CAN/CSA-C22.2 60950-1-07
The manufacturer complies with the EU Directive 2012/19/EU on the prevention of waste electrical and
electronic equipment (WEEE). The device labels carry a respective marking.
These devices comply with Directive 2011/65/EU of the European Parliament and of the council of 8 June
2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(RoHS 2, RoHS II). The device labels carry a respective marking.

TABLE OF CONTENTS
Contents
Disclaimer 1
System Introduction 1
Features 2
Package Contents 2
System Overview 3
Orion XT Models 4
Orion XT Plug-in Card 4
Orion XT Chassis 5
Installation 6
Configuration 6
Operation 6
Status LEDs 7
Safety 8
Maintenance and Repair 9
Technical Support 9
Figures
Figure 1. Cross-conversion of CATx and Fiber Signals Allow Extension to Great Distances 1
Figure 2. A Single CATx/CATx Repeater Doubles Extension Distance 3
Figure 3. Two CATx/Fiber Repeaters Allow Extension to Greater Distances 3
Figure 4. Dual CATx/Fiber Repeater Allows One Unit to Connect Two Sets of Extenders 3
Figure 5. Orion XT Cross Repeater models 4
Figure 6. Orion Xtender Chassis Models 5
Figure 7. LED locations 7
Figure 8. Status LEDs 7
Appendices
Appendix A —Specifications 10

INTRODUCTION
Orion XT Cross Repeater Manual 1
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer assumes no
responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting
from the use of the information contained herein. The manufacturer reserves the right to change the
specifications, functions, circuitry of the product, and manual content at any time without notice.
The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances
outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury
arising directly or indirectly from the use of this product (See limited warranty).
System Introduction
Thank you for choosing the Orion XT Cross Repeater. It is the result of Rose Electronics commitment to
providing state-of-the-art solutions for today’s demanding workplace. The Orion XT Cross Repeater is an
extender for increasing the transmission distance of Orion Xtender as well as Orion X and XC digital signals.
Some models also have the ability to convert between CATx electronic signals and fiber optical signals.
Both fiber and CATx ports are bi-directional, automatically configuring as inputs or outputs. High quality signal
processing and amplification eliminate signal degradation and transmission artifacts.
CATx to CATx repeaters extend digital signal transmission distances by 460ft (140m). Single-mode fiber to
fiber repeaters extend the transmission distance by 32,808ft (10,000m). Orion XT Cross Repeaters with both
fiber and CATx ports allow extension of CATx Orion X systems between floors in a building or between two
buildings, converting automatically between electrical and optical signals.

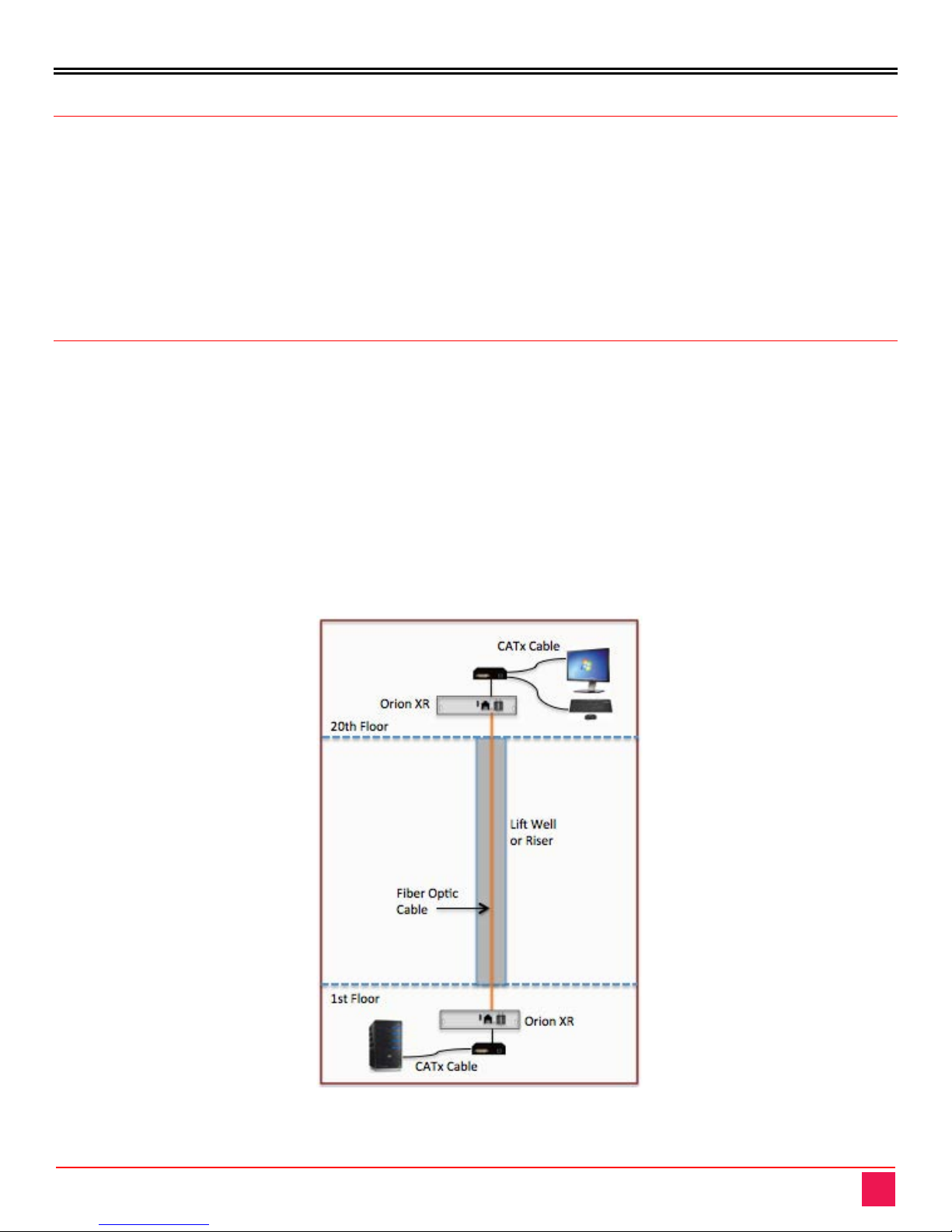

Figure 1. Cross-conversion of CATx and Fiber Signals Allow Extension to Great Distances

Orion XT Cross Repeater Manual 2
Features
■Extends Orion X signals by 460ft (140m) on either side of the unit over CATx cable
■Extends Orion X signals by 32,808ft (10,000m) on either side of the unit over single-mode fiber cable
■All ports are bidirectional and automatically configure as inputs or outputs
■Available in CATx-only, fiber-only and mixed CATx and fiber models
■Available in single repeater models for a single digital signal and dual repeater models to extend two digital
signals
■Mixed CATx and fiber models automatically convert between electrical and optical signals
■Compatible with all Orion Xtenders and Orion X and XC matrix Switches
■Each Cross Repeater card installs in an Orion Xtender chassis, available in 2, 4, 6, and 21 card sizes
■High quality signal processing and amplification eliminate signal degradation and transmission artifacts
■Single-mode fiber ports also accept multimode fiber cables with LC type fiber connectors
Package Contents
The package contents consist of the following:
■Orion XT Cross Receiver installed in the Orion Xtender chassis
■Power supply or cord (depending upon model)
■Manual

OVERVIEW
Orion XT Cross Repeater Manual 3
System Overview
An Orion XT Cross Repeater is used to increase the maximum cabling distance between the components of
Orion Xtender or Orion X or XC matrix systems. It is available as pure CATx or fiber repeater models, or as
combination CATx and fiber models (cross repeaters) for converting between electrical and optical signals.
Some of the possible applications for the Orion X Cross Repeater are shown below.
Figure 2. A Single CATx/CATx Repeater Doubles Extension Distance
Figure 3. Two CATx/Fiber Repeaters Allow Extension to Greater Distances
Figure 4. Dual CATx/Fiber Repeater Allows One Unit to Connect Two Sets of Extenders

MODELS
Orion XT Cross Repeater Manual 4
Orion XT Models
An Orion XT Cross Repeater consists of at least one Cross Repeater card in an Orion Xtender chassis.
Orion XT Plug-in Card
Cards are available in six models as shown below.
CATx: Single Port. CATx IN, CATx OUT
CATx: Dual Port. CATx IN, CATx OUT
Fiber: Single Port. Fiber IN, Fiber OUT
Fiber: Dual Port. Fiber IN, Fiber OUT
CATx / Fiber: Single Port. CATx or Fiber IN/OUT
CATx / Fiber: Dual Port. CATx or Fiber IN/OUT
Figure 5. Orion XT Cross Repeater models

Orion XT Cross Repeater Manual 5
Orion XT Chassis
Each card occupies 1 card slot in an Orion Xtender chassis, available in 2, 4, 6, and 21 card sizes, as shown
below.

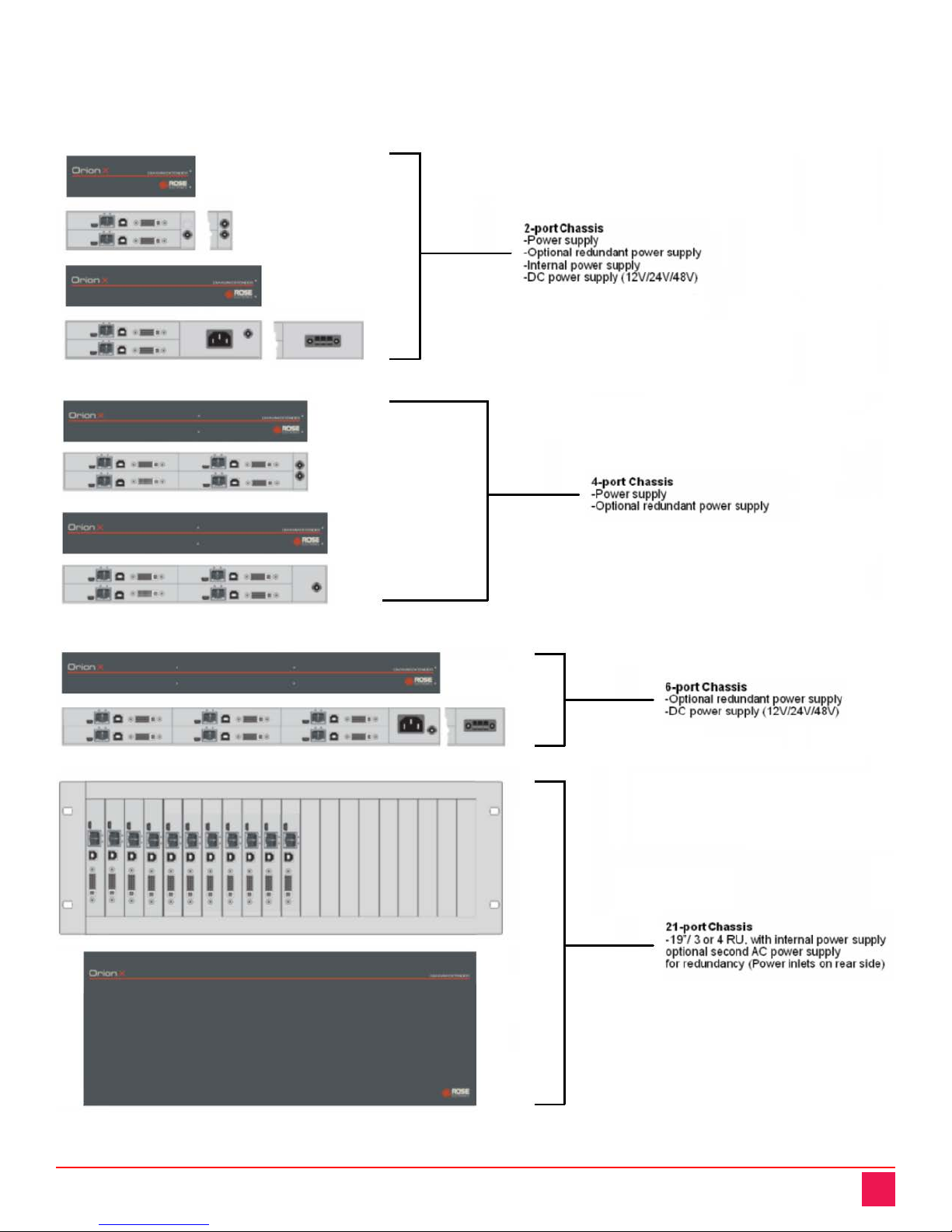

Figure 6. Orion Xtender Chassis Models

INSTALLATION AND OPERATION
Orion XT Cross Repeater Manual 6
Installation
Installation of the Orion XT Cross Repeater is very simple.
1. Ensure that power is disconnected from Orion XT Cross Receiver and all Orion X equipment.
2. Connect the appropriate interconnect (CATx or fiber) cables between the Orion XT and the input and
output Orion X equipment to be extended.
3. Connect the chassis to the power supply.
4. Apply power to the system.
Configuration
The Orion XT Cross Repeater does not require any configuration and is ready for use as received. The ports
are bi-directional and will function automatically as inputs or outputs, depending upon the signals connected to
them.
Operation
The Orion XT Cross Repeater does not have any adjustable operating modes and is ready for use as received.

Orion XT Cross Repeater Manual 7
Status LEDs
The Orion XT Cross Repeater modules are fitted with a multi-color LED for overall status indication and two
further LEDs above each connector for indication of the connection status.
Figure 7. LED locations
Figure 8. Status LEDs

PRODUCT SAFETY
Orion XT Cross Repeater Manual 8
Safety
The Orion XT Cross Repeater, like all electronic equipment, should be used with care. To protect yourself from
possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.
Follow all instructions and warnings marked on this Unit.
Except where explained in this manual, do not attempt to service this Unit yourself.
Do not use this Unit near water.
Assure that the placement of this Unit is on a stable surface.
Provide proper ventilation and air circulation.
Keep connection cables clear of obstructions that might cause damage to them.
Use only power cords, power adapter and connection cables designed for this Unit.
Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and
foreign objects might come in contact with voltage points that could create a risk of fire or electrical
shock.
Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source
before cleaning.
Remove power from the Unit and refer servicing to a qualified service center if any of the
following conditions occur:
The connection cables are damaged or frayed.
The Unit has been exposed to any liquids.
The Unit does not operate normally when all operating instructions have been followed.
The Unit has been dropped or the case has been damaged.
The Unit exhibits a distinct change in performance, indicating a need for service.

SERVICE AND MAINTENANCE
Orion XT Cross Repeater Manual 9
Maintenance and Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance,
you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center.
This Return Authorization number must appear on the outside of the shipping container.
See Limited Warranty for more information.
When returning a Unit, it should be double-packed in the original container or equivalent, insured and shipped
to:
Rose Electronics
Attn: RA __________
10707 Stancliff Road
Houston, Texas 77099 USA
Technical Support
If you are experiencing problems, or need assistance installing your Orion XT Cross Receiver, consult the
appropriate section of this manual. If, however, you require additional information or assistance, please
contact the Rose Electronics Technical Support Department at:
Phone: (281) 933-7673
E-mail: TechSupport@rose.com
Web: www.rose.com
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday.
Please report any malfunctions in the operation of this Unit or any discrepancies in this manual to the Rose
Electronics Technical Support Department.

APPENDICES
Orion XT Cross Repeater Manual 10
Appendix A —Specifications
Part Numbers Description
OX2-CNV-01CC CATx / CATx, single port, 2 card chassis
OX2-CNV-01SC CATx / Fiber, single port, 2 card chassis
OX2-CNV-01SS Fiber / Fiber, single port, 2 card chassis
OX2-CNV-02CC CATx / CATx, dual port, 2 card chassis
OX2-CNV-02SC CATx / Fiber, dual port, 2 card chassis
OX2-CNV-02SS Fiber / Fiber, dual port, 2 card chassis
Chassis Dimensions (W x D x H)
2 card 5.7” x 5.8” x 1.6” (145 x 147 x 41 mm)
4 card 11.5” x 5.8” x 1.6” (293 x 147 x 41 mm)
6 card 17.4” x 5.8” x 1.6” (442 x 147 x 41 mm)
Chassis Power Requirements
2 card 5 Volts / 3 Amps
4 card 5 Volts / 5 Amps
6 card 5 Volts / 8 Amps
Interconnect Cable Requirements
CATx RJ45
EIA/TIA 568-B
1000Base-T
Shielded solid core CATx5e/6/7, AWG 24
Cat X Patch Cable AWG 26/8
Use ferrites at both ends
Fiber SFP
Single-mode
Type LC
Single-mode 9µm, 2 fibers
Multi-mode 50µm, 2 fibers
Multi-mode 62.5µm, 2 fibers
Cable Distances
CATx 24 AWG 460 ft (140 m)
CATx 26/28 AWG 230 ft (70 m)
Fiber MM 62.5µm 656 ft (200 m)
Fiber MM 50µm 1312 ft (400 m)
Fiber MM 50µm OM3 3280 ft (1000 m)
Fiber SM 9µm 32,808 ft (10,000 m)
LED
Connection fail On = Connection failure
Connection status On = Connection available
Device status Red=device ready
Blue=Link 1 available, Link 2 not detected
Green=Link 2 available, Link 1 not detected
Light Blue= Link 1 and Link 2 available
Environmental
Operating Temp 41°F to 113°F (5°C to 45°C)
Storage Temp -13°F to 140°F (-25°C to 60°C)
Humidity 0% to 80% relative, non-condensing
Approvals CE, UL, CUL, FCC Class A, ROHS2, WEEE

WWW.ROSE.COM
▪
sales@rose.com
▪
(800) 333-9343
Rose Electronics
▪10707 Stancliff Road ▪Houston, Texas 77099
Rose USA (281) 933
-7673 ▪Rose Europe +49 (0) 2454 969442
Rose Asia +65 6324 2322
▪Rose Australia +61 (0) 421 247083
WWW.ROSE.COM
This manual suits for next models
5
Table of contents
