Ross SPG-8260 Series User manual

SPG-8260 Series
Sync Pulse Generators
User Manual

Thank You for Choosing Ross
You've made a great choice. We expect you will be very happy with your purchase of Ross Technology.
Our mission is to:
1. Provide a Superior Customer Experience
• offer the best product quality and support
2. Make Cool Practical Technology
• develop great products that customers love
Ross has become well known for the Ross Video Code of Ethics. It guides our interactions and
empowers our employees. I hope you enjoy reading it below.
If anything at all with your Ross experience does not live up to your expectations be sure to reach out to
us at [email protected].
David Ross
CEO, Ross Video
[email protected]
Ross Video Code of Ethics
Any company is the sum total of the people that make things happen. At Ross, our employees are a
special group. Our employees truly care about doing a great job and delivering a high quality customer
experience every day. This code of ethics hangs on the wall of all Ross Video locations to guide our
behavior:
1. We will always act in our customers’ best interest.
2. We will do our best to understand our customers’ requirements.
3. We will not ship crap.
4. We will be great to work with.
5. We will do something extra for our customers, as an apology, when something big goes wrong and
it's our fault.
6. We will keep our promises.
7. We will treat the competition with respect.
8. We will cooperate with and help other friendly companies.
9. We will go above and beyond in times of crisis. If there's no one to authorize the required action in
times of company or customer crisis - do what you know in your heart is right. (You may rent
helicopters if necessary.)

SPG-8260 · User Manual
• Ross Part Number: 8260DR-004-04
• Release Date: January 18, 2018.
The information contained in this Guide is subject to change without notice or obligation.
Copyright
©2018 Ross Video Limited, Ross®, and any related marks are trademarks or registered trademarks of Ross Video
Limited. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means, mechanical, photocopying, recording or otherwise, without the prior written permission of
Ross Video. While every precaution has been taken in the preparation of this document, Ross Video assumes no
responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
Patents
Patent numbers US 7,034,886; US 7,508,455; US 7,602,446; US 7,802,802 B2; US 7,834,886; US 7,914,332; US
8,307,284; US 8,407,374 B2; US 8,499,019 B2; US 8,519,949 B2; US 8,743,292 B2; GB 2,419,119 B; GB
2,447,380 B; and other patents pending.
Notice
The material in this manual is furnished for informational use only. It is subject to change without notice and should
not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability
for errors or inaccuracies that may appear in this manual.
Safety Notices
Refer to the “Important Regulatory and Safety Notices” document that accompanied your product.
Statement of Compliance
This product has been determined to be compliant with the applicable standards, regulations, and directives for the
countries where the product is marketed.
Compliance documentation, such as certification or Declaration of Compliance for the product is available upon
request by contacting [email protected]. Please include the product; model number identifiers and serial
number and country that compliance information is needed in request.
EMC Notices
US FCC Part 15
This equipment has been tested and found to comply with the limits for a class A Digital device, pursuant to part 15
of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a Commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Canada
This Class “A” digital apparatus complies with Canadian ICES-003 and part 15 of the FCC Rules.
Cet appareil numerique de la classe “A” est conforme a la norme NMB-003 du Canada.
European Union
This equipment is in compliance with the essential requirements and other relevant provisions established under
regulation (EC) No 765/2008 and Decision No 768/2008/EC referred to as the “New Legislative Framework”.
Australia/New Zealand
This equipment is in compliance with the provisions established under the Radiocommunications Act 1992 and
Radiocommunications Labeling (Electromagnetic Compatibility) Notice 2008.
Korea
This equipment is in compliance with the provisions established under the Radio Waves Act.
Class A equipment (Broadcasting and communications service for business use)
This device is a business-use (Class A) EMC-compliant device. The seller and user are advised to be aware of this
fact. This device is intended for use in areas outside home.
International
This equipment has been tested under the requirements of CISPR 22:2008 or CISPR 32:2015 and found to comply
with the limits for a Class A Digital device.
Maintenance/User Serviceable Parts
Routine maintenance to this openGear product is not required. This product contains no user serviceable parts. If
the module does not appear to be working properly, please contact Technical Support using the numbers listed
under the “Contact Us” section of this manual. All openGear products are covered by a generous 5-year warranty
Notice — Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could
void the user’s authority to operate this equipment.
Warning — This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
Notice — This is a Class A product. In domestic environments, this product may cause radio
interference, in which case the user may have to take adequate measures.
Type of Equipment User’s Guide
A
(߶הࡈ ؏ܞݦ࢕ࢢ)
Class A Equipment
(Industrial Broadcasting &
Communication Equipment)
ࢇ Е ߶הࡈ(A)ࢷ࢕ળࢶଢԻ۰ શ
֐࢕ ӖЕ یࡈ࢕Е ࢇ ࢺࡶ ࣯ࢂଜݤ ؂Ԃ
ֲ,ɼࢽ࠹ࢂ ࠇ߾۰ یࡈଜЕ ʨࡶ ּࢶࡳԻ
ଢТЬ.
This equipment is Industrial (Class A)
electromagnetic wave suitability equipment and
seller or user should take notice of it, and this
equipment is to be used in the places except for home.

and will be repaired without charge for materials or labor within this period. See the “Warranty and Repair
Policy” section in this manual for details.
Environmental Information
The equipment may contain hazardous substances that could impact health and the environment.
To avoid the potential release of those substances into the environment and to diminish the need for the extraction
of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse
or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health
conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems, please contact your local or regional
waste administration. You can also contact Ross Video for more information on the environmental performances of
our products.
Company Address
Ross Video Limited Ross Video Incorporated
8 John Street P.O. Box 880
Iroquois, Ontario, K0E 1K0 Ogdensburg, New York
Canada USA 13669-0880
General Business Office: (+1) 613 • 652 • 4886
Fax: (+1) 613 • 652 • 4425
Technical Support: (+1) 613 • 652 • 4886
After Hours Emergency: (+1) 613 • 349 • 0006
E-mail (Technical Support): [email protected]
E-mail (General Information): solu[email protected]
Website: http://www.rossvideo.com

SPG-8260 Series User Manual (Iss. 04) Contents • i
Contents
Introduction 1
Overview.............................................................................................................................. 1-2
Features.................................................................................................................. 1-2

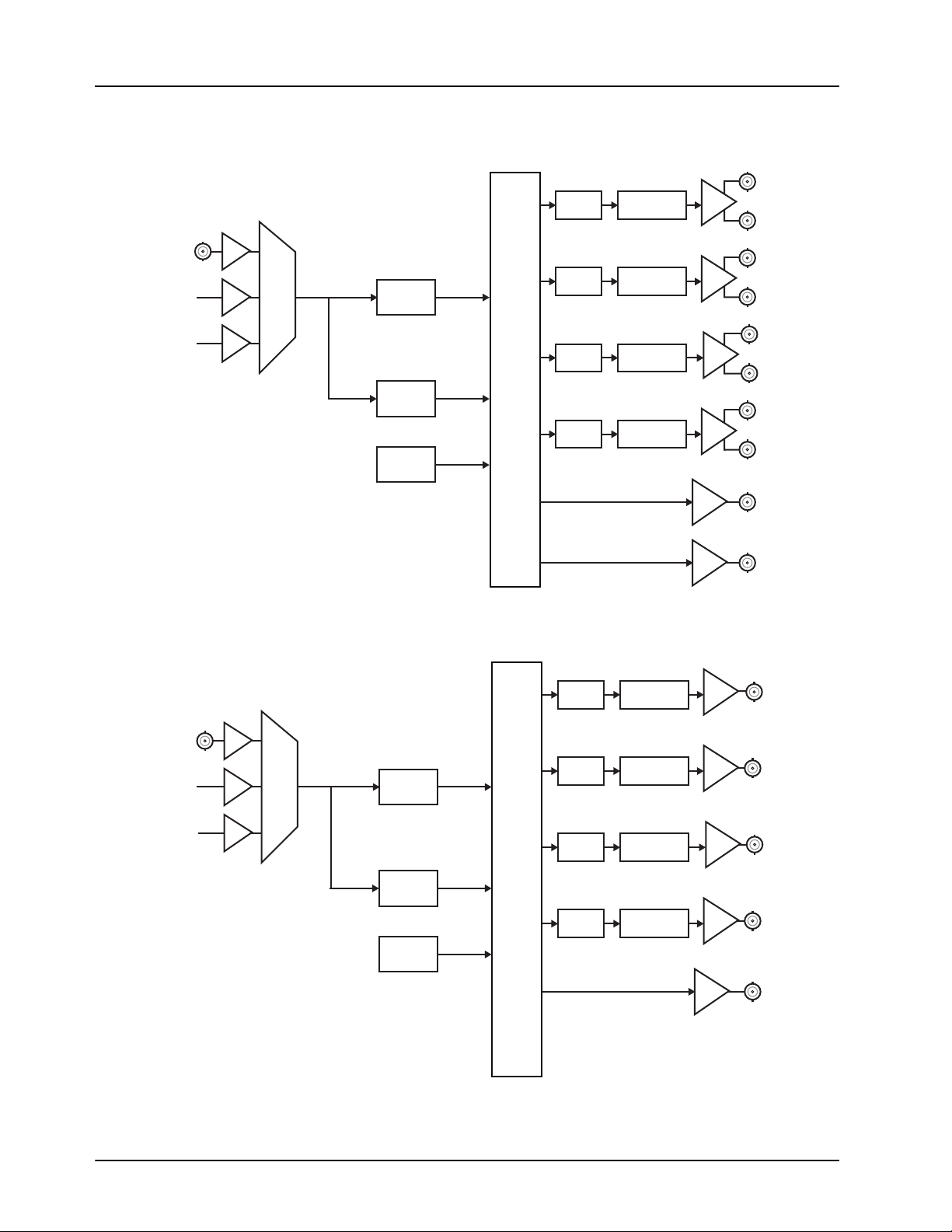

SPG-8260 Functional Block Diagrams................................................................................ 1-3
SPG-8260-W Functional Block Diagrams .......................................................................... 1-4
User Interfaces ..................................................................................................................... 1-5
DashBoard Control System ................................................................................... 1-5
Card-edge Control and Monitoring ....................................................................... 1-5
SNMP Monitoring and Control............................................................................. 1-5
Documentation Terms and Conventions.............................................................................. 1-6
Installation 2
Before You Begin ................................................................................................................ 2-2
Static Discharge..................................................................................................... 2-2
Unpacking.............................................................................................................. 2-2
Installing the SPG-8260 Series Cards.................................................................................. 2-3

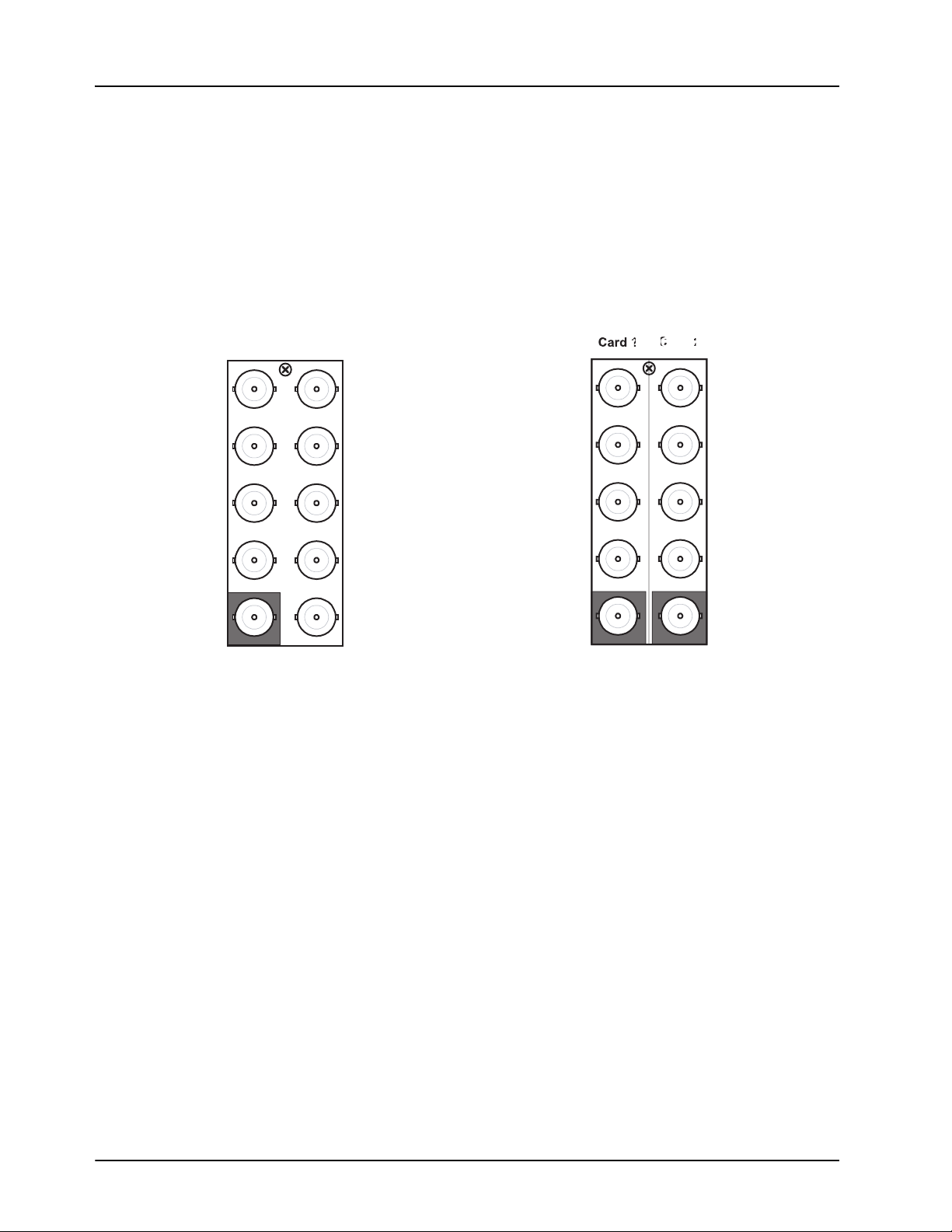

Supported Rear Modules for the SPG-8260.......................................................... 2-3
Supported Rear Modules for the SPG-8260-W..................................................... 2-3

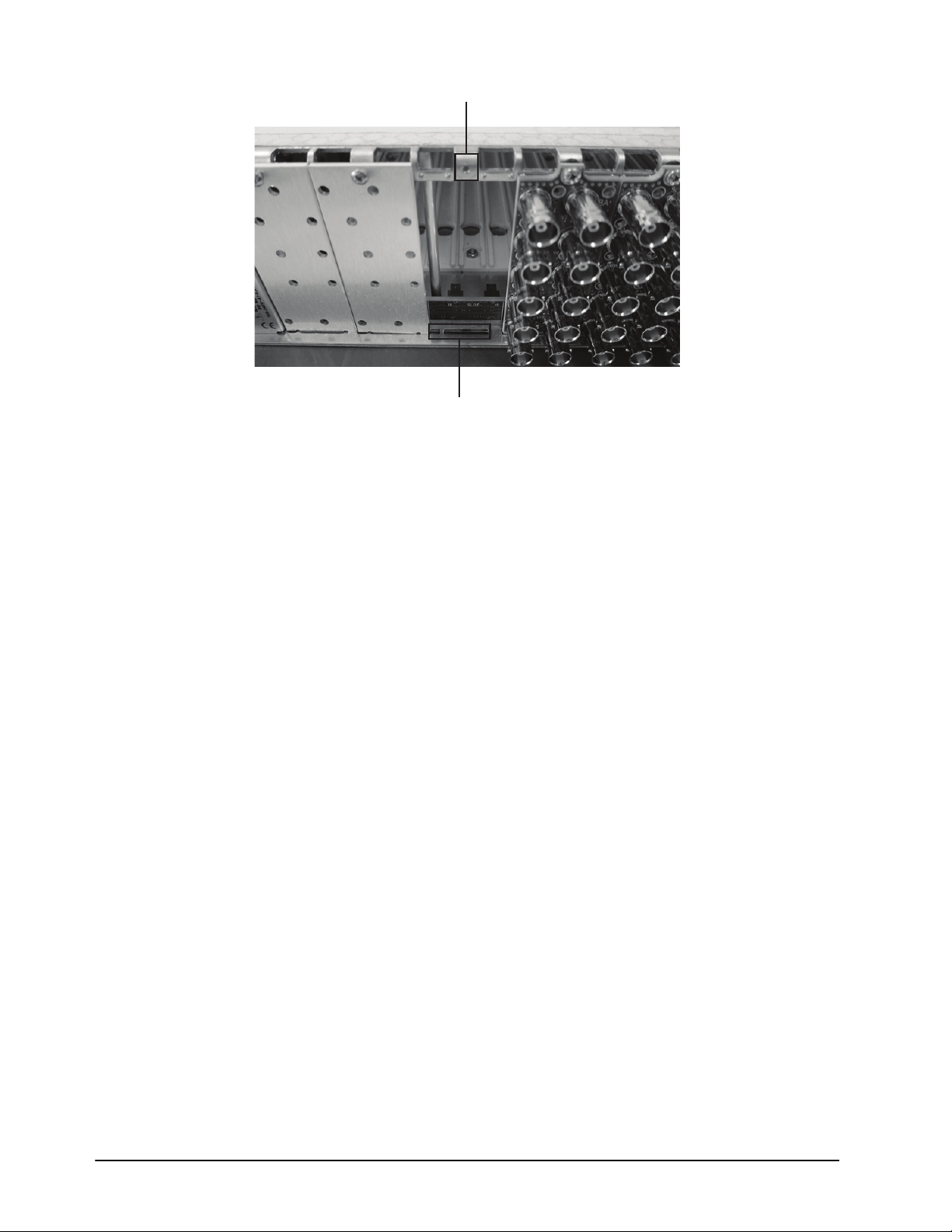

Installing a Rear Module ....................................................................................... 2-3
Installing the Card ................................................................................................. 2-4
Cabling for the SPG-8260.................................................................................................... 2-5
DFR-8310 Series Frame Cabling Overview.......................................................... 2-5
DFR-8321 and OG3-FR Series Frame Cabling Overview.................................... 2-5
Cabling for the SPG-8260-W .............................................................................................. 2-6
DFR-8310 Series Frame Cabling Overview.......................................................... 2-6
DFR-8321 and OG3-FR Series Frame Cabling Overview.................................... 2-6
Software Upgrades............................................................................................................... 2-7
User Controls 3
Card Overview..................................................................................................................... 3-2
Control and Monitoring Features......................................................................................... 3-3
Status and Selection LEDs on the Card Edge ....................................................... 3-3
Timing and Reference.......................................................................................................... 3-5
Frame Rate Compatibility ..................................................................................... 3-5
Reference Signals .................................................................................................. 3-6
Color Framing ....................................................................................................... 3-7
Output Notes ........................................................................................................................ 3-8
Alarms ................................................................................................................... 3-8
Free-run ................................................................................................................. 3-8
Using a Delay ........................................................................................................ 3-8
Audio Output Timing (SPG-8260 only)................................................................ 3-8
Word Clock Output Timing (SPG-8260-W only)................................................. 3-9
Using DashBoard............................................................................................................... 3-10

ii • Contents SPG-8260 Series User Manual (Iss. 04)
DashBoard Menus 4
Status Tabs ........................................................................................................................... 4-2
Signal Tab.............................................................................................................. 4-2
Hardware Tab ........................................................................................................ 4-2
Product Tab............................................................................................................ 4-3
Setup Tab ............................................................................................................................. 4-4
Alarm Tab ............................................................................................................................ 4-6
Card-edge Menus 5
Navigation ............................................................................................................................ 5-2
Card-edge Menus ................................................................................................................. 5-3
Menu Descriptions ............................................................................................................... 5-6
Specifications 6
Technical Specifications ...................................................................................................... 6-2
Channel Status Data ............................................................................................................. 6-4
Service Information 7
Troubleshooting Checklist ................................................................................................... 7-2
Bootload Button..................................................................................................... 7-2
Warranty and Repair Policy ................................................................................................. 7-3

SPG-8260 Series User Manual (Iss. 04) Introduction • 1–1
Introduction
In This Chapter
This chapter contains the following sections:
• Overview
• SPG-8260 Functional Block Diagrams
• SPG-8260-W Functional Block Diagrams
• User Interfaces
• Documentation Terms and Conventions
A Word of Thanks
Congratulations on choosing an openGear SPG-8260 series Sync Pulse Generator. Thank you for
joining the group of worldwide satisfied Ross Video customers!
Should you have a question pertaining to the installation or operation of your card, please contact
us at the numbers listed on the back cover of this manual. Our technical support staff is always
available for consultation, training, or service.

1–2 • Introduction SPG-8260 Series User Manual (Iss. 04)
Overview
The SPG-8260 series generates four pairs of outputs with each pair independently programmed to
be either a tri-level sync or a composite signal. Each pair of outputs can be independently delayed
relative to the selected incoming reference or to each other when using an internal reference. The
delay is in increments of the output’s interface sampling frequency (74.25MHz, 74.25/1.001MHz
or 13.5MHz) up to one frame of video.
The each card is able to lock to one of the two frame references or the external reference input on
the rear module.
Features
The following features make the SPG-8260 series the ideal Sync Pulse Generator:
• AES interfaces conform to SMPTE 276M, and AES-3id-2001
• HD interfaces conform to SMPTE 274M and SMPTE 296M
• SD interfaces conform to SMPTE-170M (NTSC) and PAL-B standards
• Generates four pairs of outputs
• Each pair of outputs can be independently timed (delayed) relative to the incoming
reference
• Composite outputs can be black or SMPTE color bars
• Tri-level sync output format is selectable from the following formats:
› 1080i 60/59.94/50 Hz
› 720p 60/59.94/50/30/29.97/25/24/23.98 Hz
› 1080p 30/29.97/25/24/23.98 Hz
› 1080pSF 24/23.98 Hz
•SPG-8260 only: Generates an AES Reference signal or a Word Clock output (non-TTL)
•SPG-8260 only: Tone option for AES outputs
•SPG-8260-W only: Generates a Word Clock output (TTL compatible)
• Reports status and configuration remotely via DashBoard
• Fits openGear frames
• 5-year transferable warranty

SPG-8260 Series User Manual (Iss. 04) Introduction • 1–3
SPG-8260 Functional Block Diagrams
Figure 1.1 outlines the workflow of the SPG-8260 when using the 8310AR-030 or 8320AR-030
rear modules.
Figure 1.1 SPG-8260 with a 8320AR-030 Rear Module — Simplified Block Diagram
Figure 1.2 outlines the workflow of the SPG-8260 when using the 8320AR-031 rear module.
Figure 1.2 SPG-8260 with a 8320AR-031 Rear Module — Simplified Block Diagram
Sync Pulse Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Out 1A
(BNC 1)
Out 1B
(BNC 2)
Out 2A
(BNC 3)
Out 2B
(BNC 4)
Out 3A
(BNC 5)
Out 3B
(BNC 6)
Out 4A
(BNC 7)
Out 4B
(BNC 8)
AES/Word Clock
Out (BNC 9)**
AES/Word Clock
Out (BNC 10)
Sync
Separator
Internal
Sync
Frame
Reference 1
Frame
Reference 2
MUX
External Reference
(BNC 9)**
AES
Receiver
** The function of BNC 9
depends on how JP2 is set.
AES/Word Clock
Out (BNC 9 or 10)**
** The function of BNC 9 or 10
depends on how JP2 is set.
Sync Pulse Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Out 1
Out 2
Out 3
Out 4
Sync
Separator
Internal
Sync
AES
Receiver
Frame
Reference 1
Frame
Reference 2
External Reference
(BNC 9 or 10)**
MUX

1–4 • Introduction SPG-8260 Series User Manual (Iss. 04)
SPG-8260-W Functional Block Diagrams
Figure 1.3 outlines the workflow of the SPG-8260-W when using the 8320AR-030 rear module.
Figure 1.3 SPG-8260-W with a 8320AR-030 Rear Module — Simplified Block Diagram
Figure 1.4 outlines the workflow of the SPG-8260-W when using the 8320AR-031 rear module.
Figure 1.4 SPG-8260-W with a 8320AR-031 Rear Module — Simplified Block Diagram
Sync Pulse Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Out 1A
(BNC 1)
Out 1B
(BNC 2)
Out 2A
(BNC 3)
Out 2B
(BNC 4)
Out 3A
(BNC 5)
Out 3B
(BNC 6)
Out 4A
(BNC 7)
Out 4B
(BNC 8)
Word Clock Out
(BNC 9)**
Word Clock Out
(BNC 10)
Sync
Separator
Internal
Sync
Frame
Reference 1
Frame
Reference 2
MUX
External Reference
(BNC 9)**
AES
Receiver
** The function of BNC 9
depends on how JP2 is set.
Sync Pulse Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Timing
Adjustment
Black Burst/
Tri-level Generator
Out 1
Out 2
Out 3
Out 4
Reference In /
Word Clock
Out
Sync
Separator
Internal
Sync
AES
Receiver
Frame
Reference 1
Frame
Reference 2
External Reference
(BNC 9 or 10)**
MUX
** The function of BNC 9 or 10
depends on how JP2 is set.
