Ross Gear Lite FDR-9647-ST User manual

FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST
User Guide

Thank You for Choosing Ross
You've made a great choice. We expect you will be very happy with your purchase of Ross Technology.
Our mission is to:
1. Provide a Superior Customer Experience
• offer the best product quality and support
2. Make Cool Practical Technology
• develop great products that customers love
Ross has become well known for the Ross Video Code of Ethics. It guides our interactions and
empowers our employees. I hope you enjoy reading it below.
If anything at all with your Ross experience does not live up to your expectations be sure to reach out to
us at [email protected].
David Ross
CEO, Ross Video
[email protected]
Ross Video Code of Ethics
Any company is the sum total of the people that make things happen. At Ross, our employees are a
special group. Our employees truly care about doing a great job and delivering a high quality customer
experience every day. This code of ethics hangs on the wall of all Ross Video locations to guide our
behavior:
1. We will always act in our customers’ best interest.
2. We will do our best to understand our customers’ requirements.
3. We will not ship crap.
4. We will be great to work with.
5. We will do something extra for our customers, as an apology, when something big goes wrong and
it's our fault.
6. We will keep our promises.
7. We will treat the competition with respect.
8. We will cooperate with and help other friendly companies.
9. We will go above and beyond in times of crisis. If there's no one to authorize the required action in
times of company or customer crisis - do what you know in your heart is right. (You may rent
helicopters if necessary.)

FDR-9647-ST, FDT-9648-ST, FDB-9649-ST ·
User Guide
• Ross Part Number: 9647STDR-004-03
• Release Date: June 12, 2018.
The information contained in this manual is subject to change without notice or obligation.
Copyright
©2018 Ross Video Limited, Ross®, and any related marks are trademarks or registered trademarks of Ross Video Limited. All other
trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved. No part of this
publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying,
recording or otherwise, without the prior written permission of Ross Video. While every precaution has been taken in the preparation
of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting
from the use of the information contained herein.
Patents
Patent numbers US 7,034,886; US 7,508,455; US 7,602,446; US 7,802,802 B2; US 7,834,886; US 7,914,332; US 8,307,284; US
8,407,374 B2; US 8,499,019 B2; US 8,519,949 B2; US 8,743,292 B2; GB 2,419,119 B; GB 2,447,380 B; and other patents pending.
Notice
The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed
as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may
appear in this manual.
Safety Notices
Refer to the “Important Regulatory and Safety Notices” document that accompanied your product.
Statement of Compliance
This product has been determined to be compliant with the applicable standards, regulations, and directives for the countries where
the product is marketed.
Compliance documentation, such as certification or Declaration of Compliance for the product is available upon request by
contacting [e-mail]. Please include the product; model number identifiers and serial number and country that
compliance information is needed in request.
EMC Notices
United States of America - FCC Part 15
This equipment has been tested and found to comply with the limits for a class A Digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
Commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
Canada
This Class A device complies with Canadian ICES-003 and part 15 of the FCC Rules.
Cet appariel numerique de la classe “A” est conforme a la norme NMB-003 du Canada.
Notice — Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the
user’s authority to operate this equipment.

European Union
This equipment is in compliance with the essential requirements and other relevant provisions established under regulation (EC) No
765/2008 and Decision No 768/2008/EC referred to as the “New Legislative Framework”.
Australia/New Zealand
This equipment is in compliance with the provisions established under the Radiocommunications Act 1992 and
Radiocommunications Labelling (Electromagnetic Compatibility) Notice 2008.
Korea
This equipment is in compliance with the provisions established under the Radio Waves Act.
International
This equipment has been tested under the requirements of CISPR 22:2008 or CISPR 32:2015 and found to comply with the limits for
a Class A Digital device.
Maintenance/User Serviceable Parts
Routine maintenance to this GearLite product is not required. This product contains no user serviceable parts. If the module does not
appear to be working properly, please contact Technical Support using the numbers listed in the section “Contacting Technical
Support” on page 8. All GearLite products are covered by a generous 3-year warranty and will be repaired without charge for
materials or labor within this period. See the section “Warranty and Repair” on page 19 for details.
Environmental Information
The equipment may contain hazardous substances that could impact health and the environment.
To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural
resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the
materials from your end-of-life equipment in an environmentally friendly and health conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste
administration. You can also contact Ross Video for more information on the environmental performances of our products.
Warning — This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
Notice — This is a Class A product. In domestic environments, this product may cause radio interference, in which
case the user may have to take adequate measures.

Company Address
Ross Video Limited
8 John Street
Iroquois, Ontario
Canada, K0E 1K0
Ross Video Incorporated
P.O. Box 880
Ogdensburg, New York
USA 13669-0880
General Business Office: (+1) 613  652  4886
Fax: (+1) 613  652  4425
Technical Support: (+1) 613  652  4886
After Hours Emergency: (+1) 613  349  0006
E-mail (Technical Support): [email protected]
E-mail (General Information): [email protected]
Website: http://www.rossvideo.com

FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0) Introduction • 7
Introduction
This guide covers the installation, configuration, and use of the FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST.
The following chapters are included:
•“Introduction” summarizes the guide and provides important terms, and conventions.
•“Before You Begin” provides an overview of the features of the FDR-9647-ST, FDT-9648-ST, and
FDB-9649-ST.
•“FDR-9647-ST” provides an overview of the FDR-9647-ST hardware components and features.
•“FDT-9648-ST” presents information on the FDT-9648-ST hardware components and features.
•“FDB-9649-ST” presents information on the FDB-9649-ST hardware components and features.
•“Physical Installation” provides instructions for the basic physical installation of a module into your system.
•“Warranty and Repair” provides information on the warranty and repair policy for your FDR-9647-ST,
FDT-9648-ST, and FDB-9649-ST.
•“Technical Specifications”provides the technical specifications for your FDR-9647-ST, FDT-9648-ST, and
FDB-9649-ST.
Documentation Conventions
Special text formats are used in this guide to identify parts of the user interface, text that a user must enter, or a
sequence of menus and sub-menus that must be followed to reach a particular command.
Interface Elements
Bold text is used to identify a user interface element such as a dialog box, menu item, or button. For example:
In the Edit dialog, click Apply.
User Entered Text
Courier text is used to identify text that a user must enter. For example:
In the Language box, enter English.
Referenced Guides
Italic text is used to identify the titles of referenced guides, manuals, or documents. For example:
For more information, refer to the DAC-9516 User Manual.
Menu Sequences
Menu arrows are used in procedures to identify a sequence of menu items that you must follow. For example, if a
step reads “File > Save As,” you would select the File menu and then select Save As.
Important Instructions
Star icons are used to identify important instructions or features. For example:
Contact your IT department before connecting to your facility network to ensure that there are no conflicts. They
will provide you with an appropriate value for the IP Address, Subnet Mask, and Gateway for your module.

8 • Introduction FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)
Contacting Technical Support
At Ross Video, we take pride in the quality of our products, but if problems occur, help is as close as the nearest
telephone.
Our 24-hour Hot Line service ensures you have access to technical expertise around the clock. After-sales service
and technical support is provided directly by Ross Video personnel. During business hours (Eastern Time),
technical support personnel are available by telephone. After hours and on weekends, a direct emergency technical
support phone line is available. If the technical support person who is on call does not answer this line immediately,
a voice message can be left and the call will be returned shortly. This team of highly trained staff is available to
react to any problem and to do whatever is necessary to ensure customer satisfaction.
•Technical Support: ([phone]
•After Hours Emergency: ([phone]
•E-mail: [email protected]
•Website: http://www.rossvideo.com

FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0) Before You Begin • 9
Before You Begin
If you have questions pertaining to the operation of your GearLite module, contact us at the numbers listed in the
section “Contacting Technical Support” on page 8. Our technical staff is always available for consultation,
training, or service.
Overview
The Dual Channel Fiber Receivers/Transmitters are high-quality signal conversion solutions within the family of
GearLite compact, self-contained modular products.
A universal power adapter and line cord, suitable for the country of use, is supplied with each module. Various
mounting options are included that enable a wide range of installation choices.
There are four connections on each module, the designation of each is dependent on the module you are using.
Features
Each module includes the following standard features:
• Supports major SDI formats up to 1080p 60Hz
• Supports DVB-ASI (EN 50083-9)
• Supports single-mode fiber
• Re-clocking on all outputs at 270Mbps, 1.483Gbps, 1.485Gbps, 2.967Gbps, and 2.970Gbps
• Input status indicator LEDs
• Small brick form factor
• 5V universal adapter with locking DC connector
• 3-year warranty
FDR-9647-ST Features
In addition to the standard features, the FDR-9647-ST also includes:
• Two BNC jacks for SDI outputs
• Two LC/UPC PIN connectors for fiber optic inputs
FDT-9648-ST Features
In addition to the standard features, the FDT-9648-ST also includes:
• Two BNC jacks for SDI inputs
• Two LC/UPC PIN connectors for fiber optic outputs
FDB-9649-ST Features
In addition to the standard features, the FDB-9649-ST also includes:
• One BNC jack for an SDI input
• One BNC jack for an SDI output
• One LC/UPC PIN connector for fiber optic input
• One LC/UPC PIN connector for fiber optic output

10 • Before You Begin FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)

FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0) FDR-9647-ST • 11
FDR-9647-ST
This chapter presents information on the FDR-9647-ST hardware components and features.
Overview
The FDR-9647-ST is a fiber optic receiver to SDI converter capable of receiving all common serial digital signals.
Each channel is fully independent and can run at different data rates.
The FDR-9647-ST provides the ability to receive digital video baseband signals over a fiber optic link on an ST
connector. SDI outputs are re-clocked providing excellent jitter specifications.
Figure 3.1 Simplified Block Diagram of FDR-9647-ST Functions
Faceplate Overview
The chassis faceplate provides a silk-screen map of the connections available. Figure 3.2 illustrates the
FDR-9647-ST faceplate label.
Figure 3.2 FDR-9647-ST — Faceplate Label
POWER Connection
The FDR-9647-ST includes a standard miniature power jack (center pin positive) that connects to the PS-9000
power supply. (Figure 3.3)
Figure 3.3 FDR-9647-ST (Right Side) — PWR Connection
RECLOCKER
OPTICAL
TO
ELECTRICAL
CONVERTER
3G/HD/SD
SDI OPTO IN 2 BUFFER DRIVER 3G/HD/SD
SDI OUT 2
RECLOCKER
OPTICAL
TO
ELECTRICAL
CONVERTER
3G/HD/SD
SDI OPTO IN 1 BUFFER DRIVER 3G/HD/SD
SDI OUT 1
INPUT
SDI OUT 1
SDI OUT 2
FDR-9647-ST
3G/HD/SD
DUAL CHANNEL
FIBER RECEIVER
PWR LOCK
OPTO 1 OPTO 2
IN 1
IN 2
Bottom Top
POWER Connection

12 • FDR-9647-ST FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)
Fiber Optic Inputs

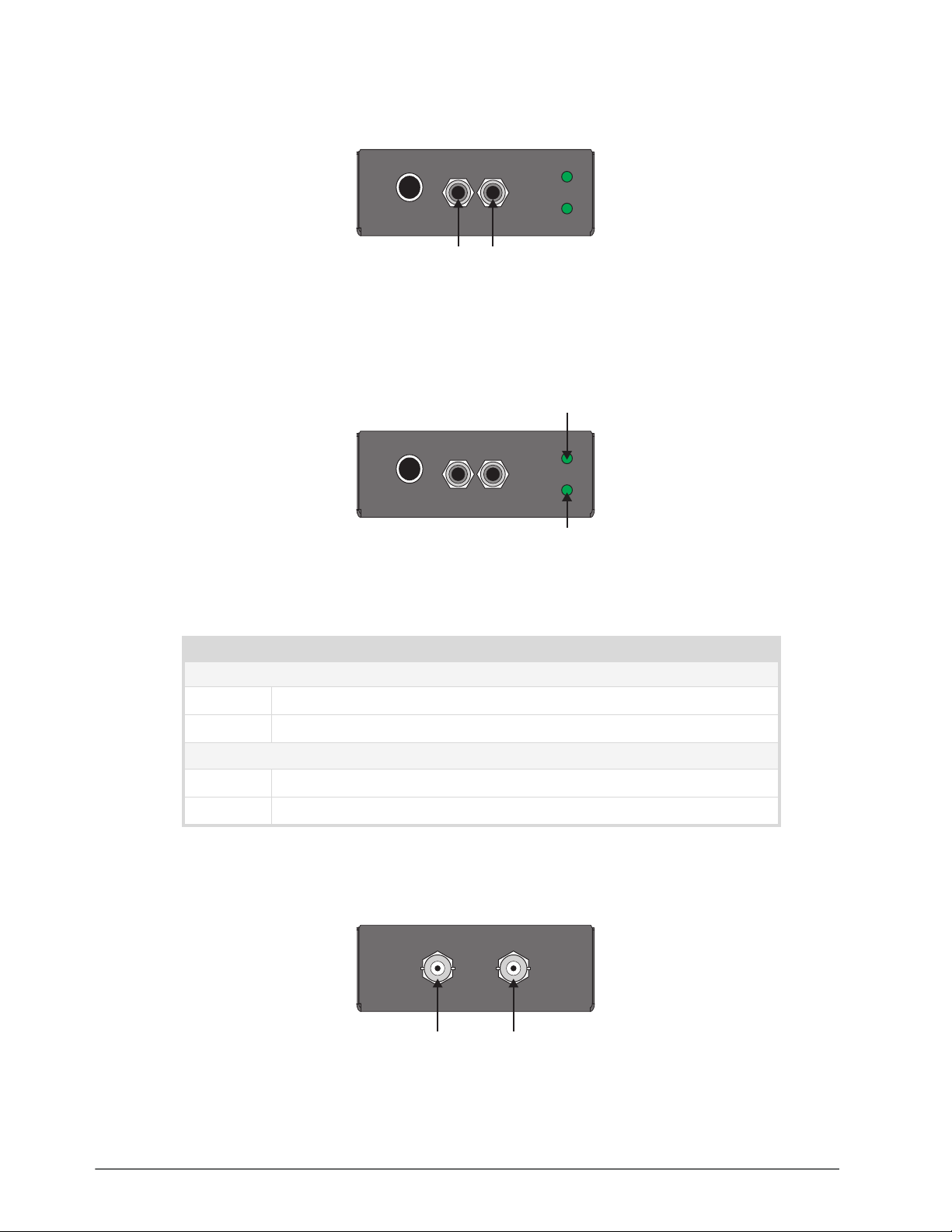

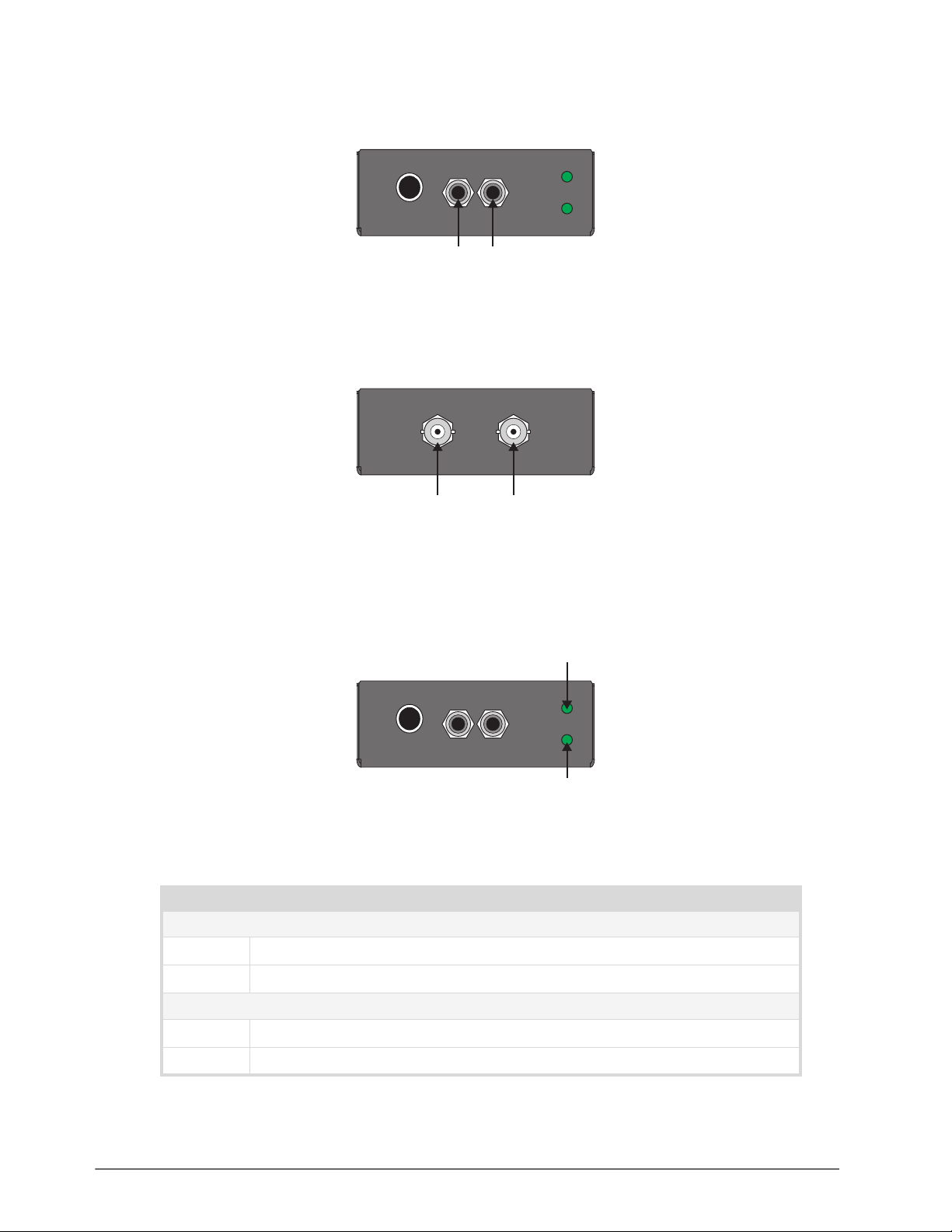

The FDR-9647-ST provides two fiber optic inputs. (Figure 3.4)
Figure 3.4 FDR-9647-ST (Right) — Fiber Optic Inputs
OPTO Status LEDs
The FDR-9647-ST includes two LEDs that display the status of the fiber optic input signal activity. These LEDs are
located near the fiber optic connectors. (Figure 3.5)
Figure 3.5 FDR-9647-ST (Right) — Fiber Optic Status LEDs
Table 3.1 describes the behavior of the OPTO 1 and OPTO 2 LEDs.
SDI Connections
The FDR-9647-ST provides two BNCs for the SDI outputs. (Figure 3.6)
Figure 3.6 FDR-9647-ST (Left) — SDI Connections
Table 3.1 OPTO 1 and OPTO 2 LEDs
Status Description
OPTO 1
Green When lit green, this LED indicates a valid video signal on the OPTO IN 1 port
Red When lit red, this LED indicates an invalid video signal on the OPTO IN 1 port
OPTO 2
Green When lit green, this LED indicates a valid video signal on the OPTO IN 2 port
Red When lit red, this LED indicates an invalid video signal on the OPTO IN 2 port
Bottom Top
OPTO IN 1OPTO IN 2
Bottom Top
OPTO 2 STATUS
OPTO 1 STATUS
Bottom Top
SDI OUT 2 SDI OUT 1

FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0) FDT-9648-ST • 13
FDT-9648-ST
This chapter presents information on the FDT-9648-ST hardware components and features.
Overview
The FDT-9648-ST is an SDI to fiber optic converter capable of equalizing and re-clocking all common serial digital
signals. Each channel of the module equalizes the incoming SDI signal, and re-clocks the signal with automatic rate
detection for all popular data rates.
The FDT-9648-ST provides the ability to digital video baseband signals over a fiber optic link on a ST connector.
SDI inputs are re-clocked, providing excellent jitter specifications.
Figure 4.1 Simplified Block Diagram of FDT-9648-ST Functions
Faceplate Overview
The chassis faceplate provides a silk-screen map of the connections available. Figure 4.2 illustrates the
FDT-9648-ST faceplate label.
Figure 4.2 FDT-9648-ST — Faceplate Label
POWER Connection
Each module has a standard miniature power jack (center pin positive) that connects to the PS-9000 power supply.
This PWR jack is in the same location on each module regardless of the module type. (Figure 4.3)
Figure 4.3 FDT-9648-ST (Right Side) — PWR Connection
3G/HD/SD
SDI IN 1
RECLOCKER
EQUALIZER BUFFER
ELECTRICAL
TO
OPTICAL
CONVERTER
RECLOCKER
EQUALIZER BUFFER
ELECTRICAL
TO
OPTICAL
CONVERTER
3G/HD/SD
SDI IN 2
3G/HD/SD
SDI OPTO OUT 1
3G/HD/SD
SDI OPTO OUT 2
INPUT
SDI IN 1
SDI IN 2
FDT-9648-ST
3G/HD/SD
DUAL CHANNEL
FIBER TRANSMITTER
PWR LOCK
SDI 1 SDI 2
OUT 1
OUT 2
Bottom Top
POWER Connection

14 • FDT-9648-ST FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)
Fiber Optic Outputs
The FDT-9648-ST provides two fiber optic outputs. (Figure 4.4)
Figure 4.4 FDT-9648-ST (Right) — Fiber Optic Outputs
SDI Connections
The provides two BNCs for two SDI inputs. (Figure 4.5)
Figure 4.5 FDT-9648-ST (Left) — SDI Connections
SDI Status LEDs
The FDT-9648-ST includes two LEDs that display the status of the SDI input signal activity. These LEDs are
located near the fiber optic connectors. (Figure 4.6)
Figure 4.6 FDT-9648-ST (Right) — SDI Input Status LEDs
Table 4.1 describes the behavior of the SDI IN 1 and SDI IN 2 LEDs.
Table 4.1 SDI IN 1 and SDI IN 2 LEDs
Status Description
SDI IN 1
Green When lit green, this LED indicates there is a valid SDI signal on the SDI IN 1 BNC.
Red When lit red, this LED indicates there is an invalid SDI signal on the SDI IN 1 BNC.
SDI IN 2
Green When lit green, this LED indicates there is a valid SDI signal on the SDI IN 2 BNC.
Red When lit red, this LED indicates there is an invalid SDI signal on the SDI IN 2 BNC.
Bottom Top
OPTO OUT 1OPTO OUT 2
Bottom Top
SDI IN 2 SDI IN 1
Bottom Top
SDI IN 2 STATUS
SDI IN 1 STATUS

FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0) FDB-9649-ST • 15
FDB-9649-ST
This chapter presents information on the FDB-9649-ST hardware components and features.
Overview
The FDB-9649-ST provides one fiber optic receiver to SDI converter capable of equalizing all common serial
digital signals and one SDI to fiber optic converter capable of equalizing and re-clocking all common serial digital
signals.
Figure 5.1 Simplified Block Diagram of FDB-9649-ST Functions
Faceplate Overview
The chassis faceplate provides a silk-screen map of the connections available. Figure 5.2 illustrates the
FDB-9649-ST faceplate label.
Figure 5.2 FDB-9649-ST — Faceplate Label
POWER Connection
The FDB-9649-ST has a standard miniature power jack (center pin positive) that connects to the PS-9000 power
supply. This PWR jack is in the same location on each module regardless of the module type. (Figure 5.3)
Figure 5.3 FDB-9649-ST (Right Side) — PWR Connection
RECLOCKER
OPTICAL
TO
ELECTRICAL
CONVERTER
BUFFER
3G/HD/SD
SDI OPTO IN
3G/HD/SD
SDI OUT
RECLOCKER
EQUALIZER
ELECTRICAL
TO
OPTICAL
CONVERTER
BUFFER
DRIVER
3G/HD/SD
SDI OPTO OUT
3G/HD/SD
SDI IN
INPUT
SDI IN
SDI OUT
FDT-9648-ST
3G/HD/SD
DUAL CHANNEL
FIBER TRANSCEIVER
PWR LOCK
OPTO
SDI
IN
OUT
Bottom Top
POWER Connection

16 • FDB-9649-ST FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)
SDI Connections
The FDB-9649-ST provides one BNC for the SDI input and one BNC for the SDI output. (Figure 5.4)
Figure 5.4 FDB-9649-ST (Right) — SDI Connections
Fiber Optic Connections
The FDB-9649-ST provides one fiber optic input and one fiber optic output. (Figure 5.4)
Figure 5.5 FDB-9649-ST (Bottom) — Fiber Optic Connections
Input Status LEDs
The FDB-9649-ST includes two LEDs that display the status of the SDI input signal activity and the status of the
OPTO input signal activity. These LEDs are located near the fiber optic connectors. (Figure 5.6)
Figure 5.6 FDB-9649-ST (Right) — OPTO Status LEDs
Table 5.1 describes the behavior of the OPTO and SDI LEDs.
Table 5.1 SDI IN 1 and SDI IN 2 LEDs
Status Description
OPTO
Green When lit green, this LED indicates there is a valid video signal on the OPTO IN port.
Red When lit red, this LED indicates there is an invalid fiber optic input signal.
SDI
Green When lit green, this LED indicates there is a valid SDI input signal on the SDI IN
BNC.
Red When lit red, this LED indicates there is an invalid SDI input signal.
Bottom Top
SDI OUT SDI IN
Bottom Top
OPTO INOPTO OUT
Bottom Top
SDI IN STATUS
OPTO IN STATUS

FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0) Physical Installation • 17
Physical Installation
If you have questions pertaining to the installation of FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST, please
contact us at the numbers listed in the section “Contacting Technical Support” on page 8. Our technical staff is
always available for consultation, training, or service.
For More Information on...
• the technical specifications for each module, refer to the chapter “Technical Specifications” on page 21.
Static Discharge
Throughout this chapter, please heed the following cautionary note:
Mounting and Installation
The module can be mounted in any convenient location. However, to ensure long life for this product, observe the
following precautions and operating requirements:
• Maintain an ambient temperature of 20° to 40°C (68°F – 104°F).
• Allow for air circulation around the chassis for convectional cooling.
Many different mounting positions are possible with the included mounting hardware. Some installation options are
permanent and require careful consideration of the final positioning before installation.
In some mounting locations, the power adapter must be affixed in a similar manner as the chassis.
Other possible options include the use of adhesive magnetic sheets (not included) affixed to the chassis and the
power adapter, for removable mounting on metal cabinets etc.
Cable ties may be necessary in some applications to relieve strain on the mounting hardware and the connectors.
Surface Mount Strips
The included VELCRO® brand surface mount strips allow the GearLite module and power supply to be affixed to
a permanent location during use and easily removed for adjustments. Carefully consider the installation location
before proceeding; the adhesive is very aggressive and is not easily removed. The adhesive will cure fully in 24
hours.
To install the Surface Mount Strips
1. Remove the Protective Backing Film from the adhesive on the bottom of the two VELCRO® brand Surface
Mount Strips.
A third VELCRO® brand Surface Mount Strip is available to mount the power adapter.
2. Adhere the Surface Mount Strips to the bottom side of the chassis Figure 6.1.
ESD Susceptibility — Static discharge can cause serious damage to sensitive semiconductor
devices. Avoid handling circuit boards in high static environments such as carpeted areas and when
synthetic fiber clothing is worn. Always exercise proper grounding precautions when working on circuit
boards and related equipment.

18 • Physical Installation FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)
Figure 6.1 Surface Mount Installation Option
3. Remove the Protective Backing Film from the other side of the VELCRO® brand Surface Mount Strips.
4. Press the chassis into position on the surface you want to mount it to.
Non-Slip Pads
Four non-slip adhesive pads have been supplied for desktop placements. Simply remove the protective backing film
from the adhesive and affix one non-slip pad to each of the four corners on the bottom of the chassis.
SURFACE MOUNT
STRIPS
PROTECTIVE
BACKING FILM
SERIAL NUMBER
LABEL

FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0) Warranty and Repair • 19
Warranty and Repair
The FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST is warranted to be free of any defect with respect to
performance, quality, reliability, and workmanship for a period of THREE (3) years from the date of delivery to the
customer. In the event that your RossGear FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST proves to be defective
in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of
equipment with a unit of equal or superior performance characteristics.
Should you find that this FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST has failed after your warranty period has
expired, we will repair your defective product should suitable replacement components be available. You, the
owner, will bear any labor and/or part costs incurred in the repair or refurbishment of said equipment beyond the
THREE (3) year warranty period.
In no event shall Ross Video Limited be liable for direct, indirect, special, incidental, or consequential damages
(including loss of profits) incurred by the use of this product. Implied warranties are expressly limited to the
duration of this warranty.
This FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Manual provides all pertinent information for the safe
installation and operation of your RossGear Product. Ross Video policy dictates that all repairs to the
FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST are to be conducted only by an authorized Ross Video Limited
factory representative. Therefore, any unauthorized attempt to repair this product, by anyone other than an
authorized Ross Video Limited factory representative, will automatically void the warranty. Please contact Ross
Video Technical Support for more information.
In Case of Problems
Should any problem arise with your FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST, please contact the Ross
Video Technical Support Department. (Contact information is supplied at the end of this publication.)
A Return Material Authorization number (RMA) will be issued to you, as well as specific shipping instructions,
should you wish our factory to repair your FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST. If required, a
temporary replacement module will be made available at a nominal charge. Any shipping costs incurred will be the
responsibility of you, the customer. All products shipped to you from Ross Video Limited will be shipped collect.
The Ross Video Technical Support Department will continue to provide advice on any product manufactured by
Ross Video Limited, beyond the warranty period without charge, for the life of the equipment.

20 • Warranty and Repair FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)
